Openwrt移植LTE模块

1．  增加具体设备驱动

文档位置：/drivers/usb/serial/option.c 注意：是target开头目录下的文件

在文件中添加如下内容：

static conststruct usb_device_id option_ids[] = {

{USB_DEVICE(0x19d2, 0x0536) },

...

}

0x19d2 和 0x0536 是模块设备的VID 和 PID

可以插入到linux系统上lsusb可以查看其VID和PID的值。

3．编译内核

驱动添加需要配置系统

Linux系统内核，配置方法如下：make menuconfig

Kernel modules—->

 USB support --->

Kernel modules —> USB Support —> <*>kmod-usb-acm.

Kernel modules —> USB Support —> <*>kmod-usb-core.

Kernel modules —> USB Support —> <*>kmod-usb-net.

Kernel modules —> USB Support —> <*>kmod-usb-net-asix.

Kernel modules —> USB Support —> <*>kmod-usb-net-cdc-eem.

Kernel modules —> USB Support —> <*>kmod-usb-net-cdc-ether.

Kernel modules —> USB Support —> <*>kmod-usb-net-cdc-mbin

Kernel modules —> USB Support —> <*>kmod-usb-net-cdc-ncm

Kernel modules —> USB Support —> <*>kmod-usb-net-cdc-subset

Kernel modules —> USB Support —> <*>kmod-usb-net-dm9601-ether.

Kernel modules —> USB Support —> <*>kmod-usb-net-hso.

Kernel modules —> USB Support —> <*>kmod-usb-net-ipheth.

Kernel modules —> USB Support —> <*>kmod-usb-net-kalmia.

Kernel modules —> USB Support —> <*>kmod-usb-net-kaweth.

Kernel modules —> USB Support —> <*>kmod-usb-net-mcs7830.

Kernel modules —> USB Support —> <*>kmod-usb-net-pegasus.

Kernel modules —> USB Support —> <*>kmod-usb-net-qmi-wwan.

Kernel modules —> USB Support —> <*>kmod-usb-net-sierrawireless.

Kernel modules —> USB Support —> <*>kmod-usb-ohci.

Kernel modules —> USB Support —> <*>kmod-usb-serial.

Kernel modules —> USB Support —> <*> kmod-usb-serial-ark3316.

Kernel modules —> USB Support —> <*>kmod-usb-serial-ch341.

Kernel modules —> USB Support —> <*>kmod-usb-serial-belkin.

Kernel modules —> USB Support —> <*>kmod-usb-serial-cp210x.

Kernel modules —> USB Support —> <*>kmod-usb-serial-cypress-m8.

Kernel modules —> USB Support —> <*>kmod-usb-serial-ftdi.

Kernel modules —> USB Support —> <*>kmod-usb-serial-ipw.

Kernel modules —> USB Support —> <*>kmod-usb-serial-keyspan.

Kernel modules —> USB Support —> <*>kmod-usb-serial-mct.

Kernel modules —> USB Support —> <*>kmod-usb-serial-mos7720.

Kernel modules —> USB Support —> <*>kmod-usb-serial-motorola-phone.

Kernel modules —> USB Support —> <*>kmod-usb-serial-oti6858.

Kernel modules —> USB Support —> <*>kmod-usb-serial-option.

Kernel modules —> USB Support —> <*>kmod-usb-serial-p12303.

Kernel modules —> USB Support —> <*>kmod-usb-serial-qualcomm.

Kernel modules —> USB Support —> <*>kmod-usb-serial-sierrawireless.

Kernel modules —> USB Support —> <*>kmod-usb-serial-ti-usb.

Kernel modules —> USB Support —> <*>kmod-usb-serial-visor.

Kernel modules —> USB Support —> <*>kmod-usb-serial-wwan.

Kernel modules —> USB Support —> <*>kmod-usb-storage.

Kernel modules —> USB Support —> <*>kmod-usb-storage-extras.

Kernel modules —> USB Support —> <*>kmod-usb-serial-uhci.

Kernel modules —> USB Support —> <*> kmod-usb-wdm

Kernel modules —> USB Support —> <*>kmod-usb2.

Kernel modules —> USB Support —> <*>kmod-usb2-pci

Kernel modules —> USB Support —> <*> kmod-usb3.

这些可以多选，例如我就选了很多，可能我有的没有选全，根据需求自己选择需要的。

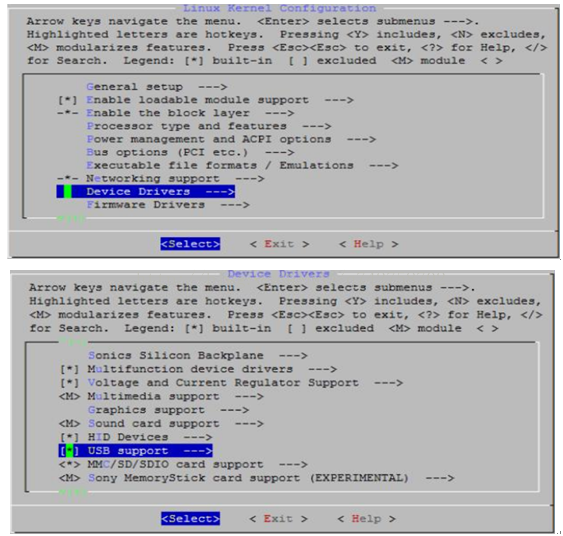

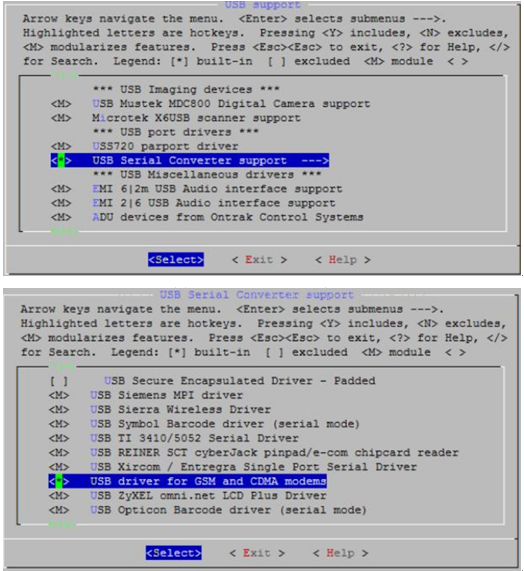

然后还需要进入内核编译配置：makekernel_menuconfig进入配置界面

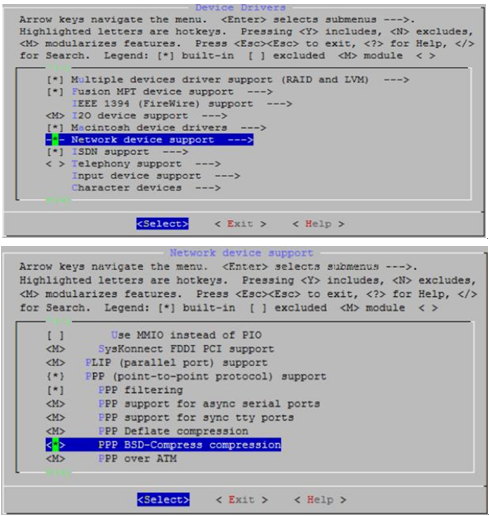

然后设置ppp拨号的配置项：

注意上面选不出*号的话选M就行了

执行make V=s

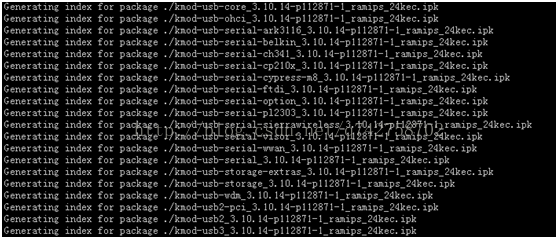

编译成功截图：

如果想在源码中一键编译实现该功能，首先在源码dl目录下解压linux-3.10.14-p112871.tar.xz

然后重复上诉修改option.c，然后重新打包后，同时修改.config文件，这样就可以实现一键编译了。
