概述

3G模块设备和Android系统主要通过USB接口进行数据通信。Android系统上的Linux内核需要根据3G模块设备上报的USB设备接口加载USB

驱动，USB驱动正确加载后，3G模块才能正常工作。下面以添加华为模块设备识别为例：

一、修改 .../kernel/drivers/usb/serial/option.c文件

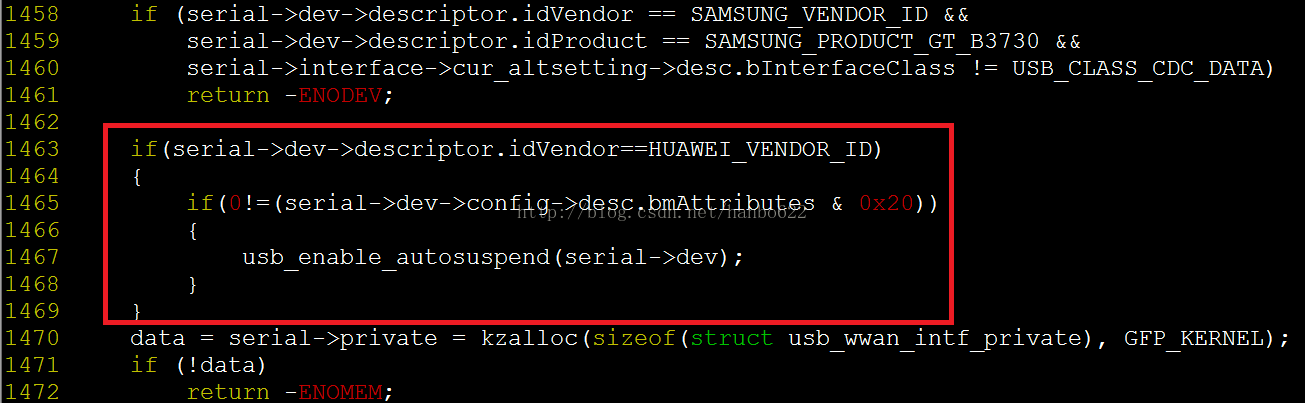

1、在option_probe（）函数内添加红色框部分语句，可以支持 selective suspend 特性。

先在开始定义宏：#define HUAWEI_VENDOR_ID 0x12d1

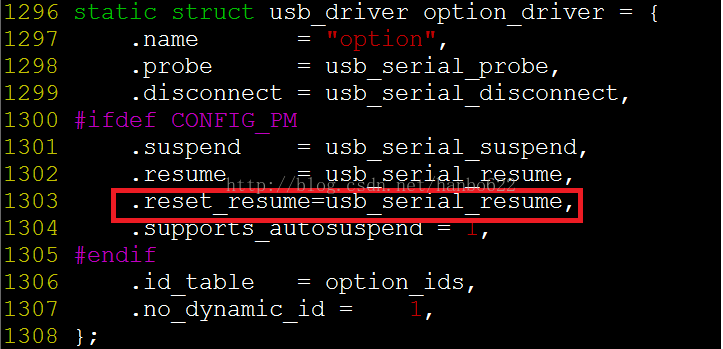

2、在 option_driver（）函数中添加红色框部分语句，增加对reset_resume函数的调用。

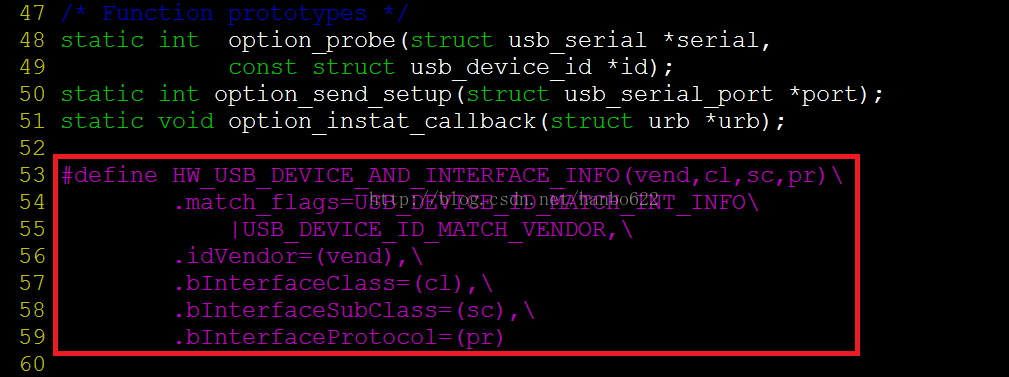

3、增加对新PID的支持，添加红色框部分语句。

4、在static const struct usb_device_id option_ids[ ] 增加华为所有的模块 ID，语句如下：

	{ HW_USB_DEVICE_AND_INTERFACE_INFO(HUAWEI_VENDOR_ID, 0xff, 0xff, 0xff) },
	{ HW_USB_DEVICE_AND_INTERFACE_INFO(HUAWEI_VENDOR_ID, 0xff, 0x01, 0x01) },
	{ HW_USB_DEVICE_AND_INTERFACE_INFO(HUAWEI_VENDOR_ID, 0xff, 0x01, 0x02) },
	{ HW_USB_DEVICE_AND_INTERFACE_INFO(HUAWEI_VENDOR_ID, 0xff, 0x01, 0x03) },
	{ HW_USB_DEVICE_AND_INTERFACE_INFO(HUAWEI_VENDOR_ID, 0xff, 0x01, 0x04) },
	{ HW_USB_DEVICE_AND_INTERFACE_INFO(HUAWEI_VENDOR_ID, 0xff, 0x01, 0x05) },
	{ HW_USB_DEVICE_AND_INTERFACE_INFO(HUAWEI_VENDOR_ID, 0xff, 0x01, 0x06) },
	{ HW_USB_DEVICE_AND_INTERFACE_INFO(HUAWEI_VENDOR_ID, 0xff, 0x01, 0x0A) },
	{ HW_USB_DEVICE_AND_INTERFACE_INFO(HUAWEI_VENDOR_ID, 0xff, 0x01, 0x0B) },
	{ HW_USB_DEVICE_AND_INTERFACE_INFO(HUAWEI_VENDOR_ID, 0xff, 0x01, 0x0C) },
	{ HW_USB_DEVICE_AND_INTERFACE_INFO(HUAWEI_VENDOR_ID, 0xff, 0x01, 0x0D) },
	{ HW_USB_DEVICE_AND_INTERFACE_INFO(HUAWEI_VENDOR_ID, 0xff, 0x01, 0x0E) },
	{ HW_USB_DEVICE_AND_INTERFACE_INFO(HUAWEI_VENDOR_ID, 0xff, 0x01, 0x0F) },
	{ HW_USB_DEVICE_AND_INTERFACE_INFO(HUAWEI_VENDOR_ID, 0xff, 0x01, 0x10) },
	{ HW_USB_DEVICE_AND_INTERFACE_INFO(HUAWEI_VENDOR_ID, 0xff, 0x01, 0x12) },
	{ HW_USB_DEVICE_AND_INTERFACE_INFO(HUAWEI_VENDOR_ID, 0xff, 0x01, 0x13) },
	{ HW_USB_DEVICE_AND_INTERFACE_INFO(HUAWEI_VENDOR_ID, 0xff, 0x01, 0x14) },
	{ HW_USB_DEVICE_AND_INTERFACE_INFO(HUAWEI_VENDOR_ID, 0xff, 0x01, 0x15) },
	{ HW_USB_DEVICE_AND_INTERFACE_INFO(HUAWEI_VENDOR_ID, 0xff, 0x01, 0x16) },
	{ HW_USB_DEVICE_AND_INTERFACE_INFO(HUAWEI_VENDOR_ID, 0xff, 0x01, 0x31) },
	{ HW_USB_DEVICE_AND_INTERFACE_INFO(HUAWEI_VENDOR_ID, 0xff, 0x01, 0x32) },
	{ HW_USB_DEVICE_AND_INTERFACE_INFO(HUAWEI_VENDOR_ID, 0xff, 0x01, 0x33) },
	{ HW_USB_DEVICE_AND_INTERFACE_INFO(HUAWEI_VENDOR_ID, 0xff, 0x01, 0x34) },
	{ HW_USB_DEVICE_AND_INTERFACE_INFO(HUAWEI_VENDOR_ID, 0xff, 0x01, 0x35) },
	{ HW_USB_DEVICE_AND_INTERFACE_INFO(HUAWEI_VENDOR_ID, 0xff, 0x01, 0x36) },
	{ HW_USB_DEVICE_AND_INTERFACE_INFO(HUAWEI_VENDOR_ID, 0xff, 0x01, 0x3A) },
	{ HW_USB_DEVICE_AND_INTERFACE_INFO(HUAWEI_VENDOR_ID, 0xff, 0x01, 0x3B) },
	{ HW_USB_DEVICE_AND_INTERFACE_INFO(HUAWEI_VENDOR_ID, 0xff, 0x01, 0x3C) },
	{ HW_USB_DEVICE_AND_INTERFACE_INFO(HUAWEI_VENDOR_ID, 0xff, 0x01, 0x3D) },
	{ HW_USB_DEVICE_AND_INTERFACE_INFO(HUAWEI_VENDOR_ID, 0xff, 0x01, 0x3E) },
	{ HW_USB_DEVICE_AND_INTERFACE_INFO(HUAWEI_VENDOR_ID, 0xff, 0x01, 0x3F) },
	{ HW_USB_DEVICE_AND_INTERFACE_INFO(HUAWEI_VENDOR_ID, 0xff, 0x01, 0x46) },
	{ HW_USB_DEVICE_AND_INTERFACE_INFO(HUAWEI_VENDOR_ID, 0xff, 0x02, 0x01) },
	{ HW_USB_DEVICE_AND_INTERFACE_INFO(HUAWEI_VENDOR_ID, 0xff, 0x02, 0x02) },
	{ HW_USB_DEVICE_AND_INTERFACE_INFO(HUAWEI_VENDOR_ID, 0xff, 0x02, 0x03) },
	{ HW_USB_DEVICE_AND_INTERFACE_INFO(HUAWEI_VENDOR_ID, 0xff, 0x02, 0x04) },
	{ HW_USB_DEVICE_AND_INTERFACE_INFO(HUAWEI_VENDOR_ID, 0xff, 0x02, 0x05) },
	{ HW_USB_DEVICE_AND_INTERFACE_INFO(HUAWEI_VENDOR_ID, 0xff, 0x02, 0x06) },
	{ HW_USB_DEVICE_AND_INTERFACE_INFO(HUAWEI_VENDOR_ID, 0xff, 0x02, 0x0A) },
	{ HW_USB_DEVICE_AND_INTERFACE_INFO(HUAWEI_VENDOR_ID, 0xff, 0x02, 0x0B) },
	{ HW_USB_DEVICE_AND_INTERFACE_INFO(HUAWEI_VENDOR_ID, 0xff, 0x02, 0x0C) },
	{ HW_USB_DEVICE_AND_INTERFACE_INFO(HUAWEI_VENDOR_ID, 0xff, 0x02, 0x0D) },
	{ HW_USB_DEVICE_AND_INTERFACE_INFO(HUAWEI_VENDOR_ID, 0xff, 0x02, 0x0E) },
	{ HW_USB_DEVICE_AND_INTERFACE_INFO(HUAWEI_VENDOR_ID, 0xff, 0x02, 0x0F) },
	{ HW_USB_DEVICE_AND_INTERFACE_INFO(HUAWEI_VENDOR_ID, 0xff, 0x02, 0x10) },
	{ HW_USB_DEVICE_AND_INTERFACE_INFO(HUAWEI_VENDOR_ID, 0xff, 0x02, 0x12) },
	{ HW_USB_DEVICE_AND_INTERFACE_INFO(HUAWEI_VENDOR_ID, 0xff, 0x02, 0x13) },
	{ HW_USB_DEVICE_AND_INTERFACE_INFO(HUAWEI_VENDOR_ID, 0xff, 0x02, 0x14) },
	{ HW_USB_DEVICE_AND_INTERFACE_INFO(HUAWEI_VENDOR_ID, 0xff, 0x02, 0x15) },
	{ HW_USB_DEVICE_AND_INTERFACE_INFO(HUAWEI_VENDOR_ID, 0xff, 0x02, 0x16) },
	{ HW_USB_DEVICE_AND_INTERFACE_INFO(HUAWEI_VENDOR_ID, 0xff, 0x02, 0x31) },
	{ HW_USB_DEVICE_AND_INTERFACE_INFO(HUAWEI_VENDOR_ID, 0xff, 0x02, 0x32) },
	{ HW_USB_DEVICE_AND_INTERFACE_INFO(HUAWEI_VENDOR_ID, 0xff, 0x02, 0x33) },
	{ HW_USB_DEVICE_AND_INTERFACE_INFO(HUAWEI_VENDOR_ID, 0xff, 0x02, 0x34) },
	{ HW_USB_DEVICE_AND_INTERFACE_INFO(HUAWEI_VENDOR_ID, 0xff, 0x02, 0x35) },
	{ HW_USB_DEVICE_AND_INTERFACE_INFO(HUAWEI_VENDOR_ID, 0xff, 0x02, 0x36) },
	{ HW_USB_DEVICE_AND_INTERFACE_INFO(HUAWEI_VENDOR_ID, 0xff, 0x02, 0x3A) },
	{ HW_USB_DEVICE_AND_INTERFACE_INFO(HUAWEI_VENDOR_ID, 0xff, 0x02, 0x3B) },
	{ HW_USB_DEVICE_AND_INTERFACE_INFO(HUAWEI_VENDOR_ID, 0xff, 0x02, 0x3C) },
	{ HW_USB_DEVICE_AND_INTERFACE_INFO(HUAWEI_VENDOR_ID, 0xff, 0x02, 0x3D) },
	{ HW_USB_DEVICE_AND_INTERFACE_INFO(HUAWEI_VENDOR_ID, 0xff, 0x02, 0x3E) },
	{ HW_USB_DEVICE_AND_INTERFACE_INFO(HUAWEI_VENDOR_ID, 0xff, 0x02, 0x3F) },
	{ HW_USB_DEVICE_AND_INTERFACE_INFO(HUAWEI_VENDOR_ID, 0xff, 0x02, 0x46) },

二、修改 .../kernel/drivers/usb/serial/usb_wwan.c文件

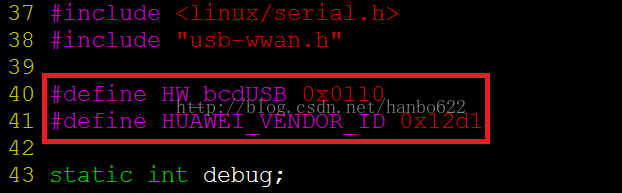

1、添加对BCDUSB值和对华为vid值的定义，红色框部分语句：
