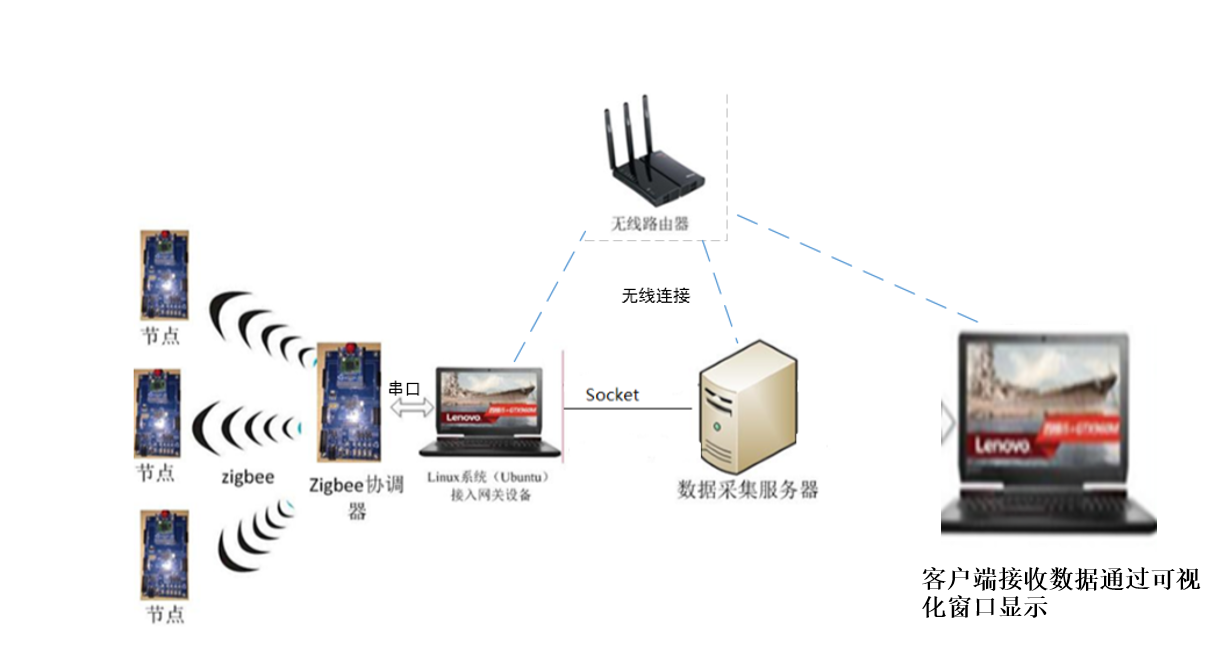

基于ZigBee的物联网环境数据采集系统

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

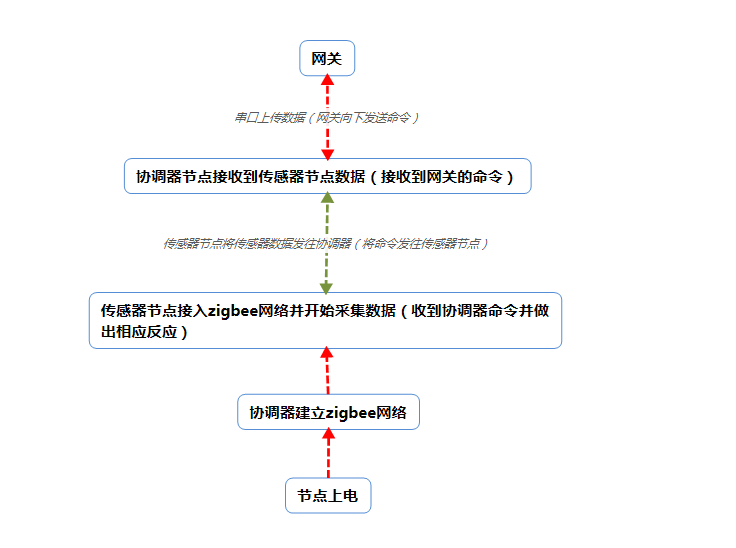

 if ( event & MY_REPORT_EVT )      // MY_REPORT_EVT事件触发处理
  {
    if ( appState == APP_REPORT )
    {
      pData[PACKET_FLAG_OFFSET] = PACKET_L_FLAG;
      pData[PACKET_FLAG_OFFSET + 1] = PACKET_H_FLAG;
      pData[PACKET_SENSOR_SHORT_ADDR_OFFSET] = (NLME_GetShortAddr() & 0xff);
      pData[PACKET_SENSOR_SHORT_ADDR_OFFSET + 1] = (NLME_GetShortAddr() >> 8);
#if PACKET_SENSOR_TYPE == PACKET_DHT11
    dht11_update();
    pData[PACKET_SENSOR_TYPE_OFFSET] = PACKET_DHT11;
    pData[PACKET_SENSOR_DATA_OFFSET] = dht11_temp();
    pData[PACKET_SENSOR_DATA_OFFSET + 1] = dht11_humidity();
#elif PACKET_SENSOR_TYPE == PACKET_PHOTORESUSTANCE
    pData[PACKET_SENSOR_TYPE_OFFSET] = PACKET_PHOTORESUSTANCE;
    pData[PACKET_SENSOR_DATA_OFFSET] = HalAdcRead (HAL_ADC_CHN_AIN1,HAL_ADC_RESOLUTION_8);
#else
    pData[PACKET_SENSOR_TYPE_OFFSET] = PACKET_COMBUSTIBLEGAS;
    pData[PACKET_SENSOR_DATA_OFFSET] = HalAdcRead (HAL_ADC_CHN_AIN1,HAL_ADC_RESOLUTION_8);

1
2
3
4
5
6
7
8
#if PACKET_SENSOR_TYPE == PACKET_DHT11
      zb_SendDataRequest( 0xFFFE, SENSOR_REPORT_CMD_ID, PACKET_BASE_SIZE + PACKET_DHT11_DATA_SIZE, pData, 0, AF_TX_OPTIONS_NONE, 0 );
#elif PACKET_SENSOR_TYPE == PACKET_PHOTORESUSTANCE
      zb_SendDataRequest( 0xFFFE, SENSOR_REPORT_CMD_ID, PACKET_BASE_SIZE + PACKET_PHOTORESUSTANCE_DATA_SIZE, pData, 0, AF_TX_OPTIONS_NONE, 0 );
#else
      zb_SendDataRequest( 0xFFFE, SENSOR_REPORT_CMD_ID, PACKET_BASE_SIZE + PACKET_COMBUSTIBLEGAS_DATA_SIZE, pData, 0, AF_TX_OPTIONS_NONE, 0 );

1
2
3
4
5
6
void zb_ReceiveDataIndication( uint16 source, uint16 command, uint16 len, uint8 *pData  )
{
  HalUARTWrite(HAL_UART_PORT_0, pData, len);
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

  while (Hal_UART_RxBufLen(port))		//计算并返回接收缓冲区的长度
  {
    len = HalUARTRead (port, pBuf, RX_BUF_LEN);
    HalUARTWrite (port, pBuf, len);
    if(len >= PACKET_BASE_SIZE
       && pBuf[PACKET_FLAG_OFFSET] == PACKET_L_FLAG
         && pBuf[PACKET_FLAG_OFFSET + 1] == PACKET_H_FLAG)
    {
      zb_SendDataRequest( *(uint16 *)(pBuf + PACKET_SENSOR_SHORT_ADDR_OFFSET), OPERATION_CMD_ID, len, pBuf, 0, AF_TX_OPTIONS_NONE, 0 );
    }
  }

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
void zb_ReceiveDataIndication( uint16 source, uint16 command, uint16 len, uint8 *pData  )
{
  if(len >= PACKET_BASE_SIZE
     && pData[PACKET_FLAG_OFFSET] == PACKET_L_FLAG
     && pData[PACKET_FLAG_OFFSET + 1] == PACKET_H_FLAG
     && *(uint16 *)(pData + PACKET_SENSOR_SHORT_ADDR_OFFSET) == NLME_GetShortAddr())
  {
    switch(pData[PACKET_OPERATION_TYPE_OFFSET])
    {
      case PACKET_ON:
        HalLedSet( HAL_LED_1, HAL_LED_MODE_ON );
        break;
      case PACKET_OFF:
        HalLedSet( HAL_LED_1, HAL_LED_MODE_OFF );
        break;
      case PACKET_TOGGLE:
        HalLedSet( HAL_LED_1, HAL_LED_MODE_TOGGLE );
        break;
      case PACKET_BLINK:
        HalLedBlink(HAL_LED_1, 0, 50, 500);
        break;
      default:
        break;
      }
  }
}

1
2
3
4
5
6
7
8
9
10

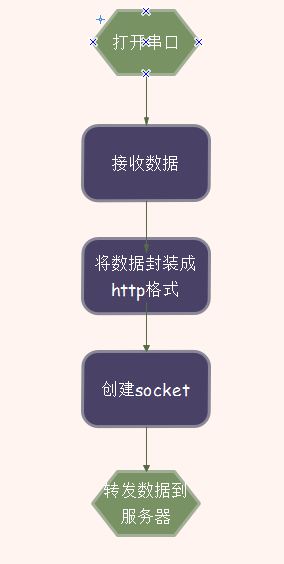

//serial part串口部分
    	cssl_t *ser;
    	cssl_start();
    	ser=cssl_open(dev_path,callback,0,38400,8,0,1);
    	if (!ser){
        		printf("%sn",cssl_geterrormsg());
    	}
    	printf("Serial connection successful, DEV = %sn", dev_path);

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
sockfd = socket( AF_INET,SOCK_STREAM,0 );

	if ( sockfd < 0 )
	{
		fprintf( stderr, "socket:%sn", strerror(errno));
		exit(1);
	}
	else{
		printf("success to connect the servicen");
	}

	struct sockaddr_in sockaddr;
	//设置连接信息结构
	memset( &sockaddr,0,sizeof(sockaddr) );
	sockaddr.sin_family = AF_INET;
	sockaddr.sin_port = htons ( atoi (port) );
	inet_pton(AF_INET,ip,&sockaddr.sin_addr.s_addr);
	socklen_t len = sizeof(sockaddr);
	//连接到远端服务器
	if( connect(sockfd,(struct sockaddr*)&sockaddr,len) <0 ){
		fprintf(stderr, "connect: %sn", strerror(errno) );
		exit(1);
	}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
static void callback(int id, uint8_t *buf,int length)
{
    int i;
    char dtype[2],data[50];
    printf("the date from serial:%sn", buf);
    printf("nread serial success:  length = %dn", length);
    sprintf(dtype,"%d",buf[2]);
    switch(dtype[0]){
	case '1':
		sprintf(data,"wendu=%d&shidu=%d",buf[5],buf[6]);
		puts(data);
		sendDatawenshidu(data,strlen(data));
		break;
	case '2':
		sprintf(data,"gz=%d",buf[5]);
		puts(data);
		sendDataguangzhao(data,strlen(data));
		break;
	case '3':
		sprintf(data,"gs=%d",buf[5]);
		puts(data);
		sendDataGas(data,strlen(data));
		break;
	default:
		puts("the date is error");
		break;
	}
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64

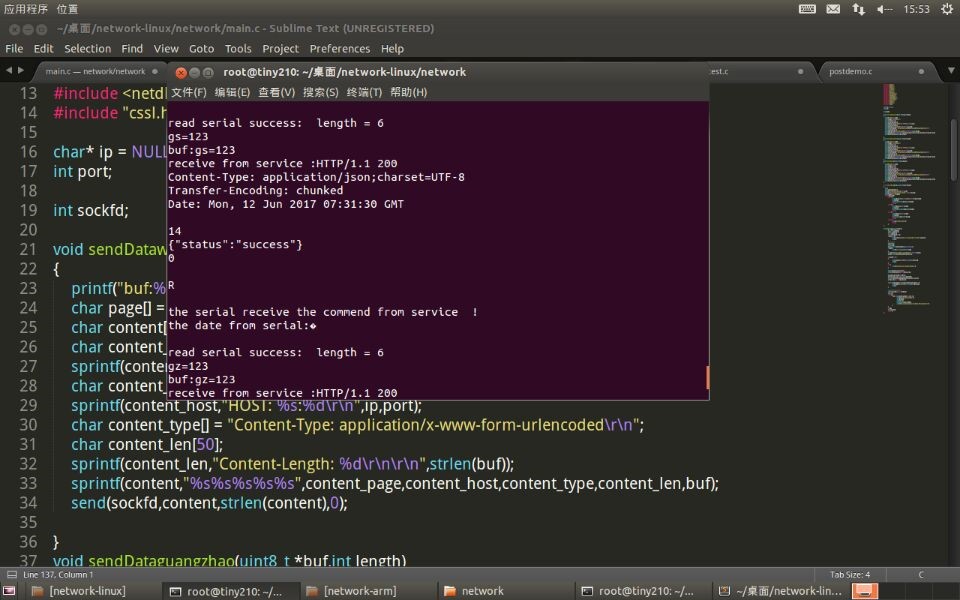

void sendDatawenshidu(uint8_t *buf,int length)
{
    printf("buf:%sn",buf);
    //接口
    char page[] = "addWendu";
    char content[4096];
    char content_page[50];
    char content_host[50];
    char content_len[50];
    //1请求行
sprintf(content_page,"POST /%s HTTP/1.1rn",page);

//把数据封装成http格式，并且通过post方式发送光照值数据
void sendDataguangzhao(uint8_t *buf,int length)
{
    printf("buf:%sn",buf);
    char page[] = "Guangzhao";
    char content[4096];
    char content_page[50];
    char content_len[50];
    char content_host[50];
    sprintf(content_page,"POST /%s HTTP/1.1rn",page);
    sprintf(content_host,"HOST: %s:%drn",ip,port);
    char content_type[] = "Content-Type: application/x-www-form-urlencodedrn";
    sprintf(content_len,"Content-Length: %drnrn",strlen(buf));
    sprintf(content,"%s%s%s%s%s",content_page,content_host,content_type,content_len,buf);
    send(sockfd,content,strlen(content),0);
}
//把数据封装成http格式，并且通过post方式发送可燃气体值数据
void sendDataGas(uint8_t *buf,int length)
{
    printf("buf:%sn",buf);
    char page[] = "Gas";
    char content[4096];
    char content_page[50];
    char content_host[50];
    char content_len[50];
    sprintf(content_page,"POST /%s HTTP/1.1rn",page);
    sprintf(content_host,"HOST: %s:%drn",ip,port);
    char content_type[] = "Content-Type: application/x-www-form-urlencodedrn";
    sprintf(content_len,"Content-Length: %drnrn",strlen(buf));
    sprintf(content,"%s%s%s%s%s",content_page,content_host,content_type,content_len,buf);
    send(sockfd,content,strlen(content),0);
}

一个HTTP请求报文由请求行（request line）、请求头部（header）、空行和请求数据4个部分组成，下图给出了请求报文的一般格式。
    /*2.请求头部
    /Host：请求的主机名，允许多个域名同处一个IP地址，即虚拟主机。
    */
    sprintf(content_host,"HOST: %s:%drn",ip,port);

 /*4.请求数据
    /请求数据不在GET方法中使用，而是在POST方法中使用。
    /POST方法适用于需要客户填写表单的场合。与请求数据相
    /关的最常使用的请求头是Content-Type和Content-Length。
    */
    char content_type[] = "Content-Type: application/x-www-form-urlencodedrn";
    sprintf(content_len,"Content-Length: %drnrn",strlen(buf));
    sprintf(content,"%s%s%s%s%s",content_page,content_host,content_type,content_len,buf);
    send(sockfd,content,strlen(content),0);

}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22

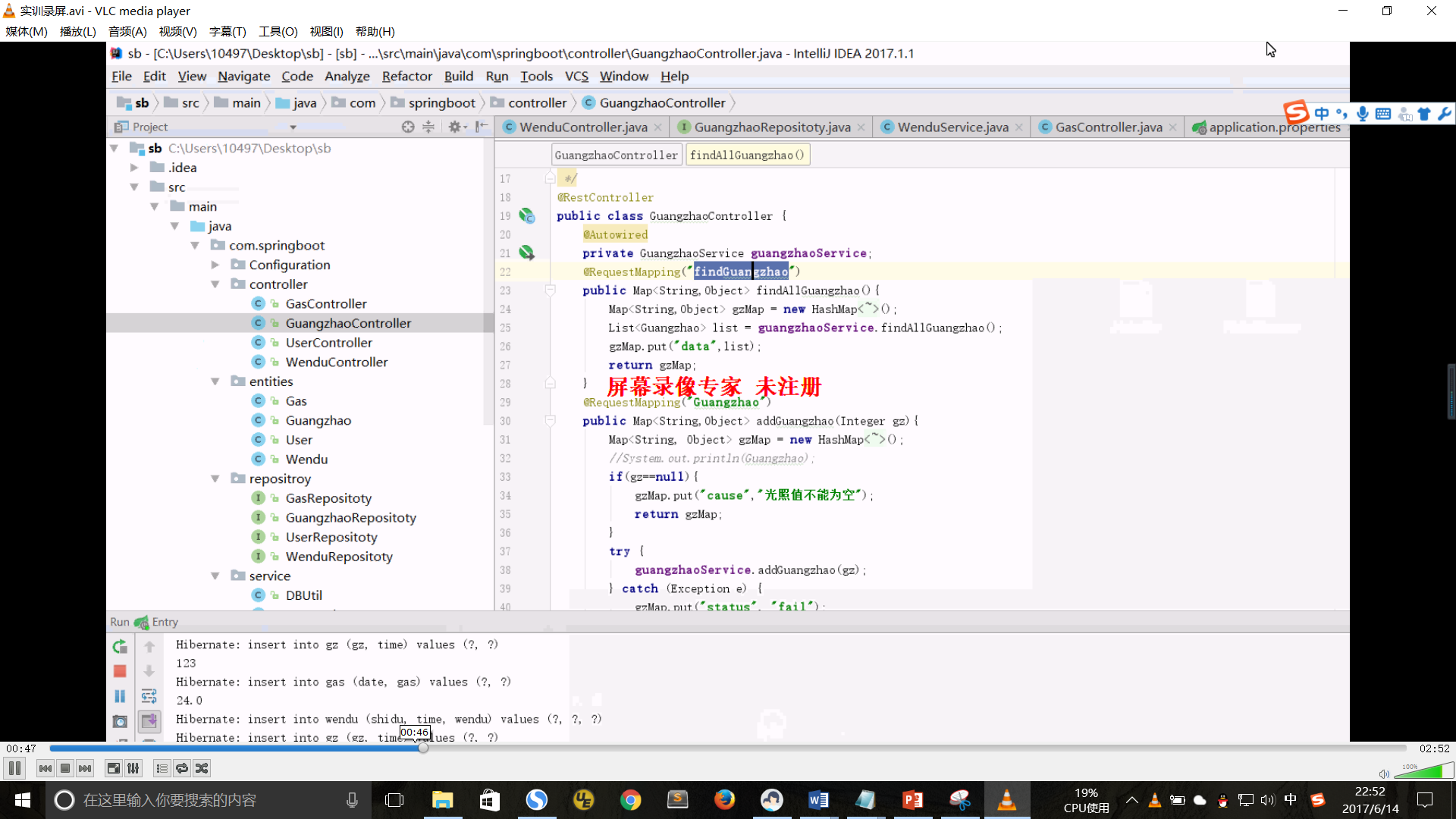

@RequestMapping(value = "/findAllShidu")
public Map<String,Object> findAllShidu(){
    Map<String,Object> wenduMap = new HashMap<String,Object>();
    List<Wendu> list = wenduService.findAllShidu();
    wenduMap.put("data",list);
    return wenduMap;
}
@RequestMapping(value = "/addWendu")
public Map<String,Object> addWendu(Double wendu,Double shidu) {
    Map<String, Object> wenduMap = new HashMap<String, Object>();
    System.out.print(wendu);
    try {
      wenduService.saveWendu(wendu,shidu);
    } catch (Exception e) {
        wenduMap.put("status", "fail");
        return wenduMap;
    }
    wenduMap.put("status", "success");
    return wenduMap;
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119

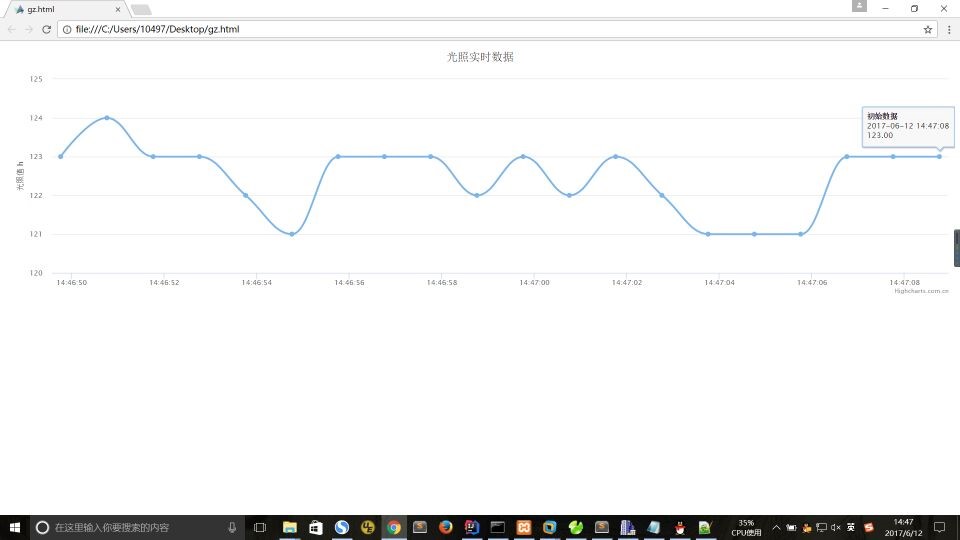

<!DOCTYPE html>

<html xmlns="http://www.w3.org/1999/xhtml"
      xmlns:th="http://www.thymeleaf.org">
    <head>
        <meta charset="utf-8">
        <link rel="icon" href="https://static.jianshukeji.com/highcharts/images/favicon.ico">
        <meta name="viewport"  content="width=device-width,initial-scale=1">
        <script src="https://img.hcharts.cn/jquery/jquery-1.8.3.min.js"></script>
        <script src="https://img.hcharts.cn/highcharts/highcharts.js"></script>
        <script src="https://img.hcharts.cn/highcharts/modules/exporting.js"></script>
        <script src="https://img.hcharts.cn/highcharts-plugins/highcharts-zh_CN.js"></script>
    </head>
    <body>
        <div id="container" style="min-width:400px;height:400px"></div>
        <script>
		var wendu=0;
			$(function(){
	getallRepairOrder();

	function getallRepairOrder(){
		$.ajax({
			url:"http://localhost:8080/findGas",
			type:"post",
			async:true,
			success:function(data){
				//oOrderContainer.text("");
				//回调
				 wendu=data.data[0][0];
				//alert(data.data[0][0]);
				}
		});
		setTimeout(getallRepairOrder, 1000);

	}
	});
			Highcharts.setOptions({
                global: {
                    useUTC: false
                }
            });
            function activeLastPointToolip(chart) {
                var points = chart.series[0].points;
                chart.tooltip.refresh(points[points.length -1]);
            }
            $('#container').highcharts({
                chart: {
                    type: 'spline',
                    animation: Highcharts.svg, // don't animate in old IE
                    marginRight: 10,
                    events: {
                        load: function () {
                            // set up the updating of the chart each second
                            var series = this.series[0],
                                chart = this;
                            setInterval(function () {
                                var x = (new Date()).getTime(), // current time
                                    y = wendu;
                                series.addPoint([x, y], true, true);
                                activeLastPointToolip(chart)
                            }, 1000);
                        }
                    }
                },
                title: {
                    text: '可燃气体实时数据'
                },
                xAxis: {
                    type: 'datetime',
                    tickPixelInterval: 150
                },
                yAxis: {
                    title: {
                        text: '可燃气体值 %'
                    },
                    plotLines: [{
                        value: 0,
                        width: 1,
                        color: '#808080'
                    }]
                },
                tooltip: {
                    formatter: function () {
                        return '<b>' + this.series.name + '</b><br/>' +
                            Highcharts.dateFormat('%Y-%m-%d %H:%M:%S', this.x) + '<br/>' +
                            Highcharts.numberFormat(this.y, 2);
                    }
                },
                legend: {
                    enabled: false
                },
                exporting: {
                    enabled: false
                },
                series: [{
                    name: '初始数据',
                    data: (function () {
                        // generate an array of random data
                        var data = [],
                            time = (new Date()).getTime(),
                            i;
                        for (i = -19; i <= 0; i += 1) {
                            data.push({
                                x: time + i * 1000,
                                y: 0
                            });
                        }
                        return data;
                    }())
                }]
            }, function(c) {
                activeLastPointToolip(c)
            });

        </script>
    </body>

</html>

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42

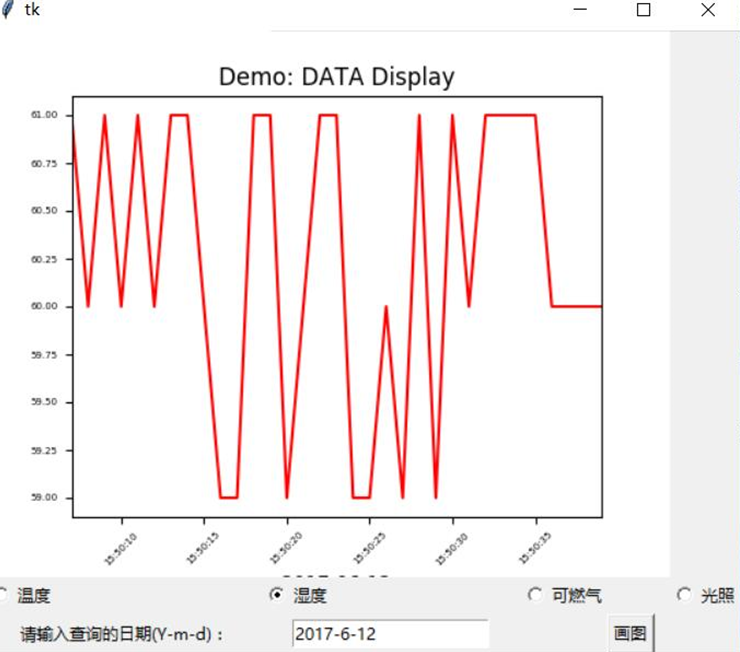

def get_data(url,date):
    reponse = urllib.request.urlopen(url)
    html = reponse.read().decode('utf-8')
    PullData= json.loads(html)
    DataArry = PullData['data']
    xar,yar=[],[]
    for each in DataArry:

        if len(each)>1:
            y,x=each
            x=datetime.strptime(x,'%Y-%m-%d %H:%M:%S')
            if x>date and x<(date+timedelta(days=1)):
                xar.append(x)
                yar.append(float(y)
    return xar,yar
参数：
url：访问数据的接口。
对接口进行封装：
wendu_url = 'http://localhost:8080/findAllWendu'
shidu_url = 'http://localhost:8080/findAllShidu'
gas_url = 'http://localhost:8080/findGas'
sun_url='http://localhost:8080/findGuangzhao'
data = [('温度', wendu_url), ('湿度', shidu_url), ('可燃气', gas_url),('光照',sun_url)]
date：对其他日期进行过滤，可以查询特定日期下的数据变化情况。
对数据绘图：
drawPic.f.clf()
drawPic.a=drawPic.f.add_subplot(111)
x,y=get_data(url,sampleCount)
drawPic.a.set_xlim(min(x), max(x))
drawPic.a.plot(x,y,color='r',label='wendu',)
xlabels = drawPic.a.get_xticklabels()
for label in drawPic.a.xaxis.get_ticklabels():
    label.set_fontsize(5)
for label in drawPic.a.yaxis.get_ticklabels():
    label.set_fontsize(5)
for xl in xlabels:
    xl.set_rotation(45)
drawPic.a.set_title('Demo: DATA Display')
drawPic.a.set_xlabel(sampleCount.date())
drawPic.canvas.show()

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
drawPic.canvas = FigureCanvasTkAgg(drawPic.f, master=root)

drawPic.canvas.show()

drawPic.canvas.get_tk_widget().grid(row=0, columnspan=3)
var = StringVar()
var.set(1)
count = 0
for each in data:
    Radiobutton(root, text=each[0], variable=var, value=each[1]).grid(row=1, column=count, sticky=W)
    count += 1
Label(root,text='请输入查询的日期(Y-m-d)：').grid(row=2,column=0)
#单选框，选择可以传入某一接口
inputEntry=Entry(root)
inputEntry.grid(row=2,column=1)
inputEntry.insert(0,'2017-6-12')
Button(root,text='画图',command=drawPic).grid(row=2,column=2,columnspan=3)
#command=drwaPic 按下Button执行drwaPic函数绘图
