概述

libcurl中封装了支持这些协议的网络通信模块，支持跨平台，支持Windows，Unix，Linux等多个操作系统。libcurl提供了一套统一样式的API接口，我们不用关注各种协议下网络通信的实现细节，只需要调用这些API就能轻松地实现基于这些协议的数据通信。本文将简单地讲述一下使用libcurl实现邮件发送的相关细节。

1、为啥要选择libcurl库去实现邮件的发送

如果我们自己去使用socket套接字去编码，实现连接smtp邮件服务器，并完成和服务器的smtp协议的交互，整个过程走下来会非常地复杂，特别是要处理网络通信过程中的多种异常，整个流程的稳定性和健壮性没有保证。

而libcurl中已经实现了smtp协议的所有流程，我们不需要去关注协议的具体实现细节，我们只要去调用libcurl的API接口就能实现发送邮件的功能。libcurl库的稳定性是毋庸置疑的。

我们可以到官网上下载libcurl开源库最新的源码，直接使用Visual Studio编译出要用的dll库，至于使用Visual Studio如何编译libcurl代码，后面我会写一篇文章去详细介绍。

2、调用libcurl库的API接口实现邮件发送

先调用curl_easy_init接口初始化libcurl库，然后调用curl_easy_setopt（使用CURLOPT_URL选项）设置url请求地址，正是通过该url的前缀确定具体使用哪种协议。比如本例中发送邮件时需要使用smtp协议：

char urlBuf[256] = { 0 };
sprintf( urlBuf, "smtp://%s:%s", m_strServerName.c_str(), m_strPort.c_str() );
curl_easy_setopt(curl, CURLOPT_URL, urlBuf);

设置url时使用的就是smtp前缀，然后带上目标服务器的IP和端口。

在使用相关协议完成数据交互时，可能还要设置一些其他的信息，比如用户名和密码等，都是通过调用curl_easy_setopt设置的：

curl_easy_setopt(curl, CURLOPT_USERNAME, m_strUserName.c_str());
curl_easy_setopt(curl, CURLOPT_PASSWORD, m_strPassword.c_str());

要发送的数据，则通过CURLOPT_READDATA选项去设置：

std::stringstream stream;
stream.str(m_strMessage.c_str());
stream.flush();

/* We're using a callback function to specify the payload (the headers and
* body of the message). You could just use the CURLOPT_READDATA option to
* specify a FILE pointer to read from. */
curl_easy_setopt(curl, CURLOPT_READFUNCTION, &CSmtpSendMail::payload_source);
curl_easy_setopt(curl, CURLOPT_READDATA, (void *)&stream);
curl_easy_setopt(curl, CURLOPT_UPLOAD, 1L);

最后调用curl_easy_perform或者curl_multi_perform接口发起请求，该接口内部将去连接url中指定的服务器，并完成指定的协议协商与交互，并最终完成与服务器之间的数据通信。

调用libcurl库发送邮件的完整代码如下所示：

CURLcode CSmtpSendMail::SendMail()
{
	CreatMessage();
	bool ret = true;
	CURL *curl;
	CURLcode res = CURLE_OK;
	struct curl_slist *recipients = NULL;

	curl = curl_easy_init();
	if (curl) {
		/* Set username and password */
		curl_easy_setopt(curl, CURLOPT_USERNAME, m_strUserName.c_str());
		curl_easy_setopt(curl, CURLOPT_PASSWORD, m_strPassword.c_str());

		char urlBuf[256] = { 0 };
		sprintf( urlBuf, "smtp://%s:%s", m_strServerName.c_str(), m_strPort.c_str() );
		curl_easy_setopt(curl, CURLOPT_URL, urlBuf);
		/* If you want to connect to a site who isn't using a certificate that is
		* signed by one of the certs in the CA bundle you have, you can skip the
		* verification of the server's certificate. This makes the connection
		* A LOT LESS SECURE.
		*
		* If you have a CA cert for the server stored someplace else than in the
		* default bundle, then the CURLOPT_CAPATH option might come handy for
		* you. */
#ifdef SKIP_PEER_VERIFICATION
		curl_easy_setopt(curl, CURLOPT_SSL_VERIFYPEER, 0L);
#endif

		/* If the site you're connecting to uses a different host name that what
		* they have mentioned in their server certificate's commonName (or
		* subjectAltName) fields, libcurl will refuse to connect. You can skip
		* this check, but this will make the connection less secure. */
#ifdef SKIP_HOSTNAME_VERIFICATION
		curl_easy_setopt(curl, CURLOPT_SSL_VERIFYHOST, 0L);
#endif

		/* Note that this option isn't strictly required, omitting it will result
		* in libcurl sending the MAIL FROM command with empty sender data. All
		* autoresponses should have an empty reverse-path, and should be directed
		* to the address in the reverse-path which triggered them. Otherwise,
		* they could cause an endless loop. See RFC 5321 Section 4.5.5 for more
		* details.
		*/
		//curl_easy_setopt(curl, CURLOPT_MAIL_FROM, FROM);
		curl_easy_setopt(curl, CURLOPT_MAIL_FROM, m_strSendMail.c_str());
		/* Add two recipients, in this particular case they correspond to the
		* To: and Cc: addressees in the header, but they could be any kind of
		* recipient. */
		for (size_t i = 0; i < m_vRecvMail.size(); i++) {

			recipients = curl_slist_append(recipients, m_vRecvMail[i].c_str());
		}
		curl_easy_setopt(curl, CURLOPT_MAIL_RCPT, recipients);

		std::stringstream stream;
		stream.str(m_strMessage.c_str());
		stream.flush();
		/* We're using a callback function to specify the payload (the headers and
		* body of the message). You could just use the CURLOPT_READDATA option to
		* specify a FILE pointer to read from. */

		// 注意回调函数必须设置为static
		curl_easy_setopt(curl, CURLOPT_READFUNCTION, &CSmtpSendMail::payload_source);
		curl_easy_setopt(curl, CURLOPT_READDATA, (void *)&stream);
		curl_easy_setopt(curl, CURLOPT_UPLOAD, 1L);

		/* Since the traffic will be encrypted, it is very useful to turn on debug
		* information within libcurl to see what is happening during the
		* transfer */
		curl_easy_setopt(curl, CURLOPT_VERBOSE, 1L);

		curl_multi_perform()
		/* Send the message */
		res = curl_easy_perform(curl);
		CURLINFO info = CURLINFO_NONE;
		curl_easy_getinfo(curl, info);
		/* Check for errors */

		if (res != CURLE_OK) {
			fprintf(stderr, "curl_easy_perform() failed: %snn",
				curl_easy_strerror(res));

			char achErrInfo[512] = {0};
			sprintf( achErrInfo, "curl_easy_perform() failed, error info: %snn", curl_easy_strerror(res) );
			::MessageBoxA( NULL, achErrInfo, "Tip", MB_OK);
			ret = false;

			m_strErrDesription = achErrInfo;

			/*				Sleep( 100 );
			res = curl_easy_perform(curl); */
		}
		else
		{
			m_strErrDesription = "";
		}

		/* Free the list of recipients */
		curl_slist_free_all(recipients);

		/* Always cleanup */
		curl_easy_cleanup(curl);
	}
	else
	{
		res = CURLE_FAILED_INIT;
		char achErrInfo[512] = {0};
		sprintf( achErrInfo, "curl_easy_init() failed, error info: %snn", curl_easy_strerror(res) );
		m_strErrDesription = achErrInfo;
    }
	return res;
}

3、构造待发送的邮件内容

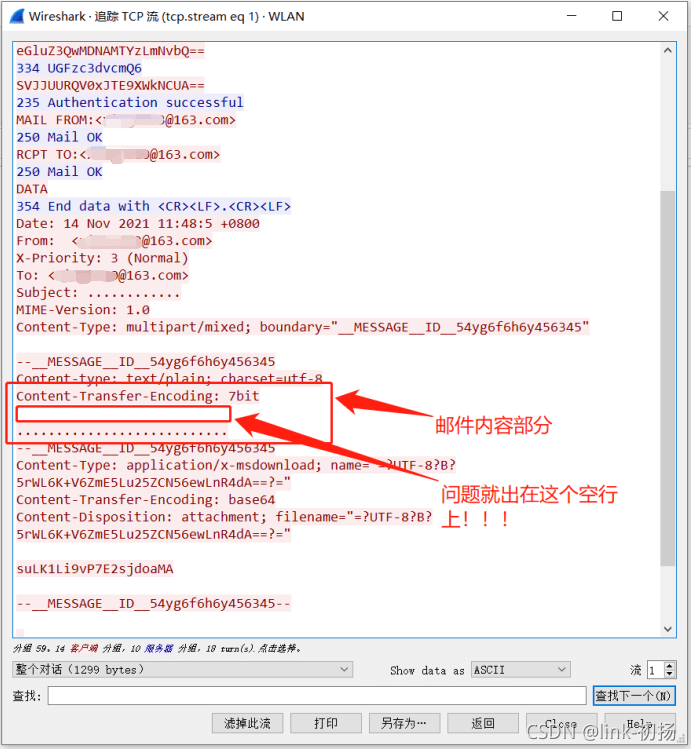

libcurl负责和smtp邮件服务器建链，完成smtp简单邮件协议的协商与交互，但要发送的邮件内容则需要我们自己去根据协议的规范去构建。那邮件发送的内容的数据格式到底是什么样子的呢？其实很简单，找一个支持发送邮件的软件，发送邮件时抓一下包，就能抓出对应的格式，比如：

按照上面的格式构建就可以了，相关代码如下：

void CSmtpSendMail::CreatMessage()
{
	//m_strMessage = "Date: 13 Nov 2021 12:52:14 +0800";
	m_strMessage = "From: ";
	m_strMessage += m_strSendMail;
	m_strMessage += "rnReply-To: ";
	m_strMessage += m_strSendMail;
	m_strMessage += "rnTo: ";
	for (size_t i = 0; i < m_vRecvMail.size(); i++)
	{
		if (i > 0) {
			m_strMessage += ",";
		}
		m_strMessage += m_vRecvMail[i];
	}
	m_strMessage += "rn";
	m_strMessage += m_strSubject;
	m_strMessage += "rnX-Mailer: The Bat! (v3.02) Professional";
	m_strMessage += "rnMime-Version: 1.0";
	m_strMessage += "rnContent-Type: multipart/mixed;";
	m_strMessage += "boundary="simple boundary"";  //__MESSAGE__ID__54yg6f6h6y456345
	//m_strMessage += "rnThis is a multi-part message in MIME format.";
	m_strMessage += "rnrn--simple boundary";
	//正文
	m_strMessage += "rnContent-Type: text/html;";
	m_strMessage += "charset=";
	//m_strMessage += """;
	m_strMessage += m_strCharset;
	//m_strMessage += """;
	m_strMessage += "rnContent-Transfer-Encoding: 7bit";
	m_strMessage += "rn";
	m_strMessage += m_strContent;

	//附件
	std::string filename = "";
	std::string filetype = "";
	for (size_t i = 0; i < m_vAttachMent.size(); i++)
	{
		m_strMessage += "rn--simple boundary";
		GetFileName(m_vAttachMent[i], filename);
		GetFileType(m_vAttachMent[i], filetype);
		SetContentType(filetype);
		SetFileName(filename);

		m_strMessage += "rnContent-Type: ";
		m_strMessage += m_strContentType;
		m_strMessage += "tname=";
		m_strMessage += """;
		m_strMessage += m_strFileName;
		m_strMessage += """;
		m_strMessage += "rnContent-Disposition:attachment;filename=";
		m_strMessage += """;
		m_strMessage += m_strFileName;
		m_strMessage += """;
		m_strMessage += "rnContent-Transfer-Encoding:base64";
		m_strMessage += "rnrn";


		FILE *pt = NULL;
		if ((pt = fopen(m_vAttachMent[i].c_str(), "rb")) == NULL) {

			std::cerr << "打开文件失败: " << m_vAttachMent[i] <<std::endl;
			continue;
		}
		fseek(pt, 0, SEEK_END);
		int len = ftell(pt);
		fseek(pt, 0, SEEK_SET);
		int rlen = 0;
		char buf[55];
		for (size_t i = 0; i < len / 54 + 1; i++)
		{
			memset(buf, 0, 55);
			rlen = fread(buf, sizeof(char), 54, pt);
			m_strMessage += base64_encode((const unsigned char*)buf, rlen);
			m_strMessage += "rn";
		}

		fclose(pt);
		pt = NULL;
	}

	m_strMessage += "rn--simple boundary--rn";
}
