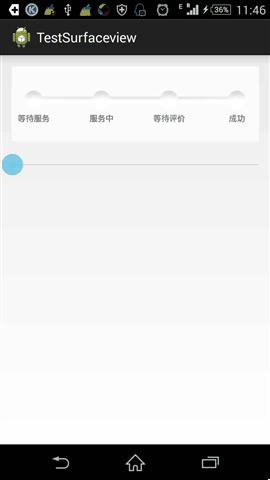

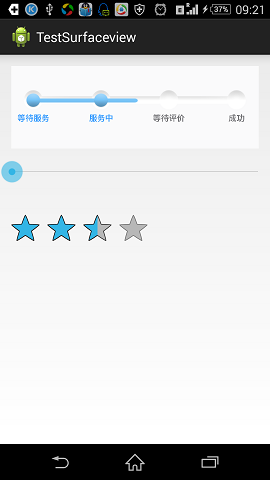

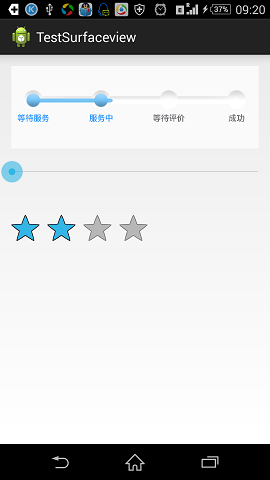

android实现节点进度条效果

package utils.android.view.lxz;

import java.util.ArrayList;
import java.util.List;
import com.community.custom.android.R;

import android.app.Activity;
import android.content.Context;
import android.graphics.Bitmap;
import android.graphics.BitmapFactory;
import android.graphics.Canvas;
import android.graphics.Color;
import android.graphics.Paint;
import android.graphics.drawable.BitmapDrawable;
import android.graphics.drawable.Drawable;
import android.graphics.drawable.ShapeDrawable;
import android.graphics.drawable.shapes.OvalShape;
import android.util.AttributeSet;
import android.util.DisplayMetrics;
import android.util.Log;
import android.view.View;

/**
 * 2015-1-24
 * 小林爱
 * */
public class NodeProgressBar extends View implements Runnable {

 private float dn=1f;
 DisplayMetrics metrics;
 {
 metrics=new DisplayMetrics();
 ((Activity) getContext()).getWindowManager().getDefaultDisplay().getMetrics(metrics);
 dn=1*3/metrics.density;
 }
 /**读取空进度条图片*/
 private BitmapDrawable db_empty;
 /**View宽度*/
 private int viewWidth;
 /**View高度*/
 private int viewHeight;
 /**
 * 白色空心圆图片集合
 * */
 private List<BitmapDrawable> list_whitecircle ;
 /**
 * 蓝色实心圆图片集合
 * */
 private List<BitmapDrawable> list_bluecircle ;
 /**蓝色进度条*/
 private BitmapDrawable db_blue;

 /**进度比值 控制蓝色进度条*/
 private double ratio = 0;
 /**节点名称*/
 private String[] textArr=new String[]{"等待服务","服务中","等待评价","成功"};
 /**节点数*/
 private int count=textArr.length;;
 /**当前节点进度*/
 private int index = 0;
 /**X轴对称 偏移值*/
 private int offX=(int) (50/dn);
 /**Y轴 偏移值*/
 private int offY=(int) (70/dn);
 /**文字与节点 偏移值*/
 private int offTextY=(int) (65/dn);
 /**白色空心圆偏移值*/
 private int offWhiteCirle_y=(int) (-3/dn);
 /**白色空心进度条偏移值*/
 private int offWhiteRect_y=(int) (-2/dn);
 /**白色空心进度条偏移值*/
 private BitmapDrawable db_blue_half_circle;
 /**创建一只新画笔*/
 private Paint paint = new Paint();
 /**白色空心圆半径*/
 private int r_white = (int) (76/dn);
 /**蓝色空心圆半径*/
 private int r_blue = (int) (56/dn);
 /**白色进度条高度*/
 private int whiteProgressHeight = (int) (30/dn);
 /**蓝色进度条高度*/
 private int blueProgressHeight = (int) (16/dn);

 /**文本颜色j*/
 private String textColor="#46A3FF";
 /**文本未激活颜色*/
 private String textColorNotEnabled="#7E7E81";
// /**View 背景颜色*/
// private String bgColor="#e0000000";
 /**文本框大小*/
 private int textSize=(int) (32/dn);

 /**白色空心进度条宽度*/
 private int maxProgressWidth;
 /**半圆蓝色进度条宽度*/
 private int half_blueWidth = (int) (12/dn);



 public String[] getTextArr() {
 return textArr;
 }

 public void setTextArr(String[] textArr) {
 this.textArr = textArr;
 count=textArr.length;;
 init();
 this.post(new Runnable() {

 @Override
 public void run() {
 //读取View宽度
 viewWidth = NodeProgressBar.this.getWidth();
 //读取View高度
 viewHeight = NodeProgressBar.this.getHeight();
 // 进度条宽度计算
 maxProgressWidth = viewWidth - r_white-offX*2;
 //绘制

 invalidate();
 }
 });

 }

 @SuppressWarnings("deprecation")
 public NodeProgressBar(Context context) {
 super(context);
 init();
 }

 public NodeProgressBar(Context context, AttributeSet attrs) {
 super(context, attrs);
 init();
 }
 /**控制蓝色进度条*/
 public void setProgressOnly(int i) {
 ratio = i / 100d;
 invalidate();
 }

 /**以节点数来空值进度条 至少大于1*/
 public void setProgressByNode(final double d)
 {
 this.post(new Runnable() {

 @Override
 public void run() {
 // TODO Auto-generated method stub
 int progress;
 if(d==1)
 {
  progress=1;
 }else
 {
  progress= (int) ( (100d/((count-1)*1.0d))*(d-1));
 }
 setProgressAndIndex(progress);

 }
 });
 }


 /**控制蓝色进度条并且对节点染色*/
 public void setProgressAndIndex(int i){
 if(i==0){
 index=0;
 ratio=0;
 invalidate();
 return ;
 }
 //获得相对进度条长度
 int adbProgress = maxProgressWidth-(count-1)*r_white;
 //得到每一个节点所需进度值
 int k=100/(count-1);
 //计算当前进度需要染色的节点个数
 index=1+i/k;
 if(index!=count)
 {
 //获得节点磁力比率
 double wh=1.0d*(r_white/2)/(double)maxProgressWidth;
 //计算蓝色进度条和染色节点宽度
 ratio=i%100==0?ratio=1:wh+wh*2*(index-1)+1.0d*((double)adbProgress/(double)maxProgressWidth)*(i/100d);
 }else
 {
 //设置进度条为满
 ratio=1;
 }
 invalidate();
 }

 /**
 * 初始化图片资源，和基础数值
 * */
 @SuppressWarnings("deprecation")
 private void init() {
 metrics=new DisplayMetrics();
 ((Activity) getContext()).getWindowManager().getDefaultDisplay().getMetrics(metrics);
 Log.d("lxz", ""+metrics.density);
 dn=1*3/metrics.density;
 list_whitecircle=new ArrayList<BitmapDrawable>();
 list_bluecircle=new ArrayList<BitmapDrawable>();
 //根据节点个数 初始化空心圆和实心圆
 for (int i = 0; i < count; i++) {
 BitmapDrawable drawable1 = new BitmapDrawable(
  BitmapFactory.decodeResource(getResources(),
  R.drawable.progress_white_circle));
 list_whitecircle.add(drawable1);
 BitmapDrawable drawable2 = new BitmapDrawable(
  BitmapFactory.decodeResource(getResources(),
  R.drawable.progress_blue_circle));
 list_bluecircle.add(drawable2);
 }
 //初始化蓝色小半圆
 db_blue_half_circle = new BitmapDrawable(BitmapFactory.decodeResource(
 getResources(), R.drawable.progress_blue_half_circle));
 //初始化空心进度条
 db_empty = new BitmapDrawable(BitmapFactory.decodeResource(
 getResources(), R.drawable.progress_whtie_groove));
 //初始化
 db_blue = new BitmapDrawable(BitmapFactory.decodeResource(
 getResources(), R.drawable.progress_blue_groove));
 //UI线程初始化数值
 this.post(this);
 }
 @Override
 public void run() {
 //读取View宽度
 viewWidth = NodeProgressBar.this.getWidth();
 //读取View高度
 viewHeight = NodeProgressBar.this.getHeight();
 // 进度条宽度计算
 maxProgressWidth = viewWidth - r_white-offX*2;
 //绘制
 invalidate();
 }


 @Override
 public void draw(Canvas canvas) {
 // TODO Auto-generated method stub
 super.draw(canvas);
 //获得X轴偏转值
 int offAbs_x=(int)((viewWidth-maxProgressWidth)/2.0d);
 //获得X轴偏转值
// canvas.drawColor(Color.parseColor(bgColor));
 canvas.drawColor(Color.TRANSPARENT);
 //绘制空心进度条
 drawRect(canvas, db_empty, viewWidth / 2, r_white / 2+offY+offWhiteRect_y, maxProgressWidth,whiteProgressHeight);

 paint.setTextSize(textSize);
 paint.setFakeBoldText(true);

 //绘制白色空心园
 for (int i = 0, j = list_whitecircle.size(); i < j; i++) {
 BitmapDrawable db_whitecircle = list_whitecircle.get(i);
 int x=maxProgressWidth / (count - 1)* i+offAbs_x;
 int y=r_white/2 + offWhiteCirle_y+offY;
 drawCircle(canvas, db_whitecircle,x, y, r_white);

 String str=textArr[i];
 if(i<index)
 {
  paint.setColor(Color.parseColor(textColor));
 }else
 {
  paint.setColor(Color.parseColor(textColorNotEnabled));
 }
 float textWidht = paint.measureText(str);
 canvas.drawText(str, x-textWidht/2, y+offTextY, paint);
 }

 //绘制蓝色进度条
 drawRect(canvas, db_blue, (int)
  ((maxProgressWidth * ratio) / 2)+offAbs_x ,
  r_white / 2+offY,
  (int) (maxProgressWidth * ratio),blueProgressHeight);

 //绘制蓝色小半圆
 if (ratio > 0) {

 drawRect(canvas, db_blue_half_circle,(int) ((maxProgressWidth * ratio) / 2)
  + (int) (maxProgressWidth * ratio) / 2 + half_blueWidth
  / 2+offAbs_x, r_white / 2+offY, half_blueWidth,
  blueProgressHeight);
 }
 //绘制蓝色圆
 for (int i = 0, j = index; i < j; i++) {
 BitmapDrawable db_bluecircle = list_bluecircle.get(i);
 drawCircle(canvas, db_bluecircle,
  maxProgressWidth / (count - 1) * i+offAbs_x, r_white/2+offY, r_blue);
 }

 }

 /**传统矩形坐标方法*/
 public void drawRect(Canvas canvas, Drawable d, int x, int y, int width,
 int height) {
 d.setBounds(x - width / 2, y - height / 2, x + width / 2, y + height
 / 2);
 d.draw(canvas);
 }
 /**传统圆点坐标计算方法*/
 public void drawCircle(Canvas canvas, Drawable d, int x, int y, int r) {
 d.setBounds(x - r / 2, y - r / 2, x + r / 2, y + r / 2);
 d.draw(canvas);
 }
 /**绘制文字 传统坐标计算方法*/
 public void drawText(Canvas canvas,Paint paint, String str, int x, int y, int w,int h) {
 canvas.drawText(str, x-w/2, y-h/2, x+w, y+h, paint);
 }

 public double getRatio() {
 return ratio;
 }

 public void setRatio(double ratio) {
 this.ratio = ratio;
 }

 public int getCount() {
 return count;
 }

 public void setCount(int count) {
 this.count = count;
 }

 public int getIndex() {
 return index;
 }

 public void setIndex(int index) {
 this.index = index;
 }

}
