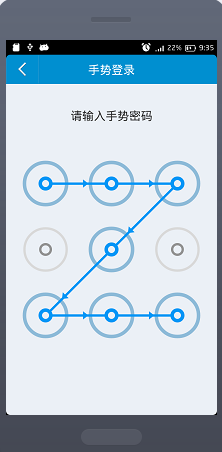

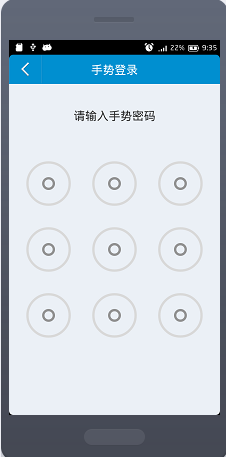

纯android代码实现九宫格手势密码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
/**
 * 点位置
 */
public class Point {
 public static int STATE_NORMAL = 0;
 public static int STATE_CHECK = 1; //
 public static int STATE_CHECK_ERROR = 2; //

 public float x;
 public float y;
 public int state = 0;
 public int index = 0;//

 public Point() {

 }

 public Point(float x, float y, int value) {
  this.x = x;
  this.y = y;
  index = value;
 }

 public int getColNum() {
  return (index - 1) % 3;
 }

 public int getRowNum() {
  return (index - 1) / 3;
 }

}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
public class MathUtil {
 /**
  *
  * @param x1
  * @param y1
  * @param x2
  * @param y2
  * @return
  */
 public static double distance(double x1, double y1, double x2, double y2) {
  return Math.sqrt(Math.abs(x1 - x2) * Math.abs(x1 - x2)
    + Math.abs(y1 - y2) * Math.abs(y1 - y2));
 }

 /**
  *
  * @param x
  * @param y
  * @return
  */
 public static double pointTotoDegrees(double x, double y) {
  return Math.toDegrees(Math.atan2(x, y));
 }

 public static boolean checkInRound(float sx, float sy, float r, float x,
   float y) {
  return Math.sqrt((sx - x) * (sx - x) + (sy - y) * (sy - y)) < r;
 }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
import android.content.Context;
import android.graphics.Canvas;
import android.graphics.Paint;
import android.graphics.Paint.Style;
import android.graphics.Path;
import android.util.AttributeSet;
import android.util.Log;
import android.view.MotionEvent;
import android.view.View;
import android.widget.Toast;
import com.example.esop.util.MathUtil;
import com.example.esop.util.Point;

import java.util.ArrayList;
import java.util.List;
import java.util.Timer;
import java.util.TimerTask;

public class LocusPassWordView extends View {
 private float width = 0;
 private float height = 0;

 //
 private boolean isCache = false;
 //
 private Paint mPaint = new Paint(Paint.ANTI_ALIAS_FLAG);

 //
 private Point[][] mPoints = new Point[3][3];
 //
 private float dotRadius = 0;
 //
 private List<Point> sPoints = new ArrayList<Point>();
 private boolean checking = false;
 private long CLEAR_TIME = 1000;
 private int pwdMaxLen = 9;
 private int pwdMinLen = 4;
 private boolean isTouch = true;

 private Paint arrowPaint;
 private Paint linePaint;
 private Paint selectedPaint;
 private Paint errorPaint;
 private Paint normalPaint;
 private int errorColor = 0xffea0945;
 private int selectedColor = 0xff0596f6;
 private int outterSelectedColor = 0xff8cbad8;
 private int outterErrorColor = 0xff901032;
 private int dotColor = 0xffd9d9d9;
 private int outterDotColor = 0xff929292;

 public LocusPassWordView(Context context, AttributeSet attrs, int defStyle) {
  super(context, attrs, defStyle);
 }

 public LocusPassWordView(Context context, AttributeSet attrs) {
  super(context, attrs);
 }

 public LocusPassWordView(Context context) {
  super(context);
 }

 @Override
 public void onDraw(Canvas canvas) {
  if (!isCache) {
   initCache();
  }
  drawToCanvas(canvas);
 }

 private void drawToCanvas(Canvas canvas) {
  boolean inErrorState = false;
  for (int i = 0; i < mPoints.length; i++) {
   for (int j = 0; j < mPoints[i].length; j++) {
    Point p = mPoints[i][j];
    if (p.state == Point.STATE_CHECK) {
     selectedPaint.setColor(outterSelectedColor);
     canvas.drawCircle(p.x, p.y, dotRadius, selectedPaint);
     selectedPaint.setColor(selectedColor);
     canvas.drawCircle(p.x, p.y, dotRadius/4, selectedPaint);
    } else if (p.state == Point.STATE_CHECK_ERROR) {
     inErrorState = true;
     errorPaint.setColor(outterErrorColor);
     canvas.drawCircle(p.x, p.y, dotRadius, errorPaint);
     errorPaint.setColor(errorColor);
     canvas.drawCircle(p.x, p.y, dotRadius/4, errorPaint);
    } else {
     normalPaint.setColor(dotColor);
     canvas.drawCircle(p.x, p.y, dotRadius, normalPaint);
     normalPaint.setColor(outterDotColor);
     canvas.drawCircle(p.x, p.y, dotRadius/4, normalPaint);
    }
   }
  }

  if (inErrorState) {
   arrowPaint.setColor(errorColor);
   linePaint.setColor(errorColor);
  } else {
   arrowPaint.setColor(selectedColor);
   linePaint.setColor(selectedColor);
  }

  if (sPoints.size() > 0) {
   int tmpAlpha = mPaint.getAlpha();
   Point tp = sPoints.get(0);
   for (int i = 1; i < sPoints.size(); i++) {
    Point p = sPoints.get(i);
    drawLine(tp, p, canvas, linePaint);
    drawArrow(canvas, arrowPaint, tp, p, dotRadius/4, 38);
    tp = p;
   }
   if (this.movingNoPoint) {
    drawLine(tp, new Point(moveingX, moveingY, -1), canvas, linePaint);
   }
   mPaint.setAlpha(tmpAlpha);
  }

 }

 private void drawLine(Point start, Point end, Canvas canvas, Paint paint) {
  double d = MathUtil.distance(start.x, start.y, end.x, end.y);
  float rx = (float) ((end.x-start.x) * dotRadius / 4 / d);
  float ry = (float) ((end.y-start.y) * dotRadius / 4 / d);
  canvas.drawLine(start.x+rx, start.y+ry, end.x-rx, end.y-ry, paint);
 }

 private void drawArrow(Canvas canvas, Paint paint, Point start, Point end, float arrowHeight, int angle) {
  double d = MathUtil.distance(start.x, start.y, end.x, end.y);
  float sin_B = (float) ((end.x - start.x) / d);
  float cos_B = (float) ((end.y - start.y) / d);
  float tan_A = (float) Math.tan(Math.toRadians(angle));
  float h = (float) (d - arrowHeight - dotRadius * 1.1);
  float l = arrowHeight * tan_A;
  float a = l * sin_B;
  float b = l * cos_B;
  float x0 = h * sin_B;
  float y0 = h * cos_B;
  float x1 = start.x + (h + arrowHeight) * sin_B;
  float y1 = start.y + (h + arrowHeight) * cos_B;
  float x2 = start.x + x0 - b;
  float y2 = start.y + y0 + a;
  float x3 = start.x + x0 + b;
  float y3 = start.y + y0 - a;
  Path path = new Path();
  path.moveTo(x1, y1);
  path.lineTo(x2, y2);
  path.lineTo(x3, y3);
  path.close();
  canvas.drawPath(path, paint);
 }

 private void initCache() {
  width = this.getWidth();
  height = this.getHeight();
  float x = 0;
  float y = 0;

  if (width > height) {
   x = (width - height) / 2;
   width = height;
  } else {
   y = (height - width) / 2;
   height = width;
  }

  int leftPadding = 15;
  float dotPadding = width / 3 - leftPadding;
  float middleX = width / 2;
  float middleY = height / 2;

  mPoints[0][0] = new Point(x + middleX - dotPadding, y + middleY - dotPadding, 1);
  mPoints[0][1] = new Point(x + middleX, y + middleY - dotPadding, 2);
  mPoints[0][2] = new Point(x + middleX + dotPadding, y + middleY - dotPadding, 3);
  mPoints[1][0] = new Point(x + middleX - dotPadding, y + middleY, 4);
  mPoints[1][1] = new Point(x + middleX, y + middleY, 5);
  mPoints[1][2] = new Point(x + middleX + dotPadding, y + middleY, 6);
  mPoints[2][0] = new Point(x + middleX - dotPadding, y + middleY + dotPadding, 7);
  mPoints[2][1] = new Point(x + middleX, y + middleY + dotPadding, 8);
  mPoints[2][2] = new Point(x + middleX + dotPadding, y + middleY + dotPadding, 9);

  Log.d("jerome", "canvas width:"+width);
  dotRadius = width / 10;
  isCache = true;

  initPaints();
 }

 private void initPaints() {
  arrowPaint = new Paint();
  arrowPaint.setColor(selectedColor);
  arrowPaint.setStyle(Style.FILL);
  arrowPaint.setAntiAlias(true);

  linePaint = new Paint();
  linePaint.setColor(selectedColor);
  linePaint.setStyle(Style.STROKE);
  linePaint.setAntiAlias(true);
  linePaint.setStrokeWidth(dotRadius / 9);

  selectedPaint = new Paint();
  selectedPaint.setStyle(Style.STROKE);
  selectedPaint.setAntiAlias(true);
  selectedPaint.setStrokeWidth(dotRadius / 6);

  errorPaint = new Paint();
  errorPaint.setStyle(Style.STROKE);
  errorPaint.setAntiAlias(true);
  errorPaint.setStrokeWidth(dotRadius / 6);

  normalPaint = new Paint();
  normalPaint.setStyle(Style.STROKE);
  normalPaint.setAntiAlias(true);
  normalPaint.setStrokeWidth(dotRadius / 9);
 }

 /**
  *
  *
  * @param index
  * @return
  */
 public int[] getArrayIndex(int index) {
  int[] ai = new int[2];
  ai[0] = index / 3;
  ai[1] = index % 3;
  return ai;
 }

 /**
  * @param x
  * @param y
  * @return
  */
 private Point checkSelectPoint(float x, float y) {
  for (int i = 0; i < mPoints.length; i++) {
   for (int j = 0; j < mPoints[i].length; j++) {
    Point p = mPoints[i][j];
    if (MathUtil.checkInRound(p.x, p.y, dotRadius, (int) x, (int) y)) {
     return p;
    }
   }
  }
  return null;
 }

 /**
  *
  */
 private void reset() {
  for (Point p : sPoints) {
   p.state = Point.STATE_NORMAL;
  }
  sPoints.clear();
  this.enableTouch();
 }

 /**
  *
  *
  * @param p
  * @return
  */
 private int crossPoint(Point p) {
  // reset
  if (sPoints.contains(p)) {
   if (sPoints.size() > 2) {
    //
    if (sPoints.get(sPoints.size() - 1).index != p.index) {
     return 2;
    }
   }
   return 1; //
  } else {
   return 0; //
  }
 }

 /**
  *
  *
  * @param point
  */
 private void addPoint(Point point) {
  if (sPoints.size() > 0) {
   Point lastPoint = sPoints.get(sPoints.size() - 1);
   int dx = Math.abs(lastPoint.getColNum() - point.getColNum());
   int dy = Math.abs(lastPoint.getRowNum() - point.getRowNum());
   if ((dx > 1 || dy > 1) && (dx == 0 || dy == 0 || dx == dy)) {
//   if ((dx > 1 || dy > 1) && (dx != 2 * dy) && (dy != 2 * dx)) {
    int middleIndex = (point.index + lastPoint.index) / 2 - 1;
    Point middlePoint = mPoints[middleIndex / 3][middleIndex % 3];
    if (middlePoint.state != Point.STATE_CHECK) {
     middlePoint.state = Point.STATE_CHECK;
     sPoints.add(middlePoint);
    }
   }
  }
  this.sPoints.add(point);
 }

 /**
  * @param
  * @return
  */
 private String toPointString() {
  if (sPoints.size() >= pwdMinLen && sPoints.size() <= pwdMaxLen) {
   StringBuffer sf = new StringBuffer();
   for (Point p : sPoints) {
    sf.append(p.index);
   }
   return sf.toString();
  } else {
   return "";
  }
 }

 boolean movingNoPoint = false;
 float moveingX, moveingY;

 @Override
 public boolean onTouchEvent(MotionEvent event) {
  //
  if (!isTouch) {
   return false;
  }

  movingNoPoint = false;

  float ex = event.getX();
  float ey = event.getY();
  boolean isFinish = false;
  boolean redraw = false;
  Point p = null;
  switch (event.getAction()) {
  case MotionEvent.ACTION_DOWN: //
   //
   if (task != null) {
    task.cancel();
    task = null;
    Log.d("task", "touch cancel()");
   }
   //
   reset();
   p = checkSelectPoint(ex, ey);
   if (p != null) {
    checking = true;
   }
   break;
  case MotionEvent.ACTION_MOVE:
   if (checking) {
    p = checkSelectPoint(ex, ey);
    if (p == null) {
     movingNoPoint = true;
     moveingX = ex;
     moveingY = ey;
    }
   }
   break;
  case MotionEvent.ACTION_UP:
   p = checkSelectPoint(ex, ey);
   checking = false;
   isFinish = true;
   break;
  }
  if (!isFinish && checking && p != null) {

   int rk = crossPoint(p);
   if (rk == 2) //
   {
    // reset();
    // checking = false;

    movingNoPoint = true;
    moveingX = ex;
    moveingY = ey;

    redraw = true;
   } else if (rk == 0) //
   {
    p.state = Point.STATE_CHECK;
    addPoint(p);
    redraw = true;
   }
   // rk == 1

  }

  //
  if (redraw) {

  }
  if (isFinish) {
   if (this.sPoints.size() == 1) {
    this.reset();
   } else if (sPoints.size() < pwdMinLen || sPoints.size() > pwdMaxLen) {
    // mCompleteListener.onPasswordTooMin(sPoints.size());
    error();
    clearPassword();
    Toast.makeText(this.getContext(), "手势密码少于4个点", Toast.LENGTH_SHORT).show();
   } else if (mCompleteListener != null) {
    this.disableTouch();
    mCompleteListener.onComplete(toPointString());
   }
  }
  this.postInvalidate();
  return true;
 }

 /**
  *
  */
 private void error() {
  for (Point p : sPoints) {
   p.state = Point.STATE_CHECK_ERROR;
  }
 }

 public void markError() {
  markError(CLEAR_TIME);
 }

 public void markError(final long time) {
  for (Point p : sPoints) {
   p.state = Point.STATE_CHECK_ERROR;
  }
  this.clearPassword(time);
 }

 public void enableTouch() {
  isTouch = true;
 }

 public void disableTouch() {
  isTouch = false;
 }

 private Timer timer = new Timer();
 private TimerTask task = null;


 public void clearPassword() {
  clearPassword(CLEAR_TIME);
 }

 public void clearPassword(final long time) {
  if (time > 1) {
   if (task != null) {
    task.cancel();
    Log.d("task", "clearPassword cancel()");
   }
   postInvalidate();
   task = new TimerTask() {
    public void run() {
     reset();
     postInvalidate();
    }
   };
   Log.d("task", "clearPassword schedule(" + time + ")");
   timer.schedule(task, time);
  } else {
   reset();
   postInvalidate();
  }

 }

 //
 private OnCompleteListener mCompleteListener;

 /**
  * @param mCompleteListener
  */
 public void setOnCompleteListener(OnCompleteListener mCompleteListener) {
  this.mCompleteListener = mCompleteListener;
 }

 public interface OnCompleteListener {

  public void onComplete(String password);
 }
}
