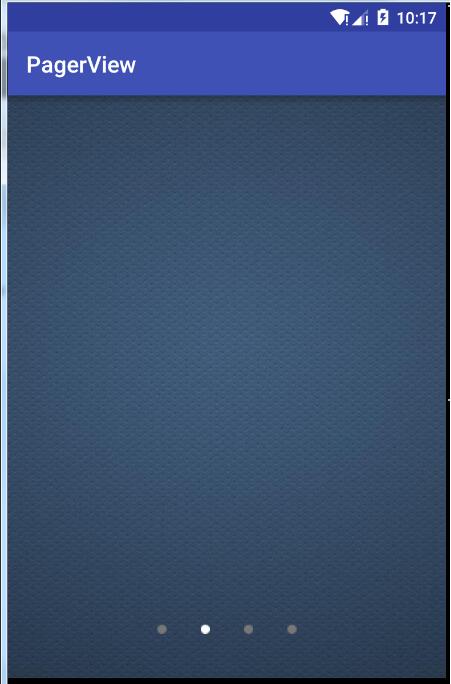

Android客户端首次启动引导界面

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
  android:layout_width="match_parent"
  android:layout_height="match_parent"
  android:orientation="vertical" >

  <android.support.v4.view.ViewPager
    android:id="@+id/viewpager"
    android:layout_width="match_parent"
    android:layout_height="match_parent" />

  <LinearLayout
    android:id="@+id/ll"
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"
    android:layout_alignParentBottom="true"
    android:layout_centerHorizontal="true"
    android:layout_marginBottom="24.0dp"
    android:orientation="horizontal" >

    <ImageView
      android:layout_width="wrap_content"
      android:layout_height="wrap_content"
      android:layout_gravity="center_vertical"
      android:clickable="true"
      android:padding="15.0dip"
      android:src="@drawable/dot" />

    <ImageView
      android:layout_width="wrap_content"
      android:layout_height="wrap_content"
      android:layout_gravity="center_vertical"
      android:clickable="true"
      android:padding="15.0dip"
      android:src="@drawable/dot" />

    <ImageView
      android:layout_width="wrap_content"
      android:layout_height="wrap_content"
      android:layout_gravity="center_vertical"
      android:clickable="true"
      android:padding="15.0dip"
      android:src="@drawable/dot" />

    <ImageView
      android:layout_width="wrap_content"
      android:layout_height="wrap_content"
      android:layout_gravity="center_vertical"
      android:clickable="true"
      android:padding="15.0dip"
      android:src="@drawable/dot" />
  </LinearLayout>

</RelativeLayout>

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
package com.example.yasin.ndklearn;

import android.content.Intent;
import android.content.SharedPreferences;
import android.support.v7.app.AppCompatActivity;
import android.os.Bundle;


import java.util.ArrayList;
import java.util.List;

import android.app.Activity;
import android.os.Bundle;
import android.support.v4.view.ViewPager;
import android.support.v4.view.ViewPager.OnPageChangeListener;
import android.util.Log;
import android.view.LayoutInflater;
import android.view.View;
import android.widget.ImageView;
import android.widget.LinearLayout;
import android.widget.RelativeLayout;

/**
 *
 * @{# GuideActivity.java Create on 2013-5-2 下午10:59:08
 *
 *   class desc: 引导界面
 *
 *   <p>
 *   Copyright: Copyright(c) 2013
 *   </p>
 * @Version 1.0
 * @Author <a href="mailto:gaolei_xj@163.com">Leo</a>
 *
 *
 */
public class GuideActivity extends AppCompatActivity implements OnPageChangeListener {

  private ViewPager vp;
  private ViewPagerAdapter vpAdapter;
  private List<View> views;

  // 底部小点图片
  private ImageView[] dots;

  // 记录当前选中位置
  private int currentIndex;
  Boolean isFirst;

  @Override
  protected void onCreate(Bundle savedInstanceState) {
    super.onCreate(savedInstanceState);
    setContentView(R.layout.guide_layout);

    // 初始化页面
    initViews();

    // 初始化底部小点
    initDots();
  }

  private void initViews() {

    SharedPreferences pref = getSharedPreferences("first",Activity.MODE_PRIVATE);
    isFirst = pref.getBoolean("status",true);

    if(!isFirst){
      Intent intent = new Intent(this,MainActivity.class);
      startActivity(intent);
      finish();
    }

    LayoutInflater inflater = LayoutInflater.from(this);
    RelativeLayout guideFour = (RelativeLayout) inflater.inflate(R.layout.guide_four, null);
    guideFour.findViewById(R.id.toMain).setOnClickListener(new View.OnClickListener() {
      @Override
      public void onClick(View v) {
        Intent intent = new Intent(GuideActivity.this,MainActivity.class);
        startActivity(intent);
        finish();
      }
    });
    views = new ArrayList<View>();
    // 初始化引导图片列表
    views.add(inflater.inflate(R.layout.guide_one, null));
    views.add(inflater.inflate(R.layout.guide_two, null));
    views.add(inflater.inflate(R.layout.guide_three, null));
    views.add(guideFour);
    // 初始化Adapter
    vpAdapter = new ViewPagerAdapter(views, this);

    vp = (ViewPager) findViewById(R.id.viewpager);
    vp.setAdapter(vpAdapter);
    // 绑定回调
    vp.setOnPageChangeListener(this);


  }

  private void initDots() {
    LinearLayout ll = (LinearLayout) findViewById(R.id.ll);

    dots = new ImageView[views.size()];

    // 循环取得小点图片
    for (int i = 0; i < views.size(); i++) {
      dots[i] = (ImageView) ll.getChildAt(i);
      dots[i].setEnabled(true);// 都设为灰色
    }

    currentIndex = 0;
    dots[currentIndex].setEnabled(false);// 设置为白色，即选中状态
  }

  private void setCurrentDot(int position) {
    if (position < 0 || position > views.size() - 1
        || currentIndex == position) {
      return;
    }

    dots[position].setEnabled(false);
    dots[currentIndex].setEnabled(true);

    currentIndex = position;
  }

  // 当滑动状态改变时调用
  @Override
  public void onPageScrollStateChanged(int arg0) {
  }

  // 当当前页面被滑动时调用
  @Override
  public void onPageScrolled(int arg0, float arg1, int arg2) {
  }

  // 当新的页面被选中时调用
  @Override
  public void onPageSelected(int arg0) {
    // 设置底部小点选中状态
    setCurrentDot(arg0);
  }

}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
package com.example.yasin.ndklearn;

import android.app.Activity;
import android.content.Context;
import android.content.Intent;
import android.content.SharedPreferences;
import android.os.Parcelable;
import android.support.v4.view.PagerAdapter;
import android.support.v4.view.ViewPager;
import android.support.v7.app.AppCompatActivity;
import android.view.View;
import android.view.ViewGroup;
import android.widget.ImageView;

import java.util.List;

/**
 * Created by Yasin on 2016/3/2.
 *
 *
 * @{# ViewPagerAdapter.java Create on 2013-5-2 下午11:03:39
 *
 *   class desc: 引导页面适配器
 *
 *   <p>
 *   Copyright: Copyright(c) 2013
 *   </p>
 * @Version 1.0
 * @Author <a href="mailto:gaolei_xj@163.com">Leo</a>
 *
 *
 */
public class ViewPagerAdapter extends PagerAdapter {

  // 界面列表
  private List<View> views;
  private AppCompatActivity activity;


  public ViewPagerAdapter(List<View> views, AppCompatActivity activity) {
    this.views = views;
    this.activity = activity;
  }
  //加载viewpager的每个item
  @Override
  public Object instantiateItem(ViewGroup container, int position) {
    container.addView(views.get(position),0);
    return views.get(position);
  }
//删除ViewPager的item
  @Override
  public void destroyItem(ViewGroup container, int position, Object object) {
    // super.destroyItem(container, position, object);
    container.removeView(views.get(position));
  }

  // 获得当前界面数
  @Override
  public int getCount() {
    if (views != null) {
      return views.size();
    }
    return 0;
  }
//官方推荐这么写，没研究。。。。
  @Override
  public boolean isViewFromObject(View view, Object object) {
    return view == object;
  }


}
