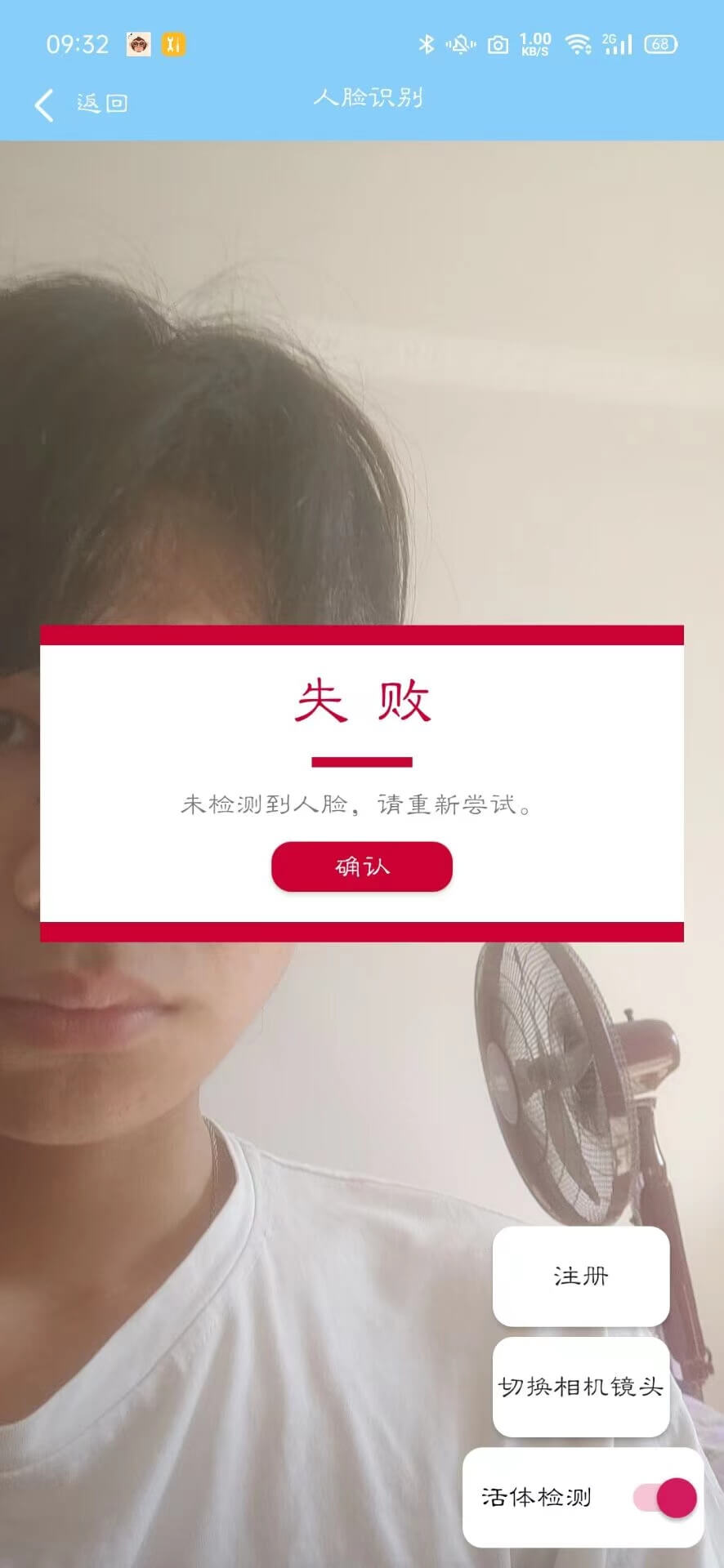

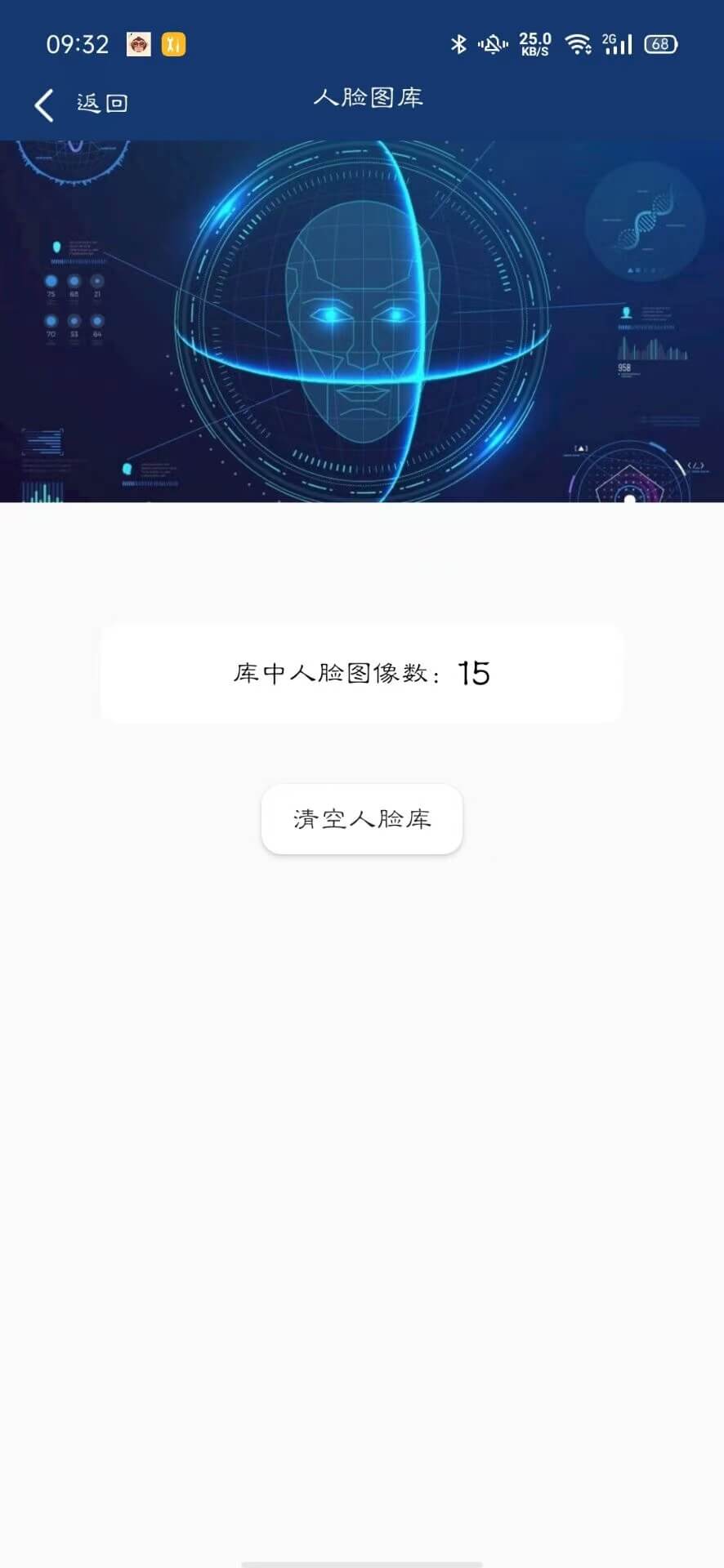

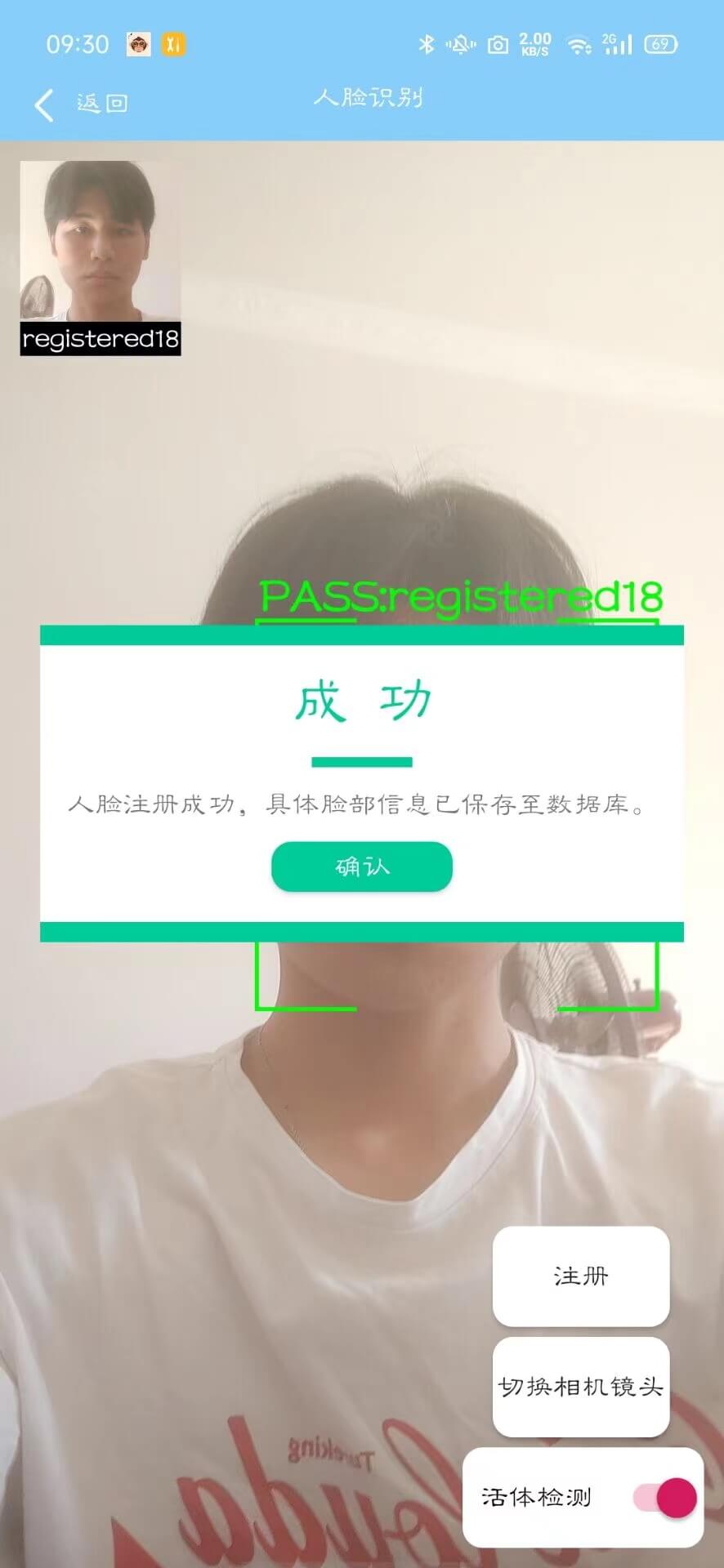

效果图
激活引擎
第一步配置APP_ID和SDK_KEY
复制代码
1int activeCode = FaceEngine.activeOnline( ChooseFunctionActivity.this, Param.APP_ID, Param.SDK_KEY);
复制代码
1
2public static final String APP_ID = "AwY6okHQHxtM92YRYSEqJQwb8cED5huPvYyMhK1w7BSo"; public static final String SDK_KEY = "AF8SaLYtP3ALsmaTR55y9UXaykBZjTtMt5gwCBkUGugh";
第二步：判断是否添加动态链接库（so文件与jar包）
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16private boolean checkSoFile(String[] libraries) { File dir = new File(getApplicationInfo().nativeLibraryDir); File[] files = dir.listFiles(); if (files == null || files.length == 0) { return false; } List<String> libraryNameList = new ArrayList<>(); for (File file : files) { libraryNameList.add(file.getName()); } boolean exists = true; for (String library : libraries) { exists &= libraryNameList.contains(library); } return exists; }
第三步：判断是否申明所有权限
复制代码
1
2
3
4
5
6
7
8
9
10protected boolean CheckPermissions(String[] neededPermissions) { if (neededPermissions == null || neededPermissions.length == 0) { return true; } boolean allGranted = true; for (String neededPermission : neededPermissions) { allGranted &= ContextCompat.checkSelfPermission(this, neededPermission) == PackageManager.PERMISSION_GRANTED; } return allGranted; }
激活引擎代码如下
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68public void ActivationDevice(final View view) { if (!libraryExists) { ShowToast(getString(R.string.library_not_found)); return; } if (!CheckPermissions(NEEDED_PERMISSIONS)) { ActivityCompat.requestPermissions(this, NEEDED_PERMISSIONS, ACTION_REQUEST_PERMISSIONS); return; } if (view != null) { view.setClickable(false); } Observable.create( new ObservableOnSubscribe<Integer>() { @Override public void subscribe(ObservableEmitter<Integer> emitter) { RuntimeABI runtimeABI = FaceEngine.getRuntimeABI(); Log.i(TAG, "subscribe: getRuntimeABI() " + runtimeABI); long start = System.currentTimeMillis(); int activeCode = FaceEngine.activeOnline( ChooseFunctionActivity.this, Param.APP_ID, Param.SDK_KEY); Log.i(TAG, "subscribe cost: " + (System.currentTimeMillis() - start)); emitter.onNext(activeCode); } }) .subscribeOn( Schedulers.io()) .observeOn( AndroidSchedulers.mainThread()) .subscribe(new Observer<Integer>() { @Override public void onSubscribe(Disposable d) { } @Override public void onNext(Integer activeCode) { if (activeCode == ErrorInfo.MOK) { ShowToast(getString(R.string.activation_succeeded)); } else if (activeCode == ErrorInfo.MERR_ASF_ALREADY_ACTIVATED) { ShowToast(getString(R.string.already_activated)); } else { ShowToast(getString(R.string.active_failed, activeCode)); } if (view != null) { view.setClickable(true); } ActiveFileInfo activeFileInfo = new ActiveFileInfo(); int res = FaceEngine.getActiveFileInfo(ChooseFunctionActivity.this, activeFileInfo); if (res == ErrorInfo.MOK) { Log.i(TAG, activeFileInfo.toString()); } } @Override public void onError(Throwable e) { ShowToast(e.getMessage()); if (view != null) { view.setClickable(true); } } @Override public void onComplete() { } }); }
人脸比对 1：N
第一步：初始化本地人脸库
复制代码
1FaceServer.getInstance().init(this);
第二步：初始化引擎和相机
复制代码
1
2
3
4
5
6
7
8
9public void onGlobalLayout() { previewView.getViewTreeObserver().removeOnGlobalLayoutListener(this); if (!CheckPermissions(NEEDED_PERMISSIONS)) { ActivityCompat.requestPermissions(this, NEEDED_PERMISSIONS, ACTION_REQUEST_PERMISSIONS); } else { initEngine(); initCamera(); } }
第三步：初始化引擎
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31private void initEngine() { ftEngine = new FaceEngine(); ftInitCode = ftEngine.init(this, DetectMode.ASF_DETECT_MODE_VIDEO, ConfigUtil.getFtOrient(this), 16, MAX_DETECT_NUM, FaceEngine.ASF_FACE_DETECT); frEngine = new FaceEngine(); frInitCode = frEngine.init(this, DetectMode.ASF_DETECT_MODE_IMAGE, DetectFaceOrientPriority.ASF_OP_0_ONLY, 16, MAX_DETECT_NUM, FaceEngine.ASF_FACE_RECOGNITION); flEngine = new FaceEngine(); flInitCode = flEngine.init(this, DetectMode.ASF_DETECT_MODE_IMAGE, DetectFaceOrientPriority.ASF_OP_0_ONLY, 16, MAX_DETECT_NUM, FaceEngine.ASF_LIVENESS); Log.i(TAG, "initEngine: init: " + ftInitCode); if (ftInitCode != ErrorInfo.MOK) { String error = getString(R.string.specific_engine_init_failed, "ftEngine", ftInitCode); Log.i(TAG, "initEngine: " + error); ShowToast(error); } if (frInitCode != ErrorInfo.MOK) { String error = getString(R.string.specific_engine_init_failed, "frEngine", frInitCode); Log.i(TAG, "initEngine: " + error); ShowToast(error); } if (flInitCode != ErrorInfo.MOK) { String error = getString(R.string.specific_engine_init_failed, "flEngine", flInitCode); Log.i(TAG, "initEngine: " + error); ShowToast(error); } }
第四步：活体检测
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214private void initCamera() { DisplayMetrics metrics = new DisplayMetrics(); getWindowManager().getDefaultDisplay().getMetrics(metrics); final FaceListener faceListener = new FaceListener() { @Override public void onFail(Exception e) { Log.e(TAG, "onFail: " + e.getMessage()); } //请求FR的回调 @Override public void onFaceFeatureInfoGet(@Nullable final FaceFeature faceFeature, final Integer requestId, final Integer errorCode) { //FR成功 if (faceFeature != null) { // Log.i(TAG, "onPreview: fr end = " + System.currentTimeMillis() + " trackId = " + requestId); Integer liveness = livenessMap.get(requestId); //不做活体检测的情况，直接搜索 if (!livenessDetect) { searchFace(faceFeature, requestId); } //活体检测通过，搜索特征 else if (liveness != null && liveness == LivenessInfo.ALIVE) { searchFace(faceFeature, requestId); } //活体检测未出结果，或者非活体，延迟执行该函数 else { if (requestFeatureStatusMap.containsKey(requestId)) { Observable.timer(WAIT_LIVENESS_INTERVAL, TimeUnit.MILLISECONDS) .subscribe(new Observer<Long>() { Disposable disposable; @Override public void onSubscribe(Disposable d) { disposable = d; getFeatureDelayedDisposables.add(disposable); } @Override public void onNext(Long aLong) { onFaceFeatureInfoGet(faceFeature, requestId, errorCode); } @Override public void onError(Throwable e) { } @Override public void onComplete() { getFeatureDelayedDisposables.remove(disposable); } }); } } } //特征提取失败 else { if (increaseAndGetValue(extractErrorRetryMap, requestId) > MAX_RETRY_TIME) { extractErrorRetryMap.put(requestId, 0); String msg; // 传入的FaceInfo在指定的图像上无法解析人脸，此处使用的是RGB人脸数据，一般是人脸模糊 if (errorCode != null && errorCode == ErrorInfo.MERR_FSDK_FACEFEATURE_LOW_CONFIDENCE_LEVEL) { msg = getString(R.string.low_confidence_level); } else { msg = "ExtractCode:" + errorCode; } faceHelper.setName(requestId, getString(R.string.recognize_failed_notice, msg)); // 在尝试最大次数后，特征提取仍然失败，则认为识别未通过 requestFeatureStatusMap.put(requestId, RequestFeatureStatus.FAILED); retryRecognizeDelayed(requestId); } else { requestFeatureStatusMap.put(requestId, RequestFeatureStatus.TO_RETRY); } } } @Override public void onFaceLivenessInfoGet(@Nullable LivenessInfo livenessInfo, final Integer requestId, Integer errorCode) { if (livenessInfo != null) { int liveness = livenessInfo.getLiveness(); livenessMap.put(requestId, liveness); // 非活体，重试 if (liveness == LivenessInfo.NOT_ALIVE) { faceHelper.setName(requestId, getString(R.string.recognize_failed_notice, "NOT_ALIVE")); // 延迟 FAIL_RETRY_INTERVAL 后，将该人脸状态置为UNKNOWN，帧回调处理时会重新进行活体检测 retryLivenessDetectDelayed(requestId); } } else { if (increaseAndGetValue(livenessErrorRetryMap, requestId) > MAX_RETRY_TIME) { livenessErrorRetryMap.put(requestId, 0); String msg; // 传入的FaceInfo在指定的图像上无法解析人脸，此处使用的是RGB人脸数据，一般是人脸模糊 if (errorCode != null && errorCode == ErrorInfo.MERR_FSDK_FACEFEATURE_LOW_CONFIDENCE_LEVEL) { msg = getString(R.string.low_confidence_level); } else { msg = "ProcessCode:" + errorCode; } faceHelper.setName(requestId, getString(R.string.recognize_failed_notice, msg)); retryLivenessDetectDelayed(requestId); } else { livenessMap.put(requestId, LivenessInfo.UNKNOWN); } } } }; CameraListener cameraListener = new CameraListener() { @Override public void onCameraOpened(Camera camera, int cameraId, int displayOrientation, boolean isMirror) { Camera.Size lastPreviewSize = previewSize; previewSize = camera.getParameters().getPreviewSize(); drawHelper = new DrawHelper(previewSize.width, previewSize.height, previewView.getWidth(), previewView.getHeight(), displayOrientation , cameraId, isMirror, false, false); Log.i(TAG, "onCameraOpened: " + drawHelper.toString()); // 切换相机的时候可能会导致预览尺寸发生变化 if (faceHelper == null || lastPreviewSize == null || lastPreviewSize.width != previewSize.width || lastPreviewSize.height != previewSize.height) { Integer trackedFaceCount = null; // 记录切换时的人脸序号 if (faceHelper != null) { trackedFaceCount = faceHelper.getTrackedFaceCount(); faceHelper.release(); } faceHelper = new FaceHelper.Builder() .ftEngine(ftEngine) .frEngine(frEngine) .flEngine(flEngine) .frQueueSize(MAX_DETECT_NUM) .flQueueSize(MAX_DETECT_NUM) .previewSize(previewSize) .faceListener(faceListener) .trackedFaceCount(trackedFaceCount == null ? ConfigUtil.getTrackedFaceCount(FaceComparison_RGB.this.getApplicationContext()) : trackedFaceCount) .build(); } } @Override public void onPreview(final byte[] nv21, Camera camera) { if (faceRectView != null) { faceRectView.clearFaceInfo(); } List<FacePreviewInfo> facePreviewInfoList = faceHelper.onPreviewFrame(nv21); if (facePreviewInfoList != null && faceRectView != null && drawHelper != null) { drawPreviewInfo(facePreviewInfoList); } registerFace(nv21, facePreviewInfoList); clearLeftFace(facePreviewInfoList); if (facePreviewInfoList != null && facePreviewInfoList.size() > 0 && previewSize != null) { for (int i = 0; i < facePreviewInfoList.size(); i++) { Integer status = requestFeatureStatusMap.get(facePreviewInfoList.get(i).getTrackId()); /** * 在活体检测开启，在人脸识别状态不为成功或人脸活体状态不为处理中（ANALYZING）且不为处理完成（ALIVE、NOT_ALIVE）时重新进行活体检测 */ if (livenessDetect && (status == null || status != RequestFeatureStatus.SUCCEED)) { Integer liveness = livenessMap.get(facePreviewInfoList.get(i).getTrackId()); if (liveness == null || (liveness != LivenessInfo.ALIVE && liveness != LivenessInfo.NOT_ALIVE && liveness != RequestLivenessStatus.ANALYZING)) { livenessMap.put(facePreviewInfoList.get(i).getTrackId(), RequestLivenessStatus.ANALYZING); faceHelper.requestFaceLiveness(nv21, facePreviewInfoList.get(i).getFaceInfo(), previewSize.width, previewSize.height, FaceEngine.CP_PAF_NV21, facePreviewInfoList.get(i).getTrackId(), LivenessType.RGB); } } /** * 对于每个人脸，若状态为空或者为失败，则请求特征提取（可根据需要添加其他判断以限制特征提取次数）， * 特征提取回传的人脸特征结果在{@link FaceListener#onFaceFeatureInfoGet(FaceFeature, Integer, Integer)}中回传 */ if (status == null || status == RequestFeatureStatus.TO_RETRY) { requestFeatureStatusMap.put(facePreviewInfoList.get(i).getTrackId(), RequestFeatureStatus.SEARCHING); faceHelper.requestFaceFeature(nv21, facePreviewInfoList.get(i).getFaceInfo(), previewSize.width, previewSize.height, FaceEngine.CP_PAF_NV21, facePreviewInfoList.get(i).getTrackId()); // Log.i(TAG, "onPreview: fr start = " + System.currentTimeMillis() + " trackId = " + facePreviewInfoList.get(i).getTrackedFaceCount()); } } } } @Override public void onCameraClosed() { Log.i(TAG, "onCameraClosed: "); } @Override public void onCameraError(Exception e) { Log.i(TAG, "onCameraError: " + e.getMessage()); } @Override public void onCameraConfigurationChanged(int cameraID, int displayOrientation) { if (drawHelper != null) { drawHelper.setCameraDisplayOrientation(displayOrientation); } Log.i(TAG, "onCameraConfigurationChanged: " + cameraID + " " + displayOrientation); } }; cameraHelper = new CameraHelper.Builder() .previewViewSize(new Point(previewView.getMeasuredWidth(), previewView.getMeasuredHeight())) .rotation(getWindowManager().getDefaultDisplay().getRotation()) .specificCameraId(rgbCameraID != null ? rgbCameraID : Camera.CameraInfo.CAMERA_FACING_FRONT) .isMirror(false) .previewOn(previewView) .cameraListener(cameraListener) .build(); cameraHelper.init(); cameraHelper.start(); }
人脸注册
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47private void registerFace(final byte[] nv21, final List<FacePreviewInfo> facePreviewInfoList) { if (registerStatus == REGISTER_STATUS_READY && facePreviewInfoList != null && facePreviewInfoList.size() > 0) { registerStatus = REGISTER_STATUS_PROCESSING; Observable.create( new ObservableOnSubscribe<Boolean>() { @Override public void subscribe(ObservableEmitter<Boolean> emitter) { boolean success = FaceServer.getInstance().registerNv21(FaceComparison_RGB.this, nv21.clone(), previewSize.width, previewSize.height, facePreviewInfoList.get(0).getFaceInfo(), "registered" + faceHelper.getTrackedFaceCount()); emitter.onNext(success); } }) .subscribeOn( Schedulers.computation()) .observeOn( AndroidSchedulers.mainThread()) .subscribe(new Observer<Boolean>() { @Override public void onSubscribe(Disposable d) { } /**判断是否注册成功*/ @Override public void onNext(Boolean success) { //String result = success ? "register success!" : "register failed!"; //ShowToast(result); // AlertDialog.Builder builder = new AlertDialog.Builder( FaceComparison_RGB.this ); // AlertDialog dialog = builder.create(); // View AlertDialog_View = View.inflate( FaceComparison_RGB.this,R.layout.register_result,null ); // dialog.setView( AlertDialog_View ); // dialog.show(); ShowPopWindows(success); registerStatus = REGISTER_STATUS_DONE; } @Override public void onError(Throwable e) { e.printStackTrace(); ShowToast("register failed!"); ShowFailPopWindows(); registerStatus = REGISTER_STATUS_DONE; } @Override public void onComplete() { } }); } }
切换前置、后置摄像头
复制代码
1
2
3
4
5
6
7
8
9
10public void switchCamera(View view) { if (cameraHelper != null) { boolean success = cameraHelper.switchCamera(); if (!success) { ShowToast(getString(R.string.switch_camera_failed)); } else { ShowToast(getString(R.string.notice_change_detect_degree)); } } }
尾言
本示例工程基于虹软(ArcSoft)官方Demo改编而成，若有唐突之处，望君海涵
