Flutter实现矩形取色器的封装

169 阅读 0 评论 112 点赞

我是靠谱客的博主细心冬日，这篇文章主要介绍Flutter实现矩形取色器的封装，现在分享给大家，希望可以做个参考。

前言

最近看插件库上少有的取色器大都是圆形的或者奇奇怪的的亚子，所以今天做两个矩形的颜色取色器

提示：以下是本篇文章正文内容，下面案例可供参考

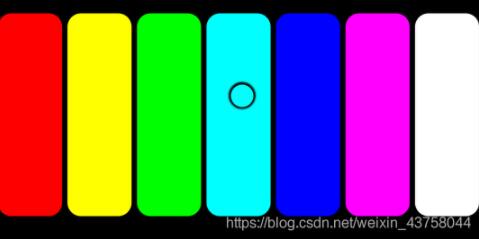

一、BarTypeColorPicker

条形选色板的功能实现，颜色的获取是通过位置来判断，然后赋予相应的颜色。这个封装好的组件可通过colorListener、onTapUpListener的回调方法，把颜色传出去。

代码如下（示例）：

复制代码

import 'package:flutter/cupertino.dart';
import 'package:flutter/material.dart';

///描述：条形选色板

class BarTypeColorPicker extends StatefulWidget {
  final Color initialColor;
  final ValueChanged<Color> colorListener;
  final ValueChanged<Color> onTapUpListener;
  final int colorWidth;
  final int colorHeight;
  final Color color;

const BarTypeColorPicker(
      {Key key,
      this.initialColor,
      this.colorListener,
      this.onTapUpListener,
      this.colorWidth,
      this.colorHeight,
      this.color})
      : super(key: key);

@override
  _BarTypeColorPickerState createState() => _BarTypeColorPickerState(
        colorWidth.toDouble(),
        colorHeight.toDouble(),
      );
}

class _BarTypeColorPickerState extends State<BarTypeColorPicker> {
  double _top = 0.0;
  double _left = 0.0;
  double _Thumbsize = 20;
  double lightness;
  double _colorwidth;
  double _colorHeight;
  Color _color;

_BarTypeColorPickerState(double colorwidth, double colorHeight) {
    this._colorwidth = colorwidth;
    this._colorHeight = colorHeight;
  }

@override
  void initState() {
    super.initState();
  }

@override
  Widget build(BuildContext context) {
    return Center(
      child: GestureDetector(
        onPanStart: (DragStartDetails detail) {
          var localPosition = detail.localPosition;
          buildSetState(localPosition, context);
          if (widget.colorListener != null) {
            widget.colorListener(_color);
          }
        },
        onPanDown: (DragDownDetails detail) {
          var localPosition = detail.localPosition;
          buildSetState(localPosition, context);
          if (widget.colorListener != null) {
            widget.colorListener(_color);
          }
        },
        onPanUpdate: (DragUpdateDetails detail) {
          var localPosition = detail.localPosition;
          buildSetState(localPosition, context);
          if (widget.colorListener != null) {
            widget.colorListener(_color);
          }
        },
        onPanEnd: (DragEndDetails detail) {
          if (widget.onTapUpListener != null) {
            widget.onTapUpListener(_color);
          }
        },
        onTapUp: (TapUpDetails detail) {
          if (widget.onTapUpListener != null) {
            widget.onTapUpListener(_color);
          }
        },
        child: ColorRect(
            colorHeight: _colorHeight,
            colorwidth: _colorwidth,
            top: _top,
            Thumbsize: _Thumbsize,
            left: _left,
            color: _color),
      ),
    );
  }

class ColorRect extends StatelessWidget {
  ColorRect({
    Key key,
    @required double colorHeight,
    @required double colorwidth,
    @required double top,
    @required double Thumbsize,
    @required double left,
    @required Color color,
  })  : _colorHeight = colorHeight,
        _colorwidth = colorwidth,
        _top = top,
        _Thumbsize = Thumbsize,
        _left = left,
        _color = color,
        super(key: key);

final double _colorHeight;
  final double _colorwidth;
  final double _top;
  final double _Thumbsize;
  final double _left;
  final Color _color;
  List<Color> colorList = [
    Color(0xFFFF0000),
    Color(0xFFFFFF00),
    Color(0xFF00FF00),
    Color(0xFF00FFFF),
    Color(0xFF0000FF),
    Color(0xFFFF00FF),
    Color(0xFFFFFFFF),
  ];

@override
  Widget build(BuildContext context) {
    return Container(
      width: _colorwidth,
      height: _colorHeight,
      child: Stack(
        children: [
          Row(
            mainAxisAlignment: MainAxisAlignment.center,
            children: colorList
                .map(
                  (e) => Container(
                    padding: EdgeInsets.symmetric(horizontal: 2),
                    height: _colorHeight,
                    width: _colorwidth / 7,
                    child: Container(
                      decoration: BoxDecoration(
                        borderRadius: BorderRadius.circular(10),
                        color: e,
                      ),
                    ),
                  ),
                )
                .toList(),
          ),
          Container(
              child: Thumb(
                  top: _top,
                  Thumbsize: _Thumbsize,
                  left: _left,
                  color: _color)),
        ],
      ),
    );
  }
}

class Thumb extends StatelessWidget {
  const Thumb({
    Key key,
    @required double top,
    @required double Thumbsize,
    @required double left,
    @required Color color,
  })  : _top = top,
        _Thumbsize = Thumbsize,
        _left = left,
        _color = color,
        super(key: key);

final double _top;
  final double _Thumbsize;
  final double _left;
  final Color _color;

@override
  Widget build(BuildContext context) {
    return Positioned(
        top: _top - _Thumbsize / 2,
        left: _left - _Thumbsize / 2,
        child: GestureDetector(
            child: Container(
          child: Icon(
            Icons.circle,
            color: _color,
            size: _Thumbsize,
          ),
          decoration: BoxDecoration(
            borderRadius: BorderRadius.circular(10),
            boxShadow: [
              BoxShadow(
                blurRadius: 0.1, //阴影范围
                spreadRadius: 0.001, //阴影浓度
                color: Colors.black, //阴影颜色
              ),
            ],
          ),
        )));
  }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
import 'package:flutter/cupertino.dart';
import 'package:flutter/material.dart';


///描述：条形选色板

class BarTypeColorPicker extends StatefulWidget {
  final Color initialColor;
  final ValueChanged<Color> colorListener;
  final ValueChanged<Color> onTapUpListener;
  final int colorWidth;
  final int colorHeight;
  final Color color;

  const BarTypeColorPicker(
      {Key key,
      this.initialColor,
      this.colorListener,
      this.onTapUpListener,
      this.colorWidth,
      this.colorHeight,
      this.color})
      : super(key: key);

  @override
  _BarTypeColorPickerState createState() => _BarTypeColorPickerState(
        colorWidth.toDouble(),
        colorHeight.toDouble(),
      );
}

class _BarTypeColorPickerState extends State<BarTypeColorPicker> {
  double _top = 0.0;
  double _left = 0.0;
  double _Thumbsize = 20;
  double lightness;
  double _colorwidth;
  double _colorHeight;
  Color _color;

  _BarTypeColorPickerState(double colorwidth, double colorHeight) {
    this._colorwidth = colorwidth;
    this._colorHeight = colorHeight;
  }

  @override
  void initState() {
    super.initState();
  }

  @override
  Widget build(BuildContext context) {
    return Center(
      child: GestureDetector(
        onPanStart: (DragStartDetails detail) {
          var localPosition = detail.localPosition;
          buildSetState(localPosition, context);
          if (widget.colorListener != null) {
            widget.colorListener(_color);
          }
        },
        onPanDown: (DragDownDetails detail) {
          var localPosition = detail.localPosition;
          buildSetState(localPosition, context);
          if (widget.colorListener != null) {
            widget.colorListener(_color);
          }
        },
        onPanUpdate: (DragUpdateDetails detail) {
          var localPosition = detail.localPosition;
          buildSetState(localPosition, context);
          if (widget.colorListener != null) {
            widget.colorListener(_color);
          }
        },
        onPanEnd: (DragEndDetails detail) {
          if (widget.onTapUpListener != null) {
            widget.onTapUpListener(_color);
          }
        },
        onTapUp: (TapUpDetails detail) {
          if (widget.onTapUpListener != null) {
            widget.onTapUpListener(_color);
          }
        },
        child: ColorRect(
            colorHeight: _colorHeight,
            colorwidth: _colorwidth,
            top: _top,
            Thumbsize: _Thumbsize,
            left: _left,
            color: _color),
      ),
    );
  }

  void buildSetState(Offset localPosition, BuildContext context) {
    return setState(() {
      _left = localPosition.dx;
      _top = localPosition.dy;
      if (_left < 0) {
        _left = 0;
      } else if (0 <= _left && _left <= _colorwidth) {
        _left = _left;
      } else if (_left > _colorwidth) {
        _left = (_colorwidth);
      }
      if ((_colorwidth / 7) * 0 < _left && _left < (_colorwidth / 7) * 1) {
        _color = Color(0xFFFF0000);
      } else if ((_colorwidth / 7) * 1 < _left &&
          _left < (_colorwidth / 7) * 2) {
        _color = Color(0xFFFFFF00);
      } else if ((_colorwidth / 7) * 2 < _left &&
          _left < (_colorwidth / 7) * 3) {
        _color = Color(0xFF00FF00);
      } else if ((_colorwidth / 7) * 3 < _left &&
          _left < (_colorwidth / 7) * 4) {
        _color = Color(0xFF00FFFF);
      } else if ((_colorwidth / 7) * 4 < _left &&
          _left < (_colorwidth / 7) * 5) {
        _color = Color(0xFF0000FF);
      } else if ((_colorwidth / 7) * 5 < _left &&
          _left < (_colorwidth / 7) * 6) {
        _color = Color(0xFFFF00FF);
      } else if ((_colorwidth / 7) * 6 < _left &&
          _left < (_colorwidth / 7) * 7) {
        _color = Color(0xFFFFFFFF);
      }
      if (_top <= 0) {
        _top = 0;
      } else if (0 <= _top && _top <= _colorHeight) {
      } else if (_top > _colorHeight) {
        _top = _colorHeight;
      }
    });
  }
}

class ColorRect extends StatelessWidget {
  ColorRect({
    Key key,
    @required double colorHeight,
    @required double colorwidth,
    @required double top,
    @required double Thumbsize,
    @required double left,
    @required Color color,
  })  : _colorHeight = colorHeight,
        _colorwidth = colorwidth,
        _top = top,
        _Thumbsize = Thumbsize,
        _left = left,
        _color = color,
        super(key: key);

  final double _colorHeight;
  final double _colorwidth;
  final double _top;
  final double _Thumbsize;
  final double _left;
  final Color _color;
  List<Color> colorList = [
    Color(0xFFFF0000),
    Color(0xFFFFFF00),
    Color(0xFF00FF00),
    Color(0xFF00FFFF),
    Color(0xFF0000FF),
    Color(0xFFFF00FF),
    Color(0xFFFFFFFF),
  ];

  @override
  Widget build(BuildContext context) {
    return Container(
      width: _colorwidth,
      height: _colorHeight,
      child: Stack(
        children: [
          Row(
            mainAxisAlignment: MainAxisAlignment.center,
            children: colorList
                .map(
                  (e) => Container(
                    padding: EdgeInsets.symmetric(horizontal: 2),
                    height: _colorHeight,
                    width: _colorwidth / 7,
                    child: Container(
                      decoration: BoxDecoration(
                        borderRadius: BorderRadius.circular(10),
                        color: e,
                      ),
                    ),
                  ),
                )
                .toList(),
          ),
          Container(
              child: Thumb(
                  top: _top,
                  Thumbsize: _Thumbsize,
                  left: _left,
                  color: _color)),
        ],
      ),
    );
  }
}

class Thumb extends StatelessWidget {
  const Thumb({
    Key key,
    @required double top,
    @required double Thumbsize,
    @required double left,
    @required Color color,
  })  : _top = top,
        _Thumbsize = Thumbsize,
        _left = left,
        _color = color,
        super(key: key);

  final double _top;
  final double _Thumbsize;
  final double _left;
  final Color _color;

  @override
  Widget build(BuildContext context) {
    return Positioned(
        top: _top - _Thumbsize / 2,
        left: _left - _Thumbsize / 2,
        child: GestureDetector(
            child: Container(
          child: Icon(
            Icons.circle,
            color: _color,
            size: _Thumbsize,
          ),
          decoration: BoxDecoration(
            borderRadius: BorderRadius.circular(10),
            boxShadow: [
              BoxShadow(
                blurRadius: 0.1, //阴影范围
                spreadRadius: 0.001, //阴影浓度
                color: Colors.black, //阴影颜色
              ),
            ],
          ),
        )));
  }
}

下面是使用方法。

复制代码

1
2
3
4
5
BarTypeColorPicker(
   initialColor: Colors.white,
   colorWidth: 360,
   colorHeight: 150,
),

具体效果图：

一、RectangleColorPicker

矩形选色板的功能实现，颜色的获取是通过位置的坐标值转换为相应的颜色。这个封装好的组件可通过colorListener、onTapUpListener的回调方法，把颜色传出去。

代码如下（示例）：

复制代码

import 'package:flutter/cupertino.dart';
import 'package:flutter/material.dart';

class RectangleColorPicker extends StatefulWidget {
  final Color initialColor;
  final ValueChanged<Color> colorListener;
  final ValueChanged<Color> onTapUpListener;
  final int colorWidth;
  final int colorHeight;
  final Color color;

const RectangleColorPicker(
      {Key key,
      this.initialColor,
      this.colorListener,
      this.onTapUpListener,
      this.colorWidth,
      this.colorHeight,
      this.color})
      : super(key: key);

@override
  _RectangleColorPickerState createState() => _RectangleColorPickerState(
        colorWidth.toDouble(),
        colorHeight.toDouble(),
      );
}

class _RectangleColorPickerState extends State<RectangleColorPicker> {
  double _top = 0.0;
  double _left = 0.0;
  double _Thumbsize = 20;
  double _hue = 0.0;
  double _brightnum = 50.0;
  double lightness;
  double _colorwidth;
  double _colorHeight;

_RectangleColorPickerState(double colorwidth, double colorHeight) {
    this._colorwidth = colorwidth;
    this._colorHeight = colorHeight;
  }

Color get _color {
    return HSLColor.fromAHSL(
      1,
      _hue,
      1,
      lightness,
    ).toColor();
    //返回HSL、AHSL格式的色调亮度字符串
  }

@override
  void initState() {
    super.initState();
    HSLColor hslColor = HSLColor.fromColor(widget.initialColor);
    _left = (_colorwidth * hslColor.hue) / 360;
    _top = (_colorHeight * (hslColor.lightness - 0.5) * 200) / 100;
    this._hue = hslColor.hue;
    this.lightness = hslColor.lightness;
  }

},
        onPanEnd: (DragEndDetails detail) {
          if(widget.onTapUpListener != null){
            widget.onTapUpListener(_color);
          }
        },
        onTapUp: (TapUpDetails detail){
          if(widget.onTapUpListener != null){
            widget.onTapUpListener(_color);
          }
        },
        child: ColorRect(
            colorHeight: _colorHeight,
            colorwidth: _colorwidth,
            top: _top,
            Thumbsize: _Thumbsize,
            left: _left,
            color: _color),
      ),
    );
  }

void buildSetState(Offset localPosition, BuildContext context) {
    return setState(() {
      _left = localPosition.dx;
      _top = localPosition.dy;
      if (_left < 0) {
        _left = 0;
      } else if (0 <= _left && _left <= _colorwidth) {
        _left = _left;
        _hue = (360 * _left) / (_colorwidth);
      } else if (_left > _colorwidth) {
        _left = (_colorwidth);
        _hue = 360;
      }
      if (((5 / 360 - 5 / 360) < _left &&
              _left < (5 / 360 + 5 / 360) * _colorwidth) &&
          (_top < 5)) {
        _left = 5 / 360 * _colorwidth;
        _top = 0;
      } else if ((((5 + 350 / 6) / 360 - 5 / 360) * _colorwidth < _left &&
              _left < ((5 + 350 / 6) / 360 + 5 / 360) * _colorwidth) &&
          (_top < 5)) {
        _left = (5 + (1 * 350) / 6) / 360 * _colorwidth;
        _top = 0;
      } else if ((((5 + (2 * 350) / 6) / 360 - 5 / 360) * _colorwidth < _left &&
              _left < ((5 + (2 * 350) / 6) / 360 + 5 / 360) * _colorwidth) &&
          (_top < 5)) {
        _left = (5 + (2 * 350) / 6) / 360 * _colorwidth;
        _top = 0;
      } else if ((((5 + (3 * 350) / 6) / 360 - 5 / 360) * _colorwidth < _left &&
              _left < ((5 + (3 * 350) / 6) / 360 + 5 / 360) * _colorwidth) &&
          (_top < 5)) {
        _left = (5 + (3 * 350) / 6) / 360 * _colorwidth;
        _top = 0;
      } else if ((((5 + (4 * 350) / 6) / 360 - 5 / 360) * _colorwidth < _left &&
              _left < ((5 + (4 * 350) / 6) / 360 + 5 / 360) * _colorwidth) &&
          (_top < 5)) {
        _left = (5 + (4 * 350) / 6) / 360 * _colorwidth;
        _top = 0;
      } else if ((((5 + (5 * 350) / 6) / 360 - 5 / 360) * _colorwidth < _left &&
              _left < ((5 + (5 * 350) / 6) / 360 + 5 / 360) * _colorwidth) &&
          (_top < 5)) {
        _left = (5 + (5 * 350) / 6) / 360 * _colorwidth;
        _top = 0;
      } else if ((((5 + (6 * 350) / 6) / 360 - 5 / 360) * _colorwidth < _left &&
              _left < ((5 + (6 * 350) / 6) / 360 + 5 / 360)) &&
          (_top < 5)) {
        _left = (5 + (6 * 350) / 6) / 360 * _colorwidth;
        _top = 0;
      }
      if (_top <= 0) {
        _top = 0;
        _brightnum = 50;
        lightness = _brightnum / 100;
      } else if (0 <= _top && _top <= _colorHeight) {
        _brightnum = (100 * _top) / _colorHeight / 2 + 50;
        lightness = _brightnum / 100;
      } else if (_top > _colorHeight) {
        _top = _colorHeight;
        _brightnum = 100;
        lightness = _brightnum / 100;
      }
    });
  }
}

class ColorRect extends StatelessWidget {
  const ColorRect({
    Key key,
    @required double colorHeight,
    @required double colorwidth,
    @required double top,
    @required double Thumbsize,
    @required double left,
    @required Color color,
  })  : _colorHeight = colorHeight,
        _colorwidth = colorwidth,
        _top = top,
        _Thumbsize = Thumbsize,
        _left = left,
        _color = color,
        super(key: key);

final double _colorHeight;
  final double _colorwidth;
  final double _top;
  final double _Thumbsize;
  final double _left;
  final Color _color;

@override
  Widget build(BuildContext context) {
    return Container(
      child: Stack(
        children: [
          Container(
            child: ClipRRect(
              borderRadius: BorderRadius.circular(10),
              child: DecoratedBox(
                  child: Container(
                    height: _colorHeight,
                    width: _colorwidth,
                  ),
                  decoration: BoxDecoration(
                    gradient: LinearGradient(
                      begin: Alignment.centerLeft,
                      end: Alignment.centerRight,
                      stops: [
                        0,
                        5 / 360,
                        (5 + 350 / 6) / 360,
                        (5 + (2 * 350) / 6) / 360,
                        (5 + (3 * 350) / 6) / 360,
                        (5 + (4 * 350) / 6) / 360,
                        (5 + (5 * 350) / 6) / 360,
                        (5 + (6 * 350) / 6) / 360,
                        1.0
                      ],
                      colors: [
                        Color.fromARGB(255, 255, 0, 0),
                        Color.fromARGB(255, 255, 0, 0),
                        Color.fromARGB(255, 255, 255, 0),
                        Color.fromARGB(255, 0, 255, 0),
                        Color.fromARGB(255, 0, 255, 255),
                        Color.fromARGB(255, 0, 0, 255),
                        Color.fromARGB(255, 255, 0, 255),
                        Color.fromARGB(255, 255, 0, 0),
                        Color.fromARGB(255, 255, 0, 0),
                      ],
                    ),
                  )),
            ),
          ),
          Container(
            child: ClipRRect(
              borderRadius: BorderRadius.circular(10),
              child: DecoratedBox(
                  child: Container(
                    height: _colorHeight,
                    width: _colorwidth,
                  ),
                  decoration: BoxDecoration(
                    gradient: LinearGradient(
                      begin: Alignment.topCenter,
                      end: Alignment.bottomCenter,
                      colors: [
                        Color.fromARGB(0, 255, 255, 255),
                        Colors.white,
                      ],
                    ),
                  )),
            ),
          ),
          Container(
              child: Thumb(
                  top: _top,
                  Thumbsize: _Thumbsize,
                  left: _left,
                  color: _color)),
        ],
      ),
    );
  }
}

final double _top;
  final double _Thumbsize;
  final double _left;
  final Color _color;

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
import 'package:flutter/cupertino.dart';
import 'package:flutter/material.dart';

class RectangleColorPicker extends StatefulWidget {
  final Color initialColor;
  final ValueChanged<Color> colorListener;
  final ValueChanged<Color> onTapUpListener;
  final int colorWidth;
  final int colorHeight;
  final Color color;

  const RectangleColorPicker(
      {Key key,
      this.initialColor,
      this.colorListener,
      this.onTapUpListener,
      this.colorWidth,
      this.colorHeight,
      this.color})
      : super(key: key);

  @override
  _RectangleColorPickerState createState() => _RectangleColorPickerState(
        colorWidth.toDouble(),
        colorHeight.toDouble(),
      );
}

class _RectangleColorPickerState extends State<RectangleColorPicker> {
  double _top = 0.0;
  double _left = 0.0;
  double _Thumbsize = 20;
  double _hue = 0.0;
  double _brightnum = 50.0;
  double lightness;
  double _colorwidth;
  double _colorHeight;

  _RectangleColorPickerState(double colorwidth, double colorHeight) {
    this._colorwidth = colorwidth;
    this._colorHeight = colorHeight;
  }

  Color get _color {
    return HSLColor.fromAHSL(
      1,
      _hue,
      1,
      lightness,
    ).toColor();
    //返回HSL、AHSL格式的色调亮度字符串
  }

  @override
  void initState() {
    super.initState();
    HSLColor hslColor = HSLColor.fromColor(widget.initialColor);
    _left = (_colorwidth * hslColor.hue) / 360;
    _top = (_colorHeight * (hslColor.lightness - 0.5) * 200) / 100;
    this._hue = hslColor.hue;
    this.lightness = hslColor.lightness;
  }

  @override
  Widget build(BuildContext context) {
    return Center(
      child: GestureDetector(
        onPanStart: (DragStartDetails detail) {
          var localPosition = detail.localPosition;
          buildSetState(localPosition, context);
          if(widget.colorListener != null){
            widget.colorListener(_color);
          }

        },
        onPanDown: (DragDownDetails detail) {
          var localPosition = detail.localPosition;
          buildSetState(localPosition, context);
          if(widget.colorListener != null){
            widget.colorListener(_color);
          }
        },
        onPanUpdate: (DragUpdateDetails detail) {
          //获取当前触摸点的局部坐标
          var localPosition = detail.localPosition;
          buildSetState(localPosition, context);
          if(widget.colorListener != null){
            widget.colorListener(_color);
          }

        },
        onPanEnd: (DragEndDetails detail) {
          if(widget.onTapUpListener != null){
            widget.onTapUpListener(_color);
          }
        },
        onTapUp: (TapUpDetails detail){
          if(widget.onTapUpListener != null){
            widget.onTapUpListener(_color);
          }
        },
        child: ColorRect(
            colorHeight: _colorHeight,
            colorwidth: _colorwidth,
            top: _top,
            Thumbsize: _Thumbsize,
            left: _left,
            color: _color),
      ),
    );
  }

  void buildSetState(Offset localPosition, BuildContext context) {
    return setState(() {
      _left = localPosition.dx;
      _top = localPosition.dy;
      if (_left < 0) {
        _left = 0;
      } else if (0 <= _left && _left <= _colorwidth) {
        _left = _left;
        _hue = (360 * _left) / (_colorwidth);
      } else if (_left > _colorwidth) {
        _left = (_colorwidth);
        _hue = 360;
      }
      if (((5 / 360 - 5 / 360) < _left &&
              _left < (5 / 360 + 5 / 360) * _colorwidth) &&
          (_top < 5)) {
        _left = 5 / 360 * _colorwidth;
        _top = 0;
      } else if ((((5 + 350 / 6) / 360 - 5 / 360) * _colorwidth < _left &&
              _left < ((5 + 350 / 6) / 360 + 5 / 360) * _colorwidth) &&
          (_top < 5)) {
        _left = (5 + (1 * 350) / 6) / 360 * _colorwidth;
        _top = 0;
      } else if ((((5 + (2 * 350) / 6) / 360 - 5 / 360) * _colorwidth < _left &&
              _left < ((5 + (2 * 350) / 6) / 360 + 5 / 360) * _colorwidth) &&
          (_top < 5)) {
        _left = (5 + (2 * 350) / 6) / 360 * _colorwidth;
        _top = 0;
      } else if ((((5 + (3 * 350) / 6) / 360 - 5 / 360) * _colorwidth < _left &&
              _left < ((5 + (3 * 350) / 6) / 360 + 5 / 360) * _colorwidth) &&
          (_top < 5)) {
        _left = (5 + (3 * 350) / 6) / 360 * _colorwidth;
        _top = 0;
      } else if ((((5 + (4 * 350) / 6) / 360 - 5 / 360) * _colorwidth < _left &&
              _left < ((5 + (4 * 350) / 6) / 360 + 5 / 360) * _colorwidth) &&
          (_top < 5)) {
        _left = (5 + (4 * 350) / 6) / 360 * _colorwidth;
        _top = 0;
      } else if ((((5 + (5 * 350) / 6) / 360 - 5 / 360) * _colorwidth < _left &&
              _left < ((5 + (5 * 350) / 6) / 360 + 5 / 360) * _colorwidth) &&
          (_top < 5)) {
        _left = (5 + (5 * 350) / 6) / 360 * _colorwidth;
        _top = 0;
      } else if ((((5 + (6 * 350) / 6) / 360 - 5 / 360) * _colorwidth < _left &&
              _left < ((5 + (6 * 350) / 6) / 360 + 5 / 360)) &&
          (_top < 5)) {
        _left = (5 + (6 * 350) / 6) / 360 * _colorwidth;
        _top = 0;
      }
      if (_top <= 0) {
        _top = 0;
        _brightnum = 50;
        lightness = _brightnum / 100;
      } else if (0 <= _top && _top <= _colorHeight) {
        _brightnum = (100 * _top) / _colorHeight / 2 + 50;
        lightness = _brightnum / 100;
      } else if (_top > _colorHeight) {
        _top = _colorHeight;
        _brightnum = 100;
        lightness = _brightnum / 100;
      }
    });
  }
}

class ColorRect extends StatelessWidget {
  const ColorRect({
    Key key,
    @required double colorHeight,
    @required double colorwidth,
    @required double top,
    @required double Thumbsize,
    @required double left,
    @required Color color,
  })  : _colorHeight = colorHeight,
        _colorwidth = colorwidth,
        _top = top,
        _Thumbsize = Thumbsize,
        _left = left,
        _color = color,
        super(key: key);

  final double _colorHeight;
  final double _colorwidth;
  final double _top;
  final double _Thumbsize;
  final double _left;
  final Color _color;

  @override
  Widget build(BuildContext context) {
    return Container(
      child: Stack(
        children: [
          Container(
            child: ClipRRect(
              borderRadius: BorderRadius.circular(10),
              child: DecoratedBox(
                  child: Container(
                    height: _colorHeight,
                    width: _colorwidth,
                  ),
                  decoration: BoxDecoration(
                    gradient: LinearGradient(
                      begin: Alignment.centerLeft,
                      end: Alignment.centerRight,
                      stops: [
                        0,
                        5 / 360,
                        (5 + 350 / 6) / 360,
                        (5 + (2 * 350) / 6) / 360,
                        (5 + (3 * 350) / 6) / 360,
                        (5 + (4 * 350) / 6) / 360,
                        (5 + (5 * 350) / 6) / 360,
                        (5 + (6 * 350) / 6) / 360,
                        1.0
                      ],
                      colors: [
                        Color.fromARGB(255, 255, 0, 0),
                        Color.fromARGB(255, 255, 0, 0),
                        Color.fromARGB(255, 255, 255, 0),
                        Color.fromARGB(255, 0, 255, 0),
                        Color.fromARGB(255, 0, 255, 255),
                        Color.fromARGB(255, 0, 0, 255),
                        Color.fromARGB(255, 255, 0, 255),
                        Color.fromARGB(255, 255, 0, 0),
                        Color.fromARGB(255, 255, 0, 0),
                      ],
                    ),
                  )),
            ),
          ),
          Container(
            child: ClipRRect(
              borderRadius: BorderRadius.circular(10),
              child: DecoratedBox(
                  child: Container(
                    height: _colorHeight,
                    width: _colorwidth,
                  ),
                  decoration: BoxDecoration(
                    gradient: LinearGradient(
                      begin: Alignment.topCenter,
                      end: Alignment.bottomCenter,
                      colors: [
                        Color.fromARGB(0, 255, 255, 255),
                        Colors.white,
                      ],
                    ),
                  )),
            ),
          ),
          Container(
              child: Thumb(
                  top: _top,
                  Thumbsize: _Thumbsize,
                  left: _left,
                  color: _color)),
        ],
      ),
    );
  }
}

class Thumb extends StatelessWidget {
  const Thumb({
    Key key,
    @required double top,
    @required double Thumbsize,
    @required double left,
    @required Color color,
  })  : _top = top,
        _Thumbsize = Thumbsize,
        _left = left,
        _color = color,
        super(key: key);

  final double _top;
  final double _Thumbsize;
  final double _left;
  final Color _color;

  @override
  Widget build(BuildContext context) {
    return Positioned(
        top: _top - _Thumbsize / 2,
        left: _left - _Thumbsize / 2,
        child: GestureDetector(
            child: Container(
          child: Icon(
            Icons.circle,
            color: _color,
            size: _Thumbsize,
          ),
          decoration: BoxDecoration(
            borderRadius: BorderRadius.circular(10),
            boxShadow: [
              BoxShadow(
                blurRadius: 0.1, //阴影范围
                spreadRadius: 0.001, //阴影浓度
                color: Colors.black, //阴影颜色
              ),
            ],
          ),
        )));
  }
}

下面是使用方法。

复制代码

1
2
3
4
5
6
7
8
RectangleColorPicker(
   [initialColor: Colors.white,
   colorWidth: 360,
   colorHeight: 150,
   onTapUpListener: (_color) { }
   colorListener: (_color) { }
   ]
),

具体效果图：
