Android 显示刷新频率的实现代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
public class ShowRefreshRatePreferenceController extends DeveloperOptionsPreferenceController
        implements Preference.OnPreferenceChangeListener, PreferenceControllerMixin {

    private static final String SHOW_REFRESH_RATE_KEY = "show_refresh_rate";

    private static final int SETTING_VALUE_QUERY = 2;
    private static final int SETTING_VALUE_ON = 1;
    private static final int SETTING_VALUE_OFF = 0;

    @VisibleForTesting
    static final String SURFACE_FLINGER_SERVICE_KEY = "SurfaceFlinger";
    @VisibleForTesting
    static final int SURFACE_FLINGER_CODE = 1034;

    private static final String SURFACE_COMPOSER_INTERFACE_KEY = "android.ui.ISurfaceComposer";

    private final IBinder mSurfaceFlinger;

    public ShowRefreshRatePreferenceController(Context context) {
        super(context);
        mSurfaceFlinger = ServiceManager.getService(SURFACE_FLINGER_SERVICE_KEY);
    }

    @Override
    public String getPreferenceKey() {
        return SHOW_REFRESH_RATE_KEY;
    }

    @Override
    public boolean onPreferenceChange(Preference preference, Object newValue) {
        final boolean isEnabled = (Boolean) newValue;
        writeShowRefreshRateSetting(isEnabled);
        return true;
    }

    @Override
    public void updateState(Preference preference) {
        updateShowRefreshRateSetting();
    }

    @Override
    protected void onDeveloperOptionsSwitchDisabled() {
        super.onDeveloperOptionsSwitchDisabled();
        final SwitchPreference preference = (SwitchPreference) mPreference;
        if (preference.isChecked()) {
            // Writing false to the preference when the setting is already off will have a
            // side effect of turning on the preference that we wish to avoid
            writeShowRefreshRateSetting(false);
            preference.setChecked(false);
        }
    }

    @VisibleForTesting
    void updateShowRefreshRateSetting() {
        // magic communication with surface flinger.
        try {
            if (mSurfaceFlinger != null) {
                final Parcel data = Parcel.obtain();
                final Parcel reply = Parcel.obtain();
                data.writeInterfaceToken(SURFACE_COMPOSER_INTERFACE_KEY);
                data.writeInt(SETTING_VALUE_QUERY);
                mSurfaceFlinger.transact(SURFACE_FLINGER_CODE, data, reply, 0 /* flags */);
                final boolean enabled = reply.readBoolean();
                ((SwitchPreference) mPreference).setChecked(enabled);
                reply.recycle();
                data.recycle();
            }
        } catch (RemoteException ex) {
            // intentional no-op
        }
    }

    @VisibleForTesting
    void writeShowRefreshRateSetting(boolean isEnabled) {
        try {
            if (mSurfaceFlinger != null) {
                final Parcel data = Parcel.obtain();
                data.writeInterfaceToken(SURFACE_COMPOSER_INTERFACE_KEY);
                final int showRefreshRate = isEnabled ? SETTING_VALUE_ON : SETTING_VALUE_OFF;
                data.writeInt(showRefreshRate);
                mSurfaceFlinger.transact(SURFACE_FLINGER_CODE, data,
                        null /* reply */, 0 /* flags */);
                data.recycle();
            }
        } catch (RemoteException ex) {
            // intentional no-op
        }
        updateShowRefreshRateSetting();
    }
}

1
2

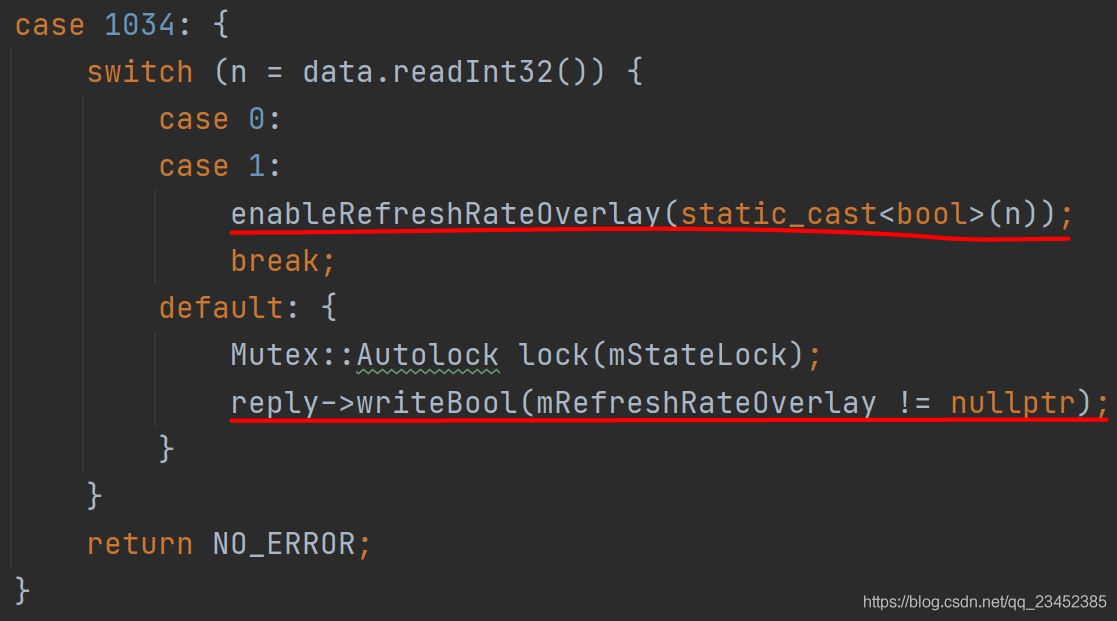

frameworksnativeservicessurfaceflingerSurfaceFlinger.cpp
frameworksnativeservicessurfaceflingerRefreshRateOverlay.cpp
