概述

1、创建日志表

这里我用的是mysql，假如您用的别的数据库，可以自行根据数据库类型进行修改。

CREATE TABLE `log`  (
  `id` varchar(64) CHARACTER SET utf8 COLLATE utf8_general_ci NOT NULL COMMENT '主键',
  `create_by` varchar(64) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT '创建人',
  `create_time` datetime NULL DEFAULT NULL COMMENT '创建时间',
  `update_by` varchar(64) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT '最近更新时间',
  `update_time` datetime NULL DEFAULT NULL COMMENT '最近更新人',
  `update_count` int(11) NULL DEFAULT NULL COMMENT '更新次数',
  `delete_flag` char(1) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT '删除标志',
  `delete_time` datetime NULL DEFAULT NULL COMMENT '删除日期',
  `delete_by` varchar(64) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT '删除人',
  `cost_time` int(11) NULL DEFAULT NULL COMMENT '花费时间',
  `ip` varchar(64) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT 'ip',
  `description` varchar(255) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT '日志描述',
  `request_param` longtext CHARACTER SET utf8 COLLATE utf8_general_ci NULL COMMENT '请求参数',
  `request_json` longtext CHARACTER SET utf8 COLLATE utf8_general_ci NULL COMMENT '请求json数据',
  `request_type` varchar(16) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT '请求类型',
  `request_url` varchar(36) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT '请求路径',
  `username` varchar(64) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT '请求用户',
  `operation_type` int(3) NULL DEFAULT NULL COMMENT '操作类型',
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;

2、创建实体类

我的项目运用到了mybatisplus、swagger、lombok，你们可以根据自己项目框架写对应的实体类。BaseModel 是我们封装了一个基础实体类，专门存放关于操作人的信息，然后实体类直接继承。

import com.baomidou.mybatisplus.annotation.TableField;
import com.baomidou.mybatisplus.annotation.TableName;
import io.swagger.annotations.ApiModelProperty;
import cn.org.xaas.mybatis.model.BaseModel;
import lombok.Data;
import lombok.ToString;

@TableName(value = "log")
@Data
@ToString(callSuper = true)
public class Log extends BaseModel {

    @ApiModelProperty(value = "花费时间")
    @TableField(value = "cost_time")
    private Integer costTime;

    @ApiModelProperty(value = "ip")
    @TableField(value = "ip")
    private String ip;

    @ApiModelProperty(value = "日志描述")
    @TableField(value = "description")
    private String description;

    @ApiModelProperty(value = "请求参数")
    @TableField(value = "request_param")
    private String requestParam;

    @ApiModelProperty(value = "请求json数据")
    @TableField(value = "request_json")
    private String requestJson;

    @ApiModelProperty(value = "请求类型")
    @TableField(value = "request_type")
    private String requestType;

    @ApiModelProperty(value = "请求路径")
    @TableField(value = "request_url")
    private String requestUrl;

    @ApiModelProperty(value = "请求用户")
    @TableField(value = "username")
    private String username;

    @ApiModelProperty(value = "操作类型")
    @TableField(value = "operation_type")
    private Integer operationType;
}

3、创建枚举类

用来记录日志操作类型

public enum OperationType {
    /**
     * 操作类型
     */
    UNKNOWN("unknown"),
    DELETE("delete"),
    SELECT("select"),
    UPDATE("update"),
    INSERT("insert");

    OperationType(String s) {
        this.value = s;
    }

    private String value;

    public String getValue() {
        return value;
    }

    public void setValue(String value) {
        this.value = value;
    }
}

4、创建自定义注解

import java.lang.annotation.*;

@Target({ElementType.PARAMETER, ElementType.METHOD})//作用于参数或方法上
@Retention(RetentionPolicy.RUNTIME)
@Documented
public @interface SystemLog {

    /**
     * 日志名称
     *
     * @return
     */
    String description() default "";

    /**
     * 操作类型
     *
     * @return
     */
    OperationType type() default OperationType.UNKNOWN;
}

5、获取ip的util

import lombok.extern.slf4j.Slf4j;
import org.springframework.stereotype.Component;

import javax.servlet.http.HttpServletRequest;
import java.net.InetAddress;
import java.net.UnknownHostException;
@Slf4j
@Component
public class IpInfoUtil {

    /**
     * 获取客户端IP地址
     *
     * @param request 请求
     * @return
     */
    public String getIpAddr(HttpServletRequest request) {

        String ip = request.getHeader("x-forwarded-for");
        if (ip == null || ip.length() == 0 || "unknown".equalsIgnoreCase(ip)) {
            ip = request.getHeader("Proxy-Client-IP");
        }
        if (ip == null || ip.length() == 0 || "unknown".equalsIgnoreCase(ip)) {
            ip = request.getHeader("WL-Proxy-Client-IP");
        }
        if (ip == null || ip.length() == 0 || "unknown".equalsIgnoreCase(ip)) {
            ip = request.getRemoteAddr();
            if ("127.0.0.1".equals(ip)) {
                //根据网卡取本机配置的IP
                InetAddress inet = null;
                try {
                    inet = InetAddress.getLocalHost();
                } catch (UnknownHostException e) {
                    e.printStackTrace();
                }
                ip = inet.getHostAddress();
            }
        }
        // 对于通过多个代理的情况，第一个IP为客户端真实IP,多个IP按照','分割
        if (ip != null && ip.length() > 15) {
            if (ip.indexOf(",") > 0) {
                ip = ip.substring(0, ip.indexOf(","));
            }
        }
        if ("0:0:0:0:0:0:0:1".equals(ip)) {
            ip = "127.0.0.1";
        }
        return ip;
    }
}

6、线程池util

利用线程异步记录日志。所以直接用了一个util维护线程池。

import java.util.concurrent.ArrayBlockingQueue;
import java.util.concurrent.BlockingQueue;
import java.util.concurrent.ThreadPoolExecutor;
import java.util.concurrent.TimeUnit;

public class ThreadPoolUtil {

    /**
     * 线程缓冲队列
     */
    private static BlockingQueue<Runnable> bqueue = new ArrayBlockingQueue<Runnable>(100);
    /**
     * 核心线程数，会一直存活，即使没有任务，线程池也会维护线程的最少数量
     */
    private static final int SIZE_CORE_POOL = 5;
    /**
     * 线程池维护线程的最大数量
     */
    private static final int SIZE_MAX_POOL = 10;
    /**
     * 线程池维护线程所允许的空闲时间
     */
    private static final long ALIVE_TIME = 2000;

    private static ThreadPoolExecutor pool = new ThreadPoolExecutor(SIZE_CORE_POOL, SIZE_MAX_POOL, ALIVE_TIME, TimeUnit.MILLISECONDS, bqueue, new ThreadPoolExecutor.CallerRunsPolicy());

    static {

        pool.prestartAllCoreThreads();
    }

    public static ThreadPoolExecutor getPool() {
        return pool;
    }

    public static void main(String[] args) {
        System.out.println(pool.getPoolSize());
    }
}

7、HttpServletRequest实现类

这个就是重写的一个HttpServletRequest类。

import javax.servlet.ReadListener;
import javax.servlet.ServletInputStream;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletRequestWrapper;
import java.io.*;

public class BodyReaderRequestWrapper extends HttpServletRequestWrapper {

    private final String body;

    /**
     * @param request
     */
    public BodyReaderRequestWrapper(HttpServletRequest request) {
        super(request);
        StringBuilder sb = new StringBuilder();
        InputStream ins = null;
        BufferedReader isr = null;
        try {
            ins = request.getInputStream();
            if (ins != null) {
                isr = new BufferedReader(new InputStreamReader(ins));
                char[] charBuffer = new char[128];
                int readCount = 0;
                while ((readCount = isr.read(charBuffer)) != -1) {
                    sb.append(charBuffer, 0, readCount);
                }
            } else {
                sb.append("");
            }
        } catch (IOException e) {
            e.printStackTrace();
        } finally {
            try {
                if (isr != null) {
                    isr.close();
                }
            } catch (IOException e) {
                e.printStackTrace();
            }
            try {
                if (ins != null) {
                    ins.close();
                }
            } catch (IOException e) {
                e.printStackTrace();
            }
        }
        body = sb.toString();
    }

    @Override
    public BufferedReader getReader() throws IOException {
        return new BufferedReader(new InputStreamReader(this.getInputStream()));
    }

    @Override
    public ServletInputStream getInputStream() throws IOException {
        final ByteArrayInputStream byteArrayIns = new ByteArrayInputStream(body.getBytes());
        ServletInputStream servletIns = new ServletInputStream() {
            @Override
            public boolean isFinished() {
                return false;
            }

            @Override
            public boolean isReady() {
                return false;
            }

            @Override
            public void setReadListener(ReadListener readListener) {

            }

            @Override
            public int read() throws IOException {
                return byteArrayIns.read();
            }
        };
        return servletIns;
    }
}

8、添加过滤器

这个过滤器我添加了一个路径，就是代表需要json日志的接口，可以在list当中添加路径，不需要取request当中json数据的可以不配置。

import javax.servlet.*;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;
import java.util.ArrayList;
import java.util.List;
import java.util.regex.Pattern;

public class BodyReaderRequestFilter implements Filter {

    private static final Pattern SHOULD_NOT_FILTER_URL_PATTERN;

    static {
        List<String> urlList = new ArrayList<>();
        // 想要通过aop记录request当中body数据的，就需要进行配置路径
        urlList.add("(socket/.*)");
        urlList.add("(test/test1)");
        urlList.add("(test/test2)");
        StringBuilder sb = new StringBuilder();
        for (String url : urlList) {
            sb.append(url);
            sb.append("|");
        }
        sb.setLength(sb.length() - 1);
        SHOULD_NOT_FILTER_URL_PATTERN = Pattern.compile(sb.toString());
    }

    @Override
    public void init(FilterConfig filterConfig) {

    }

    @Override
    public void doFilter(ServletRequest req, ServletResponse res, FilterChain filterChain) throws IOException, ServletException {
        HttpServletRequest request = (HttpServletRequest) req;
        HttpServletResponse response = (HttpServletResponse) res;
        // 获取访问的url
        String servletPath = request.getServletPath();
        if (SHOULD_NOT_FILTER_URL_PATTERN.matcher(servletPath).find()) {
            BodyReaderRequestWrapper requestWrapper = new BodyReaderRequestWrapper(request);
            if (requestWrapper == null) {
                filterChain.doFilter(request, response);
            } else {
                filterChain.doFilter(requestWrapper, response);
            }
        }else {
            filterChain.doFilter(request, response);
        }
    }

    @Override
    public void destroy() {

    }
}

想要让过滤器生效需要注入到容器当中。

import cn.org.bjca.szyx.xaas.equipment.filter.BodyReaderRequestFilter;
import org.springframework.boot.web.servlet.FilterRegistrationBean;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

@Configuration
public class MyServerConfig {

    @Bean
    public FilterRegistrationBean myFilter(){
        FilterRegistrationBean registrationBean = new FilterRegistrationBean();
        registrationBean.setFilter(new BodyReaderRequestFilter());
        return registrationBean;
    }
}

9、添加AOP核心类

对于切面，我们可以通过指定包名，进行日志统计，也可以选择根据自定义的注解在方法上添加，然后进行统计，根据自己的实际情况，在切点进行配置即可。

LogDao我是没有提供的，每个项目框架不一样，自行根据情况进行编写，就是保存数据库就可以了。

import cn.hutool.core.util.IdUtil;
import cn.hutool.json.JSONUtil;
import cn.org.xaas.core.util.HeaderSecurityUtils;
import cn.org.xaas.equipment.annotation.SystemLog;
import cn.org.xaas.equipment.dao.LogDao;
import cn.org.xaas.equipment.model.base.Log;
import cn.org.xaas.equipment.utils.IpInfoUtil;
import cn.org.xaas.equipment.utils.ThreadPoolUtil;
import lombok.extern.slf4j.Slf4j;
import org.aspectj.lang.JoinPoint;
import org.aspectj.lang.annotation.AfterReturning;
import org.aspectj.lang.annotation.Aspect;
import org.aspectj.lang.annotation.Before;
import org.aspectj.lang.annotation.Pointcut;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.core.NamedThreadLocal;
import org.springframework.stereotype.Component;

import javax.servlet.ServletInputStream;
import javax.servlet.http.HttpServletRequest;
import java.io.BufferedReader;
import java.io.IOException;
import java.io.InputStreamReader;
import java.lang.reflect.Method;
import java.util.Date;
import java.util.HashMap;
import java.util.Map;

@Aspect
@Component
@Slf4j
public class SystemLogAspect {

    private static final ThreadLocal<Date> beginTimeThreadLocal = new NamedThreadLocal<Date>("ThreadLocal beginTime");

    @Autowired
    private LogDao logDao;

    @Autowired
    private IpInfoUtil ipInfoUtil;

    @Autowired(required = false)
    private HttpServletRequest request;

    /**
     * Controller层切点,注解方式
     */
    //@Pointcut("execution(* *..controller..*Controller*.*(..))")
    @Pointcut("@annotation(cn.org.xaas.equipment.annotation.SystemLog)")
    public void controllerAspect() {

    }

    /**
     * 前置通知 (在方法执行之前返回)用于拦截Controller层记录用户的操作的开始时间
     *
     * @param joinPoint 切点
     * @throws InterruptedException
     */
    @Before("controllerAspect()")
    public void doBefore(JoinPoint joinPoint) throws InterruptedException {

        //线程绑定变量（该数据只有当前请求的线程可见）
        Date beginTime = new Date();
        beginTimeThreadLocal.set(beginTime);
    }

    /**
     * 后置通知(在方法执行之后并返回数据) 用于拦截Controller层无异常的操作
     *
     * @param joinPoint 切点
     */
    @AfterReturning("controllerAspect()")
    public void after(JoinPoint joinPoint) {
        try {
        	// 获取操作人，每个系统不一样，一般存储与session，此处就不展示了
            String username = HeaderSecurityUtils.getUserName();

            // 读取json数据
            String openApiRequestData = getJSON(request);
            Map<String, String[]> requestParams = request.getParameterMap();

            Log log = new Log();
            if (openApiRequestData != null) {
                log.setRequestJson(JSONUtil.toJsonStr(openApiRequestData));
            }
            log.setId(IdUtil.simpleUUID());
            log.setUsername(username);
            //日志标题
            String description = getControllerMethodInfo(joinPoint).get("description").toString();
            log.setDescription(description);
            //日志类型
            log.setOperationType((int) getControllerMethodInfo(joinPoint).get("type"));
            //日志请求url
            log.setRequestUrl(request.getRequestURI());
            //请求方式
            log.setRequestType(request.getMethod());
            //请求参数
            log.setRequestParam(JSONUtil.toJsonStr(requestParams));

            //其他属性
            log.setIp(ipInfoUtil.getIpAddr(request));
            log.setCreateBy(username);
            log.setUpdateBy(username);
            log.setCreateTime(new Date());
            log.setUpdateTime(new Date());
            log.setDeleteFlag("0");

            //请求开始时间
            long beginTime = beginTimeThreadLocal.get().getTime();
            long endTime = System.currentTimeMillis();
            //请求耗时
            Long logElapsedTime = endTime - beginTime;
            log.setCostTime(logElapsedTime.intValue());

            //持久化(存储到数据或者ES，可以考虑用线程池)
            ThreadPoolUtil.getPool().execute(new SaveSystemLogThread(log, logDao));

        } catch (Exception e) {
            log.error("AOP后置通知异常", e);
        }
    }

    /**
     * 获取request的body
     *
     * @param request
     * @return
     */
    public String getJSON(HttpServletRequest request) {
        ServletInputStream inputStream = null;
        InputStreamReader inputStreamReader = null;
        BufferedReader streamReader = null;
        StringBuilder responseStrBuilder = new StringBuilder();
        try {
            inputStream = request.getInputStream();
            inputStreamReader = new InputStreamReader(inputStream, "UTF-8");
            streamReader = new BufferedReader(inputStreamReader);
            String inputStr;
            while ((inputStr = streamReader.readLine()) != null) {
                responseStrBuilder.append(inputStr);
            }
        } catch (IOException ioException) {
            ioException.printStackTrace();
        } finally {
            try {
                if (inputStream != null) {
                    inputStream.close();
                }
            } catch (IOException e) {
                e.printStackTrace();
            }
            try {
                if (inputStreamReader != null) {
                    inputStreamReader.close();
                }
            } catch (IOException e) {
                e.printStackTrace();
            }
            try {
                if (streamReader != null) {
                    streamReader.close();
                }
            } catch (IOException e) {
                e.printStackTrace();
            }
        }
        return responseStrBuilder.toString();
    }

    /**
     * 保存日志至数据库
     */
    private static class SaveSystemLogThread implements Runnable {

        private Log log;
        private LogDao logDao;

        public SaveSystemLogThread(Log esLog, LogDao logDao) {
            this.log = esLog;
            this.logDao = logDao;
        }

        @Override
        public void run() {
            logDao.insert(log);
        }
    }

    /**
     * 获取注解中对方法的描述信息 用于Controller层注解
     *
     * @param joinPoint 切点
     * @return 方法描述
     * @throws Exception
     */
    public static Map<String, Object> getControllerMethodInfo(JoinPoint joinPoint) throws Exception {

        Map<String, Object> map = new HashMap<String, Object>(16);
        //获取目标类名
        String targetName = joinPoint.getTarget().getClass().getName();
        //获取方法名
        String methodName = joinPoint.getSignature().getName();
        //获取相关参数
        Object[] arguments = joinPoint.getArgs();
        //生成类对象
        Class targetClass = Class.forName(targetName);
        //获取该类中的方法
        Method[] methods = targetClass.getMethods();

        String description = "";
        Integer type = null;

        for (Method method : methods) {
            if (!method.getName().equals(methodName)) {
                continue;
            }
            Class[] clazzs = method.getParameterTypes();
            if (clazzs.length != arguments.length) {
                //比较方法中参数个数与从切点中获取的参数个数是否相同，原因是方法可以重载哦
                continue;
            }
            description = method.getAnnotation(SystemLog.class).description();
            type = method.getAnnotation(SystemLog.class).type().ordinal();
            map.put("description", description);
            map.put("type", type);
        }
        return map;
    }

}

10、接口测试

import cn.org.xaas.equipment.annotation.SystemLog;
import cn.org.xaas.equipment.constant.OperationType;
import org.springframework.web.bind.annotation.*;

@RestController
@RequestMapping("/test")
public class TestController {

    @PostMapping("/test1")
    @SystemLog(description = "根据id查询某某数据",type = OperationType.SELECT)
    public void test1(@RequestParam("id")String id){
        System.out.println(id);
    }


    @PostMapping("/test2")
    @SystemLog(description = "根据id查询某某数据，传json",type = OperationType.SELECT)
    public void test2(@RequestBody String id){
        System.out.println(id);
    }
}

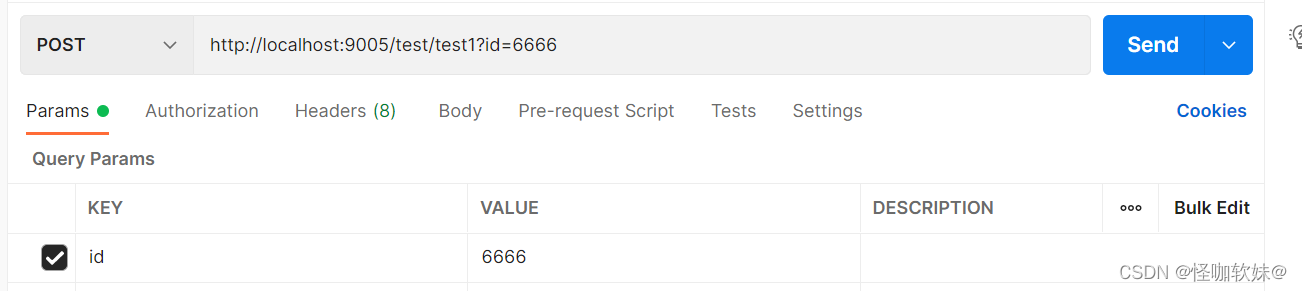

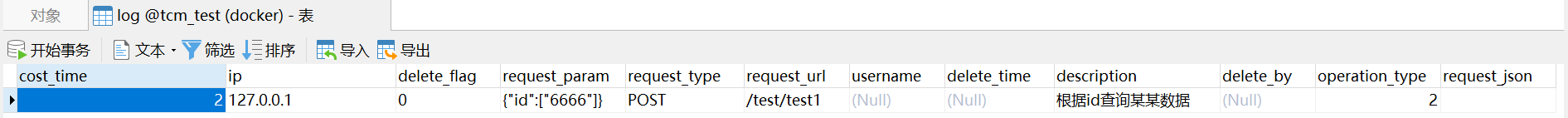

调用第一个测试接口：

在这里插入图片描述
