概述
一、dubbo简介
实现一个简易版的dubbo，首先看下dubbo是什么
dubbo是阿里开源的rpc框架，目前是apache顶级开源项目，可以用来构建微服务。社区已经到了3.0版本，生态活跃，原来是java写的，现在有go版本，支持云原生。
研究dubbo的目的
- dubbo浑身是宝，用到了zk/javassit/netty/spring/spi等技术，可以说看懂了dubbo源码，对自己是十分有帮助的。不仅能学习优秀的代码设计，理解solid原则，更能深刻理解rpc的实现原理，了解各种技术的运用。
- 当前目前有不少大公司在使用，dubbo也是经常被问的面试题，包括dubbo spi/dubbo通信流程，对于简历也是十分加分的。
- 手写dubbo，比看懂dubbo要难得多，让自己透彻理解dubbo的设计细节，内功修炼更上一层楼，以后再去看其他源码会非常快。
二、架构设计
博主在看懂dubbo源码的基础上，自己动手实现dubbo最基础的功能，包括服务注册、服务发现、服务负载均衡、网络通信、与spring boot集成等，以便更好掌握dubbo的实现原理。实现架构如下：
Api层主要是面向框架使用者，通过注解就能使用简易版dubbo。并实现了在spring boot中进行自动配置。
目前微服务都是基于spring boot搭建的，大部分公司都从spring迁移到spring boot。整个实例都是基于spring boot来构建的，基于自动化配置搞个starter，配置下yaml就能使用miniDubbo，无需配置xml。
服务发现基于zookeeper实现，所有发现的实例，暂存在注册目录中。
Zookeeper是一个树状的结构，有三种节点类型，永久节点（需要自己删除）、临时节点（有会话的概念，当zookeeper监听到会话断开时，会删除临时节点）、有序节点。在dubbo中主要用的是临时节点，用于实时感知服务实例上下线。
路径格式：
/miniDubbo/${group}/${className}/providers/${ip:port}
集群失败策略：主要有failover/failsafe/failback。
也就是当consumer调用某个provider失败时，采取的策略，failover表示失败转移，重试下一台实例；failsafe表示不重试，不抛出异常，返回null。
模拟dubbo协议，这里通过netty实现网络通信，底层使用JSON序列化，通过长度 + body的协议防止粘包。
Netty是java领域的一套高性能的nio异步网络编程框架，底层也是基于java nio，已经封装好了网络编程，实现网络通信非常方便。在dubbo中用于provider-consumer建立长连接，避免重复建立连接。
整体思路是：consumer调用接口方法时，对接口进行JDK代理，代理逻辑是通过服务发现找到一台可用实例，将请求的类名、方法名、入参进行打包、编码，通过网络请求发送给provider。在服务端拿到请求的类名、方法名、入参后，通过反射调用服务实例，并将结果的返回给consumer。
三、开发工具
需要安装如下工具。
- IDEA+JDK8+MAVEN
- zookeeper
四、一步步实现
这里给出部分代码，具体参考github：miniDubbo
4.1 客户端消费实现
4.1.1 扫描Reference注解，注入dubbo依赖
定义一个Reference注解，这个注解必须是运行时注解，且至少可用在属性上。
package com.jessin.practice.dubbo.processor;
import java.lang.annotation.Documented;
import java.lang.annotation.ElementType;
import java.lang.annotation.Retention;
import java.lang.annotation.RetentionPolicy;
import java.lang.annotation.Target;
/**
* 消费端注解
* @Author: jessin
* @Date: 19-11-25 下午9:48
*/
@Target({ ElementType.CONSTRUCTOR, ElementType.METHOD, ElementType.PARAMETER, ElementType.FIELD, ElementType.ANNOTATION_TYPE})
// 必须写为runtime，否则获取不到
@Retention(RetentionPolicy.RUNTIME)
@Documented
public @interface Reference {
String group() default "";
String version() default "1.0.0";
String timeout() default "3000";
String failStrategy() default "failover";
String retryCount() default "3";
}
在spring bean实例化后初始化前，对应的是InstantiationAwareBeanPostProcessor#postProcessProperties，这个是bean实例化后第一个扩展点，且在aware方法之前，进行依赖反射注入，并设置动态代理，代理实现该属性对应的接口。
package com.jessin.practice.dubbo.processor;
import com.jessin.practice.dubbo.config.InterfaceConfig;
import com.jessin.practice.dubbo.config.MiniDubboProperties;
import java.lang.reflect.Field;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.BeansException;
import org.springframework.beans.PropertyValues;
import org.springframework.beans.factory.config.InstantiationAwareBeanPostProcessorAdapter;
/**
* @Author: jessin
* @Date: 19-11-25 下午9:49
*/
@Slf4j
public class ReferenceBeanPostProcessor extends InstantiationAwareBeanPostProcessorAdapter {
private MiniDubboProperties miniDubboProperties;
public ReferenceBeanPostProcessor(MiniDubboProperties miniDubboProperties) {
this.miniDubboProperties = miniDubboProperties;
}
@Override
public PropertyValues postProcessProperties(PropertyValues pvs, Object bean, String beanName)
throws BeansException {
Field[] fields = bean.getClass().getDeclaredFields();
for (Field field : fields) {
boolean isExist = field.isAnnotationPresent(Reference.class);
if (isExist) {
try {
if (!field.getType().isInterface()) {
throw new RuntimeException("dubbo依赖不是接口：" + field.getType().getName());
}
Reference ref = field.getAnnotation(Reference.class);
log.info("尝试注入接口代理，bean的{}属性为：{}", beanName, ref);
// 私有属性，必须设置为可访问
field.setAccessible(true);
field.set(bean, JdkDynamicProxy.createProxy(field.getType(), transform(ref), miniDubboProperties));
} catch (IllegalAccessException e) {
log.error("设置jdk实例出错啦：{}", field);
}
}
}
return pvs;
}
private InterfaceConfig transform(Reference ref) {
InterfaceConfig interfaceConfig = new InterfaceConfig();
interfaceConfig.setGroup(ref.group());
interfaceConfig.setVersion(ref.version());
interfaceConfig.setTimeout(ref.timeout());
interfaceConfig.setFailStrategy(ref.failStrategy());
interfaceConfig.setRetryCount(ref.retryCount());
return interfaceConfig;
}
}
动态代理的逻辑非常简单，基于注册目录找到可用的DubboInvoker，并发起网络请求，传输请求id、类名、入参、超时时间、版本等信息。
package com.jessin.practice.dubbo.processor;
import com.alibaba.fastjson.JSONObject;
import com.jessin.practice.dubbo.config.InterfaceConfig;
import com.jessin.practice.dubbo.config.MiniDubboProperties;
import com.jessin.practice.dubbo.invoker.FailfastClusterInvoker;
import com.jessin.practice.dubbo.invoker.RpcInvocation;
import com.jessin.practice.dubbo.registry.RegistryDirectory;
import com.jessin.practice.dubbo.transport.Response;
import java.lang.reflect.InvocationHandler;
import java.lang.reflect.Method;
import java.lang.reflect.Proxy;
import lombok.extern.slf4j.Slf4j;
/**
* @Author: jessin
* @Date: 19-11-25 下午9:54
*/
@Slf4j
public class JdkDynamicProxy<T> implements InvocationHandler {
private String clazzName;
private Object proxy;
private RegistryDirectory registryDirectory;
private FailfastClusterInvoker failfastClusterInvoker;
private InterfaceConfig interfaceConfig;
private MiniDubboProperties miniDubboProperties;
public JdkDynamicProxy(Class<T> clazz, InterfaceConfig interfaceConfig, MiniDubboProperties miniDubboProperties) {
proxy = Proxy.newProxyInstance(this.getClass().getClassLoader(), new Class[]{clazz}, this);
this.clazzName = clazz.getName();
registryDirectory = new RegistryDirectory(clazzName, miniDubboProperties.getRegistry(), interfaceConfig);
failfastClusterInvoker = new FailfastClusterInvoker(registryDirectory);
this.interfaceConfig = interfaceConfig;
}
public static <T> Object createProxy(Class<T> clazz, InterfaceConfig interfaceConfig, MiniDubboProperties miniDubboProperties) {
return new JdkDynamicProxy(clazz, interfaceConfig, miniDubboProperties).proxy;
}
/**
* TODO 特殊方法不拦截。。
* @param proxy
* @param method
* @param args
* @return
* @throws Throwable
*/
@Override
public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
if ("toString".equals(method.getName())) {
return this.toString();
}
// todo group，attachment
RpcInvocation rpcInvocation = new RpcInvocation();
rpcInvocation.setInterfaceName(clazzName);
rpcInvocation.setParameterType(method.getParameterTypes());
rpcInvocation.setArgs(args);
rpcInvocation.setMethodName(method.getName());
rpcInvocation.setVersion(interfaceConfig.getVersion());
Class returnType = method.getReturnType();
log.info("jdk调用：{}，代理类为：{}，返回类型：{}", rpcInvocation, proxy, returnType);
// todo 通过接口配置决定用哪种策略
Response response = (Response)failfastClusterInvoker.invoke(rpcInvocation);
if (returnType == Void.class) {
return null;
}
JSONObject jsonObject = (JSONObject)response.getResult();
return jsonObject.toJavaObject(returnType);
}
}
4.1.2 使用注册目录刷新服务实例
主要是创建zk连接，订阅该类的zk路径，处理zk子节点事件，维护子节点上线和下线，并构造DubboInvoker，建立网络连接。该service接口的所有可用实例，都会存在一个注册目录中，并动态刷新。
package com.jessin.practice.dubbo.registry;
import com.google.common.collect.Lists;
import com.jessin.practice.dubbo.config.InterfaceConfig;
import com.jessin.practice.dubbo.invoker.DubboInvoker;
import java.util.ArrayList;
import java.util.List;
import java.util.Map;
import java.util.concurrent.ConcurrentHashMap;
import java.util.stream.Collectors;
import lombok.extern.slf4j.Slf4j;
/**
* * 注册项目录，所有的dubboInvoker都保存到这里，实现zk listener，监听zk路径变化，当zk变化时，构造DubboInvoker。
* * 每个service应该有一个，同一个zk集群同一台机器应该只建立一个共享连接
* @Author: jessin
* @Date: 19-11-25 下午10:34
*/
@Slf4j
public class RegistryDirectory {
private Map<String, DubboInvoker> ipAndPort2InvokerMap = new ConcurrentHashMap<>();
private CuratorZookeeperClient curatorZookeeperClient;
private InterfaceConfig interfaceConfig;
private String providerPath;
/**
* TODO 创建zk连接，监听zk路径创建DubboInvoker
* @param path
*/
public RegistryDirectory(String path, String registry, InterfaceConfig interfaceConfig) {
this.interfaceConfig = interfaceConfig;
// 监听group/接口名/providers，有变化时通知RegistryDirectory，也就是调用notify(url, listener, urls);
this.providerPath = "/miniDubbo/" + interfaceConfig.getGroup() + "/" + path + "/providers";
// TODO 创建zk连接，并创建RegistryDirectory，第一次时创建DubboInvoker
// 判断zk/redis。
curatorZookeeperClient = RegistryManager.getCuratorZookeeperClient(registry);
// todo 抽取subscribe方法
List<String> children = curatorZookeeperClient.addTargetChildListener(providerPath, new ChildListener() {
@Override
public void childChanged(String path, List<String> children) {
log.info("监听到zk路径变化:{}，children:{}", path, children);
processChildren(children);
}
});
processChildren(children);
}
public void processChildren(List<String> children) {
try {
if (children == null || children.size() == 0) {
// 可能是远程抖动，或者zookeeper出问题了，造成所有服务实例下线，这里还需要通过心跳检测。
log.info("监听到zk路径无子节点:{}", providerPath);
children = Lists.newArrayList();
}
List<String> added = children.stream()
.filter(one -> !ipAndPort2InvokerMap.containsKey(one))
.collect(Collectors.toList());
List<String> finalChildren = children;
List<String> deleted = ipAndPort2InvokerMap.keySet().stream()
.filter(one -> !finalChildren.contains(one))
.collect(Collectors.toList());
log.info("监听到zk路径：{}，子节点变化，新增zk节点：{}，删除zk节点：{}", providerPath, added, deleted);
added.forEach(ipAndPort -> {
if (!ipAndPort2InvokerMap.containsKey(ipAndPort)) {
ipAndPort2InvokerMap.put(ipAndPort, new DubboInvoker(ipAndPort, interfaceConfig));
}
});
deleted.forEach(ipAndPort -> {
ipAndPort2InvokerMap.get(ipAndPort).destroy();
ipAndPort2InvokerMap.remove(ipAndPort);
});
} catch (Exception e) {
log.error("处理zk事件出错", e);
}
}
public List<DubboInvoker> getInvokerList() {
return new ArrayList<>(ipAndPort2InvokerMap.values());
}
}
4.1.3 Netty client网络通信传输，编解码器的实现
这里基于netty client 4.x api，也就是NioEventLoopGroup/NioSocketChannel等，快速开发网络连接功能，异步发送网络请求，处理各种网络请求：
package com.jessin.practice.dubbo.netty;
import com.alibaba.fastjson.JSON;
import io.netty.bootstrap.Bootstrap;
import io.netty.channel.Channel;
import io.netty.channel.ChannelFuture;
import io.netty.channel.ChannelInitializer;
import io.netty.channel.ChannelOption;
import io.netty.channel.EventLoopGroup;
import io.netty.channel.nio.NioEventLoopGroup;
import io.netty.channel.socket.SocketChannel;
import io.netty.channel.socket.nio.NioSocketChannel;
import lombok.extern.slf4j.Slf4j;
/**
* @Author: jessin
* @Date: 19-11-25 下午10:17
*/
@Slf4j
public class NettyClient {
private String ipAndPort;
/**
* worker可以共用
*/
private EventLoopGroup worker = new NioEventLoopGroup();
private Channel socketChannel;
private NettyClientHandler clientHandler = new NettyClientHandler();
public NettyClient(String ipAndPort) {
this.ipAndPort = ipAndPort;
connect();
}
public void connect() {
log.info("建立netty连接：{}", ipAndPort);
Bootstrap bootstrap = new Bootstrap();
try {
bootstrap.group(worker).channel(NioSocketChannel.class)
.option(ChannelOption.SO_KEEPALIVE, true)
.option(ChannelOption.CONNECT_TIMEOUT_MILLIS, 3000)
.handler(new ChannelInitializer<SocketChannel>() {
// TODO 注意pipeline的顺序
@Override
protected void initChannel(SocketChannel ch) throws Exception {
ch.pipeline()
// clientHandler可以提为全局变量
.addLast(new BaseEncoder())
.addLast(new BaseDecoder())
.addLast(clientHandler);
}
});
// 客户端是connect
String[] values = ipAndPort.split(":");
// TODO 考虑超时重连，心跳断开重连，底层转换为pipeline.connect()
ChannelFuture channelFuture = bootstrap.connect(values[0], Integer.parseInt(values[1])).sync();
if (channelFuture.isSuccess()) {
log.info("与服务端建立连接成功：{}", ipAndPort);
} else {
log.error("与服务端建立连接失败:{}", ipAndPort);
}
// 建立连接时保存下来，可能有需要连接多个客户端
this.socketChannel = channelFuture.channel();
} catch (Exception e) {
log.error("与服务端建立连接失败:{}", ipAndPort, e);
throw new RuntimeException("与服务端建立连接失败: " + ipAndPort, e);
}
}
/**
* 对外发送数据接口
* @param msg
*/
public void send(Object msg) {
// TODO 必须用writeAndFlush才会真正发出去，同时必须序列化为字符串，才能被编码继续往下走
String jsonStr = JSON.toJSONString(msg);
socketChannel.writeAndFlush(jsonStr);
}
public void close() {
log.info("关闭访问服务的连接：{}", ipAndPort);
socketChannel.close();
if (socketChannel != null && socketChannel.isActive()) {
try {
socketChannel.closeFuture().sync();
} catch (InterruptedException e) {
e.printStackTrace();
}
}
worker.shutdownGracefully();
}
}
编码器通过长度字段 + body实现，具体如下：
package com.jessin.practice.dubbo.netty;
import io.netty.buffer.ByteBuf;
import io.netty.channel.ChannelHandlerContext;
import io.netty.handler.codec.MessageToByteEncoder;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
/**
* todo protocol buf
* @Author: jessin
* @Date: 19-11-25 下午10:20
*/
public class BaseEncoder extends MessageToByteEncoder<String> {
private Logger logger = LoggerFactory.getLogger(getClass());
/**
* Encode a message into a {@link ByteBuf}. This method will be called for each written message that can be handled
* by this encoder.
*
* @param ctx the {@link ChannelHandlerContext} which this {@link MessageToByteEncoder} belongs to
* @param msg the message to encode
* @param out the {@link ByteBuf} into which the encoded message will be written
* @throws Exception is thrown if an error occurs
*/
@Override
protected void encode(ChannelHandlerContext ctx, String msg, ByteBuf out) throws Exception {
logger.info("对消息：{}进行编码", msg);
byte[] wordBytes = msg.getBytes("utf-8");
out.writeInt(wordBytes.length);
out.writeBytes(wordBytes);
}
}
对应解码器：
package com.jessin.practice.dubbo.netty;
/**
* 发送的字节数 + 字节信息
* 按照这个格式进行装包和拆包，主要是会产生粘包的现象
* 也就是发送方按照abc, def, 发送
* 接收方收到的可能是a,bc,de,f，面向的是字节流，需要拆包解出命令
*
* @author jessin
* @create 19-11-25 下午10:20
**/
import io.netty.buffer.ByteBuf;
import io.netty.channel.ChannelHandlerContext;
import io.netty.handler.codec.ByteToMessageDecoder;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import java.util.List;
public class BaseDecoder extends ByteToMessageDecoder {
private Logger logger = LoggerFactory.getLogger(getClass());
private int totalBytes = -1;
/**
* Decode the from one {@link ByteBuf} to an other. This method will be called till either the input
* {@link ByteBuf} has nothing to read when return from this method or till nothing was read from the input
* {@link ByteBuf}.
*
* @param ctx the {@link ChannelHandlerContext} which this {@link ByteToMessageDecoder} belongs to
* @param in the {@link ByteBuf} from which to read data
* @param out the {@link List} to which decoded messages should be added
* @throws Exception is thrown if an error occurs
*/
@Override
protected void decode(ChannelHandlerContext ctx, ByteBuf in, List<Object> out) throws Exception {
int readableBytes = in.readableBytes();
if (totalBytes == -1 && readableBytes >= 4) {
totalBytes = in.readInt();
}
int secondReadableBytes = in.readableBytes();
if (totalBytes > 0 && secondReadableBytes >= totalBytes) {
byte[] realData = new byte[totalBytes];
in.readBytes(realData);
out.add(new String(realData, "utf-8"));
totalBytes = -1;
}
logger.info("读取字节个数：{}，剩余字节个数：{}", readableBytes, secondReadableBytes);
}
}
4.1.4 发起请求和接收响应
如上，发送接口通过JSON进行序列化。这里通过CountDownLatch实现客户端等待功能，当然也可以通过wait/notify实现。发送时设置自增id到请求体中，并保存到consumer本地map中，然后会调用CountDownLatch.await，并设置等待时间，进行阻塞等待结果。在收到netty 响应时，也就是netty channelRead有数据时，唤醒等待的调用线程。在channelRead中根据响应的请求id，由netty线程设置上响应结果，调用countDownLatch.countDown进行唤醒。
package com.jessin.practice.dubbo.netty;
import com.alibaba.fastjson.JSON;
import com.jessin.practice.dubbo.transport.DefaultFuture;
import com.jessin.practice.dubbo.transport.Response;
import io.netty.channel.ChannelDuplexHandler;
import io.netty.channel.ChannelHandlerContext;
import io.netty.channel.ChannelPromise;
import lombok.extern.slf4j.Slf4j;
/**
* @Author: jessin
* @Date: 19-11-25 下午10:25
*/
@Slf4j
public class NettyClientHandler extends ChannelDuplexHandler {
@Override
public void channelActive(ChannelHandlerContext ctx) throws Exception {
log.info("客户端和服务端建立连接成功");
//ctx.writeAndFlush("{"id":1,"rpcInvocation":{"interfaceName":"com.jessin.practice.dubbo.service.UserService","methodName":"getUser","parameterType":[],"version":"1.0.0"}}");
}
/**
* 对响应进行处理
* @param ctx
* @param msg
* @throws Exception
*/
@Override
public void channelRead(ChannelHandlerContext ctx, Object msg) throws Exception {
log.info("收到服务端消息：" + msg);
// result字段为JSONObject
Response response = JSON.parseObject((String)msg, Response.class);
// todo 返回list/map，带复杂key/value的是否有问题
DefaultFuture.setResponse(response);
}
/**
* TODO 发送消息前进行拦截，oubound，只有channel.writeAndFlush()才能起作用，active里直接用ctx不起作用
* @param ctx
* @param msg
* @param promise
* @throws Exception
*/
@Override
public void write(ChannelHandlerContext ctx, Object msg, ChannelPromise promise) throws Exception {
log.info("收到写消息：" + msg);
// 必须的！保证继续往下走，发送出去，其实就是ctx.write(msg, promise)
super.write(ctx, msg, promise);
// TODO promise模式，依赖地狱，以及Future回调模式（guava、java8）
promise.addListener(future -> {
// 监听发送回调，看是否发送成功
if (future.isSuccess()) {
log.info("发送写消息：{}，成功", msg);
} else {
log.info("发送消息失败：{}", msg);
}
});
}
}
4.2 服务实例曝光到注册中心
4.2.1 在BeanDefinitionRegistryPostProcessor中处理@Service注解
服务端使用@Service注解：
package com.jessin.practice.dubbo.processor;
import java.lang.annotation.Documented;
import java.lang.annotation.ElementType;
import java.lang.annotation.Retention;
import java.lang.annotation.RetentionPolicy;
import java.lang.annotation.Target;
/**
* @Author: jessin
* @Date: 19-11-27 下午9:11
*/
@Target({ ElementType.TYPE, ElementType.CONSTRUCTOR, ElementType.METHOD, ElementType.PARAMETER, ElementType.FIELD, ElementType.ANNOTATION_TYPE})
// 必须写为runtime，否则获取不到
@Retention(RetentionPolicy.RUNTIME)
@Documented
public @interface Service {
String group() default "";
String version() default "1.0.0";
String timeout() default "3000";
}
需要扫描标记有@Service的类，然后注册到spring 容器，涉及到注册BeanDefinition的，一般用到的扩展点是BeanDefinitionRegistryPostProcessor#postProcessBeanDefinitionRegistry。这里为什么要自定义一个@Service注解，而不复用spring原有的@Service注解？是因为我们还要基于标记有@Service的这个bean做一些处理操作，包括对该bean曝光到本地，开启网络监听，注册到zk，这些动作需要封装到“另外一个bean”来完成，我们需要注入“另外一个bean”这个Definition，这里也就是ServiceBean，下文讲解。
package com.jessin.practice.dubbo.processor;
import com.jessin.practice.dubbo.config.InterfaceConfig;
import com.jessin.practice.dubbo.config.MiniDubboProperties;
import java.util.Set;
import org.springframework.beans.BeansException;
import org.springframework.beans.factory.BeanClassLoaderAware;
import org.springframework.beans.factory.config.BeanDefinition;
import org.springframework.beans.factory.config.ConfigurableListableBeanFactory;
import org.springframework.beans.factory.config.RuntimeBeanReference;
import org.springframework.beans.factory.support.BeanDefinitionRegistry;
import org.springframework.beans.factory.support.BeanDefinitionRegistryPostProcessor;
import org.springframework.beans.factory.support.RootBeanDefinition;
import org.springframework.context.annotation.AnnotationBeanNameGenerator;
import org.springframework.context.annotation.ClassPathBeanDefinitionScanner;
import org.springframework.core.annotation.AnnotationUtils;
import org.springframework.core.type.filter.AnnotationTypeFilter;
import org.springframework.util.ClassUtils;
/**
* @Author: jessin
* @Date: 19-11-27 下午9:24
*/
public class ServiceBeanPostProcessor implements BeanDefinitionRegistryPostProcessor, BeanClassLoaderAware {
private AnnotationBeanNameGenerator annotationBeanNameGenerator = new AnnotationBeanNameGenerator();
private MiniDubboProperties miniDubboProperties;
private ClassLoader classLoader;
public ServiceBeanPostProcessor(MiniDubboProperties miniDubboProperties) {
this.miniDubboProperties = miniDubboProperties;
}
@Override
public void postProcessBeanDefinitionRegistry(BeanDefinitionRegistry registry) throws BeansException {
ClassPathBeanDefinitionScanner classPathBeanDefinitionScanner = new ClassPathBeanDefinitionScanner(registry, false);
classPathBeanDefinitionScanner.addIncludeFilter(new AnnotationTypeFilter(Service.class));
// 将该包下的@Service注解全部扫描为bean
Set<BeanDefinition> beanDefinitionSet
= classPathBeanDefinitionScanner.findCandidateComponents(miniDubboProperties.getPackagePath());
for (BeanDefinition beanDefinition : beanDefinitionSet) {
String beanName = annotationBeanNameGenerator.generateBeanName(beanDefinition, registry);
registry.registerBeanDefinition(beanName, beanDefinition);
BeanDefinition wrapper = new RootBeanDefinition(ServiceBean.class);
wrapper.getPropertyValues().addPropertyValue("ref", new RuntimeBeanReference(beanName));
wrapper.getPropertyValues().addPropertyValue("miniDubboProperties", miniDubboProperties);
Class beanClass = ClassUtils.resolveClassName(beanDefinition.getBeanClassName(), classLoader);
Service service = AnnotationUtils.findAnnotation(beanClass, Service.class);
wrapper.getPropertyValues().addPropertyValue("interfaceConfig", transform(service));
registry.registerBeanDefinition("dubbo_" + beanName, wrapper);
}
}
@Override
public void postProcessBeanFactory(ConfigurableListableBeanFactory beanFactory) throws BeansException {
}
private InterfaceConfig transform(Service ref) {
InterfaceConfig interfaceConfig = new InterfaceConfig();
interfaceConfig.setGroup(ref.group());
interfaceConfig.setVersion(ref.version());
interfaceConfig.setTimeout(ref.timeout());
return interfaceConfig;
}
@Override
public void setBeanClassLoader(ClassLoader classLoader) {
this.classLoader = classLoader;
}
}
4.2.2 解析注解参数，注册服务到zookeeper
如上，我们在ServiceBean中，依赖标记有@Service的bean，同时将其曝光到本地，开启netty端口监听，注册到zk，具体如下，见afterPropertiesSet方法：
package com.jessin.practice.dubbo.processor;
import com.jessin.practice.dubbo.config.InterfaceConfig;
import com.jessin.practice.dubbo.config.MiniDubboProperties;
import com.jessin.practice.dubbo.exporter.DubboExporter;
import com.jessin.practice.dubbo.netty.NettyManager;
import com.jessin.practice.dubbo.netty.NettyServer;
import com.jessin.practice.dubbo.registry.CuratorZookeeperClient;
import com.jessin.practice.dubbo.registry.RegistryManager;
import com.jessin.practice.dubbo.utils.NetUtils;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.DisposableBean;
import org.springframework.beans.factory.InitializingBean;
/**
* @Author: jessin
* @Date: 19-11-27 下午10:31
*/
@Slf4j
public class ServiceBean implements InitializingBean, DisposableBean {
private NettyServer nettyServer;
/**
* zk地址
*/
private CuratorZookeeperClient curatorZookeeperClient;
private Object ref;
private MiniDubboProperties miniDubboProperties;
private InterfaceConfig interfaceConfig;
public MiniDubboProperties getMiniDubboProperties() {
return miniDubboProperties;
}
public void setMiniDubboProperties(MiniDubboProperties miniDubboProperties) {
this.miniDubboProperties = miniDubboProperties;
}
public InterfaceConfig getInterfaceConfig() {
return interfaceConfig;
}
public void setInterfaceConfig(InterfaceConfig interfaceConfig) {
this.interfaceConfig = interfaceConfig;
}
public Object getRef() {
return ref;
}
public void setRef(Object ref) {
this.ref = ref;
}
@Override
public void afterPropertiesSet() throws Exception {
Class[] interfaces = ref.getClass().getInterfaces();
if (interfaces.length <= 0) {
throw new IllegalStateException(ref.getClass().getName() + "未实现接口");
}
// todo 目前只能实现一个接口
String clazzName = interfaces[0].getName();
log.info("曝光key：{}，ref：{}", clazzName, ref);
// 暴露服务 todo 版本
DubboExporter.exportService(clazzName, ref);
// 先开启，再注册
// 判断协议
if ("dubbo".equals(miniDubboProperties.getProtocol())) {
// 开启netty server
nettyServer = NettyManager.getNettyServer(miniDubboProperties.getPort());
} else {
throw new RuntimeException("unknown communicate protocol:" + miniDubboProperties.getProtocol());
}
// 判断什么类型的注册中心
curatorZookeeperClient = RegistryManager.getCuratorZookeeperClient(miniDubboProperties.getRegistry());
String providerPath = "/miniDubbo/" + interfaceConfig.getGroup() + "/" + clazzName + "/providers" + "/" + NetUtils.getServerIp() + ":" + miniDubboProperties.getPort();
// 注册zk，提炼register方法
curatorZookeeperClient.create(providerPath, true);
}
@Override
public void destroy() throws Exception {
curatorZookeeperClient.doClose();
nettyServer.close();
}
}
4.2.3 开启netty server，接收请求
在接受到consumer请求后，解码，然后根据类名、方法名，找到对应的曝光服务，进行反射调用，将方法返回结果和请求id原样写出去，返回给客户端。具体如下：
package com.jessin.practice.dubbo.netty;
import com.alibaba.fastjson.JSON;
import com.alibaba.fastjson.JSONObject;
import com.jessin.practice.dubbo.exception.DubboException;
import com.jessin.practice.dubbo.exporter.DubboExporter;
import com.jessin.practice.dubbo.invoker.RpcInvocation;
import com.jessin.practice.dubbo.transport.Request;
import com.jessin.practice.dubbo.transport.Response;
import com.jessin.practice.dubbo.utils.ArgDeserializerUtils;
import io.netty.bootstrap.ServerBootstrap;
import io.netty.channel.ChannelDuplexHandler;
import io.netty.channel.ChannelFuture;
import io.netty.channel.ChannelHandler;
import io.netty.channel.ChannelHandlerContext;
import io.netty.channel.ChannelInitializer;
import io.netty.channel.ChannelOption;
import io.netty.channel.ChannelPromise;
import io.netty.channel.EventLoopGroup;
import io.netty.channel.nio.NioEventLoopGroup;
import io.netty.channel.socket.SocketChannel;
import io.netty.channel.socket.nio.NioServerSocketChannel;
import java.lang.reflect.Method;
import lombok.extern.slf4j.Slf4j;
/**
* @Author: jessin
* @Date: 19-11-27 下午7:40
*/
@Slf4j
public class NettyServer {
// todo 底层会启动2*cpu个数的NioEventLoop，轮询注册到对应的NioEventLoop运行
private EventLoopGroup boss = new NioEventLoopGroup();
private EventLoopGroup worker = new NioEventLoopGroup();
// 全局复用，是否需要考虑可共享？
private ServerHandler serverHandler = new ServerHandler();
private int port;
public NettyServer(int port) {
ServerBootstrap serverBootstrap = new ServerBootstrap();
// boss线程池用于accept到达的请求，worker线程池对到达的请求进行读写
// child表示对到达的请求起作用，没有child表示对ServerSocketChannel起作用
// 服务端用NioServerSocketChannel
ChannelFuture channelFuture;
this.port = port;
try {
serverBootstrap.group(boss, worker)
.channel(NioServerSocketChannel.class)
.childOption(ChannelOption.SO_KEEPALIVE, true)
// todo option最终设置到jdk sever channel上
.option(ChannelOption.SO_BACKLOG, 1024)
.childHandler(new ChannelInitializer<SocketChannel>() {
@Override
protected void initChannel(SocketChannel ch) throws Exception {
// 对到达的请求进行读写操作，责任链模式，ChannelPipeline
ch.pipeline()
.addLast(new BaseDecoder())
.addLast(new BaseEncoder())
.addLast(serverHandler);
}
});
// todo bind时，会新建NioServerSocketChannel，并注册到NioEventLoop.selector中
// todo 底层转换为pipeline.bind()，最终调用serverSocketChannel.bind(socketAddress, 128);
channelFuture = serverBootstrap.bind(port);
// 下面会阻塞
channelFuture.sync();
log.info("服务器绑定端口：{}成功", port);
// TODO 关闭时调用，客户端也得关闭
// channelFuture.channel().closeFuture().sync();
} catch (Exception e) {
throw new RuntimeException("bind port error:" + port, e);
}
}
/**
* 允许注册到多个客户端SocketChannel中
*/
@ChannelHandler.Sharable
class ServerHandler extends ChannelDuplexHandler {
@Override
public void channelActive(ChannelHandlerContext ctx) throws Exception {
log.info("客户端:{}和服务端建立连接成功", ctx.channel().remoteAddress());
}
@Override
public void channelRead(ChannelHandlerContext ctx, Object msg) throws Exception {
// 这里是String类型，已经解码了
Request request = JSONObject.parseObject((String)msg, Request.class);
log.info("收到请求消息：{}", msg);
RpcInvocation rpcInvocation = request.getRpcInvocation();
Object obj = DubboExporter.getService(rpcInvocation);
if (obj == null) {
throw new IllegalStateException("服务端未曝光接口：" + request);
}
Response response = new Response();
response.setId(request.getId());
try {
log.info("开始反射调用：{}", msg);
// todo 这里最好用线程池实现，不然会阻塞NioEventLoop
Method method = obj.getClass().getMethod(rpcInvocation.getMethodName(), rpcInvocation.getParameterType());
Object[] originArgs = ArgDeserializerUtils.parseArgs(method, rpcInvocation.getParameterType(), rpcInvocation.getArgs());
log.info("入参：{}", originArgs);
Object responseData = method.invoke(obj, originArgs);
response.setResult(responseData);
log.info("调用实例：{}，方法：{}，返回结果：{}",
obj, method, response);
} catch (Exception e) {
log.error("调用dubbo异常：{}", rpcInvocation, e);
response.setException(true);
response.setResult(new DubboException("服务端调用接口异常", e));
}
// TODO 通过原来客户端通道发送出去
// 这里会走编码吗？，必须写成String，或者改下Encoder
ctx.writeAndFlush(JSON.toJSONString(response));
}
@Override
public void channelInactive(ChannelHandlerContext ctx) throws Exception {
log.info("收到客户端退出的消息");
ctx.close();
}
@Override
public void exceptionCaught(ChannelHandlerContext ctx, Throwable cause) throws Exception {
log.error("IO出错了...", cause);
}
@Override
public void write(ChannelHandlerContext ctx, Object msg, ChannelPromise promise) throws Exception {
log.info("发起写请求：{}", msg);
// TODO 写的一般都有这个？
super.write(ctx, msg, promise);
}
}
/**
* dubbo shutdown hook
*/
public void close() {
// TODO 这里是否有问题？？
log.info("关闭端口：{}", port);
boss.shutdownGracefully();
worker.shutdownGracefully();
}
}
4.3 自动化配置实现
这里根据yaml中配置的开关，自动开启consumer/provider配置，需要注意的是，由于注入的@Service处理器是容器级别的后处理器，需要使用静态方法进行注入，避免过早初始化自动配置类，而且不能@autowirte 自动化属性，需要通过方法获取Environment，因为这个时候自动化属性类还没有对应的后处理器对其进行处理，拿到的属性是空的，需要自己做bind。
最后在Resource目录下，META-INF/spring.factories下，配置自动启动即可：
package com.jessin.practice.dubbo.config;
import com.jessin.practice.dubbo.processor.ReferenceBeanPostProcessor;
import com.jessin.practice.dubbo.processor.Service;
import com.jessin.practice.dubbo.processor.ServiceBeanPostProcessor;
import lombok.extern.slf4j.Slf4j;
import org.springframework.boot.autoconfigure.condition.AnyNestedCondition;
import org.springframework.boot.autoconfigure.condition.ConditionalOnClass;
import org.springframework.boot.autoconfigure.condition.ConditionalOnMissingBean;
import org.springframework.boot.autoconfigure.condition.ConditionalOnProperty;
import org.springframework.boot.context.properties.EnableConfigurationProperties;
import org.springframework.boot.context.properties.bind.Bindable;
import org.springframework.boot.context.properties.bind.Binder;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Conditional;
import org.springframework.context.annotation.Configuration;
import org.springframework.core.env.Environment;
/**
* todo 自己调用自己，以及url支持，资源销毁
* @Author: jessin
* @Date: 2021/10/26 9:27 PM
*/
@Configuration
@ConditionalOnClass(Service.class)
@EnableConfigurationProperties(MiniDubboProperties.class)
@Slf4j
public class MiniDubboAutoConfiguration {
static {
FastJsonConfig.config();
}
/**
* 由于BeanFactoryPostProcessor是提前获取的，这个时候CommonAnnotationBeanPostProcessor还没注册到beanFactory中，
* serviceBeanPostProcessor注入的属性为空
*/
// @Autowired
// private MiniDubboProperties miniDubboProperties;
// public MiniDubboAutoConfiguration() {
// log.info("init MiniDubboAutoConfiguration");
// }
/**
* 由于这个Bean是BeanFactoryPostProcessor，提前获取时，
* ConfigurationProperties的ConfigurationPropertiesBindingPostProcessor还没注入到beanFactory中，
* 所以MiniDubboProperties属性没法注入
* 这里通过environment构造
* @param environment
* @return
*/
@Bean
@Conditional(ServerCondition.class)
@ConditionalOnMissingBean
public static ServiceBeanPostProcessor serviceBeanPostProcessor(Environment environment) {
MiniDubboProperties miniDubboProperties = getMiniDubboProperties(environment);
return new ServiceBeanPostProcessor(miniDubboProperties);
}
static class ServerCondition extends AnyNestedCondition {
ServerCondition() {
super(ConfigurationPhase.REGISTER_BEAN);
}
@ConditionalOnProperty(prefix = MiniDubboProperties.PREFIX, name = "type", havingValue = "both")
static class HostProperty {
}
@ConditionalOnProperty(prefix = MiniDubboProperties.PREFIX, name = "type", havingValue = "server")
static class JndiNameProperty {
}
}
/**
* 使用静态方法，防止造成自动化配置实例提前初始化，没有进行增强
* @param environment
* @return
*/
@Bean
@Conditional(ClientCondition.class)
@ConditionalOnMissingBean
public static ReferenceBeanPostProcessor referenceBeanPostProcessor(Environment environment) {
MiniDubboProperties miniDubboProperties = getMiniDubboProperties(environment);
return new ReferenceBeanPostProcessor(miniDubboProperties);
}
static class ClientCondition extends AnyNestedCondition {
ClientCondition() {
super(ConfigurationPhase.REGISTER_BEAN);
}
@ConditionalOnProperty(prefix = MiniDubboProperties.PREFIX, name = "type", havingValue = "both")
static class HostProperty {
}
@ConditionalOnProperty(prefix = MiniDubboProperties.PREFIX, name = "type", havingValue = "client")
static class JndiNameProperty {
}
}
private static MiniDubboProperties getMiniDubboProperties(Environment environment) {
MiniDubboProperties miniDubboProperties = Binder.get(environment) //首先要绑定配置器
//再将属性绑定到对象上
.bind(MiniDubboProperties.PREFIX, Bindable.of(MiniDubboProperties.class) ).get(); //再获取实例
return miniDubboProperties;
}
}
五、测试
5.1 编写api
这里设置了5个接口，覆盖了较多的场景，具体见：github
package com.jessin.practice.dubbo.service;
import com.jessin.practice.dubbo.model.User;
import com.jessin.practice.dubbo.model.UserParam;
import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.Map;
/**
* @Author: jessin
* @Date: 19-11-24 上午11:23
*/
public interface UserService {
User getUser();
User getUser(UserParam userParam);
User getUser(int age);
User getUser(UserParam userParam,
int type,
String note,
int[] ages,
List<Integer> list);
User getUser(List<UserParam> list,
ArrayList<UserParam> list2,
Map<String, UserParam> userParamMap,
HashMap<String, UserParam> userParamMap2);
User getUser(List list, Map userParamMap);
}
5.2 实现api，标记@Service
在miniDubboDemo中实现api，该工程基于spring boot实现。见miniDubboDemo
package com.example.demo.service;
import com.jessin.practice.dubbo.model.User;
import com.jessin.practice.dubbo.model.UserParam;
import com.jessin.practice.dubbo.processor.Service;
import com.jessin.practice.dubbo.service.UserService;
import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.Map;
/**
* @Author: jessin
* @Date: 19-11-27 下午11:33
*/
@Service(group="myGroup")
public class UserServiceImpl implements UserService {
@Override
public User getUser() {
User user = new User();
user.setId(1L);
user.setName("小明");
user.setAge(10);
user.setNote("测试无参miniDubbo");
return user;
}
@Override
public User getUser(UserParam userParam) {
User user = new User();
user.setId(2L);
user.setName("小红");
user.setAge(11);
user.setNote("测试带参数UserParam");
return user;
}
@Override
public User getUser(int age) {
User user = new User();
user.setId(2L);
user.setName("小红");
user.setAge(11);
user.setNote("测试带参数int");
return user;
}
@Override
public User getUser(UserParam userParam, int type, String note, int[] ages, List<Integer> list) {
User user = new User();
user.setId(2L);
user.setName("小红");
user.setAge(11);
user.setNote("测试带多个参数");
return user;
}
@Override
public User getUser(List<UserParam> list, ArrayList<UserParam> arrayList, Map<String, UserParam> map,
HashMap<String, UserParam> hashMap) {
User user = new User();
user.setId(2L);
user.setName("小红");
user.setAge(11);
user.setNote("测试带list/map泛型参数");
return user;
}
@Override
public User getUser(List list, Map userParamMap) {
User user = new User();
user.setId(2L);
user.setName("小红");
user.setAge(11);
user.setNote("测试带list/map无参");
return user;
}
}
5.3 编写controller接口，使用@Reference注入api依赖
也是在demo工程中，这里demo工程既作为provider，也作为consumer。
package com.example.demo.controller;
import com.google.common.collect.Lists;
import com.google.common.collect.Maps;
import com.jessin.practice.dubbo.model.User;
import com.jessin.practice.dubbo.model.UserParam;
import com.jessin.practice.dubbo.processor.Reference;
import com.jessin.practice.dubbo.service.UserService;
import java.util.HashMap;
import java.util.Map;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;
/**
* TODO 泛化调用
*
* @Author: jessin
* @Date: 19-8-3 下午4:25
*/
@RestController
public class HelloController {
private Logger log = LoggerFactory.getLogger(getClass());
@Reference(group = "myGroup")
private UserService userService;
/**
* http://localhost:9999/practice/helloParam
*
* @return
*/
@RequestMapping("/hello")
public User hello(UserParam userParam, @RequestParam int type) {
log.info("test miniDubbo param");
if (type == 1) {
return userService.getUser();
} else if (type == 2) {
return userService.getUser(userParam);
} else if (type == 3) {
return userService.getUser(3);
} else if (type == 4) {
return userService.getUser(userParam, 3, "hello", new int[]{1, 2, 3}, Lists.newArrayList(3, 5, 7));
} else if (type == 5) {
UserParam user2 = new UserParam();
user2.setId(1132);
user2.setName("hello");
UserParam user3 = new UserParam();
user3.setId(353);
user3.setName("world");
Map<String, UserParam> map = Maps.newHashMap();
map.put("key1", user2);
HashMap<String, UserParam> hashMap = Maps.newHashMap();
hashMap.put("key2", user3);
return userService.getUser(Lists.newArrayList(user2, user3),
Lists.newArrayList(userParam), map, hashMap);
} else {
UserParam user2 = new UserParam();
user2.setId(1132);
user2.setName("hello");
UserParam user3 = new UserParam();
user3.setId(353);
user3.setName("world");
Map<String, UserParam> map = Maps.newHashMap();
map.put("key1", user2);
HashMap<String, UserParam> hashMap = Maps.newHashMap();
hashMap.put("key2", user3);
return userService.getUser(Lists.newArrayList(userParam, user2, user3), map);
}
}
}
5.4 启动步骤
5.4.1 启动zk
博主的zk部署到云主机上，需保证2181端口已经启动：
ubuntu@VM-0-14-ubuntu:~$ lsof -i:2181 COMMAND PID USER FD TYPE DEVICE SIZE/OFF NODE NAME java 3904 ubuntu 27u IPv6 545176752 0t0 TCP VM-0-14-ubuntu:35306->1.15.130.58:2181 (ESTABLISHED) java 26361 ubuntu 45u IPv6 452967153 0t0 TCP *:2181 (LISTEN) java 26361 ubuntu 49u IPv6 545176753 0t0 TCP VM-0-14-ubuntu:2181->1.15.130.58:35306 (ESTABLISHED)
5.4.2 部署api和miniDubbo到本地仓库
部署api到本地仓库：api，部署miniDubbo到本地仓库：miniDubbo
mvn install
5.4.3 在demo yaml配置miniDubbo。
配置zk地址和扫描的服务端路径（只在角色为服务端生效）
mini-dubbo: package-path: "@Service注解所在包" registry: "your_zk_ip:2181"
5.4.4 编译demo为可执行jar
mvn package
5.4.5 开启两个服务端
这两个服务端都部署在云服务器上，参数说明：
server.port=9997，指定http端口
public.ip=1.15.130.58，可以指定当前注册到zk上的公网地址，如果用的是云主机的话，可以在云端部署两台服务实例，以便在本地能进行服务发现和调用。
mini-dubbo.type=server，表示角色是服务端
catalina.base=xxx，设置的是日志目录，改为你的即可。
启动第一个provider实例： 默认9999 http端口，20880 miniDubbo端口
java -Dmini-dubbo.type=server -Dcatalina.base=/home/ubuntu/program/java/miniDubboDemo/tomcat1 -Dpublic.ip=1.15.130.58 -jar target/demo-0.0.1-SNAPSHOT.jar
启动第二个provider实例： 默认9998 http端口，20881 miniDubbo端口
java -Dmini-dubbo.type=server -Dcatalina.base=/home/ubuntu/program/java/miniDubboDemo/tomcat2 -Dserver.port=9998 -Dmini-dubbo.port=20881 -Dpublic.ip=1.15.130.58 -jar target/demo-0.0.1-SNAPSHOT.jar
5.4.6 本地开启客户端进行调用
在本地启动客户端，并与两个provider建立连接：
java -Dmini-dubbo.type=client -Dcatalina.base=./tomcat3 -Dserver.port=9997 -jar target/demo-0.0.1-SNAPSHOT.jar```
通过客户端restapi触发miniDubbo调用，可以挂掉一台服务，两台服务，看看效果，并通过type调用不同的api方法
http://localhost:9997/practice/hello?type=2

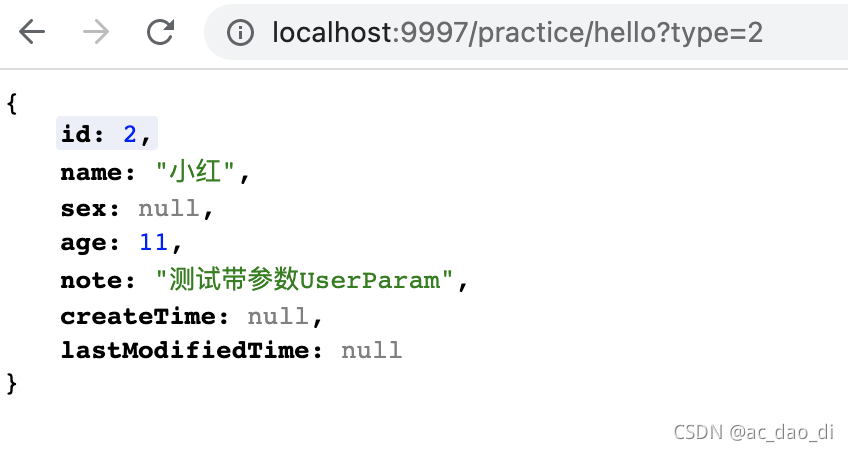

得到结果：

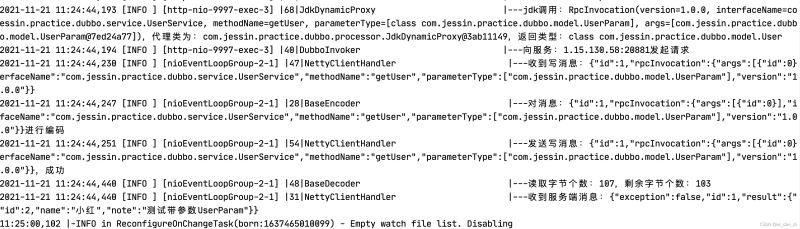

客户端发起请求，可以看到调用的是20881这个服务：

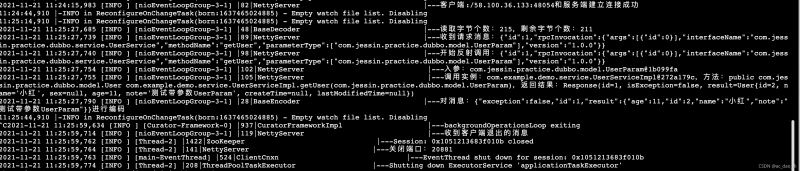

服务端返回结果：
上面将20881销毁后，再次调用客户端发起请求，自动转移到20880这个服务：

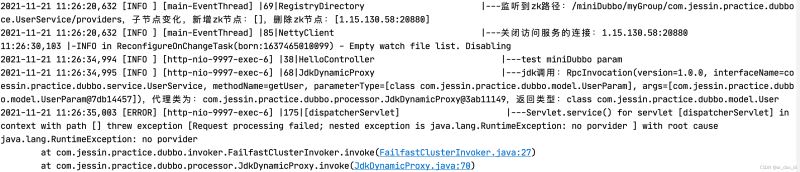

将20880也销毁后，再次调用客户端发起请求，直接抛出no provider异常：
六、总结
6.1 已完成功能列表
- 基于zk服务注册和服务发现
- 基于netty + json序列化网络通信
- zk连接复用、netty client连接复用
- 与spring boot集成
6.2 TODO LIST
通用需求：
- spring容器销毁时，关闭占用的资源，如netty client/netty server
- 支持protobuf序列化
- 支持http协议通信
- netty超时重连，心跳断开重连，销毁dubbo invoker
- zk抖动导致所有服务实例下线优化
- 其他注册中心支持，如consul/redis
- Attach/tag实现
- 支持一个类多个版本实现
- zk重新连接时，需要重新注册关注的事件，恢复现场，对于服务端是重新注册；对于客户端是重新订阅
provider功能：
- 服务端优雅启动和优雅下线，防止流量过早进来，造成超时。在spring容器启动成功后，再注册到zk上。在spring容器销毁时，先从zk取消注册，最后再关闭客户端连接。
- 服务端请求用线程池实现，避免阻塞NioEventLoop
- 服务端支持曝光实现多个接口的一个类
consumer功能：
- netty client通过计数引用销毁资源
- 服务负载均衡算法：随机/轮询/加权
- 集群失败策略：failover/failsafe/failback
以上就是java实现简易版简易版dubbo的详细内容，更多关于dubbo的资料请关注靠谱客其它相关文章！
最后
以上就是无语枕头为你收集整理的java实现简易版简易版dubbo的全部内容，希望文章能够帮你解决java实现简易版简易版dubbo所遇到的程序开发问题。
如果觉得靠谱客网站的内容还不错，欢迎将靠谱客网站推荐给程序员好友。
本图文内容来源于网友提供，作为学习参考使用，或来自网络收集整理，版权属于原作者所有。
发表评论 取消回复
