SpringBoot 嵌入式web容器的启动原理详解

@SpringBootApplication
@EnableAsync //使用异步注解@Async 需要在这里加上@EnableAsync
@MapperScan("springboot.dao") //不可或缺作用是扫描dao包下面的所有mapper装配
public class HelloApplication {
    public static void main(String[] args) {
        SpringApplication.run(HelloApplication.class,args);
    }
}

    public static ConfigurableApplicationContext run(Class<?> primarySource, String... args) {
        return run(new Class[]{primarySource}, args);
    }

    public static ConfigurableApplicationContext run(Class<?>[] primarySources, String[] args) {
        return (new SpringApplication(primarySources)).run(args);
    }

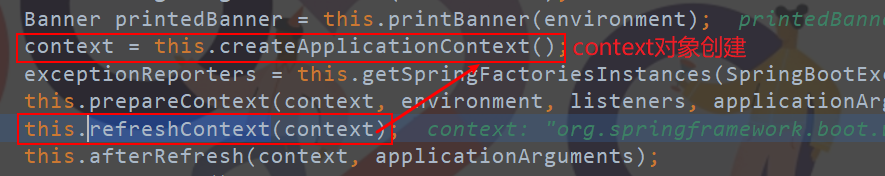

 private void refreshContext(ConfigurableApplicationContext context) {
        this.refresh(context);
        if (this.registerShutdownHook) {
            try {
                context.registerShutdownHook();
            } catch (AccessControlException var3) {
            }
        }

    protected void refresh(ApplicationContext applicationContext) {
        Assert.isInstanceOf(AbstractApplicationContext.class, applicationContext);
        ((AbstractApplicationContext)applicationContext).refresh();
    }

    public final void refresh() throws BeansException, IllegalStateException {
        try {
            super.refresh();
        } catch (RuntimeException var2) {
            this.stopAndReleaseWebServer();
            throw var2;
        }
    }

    protected void onRefresh() {
        super.onRefresh();
        try {
            this.createWebServer();
        } catch (Throwable var2) {
            throw new ApplicationContextException("Unable to start web server", var2);
        }
    }

 private void createWebServer() {
        WebServer webServer = this.webServer;
        ServletContext servletContext = this.getServletContext();
        if (webServer == null && servletContext == null) {
            ServletWebServerFactory factory = this.getWebServerFactory();
            this.webServer = factory.getWebServer(new ServletContextInitializer[]{this.getSelfInitializer()});
        } else if (servletContext != null) {
            try {
                this.getSelfInitializer().onStartup(servletContext);
            } catch (ServletException var4) {
                throw new ApplicationContextException("Cannot initialize servlet context", var4);
            }
        }
        this.initPropertySources();
    }

    protected ServletWebServerFactory getWebServerFactory() {
        String[] beanNames = this.getBeanFactory().getBeanNamesForType(ServletWebServerFactory.class);
        if (beanNames.length == 0) {
            throw new ApplicationContextException("Unable to start ServletWebServerApplicationContext due to missing ServletWebServerFactory bean.");
        } else if (beanNames.length > 1) {
            throw new ApplicationContextException("Unable to start ServletWebServerApplicationContext due to multiple ServletWebServerFactory beans : " + StringUtils.arrayToCommaDelimitedString(beanNames));
        } else {
            return (ServletWebServerFactory)this.getBeanFactory().getBean(beanNames[0], ServletWebServerFactory.class);
        }
    }

    //配置嵌入式的servlet容器
    @Bean
    public WebServerFactoryCustomizer<ConfigurableWebServerFactory> MyCustomizer(){
        return new WebServerFactoryCustomizer<ConfigurableWebServerFactory>() {
            @Override
            public void customize(ConfigurableWebServerFactory factory) {
                factory.setPort(8081);
            }
        };
    }

//SprinBoot支持的servlet容器有三个Tomcat、Jetty、Undertow,但是默认配置的是Tomcat


//嵌入式的Undertow
    @Configuration(
        proxyBeanMethods = false
    )
    @ConditionalOnClass({Undertow.class, SslClientAuthMode.class})
    public static class UndertowWebServerFactoryCustomizerConfiguration {
        public UndertowWebServerFactoryCustomizerConfiguration() {
        }

        @Bean
        public UndertowWebServerFactoryCustomizer undertowWebServerFactoryCustomizer(Environment environment, ServerProperties serverProperties) {
            return new UndertowWebServerFactoryCustomizer(environment, serverProperties);
        }
    }


//嵌入式的Jetty
    @Configuration(
        proxyBeanMethods = false
    )
    @ConditionalOnClass({Server.class, Loader.class, WebAppContext.class})
    public static class JettyWebServerFactoryCustomizerConfiguration {
        public JettyWebServerFactoryCustomizerConfiguration() {
        }

        @Bean
        public JettyWebServerFactoryCustomizer jettyWebServerFactoryCustomizer(Environment environment, ServerProperties serverProperties) {
            return new JettyWebServerFactoryCustomizer(environment, serverProperties);
        }
    }

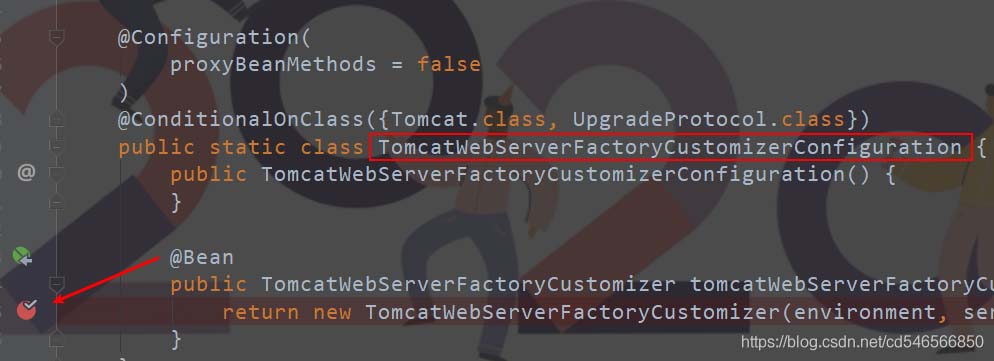

//嵌入式的Tomcat
    @Configuration(
        proxyBeanMethods = false
    )
    @ConditionalOnClass({Tomcat.class, UpgradeProtocol.class})
    public static class TomcatWebServerFactoryCustomizerConfiguration {
        public TomcatWebServerFactoryCustomizerConfiguration() {
        }

        @Bean
        public TomcatWebServerFactoryCustomizer tomcatWebServerFactoryCustomizer(Environment environment, ServerProperties serverProperties) {
            return new TomcatWebServerFactoryCustomizer(environment, serverProperties);
        }
    }

server.port=8081
server.tomcat.xxx...

@FunctionalInterface
public interface WebServerFactoryCustomizer<T extends WebServerFactory> {
    void customize(T factory);
}
