我是靠谱客的博主鲜艳钢笔，这篇文章主要介绍Unity实现物体弧线运动到规定的坐标，现在分享给大家，希望可以做个参考。

本文实例为大家分享了Unity实现以弧线的形式运动到规定坐标的具体代码，供大家参考，具体内容如下

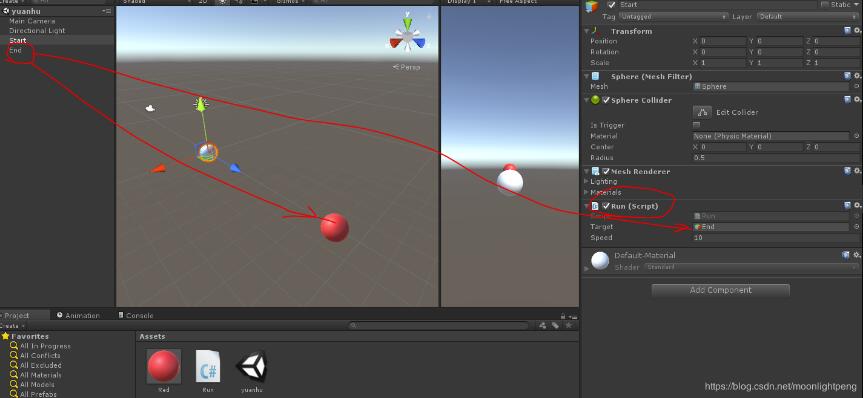

1、u3d场景的设置

2、 Run 脚本

复制代码

using UnityEngine;
using System.Collections;

public class Run : MonoBehaviour
{
 public GameObject target; //要到达的目标
 public float speed = 10; //速度
 private float distanceToTarget; //两者之间的距离
 private bool move = true;

 void Start()
 {
 //计算两者之间的距离
 distanceToTarget = Vector3.Distance(this.transform.position, target.transform.position);
 StartCoroutine(StartShoot());
 }

 IEnumerator StartShoot()
 {

 while (move)
 {
 Vector3 targetPos = target.transform.position;

 //让始终它朝着目标
 this.transform.LookAt(targetPos);

 //计算弧线中的夹角
 float angle = Mathf.Min(1, Vector3.Distance(this.transform.position, targetPos) / distanceToTarget) * 45;
 this.transform.rotation = this.transform.rotation * Quaternion.Euler(Mathf.Clamp(-angle, -42, 42), 0, 0);
 float currentDist = Vector3.Distance(this.transform.position, target.transform.position);
 if (currentDist < 0.5f)
 move = true;
 this.transform.Translate(Vector3.forward * Mathf.Min(speed * Time.deltaTime, currentDist));
 yield return null;
 }
 }


}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
using UnityEngine;
using System.Collections;

public class Run : MonoBehaviour
{
 public GameObject target; //要到达的目标
 public float speed = 10; //速度
 private float distanceToTarget; //两者之间的距离
 private bool move = true;

 void Start()
 {
 //计算两者之间的距离
 distanceToTarget = Vector3.Distance(this.transform.position, target.transform.position);
 StartCoroutine(StartShoot());
 }

 IEnumerator StartShoot()
 {

 while (move)
 {
 Vector3 targetPos = target.transform.position;

 //让始终它朝着目标
 this.transform.LookAt(targetPos);

 //计算弧线中的夹角
 float angle = Mathf.Min(1, Vector3.Distance(this.transform.position, targetPos) / distanceToTarget) * 45;
 this.transform.rotation = this.transform.rotation * Quaternion.Euler(Mathf.Clamp(-angle, -42, 42), 0, 0);
 float currentDist = Vector3.Distance(this.transform.position, target.transform.position);
 if (currentDist < 0.5f)
 move = true;
 this.transform.Translate(Vector3.forward * Mathf.Min(speed * Time.deltaTime, currentDist));
 yield return null;
 }
 }


}
