C# 实现WebSocket服务端教程

190 阅读 0 评论 126 点赞

我是靠谱客的博主畅快猫咪，这篇文章主要介绍C# 实现WebSocket服务端教程，现在分享给大家，希望可以做个参考。

.net4.5中实现了对websocket的支持

在这里我使用的是.net4.0。因此需要对原本的socket发送的数据根据websocket的协议进行解析和打包。

复制代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Net.Sockets;
using System.Threading;
using System.Net;

namespace WebSocketServer
{
 class Program
 {
  static void Main(string[] args)
  {
   WebSocket socket = new WebSocket();
   socket.start(8064);
  }
 }
}

复制代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Net.Sockets;
using System.Net;
namespace WebSocketServer
{
 public class Session
 {
  private Socket _sockeclient;
  private byte[] _buffer;
  private string _ip;
  private bool _isweb = false;

  public Socket SockeClient
  {
   set { _sockeclient = value; }
   get { return _sockeclient; }
  }

  public byte[] buffer
  {
   set { _buffer = value; }
   get { return _buffer; }
  }

  public string IP
  {
   set { _ip = value; }
   get { return _ip; }
  }

  public bool isWeb
  {
   set { _isweb = value; }
   get { return _isweb; }
  }
 }
}

复制代码

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading;
using System.Net.Sockets;
using System.Net;
using System.Text.RegularExpressions;
using System.Security.Cryptography;

namespace WebSocketServer
{
 public class WebSocket
 {
  private Dictionary<string, Session> SessionPool = new Dictionary<string, Session>();
  private Dictionary<string, string> MsgPool = new Dictionary<string, string>();

#region 启动WebSocket服务
  /// <summary>
  /// 启动WebSocket服务
  /// </summary>
  public void start(int port)
  {
   Socket SockeServer = new Socket(AddressFamily.InterNetwork, SocketType.Stream, ProtocolType.Tcp);
   SockeServer.Bind(new IPEndPoint(IPAddress.Any, port));
   SockeServer.Listen(20);
   SockeServer.BeginAccept(new AsyncCallback(Accept), SockeServer);
   Console.WriteLine("服务已启动");
   Console.WriteLine("按任意键关闭服务");
   Console.ReadLine();
  }
  #endregion

#region 处理客户端连接请求
  /// <summary>
  /// 处理客户端连接请求
  /// </summary>
  /// <param name="result"></param>
  private void Accept(IAsyncResult socket)
  {
   // 还原传入的原始套接字
   Socket SockeServer = (Socket)socket.AsyncState;
   // 在原始套接字上调用EndAccept方法，返回新的套接字
   Socket SockeClient = SockeServer.EndAccept(socket);
   byte[] buffer = new byte[4096];
   try
   {
    //接收客户端的数据
    SockeClient.BeginReceive(buffer, 0, buffer.Length, SocketFlags.None, new AsyncCallback(Recieve), SockeClient);
    //保存登录的客户端
    Session session = new Session();
    session.SockeClient = SockeClient;
    session.IP = SockeClient.RemoteEndPoint.ToString();
    session.buffer = buffer;
    lock (SessionPool)
    {
     if (SessionPool.ContainsKey(session.IP))
     {
      this.SessionPool.Remove(session.IP);
     }
     this.SessionPool.Add(session.IP, session);
    }
    //准备接受下一个客户端
    SockeServer.BeginAccept(new AsyncCallback(Accept), SockeServer);
    Console.WriteLine(string.Format("Client {0} connected", SockeClient.RemoteEndPoint));
   }
   catch (Exception ex)
   {
    Console.WriteLine("Error : " + ex.ToString());
   }
  }
  #endregion

#region 处理接收的数据
  /// <summary>
  /// 处理接受的数据
  /// </summary>
  /// <param name="socket"></param>
  private void Recieve(IAsyncResult socket)
  {
   Socket SockeClient = (Socket)socket.AsyncState;
   string IP = SockeClient.RemoteEndPoint.ToString();
   if (SockeClient == null || !SessionPool.ContainsKey(IP))
   {
    return;
   }
   try
   {
    int length = SockeClient.EndReceive(socket);
    byte[] buffer = SessionPool[IP].buffer;
    SockeClient.BeginReceive(buffer, 0, buffer.Length, SocketFlags.None, new AsyncCallback(Recieve), SockeClient);
    string msg = Encoding.UTF8.GetString(buffer, 0, length);
    // websocket建立连接的时候，除了TCP连接的三次握手，websocket协议中客户端与服务器想建立连接需要一次额外的握手动作
    if (msg.Contains("Sec-WebSocket-Key"))
    {
     SockeClient.Send(PackageHandShakeData(buffer, length));
     SessionPool[IP].isWeb = true;
     return;
    }
    if (SessionPool[IP].isWeb)
    {
     msg = AnalyzeClientData(buffer, length);
    }
    byte[] msgBuffer = PackageServerData(msg);
    foreach (Session se in SessionPool.Values)
    {
     se.SockeClient.Send(msgBuffer, msgBuffer.Length, SocketFlags.None);
    }
   }
   catch
   {
    SockeClient.Disconnect(true);
    Console.WriteLine("客户端 {0} 断开连接", IP);
    SessionPool.Remove(IP);
   }
  }
  #endregion

#region 客户端和服务端的响应
  /*
   * 客户端向服务器发送请求
   *
   * GET / HTTP/1.1
   * Origin: http://localhost:1416
   * Sec-WebSocket-Key: vDyPp55hT1PphRU5OAe2Wg==
   * Connection: Upgrade
   * Upgrade: Websocket
   *Sec-WebSocket-Version: 13
   * User-Agent: Mozilla/5.0 (Windows NT 6.1; WOW64; Trident/7.0; rv:11.0) like Gecko
   * Host: localhost:8064
   * DNT: 1
   * Cache-Control: no-cache
   * Cookie: DTRememberName=admin
   *
   * 服务器给出响应
   *
   * HTTP/1.1 101 Switching Protocols
   * Upgrade: websocket
   * Connection: Upgrade
   * Sec-WebSocket-Accept: xsOSgr30aKL2GNZKNHKmeT1qYjA=
   *
   * 在请求中的“Sec-WebSocket-Key”是随机的，服务器端会用这些数据来构造出一个SHA-1的信息摘要。把“Sec-WebSocket-Key”加上一个魔幻字符串
   * “258EAFA5-E914-47DA-95CA-C5AB0DC85B11”。使用 SHA-1 加密，之后进行 BASE-64编码，将结果做为 “Sec-WebSocket-Accept” 头的值，返回给客户端
   */
  #endregion

#region 打包请求连接数据
  /// <summary>
  /// 打包请求连接数据
  /// </summary>
  /// <param name="handShakeBytes"></param>
  /// <param name="length"></param>
  /// <returns></returns>
  private byte[] PackageHandShakeData(byte[] handShakeBytes, int length)
  {
   string handShakeText = Encoding.UTF8.GetString(handShakeBytes, 0, length);
   string key = string.Empty;
   Regex reg = new Regex(@"Sec-WebSocket-Key:(.*?)rn");
   Match m = reg.Match(handShakeText);
   if (m.Value != "")
   {
    key = Regex.Replace(m.Value, @"Sec-WebSocket-Key:(.*?)rn", "$1").Trim();
   }
   byte[] secKeyBytes = SHA1.Create().ComputeHash(Encoding.ASCII.GetBytes(key + "258EAFA5-E914-47DA-95CA-C5AB0DC85B11"));
   string secKey = Convert.ToBase64String(secKeyBytes);
   var responseBuilder = new StringBuilder();
   responseBuilder.Append("HTTP/1.1 101 Switching Protocols" + "rn");
   responseBuilder.Append("Upgrade: websocket" + "rn");
   responseBuilder.Append("Connection: Upgrade" + "rn");
   responseBuilder.Append("Sec-WebSocket-Accept: " + secKey + "rnrn");
   return Encoding.UTF8.GetBytes(responseBuilder.ToString());
  }
  #endregion

#region 处理接收的数据
  /// <summary>
  /// 处理接收的数据
  /// </summary>
  /// <param name="recBytes"></param>
  /// <param name="length"></param>
  /// <returns></returns>
  private string AnalyzeClientData(byte[] recBytes, int length)
  {
   int start = 0;
   // 如果有数据则至少包括3位
   if (length < 2) return "";
   // 判断是否为结束针
   bool IsEof = (recBytes[start] >> 7) > 0;
   // 暂不处理超过一帧的数据
   if (!IsEof) return "";
   start++;
   // 是否包含掩码
   bool hasMask = (recBytes[start] >> 7) > 0;
   // 不包含掩码的暂不处理
   if (!hasMask) return "";
   // 获取数据长度
   UInt64 mPackageLength = (UInt64)recBytes[start] & 0x7F;
   start++;
   // 存储4位掩码值
   byte[] Masking_key = new byte[4];
   // 存储数据
   byte[] mDataPackage;
   if (mPackageLength == 126)
   {
    // 等于126 随后的两个字节16位表示数据长度
    mPackageLength = (UInt64)(recBytes[start] << 8 | recBytes[start + 1]);
    start += 2;
   }
   if (mPackageLength == 127)
   {
    // 等于127 随后的八个字节64位表示数据长度
    mPackageLength = (UInt64)(recBytes[start] << (8 * 7) | recBytes[start] << (8 * 6) | recBytes[start] << (8 * 5) | recBytes[start] << (8 * 4) | recBytes[start] << (8 * 3) | recBytes[start] << (8 * 2) | recBytes[start] << 8 | recBytes[start + 1]);
    start += 8;
   }
   mDataPackage = new byte[mPackageLength];
   for (UInt64 i = 0; i < mPackageLength; i++)
   {
    mDataPackage[i] = recBytes[i + (UInt64)start + 4];
   }
   Buffer.BlockCopy(recBytes, start, Masking_key, 0, 4);
   for (UInt64 i = 0; i < mPackageLength; i++)
   {
    mDataPackage[i] = (byte)(mDataPackage[i] ^ Masking_key[i % 4]);
   }
   return Encoding.UTF8.GetString(mDataPackage);
  }
  #endregion

#region 发送数据
  /// <summary>
  /// 把发送给客户端消息打包处理（拼接上谁什么时候发的什么消息）
  /// </summary>
  /// <returns>The data.</returns>
  /// <param name="message">Message.</param>
  private byte[] PackageServerData(string msg)
  {
   byte[] content = null;
   byte[] temp = Encoding.UTF8.GetBytes(msg);
   if (temp.Length < 126)
   {
    content = new byte[temp.Length + 2];
    content[0] = 0x81;
    content[1] = (byte)temp.Length;
    Buffer.BlockCopy(temp, 0, content, 2, temp.Length);
   }
   else if (temp.Length < 0xFFFF)
   {
    content = new byte[temp.Length + 4];
    content[0] = 0x81;
    content[1] = 126;
    content[2] = (byte)(temp.Length & 0xFF);
    content[3] = (byte)(temp.Length >> 8 & 0xFF);
    Buffer.BlockCopy(temp, 0, content, 4, temp.Length);
   }
   return content;
  }
  #endregion
 }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading;
using System.Net.Sockets;
using System.Net;
using System.Text.RegularExpressions;
using System.Security.Cryptography;

namespace WebSocketServer
{
 public class WebSocket
 {
  private Dictionary<string, Session> SessionPool = new Dictionary<string, Session>();
  private Dictionary<string, string> MsgPool = new Dictionary<string, string>();

  #region 启动WebSocket服务
  /// <summary>
  /// 启动WebSocket服务
  /// </summary>
  public void start(int port)
  {
   Socket SockeServer = new Socket(AddressFamily.InterNetwork, SocketType.Stream, ProtocolType.Tcp);
   SockeServer.Bind(new IPEndPoint(IPAddress.Any, port));
   SockeServer.Listen(20);
   SockeServer.BeginAccept(new AsyncCallback(Accept), SockeServer);
   Console.WriteLine("服务已启动");
   Console.WriteLine("按任意键关闭服务");
   Console.ReadLine();
  }
  #endregion

  #region 处理客户端连接请求
  /// <summary>
  /// 处理客户端连接请求
  /// </summary>
  /// <param name="result"></param>
  private void Accept(IAsyncResult socket)
  {
   // 还原传入的原始套接字
   Socket SockeServer = (Socket)socket.AsyncState;
   // 在原始套接字上调用EndAccept方法，返回新的套接字
   Socket SockeClient = SockeServer.EndAccept(socket);
   byte[] buffer = new byte[4096];
   try
   {
    //接收客户端的数据
    SockeClient.BeginReceive(buffer, 0, buffer.Length, SocketFlags.None, new AsyncCallback(Recieve), SockeClient);
    //保存登录的客户端
    Session session = new Session();
    session.SockeClient = SockeClient;
    session.IP = SockeClient.RemoteEndPoint.ToString();
    session.buffer = buffer;
    lock (SessionPool)
    {
     if (SessionPool.ContainsKey(session.IP))
     {
      this.SessionPool.Remove(session.IP);
     }
     this.SessionPool.Add(session.IP, session);
    }
    //准备接受下一个客户端
    SockeServer.BeginAccept(new AsyncCallback(Accept), SockeServer);
    Console.WriteLine(string.Format("Client {0} connected", SockeClient.RemoteEndPoint));
   }
   catch (Exception ex)
   {
    Console.WriteLine("Error : " + ex.ToString());
   }
  }
  #endregion

  #region 处理接收的数据
  /// <summary>
  /// 处理接受的数据
  /// </summary>
  /// <param name="socket"></param>
  private void Recieve(IAsyncResult socket)
  {
   Socket SockeClient = (Socket)socket.AsyncState;
   string IP = SockeClient.RemoteEndPoint.ToString();
   if (SockeClient == null || !SessionPool.ContainsKey(IP))
   {
    return;
   }
   try
   {
    int length = SockeClient.EndReceive(socket);
    byte[] buffer = SessionPool[IP].buffer;
    SockeClient.BeginReceive(buffer, 0, buffer.Length, SocketFlags.None, new AsyncCallback(Recieve), SockeClient);
    string msg = Encoding.UTF8.GetString(buffer, 0, length);
    // websocket建立连接的时候，除了TCP连接的三次握手，websocket协议中客户端与服务器想建立连接需要一次额外的握手动作
    if (msg.Contains("Sec-WebSocket-Key"))
    {
     SockeClient.Send(PackageHandShakeData(buffer, length));
     SessionPool[IP].isWeb = true;
     return;
    }
    if (SessionPool[IP].isWeb)
    {
     msg = AnalyzeClientData(buffer, length);
    }
    byte[] msgBuffer = PackageServerData(msg);
    foreach (Session se in SessionPool.Values)
    {
     se.SockeClient.Send(msgBuffer, msgBuffer.Length, SocketFlags.None);
    }
   }
   catch
   {
    SockeClient.Disconnect(true);
    Console.WriteLine("客户端 {0} 断开连接", IP);
    SessionPool.Remove(IP);
   }
  }
  #endregion

  #region 客户端和服务端的响应
  /*
   * 客户端向服务器发送请求
   *
   * GET / HTTP/1.1
   * Origin: http://localhost:1416
   * Sec-WebSocket-Key: vDyPp55hT1PphRU5OAe2Wg==
   * Connection: Upgrade
   * Upgrade: Websocket
   *Sec-WebSocket-Version: 13
   * User-Agent: Mozilla/5.0 (Windows NT 6.1; WOW64; Trident/7.0; rv:11.0) like Gecko
   * Host: localhost:8064
   * DNT: 1
   * Cache-Control: no-cache
   * Cookie: DTRememberName=admin
   *
   * 服务器给出响应
   *
   * HTTP/1.1 101 Switching Protocols
   * Upgrade: websocket
   * Connection: Upgrade
   * Sec-WebSocket-Accept: xsOSgr30aKL2GNZKNHKmeT1qYjA=
   *
   * 在请求中的“Sec-WebSocket-Key”是随机的，服务器端会用这些数据来构造出一个SHA-1的信息摘要。把“Sec-WebSocket-Key”加上一个魔幻字符串
   * “258EAFA5-E914-47DA-95CA-C5AB0DC85B11”。使用 SHA-1 加密，之后进行 BASE-64编码，将结果做为 “Sec-WebSocket-Accept” 头的值，返回给客户端
   */
  #endregion

  #region 打包请求连接数据
  /// <summary>
  /// 打包请求连接数据
  /// </summary>
  /// <param name="handShakeBytes"></param>
  /// <param name="length"></param>
  /// <returns></returns>
  private byte[] PackageHandShakeData(byte[] handShakeBytes, int length)
  {
   string handShakeText = Encoding.UTF8.GetString(handShakeBytes, 0, length);
   string key = string.Empty;
   Regex reg = new Regex(@"Sec-WebSocket-Key:(.*?)rn");
   Match m = reg.Match(handShakeText);
   if (m.Value != "")
   {
    key = Regex.Replace(m.Value, @"Sec-WebSocket-Key:(.*?)rn", "$1").Trim();
   }
   byte[] secKeyBytes = SHA1.Create().ComputeHash(Encoding.ASCII.GetBytes(key + "258EAFA5-E914-47DA-95CA-C5AB0DC85B11"));
   string secKey = Convert.ToBase64String(secKeyBytes);
   var responseBuilder = new StringBuilder();
   responseBuilder.Append("HTTP/1.1 101 Switching Protocols" + "rn");
   responseBuilder.Append("Upgrade: websocket" + "rn");
   responseBuilder.Append("Connection: Upgrade" + "rn");
   responseBuilder.Append("Sec-WebSocket-Accept: " + secKey + "rnrn");
   return Encoding.UTF8.GetBytes(responseBuilder.ToString());
  }
  #endregion

  #region 处理接收的数据
  /// <summary>
  /// 处理接收的数据
  /// </summary>
  /// <param name="recBytes"></param>
  /// <param name="length"></param>
  /// <returns></returns>
  private string AnalyzeClientData(byte[] recBytes, int length)
  {
   int start = 0;
   // 如果有数据则至少包括3位
   if (length < 2) return "";
   // 判断是否为结束针
   bool IsEof = (recBytes[start] >> 7) > 0;
   // 暂不处理超过一帧的数据
   if (!IsEof) return "";
   start++;
   // 是否包含掩码
   bool hasMask = (recBytes[start] >> 7) > 0;
   // 不包含掩码的暂不处理
   if (!hasMask) return "";
   // 获取数据长度
   UInt64 mPackageLength = (UInt64)recBytes[start] & 0x7F;
   start++;
   // 存储4位掩码值
   byte[] Masking_key = new byte[4];
   // 存储数据
   byte[] mDataPackage;
   if (mPackageLength == 126)
   {
    // 等于126 随后的两个字节16位表示数据长度
    mPackageLength = (UInt64)(recBytes[start] << 8 | recBytes[start + 1]);
    start += 2;
   }
   if (mPackageLength == 127)
   {
    // 等于127 随后的八个字节64位表示数据长度
    mPackageLength = (UInt64)(recBytes[start] << (8 * 7) | recBytes[start] << (8 * 6) | recBytes[start] << (8 * 5) | recBytes[start] << (8 * 4) | recBytes[start] << (8 * 3) | recBytes[start] << (8 * 2) | recBytes[start] << 8 | recBytes[start + 1]);
    start += 8;
   }
   mDataPackage = new byte[mPackageLength];
   for (UInt64 i = 0; i < mPackageLength; i++)
   {
    mDataPackage[i] = recBytes[i + (UInt64)start + 4];
   }
   Buffer.BlockCopy(recBytes, start, Masking_key, 0, 4);
   for (UInt64 i = 0; i < mPackageLength; i++)
   {
    mDataPackage[i] = (byte)(mDataPackage[i] ^ Masking_key[i % 4]);
   }
   return Encoding.UTF8.GetString(mDataPackage);
  }
  #endregion

  #region 发送数据
  /// <summary>
  /// 把发送给客户端消息打包处理（拼接上谁什么时候发的什么消息）
  /// </summary>
  /// <returns>The data.</returns>
  /// <param name="message">Message.</param>
  private byte[] PackageServerData(string msg)
  {
   byte[] content = null;
   byte[] temp = Encoding.UTF8.GetBytes(msg);
   if (temp.Length < 126)
   {
    content = new byte[temp.Length + 2];
    content[0] = 0x81;
    content[1] = (byte)temp.Length;
    Buffer.BlockCopy(temp, 0, content, 2, temp.Length);
   }
   else if (temp.Length < 0xFFFF)
   {
    content = new byte[temp.Length + 4];
    content[0] = 0x81;
    content[1] = 126;
    content[2] = (byte)(temp.Length & 0xFF);
    content[3] = (byte)(temp.Length >> 8 & 0xFF);
    Buffer.BlockCopy(temp, 0, content, 4, temp.Length);
   }
   return content;
  }
  #endregion
 }
}

补充知识：【TCP/IP】使用C#实现websocket服务端与客户端通信

一、websocket简介

websocket是一种在单个TCP连接上进行全双工通信的协议。

websocket使得客户端和服务器之间的数据交换变得更加简单，允许服务端主动向客户端推送数据。在WebSocket API中，浏览器和服务器只需要完成一次握手，两者之间就直接可以创建持久性的连接，并进行双向数据传输。

二、背景

很多网站为了实现推送技术，所用的技术都是轮询。

轮询是在特定的时间间隔，由浏览器对客户端发出HTTP请求，然后由服务器返回最新的数据给客户端的浏览器。这种传统的模式带来很明显的缺点，即浏览器需要不断的向服务器发出请求，然后HTTP请求可能包含较长的头部，其中真正有效的数据可能只是很小的一部分，显然这样会浪费很多的宽带等资源。

在这种情况下，HTML5定义了websocket协议，能更好的节省服务器资源和宽带，而且能够更实时地进行通讯。

三、优点

1、控制开销

创建连接后，服务器和客户端之间交换数据时，用于协议控制的数据包头部相对较小。

2、实时性更强

由于协议是全双工的，所以服务器可以随时主动给客户端下发数据。相对于HTTP请求需要等待客户端发起请求服务端才能响应，延迟明显更少。

3、保持连接状态

与HTTP不同的是，Websocket需要先创建连接，这就使得其成为一种有状态的协议，之后通信时可以省略部分状态信息。而HTTP请求可能需要在每个请求都携带状态信息（如身份认证等）。

4、更好的二进制支持

5、支持扩展和更好的实现压缩效果

四、原理

websocket同HTTP一样也是应用层的协议，但是它是一种双向通信协议，建立在TCP之上的。

连接过程（握手过程）

1、客户端、服务器建立TCP连接，三次握手。

这是通信的基础，传输控制层，若失败后续都不执行。

2、TCP连接成功后，客户端通过HTTP协议向服务器传送websocket支持的版本号信息。（开始前的HTTP握手）

3、服务器收到客户端的握手请求后，同样采用HTTP协议回馈数据。

4、当收到了连接成功的消息后，通过TCP通道进行传输通信。

五、websocket和socket的关系

socket其实并不是一个协议，而是为了方便使用TCP和UDP而抽象出来的一层，是位于应用层和传输控制层之间的一组接口。

socket是应用层与TCP/IP协议通信的中间软件抽象层，它是一组接口。在设计模式中，socket其实就是一个门面模式，它把复杂的TCP/IP协议隐藏在socket接口后面，对用户来说，一组简单的接口就是全部，让socket去组织数据，以符合指定的协议。

两台主机通信，必须通过socket连接，socket则利用TCP/IP协议建立TCP连接。TCP连接则更依靠于底层的IP协议，IP协议的连接则依赖于链路层等更低层次。

websocket则是一个典型的应用层协议。

六、使用C#实现websocket服务端与客户端通信

（一） SuperWebSocket实现服务端

1、创建窗口程序，WindowsFormsWebsocketServer

2、添加程序包

工具 -->Nuget包管理 -->管理解决方案的Nuget程序包 -->搜索 SuperWebSocket ，选择SuperWebSocketNETServer，点击右侧安装，等待安装完成，安装完成以后，项目会多出很多引用库，如下

3、代码实例

复制代码

using SuperWebSocket;
using System;
using System.Windows.Forms;

namespace WindowsFormsWebsocketServer
{
  public partial class Form1 : Form
  {
    public Form1()
    {
      InitializeComponent();
      websocketServer();
    }

    private void websocketServer()
    {
      Log("我是服务端");
      WebSocketServer webSocketServer = new WebSocketServer();
      webSocketServer.NewSessionConnected += WebSocketServer_NewSessionConnected;
      webSocketServer.NewMessageReceived += WebSocketServer_NewMessageReceived;
      webSocketServer.SessionClosed += WebSocketServer_SessionClosed;
      if (!webSocketServer.Setup("127.0.0.1", 1234))
      {
        Log("设置服务监听失败！");
      }
      if (!webSocketServer.Start())
      {
        Log("启动服务监听失败！");
      }
      Log("启动服务监听成功！");
      //webSocketServer.Dispose();
    }

    private void WebSocketServer_NewSessionConnected(WebSocketSession session)
    {
      Log("欢迎客户端： 加入");
      //SendToAll(session, msg);
    }

    private void WebSocketServer_NewMessageReceived(WebSocketSession session, string value)
    {
      Log("服务端收到客户端的数据 ==》"+value);
      //SendToAll(session, value);
    }

    private void WebSocketServer_SessionClosed(WebSocketSession session, SuperSocket.SocketBase.CloseReason value)
    {
      Log("客户端：关闭，原因：");
      //SendToAll(session, msg);
    }

    /// <summary>
    /// 广播，同步推送消息给所有的客户端
    /// </summary>
    /// <param name="webSocketSession"></param>
    /// <param name="msg"></param>
    public static void SendToAll(WebSocketSession webSocketSession, string msg)
    {
      foreach (var item in webSocketSession.AppServer.GetAllSessions())
      {
        item.Send(msg);
      }
    }

    private delegate void DoLog(string msg);
    public void Log(string msg)
    {
      if (this.logReveal.InvokeRequired)
      {
        DoLog doLog = new DoLog(Log);
        this.logReveal.Invoke(doLog, new object[] { msg });
      }
      else
      {
        if (this.logReveal.Items.Count > 20)
        {
          this.logReveal.Items.RemoveAt(0);
        }
        msg = DateTime.Now.ToLocalTime().ToString() + " " + msg;
        this.logReveal.Items.Add(msg);
      }
    }
  }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
using SuperWebSocket;
using System;
using System.Windows.Forms;

namespace WindowsFormsWebsocketServer
{
  public partial class Form1 : Form
  {
    public Form1()
    {
      InitializeComponent();
      websocketServer();
    }

    private void websocketServer()
    {
      Log("我是服务端");
      WebSocketServer webSocketServer = new WebSocketServer();
      webSocketServer.NewSessionConnected += WebSocketServer_NewSessionConnected;
      webSocketServer.NewMessageReceived += WebSocketServer_NewMessageReceived;
      webSocketServer.SessionClosed += WebSocketServer_SessionClosed;
      if (!webSocketServer.Setup("127.0.0.1", 1234))
      {
        Log("设置服务监听失败！");
      }
      if (!webSocketServer.Start())
      {
        Log("启动服务监听失败！");
      }
      Log("启动服务监听成功！");
      //webSocketServer.Dispose();
    }

    private void WebSocketServer_NewSessionConnected(WebSocketSession session)
    {
      Log("欢迎客户端： 加入");
      //SendToAll(session, msg);
    }

    private void WebSocketServer_NewMessageReceived(WebSocketSession session, string value)
    {
      Log("服务端收到客户端的数据 ==》"+value);
      //SendToAll(session, value);
    }

    private void WebSocketServer_SessionClosed(WebSocketSession session, SuperSocket.SocketBase.CloseReason value)
    {
      Log("客户端：关闭，原因：");
      //SendToAll(session, msg);
    }

    /// <summary>
    /// 广播，同步推送消息给所有的客户端
    /// </summary>
    /// <param name="webSocketSession"></param>
    /// <param name="msg"></param>
    public static void SendToAll(WebSocketSession webSocketSession, string msg)
    {
      foreach (var item in webSocketSession.AppServer.GetAllSessions())
      {
        item.Send(msg);
      }
    }

    private delegate void DoLog(string msg);
    public void Log(string msg)
    {
      if (this.logReveal.InvokeRequired)
      {
        DoLog doLog = new DoLog(Log);
        this.logReveal.Invoke(doLog, new object[] { msg });
      }
      else
      {
        if (this.logReveal.Items.Count > 20)
        {
          this.logReveal.Items.RemoveAt(0);
        }
        msg = DateTime.Now.ToLocalTime().ToString() + " " + msg;
        this.logReveal.Items.Add(msg);
      }
    }
  }
}

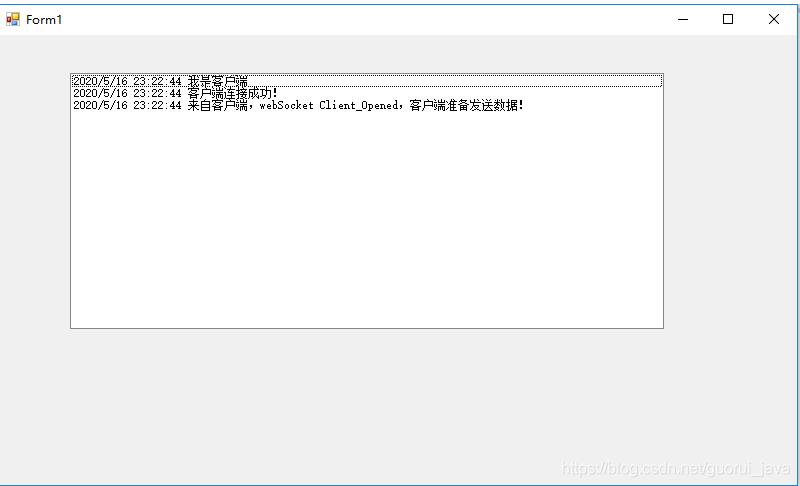

（二）WebSocket4Net实现客户端

1、创建窗口程序，WindowsFormsWebsocketClient

2、添加程序包

工具 -->Nuget包管理 -->管理解决方案的Nuget程序包 -->搜索 WebSocket4Net ，选择WebSocket4Net，点击右侧安装，等待安装完成，安装完成以后，项目会多出很多引用库，如下

3、代码实例

复制代码

using System;
using WebSocket4Net;
using System.Threading;
using System.Windows.Forms;

namespace WindowsFormsWebsocketClient
{
  public partial class Form1 : Form
  {
    public Form1()
    {
      InitializeComponent();
      websocketServerTest();
    }

    public static WebSocket webSocket4Net = null;
    public void websocketServerTest()
    {
      FileUtil.getInstance().Log("我是客户端");
      webSocket4Net = new WebSocket("ws://127.0.0.1:1234");
      webSocket4Net.Opened += WebSocket4Net_Opened;
      webSocket4Net.Error += websocket_Error;
      webSocket4Net.Closed += new EventHandler(websocket_Closed);
      webSocket4Net.MessageReceived += WebSocket4Net_MessageReceived;
      webSocket4Net.Open();
      Thread thread = new Thread(ClientSendMsgToServer);
      thread.IsBackground = true;
      thread.Start();
      //webSocket4Net.Dispose();
    }

    private void saveBtn_Click(object sender, EventArgs e)
    {
      websocketServerTest();
    }

    public void ClientSendMsgToServer()
    {
      int i = 1;
      while (true)
      {
        webSocket4Net.Send("love girl" + i++);
        Thread.Sleep(TimeSpan.FromSeconds(5));
      }
    }

    private void WebSocket4Net_MessageReceived(object sender, MessageReceivedEventArgs e)
    {
      FileUtil.getInstance().Log("服务端回复的数据:" + e.Message);
    }

    private void WebSocket4Net_Opened(object sender, EventArgs e)
    {
      FileUtil.getInstance().Log("客户端连接成功！发送数据中...");
      webSocket4Net.Send("来自客户端，准备发送数据！");
    }

    private void websocket_Error(object sender, EventArgs e)
    {
      FileUtil.getInstance().Log("WebSocket错误");
      Thread.Sleep(5000);
      if (webSocket4Net.State!= WebSocketState.Open&&webSocket4Net.State!=WebSocketState.Connecting)
      {
        websocketServerTest();
      }
    }

    private void websocket_Closed(object sender, EventArgs e)
    {
      FileUtil.getInstance().Log("WebSocket已关闭");
      Thread.Sleep(5000);
      if (webSocket4Net.State != WebSocketState.Open && webSocket4Net.State != WebSocketState.Connecting)
      {
        websocketServerTest();
      }
    }
  }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
using System;
using WebSocket4Net;
using System.Threading;
using System.Windows.Forms;

namespace WindowsFormsWebsocketClient
{
  public partial class Form1 : Form
  {
    public Form1()
    {
      InitializeComponent();
      websocketServerTest();
    }

    public static WebSocket webSocket4Net = null;
    public void websocketServerTest()
    {
      FileUtil.getInstance().Log("我是客户端");
      webSocket4Net = new WebSocket("ws://127.0.0.1:1234");
      webSocket4Net.Opened += WebSocket4Net_Opened;
      webSocket4Net.Error += websocket_Error;
      webSocket4Net.Closed += new EventHandler(websocket_Closed);
      webSocket4Net.MessageReceived += WebSocket4Net_MessageReceived;
      webSocket4Net.Open();
      Thread thread = new Thread(ClientSendMsgToServer);
      thread.IsBackground = true;
      thread.Start();
      //webSocket4Net.Dispose();
    }

    private void saveBtn_Click(object sender, EventArgs e)
    {
      websocketServerTest();
    }

    public void ClientSendMsgToServer()
    {
      int i = 1;
      while (true)
      {
        webSocket4Net.Send("love girl" + i++);
        Thread.Sleep(TimeSpan.FromSeconds(5));
      }
    }

    private void WebSocket4Net_MessageReceived(object sender, MessageReceivedEventArgs e)
    {
      FileUtil.getInstance().Log("服务端回复的数据:" + e.Message);
    }

    private void WebSocket4Net_Opened(object sender, EventArgs e)
    {
      FileUtil.getInstance().Log("客户端连接成功！发送数据中...");
      webSocket4Net.Send("来自客户端，准备发送数据！");
    }

    private void websocket_Error(object sender, EventArgs e)
    {
      FileUtil.getInstance().Log("WebSocket错误");
      Thread.Sleep(5000);
      if (webSocket4Net.State!= WebSocketState.Open&&webSocket4Net.State!=WebSocketState.Connecting)
      {
        websocketServerTest();
      }
    }

    private void websocket_Closed(object sender, EventArgs e)
    {
      FileUtil.getInstance().Log("WebSocket已关闭");
      Thread.Sleep(5000);
      if (webSocket4Net.State != WebSocketState.Open && webSocket4Net.State != WebSocketState.Connecting)
      {
        websocketServerTest();
      }
    }
  }
}
