Vue+ElementUI之Tree的使用方法

284 阅读 0 评论 188 点赞

我是靠谱客的博主犹豫洋葱，这篇文章主要介绍Vue+ElementUI之Tree的使用方法，现在分享给大家，希望可以做个参考。

Vue+ElementUI之Tree的使用，供大家参考，具体内容如下

前端代码

复制代码

/** 该节点作用为多选*/
                $this.$refs.treeForm.setChecked([data]);
            }
        },
        renderContent(h, {
            node,
            data,
            store
        }) {
            return (
                <span class = "custom-tree-node" >
                <span >
                <i class = {data.icon} ></i>
                  { data.label }
                </span>
                </span>
            );
        },
        open(selections,ifonlyTerminal) {
            let $this = this;
            $this.treeData=[];
            $this.ifonlyTerminal=ifonlyTerminal;
            $this.$httpclient.get("/reminder/getTerminalContacts", {
                ifonlyTerminal: $this.ifonlyTerminal
            }, function (res) {
                if (res.success == true) {
                    $this.treeData = res.data;
                    $this.$refs.treeForm.setCheckedKeys(selections);
                } else {
                    $this.$message({
                        message: '初始化失败,网络走丢啦...',
                        type: 'error'
                    });
                }
            });
            this.isOpen = true;
        },
        submit() {
            let selectionNode = this.$refs.treeForm.getCheckedNodes();
            let list=[];
            for(let i=0;i<selectionNode.length;i++){
                let item=selectionNode[i];
                list.push({
                    id:item.id,
                    terminalName:item.label,
                    terminalNum:item.terminalNum,
                    serialNum:item.serialNum,
                    terminalType:item.terminalType
                });
            }
            console.log(list);
            this.$parent.setTerminals(list);
            this.close();
        },
        close() {
            this.isOpen = false;
        }
    }
}
</script>

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
<template>
    <div>
        <el-dialog title="终端通讯录" :visible.sync="isOpen" class="el-dialog-mini">
            <div class="forms-menu-con">
                <!--
                    check-on-click-node:设置是否在选汉字的时候,复选框也选中
                    props:定义节点和自己提供字段的匹配(例:名称对应数据库查询出来的name属性)
                    data:Tree中的数据,其中字段可以自定义,可以多添加业务字段,再点击的时候调用函数获取该值
                    node-key:唯一,意味着选中节点的时候使用哪个字段作为唯一标识

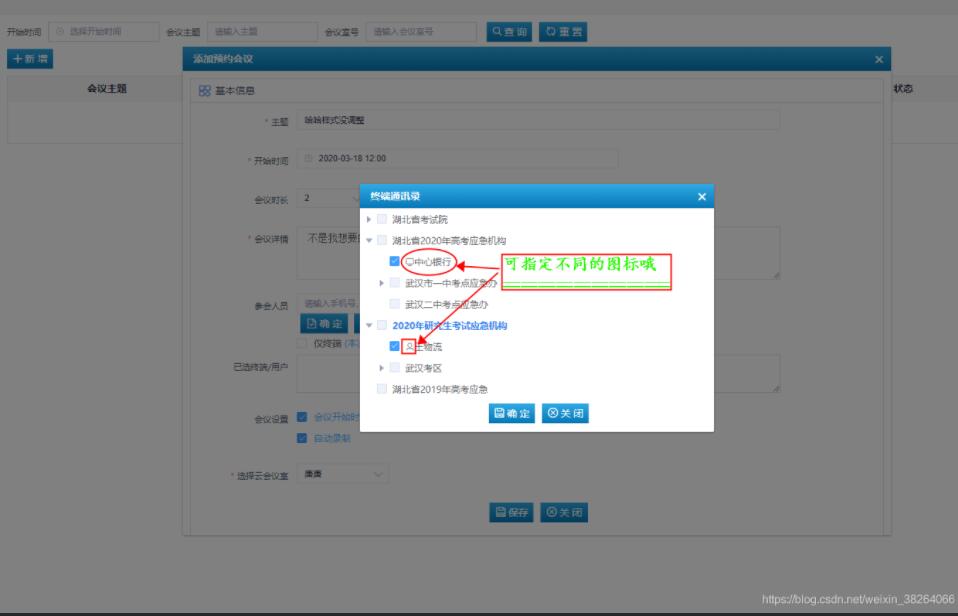

                    render-content:内容渲染,如果想要在树菜单上添加图标等样式使用这个属性,配置一个渲染函数即可
                    check-change:当复选框状态改变时候,触发次函数,这个主要用来做单选操作,和业务处理使用
                    show-checkbox:显示复选框
                    highlight-current:高亮显示选中节点
                    check-strictly:在显示复选框的情况下,是否严格的遵循父子不互相关联的做法,默认为 false
                 -->
                <el-tree :data="treeData" :props="treeProps" :check-strictly="true" node-key="id" ref="treeForm" :render-content="renderContent" @check-change="handleClick" show-checkbox highlight-current class="addtree" style="height:275px;">
                </el-tree>
                <el-col class="form-search colum-center">
                    <el-button @click="submit">
                        <i class="ump-save" style="font-size:15px;"></i>确 定
                    </el-button>
                    <el-button @click="close">
                        <i class="ump-quxiao3" style="font-size:16px;"></i>关 闭
                    </el-button>
                </el-col>
            </div>
        </el-dialog>
    </div>
</template>

<script>
export default {
    data() {
        return {
            isOpen: false,
            ifonlyTerminal: 1,
            treeData: [],
            treeProps: {
                label: 'label',
                children: 'kids',
                disabled: this.disabledFn
            }
        }
    },
    methods: {
        disabledFn(data, node) {
            return data.nodeType == 0;
        },
        handleClick(data, checked, node) {
            let $this = this;
            if (checked) {
                console.log(data);
                /** 该节点作用为永远单选*/
                //$this.$refs.treeForm.setCheckedNodes([data]);

    /** 该节点作用为多选*/
                $this.$refs.treeForm.setChecked([data]);
            }
        },
        renderContent(h, {
            node,
            data,
            store
        }) {
            return (
                <span class = "custom-tree-node" >
                <span >
                <i class = {data.icon} ></i>
                  { data.label }
                </span>
                </span>
            );
        },
        open(selections,ifonlyTerminal) {
            let $this = this;
            $this.treeData=[];
            $this.ifonlyTerminal=ifonlyTerminal;
            $this.$httpclient.get("/reminder/getTerminalContacts", {
                ifonlyTerminal: $this.ifonlyTerminal
            }, function (res) {
                if (res.success == true) {
                    $this.treeData = res.data;
                    $this.$refs.treeForm.setCheckedKeys(selections);
                } else {
                    $this.$message({
                        message: '初始化失败,网络走丢啦...',
                        type: 'error'
                    });
                }
            });
            this.isOpen = true;
        },
        submit() {
            let selectionNode = this.$refs.treeForm.getCheckedNodes();
            let list=[];
            for(let i=0;i<selectionNode.length;i++){
                let item=selectionNode[i];
                list.push({
                    id:item.id,
                    terminalName:item.label,
                    terminalNum:item.terminalNum,
                    serialNum:item.serialNum,
                    terminalType:item.terminalType
                });
            }
            console.log(list);
            this.$parent.setTerminals(list);
            this.close();
        },
        close() {
            this.isOpen = false;
        }
    }
}
</script>

引用组件

复制代码

<div class="el-colum-xs12 block" style="margin-top:20px;">
                                <div class="form-group el-display">
                                    <el-form-item label="参会人员" prop="noselect" style="width:700px;">
                                        <el-input v-model="terminalNum" placeholder="请输入手机号、终端号、终端序列号点击『确定』按钮添加"></el-input>
                                        <div class="form-search" style="display: inline">
                                            <el-button @click="addTerminal"><i class="el-icon-document-checked" style="font-size:16px;margin-top:6px;"></i>确 定</el-button>
                                            <el-button @click="openContactsModel"><i class="el-icon-plus" style="font-size:16px;margin-top:6px"></i>从通讯录添加/取消</el-button>
                                        </div>
                                        <el-checkbox-group v-model="ifonlyTerminal">
                                            <el-checkbox label="A">仅终端 <span style="color:#44b5ff">(本次选择结果，将只包含终端，不包含用户)</span></el-checkbox>
                                        </el-checkbox-group>
                                    </el-form-item>
                                    <el-form-item label="已选终端/用户" prop="terminals" style="width:700px;">
                                        <el-input type="textarea" class="textarea" v-model="terminalsInfo" readonly="readonly"></el-input>
                                    </el-form-item>

</div>
                            </div>

<div class="el-colum-xs12 block" style="margin-top:20px;">
                                <div class="form-group">
                                    <el-form-item label="会议设置" prop="sex">
                                        <el-checkbox-group v-model="ifAutoRecord">
                                            <el-checkbox label="A"> <span style="color:#44b5ff">会议开始时自动呼叫参会终端</span></el-checkbox><br>
                                        </el-checkbox-group>
                                        <el-checkbox-group v-model="ifAutoCall">
                                            <el-checkbox label="B"> <span style="color:#44b5ff">自动录制</span></el-checkbox>
                                        </el-checkbox-group>
                                    </el-form-item>
                                </div>
                            </div>

</el-form-item>
                                </div>
                            </div>
                            <div class="el-colum-xs12 block" style="margin-top:20px;">
                                <div class="form-group">
                                    <el-col class="form-search colum-center">
                                        <el-button @click="submit" :disabled="isDisabled">
                                            <i class="ump-save" style="font-size:15px;"></i>保存
                                        </el-button>
                                        <el-button @click="close">
                                            <i class="ump-quxiao3" style="font-size:16px;"></i>关 闭
                                        </el-button>
                                        <br /><br />
                                    </el-col>
                                </div>
                            </div>
                        </el-form>
                    </el-row>
                </div>
            </div>
        </el-dialog>

</div>
</template>

.dialogClass .el-dialog .el-dialog__body {
    height: 670px;
}
</style>

export default {
    components: {
        contacts
    },
    data() {
        let $this = this;
        let meetTimeTimeValid = function (rule, value, callback) {
            if (($this.addForm.meetTimeHour + $this.addForm.meetTimeMin) == 0) {
                callback(new Error('请选择会议时长'));
            }
            callback();
        }

if (flag) {
                $this.$httpclient.get('/terminal/getTerminal', {
                    terminalNum: $this.terminalNum
                }, function (res) {
                    if (res.success == true) {
                        let terminal = res.data;
                        terminals.push(terminal);
                        $this.terminalsInfo += "『[" + terminal.terminalName + "]-[" + terminal.terminalNum + "]』";
                        $this.terminalNum = "";
                    } else {
                        $this.$message({
                            message: '当前终端未找到,请认真查看你是否输入正确..',
                            type: 'warning'
                        });
                    }
                });
            }

}
    }
}
</script>

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
<template>
    <div>
        <el-dialog title="添加预约会议" :visible.sync="addModelOpen" class="el-dialog-large dialogClass">
            <div class="forms-menu mar-10">
                <div class="forms-menu-tit">
                    <span>
                        <i class="ump-caidan flt-l" style="color:#2681ec;font-size:20px;margin-top:-3px;"></i>
                        基本信息
                    </span>
                </div>

                <div class="forms-menu-con par-T10">
                    <el-row>
                        <el-form :model="addForm" :rules="rules" ref="addForm" :inline="true" label-position="right">
                            <div class="el-colum-xs12 block">
                                <div class="form-group el-display">
                                    <el-form-item label="主题" prop="title" style="width:1050px;">
                                        <el-input v-model="addForm.title" placeholder="请输入主题"></el-input>
                                    </el-form-item>
                                </div>
                            </div>

                            <div class="el-colum-xs12">
                                <div class="form-group el-display">
                                    <el-form-item label="开始时间" prop="startTime" style="margin-top:20px;width:700px;">
                                        <el-date-picker :picker-options="startTimeValid"  @change="newValid" v-model="addForm.startTime" type="datetime" format="yyyy-MM-dd hh:mm" value-format="yyyy-MM-dd hh:mm" placeholder="选择会议开始时间"></el-date-picker>
                                    </el-form-item>
                                </div>
                            </div>

                            <div class="el-colum-xs12" style="margin-top:20px;">
                                <div class="form-group">
                                    <el-form-item label="会议时长" prop="meetTime">
                                        <el-select v-model="addForm.meetTimeHour" placeholder="请选择" style="width:100px;">
                                            <el-option label="0" value="0"></el-option>
                                            <el-option label="1" value="1"></el-option>
                                            <el-option label="2" value="2"></el-option>
                                            <el-option label="3" value="3"></el-option>
                                            <el-option label="4" value="4"></el-option>
                                            <el-option label="5" value="5"></el-option>
                                            <el-option label="6" value="6"></el-option>
                                        </el-select>
                                        <span style="margin:0px 10px">小时</span>
                                        <el-select v-model="addForm.meetTimeMin" placeholder="请选择" style="width:100px;">
                                            <el-option label="0" value="0"></el-option>
                                            <el-option label="10" value="10"></el-option>
                                            <el-option label="20" value="20"></el-option>
                                            <el-option label="30" value="30"></el-option>
                                            <el-option label="45" value="45"></el-option>
                                            <el-option label="50" value="50"></el-option>
                                        </el-select>
                                        <span style="margin:0px 10px">分钟</span>
                                    </el-form-item>
                                </div>
                            </div>

                            <div class="el-colum-xs12" style="margin-top:20px;">
                                <div class="form-group">
                                    <el-form-item label="会议详情" prop="meetDetails" style="width:700px;">
                                        <el-input type="textarea" :rows="3" v-model="addForm.meetDetails" placeholder="请输入会议概要信息..."></el-input>
                                    </el-form-item>
                                </div>
                            </div>

                            <div class="el-colum-xs12 block" style="margin-top:20px;">
                                <div class="form-group el-display">
                                    <el-form-item label="参会人员" prop="noselect" style="width:700px;">
                                        <el-input v-model="terminalNum" placeholder="请输入手机号、终端号、终端序列号点击『确定』按钮添加"></el-input>
                                        <div class="form-search" style="display: inline">
                                            <el-button @click="addTerminal"><i class="el-icon-document-checked" style="font-size:16px;margin-top:6px;"></i>确 定</el-button>
                                            <el-button @click="openContactsModel"><i class="el-icon-plus" style="font-size:16px;margin-top:6px"></i>从通讯录添加/取消</el-button>
                                        </div>
                                        <el-checkbox-group v-model="ifonlyTerminal">
                                            <el-checkbox label="A">仅终端 <span style="color:#44b5ff">(本次选择结果，将只包含终端，不包含用户)</span></el-checkbox>
                                        </el-checkbox-group>
                                    </el-form-item>
                                    <el-form-item label="已选终端/用户" prop="terminals" style="width:700px;">
                                        <el-input type="textarea" class="textarea" v-model="terminalsInfo" readonly="readonly"></el-input>
                                    </el-form-item>

                                </div>
                            </div>

                            <!-- <div class="el-colum-xs12 block" style="margin-top:20px;">
                                <div class="form-group el-display">
                                    <el-form-item label="参会人员" prop="name" style="width:700px;">
                                        <el-input v-model="terminalNum" placeholder="请输入手机号、终端号、终端序列号点击『确定』按钮添加"></el-input>
                                        <div class="form-search" style="display: inline">
                                            <el-button @click="addTerminal"><i class="el-icon-document-checked" style="font-size:16px;margin-top:6px;"></i>确 定</el-button>
                                            <el-button @click="openContactsModel"><i class="el-icon-plus" style="font-size:16px;margin-top:6px"></i>从通讯录添加/取消</el-button>
                                        </div>
                                        <el-checkbox-group v-model="ifonlyTerminal">
                                            <el-checkbox label="A">仅终端 <span style="color:#44b5ff">(本次选择结果，将只包含终端，不包含用户)</span></el-checkbox>
                                        </el-checkbox-group>
                                        <el-input type="textarea" class="textarea" v-model="terminalsInfo"></el-input>
                                    </el-form-item>
                                </div>
                            </div> -->

                            <div class="el-colum-xs12 block" style="margin-top:20px;">
                                <div class="form-group">
                                    <el-form-item label="会议设置" prop="sex">
                                        <el-checkbox-group v-model="ifAutoRecord">
                                            <el-checkbox label="A"> <span style="color:#44b5ff">会议开始时自动呼叫参会终端</span></el-checkbox><br>
                                        </el-checkbox-group>
                                        <el-checkbox-group v-model="ifAutoCall">
                                            <el-checkbox label="B"> <span style="color:#44b5ff">自动录制</span></el-checkbox>
                                        </el-checkbox-group>
                                    </el-form-item>
                                </div>
                            </div>

                            <div class="el-colum-xs12 block" style="margin-top:20px;">
                                <div class="form-group">
                                    <el-form-item label="选择云会议室" prop="meetRoomId">
                                        <el-form-item label="" style="width:200px;">
                                            <el-select v-model="addForm.meetRoomId" placeholder="请选择会议室">
                                                <el-option v-for=" item in meetRooms" :key="item.id" :label="item.roomName" :value="item.id"></el-option>
                                            </el-select>
                                        </el-form-item>

                                    </el-form-item>
                                </div>
                            </div>
                            <div class="el-colum-xs12 block" style="margin-top:20px;">
                                <div class="form-group">
                                    <el-col class="form-search colum-center">
                                        <el-button @click="submit" :disabled="isDisabled">
                                            <i class="ump-save" style="font-size:15px;"></i>保存
                                        </el-button>
                                        <el-button @click="close">
                                            <i class="ump-quxiao3" style="font-size:16px;"></i>关 闭
                                        </el-button>
                                        <br /><br />
                                    </el-col>
                                </div>
                            </div>
                        </el-form>
                    </el-row>
                </div>
            </div>
        </el-dialog>

        <contacts ref="contactsModel"></contacts>

    </div>
</template>

<style>
.dialogClass .el-dialog {
    height: 690px;
    top: 50%;
    margin-top: -369px !important;
}

.dialogClass .el-dialog .el-dialog__body {
    height: 670px;
}
</style>

<script>
import dateUtil from '@/common/util.js'
import contacts from "@/components/meet/reminder/contacts";

export default {
    components: {
        contacts
    },
    data() {
        let $this = this;
        let meetTimeTimeValid = function (rule, value, callback) {
            if (($this.addForm.meetTimeHour + $this.addForm.meetTimeMin) == 0) {
                callback(new Error('请选择会议时长'));
            }
            callback();
        }

        let terminalsValid = function (rule, value, callback) {
            if ($this.addForm.terminals.length == 0) {
                callback(new Error('请选择参会终端/用户'));
            }
            callback();
        }
        return {
            addModelOpen: false,
            terminalNum: "",
            ifonlyTerminal: false,
            terminalsInfo: "",
            ifAutoRecord: false,
            ifAutoCall: false,
            isDisabled: false,
            meetRooms: [],
            addForm: {
                title: "",
                meetRoomId: "",
                startTime: "",
                roomNum: "",
                meetTimeHour: "0",
                meetTimeMin: "20",
                endTime: "",
                meetDetails: "",
                ifAutoRecord: "",
                ifAutoCall: "",
                meetPassWord: "",
                controlPassWord: "",
                terminals: []
            },
            rules: {
                title: [{
                    required: true,
                    message: '请输入会议主题',
                    trigger: 'blur'
                }],
                meetRoomId: [{
                    required: true,
                    message: '请选择云会议室',
                    trigger: 'blur'
                }],
                startTime: [{
                    required: true,
                    message: '请选择开始时间',
                    trigger: 'blur'
                }],
                meetDetails: [{
                    required: true,
                    message: '请输入会议详情',
                    trigger: 'blur'
                }],
                meetTime: [{
                    validator: meetTimeTimeValid,
                    trigger: 'change'
                }],
                terminals: [{
                    validator: terminalsValid,
                    trigger: 'change'
                }]
            },
            startTimeValid: {
                disabledDate: (time) => {
                    return time.getTime() <= Date.now();
                }
            }
        }
    },
    mounted() {
        console.log("欢迎使用应急平台-预约会议...");
    },
    methods: {
        open() {
            let $this = this;
            $this.$httpclient.get("/reminder/getMeetRooms", {}, function (res) {
                if (res.success == true) {
                    $this.meetRooms = res.data;
                } else {
                    $this.$message({
                        message: '云会议室没找到,网络走丢啦...',
                        type: 'warning'
                    });
                }
            });
            this.addModelOpen = true;
        },
        close() {
            this.addModelOpen = false;
        },
        newValid(){
            this.$refs["addForm"].validateField('startTime');
        },
        submit() {
            let $this = this;
            $this.btnStatus = true;
            $this.$refs.addForm.validate((valid) => {
                if (valid && $this.btnStatus) {
                    $this.addForm.ifAutoRecord = $this.ifAutoRecord ? 1 : 0;
                    $this.addForm.ifAutoCall = $this.ifAutoCall ? 1 : 0;
                    for (let i = 0; i < $this.meetRooms.length; i++) {
                        let item = $this.meetRooms[i];
                        if (item.id == $this.addForm.meetRoomId) {
                            $this.addForm.roomNum = item.roomNum;
                        }
                    }
                    $this.$httpclient.post("/reminder", $this.addForm, function (res) {
                        $this.btnStatus = false;
                        if (res.success == true) {
                            $this.$parent.search();
                            $this.close();
                        } else {
                            $this.$message({
                                message: '[网络忙],' + res.errorMsg,
                                type: 'error'
                            });
                        }
                    });
                } else {
                    $this.btnStatus = false;
                    return false;
                }
            });
        },
        openContactsModel() {
            let list = [];
            for (let i = 0; i < this.addForm.terminals.length; i++) {
                let item = this.addForm.terminals[i];
                list.push(item.id);
            }
            this.$refs.contactsModel.open(list, this.ifonlyTerminal ? 1 : 0);
        },
        /**
         *  这个函数 组件端会用到,如果想修改函数名称
   *  则将调用组件中  *this.$parent.setTerminals(list);*这行代码修改即可完成替换.
   *  也可以有其他方式,例如父容器给子容器传递函数等等..
   *  本人还是喜欢使用这样的方式,毕竟能少些俩行代码,哈哈~~
   */
        setTerminals(terminals) {
            this.addForm.terminals = terminals;
            let terminalsInfo = "";
            for (let i = 0; i < terminals.length; i++) {
                let terminal = terminals[i];
                terminalsInfo += "『[" + terminal.terminalName + "]-[" + terminal.terminalNum + "]』";
            }
            this.terminalsInfo = terminalsInfo;
        },
        addTerminal() {
            let $this = this;
            let terminals = $this.addForm.terminals;

            let flag = true;
            for (let i = 0; i < terminals.length; i++) {
                let item = terminals[i];
                if (item.terminalNum == $this.terminalNum || item.serialNum == $this.terminalNum) {
                    flag = false;
                    $this.terminalNum = "";
                    $this.$message({
                        message: '当前终端已选择,不用再次添加..',
                        type: 'warning'
                    });
                    break;
                }
            }

            if (flag) {
                $this.$httpclient.get('/terminal/getTerminal', {
                    terminalNum: $this.terminalNum
                }, function (res) {
                    if (res.success == true) {
                        let terminal = res.data;
                        terminals.push(terminal);
                        $this.terminalsInfo += "『[" + terminal.terminalName + "]-[" + terminal.terminalNum + "]』";
                        $this.terminalNum = "";
                    } else {
                        $this.$message({
                            message: '当前终端未找到,请认真查看你是否输入正确..',
                            type: 'warning'
                        });
                    }
                });
            }

        }
    }
}
</script>

返回Json数据格式

复制代码

{
 "success": true,
 "errorCode": null,
 "errorMsg": null,
 "data": [{
  "label": "u6E56u5317u7701u8003u8BD5u9662",
  "id": "17",
  "parentId": "17",
  "nodeType": 0,
  "icon": null,
  "kids": [{
   "label": "u9662u529Eu516Cu5BA4",
   "id": "23",
   "parentId": "17",
   "nodeType": 0,
   "icon": null,
   "kids": [{
    "label": "u9662u529Eu516Cu5BA4u4E00u5904",
    "id": "24",
    "parentId": "23",
    "nodeType": 0,
    "icon": null,
    "kids": null
   }, {
    "label": "u9662u529Eu516Cu5BA4u4E8Cu5904",
    "id": "25",
    "parentId": "23",
    "nodeType": 0,
    "icon": null,
    "kids": null
   }]
  }]
 }, {
  "label": "u6E56u5317u77012020u5E74u9AD8u8003u5E94u6025u673Au6784",
  "id": "18",
  "parentId": "18",
  "nodeType": 0,
  "icon": null,
  "kids": [{
   "label": "u4E2Du5FC3u94F6u884C",
   "id": "A06E0C6FFB29198EE053437CA8C07A48",
   "parentId": "18",
   "nodeType": 1,
   "icon": "el-icon-monitor",
   "kids": null,
   "terminalType": 0,
   "terminalNum": "769025",
   "serialNum": "7D1846124E640764"
  }, {
   "label": "u6B66u6C49u5E02u4E00u4E2Du8003u70B9u5E94u6025u529E",
   "id": "20",
   "parentId": "18",
   "nodeType": 0,
   "icon": null,
   "kids": [{
    "label": "u6B66u6C49u4E00u4E2Du5E94u6025u6307u6325u4E2Du5FC3",
    "id": "22",
    "parentId": "20",
    "nodeType": 0,
    "icon": null,
    "kids": null
   }]
  }, {
   "label": "u6B66u6C49u4E8Cu4E2Du8003u70B9u5E94u6025u529E",
   "id": "21",
   "parentId": "18",
   "nodeType": 0,
   "icon": null,
   "kids": null
  }]
 }, {
  "label": "2020u5E74u7814u7A76u751Fu8003u8BD5u5E94u6025u673Au6784",
  "id": "19",
  "parentId": "19",
  "nodeType": 0,
  "icon": null,
  "kids": [{
   "label": "u738Bu7269u6D41",
   "id": "A0BA62D5108D1565E053437CA8C0C74B",
   "parentId": "19",
   "nodeType": 1,
   "icon": "el-icon-user",
   "kids": null,
   "terminalType": 1,
   "terminalNum": "15010330199",
   "serialNum": "15010330199"
  }, {
   "label": "u6B66u6C49u8003u533A",
   "id": "27",
   "parentId": "19",
   "nodeType": 0,
   "icon": null,
   "kids": [{
    "label": "u6B66u6C49u4E00u533Au5E94u6025u529E",
    "id": "28",
    "parentId": "27",
    "nodeType": 0,
    "icon": null,
    "kids": null
   }, {
    "label": "u6B66u6C49u4E8Cu533Au5E94u6025u529E",
    "id": "41",
    "parentId": "27",
    "nodeType": 0,
    "icon": null,
    "kids": null
   }]
  }]
 }, {
  "label": "u6E56u5317u77012019u5E74u9AD8u8003u5E94u6025",
  "id": "26",
  "parentId": "26",
  "nodeType": 0,
  "icon": null,
  "kids": null
 }]
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
{
 "success": true,
 "errorCode": null,
 "errorMsg": null,
 "data": [{
  "label": "u6E56u5317u7701u8003u8BD5u9662",
  "id": "17",
  "parentId": "17",
  "nodeType": 0,
  "icon": null,
  "kids": [{
   "label": "u9662u529Eu516Cu5BA4",
   "id": "23",
   "parentId": "17",
   "nodeType": 0,
   "icon": null,
   "kids": [{
    "label": "u9662u529Eu516Cu5BA4u4E00u5904",
    "id": "24",
    "parentId": "23",
    "nodeType": 0,
    "icon": null,
    "kids": null
   }, {
    "label": "u9662u529Eu516Cu5BA4u4E8Cu5904",
    "id": "25",
    "parentId": "23",
    "nodeType": 0,
    "icon": null,
    "kids": null
   }]
  }]
 }, {
  "label": "u6E56u5317u77012020u5E74u9AD8u8003u5E94u6025u673Au6784",
  "id": "18",
  "parentId": "18",
  "nodeType": 0,
  "icon": null,
  "kids": [{
   "label": "u4E2Du5FC3u94F6u884C",
   "id": "A06E0C6FFB29198EE053437CA8C07A48",
   "parentId": "18",
   "nodeType": 1,
   "icon": "el-icon-monitor",
   "kids": null,
   "terminalType": 0,
   "terminalNum": "769025",
   "serialNum": "7D1846124E640764"
  }, {
   "label": "u6B66u6C49u5E02u4E00u4E2Du8003u70B9u5E94u6025u529E",
   "id": "20",
   "parentId": "18",
   "nodeType": 0,
   "icon": null,
   "kids": [{
    "label": "u6B66u6C49u4E00u4E2Du5E94u6025u6307u6325u4E2Du5FC3",
    "id": "22",
    "parentId": "20",
    "nodeType": 0,
    "icon": null,
    "kids": null
   }]
  }, {
   "label": "u6B66u6C49u4E8Cu4E2Du8003u70B9u5E94u6025u529E",
   "id": "21",
   "parentId": "18",
   "nodeType": 0,
   "icon": null,
   "kids": null
  }]
 }, {
  "label": "2020u5E74u7814u7A76u751Fu8003u8BD5u5E94u6025u673Au6784",
  "id": "19",
  "parentId": "19",
  "nodeType": 0,
  "icon": null,
  "kids": [{
   "label": "u738Bu7269u6D41",
   "id": "A0BA62D5108D1565E053437CA8C0C74B",
   "parentId": "19",
   "nodeType": 1,
   "icon": "el-icon-user",
   "kids": null,
   "terminalType": 1,
   "terminalNum": "15010330199",
   "serialNum": "15010330199"
  }, {
   "label": "u6B66u6C49u8003u533A",
   "id": "27",
   "parentId": "19",
   "nodeType": 0,
   "icon": null,
   "kids": [{
    "label": "u6B66u6C49u4E00u533Au5E94u6025u529E",
    "id": "28",
    "parentId": "27",
    "nodeType": 0,
    "icon": null,
    "kids": null
   }, {
    "label": "u6B66u6C49u4E8Cu533Au5E94u6025u529E",
    "id": "41",
    "parentId": "27",
    "nodeType": 0,
    "icon": null,
    "kids": null
   }]
  }]
 }, {
  "label": "u6E56u5317u77012019u5E74u9AD8u8003u5E94u6025",
  "id": "26",
  "parentId": "26",
  "nodeType": 0,
  "icon": null,
  "kids": null
 }]
}

后台代码

复制代码

package com.itechhero.app.module.edu.meet.reminder.service;

import com.github.pagehelper.PageHelper;
import com.itechhero.app.module.edu.common.model.TreeBean;
import com.itechhero.app.module.edu.meet.reminder.mapper.MeetReminderMapper;
import com.itechhero.app.module.edu.meet.reminder.mapper.ReminderTerminalLinkMapper;
import com.itechhero.app.module.edu.meet.reminder.model.MeetReminder;
import com.itechhero.app.module.edu.meet.reminder.model.ReminderTerminalLink;
import com.itechhero.app.module.edu.meet.reminder.model.TerminalTreeBean;
import com.itechhero.app.module.edu.terminal.mapper.TerminalMapper;
import com.itechhero.app.module.edu.terminal.model.Terminal;
import com.itechhero.app.module.edu.utils.exceptions.ReqException;
import com.itechhero.app.module.edu.utils.req.CMap;
import com.itechhero.app.module.edu.utils.req.PageData;
import com.itechhero.app.module.edu.utils.req.ResBean;
import com.itechhero.app.module.edu.xylink.api.reminder.ReminderApi;
import com.itechhero.app.module.edu.xylink.util.Result;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import org.springframework.transaction.annotation.Transactional;

import java.util.ArrayList;
import java.util.List;
import java.util.Map;

/**
 * 预约会议业务类
 * 作者: 吴 波
 * 时间: 2020-03-09 17:28
 * 笔名: 那年秋天的茄子^^
 */
@Slf4j
@Service
@Transactional
public class MeetReminderService {

@Autowired
    private MeetReminderMapper meetReminderMapper;

@Autowired
    private TerminalMapper terminalMapper;

@Autowired
    private ReminderTerminalLinkMapper reminderTerminalLinkmapper;

/**
     * 获取通讯终端树
     * 作者: 吴 波
     * 时间: 2020-03-14 10:32
     * 笔名: 那年秋天的茄子^^
     */
    public ResBean getContacts(Integer ifonlyTerminal) {
        List<TreeBean> root = this.meetReminderMapper.getRootContacts();
        getKidContacts(root, ifonlyTerminal);
        return ResBean.success(root);
    }

/**
     * 获取终端通讯录子节点
     * 作者: 吴 波
     * 时间: 2020-03-14 11:07
     * 笔名: 那年秋天的茄子^^
     */
    private void getKidContacts(List<TreeBean> root, Integer ifonlyTerminal) {
        log.info("n{}", root);
        for (TreeBean treeBean : root) {
            List<TreeBean> kidsContacts = new ArrayList<>();

/*终端*/
            List<TerminalTreeBean> terminalContacts = this.terminalMapper.getTerminalKidsForTree(treeBean.getId(), ifonlyTerminal);
            if (terminalContacts != null && terminalContacts.size() != 0) {
                kidsContacts.addAll(terminalContacts);
            }

/*部门*/
            List<TreeBean> orgKidsContacts = this.meetReminderMapper.getKidsContacts(treeBean.getId());
            if (orgKidsContacts != null && orgKidsContacts.size() != 0) {
                kidsContacts.addAll(orgKidsContacts);
            }

if (kidsContacts.size() != 0) {
                treeBean.setKids(kidsContacts);
            }

getKidContacts(kidsContacts, ifonlyTerminal);
        }

}

/**
     * 获取已选中的终端
     * 作者: 吴 波
     * 时间: 2020-03-14 21:36
     * 笔名: 那年秋天的茄子^^
     */
    public ResBean getTerminals(CMap param) {
        List<CMap> list=this.reminderTerminalLinkmapper.getTerminals(param);
        log.info("n[获取到预约会议呼叫的终端设备]n{}",list);
        return ResBean.success(list);
    }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
package com.itechhero.app.module.edu.meet.reminder.service;

import com.github.pagehelper.PageHelper;
import com.itechhero.app.module.edu.common.model.TreeBean;
import com.itechhero.app.module.edu.meet.reminder.mapper.MeetReminderMapper;
import com.itechhero.app.module.edu.meet.reminder.mapper.ReminderTerminalLinkMapper;
import com.itechhero.app.module.edu.meet.reminder.model.MeetReminder;
import com.itechhero.app.module.edu.meet.reminder.model.ReminderTerminalLink;
import com.itechhero.app.module.edu.meet.reminder.model.TerminalTreeBean;
import com.itechhero.app.module.edu.terminal.mapper.TerminalMapper;
import com.itechhero.app.module.edu.terminal.model.Terminal;
import com.itechhero.app.module.edu.utils.exceptions.ReqException;
import com.itechhero.app.module.edu.utils.req.CMap;
import com.itechhero.app.module.edu.utils.req.PageData;
import com.itechhero.app.module.edu.utils.req.ResBean;
import com.itechhero.app.module.edu.xylink.api.reminder.ReminderApi;
import com.itechhero.app.module.edu.xylink.util.Result;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import org.springframework.transaction.annotation.Transactional;

import java.util.ArrayList;
import java.util.List;
import java.util.Map;


/**
 * 预约会议业务类
 * 作者: 吴 波
 * 时间: 2020-03-09 17:28
 * 笔名: 那年秋天的茄子^^
 */
@Slf4j
@Service
@Transactional
public class MeetReminderService {


    @Autowired
    private MeetReminderMapper meetReminderMapper;

    @Autowired
    private TerminalMapper terminalMapper;

    @Autowired
    private ReminderTerminalLinkMapper reminderTerminalLinkmapper;

    /**
     * 获取通讯终端树
     * 作者: 吴 波
     * 时间: 2020-03-14 10:32
     * 笔名: 那年秋天的茄子^^
     */
    public ResBean getContacts(Integer ifonlyTerminal) {
        List<TreeBean> root = this.meetReminderMapper.getRootContacts();
        getKidContacts(root, ifonlyTerminal);
        return ResBean.success(root);
    }

    /**
     * 获取终端通讯录子节点
     * 作者: 吴 波
     * 时间: 2020-03-14 11:07
     * 笔名: 那年秋天的茄子^^
     */
    private void getKidContacts(List<TreeBean> root, Integer ifonlyTerminal) {
        log.info("n{}", root);
        for (TreeBean treeBean : root) {
            List<TreeBean> kidsContacts = new ArrayList<>();

            /*终端*/
            List<TerminalTreeBean> terminalContacts = this.terminalMapper.getTerminalKidsForTree(treeBean.getId(), ifonlyTerminal);
            if (terminalContacts != null && terminalContacts.size() != 0) {
                kidsContacts.addAll(terminalContacts);
            }

            /*部门*/
            List<TreeBean> orgKidsContacts = this.meetReminderMapper.getKidsContacts(treeBean.getId());
            if (orgKidsContacts != null && orgKidsContacts.size() != 0) {
                kidsContacts.addAll(orgKidsContacts);
            }

            if (kidsContacts.size() != 0) {
                treeBean.setKids(kidsContacts);
            }

            getKidContacts(kidsContacts, ifonlyTerminal);
        }


    }

    /**
     * 获取已选中的终端
     * 作者: 吴 波
     * 时间: 2020-03-14 21:36
     * 笔名: 那年秋天的茄子^^
     */
    public ResBean getTerminals(CMap param) {
        List<CMap> list=this.reminderTerminalLinkmapper.getTerminals(param);
        log.info("n[获取到预约会议呼叫的终端设备]n{}",list);
        return ResBean.success(list);
    }
}

Mapper.xml

复制代码

<select id="getRootContacts" resultType="com.itechhero.app.module.edu.common.model.TreeBean">
        select
               ID||'' AS "id",
               YJJGMC AS "label",
               FBMID||'' as "parentId",
               0 as "nodeType" -- 为了前端判断是否能选中用的
        FROM YJ_ZB_ZBJG
        WHERE 1=1 AND ID=FBMID
    </select>

<select id="getKidsContacts" resultType="com.itechhero.app.module.edu.common.model.TreeBean">
        select
            ID||'' AS "id",
            YJJGMC AS "label",
            FBMID||'' as "parentId",
            0 as "nodeType"
        FROM YJ_ZB_ZBJG
        WHERE 1=1
          AND ID||'' != #{parentId}
          AND FBMID||'' = #{parentId}
    </select>

<select id="getTerminalKidsForTree" resultType="com.itechhero.app.module.edu.meet.reminder.model.TerminalTreeBean">
        SELECT
               ID as "id",
               TERMINAL_NAME as "label",
               TERMINAL_TYPE,
               TERMINAL_NUM,
               SERIAL_NUM,
               ORG_ID||'' as "parentId",
               1 as "nodeType",
               case TERMINAL_TYPE              -- 为前端设定图标使用(为了方便直接写数据库,介意前端判断)
                   when 0 then 'el-icon-monitor'
                   else 'el-icon-user' end as  "icon"
        FROM YJ_TERMINAL
        where 1=1
        and ORG_ID||'' =#{parentId}
        <if test="ifonlyTerminal==1">
            and TERMINAL_TYPE = 0
        </if>

</select>

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
<!-- 获取通讯录 -->
    <select id="getRootContacts" resultType="com.itechhero.app.module.edu.common.model.TreeBean">
        select
               ID||'' AS "id",
               YJJGMC AS "label",
               FBMID||'' as "parentId",
               0 as "nodeType" -- 为了前端判断是否能选中用的
        FROM YJ_ZB_ZBJG
        WHERE 1=1 AND ID=FBMID
    </select>

    <!-- 获取通讯录子节点 -->
    <select id="getKidsContacts" resultType="com.itechhero.app.module.edu.common.model.TreeBean">
        select
            ID||'' AS "id",
            YJJGMC AS "label",
            FBMID||'' as "parentId",
            0 as "nodeType"
        FROM YJ_ZB_ZBJG
        WHERE 1=1
          AND ID||'' != #{parentId}
          AND FBMID||'' = #{parentId}
    </select>

    <!-- 获取终端通讯录TREE -->
    <select id="getTerminalKidsForTree" resultType="com.itechhero.app.module.edu.meet.reminder.model.TerminalTreeBean">
        SELECT
               ID as "id",
               TERMINAL_NAME as "label",
               TERMINAL_TYPE,
               TERMINAL_NUM,
               SERIAL_NUM,
               ORG_ID||'' as "parentId",
               1 as "nodeType",
               case TERMINAL_TYPE              -- 为前端设定图标使用(为了方便直接写数据库,介意前端判断)
                   when 0 then 'el-icon-monitor'
                   else 'el-icon-user' end as  "icon"
        FROM YJ_TERMINAL
        where 1=1
        and ORG_ID||'' =#{parentId}
        <if test="ifonlyTerminal==1">
            and TERMINAL_TYPE = 0
        </if>

</select>
