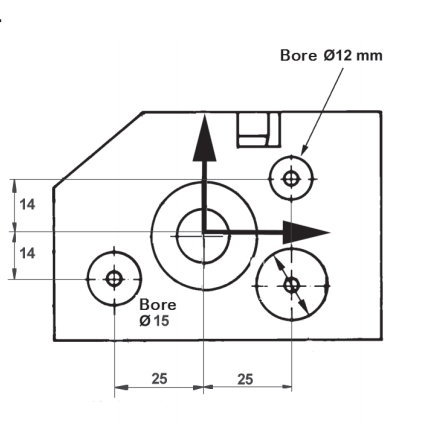

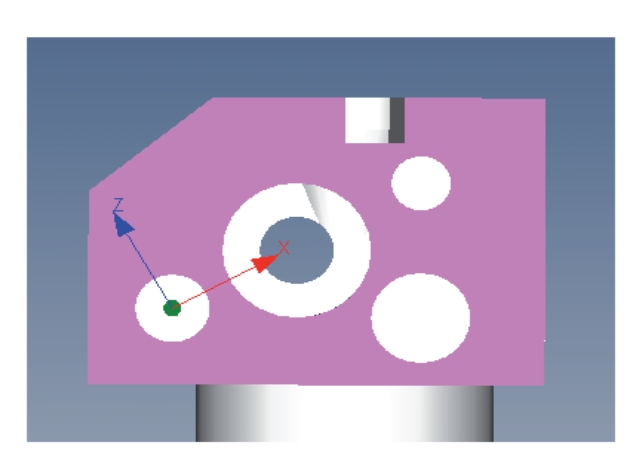

概述

演示如何通过给定角度旋转坐标系，如何在笛卡尔坐标系中进行平移。

在这里插入图片描述

在这里插入图片描述

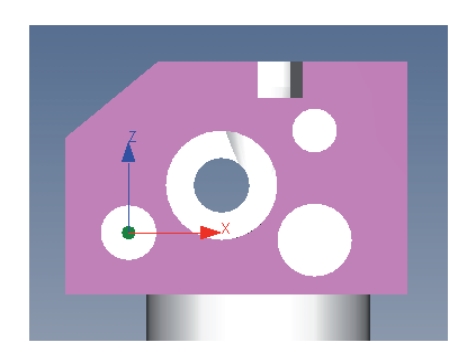

主基准（空转轴）：立方体前表面

第二基准（面转轴）：

通过直径15mm孔和直径12mm孔的轴线

然后按照第二步逆时针旋转

X零点（原点）：直径15mm孔

Y零点（原点）：平面

Z零点（原点）：直径15mm孔

平/旋按照图纸给定值操作

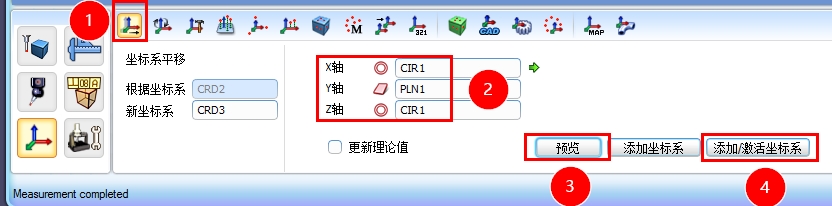

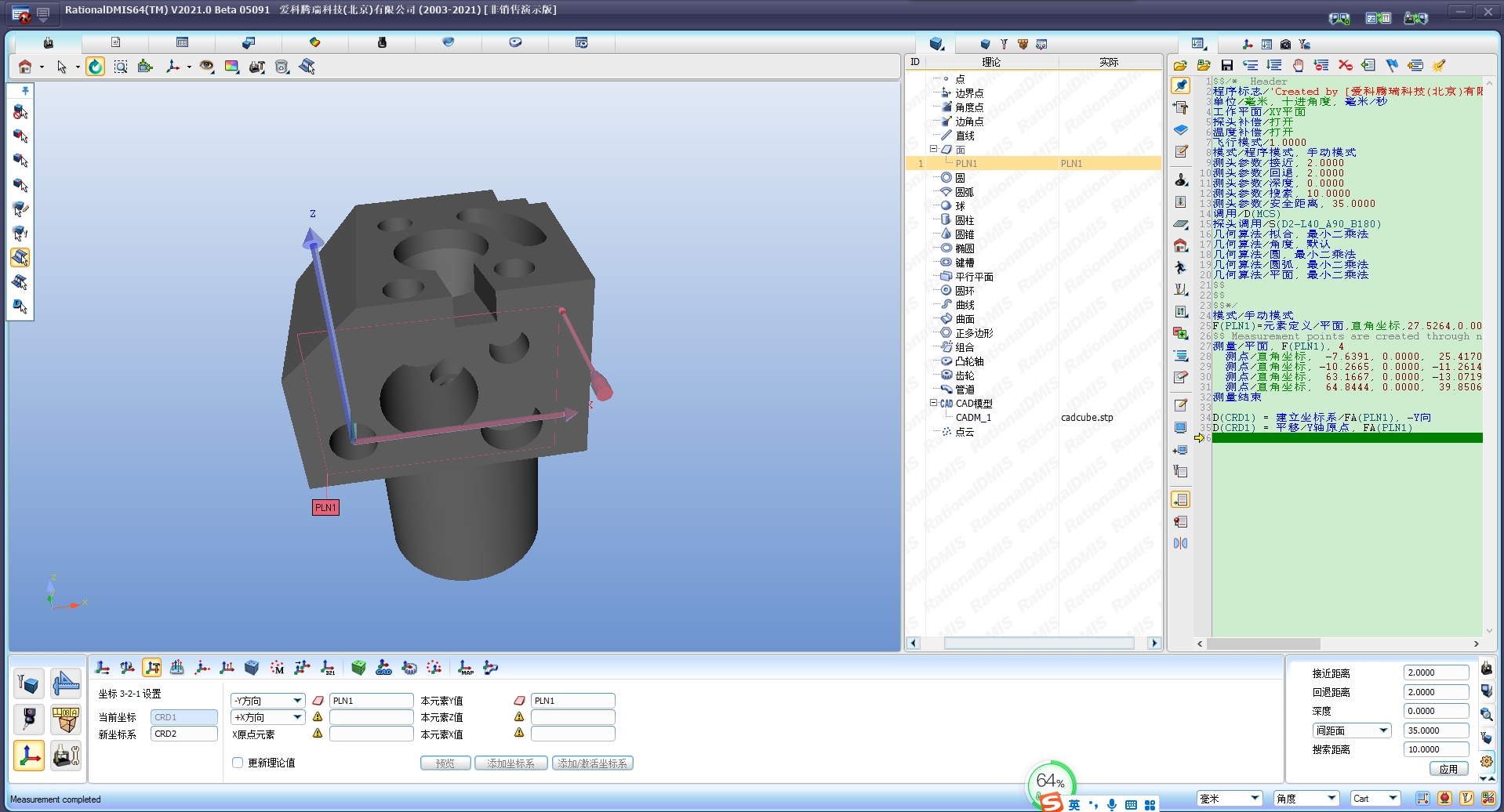

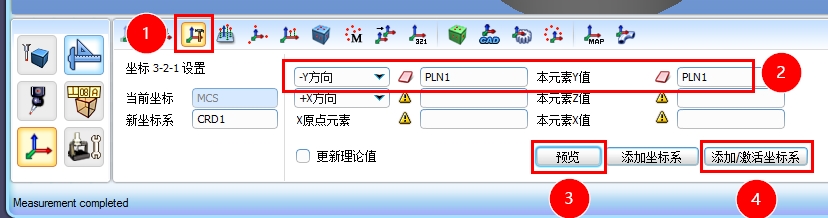

1.第一步：

如图对主基准，X，Y，Z原点进行设置。

不设置第二基准

Y轴平行于平面法向

在这里插入图片描述

F(PLN1)=FEAT/PLANE,CART,27.5264,0.0000,10.2336,0.0000,-1.0000,0.0000
$$ Measurement points are created through nominal points
MEAS/PLANE, F(PLN1), 4
  PTMEAS/CART,  -7.6391, 0.0000,  25.4170, 0.0000, -1.0000, 0.0000
  PTMEAS/CART, -10.2665, 0.0000, -11.2614, 0.0000, -1.0000, 0.0000
  PTMEAS/CART,  63.1667, 0.0000, -13.0719, 0.0000, -1.0000, 0.0000
  PTMEAS/CART,  64.8444, 0.0000,  39.8506, 0.0000, -1.0000, 0.0000
ENDMES

D(CRD1) = DATSET/FA(PLN1), -YDIR
D(CRD1) = TRANS/YORIG, FA(PLN1)

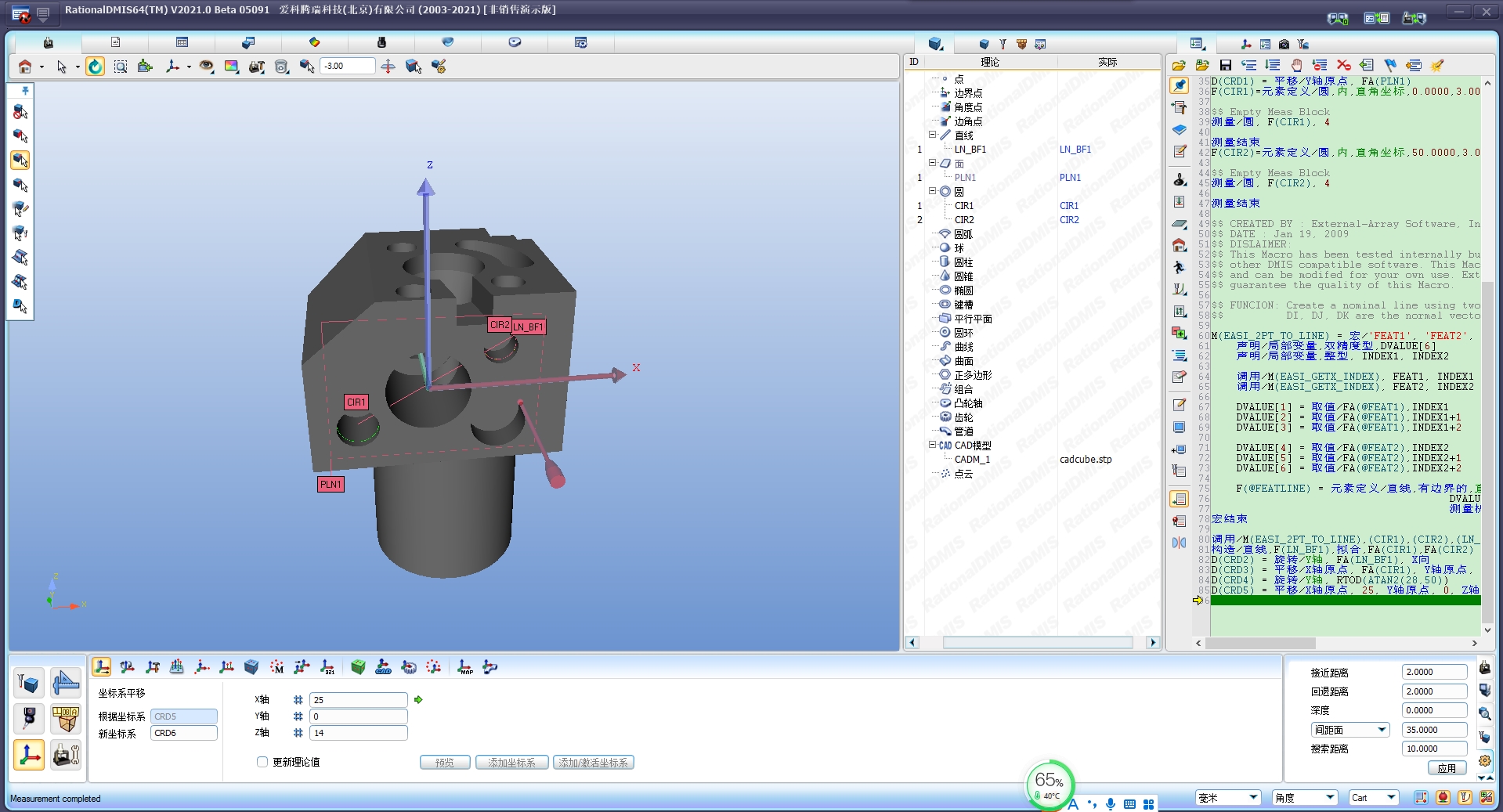

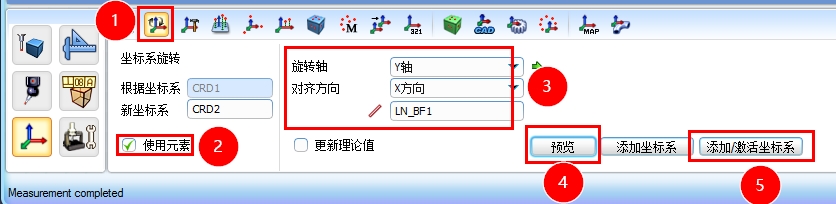

2，第二步：旋转轴向，平移三轴原点。

测量两圆，最佳拟合直线。

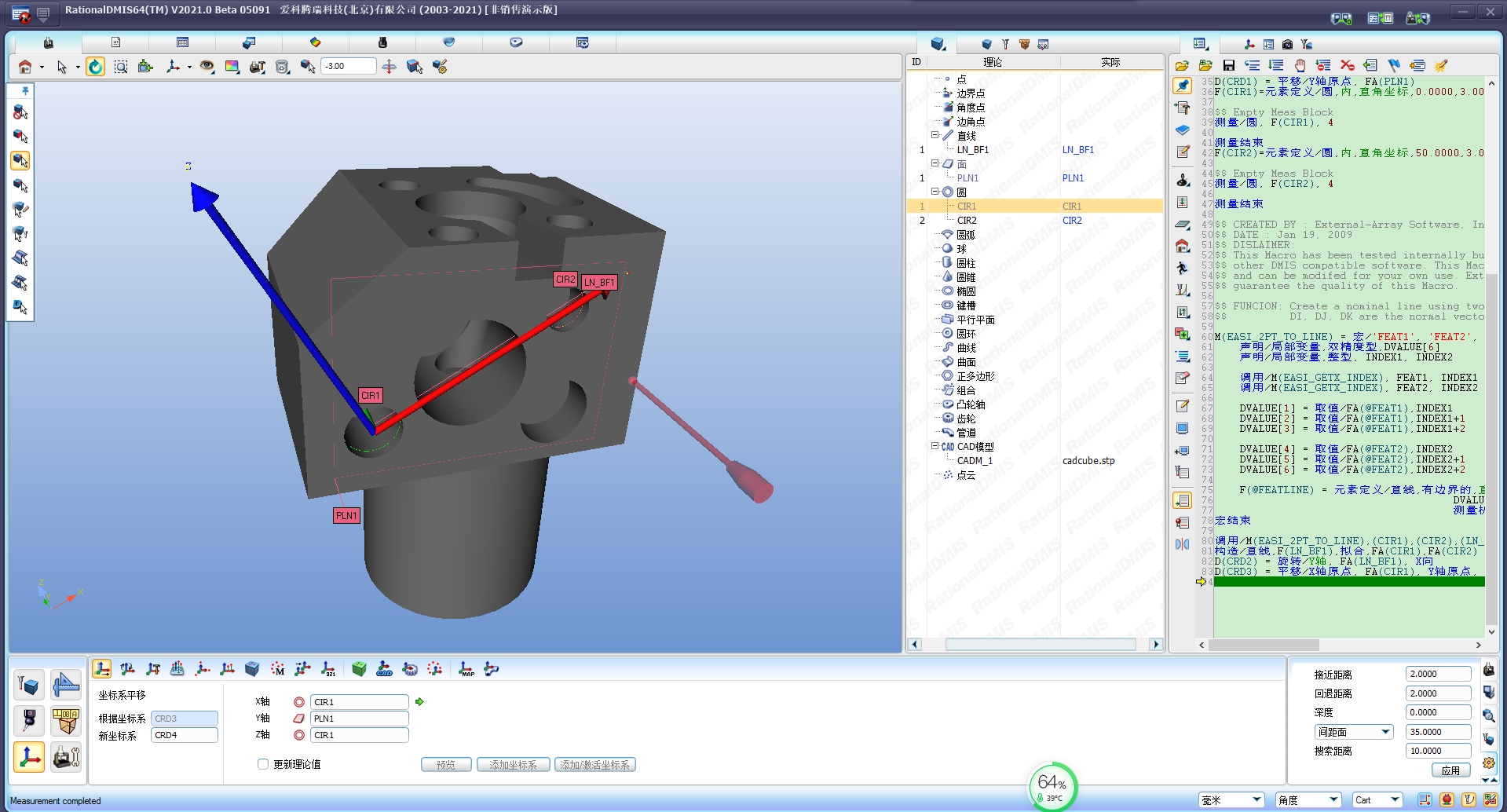

前面设定的坐标系绕Y轴，绕15mm孔圆心旋转，使X轴通过直径12mm圆的加以，原点位置保持不变

在这里插入图片描述


$$ CREATED BY : External-Array Software, Inc
$$ DATE : Jan 19, 2009
$$ DISLAIMER:
$$ This Macro has been tested internally but not been tested with
$$ other DMIS compatible software. This Macro is provided as sample
$$ and can be modifed for your own use. External-Array doesn't not
$$ guarantee the quality of this Macro.

$$ FUNCION: Create a nominal line using two actual features
$$			DI, DJ, DK are the normal vector of the plane that the line lies on

M(EASI_2PT_TO_LINE) = Macro/'FEAT1', 'FEAT2', 'FEATLINE', DI, DJ, DK
	DECL/LOCAL,DOUBLE,DVALUE[6]
    DECL/LOCAL,INTGR, INDEX1, INDEX2

    CALL/M(EASI_GETX_INDEX), FEAT1, INDEX1
    CALL/M(EASI_GETX_INDEX), FEAT2, INDEX2

	DVALUE[1] = OBTAIN/FA(@FEAT1),INDEX1
	DVALUE[2] = OBTAIN/FA(@FEAT1),INDEX1+1
	DVALUE[3] = OBTAIN/FA(@FEAT1),INDEX1+2

	DVALUE[4] = OBTAIN/FA(@FEAT2),INDEX2
	DVALUE[5] = OBTAIN/FA(@FEAT2),INDEX2+1
	DVALUE[6] = OBTAIN/FA(@FEAT2),INDEX2+2

    F(@FEATLINE) = FEAT/LINE,BND,CART,DVALUE[1],DVALUE[2],DVALUE[3],$
                                      DVALUE[4],DVALUE[5],DVALUE[6],$
                                      DI, DJ, DK
ENDMAC

CALL/M(EASI_2PT_TO_LINE),(CIR1),(CIR2),(LN_BF1), 0.0000, -1.0000, 0.0000
CONST/LINE,F(LN_BF1),BF,FA(CIR1),FA(CIR2)
D(CRD2) = ROTATE/YAXIS, FA(LN_BF1), XDIR
D(CRD3) = TRANS/XORIG, FA(CIR1), YORIG, FA(PLN1), ZORIG, FA(CIR1)

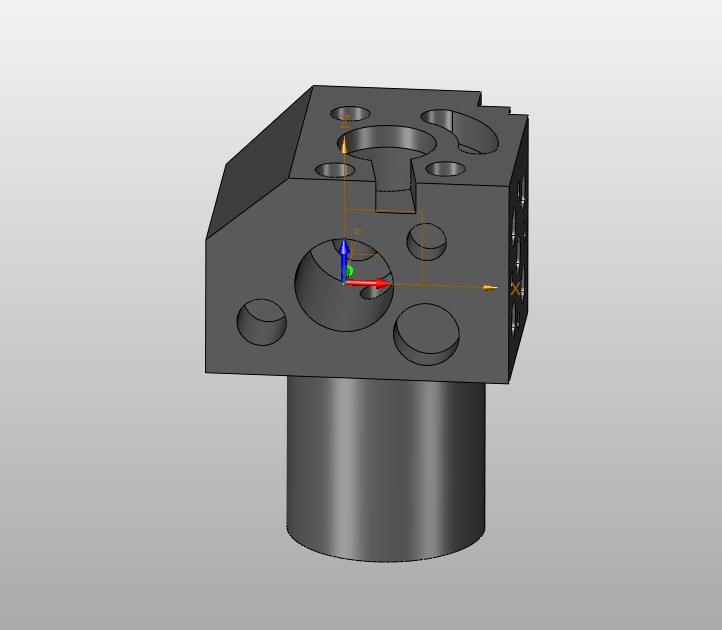

3.第三步：

通过输入角度绕Y轴做附加旋转。

通过输入图纸上的角度进行坐标系旋转。这个角度可以通过正切函数计算。
绕Y轴旋转。
输入29.25

在这里插入图片描述

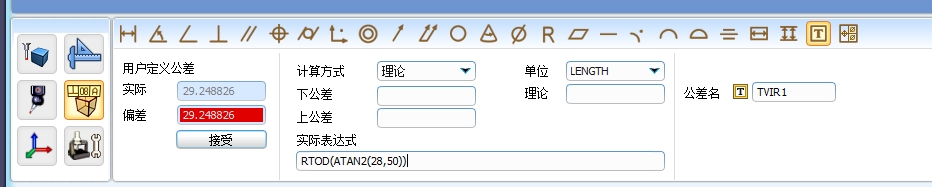

RTOD(ATAN2(28,50))

在这里插入图片描述

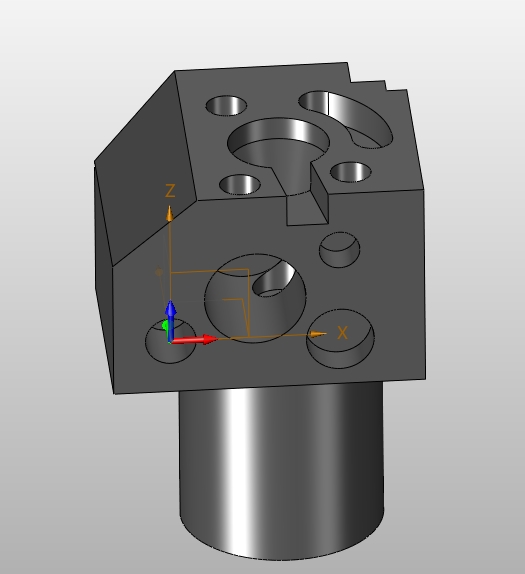

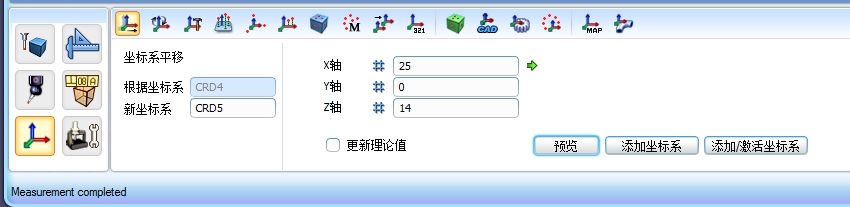

4，第四步：

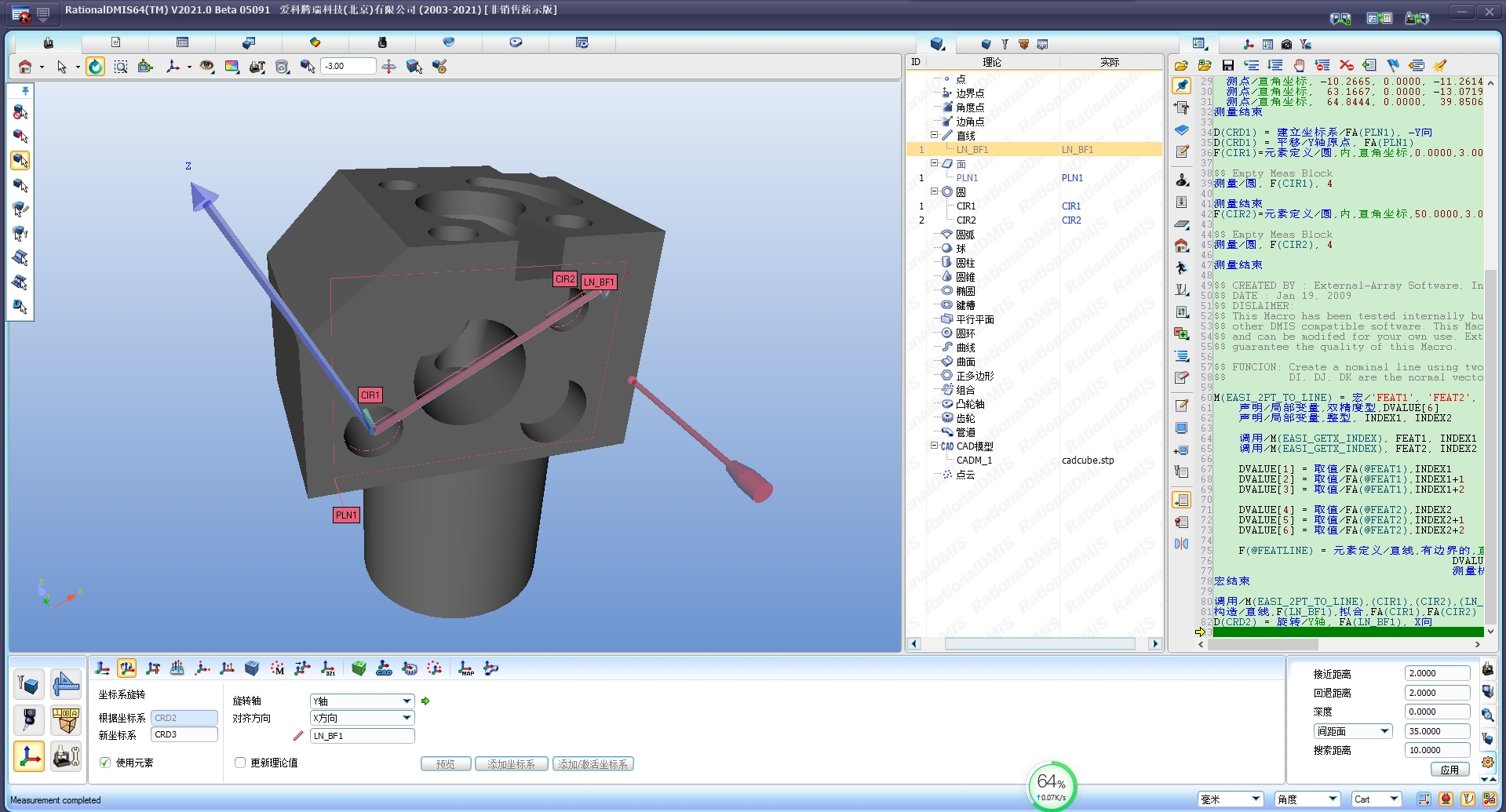

将坐标系平移到两个孔中间：

X=25 Z=14

在这里插入图片描述

$$/*  Header
DMISMN/'Created by [爱科腾瑞科技(北京)有限公司-091521-DEMO-11022(华清)] on 星期四, 七月 29, 2021', 4.0
UNITS/MM, ANGDEC, MMPS
WKPLAN/XYPLAN
PRCOMP/ON
TECOMP/ON
FLY/1.0000
MODE/PROG, MAN
SNSET/APPRCH, 2.0000
SNSET/RETRCT, 2.0000
SNSET/DEPTH, 0.0000
SNSET/SEARCH, 10.0000
SNSET/CLRSRF, 35.0000
RECALL/D(MCS)
SNSLCT/S(D2-L40_A90_B180)
GEOALG/BF, LSTSQR
GEOALG/ANGLB, DEFALT
GEOALG/CIRCLE, LSTSQR
GEOALG/ARC, LSTSQR
GEOALG/PLANE, LSTSQR
$$
$$
$$*/
MODE/MAN
F(PLN1)=FEAT/PLANE,CART,27.5264,0.0000,10.2336,0.0000,-1.0000,0.0000
$$ Measurement points are created through nominal points
MEAS/PLANE, F(PLN1), 4
  PTMEAS/CART,  -7.6391, 0.0000,  25.4170, 0.0000, -1.0000, 0.0000
  PTMEAS/CART, -10.2665, 0.0000, -11.2614, 0.0000, -1.0000, 0.0000
  PTMEAS/CART,  63.1667, 0.0000, -13.0719, 0.0000, -1.0000, 0.0000
  PTMEAS/CART,  64.8444, 0.0000,  39.8506, 0.0000, -1.0000, 0.0000
ENDMES

D(CRD1) = DATSET/FA(PLN1), -YDIR
D(CRD1) = TRANS/YORIG, FA(PLN1)
F(CIR1)=FEAT/CIRCLE,INNER,CART,0.0000,3.0000,-0.0000,-0.0000,-1.0000,-0.0000, 15.0000

$$ Empty Meas Block
MEAS/CIRCLE, F(CIR1), 4

ENDMES
F(CIR2)=FEAT/CIRCLE,INNER,CART,50.0000,3.0000,28.0000,-0.0000,-1.0000,-0.0000, 12.0000

$$ Empty Meas Block
MEAS/CIRCLE, F(CIR2), 4

ENDMES

$$ CREATED BY : External-Array Software, Inc
$$ DATE : Jan 19, 2009
$$ DISLAIMER:
$$ This Macro has been tested internally but not been tested with
$$ other DMIS compatible software. This Macro is provided as sample
$$ and can be modifed for your own use. External-Array doesn't not
$$ guarantee the quality of this Macro.

$$ FUNCION: Create a nominal line using two actual features
$$			DI, DJ, DK are the normal vector of the plane that the line lies on

M(EASI_2PT_TO_LINE) = Macro/'FEAT1', 'FEAT2', 'FEATLINE', DI, DJ, DK
	DECL/LOCAL,DOUBLE,DVALUE[6]
    DECL/LOCAL,INTGR, INDEX1, INDEX2

    CALL/M(EASI_GETX_INDEX), FEAT1, INDEX1
    CALL/M(EASI_GETX_INDEX), FEAT2, INDEX2

	DVALUE[1] = OBTAIN/FA(@FEAT1),INDEX1
	DVALUE[2] = OBTAIN/FA(@FEAT1),INDEX1+1
	DVALUE[3] = OBTAIN/FA(@FEAT1),INDEX1+2

	DVALUE[4] = OBTAIN/FA(@FEAT2),INDEX2
	DVALUE[5] = OBTAIN/FA(@FEAT2),INDEX2+1
	DVALUE[6] = OBTAIN/FA(@FEAT2),INDEX2+2

    F(@FEATLINE) = FEAT/LINE,BND,CART,DVALUE[1],DVALUE[2],DVALUE[3],$
                                      DVALUE[4],DVALUE[5],DVALUE[6],$
                                      DI, DJ, DK
ENDMAC

CALL/M(EASI_2PT_TO_LINE),(CIR1),(CIR2),(LN_BF1), 0.0000, -1.0000, 0.0000
CONST/LINE,F(LN_BF1),BF,FA(CIR1),FA(CIR2)
D(CRD2) = ROTATE/YAXIS, FA(LN_BF1), XDIR
D(CRD3) = TRANS/XORIG, FA(CIR1), YORIG, FA(PLN1), ZORIG, FA(CIR1)
D(CRD4) = ROTATE/YAXIS, RTOD(ATAN2(28,50))
D(CRD5) = TRANS/XORIG, 25, YORIG, 0, ZORIG, 14
