浅析JSP动态网页开发技术
- 1-JSP的运行环境
- 2-JSP的工作原理
- 工作原理概述
- JSP文件的转译过程
- 原始JSP页面：score.jsp
- 转译后的Servlet类：score_jsp.java
- score_jsp追根溯源：HttpJspBase
- JSP的实质
- 3-JSP的重要概念
- 4-JSP+Servlet开发案例
- 前序
- 案例开发
- 项目结构搭建
- jdbc.properties配置文件编写
- pojo层源代码
- dao层源代码
- 数据库连接池类：ConnectionPool
- 数据库操作基类：BaseDao
- EmpDao接口定义
- EmpDaoImpl子类实现
- service层源代码
- EmpService接口定义
- EmpServiceImpl子类实现
- servlet层源代码
- EmpServlet类实现
- JSP页面编写：showEmp.jsp
- 数据表emp：sql转储文件
- 案例效果
1-JSP的运行环境
JSP全称为：JSP Server Pages，是一种动态网页开发技术，主要用于服务器端的JavaEE程序开发。
而要使用JSP技术开发JavaEE服务端程序，就必须预先提供Java开发工具JDK环境支持。同时为了解决JSP页面转译为Java-Servlet类的问题，还需要提供JSP引擎（还需提供包含JSP引擎的Tomcat服务器开发环境）。
反观HTML（超文本标记语言），是一种静态网页开发技术，主要用于浏览器客户端网页页面的开发。也只需要有一个可以解析HTML静态页面、构建DOM树和完成页面渲染的浏览器即可。
2-JSP的工作原理

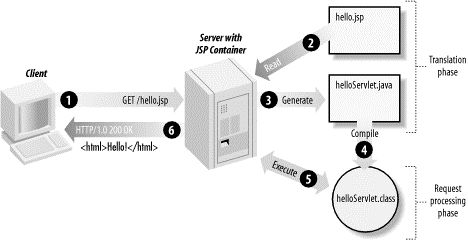

工作原理概述
JSP是一种服务端的动态网页开发技术，那么就意味着：从服务器端的JSP页面到浏览器客户端的HTML页面，中间需要一系列的“转译”工作。详细过程可以描述如下：
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16[1]客户端发起Request请求； [2]Web容器接收Request请求，并识别其为一个对JSP页面的请求，将其传递给JSP引擎； [3]JSP引擎从磁盘中载入JSP文件，然后将其转换为Servlet类（转换方式：将JSP中所有的模板文件转换为 PrintWriter对象的println()方法进行打印，同时将其它的JSP元素转换为Java代码）； [4]JSP引擎将Servlet编译为可执行类，并将原始请求传递给Servlet引擎处理； [5]Web服务器的某组件将会调用Servlet引擎，然后载入并执行Servlet类。在执行过程中，Servlet 产生 HTML 格式的输出并将其内嵌于 HTTP response 中上交给 Web 服务器； [6]Web服务器以静态HTML网页的形式将HTTP response返回到浏览器中； [7]浏览器将接收到的HTTP response中包含的HTML网页内容，进行渲染
JSP文件的转译过程
原始JSP页面：score.jsp
现有如下JSP页面，经过JSP引擎处理，可将其转译成为一个Java-Servlet类.
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54<%@ page import="java.io.PrintWriter" %> <%@ page import="java.text.DecimalFormat" %> <%-- Created by IntelliJ IDEA. User: 13241 Date: 2022/2/7 Time: 12:28 To change this template use File | Settings | File Templates. --%> <%@ page contentType="text/html;charset=UTF-8" language="java" %> <html> <head> <title>分数等级</title> </head> <body> score= <% double score = Math.random() * 101; PrintWriter writer = response.getWriter(); %> <%=new DecimalFormat("0.00").format(score)%> grade= <% String grade = "E"; switch ((int) score / 10) { case 10: case 9: { grade = "A"; break; } case 8: { grade = "B"; break; } case 7: { grade = "C"; break; } case 6: { grade = "D"; break; } default: { grade = "E"; } } %> <%=grade%> </body> </html>
转译后的Servlet类：score_jsp.java
JSP文件（score.jsp）转译过来的Servlet类（score_jsp ），继承了org.apache.jasper.runtime.HttpJspBase类，实现了JSPSourceDependent,和JSPSourceImports两个接口。而HttpJspBase类继承自HttpServlet类， 因此，整个JSP文件本质上来说，就相当于一个Servlet类。这应当是JSP与HTML之间的最根本不同之处。
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200package org.apache.jsp; import javax.servlet.*; import javax.servlet.http.*; import javax.servlet.jsp.*; import java.io.PrintWriter; import java.text.DecimalFormat; public final class score_jsp extends org.apache.jasper.runtime.HttpJspBase implements org.apache.jasper.runtime.JspSourceDependent, org.apache.jasper.runtime.JspSourceImports { private static final javax.servlet.jsp.JspFactory _jspxFactory = javax.servlet.jsp.JspFactory.getDefaultFactory(); private static java.util.Map<java.lang.String,java.lang.Long> _jspx_dependants; private static final java.util.Set<java.lang.String> _jspx_imports_packages; private static final java.util.Set<java.lang.String> _jspx_imports_classes; static { _jspx_imports_packages = new java.util.HashSet<>(); _jspx_imports_packages.add("javax.servlet"); _jspx_imports_packages.add("javax.servlet.http"); _jspx_imports_packages.add("javax.servlet.jsp"); _jspx_imports_classes = new java.util.HashSet<>(); _jspx_imports_classes.add("java.io.PrintWriter"); _jspx_imports_classes.add("java.text.DecimalFormat"); } private volatile javax.el.ExpressionFactory _el_expressionfactory; private volatile org.apache.tomcat.InstanceManager _jsp_instancemanager; public java.util.Map<java.lang.String,java.lang.Long> getDependants() { return _jspx_dependants; } public java.util.Set<java.lang.String> getPackageImports() { return _jspx_imports_packages; } public java.util.Set<java.lang.String> getClassImports() { return _jspx_imports_classes; } public javax.el.ExpressionFactory _jsp_getExpressionFactory() { if (_el_expressionfactory == null) { synchronized (this) { if (_el_expressionfactory == null) { _el_expressionfactory = _jspxFactory.getJspApplicationContext(getServletConfig().getServletContext()).getExpressionFactory(); } } } return _el_expressionfactory; } public org.apache.tomcat.InstanceManager _jsp_getInstanceManager() { if (_jsp_instancemanager == null) { synchronized (this) { if (_jsp_instancemanager == null) { _jsp_instancemanager = org.apache.jasper.runtime.InstanceManagerFactory.getInstanceManager(getServletConfig()); } } } return _jsp_instancemanager; } public void _jspInit() { } public void _jspDestroy() { } public void _jspService(final javax.servlet.http.HttpServletRequest request, final javax.servlet.http.HttpServletResponse response) throws java.io.IOException, javax.servlet.ServletException { if (!javax.servlet.DispatcherType.ERROR.equals(request.getDispatcherType())) { final java.lang.String _jspx_method = request.getMethod(); if ("OPTIONS".equals(_jspx_method)) { response.setHeader("Allow","GET, HEAD, POST, OPTIONS"); return; } if (!"GET".equals(_jspx_method) && !"POST".equals(_jspx_method) && !"HEAD".equals(_jspx_method)) { response.setHeader("Allow","GET, HEAD, POST, OPTIONS"); response.sendError(HttpServletResponse.SC_METHOD_NOT_ALLOWED, "JSP 只允许 GET、POST 或 HEAD。Jasper 还允许 OPTIONS"); return; } } final javax.servlet.jsp.PageContext pageContext; javax.servlet.http.HttpSession session = null; final javax.servlet.ServletContext application; final javax.servlet.ServletConfig config; javax.servlet.jsp.JspWriter out = null; final java.lang.Object page = this; javax.servlet.jsp.JspWriter _jspx_out = null; javax.servlet.jsp.PageContext _jspx_page_context = null; try { response.setContentType("text/html;charset=UTF-8"); pageContext = _jspxFactory.getPageContext(this, request, response, null, true, 8192, true); _jspx_page_context = pageContext; application = pageContext.getServletContext(); config = pageContext.getServletConfig(); session = pageContext.getSession(); out = pageContext.getOut(); _jspx_out = out; out.write('r'); out.write('n'); out.write("rn"); out.write("rn"); out.write("<html>rn"); out.write("<head>rn"); out.write(" <title>分数等级</title>rn"); out.write("</head>rn"); out.write("<body>rn"); out.write(" score=rn"); out.write(" "); double score=Math.random()*101; PrintWriter writer=response.getWriter(); out.write("rn"); out.write("rn"); out.write('r'); out.write('n'); out.write('r'); out.write('n'); out.write('r'); out.write('n'); out.write("rn"); out.write(" "); out.print(new DecimalFormat("0.00").format(score)); out.write("rn"); out.write("rn"); out.write(" grade=rn"); out.write(" "); String grade="E"; switch ((int)score/10){ case 10: case 9:{ grade="A"; break; } case 8:{ grade="B"; break; } case 7:{ grade="C"; break; } case 6:{ grade="D"; break; } default:{ grade="E"; } } out.write('r'); out.write('n'); out.write('r'); out.write('n'); out.write('r'); out.write('n'); out.write('r'); out.write('n'); out.write("rn"); out.write(" "); out.print(grade); out.write("rn"); out.write("</body>rn"); out.write("</html>rn"); } catch (java.lang.Throwable t) { if (!(t instanceof javax.servlet.jsp.SkipPageException)){ out = _jspx_out; if (out != null && out.getBufferSize() != 0) try { if (response.isCommitted()) { out.flush(); } else { out.clearBuffer(); } } catch (java.io.IOException e) {} if (_jspx_page_context != null) _jspx_page_context.handlePageException(t); else throw new ServletException(t); } } finally { _jspxFactory.releasePageContext(_jspx_page_context); } } }
score_jsp追根溯源：HttpJspBase
HttpBase类（源码已经放在下面，可以对如下所述的内容进行验证）继承自HttpServlet类（具体继承结构如下图所示），HttpBase重写了父类中的init(),service()和destory()方法,并且自定义了 _jspInit,_jspService,_jspDestory,并在重写的init方法中调用了_JSPInit,在重写的service方法中调用了_jspService,在重写的destory方法中调用了_jspDestory.
由于HttpBase类的内部重写了service()方法，在service内部调用了其定义的抽象方法 _jspService(request, response);。因此，HttpBase的子类只需重写这个抽象方法 _jspService(request, response);即可完成对客户端request请求的处理操作。
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77/* * Licensed to the Apache Software Foundation (ASF) under one or more * contributor license agreements. See the NOTICE file distributed with * this work for additional information regarding copyright ownership. * The ASF licenses this file to You under the Apache License, Version 2.0 * (the "License"); you may not use this file except in compliance with * the License. You may obtain a copy of the License at * * http://www.apache.org/licenses/LICENSE-2.0 * * Unless required by applicable law or agreed to in writing, software * distributed under the License is distributed on an "AS IS" BASIS, * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. * See the License for the specific language governing permissions and * limitations under the License. */ package org.apache.jasper.runtime; import java.io.IOException; import javax.servlet.ServletConfig; import javax.servlet.ServletException; import javax.servlet.http.HttpServlet; import javax.servlet.http.HttpServletRequest; import javax.servlet.http.HttpServletResponse; import javax.servlet.jsp.HttpJspPage; import org.apache.jasper.Constants; import org.apache.jasper.compiler.Localizer; /** * This is the super class of all JSP-generated servlets. * * @author Anil K. Vijendran */ public abstract class HttpJspBase extends HttpServlet implements HttpJspPage { private static final long serialVersionUID = 1L; protected HttpJspBase() { } @Override public final void init(ServletConfig config) throws ServletException { super.init(config); jspInit(); _jspInit(); } @Override public String getServletInfo() { return Localizer.getMessage("jsp.engine.info", Constants.SPEC_VERSION); } @Override public final void destroy() { jspDestroy(); _jspDestroy(); } /** * Entry point into service. */ @Override public final void service(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException { _jspService(request, response); } @Override public void jspInit() { } public void _jspInit() { } @Override public void jspDestroy() { } protected void _jspDestroy() { } @Override public abstract void _jspService(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException; }
JSP的实质
可以用一句话来总结此部分的全部内容：JSP是未经过JSP引擎转移的Java-Servlet类。
3-JSP的重要概念
JSP在重要的概念方面，主要如下：
复制代码
1
2

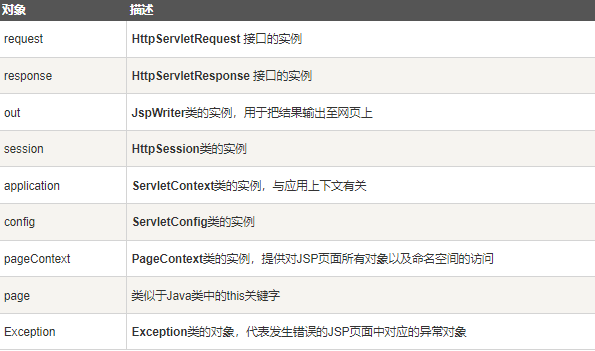

3【1】三大指令标签：@page、@include、@taglib 【2】九大内置对象（如下图所示）：与Servlet部分的ServletContext-Application域、HttpSession-Session域、HttpServletRequest-Request域的概念紧密相关，主要就是通过内置对象实现Java代码与JSP页面之间的数据传递。。
在此对上述内容不再做详细的阐述，可查看：菜鸟教程-Servlet，里面已经讲得十分详尽了。
4-JSP+Servlet开发案例
前序
虽然JSP与Java代码可以混合使用，甚至一个JSP文件就能够完全替换到相同功能的Servlet类，但是，这样开发服务器程序不仅效率低下，而且难以维护。
于是，有了如下的开发思路：Servlet更适合专门编写JAVA代码,JSP更擅长展示数据,Servlet更适合做后台程序,所以在分层上,往往将Servlet作为控制层Controller使用,JSP作为视图层view使用,可以让Servlet将数据发送给JSP,然后在JSP上展示数据
案例开发

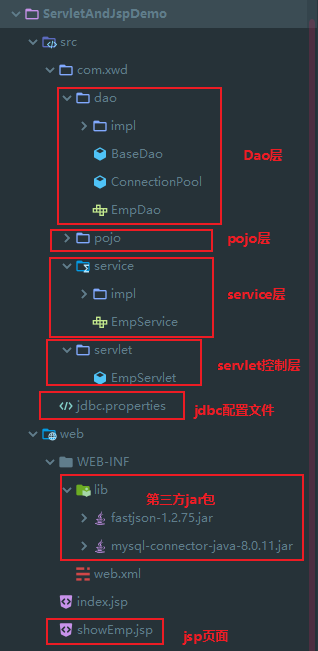

项目结构搭建
jdbc.properties配置文件编写
复制代码
1
2
3
4
5
6
7driver=com.mysql.cj.jdbc.Driver url=jdbc:mysql://localhost:3306/test?useSSL=false&useUnicode=true&characterEncoding=utf8&serverTimezone=GMT&useServerPrepStmts=true&cachePrepStmts=true&rewriteBatchedStatements=true username=root password=root minSize=5 maxSize=10
pojo层源代码
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138package com.xwd.pojo; import org.omg.CORBA.INTERNAL; import java.io.Serializable; import java.math.BigDecimal; import java.util.Date; /** * @ClassName Emp * @Description: com.xwd.dao * @Auther: xiwd * @Date: 2022/2/7 - 02 - 07 - 18:57 * @version: 1.0 */ public class Emp implements Serializable { private static final long serialVersionUID = -4657007327124076894L; //properties private Integer empno; private String ename; private Integer mgr; private String job; private Date hiredate; private BigDecimal sal; private BigDecimal comm; private Integer deptno; private String grade; //setter public void setEmpno(Integer empno) { this.empno = empno; } public void setEname(String ename) { this.ename = ename; } public void setMgr(Integer mgr) { this.mgr = mgr; } public void setJob(String job) { this.job = job; } public void setHiredate(Date hiredate) { this.hiredate = hiredate; } public void setSal(BigDecimal sal) { this.sal = sal; } public void setComm(BigDecimal comm) { this.comm = comm; } public void setDeptno(Integer deptno) { this.deptno = deptno; } public void setGrade(String grade) { this.grade = grade; } //getter public Integer getEmpno() { return empno; } public String getEname() { return ename; } public Integer getMgr() { return mgr; } public String getJob() { return job; } public Date getHiredate() { return hiredate; } public BigDecimal getSal() { return sal; } public BigDecimal getComm() { return comm; } public Integer getDeptno() { return deptno; } public String getGrade() { return grade; } //constructors public Emp() { this(null,null,null,null,null,null,null,null,null); } public Emp(Integer empno, String ename, Integer mgr, String job, Date hiredate, BigDecimal sal, BigDecimal comm, Integer deptno, String grade) { super(); this.empno = empno; this.ename = ename; this.mgr = mgr; this.job = job; this.hiredate = hiredate; this.sal = sal; this.comm = comm; this.deptno = deptno; this.grade = grade; } //methods @Override public String toString() { return "Emp{" + "empno=" + empno + ", ename='" + ename + ''' + ", mgr=" + mgr + ", job='" + job + ''' + ", hiredate=" + hiredate + ", sal=" + sal + ", comm=" + comm + ", deptno=" + deptno + ", grade=" + grade + '}'; } }
dao层源代码
数据库连接池类：ConnectionPool
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123package com.xwd.dao; import java.io.InputStream; import java.sql.Connection; import java.sql.Driver; import java.sql.DriverManager; import java.sql.SQLException; import java.util.LinkedList; import java.util.Properties; /** * @ClassName ConnectionPool * @Description: com.xwd.utils * @Auther: xiwd * @Date: 2022/2/7 - 02 - 07 - 19:07 * @version: 1.0 */ public class ConnectionPool { //properties private static String DRIVER; private static String URL; private static String USERNAME; private static String PASSWORD; private static int maxSize; private static int minSize; private static Properties properties; private static LinkedList<Connection> pools; //block static { //获取输入流对象 InputStream inputStream = ConnectionPool.class.getClassLoader().getResourceAsStream("jdbc.properties"); try { properties=new Properties(); properties.load(inputStream); //初始化Connection数据库连接参数 DRIVER=properties.getProperty("driver"); URL=properties.getProperty("url"); USERNAME=properties.getProperty("username"); PASSWORD=properties.getProperty("password"); minSize=Integer.valueOf(properties.getProperty("minSize")); maxSize=Integer.valueOf(properties.getProperty("maxSize")); //注册数据库连接驱动 Class.forName(DRIVER); //初始化数据库连接池 pools=new LinkedList<>(); for (int i = 0; i < minSize; i++) { Connection connection = initConnection(); System.out.println("Connection "+connection.hashCode()+" has been initialized"); pools.addFirst(connection); } } catch (Exception e) { e.printStackTrace(); System.out.println("JDBC Driver Initialized ERROR!"); } } //methods /* * 初始化minSize个数据库连接对象 * @return */ private static Connection initConnection() { Connection connection = null; try { connection = DriverManager.getConnection(URL, USERNAME, PASSWORD); } catch (SQLException e) { e.printStackTrace(); System.out.println("Connection "+connection.hashCode()+" initialized ERROR!"); } return connection; } /* * 从数据库连接池中获取数据库连接对象 * @return */ public static Connection getConnection(){ Connection connection=null; //判断数据库连接池中是否还有Connection if (pools.size()>0){ connection=pools.removeLast(); }else { connection = initConnection(); } return connection; } /* * 归还数据库连接对象 * @param connection 要归还的数据库连接对象 */ public static void returnConnection(Connection connection){ if (connection==null){ System.out.println("OPERATION was denied because connection is null"); return; } //如果connection未被关闭 try { if (!connection.isClosed()) { //修改事务处理模式为——自动提交模式 connection.setAutoCommit(true); //判断pools是否达到存储上限 if (pools.size()<maxSize){ //归还数据库连接对象 pools.addFirst(connection); }else { connection.close(); } }else { System.out.println("Connection "+connection.hashCode()+" has been closed already!"); } } catch (SQLException e) { e.printStackTrace(); } } }
数据库操作基类：BaseDao
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82package com.xwd.dao; import java.lang.reflect.Field; import java.lang.reflect.Method; import java.lang.reflect.Modifier; import java.sql.Connection; import java.sql.PreparedStatement; import java.sql.ResultSet; import java.util.ArrayList; import java.util.List; /** * @ClassName BaseDao * @Description: com.xwd.dao * @Auther: xiwd * @Date: 2022/2/7 - 02 - 07 - 19:06 * @version: 1.0 */ public abstract class BaseDao extends ConnectionPool { //methods public static List baseQuery(Class clazz,String sql,Object ...args){ List list=null; Connection connection=null; PreparedStatement statement=null; ResultSet resultSet=null; //数据库操作 try { //获取数据库连接 connection = getConnection(); statement = connection.prepareStatement(sql); //设置查询参数 for (int i = 0; i < args.length; i++) { statement.setObject(i+1,args[i]); } //执行SQL查询 resultSet = statement.executeQuery(); //实例化集合 list=new ArrayList(); //解析结果集 while (resultSet.next()) { //通过反射创建对象 Object newInstance = clazz.newInstance(); //通过反射获取属性字段 Field[] declaredFields = clazz.getDeclaredFields(); int index=1; if (null!=declaredFields){ for (Field declaredField : declaredFields) { //如果为static字段，就直接进入下一次循环 if (Modifier.isStatic(declaredField.getModifiers())) continue; //非static字段，进行解析 //获取字段名称 String name = declaredField.getName(); //获取setter方法 String setMethodName = getSetterByFiledNmae(name); //通过反射获取setter方法 Method declaredMethod = clazz.getDeclaredMethod(setMethodName, declaredField.getType()); //System.out.println("setMethodName:"+setMethodName+"t"+"ParamType:"+declaredField.getType().getName()); //调用gsetter方法 declaredMethod.invoke(newInstance,resultSet.getObject(index)); index++; } //System.out.println(newInstance.toString()); //将封装好的newInstance放入list中 list.add(newInstance); } } return list; } catch (Exception e){ e.printStackTrace(); return list; } } private static String getSetterByFiledNmae(String fieldName) { if (null==fieldName||"".equals(fieldName)) return null; return "set"+fieldName.substring(0,1).toUpperCase()+fieldName.substring(1); } }
EmpDao接口定义
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24package com.xwd.dao; import com.xwd.pojo.Emp; import java.util.List; /** * @ClassName EmoDao * @Description: com.xwd.dao * @Auther: xiwd * @Date: 2022/2/7 - 02 - 07 - 19:01 * @version: 1.0 */ public interface EmpDao { //methods /* * query all Emp in DB * @return the list of Emp's info */ public abstract List<Emp> findAll(); }
EmpDaoImpl子类实现
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35package com.xwd.dao.impl; import com.xwd.dao.BaseDao; import com.xwd.dao.EmpDao; import com.xwd.pojo.Emp; import java.util.List; /* * @ClassName EmpDaoImpl * @Description: com.xwd.dao.impl * @Auther: xiwd * @Date: 2022/2/7 - 02 - 07 - 19:01 * @version: 1.0 */ public class EmpDaoImpl extends BaseDao implements EmpDao { //methods @Override public List<Emp> findAll() { String query_sql="tSELECT emp.empno,ename,mgr,job,hiredate,sal,comm,deptno,graden" + "tFROM emp,t(SELECT empno,n" + "ttttttt(CASEn" + "ttttttttWHEN (sal+comm)>10000.0 THEN 'A'n" + "ttttttttWHEN (sal+comm)>8000.0 AND (sal+comm)<10000.0 THEN 'B'n" + "ttttttttELSE 'C' n" + "ttttttttEND)n" + "tttttttas graden" + "tttttttFROM emp ) as An" + "tWHERE emp.empno=A.empno"; return (List<Emp>)(baseQuery(Emp.class, query_sql)); } }
service层源代码
EmpService接口定义
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23package com.xwd.service; import com.xwd.pojo.Emp; import java.util.List; /** * @ClassName EmpService * @Description: com.xwd.service * @Auther: xiwd * @Date: 2022/2/7 - 02 - 07 - 19:05 * @version: 1.0 */ public interface EmpService { //methods /** * query all Emp in DB * @return the list of Emp's info */ public abstract List<Emp> findAll(); }
EmpServiceImpl子类实现
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28package com.xwd.service.impl; import com.xwd.dao.EmpDao; import com.xwd.dao.impl.EmpDaoImpl; import com.xwd.pojo.Emp; import com.xwd.service.EmpService; import java.util.List; /** * @ClassName EmpServiceImpl * @Description: com.xwd.service.impl * @Auther: xiwd * @Date: 2022/2/7 - 02 - 07 - 19:05 * @version: 1.0 */ public class EmpServiceImpl implements EmpService { //properties private static EmpDao empDao=new EmpDaoImpl(); //methods @Override public List<Emp> findAll() { return empDao.findAll(); } }
servlet层源代码
EmpServlet类实现
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59package com.xwd.servlet; import com.alibaba.fastjson.JSON; import com.xwd.pojo.Emp; import com.xwd.service.EmpService; import com.xwd.service.impl.EmpServiceImpl; import javax.servlet.ServletException; import javax.servlet.annotation.WebServlet; import javax.servlet.http.HttpServlet; import javax.servlet.http.HttpServletRequest; import javax.servlet.http.HttpServletResponse; import java.io.IOException; import java.io.PrintWriter; import java.util.List; /** * @ClassName EmpServlet * @Description: com.xwd.servlet * @Auther: xiwd * @Date: 2022/2/7 - 02 - 07 - 19:02 * @version: 1.0 */ @WebServlet( name = "empservlet", value = { "/empservlet" } ) public class EmpServlet extends HttpServlet { //properties private static EmpService empService=new EmpServiceImpl(); //methods @Override protected void doGet(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException { //super.doGet(req, resp); this.doPost(req, resp); } @Override protected void doPost(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException { //super.doPost(req, resp); //设置参数解析字符编码格式 req.setCharacterEncoding("UTF-8"); //设置响应字符编码格式 resp.setCharacterEncoding("UTF-8"); resp.setContentType("text/html;charset=UTF-8"); //解析请求参数 List<Emp> emps = empService.findAll(); //设置request域的attribute属性信息 req.setAttribute("emps",emps); //请求转发 req.getRequestDispatcher("/showEmp.jsp").forward(req,resp); } }
JSP页面编写：showEmp.jsp
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81<%@ page import="java.util.List" %> <%@ page import="com.xwd.pojo.Emp" %> <%-- Created by IntelliJ IDEA. User: 13241 Date: 2022/2/7 Time: 20:07 To change this template use File | Settings | File Templates. --%> <%@ page contentType="text/html;charset=UTF-8" language="java" %> <html> <head> <title>Emp-Infomation</title> <style> * { margin: 0; padding: 0; box-sizing: border-box; } .infotable { margin: 0px auto; border: 2px solid skyblue; width: 80%; } tr, td { border: 1px solid black; } td { text-align: center; } tr:first-child { font-weight: 700; } </style> </head> <body> <table class="infotable" cellspacing="0px" cellpadding="0px"> <tr> <td>编号</td> <td>姓名</td> <td>上级编号</td> <td>职务</td> <td>入职日期</td> <td>薪资</td> <td>补助</td> <td>部门号</td> <td>薪资等级</td> </tr> <% //从request内置对象读取参数信息 List<Emp> emps = (List<Emp>)(request.getAttribute("emps")); int size = emps.size(); %> <% for (int i = 0; i < size; i++) { //Emp emp = emps.get(i); //将数据设置到PageContext域，不断更新相同属性名称的值即可 pageContext.setAttribute("emp",emps.get(i)); %> <tr> <td>${pageScope.emp.empno}</td> <td>${pageScope.emp.ename}</td> <td>${pageScope.emp.mgr}</td> <td>${pageScope.emp.job}</td> <td>${pageScope.emp.hiredate}</td> <td>${pageScope.emp.sal}</td> <td>${pageScope.emp.comm}</td> <td>${pageScope.emp.deptno}</td> <td>${pageScope.emp.grade}</td> </tr> <%}%> </table> </body> </html>

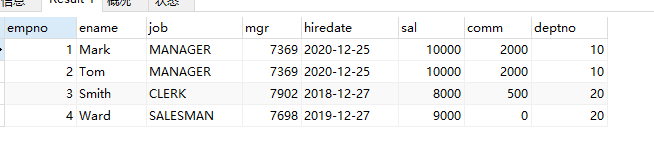

数据表emp：sql转储文件
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46/* Navicat Premium Data Transfer Source Server : mysql8 Source Server Type : MySQL Source Server Version : 80023 Source Host : localhost:3306 Source Schema : test Target Server Type : MySQL Target Server Version : 80023 File Encoding : 65001 Date: 07/02/2022 21:20:01 */ SET NAMES utf8mb4; SET FOREIGN_KEY_CHECKS = 0; -- ---------------------------- -- Table structure for emp -- ---------------------------- DROP TABLE IF EXISTS `emp`; CREATE TABLE `emp` ( `empno` int(0) NOT NULL AUTO_INCREMENT COMMENT '编号', `ename` varchar(64) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci DEFAULT NULL COMMENT '姓名', `job` varchar(64) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci DEFAULT NULL COMMENT '职务', `mgr` int(0) DEFAULT NULL COMMENT '上级编号', `hiredate` date DEFAULT NULL COMMENT '入职日期', `sal` decimal(10, 0) DEFAULT NULL COMMENT '薪资', `comm` decimal(10, 0) DEFAULT NULL COMMENT '补助', `deptno` int(0) NOT NULL COMMENT '部门号', PRIMARY KEY (`empno`) USING BTREE ) ENGINE = InnoDB CHARACTER SET = utf8mb4 COLLATE = utf8mb4_0900_ai_ci ROW_FORMAT = Dynamic; -- ---------------------------- -- Records of emp -- ---------------------------- INSERT INTO `emp` VALUES (1, 'Mark', 'MANAGER', 7369, '2020-12-25', 10000, 2000, 10); INSERT INTO `emp` VALUES (2, 'Tom', 'MANAGER', 7369, '2020-12-25', 10000, 2000, 10); INSERT INTO `emp` VALUES (3, 'Smith', 'CLERK', 7902, '2018-12-27', 8000, 500, 20); INSERT INTO `emp` VALUES (4, 'Ward', 'SALESMAN', 7698, '2019-12-27', 9000, 0, 20); SET FOREIGN_KEY_CHECKS = 1;

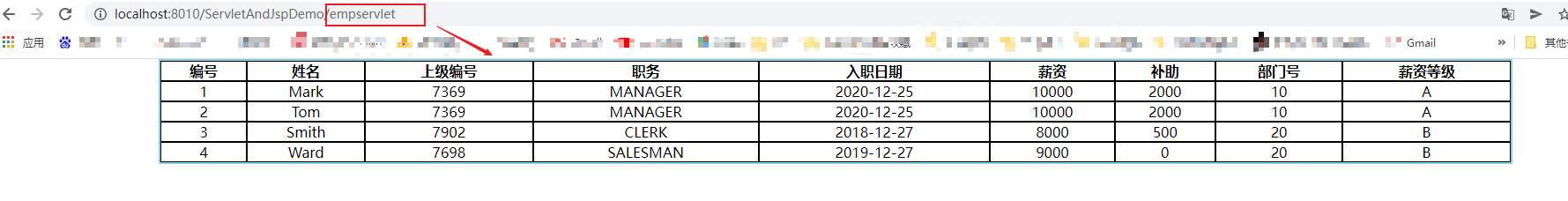

案例效果
完整项目文件也可访问：Gitee仓库下载此案例。
