使用eclipse+maven搭建ssm开发环境-02

71 阅读 0 评论
我是靠谱客的博主 害怕板栗，最近开发中收集的这篇文章主要介绍使用eclipse+maven搭建ssm开发环境-02，觉得挺不错的，现在分享给大家，希望可以做个参考。

概述

1.修改Pom.xml文件，下载需要的jar包

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<groupId>com.peng</groupId>
	<artifactId>ssm</artifactId>
	<packaging>war</packaging>
	<version>0.0.1-SNAPSHOT</version>
	<name>ssm Maven Webapp</name>
	<url>http://maven.apache.org</url>

	<properties>
		<!-- Spring版本号 -->
		<spring.version>4.3.10.RELEASE</spring.version>
		<!-- MyBatis -->
		<mybatis.version>3.4.6</mybatis.version>
		<!-- MySql -->
		<mysql-driver.version>5.1.43</mysql-driver.version>
		<!-- Druid -->
		<druid.version>1.1.10</druid.version>
		<!-- log4j日志包版本号 -->
            <log4j.version>1.2.17</log4j.version>
            <slf4j.version>1.7.18</slf4j.version>
	</properties>

	<dependencies>
		<!-- Spring相关包 -->
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-core</artifactId>
			<version>${spring.version}</version>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-aop</artifactId>
			<version>${spring.version}</version>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-web</artifactId>
			<version>${spring.version}</version>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-webmvc</artifactId>
			<version>${spring.version}</version>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-jdbc</artifactId>
			<version>${spring.version}</version>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-tx</artifactId>
			<version>${spring.version}</version>
		</dependency>

		<!-- AOP相关包 -->
		<dependency>
			<groupId>org.aspectj</groupId>
			<artifactId>aspectjrt</artifactId>
			<version>1.8.0</version>
		</dependency>
		<dependency>
			<groupId>org.aspectj</groupId>
			<artifactId>aspectjweaver</artifactId>
			<version>1.8.0</version>
		</dependency>

		<!-- MyBatis相关包 -->
		<dependency>
			<groupId>org.mybatis</groupId>
			<artifactId>mybatis</artifactId>
			<version>${mybatis.version}</version>
		</dependency>

		<!-- MySQL相关包 -->
		<dependency>
			<groupId>mysql</groupId>
			<artifactId>mysql-connector-java</artifactId>
			<version>${mysql-driver.version}</version>
		</dependency>

		<!-- 数据库连接池 -->
		<dependency>
			<groupId>com.alibaba</groupId>
			<artifactId>druid</artifactId>
			<version>${druid.version}</version>
		</dependency>

		<!-- Spring集成MyBatis -->
		<dependency>
			<groupId>org.mybatis</groupId>
			<artifactId>mybatis-spring</artifactId>
			<version>1.3.2</version>
		</dependency>

		<!-- JSP标准标签库 -->
		<dependency>
			<groupId>javax.servlet</groupId>
			<artifactId>jstl</artifactId>
			<version>1.2</version>
		</dependency>

		<!-- 日志相关包 -->
		<dependency>
			<groupId>log4j</groupId>
			<artifactId>log4j</artifactId>
			<version>${log4j.version}</version>
		</dependency>
		<dependency>
			<groupId>org.slf4j</groupId>
			<artifactId>slf4j-api</artifactId>
			<version>${slf4j.version}</version>
		</dependency>

		<!-- 单元测试相关包 -->
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.12</version>
        </dependency>

	</dependencies>
	<build>
		<finalName>ssm</finalName>
		<plugins>
			<plugin>
				<groupId>org.apache.maven.plugins</groupId>
				<artifactId>maven-compiler-plugin</artifactId>
				<configuration>
					<source>1.8</source>
					<target>1.8</target>
				</configuration>
			</plugin>
		</plugins>
	</build>
</project>

2.创建配置文件

1).log4j.properties的内容

log4j.rootLogger=DEBUG, Console

#Console
log4j.appender.Console=org.apache.log4j.ConsoleAppender
log4j.appender.Console.layout=org.apache.log4j.PatternLayout
log4j.appender.Console.layout.ConversionPattern=%d [%t] %-5p [%c] - %m%n

2).spring-mvc.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:context="http://www.springframework.org/schema/context"
    xmlns:mvc="http://www.springframework.org/schema/mvc"
    xsi:schemaLocation="
        http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd
        http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc.xsd">

    <!-- 启动自动扫描 -->
    <context:component-scan base-package="com.peng.ssm.controller" />

    <!-- 注册MVC注解驱动 -->
    <mvc:annotation-driven />

    <!-- 静态资源可访问的设置方式 -->
    <mvc:default-servlet-handler />

    <!-- 配置视图解析器，可以显式设置，也可以不设置，不设置会依据SpringMVC的默认设置 -->
    <bean id="viewResolver"
        class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <property name="prefix" value="/" />
        <property name="suffix" value=".jsp" />
    </bean>
</beans>

3).spring-mybatis.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:tx="http://www.springframework.org/schema/tx"
	xmlns:context="http://www.springframework.org/schema/context"
	xsi:schemaLocation="
        http://www.springframework.org/schema/beans
        http://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/tx
        http://www.springframework.org/schema/tx/spring-tx.xsd
        http://www.springframework.org/schema/context
        http://www.springframework.org/schema/context/spring-context-3.1.xsd  ">

	<!-- 自动扫描 -->
	<context:component-scan base-package="com.peng.ssm" />

	<!-- 引入配置文件 -->
	<bean id="propertyConfigurer"
		class="org.springframework.beans.factory.config.PropertyPlaceholderConfigurer">
		<property name="location" value="classpath:jdbc.properties" />
	</bean>

	<!-- 定义数据源Bean -->
	<!-- Druid -->
	<bean id="dataSource" class="com.alibaba.druid.pool.DruidDataSource">
		<property name="driverClassName" value="${driver}" />
		<property name="url" value="${url}" />
		<property name="username" value="${username}" />
		<property name="password" value="${password}" />
		<!-- 初始化连接大小 -->
        <property name="initialSize" value="${initialSize}"></property>
        <!-- 连接池最大数量 -->
        <property name="maxActive" value="${maxActive}"></property>
        <!-- 连接池最大空闲 -->
        <property name="maxIdle" value="${maxIdle}"></property>
        <!-- 连接池最小空闲 -->
        <property name="minIdle" value="${minIdle}"></property>
        <!-- 获取连接最大等待时间 -->
        <property name="maxWait" value="${maxWait}"></property>
	</bean>

	<!-- 注册SqlSessionFactoryBean -->
	<bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
		<property name="dataSource" ref="dataSource" />
		<!-- 自动扫描mappers.xml文件 -->
		<property name="mapperLocations" value="classpath:mappers/*Mapper.xml" />
	</bean>

	<!-- DAO接口所在包名，Spring会自动查找其下的类 -->
	<bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
		<property name="basePackage" value="com.peng.ssm.dao" />
		<property name="sqlSessionFactoryBeanName" value="sqlSessionFactory" />
	</bean>

	<!-- (事务管理)transaction manager, use JtaTransactionManager for global tx -->
	<bean id="transactionManager"
		class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
		<property name="dataSource" ref="dataSource" />
	</bean>


</beans>

4).修改web.xml

<?xml version="1.0" encoding="UTF-8"?>
<web-app
        version="3.0"
        xmlns="http://java.sun.com/xml/ns/javaee"
        xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
        xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd">

	<context-param>
		<param-name>contextConfigLocation</param-name>
		<param-value>classpath:spring-mybatis.xml</param-value>
	</context-param>

	<context-param>
		<param-name>log4jConfigLocation</param-name>
		<param-value>classpath:log4j.properties</param-value>
	</context-param>

	<!-- 编码过滤器 -->
	<filter>
		<filter-name>encodingFilter</filter-name>
		<filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
		<init-param>
			<param-name>encoding</param-name>
			<param-value>UTF-8</param-value>
		</init-param>
	</filter>
	<filter-mapping>
		<filter-name>encodingFilter</filter-name>
		<url-pattern>/*</url-pattern>
	</filter-mapping>

	<!-- spring监听器 -->
	<listener>
		<listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
	</listener>

	<!-- spring mvc servlet -->
	<servlet>
		<servlet-name>SpringMVC</servlet-name>
		<servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
		<init-param>
			<param-name>contextConfigLocation</param-name>
			<param-value>classpath:spring-mvc.xml</param-value>
		</init-param>
		<load-on-startup>1</load-on-startup>
	</servlet>
	<servlet-mapping>
		<servlet-name>SpringMVC</servlet-name>
		<!-- 此处也可以配置成 *.do 形式 -->
		<url-pattern>/</url-pattern>
	</servlet-mapping>

	<welcome-file-list>
		<welcome-file>/index.jsp</welcome-file>
	</welcome-file-list>

</web-app>

5).jdbc.properties

driver=com.mysql.jdbc.Driver
url=jdbc:mysql://localhost:3306/test
username=root
password=123456
initialSize=0
maxActive=20
maxIdle=20
minIdle=1
maxWait=60000



3.编写服务器端代码

1).创建student表

2).创建目录结构



1).实体类

package com.peng.ssm.entity;

public class Student {

	private int id;

	private String sname;

	private int sage;

	public int getId() {
		return id;
	}

	public void setId(int id) {
		this.id = id;
	}

	public String getSname() {
		return sname;
	}

	public void setSname(String sname) {
		this.sname = sname;
	}

	public int getSage() {
		return sage;
	}

	public void setSage(int sage) {
		this.sage = sage;
	}

	@Override
	public String toString() {
		return "Student [id=" + id + ", sname=" + sname + ", sage=" + sage + "]";
	}


}

2).DAO接口

package com.peng.ssm.dao;

import java.util.List;

import com.peng.ssm.entity.Student;

public interface StudentDao {

	public List<Student> selectAll();

}

3).Mapper文件

StudentMapper.XML用来编写SQL语句

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.peng.ssm.dao.StudentDao">

    <select id="selectAll" resultType="com.peng.ssm.entity.Student">
        select * from student
    </select>

</mapper>

3).Service接口和实现类

package com.peng.ssm.service.impl;

import java.util.List;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import com.peng.ssm.dao.StudentDao;
import com.peng.ssm.entity.Student;
import com.peng.ssm.service.StudentService;

@Service
public class StudentServiceImpl implements StudentService{

	@Autowired
	private StudentDao dao;

	@Override
	public List<Student> selectAll() {
		return dao.selectAll();
	}

}

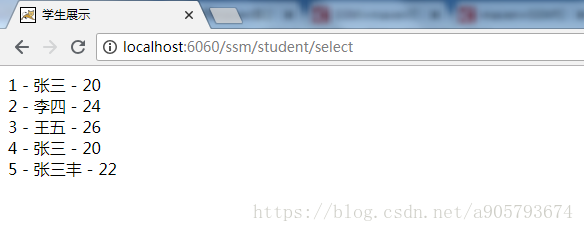

4).Controller

package com.peng.ssm.controller;

import java.util.List;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.servlet.ModelAndView;

import com.peng.ssm.entity.Student;
import com.peng.ssm.service.StudentService;

@Controller
@RequestMapping("/student")
public class StudentController {

	  @Autowired
	  private StudentService service;

	  @RequestMapping("/select")
	  public ModelAndView select(){
		  List<Student> list = service.selectAll();
		  ModelAndView mv = new ModelAndView();
		  mv.setViewName("show");
		  mv.addObject("list", list);
		  return mv;
	  }
}

5).在webapp下新建一个show.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<title>学生展示</title>
</head>
<body>

	<c:forEach var="s" items="${requestScope.list }">
		${s.id } - ${s.sname } - ${s.sage } <br/>
	</c:forEach>

</body>
</html>

4.部署项目进行测试



最后

以上就是害怕板栗为你收集整理的使用eclipse+maven搭建ssm开发环境-02的全部内容，希望文章能够帮你解决使用eclipse+maven搭建ssm开发环境-02所遇到的程序开发问题。

如果觉得靠谱客网站的内容还不错，欢迎将靠谱客网站推荐给程序员好友。

本图文内容来源于网友提供，作为学习参考使用，或来自网络收集整理，版权属于原作者所有。
点赞(47)

相关文章

docker 安装milvus2.0教程（单机版）
docker 安装milvus2.0教程（单机版）
idea项目发布不能生成target
idea项目发布不能生成target
javaweb项目部分总结(第一期)
javaweb项目部分总结(第一期)
JAVA Eclipse使用Maven构建web项目详解(SSM框架)
JAVA Eclipse使用Maven构建web项目详解(SSM框架)
使用eclipse+maven搭建ssm开发环境-02
使用eclipse+maven搭建ssm开发环境-02
eclipse手动搭建SSM框架
eclipse手动搭建SSM框架
手写第一个JavaWeb程序
手写第一个JavaWeb程序
eclipse java web架构_eclipse搭建maven的web项目（SSM框架）
eclipse java web架构_eclipse搭建maven的web项目（SSM框架）

评论列表共有 0 条评论

立即
投稿
返回
顶部
