PyTorch 实现

在这次的代码里，是通过简单的神经网络实现一个 MINIST 的分类器，并且通过 TensorBoard 实现训练过程的可视化。

在训练阶段，通过 scalar_summary 画出损失和精确率，通过 image_summary 可视化训练的图像。

另外，使用 histogram_summary 可视化神经网络的参数的权重和梯度值。

需要安装的 package

tensorflow

torch

torchvision

scipy

numpy

LOG 功能实现(Logger 类)

基于 TensorBoard，给 Pytorch 的训练提供保存训练信息的接口。

Tensorboard 可以记录与展示以下数据形式：

标量 Scalars

图片 Images

音频 Audio

计算图 Graph

数据分布 Distribution

直方图 Histograms

嵌入向量 Embeddings

代码中实现了标量 Scalar、图片 Image、直方图 Histogram 的保存。

1

2

3

4

5

6

7

8

# 包

import tensorflow as tf

import numpy as np

import scipy.misc

try:

from StringIO import StringIO # Python 2.7

except ImportError:

from io import BytesIO # Python 3.x

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

class Logger(object):

def __init__(self, log_dir):

"""Create a summary writer logging to log_dir."""

# 创建一个指向log文件夹的summary writer

self.writer = tf.summary.FileWriter(log_dir)

def scalar_summary(self, tag, value, step):

"""Log a scalar variable."""

# 标量信息 日志

summary = tf.Summary(value=[tf.Summary.Value(tag=tag, simple_value=value)])

self.writer.add_summary(summary, step)

def image_summary(self, tag, images, step):

"""Log a list of images."""

# 图像信息 日志

img_summaries = []

for i, img in enumerate(images):

# Write the image to a string

try:

s = StringIO()

except:

s = BytesIO()

scipy.misc.toimage(img).save(s, format="png")

# Create an Image object

img_sum = tf.Summary.Image(encoded_image_string=s.getvalue(),

height=img.shape[0],

width=img.shape[1])

# Create a Summary value

img_summaries.append(tf.Summary.Value(tag='%s/%d' % (tag, i), image=img_sum))

# Create and write Summary

summary = tf.Summary(value=img_summaries)

self.writer.add_summary(summary, step)

def histo_summary(self, tag, values, step, bins=1000):

"""Log a histogram of the tensor of values."""

# 直方图信息 日志

# Create a histogram using numpy

counts, bin_edges = np.histogram(values, bins=bins)

# Fill the fields of the histogram proto

hist = tf.HistogramProto()

hist.min = float(np.min(values))

hist.max = float(np.max(values))

hist.num = int(np.prod(values.shape))

hist.sum = float(np.sum(values))

hist.sum_squares = float(np.sum(values**2))

# Drop the start of the first bin

bin_edges = bin_edges[1:]

# Add bin edges and counts

for edge in bin_edges:

hist.bucket_limit.append(edge)

for c in counts:

hist.bucket.append(c)

# Create and write Summary

summary = tf.Summary(value=[tf.Summary.Value(tag=tag, histo=hist)])

self.writer.add_summary(summary, step)

self.writer.flush()

创建模型并训练(训练过程中输出日志)

1

2

3

4

5

# 包

import torch

import torch.nn as nn

import torchvision

from torchvision import transforms

1

2

3

# 设备配置

torch.cuda.set_device(1) # 这句用来设置pytorch在哪块GPU上运行

device = torch.device('cuda' if torch.cuda.is_available() else 'cpu')

1

2

3

4

5

6

7

8

9

10

# MNIST 数据集

dataset = torchvision.datasets.MNIST(root='../../../data/minist',

train=True,

transform=transforms.ToTensor(),

download=True)

# Data loader

data_loader = torch.utils.data.DataLoader(dataset=dataset,

batch_size=100,

shuffle=True)

1

2

3

4

5

6

7

8

9

10

11

12

13

14

# 定义一个全连接网络(含一个隐藏层)

# Fully connected neural network with one hidden layer

class NeuralNet(nn.Module):

def __init__(self, input_size=784, hidden_size=500, num_classes=10):

super(NeuralNet, self).__init__()

self.fc1 = nn.Linear(input_size, hidden_size)

self.relu = nn.ReLU()

self.fc2 = nn.Linear(hidden_size, num_classes)

def forward(self, x):

out = self.fc1(x)

out = self.relu(out)

out = self.fc2(out)

return out

1

2

# 实例化模型

model = NeuralNet().to(device)

1

2

# 创建日志类，指定文件夹

logger = Logger('./logs')

1

2

3

# 指定损失函数和优化器

criterion = nn.CrossEntropyLoss()

optimizer = torch.optim.Adam(model.parameters(), lr=0.00001)

1

2

3

4

# 超参数

data_iter = iter(data_loader)

iter_per_epoch = len(data_loader)

total_step = 50000

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

# 开始训练

for step in range(total_step):

# 重置迭代器

if (step+1) % iter_per_epoch == 0:

data_iter = iter(data_loader)

# 获取图像和标签

images, labels = next(data_iter)

images, labels = images.view(images.size(0), -1).to(device), labels.to(device)

# 前向传播

outputs = model(images)

loss = criterion(outputs, labels)

# 反向传播和优化

optimizer.zero_grad()

loss.backward()

optimizer.step()

# 计算准确率

_, argmax = torch.max(outputs, 1)

accuracy = (labels == argmax.squeeze()).float().mean()

if (step+1) % 100 == 0:

print ('Step [{}/{}], Loss: {:.4f}, Acc: {:.2f}'

.format(step+1, total_step, loss.item(), accuracy.item()))

# ================================================================== #

# 该部分为保存 TensorBoard 日志信息 #

# ================================================================== #

# 1. Log scalar values (scalar summary)

# 日志输出标量信息(scalar summary)

info = { 'loss': loss.item(), 'accuracy': accuracy.item() }

for tag, value in info.items():

logger.scalar_summary(tag, value, step+1)

# 2. Log values and gradients of the parameters (histogram summary)

# 日志输出参数值和梯度(histogram summary)

for tag, value in model.named_parameters():

tag = tag.replace('.', '/')

logger.histo_summary(tag, value.data.cpu().numpy(), step+1)

logger.histo_summary(tag+'/grad', value.grad.data.cpu().numpy(), step+1)

# 3. Log training images (image summary)

# 日志输出图像(image summary)

info = { 'images': images.view(-1, 28, 28)[:10].cpu().numpy() }

for tag, images in info.items():

logger.image_summary(tag, images, step+1)

Step [100/50000], Loss: 2.1946, Acc: 0.44

Step [200/50000], Loss: 2.1081, Acc: 0.51

Step [300/50000], Loss: 1.9934, Acc: 0.68

Step [400/50000], Loss: 1.7980, Acc: 0.78

Step [500/50000], Loss: 1.7040, Acc: 0.71

Step [600/50000], Loss: 1.5549, Acc: 0.73

Step [700/50000], Loss: 1.4596, Acc: 0.73

Step [800/50000], Loss: 1.3418, Acc: 0.80

.....................

Step [49500/50000], Loss: 0.1180, Acc: 0.97

Step [49600/50000], Loss: 0.2404, Acc: 0.92

Step [49700/50000], Loss: 0.1864, Acc: 0.96

Step [49800/50000], Loss: 0.0704, Acc: 1.00

Step [49900/50000], Loss: 0.0792, Acc: 0.98

Step [50000/50000], Loss: 0.1406, Acc: 0.96

调用 TensorBoard 进行可视化

经过训练后，日志信息保存在./logs 文件夹下。运行命令进行可视化，

1

$ tensorboard --logdir='./logs' --port=6006

然后打开本地浏览器，打开 http://localhost:6006/ 就能看到了。

标量 Scalar

标量 Scalar

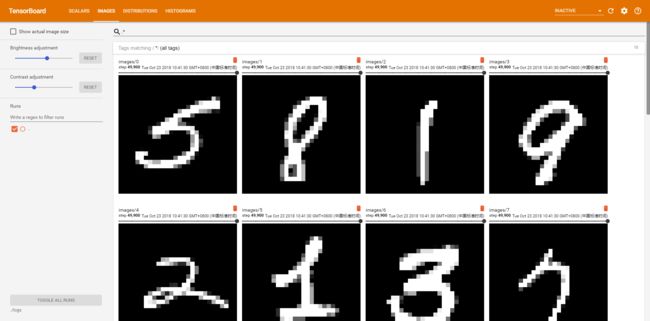

图片 Image

正在上传…重新上传取消

图片 Image

直方图 Histogram

直方图 Histogram
