概述
一、实验服务器分配
1、192.168.1.112 Nginx WEB+NFS
2、192.168.1.117 MYSQL主库+Tomcat
3、192.168.1.118 MYSQL从库+Tomcat
二、安装实验必备服务
1、源码安装Nginx WEB前端[192.168.1.112]
①、关闭防火墙并下载Nginx源码包
[root@localhost ~]# systemctl stop firewalld
[root@localhost ~]# wget -c http://nginx.org/download/nginx-1.14.0.tar.gz
②、安装PCRE库和基础库支持
[root@localhost ~]# yum install pcre-devel pcre gcc-c++ openssl openssl-devel zlib-devel -y
③、解压nginx-1.14.0源码包，并创建服务用户
[root@localhost ~]# tar -xzf nginx-1.14.0.tar.gz
[root@localhost ~]# useradd -s /sbin/nologin nginx -M
④、进入nginx-1.14.0，进行预编译
[root@localhost ~]# cd nginx-1.14.0/
[root@localhost nginx-1.14.0]# ./configure --prefix=/data/nginx --with-http_stub_status_module --with-http_ssl_module
⑤、编译与编译安装
[root@localhost nginx-1.14.0]# make && make install
⑥、检查nginx配置文件是否正确
[root@localhost nginx-1.14.0]# /data/nginx/sbin/nginx -t
nginx: the configuration file /data/nginx/conf/nginx.conf syntax is ok
nginx: configuration file /data/nginx/conf/nginx.conf test is successful
2、YUM安装NFS文件共享服务[192.168.1.112]
①、YUM安装NFS文件共享服务
[root@localhost ~]# yum install nfs-utils rpcbind -y
②、创建共享文件目录(也可以直接使用软件包进行改名)
[root@localhost ~]# mkdir -p /data/Jforum
[root@localhost ~]# mkdir -p /data/Jforum_1
③、修改配置文件
[root@localhost ~]# vim /etc/exports
添加如下命令，并保存
/data/Jforum *(rw,no_root_squash,no_all_squash,sync)
/data/Jforum_1 *(rw,no_root_squash,no_all_squash,sync)
④、启动NFS服务
[root@localhost ~]# systemctl start nfs
[root@localhost ~]# systemctl status nfs #查看运行状态
⑤、热加载配置文件
[root@localhost ~]# exportfs -r
3、源码安装MySQL数据库[192.168.1.117/192.168.1.118]
①、关闭防火墙
[root@localhost ~]# systemctl stop firewalld
②、安装编译需要的依赖
[root@localhost ~]# yum install cmake ncurses-devel ncurses libaio bison git gcc-c++ -y
③、下载MySQL-5.5.20源码包
[root@localhost ~]# wget -c http://down1.chinaunix.net/distfiles/mysql-5.5.20.tar.gz
④、解压MySQL-5.5.20源码包，并进行预编译
[root@localhost ~]# tar -xzf mysql-5.5.20.tar.gz
[root@localhost ~]# cd mysql-5.5.20
[root@localhost mysql-5.5.20]# cmake . -DCMAKE_INSTALL_PREFIX=/usr/local/mysql55 -DMYSQL_UNIX_ADDR=/tmp/mysql.sock -DMYSQL_DATADIR=/data/mysql -DSYSCONFDIR=/etc -DMYSQL_USER=mysql -DMYSQL_TCP_PORT=3306 -DWITH_XTRADB_STORAGE_ENGINE=1 -DWITH_INNOBASE_STORAGE_ENGINE=1 -DWITH_PARTITION_STORAGE_ENGINE=1 -DWITH_BLACKHOLE_STORAGE_ENGINE=1 -DWITH_MYISAM_STORAGE_ENGINE=1 -DWITH_READLINE=1 -DENABLED_LOCAL_INFILE=1 -DWITH_EXTRA_CHARSETS=1 -DDEFAULT_CHARSET=utf8 -DDEFAULT_COLLATION=utf8_general_ci -DEXTRA_CHARSETS=all -DWITH_BIG_TABLES=1 -DWITH_DEBUG=0 -DENABLE_DTRACE=0
⑤、编辑MySQL文件权限与配置文件，并启动
[root@localhost mysql-5.5.20]# cd /usr/local/mysql55
[root@localhost mysql55]# cp -f support-files/my-large.cnf /etc/my.cnf
[root@localhost mysql55]# cp -f support-files/mysql.server /etc/init.d/mysqld
[root@localhost mysql55]# chkconfig --add mysqld
[root@localhost mysql55]# chkconfig --level 35 mysqld on
[root@localhost mysql55]# mkdir -p /data/mysql
[root@localhost mysql55]# useradd -s /sbin/nologin mysql
[root@localhost mysql55]# /usr/local/mysql55/scripts/mysql_install_db --user=mysql --datadir=/data/mysql/ --basedir=/usr/local/mysql55/
[root@localhost mysql55]# ln -s /usr/local/mysql55/bin/* /usr/bin/
[root@localhost mysql55]# service mysqld start
4、建立主从同步[192.168.1.117主]
①、配置两台 MySQL 数据库服务器配置文件 vim /etc/my.cnf
1️⃣192.168.1.117 主数据库
[client]
port = 3306
socket = /tmp/mysql.sock
[mysqld]
port = 3306
socket = /tmp/mysql.sock
skip-external-locking
key_buffer_size = 256M
max_allowed_packet = 1M
table_open_cache = 256
sort_buffer_size = 1M
read_buffer_size = 1M
read_rnd_buffer_size = 4M
myisam_sort_buffer_size = 64M
thread_cache_size = 8
query_cache_size= 16M
thread_concurrency = 8
log-bin=mysql-bin
binlog_format=mixed
server-id = 1 #修改这里
[mysqldump]
quick
max_allowed_packet = 16M
[mysql]
no-auto-rehash
[myisamchk]
key_buffer_size = 128M
sort_buffer_size = 128M
read_buffer = 2M
write_buffer = 2M
[mysqlhotcopy]
interactive-timeout
2️⃣192.168.1.118 主数据库
[client]
port = 3306
socket = /tmp/mysql.sock
[mysqld]
port = 3306
socket = /tmp/mysql.sock
skip-external-locking
key_buffer_size = 256M
max_allowed_packet = 1M
table_open_cache = 256
sort_buffer_size = 1M
read_buffer_size = 1M
read_rnd_buffer_size = 4M
myisam_sort_buffer_size = 64M
thread_cache_size = 8
query_cache_size= 16M
thread_concurrency = 8
log-bin=mysql-bin
binlog_format=mixed
server-id = 2 #修改这里
[mysqldump]
quick
max_allowed_packet = 16M
[mysql]
no-auto-rehash
[myisamchk]
key_buffer_size = 128M
sort_buffer_size = 128M
read_buffer = 2M
write_buffer = 2M
[mysqlhotcopy]
interactive-timeout
②、重启 MySQL 数据库
[root@localhost ~]# systemctl restart mysql
③、创建主数据库连接账户
[root@localhost ~]# mysql #进入数据库
mysql> grant replication slave on *.* to 'tongbu'@'192.168.1.118' identified by '123456';
④、查看 bin-log 文件
mysql> show master status;
+------------------+----------+--------------+------------------+
| File | Position | Binlog_Do_DB | Binlog_Ignore_DB |
+------------------+----------+--------------+------------------+
| mysql-bin.000001 | 396 | | |
+------------------+----------+--------------+------------------+
1 row in set (0.00 sec)
⑤、连接主数据库
mysql> change master to master_host='192.168.1.117',master_user='tongbu',master_password='123456',master_log_file='mysql-bin.000001',master_log_pos=396;
Query OK, 0 rows affected (0.27 sec)
⑥、启动同步，查看主从集群是否创建完成
mysql> slave start;
Query OK, 0 rows affected (0.00 sec)
mysql> show slave status G
Slave_IO_Running: Yes
Slave_SQL_Running: Yes
当前如果 Slave_IO_Running 进程和 Slave_SQL_Running 进程都是yes，就代表主从同步建立完成。
5、建立主从同步[192.168.1.118主]
①、在从数据库创建连接账户
mysql> grant replication slave on *.* to 'tongbu'@'192.168.1.117' identified by '123456789';
②、查看从数据库bin-log文件
mysql> show master status;
+------------------+----------+--------------+------------------+
| File | Position | Binlog_Do_DB | Binlog_Ignore_DB |
+------------------+----------+--------------+------------------+
| mysql-bin.000008 | 404 | | |
+------------------+----------+--------------+------------------+
③、进入主数据库连接从数据库
mysql> change master to master_host='192.168.1.118',master_user='tongbu',master_password='123456789',master_log_file='mysql-bin.000008',master_log_pos=404;
④、启动同步，查看主从集群是否创建完成
mysql> slave start;
Query OK, 0 rows affected (0.00 sec)
mysql> show slave status G
Slave_IO_Running: Yes
Slave_SQL_Running: Yes
6、安装Apache Tomcat[192.168.1.117/192.168.1.118]
①、上传JDK与Apache Tomcat服务包
[root@localhost ~]# yum install lrzsz -y #上传组件
[root@localhost ~]# rz -E #上传命令
[root@localhost ~]# ls
apache-tomcat-8.5.45.tar.gz jdk1.8.0_131.tar.gz
②、解压JDK与Apache Tomcat服务包
[root@localhost ~]# tar -xzf jdk1.8.0_131.tar.gz
[root@localhost ~]# tar -xzf apache-tomcat-8.5.45.tar.gz
③、移动JDK与Apache Tomcat服务包至 /usr/local 目录下
[root@localhost ~]# mv jdk1.8.0_131 /usr/local/java
[root@localhost ~]# mv apache-tomcat-8.5.45 /usr/local/tomcat_1
④、添加永久环境变量，不然启动Tomcat会报错
[root@localhost local]# vim /etc/profile
在最低下添加，并保存
export JAVA_HOME=/usr/local/java/
使用如下命令使其马上生效
[root@localhost local]# source /etc/profile
⑤、启动Tomcat
[root@localhost bin]# /usr/local/tomcat_1/bin/startup.sh
Using CATALINA_BASE: /usr/local/tomcat_1
Using CATALINA_HOME: /usr/local/tomcat_1
Using CATALINA_TMPDIR: /usr/local/tomcat_1/temp
Using JRE_HOME: /usr/local/java/
Using CLASSPATH: /usr/local/tomcat_1/bin/bootstrap.jar:/usr/local/tomcat_1/bin/tomcat-juli.jar
Tomcat started.
⑥、访问浏览器,看其服务测试页面正否正常访问

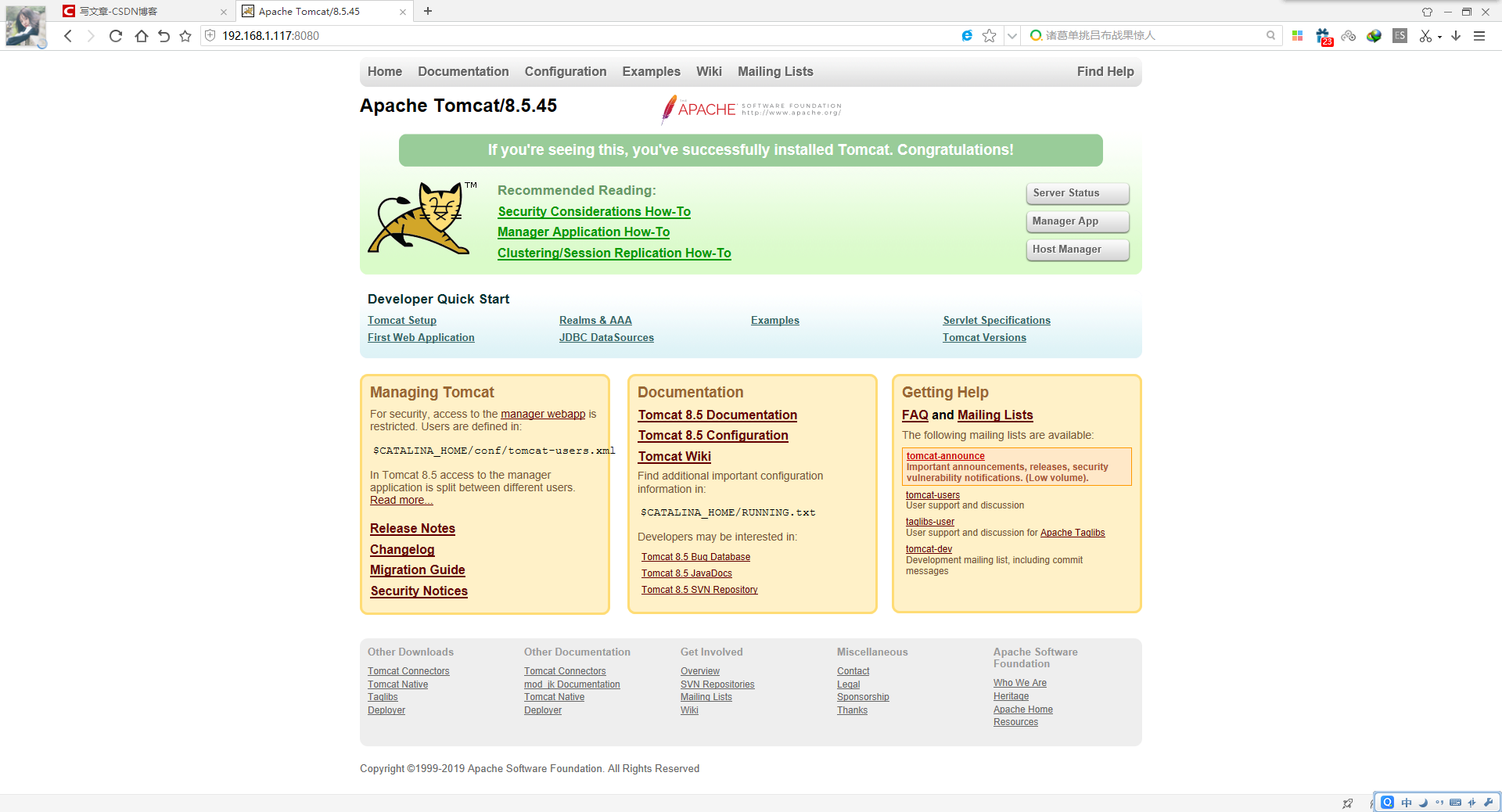

1️⃣、http://192.168.1.117:8080

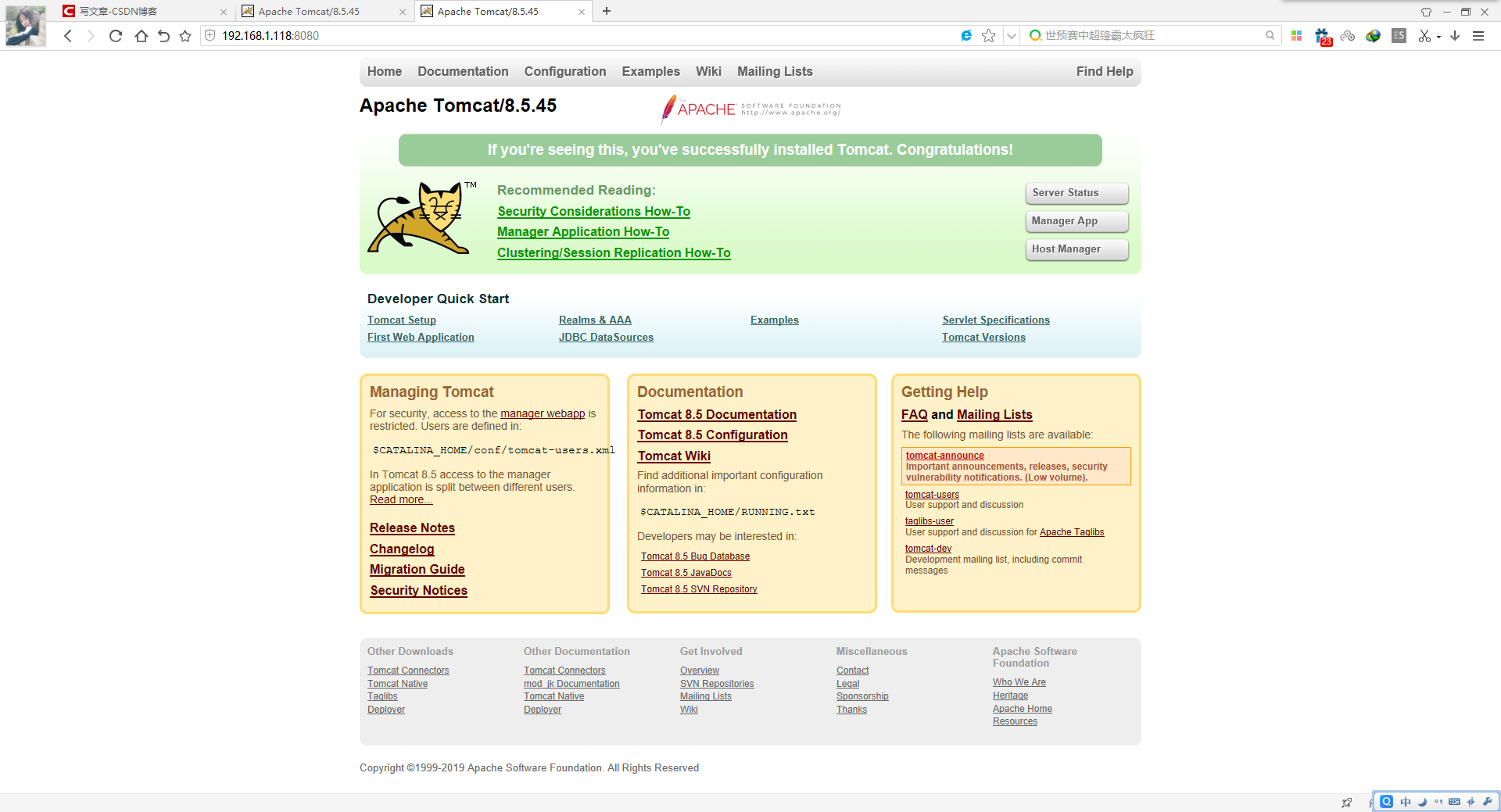

2️⃣、http://192.168.1.118:8080
三、安装 Jforum 论坛
动作位置：192.168.1.112
1、下载Jforum 论坛
[root@localhost ~]# yum install lrzsz -y #上传组件
[root@localhost ~]# rz -E #上传命令
[root@localhost ~]# ls
jdk1.8.0_131.tar.gz jforum-2.5.0.war
2、解压 war 包需要JDK支持
①、解压 JDK
[root@localhost ~]# tar -xzf jdk1.8.0_131.tar.gz
②、移动 JDK 至 /usr/local 目录下
[root@localhost ~]# mv jdk1.8.0_131 /usr/local/java
③、添加永久环境变量
[root@localhost local]# vim /etc/profile
在最低下添加，并保存
export JAVA_HOME=/usr/local/java/
使用如下命令使其马上生效
[root@localhost local]# source /etc/profile
3、移动 jforum-2.5.0.war 服务包至共享服务器
[root@localhost ~]# cp jforum-2.5.0.war /data/Jforum/
[root@localhost ~]# cp jforum-2.5.0.war /data/Jforum_1/
4、解压 jforum-2.5.0.war 服务包
[root@localhost Jforum]# /usr/local/java/bin/jar -xf jforum-2.5.0.war
[root@localhost Jforum]# rm jforum-2.5.0.war
[root@localhost Jforum_1]# /usr/local/java/bin/jar -xf jforum-2.5.0.war
[root@localhost Jforum_1]# rm jforum-2.5.0.war
动作位置：192.168.1.117
5、挂载网址内容
①、YUM安装NFS文件共享服务
[root@localhost ~]# yum install nfs-utils -y #无需启动
②、挂载网址内容
[root@localhost webapps]# mount -t nfs 192.168.1.112:/data/Jforum /usr/local/tomcat_1/webapps/ROOT

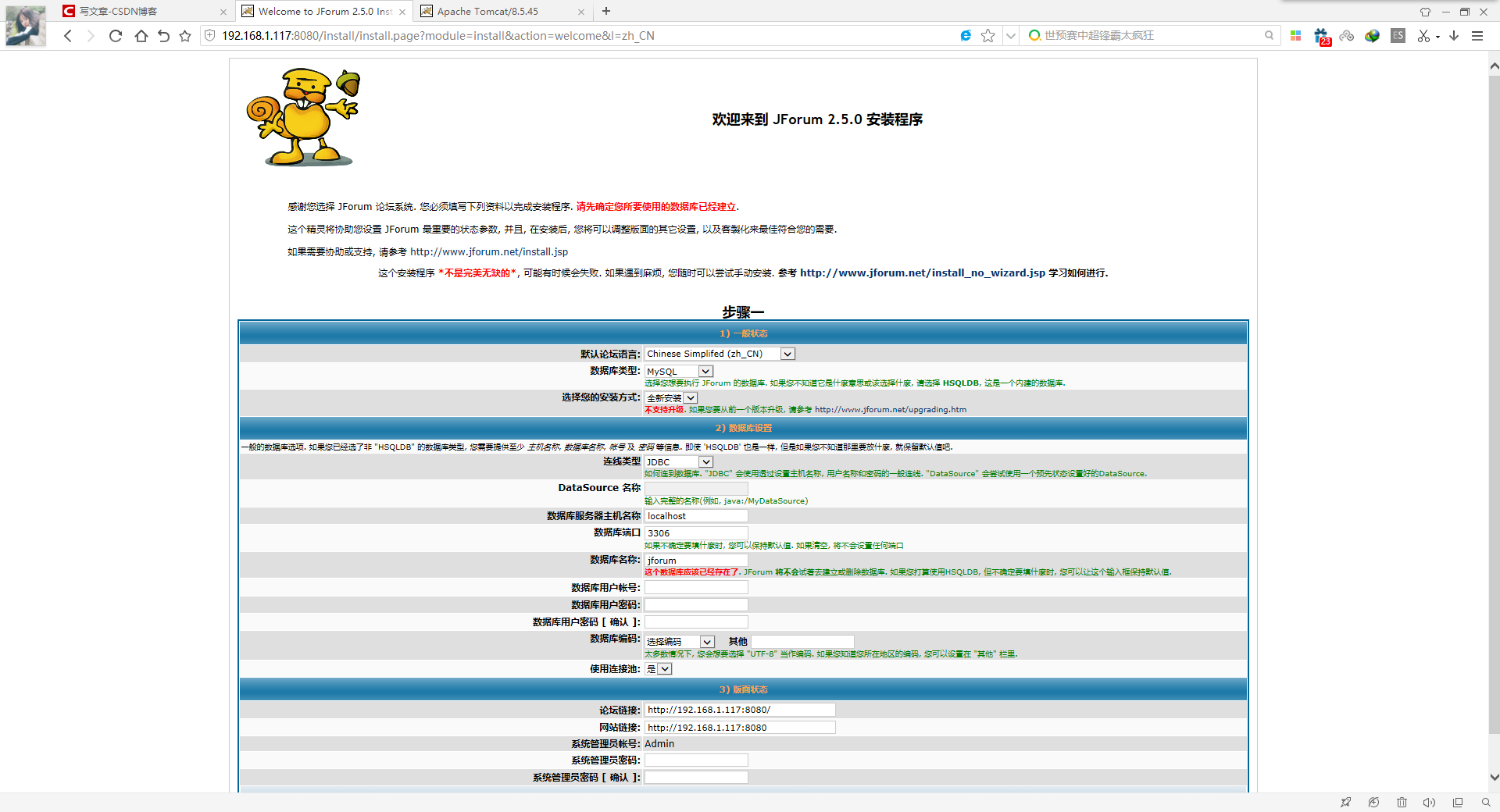

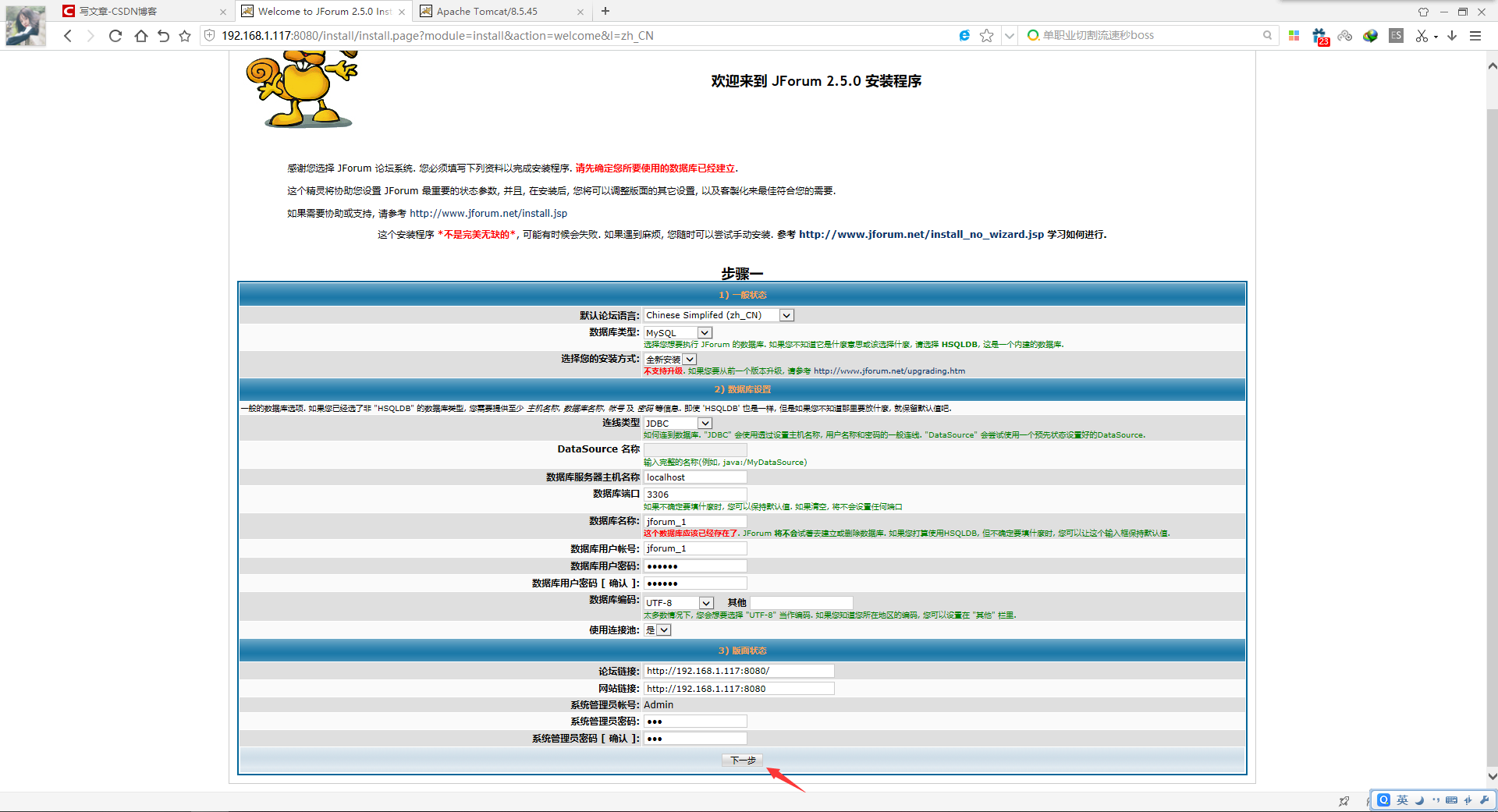

6、访问http://192.168.1.117:8080,进行论坛安装
7、创建 Jforum 论坛数据库连接
mysql> grant all on Jforum_1.* to Jforum_1@'localhost' identified by "123456";
Query OK, 0 rows affected (0.00 sec)
mysql> create database Jforum_1 charset=utf8;
Query OK, 1 row affected (0.01 sec)
mysql> flush privileges;
Query OK, 0 rows affected (0.01 sec)

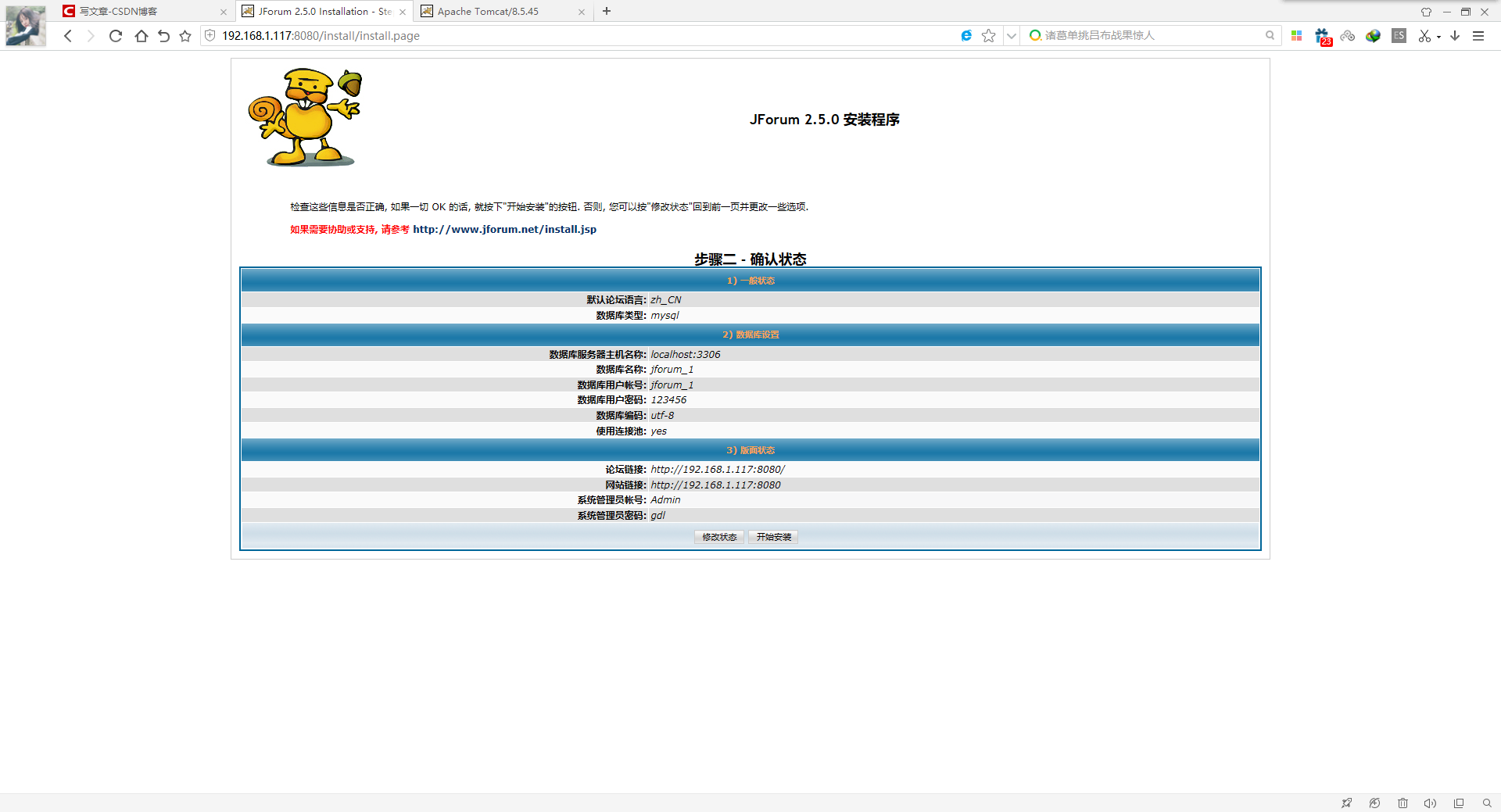

8、数据库创建完成进行下一步
动作位置：192.168.1.118
9、挂载网址内容
①、YUM安装NFS文件共享服务
[root@localhost ~]# yum install nfs-utils -y #无需启动
②、挂载网址内容
[root@localhost webapps]# mount -t nfs 192.168.1.112:/data/Jforum_1 /usr/local/tomcat_1/webapps/ROOT/

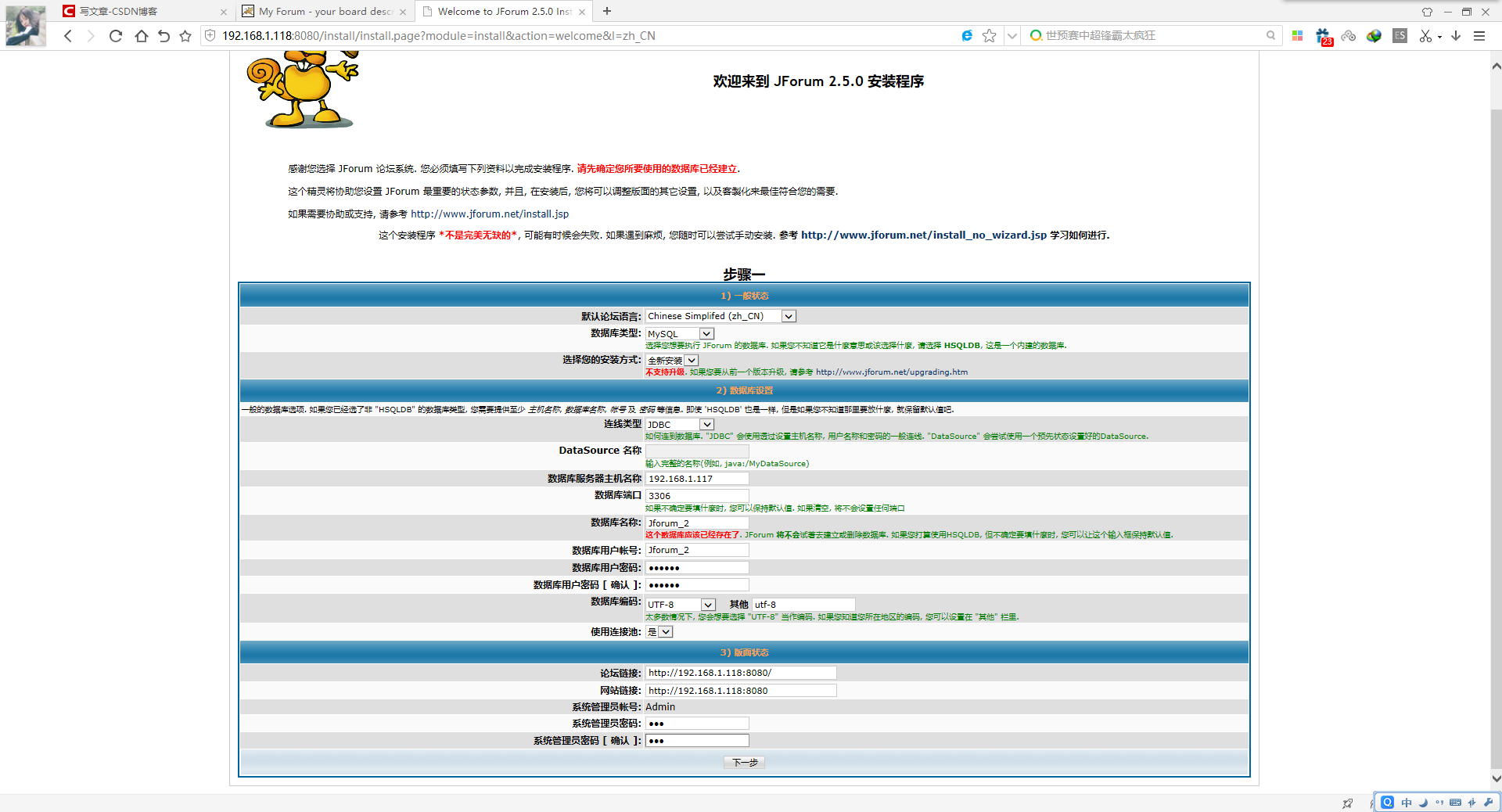

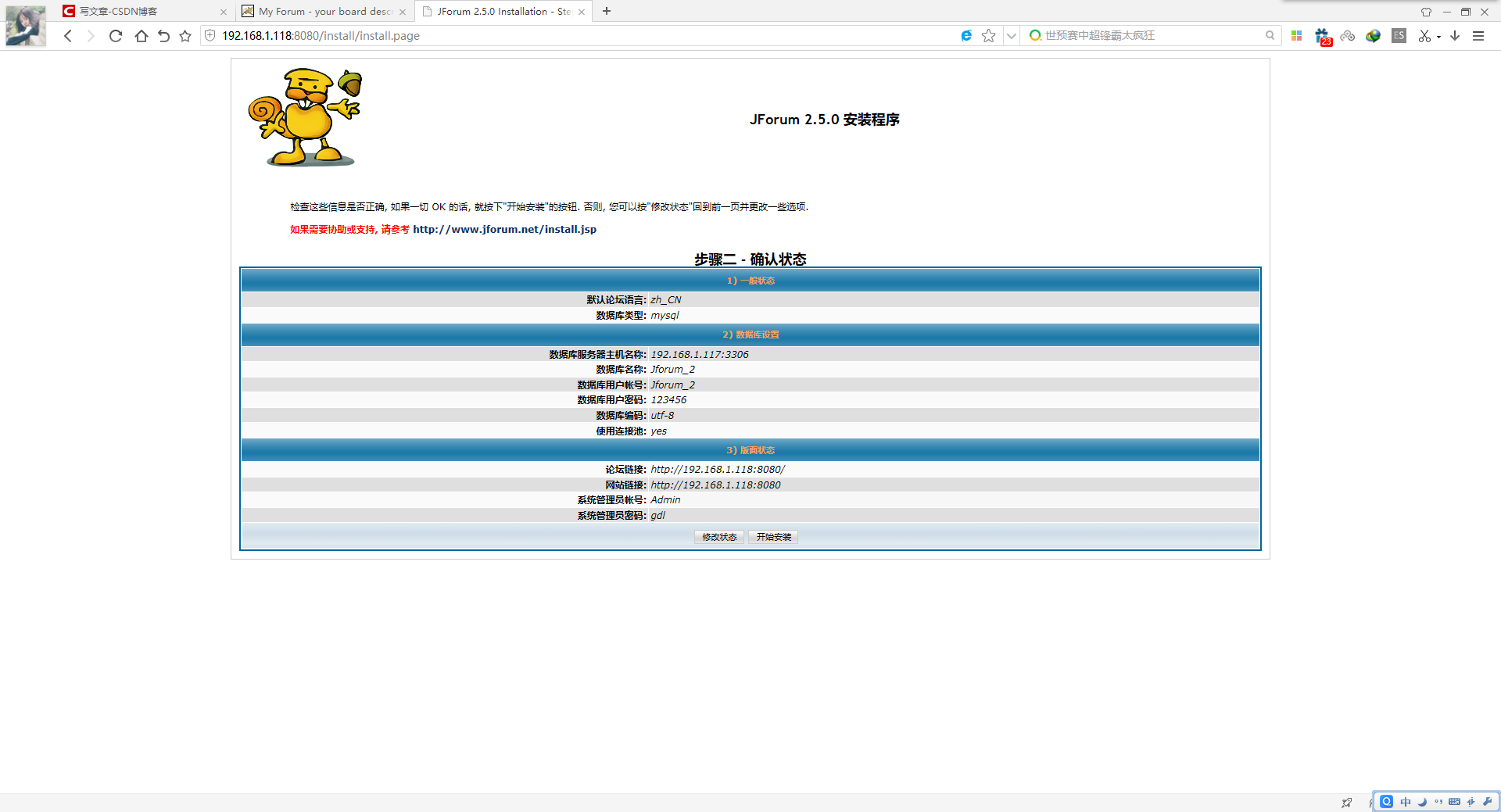

10、访问http://192.168.1.118:8080,进行论坛安装
11、创建 Jforum 论坛数据库连接
mysql> grant all on Jforum_2.* to Jforum_2@'192.168.1.118' identified by "123456";
Query OK, 0 rows affected (0.00 sec)
mysql> create database Jforum_2 charset=utf8;
Query OK, 1 row affected (0.00 sec)
mysql> flush privileges;

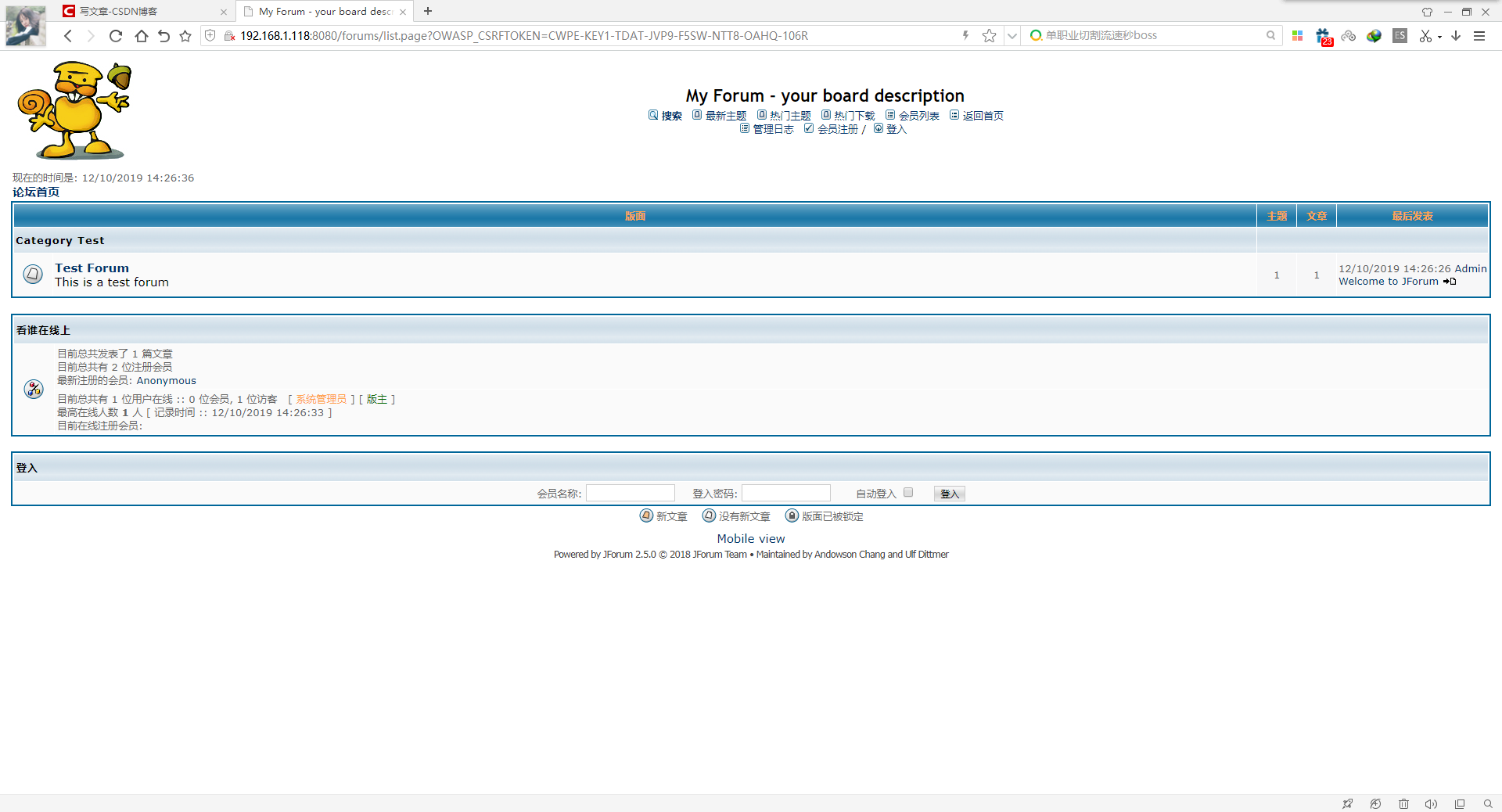

Query OK, 0 rows affected (0.00 sec)
四、使用 Nginx 进行动静分离与负载均衡
1、断开NFS连接
[root@localhost ~]# umount -t nfs 192.168.1.112:/data/Jforum /usr/local/tomcat_1/webapps/ROOT
umount.nfs4: /usr/local/tomcat_1/webapps/ROOT: device is busy
umount.nfs4: /usr/local/tomcat_1/webapps/ROOT: device is busy
#出现此错误请关闭网页即可
[root@localhost ~]# umount -t nfs 192.168.1.112:/data/Jforum /usr/local/tomcat_1/webapps/ROOT
umount: /usr/local/tomcat_1/webapps/ROOT：未挂载
2、复制多份Tomcat
[root@localhost ~]# cd /usr/local/
[root@localhost local]# pkill java #关闭jdk
[root@localhost local]# pkill tomcat #关闭Tomcat
[root@localhost local]# cp tomcat_1 tomcat_2 -a
[root@localhost local]# cp tomcat_1 tomcat_3 -a
[root@localhost local]# cp tomcat_1 tomcat_4 -a
3、修改 tomcat 端口
①、修改 tomcat_2 端口
[root@localhost local]# cd /usr/local/tomcat_2/conf
[root@localhost conf]# cp server.xml server.xml.bak #先进行备份
[root@localhost conf]# vim server.xml
22 <Server port="8005" shutdown="SHUTDOWN">
22 <Server port="8006" shutdown="SHUTDOWN"> #修改为
69 <Connector port="8080" protocol="HTTP/1.1"
69 <Connector port="8081" protocol="HTTP/1.1"
116 <Connector port="8009" protocol="AJP/1.3" redirectPort="8443" />
116 <Connector port="8010" protocol="AJP/1.3" redirectPort="8443" /> #修改为
②、修改 tomcat_3 端口
[root@localhost local]# cd /usr/local/tomcat_3/conf
[root@localhost conf]# cp server.xml server.xml.bak #先进行备份
[root@localhost conf]# vim server.xml
22 <Server port="8005" shutdown="SHUTDOWN">
22 <Server port="8007" shutdown="SHUTDOWN"> #修改为
69 <Connector port="8080" protocol="HTTP/1.1"
69 <Connector port="8082" protocol="HTTP/1.1"
116 <Connector port="8009" protocol="AJP/1.3" redirectPort="8443" />
116 <Connector port="8011" protocol="AJP/1.3" redirectPort="8443" /> #修改为
③、修改 tomcat_4 端口
[root@localhost local]# cd /usr/local/tomcat_4/conf
[root@localhost conf]# cp server.xml server.xml.bak #先进行备份
[root@localhost conf]# vim server.xml
22 <Server port="8005" shutdown="SHUTDOWN">
22 <Server port="8008" shutdown="SHUTDOWN"> #修改为
69 <Connector port="8080" protocol="HTTP/1.1"
69 <Connector port="8083" protocol="HTTP/1.1"
116 <Connector port="8009" protocol="AJP/1.3" redirectPort="8443" />
116 <Connector port="8012" protocol="AJP/1.3" redirectPort="8443" /> #修改为
4、启动 tomcat_1 与 tomcat_2，并查看启动端口
[root@localhost local]# /usr/local/tomcat_1/bin/startup.sh
[root@localhost local]# /usr/local/tomcat_2/bin/startup.sh
[root@localhost local]# /usr/local/tomcat_3/bin/startup.sh
[root@localhost local]# /usr/local/tomcat_4/bin/startup.sh
[root@localhost local]# netstat -tnl
Active Internet connections (only servers)
Proto Recv-Q Send-Q Local Address Foreign Address State
tcp6 0 0 127.0.0.1:8007 :::* LISTEN
tcp6 0 0 127.0.0.1:8008 :::* LISTEN
tcp6 0 0 :::8009 :::* LISTEN
tcp6 0 0 :::8010 :::* LISTEN
tcp6 0 0 :::8011 :::* LISTEN
tcp6 0 0 :::8012 :::* LISTEN
tcp6 0 0 :::8080 :::* LISTEN
tcp6 0 0 :::8081 :::* LISTEN
tcp6 0 0 :::8082 :::* LISTEN
tcp6 0 0 :::8083 :::* LISTEN
tcp6 0 0 127.0.0.1:8005 :::* LISTEN
tcp6 0 0 127.0.0.1:8006 :::* LISTEN
5、挂载网址内容
[root@localhost local]# mount -t nfs4 192.168.1.112:/data/Jforum /usr/local/tomcat_1/webapps/ROOT
[root@localhost local]# mount -t nfs4 192.168.1.112:/data/Jforum /usr/local/tomcat_2/webapps/ROOT
6、修改 Nginx 配置文件，并重启Nginx服务
[root@localhost data]# cd /data/nginx/conf
[root@localhost conf]# cp nginx.conf nginx.conf.bak
[root@localhost conf]# vim nginx.conf
worker_processes 1;
events {
worker_connections 1024;
}
http {
include mime.types;
default_type application/octet-stream;
sendfile on;
keepalive_timeout 65;
upstream tomcat_v1 {
server 192.168.1.117:8080 weight=100 max_fails=2 fail_timeout=15;
server 192.168.1.117:8081 weight=100 max_fails=2 fail_timeout=15;
server 192.168.1.118:8082 weight=100 max_fails=2 fail_timeout=15;
server 192.168.1.118:8083 weight=100 max_fails=2 fail_timeout=15;
}
server {
listen 80;
server_name v1.jf.com;
location / {
proxy_pass http://tomcat_v1;
proxy_set_header host $host;
}
location ~ .*.(htm|html|js|css|txt|png|jpg|jpeg|doc)$
{
root /data/Jforum;
expires 30d;
}
error_page 500 502 503 504 /50x.html;
location = /50x.html {
root html;
}
}
}
[root@localhost conf]# /data/nginx/sbin/nginx -s reload
动作位置：192.168.1.118
7、复制多份Tomcat
[root@localhost ~]# cd /usr/local/
[root@localhost local]# pkill java #关闭jdk
[root@localhost local]# pkill tomcat #关闭Tomcat
[root@localhost local]# cp tomcat_1 tomcat_2 -a
[root@localhost local]# cp tomcat_1 tomcat_3 -a
[root@localhost local]# cp tomcat_1 tomcat_4 -a
8、修改 tomcat 端口
①、修改 tomcat_2 端口
[root@localhost local]# cd /usr/local/tomcat_2/conf
[root@localhost conf]# cp server.xml server.xml.bak #先进行备份
[root@localhost conf]# vim server.xml
22 <Server port="8005" shutdown="SHUTDOWN">
22 <Server port="8006" shutdown="SHUTDOWN"> #修改为
69 <Connector port="8080" protocol="HTTP/1.1"
69 <Connector port="8081" protocol="HTTP/1.1"
116 <Connector port="8009" protocol="AJP/1.3" redirectPort="8443" />
116 <Connector port="8010" protocol="AJP/1.3" redirectPort="8443" /> #修改为
②、修改 tomcat_3 端口
[root@localhost local]# cd /usr/local/tomcat_3/conf
[root@localhost conf]# cp server.xml server.xml.bak #先进行备份
[root@localhost conf]# vim server.xml
22 <Server port="8005" shutdown="SHUTDOWN">
22 <Server port="8007" shutdown="SHUTDOWN"> #修改为
69 <Connector port="8080" protocol="HTTP/1.1"
69 <Connector port="8082" protocol="HTTP/1.1"
116 <Connector port="8009" protocol="AJP/1.3" redirectPort="8443" />
116 <Connector port="8011" protocol="AJP/1.3" redirectPort="8443" /> #修改为
③、修改 tomcat_4 端口
[root@localhost local]# cd /usr/local/tomcat_4/conf
[root@localhost conf]# cp server.xml server.xml.bak #先进行备份
[root@localhost conf]# vim server.xml
22 <Server port="8005" shutdown="SHUTDOWN">
22 <Server port="8008" shutdown="SHUTDOWN"> #修改为
69 <Connector port="8080" protocol="HTTP/1.1"
69 <Connector port="8083" protocol="HTTP/1.1"
116 <Connector port="8009" protocol="AJP/1.3" redirectPort="8443" />
116 <Connector port="8012" protocol="AJP/1.3" redirectPort="8443" /> #修改为
9、启动 tomcat_1 与 tomcat_2，并查看启动端口
[root@localhost local]# /usr/local/tomcat_1/bin/startup.sh
[root@localhost local]# /usr/local/tomcat_2/bin/startup.sh
[root@localhost local]# /usr/local/tomcat_3/bin/startup.sh
[root@localhost local]# /usr/local/tomcat_4/bin/startup.sh
[root@localhost local]# netstat -tnl
Active Internet connections (only servers)
Proto Recv-Q Send-Q Local Address Foreign Address State
tcp6 0 0 127.0.0.1:8007 :::* LISTEN
tcp6 0 0 127.0.0.1:8008 :::* LISTEN
tcp6 0 0 :::8009 :::* LISTEN
tcp6 0 0 :::8010 :::* LISTEN
tcp6 0 0 :::8011 :::* LISTEN
tcp6 0 0 :::8012 :::* LISTEN
tcp6 0 0 :::8080 :::* LISTEN
tcp6 0 0 :::8081 :::* LISTEN
tcp6 0 0 :::8082 :::* LISTEN
tcp6 0 0 :::8083 :::* LISTEN
tcp6 0 0 127.0.0.1:8005 :::* LISTEN
tcp6 0 0 127.0.0.1:8006 :::* LISTEN
10、修改 Nginx 配置文件，并重启Nginx服务
worker_processes 1;
events {
worker_connections 1024;
}
http {
include mime.types;
default_type application/octet-stream;
sendfile on;
keepalive_timeout 65;
upstream tomcat_v1 {
server 192.168.1.117:8080 weight=100 max_fails=2 fail_timeout=15;
server 192.168.1.117:8081 weight=100 max_fails=2 fail_timeout=15;
server 192.168.1.118:8082 weight=100 max_fails=2 fail_timeout=15;
server 192.168.1.118:8083 weight=100 max_fails=2 fail_timeout=15;
}
upstream tomcat_v2 {
server 192.168.1.118:8080 weight=100 max_fails=2 fail_timeout=15;
server 192.168.1.118:8081 weight=100 max_fails=2 fail_timeout=15;
server 192.168.1.117:8082 weight=100 max_fails=2 fail_timeout=15;
server 192.168.1.117:8083 weight=100 max_fails=2 fail_timeout=15;
}
server {
listen 80;
server_name v1.jf.com;
location / {
proxy_pass http://tomcat_v1;
proxy_set_header host $host;
add_header backendIP $upstream_addr;
}
location ~ .*.(htm|html|js|css|txt|png|jpg|jpeg|doc)$
{
root /data/Jforum;
expires 30d;
}
error_page 500 502 503 504 /50x.html;
location = /50x.html {
root html;
}
}
server {
listen 80;
server_name v2.jf.com;
location / {
proxy_pass http://tomcat_v2;
proxy_set_header host $host;
add_header backendIP $upstream_addr;
}
location ~ .*.(htm|html|js|css|txt|png|jpg|jpeg|doc)$
{
root /data/Jforum_1;
expires 30d;
}
error_page 500 502 503 504 /50x.html;
location = /50x.html {
root html;
}
}
}
[root@localhost conf]# /data/nginx/sbin/nginx -s reload
五、访问浏览器

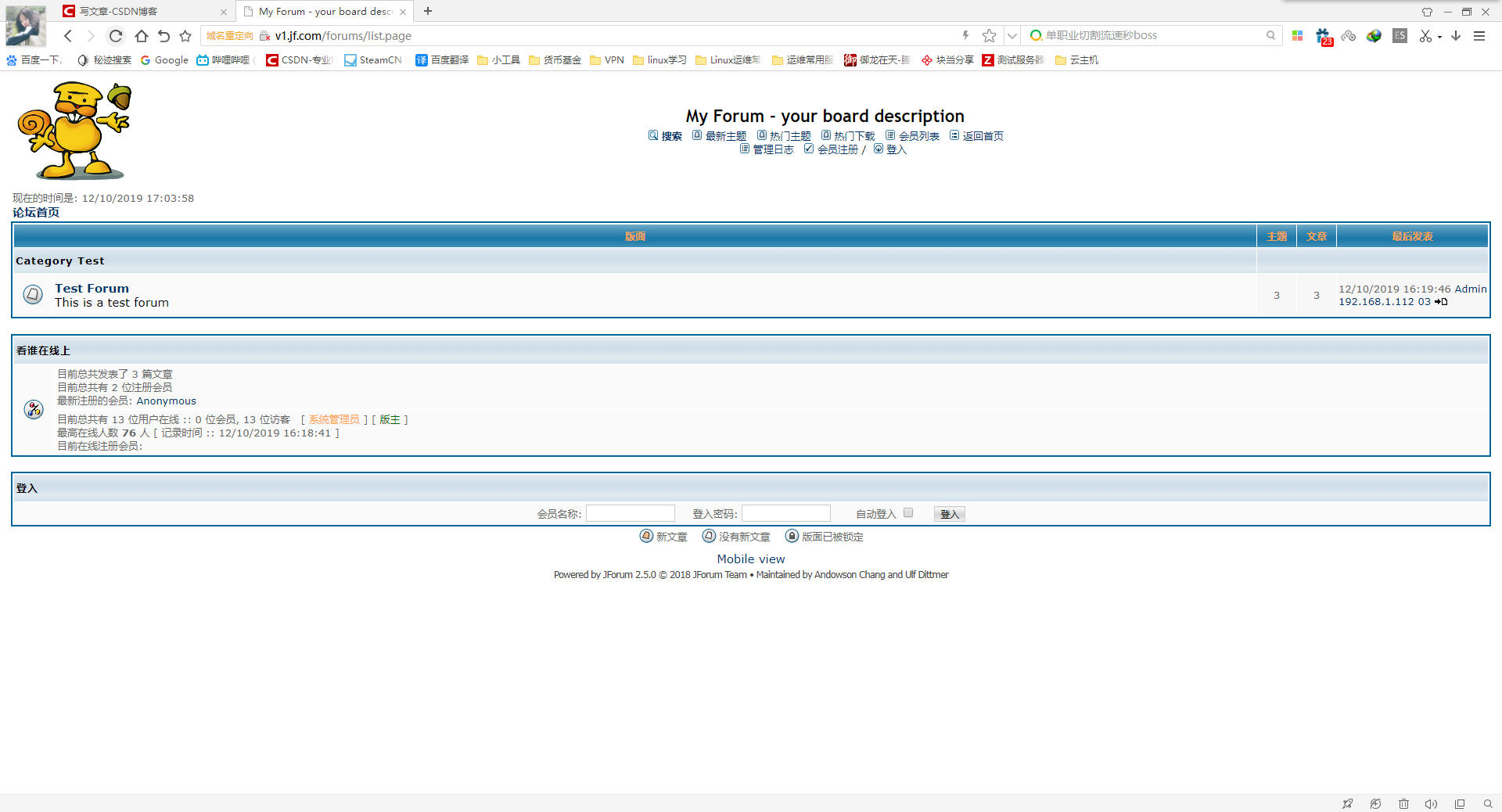

1、访问http://v1.jf.com
2、访问http://v2.jf.com
最后
以上就是懦弱鲜花为你收集整理的LNMT集群架构发布Jforum论坛一、实验服务器分配二、安装实验必备服务三、安装 Jforum 论坛四、使用 Nginx 进行动静分离与负载均衡的全部内容，希望文章能够帮你解决LNMT集群架构发布Jforum论坛一、实验服务器分配二、安装实验必备服务三、安装 Jforum 论坛四、使用 Nginx 进行动静分离与负载均衡所遇到的程序开发问题。
如果觉得靠谱客网站的内容还不错，欢迎将靠谱客网站推荐给程序员好友。
本图文内容来源于网友提供，作为学习参考使用，或来自网络收集整理，版权属于原作者所有。
发表评论 取消回复
