概述

实验环境

主机名	IP	操作系统	所需配置
A	192.168.24.131	centos7	2个Tomcat
B	192.168.24.146	centos7	mysql，nginx

实验需求

LNMT部署详细步骤并实现动静分离和负载均衡

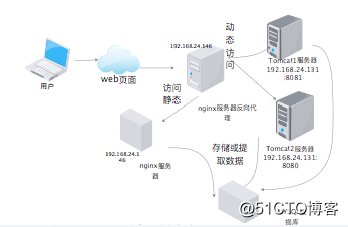

主机B作为nginx服务器，主机A作为2个Tomcat服务器，客户端发来的请求首先经由nginx处理，由nignx反代至后端的Tomcat服务器实现负载均衡

实验部署如下

在主机A操作如下

部署2个Tomcat服务器

实验准备

关闭防火墙以及SELINX

[root@linfan ~]# systemctl stop firewalld
[root@linfan ~]# systemctl disable firewalld
[root@linfan ~]# sed -ri 's/^(SELINUX=).*/1disabled/g' /etc/selinux/config
[root@linfan ~]# setenforce 0
setenforce: SELinux is disabled

安装yum源

[root@linfan ~]# cd /etc/yum.repos.d/
[root@linfan yum.repos.d]# curl -o 163.repo http://mirrors.163.com/.help/CentOS7-Base-163.repo
  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                 Dload  Upload   Total   Spent    Left  Speed
100  1572  100  1572    0     0   9484      0 --:--:-- --:--:-- --:--:--  9527
[root@linfan yum.repos.d]# sed -i 's/$releasever/7/g' /etc/yum.repos.d/163.repo
[root@linfan yum.repos.d]# sed -i 's/enabled=0/enabled=1/g' /etc/yum.repos.d/163.repo
[root@linfan yum.repos.d]# yum clean all
yum.repos.d]# yum -y install epel-release
Loaded plugins: fastestmirror
Cleaning repos: base centosplus extras updates
Cleaning up everything
Maybe you want: rm -rf /var/cache/yum, to also free up space taken by orphaned data from disabled or removed repos
Cleaning up list of fastest mirrors

java环境安装

安装jdk环境

[root@linfan ~]# yum -y install java-1.8.0-openjdk java-1.8.0-openjdk-devel

查看安装版本

[root@linfan ~]# java -version
openjdk version "1.8.0_181"
OpenJDK Runtime Environment (build 1.8.0_181-b13)
OpenJDK 64-Bit Server VM (build 25.181-b13, mixed mode)

tomcat部署

下载tomcat

[root@linfan ~]cd /usr/src
[root@linfan src]# wget https://archive.apache.org/dist/tomcat/tomcat-9/v9.0.8/bin/apache-tomcat-9.0.8.tar.gz
[root@linfan src]# ls
apache-tomcat-9.0.8.tar.gz  debug  kernels

解压部署
因为要部署2个tomcal，所以这里要实现2次解压

//第一次解压
root@linfan src]# tar xf apache-tomcat-9.0.8.tar.gz -C /usr/local/
[root@linfan src]# cd /usr/local/
[root@linfan local]# mv apache-tomcat-9.0.8/ doudou //解压后重命名为doudou，防止第二次解压在同一目录下同名
[root@linfan local]# ls doudou
bin  conf  lib  LICENSE  logs  NOTICE  RELEASE-NOTES  RUNNING.txt  temp  webapps  work
//第二次解压
[root@linfan local]# cd /usr/src
[root@linfan src]# ls
apache-tomcat-9.0.8.tar.gz  debug  kernels
[root@linfan src]# tar xf apache-tomcat-9.0.8.tar.gz -C /usr/local/
[root@linfan src]# cd /usr/local/
[root@linfan local]# ls
apache-tomcat-9.0.8  bin  doudou  etc  games  include  lib  lib64  libexec  nginx  sbin  share  src
[root@linfan local]# ln -s doudou/ tomcat1 //软连接为tomcat1
[root@linfan local]# ln -s apache-tomcat-9.0.8/ tomcat2 //软连接为tomcat2
[root@linfan local]# ll
total 0
drwxr-xr-x   9 root root 160 Sep  5 01:36 apache-tomcat-9.0.8
drwxr-xr-x.  2 root root   6 Nov  5  2016 bin
drwxr-xr-x   9 root root 160 Sep  5 01:34 doudou
drwxr-xr-x.  2 root root   6 Nov  5  2016 etc
drwxr-xr-x.  2 root root   6 Nov  5  2016 games
drwxr-xr-x.  2 root root   6 Nov  5  2016 include
drwxr-xr-x.  2 root root   6 Nov  5  2016 lib
drwxr-xr-x.  2 root root   6 Nov  5  2016 lib64
drwxr-xr-x.  2 root root   6 Nov  5  2016 libexec
drwxr-xr-x. 11 root root 151 Sep  3 03:16 nginx
drwxr-xr-x.  2 root root   6 Nov  5  2016 sbin
drwxr-xr-x.  5 root root  49 Aug 30 04:37 share
drwxr-xr-x.  2 root root   6 Nov  5  2016 src
lrwxrwxrwx   1 root root   7 Sep  5 01:37 tomcat1 -> doudou/
lrwxrwxrwx   1 root root  20 Sep  5 01:37 tomcat2 -> apache-tomcat-9.0.8/

为了避免端口冲突，修改tomcat配置文件的端口号（修改其中一个即可）在这里我修改tomcat1的配置文件
tomcat1的端口改为8081

[root@linfan ~]# vim /usr/local/tomcat1/conf/server.xml
...
...
 -->
<Server port="8006" shutdown="SHUTDOWN">//修改为8006
  <Listener className="org.apache.catalina.startup.VersionLoggerListener" />
  <!-- Security listener. Documentation at /docs/config/listeners.html
  <Listener className="org.apache.catalina.security.SecurityListener" />
  -->
...
...
  -->
    <Connector port="8081" //修改为8081
    protocol="HTTP/1.1"
               connectionTimeout="20000"
               redirectPort="8444" />//修改为8444
    <!-- A "Connector" using the shared thread pool-->
    <!--
    ...
    ...
     <Connector port="8010" protocol="AJP/1.3" redirectPort="8444" />//修改为8010 修改为8444

    <!-- An Engine represents the entry point (within Catalina) that processes

在2个Tomcat上写不同字样的java页面

tomcat1 写“666”
tomcat2写“888”

[root@linfan src]# cd /usr/local/tomcat1/webapps/
[root@linfan webapps]# ls
docs  examples  host-manager  manager  ROOT
[root@linfan webapps]# mkdir test
[root@linfan webapps]# cd test
[root@linfan test]# vim index.jsp
[root@linfan test]# tail index.jsp
<html>
<head>
        <title>test page</title>
</head>
<body>
      <%
         out.println("666");
      %>
</body>
</html>
[root@linfan test]# cd /usr/local/tomcat2/webapps/
[root@linfan webapps]# ls
docs  examples  host-manager  manager  ROOT
[root@linfan webapps]# mkdir test
[root@linfan webapps]# cd test
[root@linfan test]# vim index.jsp
[root@linfan test]# tail index.jsp
<html>
<head>
        <title>test page</title>
</head>
<body>
      <%
         out.println("888");
      %>
</body>
</html>

开启2个tomcat服务

[root@linfan ~]# /usr/local/tomcat1/bin/catalina.sh  start
Using CATALINA_BASE:   /usr/local/tomcat1
Using CATALINA_HOME:   /usr/local/tomcat1
Using CATALINA_TMPDIR: /usr/local/tomcat1/temp
Using JRE_HOME:        /usr
Using CLASSPATH:       /usr/local/tomcat1/bin/bootstrap.jar:/usr/local/tomcat1/bin/tomcat-juli.jar
Tomcat started.
[root@linfan ~]# /usr/local/tomcat2/bin/catalina.sh  start
Using CATALINA_BASE:   /usr/local/tomcat2
Using CATALINA_HOME:   /usr/local/tomcat2
Using CATALINA_TMPDIR: /usr/local/tomcat2/temp
Using JRE_HOME:        /usr
Using CLASSPATH:       /usr/local/tomcat2/bin/bootstrap.jar:/usr/local/tomcat2/bin/tomcat-juli.jar
Tomcat started.
[root@linfan ~]# ss -natl
State      Recv-Q Send-Q                Local Address:Port                               Peer Address:Port
LISTEN     0      128                               *:22                                            *:*
LISTEN     0      100                       127.0.0.1:25                                            *:*
LISTEN     0      100                              :::8080                                         :::*
LISTEN     0      100                              :::8081                                         :::*
LISTEN     0      128                              :::22                                           :::*
LISTEN     0      100                             ::1:25                                           :::*
LISTEN     0      1                  ::ffff:127.0.0.1:8005                                         :::*
LISTEN     0      1                  ::ffff:127.0.0.1:8006                                         :::*
LISTEN     0      100                              :::8009                                         :::*
LISTEN     0      100                              :::8010                                         :::*
[root@linfan ~]# ps -ef |grep tomcat1
root       2268      1 11 02:00 pts/1    00:00:03 /usr/bin/java -Djava.util.logging.config.file=/usr/local/tomcat1/conf/logging.properties -Djava.util.logging.manager=org.apache.juli.ClassLoaderLogManager -Djdk.tls.ephemeralDHKeySize=2048 -Djava.protocol.handler.pkgs=org.apache.catalina.webresources -Dorg.apache.catalina.security.SecurityListener.UMASK=0027 -Dignore.endorsed.dirs= -classpath /usr/local/tomcat1/bin/bootstrap.jar:/usr/local/tomcat1/bin/tomcat-juli.jar -Dcatalina.base=/usr/local/tomcat1 -Dcatalina.home=/usr/local/tomcat1 -Djava.io.tmpdir=/usr/local/tomcat1/temp org.apache.catalina.startup.Bootstrap start
root       2374   1919  0 02:00 pts/1    00:00:00 grep --color=auto tomcat1
[root@linfan ~]# ps -ef |grep tomcat2
root       2323      1 15 02:00 pts/1    00:00:03 /usr/bin/java -Djava.util.logging.config.file=/usr/local/tomcat2/conf/logging.properties -Djava.util.logging.manager=org.apache.juli.ClassLoaderLogManager -Djdk.tls.ephemeralDHKeySize=2048 -Djava.protocol.handler.pkgs=org.apache.catalina.webresources -Dorg.apache.catalina.security.SecurityListener.UMASK=0027 -Dignore.endorsed.dirs= -classpath /usr/local/tomcat2/bin/bootstrap.jar:/usr/local/tomcat2/bin/tomcat-juli.jar -Dcatalina.base=/usr/local/tomcat2 -Dcatalina.home=/usr/local/tomcat2 -Djava.io.tmpdir=/usr/local/tomcat2/temp org.apache.catalina.startup.Bootstrap start
root       2376   1919  0 02:00 pts/1    00:00:00 grep --color=auto tomcat2

验证

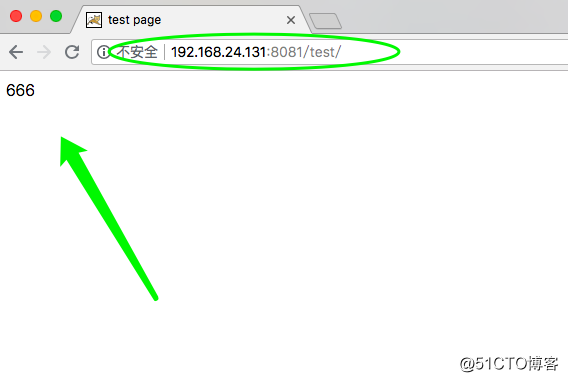

在浏览器分别输入192.168.24.131:8080/test和192.168.24.131:8081/test

LNMT部署详细步骤并实现动静分离和负载均衡

得出以上2个页面说明2个tomcat服务部署成功

在主机B上部署

在此主机上安装nginx 和 mysql

实验准备

关闭防火墙以及SELINX

[root@linfan ~]# systemctl stop firewalld
[root@linfan ~]# systemctl disable firewalld
[root@linfan ~]# sed -ri 's/^(SELINUX=).*/1disabled/g' /etc/selinux/config
[root@linfan ~]# setenforce 0
setenforce: SELinux is disabled

安装yum源

[root@linfan ~]# cd /etc/yum.repos.d/
[root@linfan yum.repos.d]# curl -o 163.repo http://mirrors.163.com/.help/CentOS7-Base-163.repo
  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                 Dload  Upload   Total   Spent    Left  Speed
100  1572  100  1572    0     0   9484      0 --:--:-- --:--:-- --:--:--  9527
[root@linfan yum.repos.d]# sed -i 's/$releasever/7/g' /etc/yum.repos.d/163.repo
[root@linfan yum.repos.d]# sed -i 's/enabled=0/enabled=1/g' /etc/yum.repos.d/163.repo
[root@linfan yum.repos.d]# yum clean all
yum.repos.d]# yum -y install epel-release
Loaded plugins: fastestmirror
Cleaning repos: base centosplus extras updates
Cleaning up everything
Maybe you want: rm -rf /var/cache/yum, to also free up space taken by orphaned data from disabled or removed repos
Cleaning up list of fastest mirrors

安装nginx

创建系统用户

[root@linfan ~]# groupadd -r nginx
[root@linfan ~]# useradd -r -M -s /sbin/nologin -g nginx nginx

安装依赖环境

[root@linfan ~]# yum -y install pcre-devel openssl openssl-devel gd-devel

[root@linfan ~]# yum -y groups mark install 'Development Tools'
Loaded plugins: fastestmirror
There is no installed groups file.
Maybe run: yum groups mark convert (see man yum)
Loading mirror speeds from cached hostfile
 * epel: mirrors.aliyun.com
Marked install: Development Tools

创建日志存放目录

[root@linfan ~]# mkdir -p /var/log/nginx
[root@linfan ~]# chown -R nginx.nginx /var/log/nginx

下载nginx

[root@linfan ~]# cd /usr/src/
[root@linfan src]# wget http://nginx.org/download/nginx-1.14.0.tar.gz
--2018-08-24 13:26:36--  http://nginx.org/download/nginx-1.14.0.tar.gz
Resolving nginx.org (nginx.org)... 95.211.80.227, 206.251.255.63, 2606:7100:1:69::3f, ...
Connecting to nginx.org (nginx.org)|95.211.80.227|:80... connected.
HTTP request sent, awaiting response... 302 Found
Location: http://64.123.28.133/files/21490000000827F6/nginx.org/download/nginx-1.14.0.tar.gz [following]
--2018-08-24 13:26:36--  http://64.123.28.133/files/21490000000827F6/nginx.org/download/nginx-1.14.0.tar.gz
Connecting to 64.123.28.133:80... connected.
HTTP request sent, awaiting response... 200 OK
Length: 1016272 (992K) [application/octet-stream]
Saving to: ‘nginx-1.14.0.tar.gz’

100%[================================================================================>] 1,016,272   --.-K/s   in 0.1s

2018-08-24 13:26:36 (8.10 MB/s) - ‘nginx-1.14.0.tar.gz’ saved [1016272/1016272]

编译安装

root@linfan src]# ls
debug  kernels  nginx-1.14.0.tar.gz
[root@linfan src]# tar xf nginx-1.14.0.tar.gz
[root@linfan src]# cd nginx-1.14.0
[root@linfan nginx-1.14.0]# ./configure
> --prefix=/usr/local/nginx
> --user=nginx
> --group=nginx
> --with-debug
> --with-http_ssl_module
> --with-http_realip_module
>  --with-http_image_filter_module
> --with-http_gunzip_module
> --with-http_gzip_static_module
> --with-http_stub_status_module
> --http-log-path=/var/log/nginx/access.log
> --error-log-path=/var/log/nginx/error.log

[root@linfan nginx-1.14.0]# make -j $(grep 'processor' /proc/cpuinfo | wc -l) && make install

配置变量环境

[root@linfan ~]# echo 'export PATH=/usr/local/nginx/sbin:$PATH' > /etc/profile.d/nginx.sh
[root@linfan ~]# . /etc/profile.d/nginx.sh

启动nginx

[root@linfan ~]# nginx
[root@linfan ~]# ss -antl
State      Recv-Q Send-Q                Local Address:Port                               Peer Address:Port
LISTEN     0      128                               *:80                                            *:*
LISTEN     0      128                               *:22                                            *:*
LISTEN     0      100                       127.0.0.1:25                                            *:*
LISTEN     0      128                              :::22                                           :::*
LISTEN     0      100                             ::1:25                                           :::*

安装mysql

安装依赖包

[root@linfan ~]# yum -y install ncurses-devel openssl-devel openssl cmake mariadb-devel

创建用户和组

[root@linfan ~]# groupadd -r -g 306 mysql
[root@linfan ~]# useradd -M -s /sbin/nologin -g 306 -u 306 mysql

下载二进制格式的mysql软件包

[root@linfan ~]# cd /usr/src/
[root@linfan src]# wget https://downloads.mysql.com/archives/get/file/mysql-5.7.22-linux-glibc2.12-x86_64.tar.gz

解压软件至/usr/local/

[root@linfan src]# ls
apr-1.6.3          apr-util-1.6.1          debug    mysql-5.7.22-linux-glibc2.12-x86_64.tar.gz
apr-1.6.3.tar.bz2  apr-util-1.6.1.tar.bz2  kernels
[root@linfan src]# tar xf mysql-5.7.22-linux-glibc2.12-x86_64.tar.gz -C /usr/local/
[root@linfan src]# ls  /usr/local/
apache  apr-util  etc    include  lib64    mysql-5.7.22-linux-glibc2.12-x86_64  share
apr     bin       games  lib      libexec  sbin                                 src
[root@linfan src]# cd  /usr/local/
[root@linfan local]# ln -sv mysql-5.7.22-linux-glibc2.12-x86_64/ mysql
‘mysql’ -> ‘mysql-5.7.22-linux-glibc2.12-x86_64/’
[root@linfan local]# ll
total 0
drwxr-xr-x. 13 root root 152 Aug 17 12:46 apache
drwxr-xr-x.  6 root root  58 Aug 17 12:35 apr
drwxr-xr-x.  5 root root  43 Aug 17 12:40 apr-util
drwxr-xr-x.  2 root root   6 Nov  5  2016 bin
drwxr-xr-x.  2 root root   6 Nov  5  2016 etc
drwxr-xr-x.  2 root root   6 Nov  5  2016 games
drwxr-xr-x.  2 root root   6 Nov  5  2016 include
drwxr-xr-x.  2 root root   6 Nov  5  2016 lib
drwxr-xr-x.  2 root root   6 Nov  5  2016 lib64
drwxr-xr-x.  2 root root   6 Nov  5  2016 libexec
lrwxrwxrwx.  1 root root  36 Aug 17 13:54 mysql -> mysql-5.7.22-linux-glibc2.12-x86_64/
drwxr-xr-x.  9 root root 129 Aug 17 13:30 mysql-5.7.22-linux-glibc2.12-x86_64
drwxr-xr-x.  2 root root   6 Nov  5  2016 sbin
drwxr-xr-x.  5 root root  49 Jul 11 15:44 share
drwxr-xr-x.  2 root root   6 Nov  5  2016 src

修改目录/usr/locaal/mysql的属主属组

[root@linfan ~]# chown -R mysql.mysql /usr/local/mysql
[root@linfan ~]# ll /usr/local/mysql -d
lrwxrwxrwx. 1 mysql mysql 36 Aug 17 13:54 /usr/local/mysql -> mysql-5.7.22-linux-glibc2.12-x86_64/

添加环境变量

[root@linfan ~]# ls /usr/local/mysql
bin  COPYING  docs  include  lib  man  README  share  support-files
[root@linfan ~]# echo 'export PATH=/usr/local/mysql/bin:$PATH' > /etc/profile.d/mysql.sh
[root@linfan ~]# . /etc/profile.d/mysql.sh
[root@linfan ~]# echo $PATH
/usr/local/mysql/bin:/usr/local/apache/bin:/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/root/bin

建立数据存放目录

[root@linfan ~]# cd /usr/local/mysql
[root@linfan mysql]# mkdir /opt/data
[root@linfan mysql]# chown -R mysql.mysql /opt/data/
[root@linfan mysql]# ll /opt/
total 0
drwxr-xr-x. 2 mysql mysql   6 Aug 17 14:05 data
drwxr-xr-x. 8 root  root  220 Jul 18 17:09 lin.d

初始化数据库

[root@linfan mysql]# /usr/local/mysql/bin/mysqld --initialize --user=mysql --datadir=/opt/data/
2018-08-17T06:08:33.347313Z 0 [Warning] TIMESTAMP with implicit DEFAULT value is deprecated. Please use --explicit_defaults_for_timestamp server option (see documentation for more details).
2018-08-17T06:08:33.873415Z 0 [Warning] InnoDB: New log files created, LSN=45790
2018-08-17T06:08:33.953310Z 0 [Warning] InnoDB: Creating foreign key constraint system tables.
2018-08-17T06:08:34.016549Z 0 [Warning] No existing UUID has been found, so we assume that this is the first time that this server has been started. Generating a new UUID: f8e46285-a1e3-11e8-b6bf-000c29c9d4ed.
2018-08-17T06:08:34.019542Z 0 [Warning] Gtid table is not ready to be used. Table 'mysql.gtid_executed' cannot be opened.
2018-08-17T06:08:34.023380Z 1 [Note] A temporary password is generated for root@localhost: B<HiGFoc.8yZ
//这个命令的最后会生成一个临时密码，此处密码是B<HiGFoc.8yZ

配置mysql

[root@linfan ~]# ln -sv /usr/local/mysql/include/ /usr/local/include/mysql
‘/usr/local/include/mysql’ -> ‘/usr/local/mysql/include/’
[root@linfan ~]# echo '/usr/local/mysql/lib' > /etc/ld.so.conf.d/mysql.conf
[root@linfan ~]# ldconfig -v

生成配置文件

[root@linfan ~]# cat > /etc/my.cnf <<EOF
> [mysqld]
> basedir = /usr/local/mysql
> datadir = /opt/data
> socket = /tmp/mysql.sock
> port = 3306
> pid-file = /opt/data/mysql.pid
> user = mysql
> skip-name-resolve
> EOF

配置服务启动脚本

[root@linfan ~]# cp -a /usr/local/mysql/support-files/mysql.server /etc/init.d/mysqld
[root@linfan ~]# sed -ri 's#^(basedir=).*#1/usr/local/mysql#g' /etc/init.d/mysqld
[root@linfan ~]# sed -ri 's#^(datadir=).*#1/opt/data#g' /etc/init.d/mysqld

启动mysql

[root@linfan ~]# service mysqld start
Starting MySQL.Logging to '/opt/data/linfan.err'.
 SUCCESS!
[root@linfan ~]# ps -ef|grep mysql
root      52200      1  0 14:25 pts/1    00:00:00 /bin/sh /usr/local/mysql/bin/mysqld_safe --datadir=/opt/data --pid-file=/opt/data/mysql.pid
mysql     52378  52200  4 14:25 pts/1    00:00:00 /usr/local/mysql/bin/mysqld --basedir=/usr/local/mysql --datadir=/opt/data --plugin-dir=/usr/local/mysql/lib/plugin --user=mysql --log-error=linfan.err --pid-file=/opt/data/mysql.pid --socket=/tmp/mysql.sock --port=3306
root      52408   2998  0 14:25 pts/1    00:00:00 grep --color=auto mysql
[root@linfan ~]# ss -antl
State      Recv-Q Send-Q                Local Address:Port                               Peer Address:Port
LISTEN     0      128                               *:22                                            *:*
LISTEN     0      100                       127.0.0.1:25                                            *:*
LISTEN     0      128                              :::80                                           :::*
LISTEN     0      128                              :::22                                           :::*
LISTEN     0      100                             ::1:25                                           :::*
LISTEN     0      80                               :::3306                                         :::*

修改密码
使用临时密码修改

[root@linfan ~]# mysql -uroot -p
Enter password:
Welcome to the MySQL monitor.  Commands end with ; or g.
Your MySQL connection id is 2
Server version: 5.7.22

Copyright (c) 2000, 2018, Oracle and/or its affiliates. All rights reserved.

Oracle is a registered trademark of Oracle Corporation and/or its
affiliates. Other names may be trademarks of their respective
owners.

Type 'help;' or 'h' for help. Type 'c' to clear the current input statement.

mysql> set password = password('linfan123');
Query OK, 0 rows affected, 1 warning (0.00 sec)

mysql> quit
Bye

配置nginx

在配置文件中配置nginx作为后端服务器192.168.24.131中2个tomcal的反向代理

[root@linfan ~]# vim /usr/local/nginx/conf/nginx.conf
...
...
http {
    include       mime.types;
    default_type  application/octet-stream;

    #log_format  main  '$remote_addr - $remote_user [$time_local] "$request" '
    #                  '$status $body_bytes_sent "$http_referer" '
    #                  '"$http_user_agent" "$http_x_forwarded_for"';

    #access_log  logs/access.log  main;

    sendfile        on;
    #tcp_nopush     on;

    #keepalive_timeout  0;
    keepalive_timeout  65;
//在此添加以下内容
   upstream tomcat {
                      server 192.168.24.131:8080;
                      server 192.168.24.131:8081;

       }

    server {
        listen       80;
        server_name  localhost;

        #charset koi8-r;

        #access_log  logs/host.access.log  main;
 location / {
            root   html;
            index  index.html index.htm;
            在此添加以下内容
                       }
       location ~* .(jsp|do)$ {
                     proxy_pass http://tomcat;
        }

测试语法并加载nginx

[root@linfan ~]# nginx -t
nginx: the configuration file /usr/local/nginx/conf/nginx.conf syntax is ok
nginx: configuration file /usr/local/nginx/conf/nginx.conf test is successful
[root@linfan ~]# nginx -s reload

在ngin的网页根目录下面写入内容

[root@linfan logs]# cd /usr/local/nginx/html/
[root@linfan html]# echo "111" >> index.html

验证

在浏览器上输入192.168.24.146
LNMT部署详细步骤并实现动静分离和负载均衡

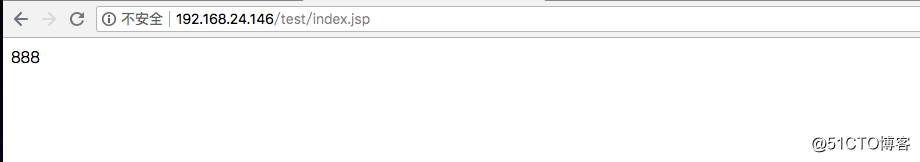

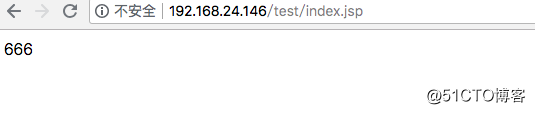

在浏览器输入192.168.24.146/test/index.jsp并不断刷新网页
LNMT部署详细步骤并实现动静分离和负载均衡

发现不断轮询，说明成功实现负载均衡的效果
###实验小结

发现当访问静态网页时，映射到nginx的网页目录下
当访问动态网页时，映射到tomcat的网页目录下
实现了动静分离
当不断刷新192.168.24.146/test/index.jsp时，不断轮询，实现了负载均衡

转载于:https://blog.51cto.com/13858192/2170655

最后

以上就是傲娇冬瓜为你收集整理的LNMT部署详细步骤并实现动静分离和负载均衡的全部内容，希望文章能够帮你解决LNMT部署详细步骤并实现动静分离和负载均衡所遇到的程序开发问题。

如果觉得靠谱客网站的内容还不错，欢迎将靠谱客网站推荐给程序员好友。

本图文内容来源于网友提供，作为学习参考使用，或来自网络收集整理，版权属于原作者所有。

本文分类：Other
浏览次数：57 次浏览
发布日期：2024-06-16 18:15:01
本文链接：https://www.kaopuke.com/article/k-p-k_13_u_7_o_22_fz_12__23__6_1.html

LNMT部署详细步骤并实现动静分离和负载均衡

概述

实验环境

实验需求

实验部署如下

在主机A操作如下

实验准备

java环境安装

tomcat部署

验证

在主机B上部署

实验准备

安装nginx

安装mysql

配置nginx

验证

最后

评论列表共有 0 条评论

发表评论取消回复

LNMT部署详细步骤并实现动静分离和负载均衡

概述

实验环境

实验需求

实验部署如下

在主机A操作如下

实验准备

java环境安装

tomcat部署

验证

在主机B上部署

实验准备

安装nginx

安装mysql

配置nginx

验证

最后

相关文章

评论列表共有 0 条评论

发表评论 取消回复

发表评论取消回复
