Introduction to Ambisonics

"[In first-order Ambisonics],

sound information is encoded into four channels: W, X, Y and Z.

This is called Ambisonic B-format.

The W channel is the non-directional mono component of the signal,

 corresponding to the output of an omnidirectional microphone.

The X, Y and Z channels are the directional components in three dimensions.

They correspond to the outputs of three figure-of-eight microphones,

facing forward, to the left, and upward respectively."

first-order Ambisonics 是由一个单声道和三个方向声道构成

A-format is the four signals from the capsules – left-front/back and
right-front/back. To get B-format:

X = 0.5 ((LF – LB) + (RF – RB))
Y = 0.5 ((LF – RB) – (RF – LB))
Z = 0.5 ((LF – LB) + (RB – RF))
W = 0.5 (LF + LB + RF + RB)

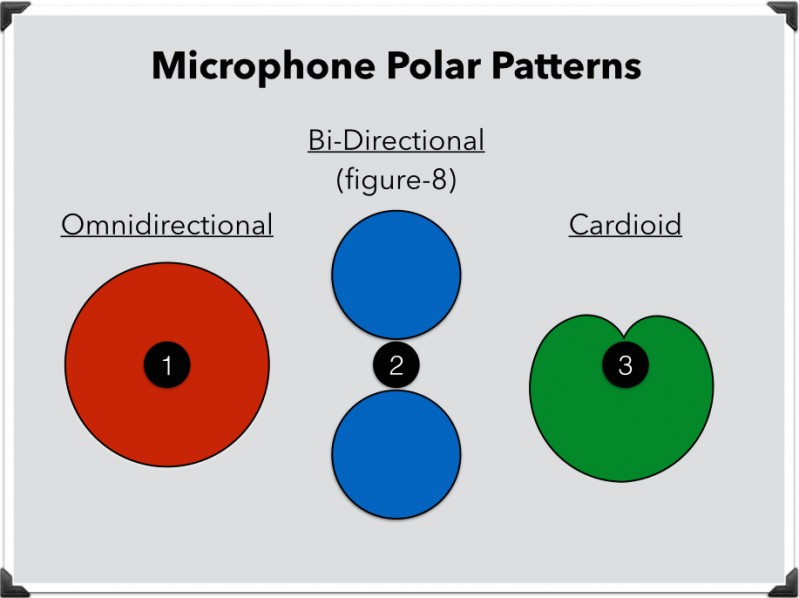

The 3 basic patterns are: 话筒指向性

google 使用的是

Ambisonic audio must use ACN channel ordering and SN3D normalization.

根据通道顺序可以分为
Component ordering
FuMa
SID
ACN

Normalisation
maxN
SN3D
N3D
N2D / SN2D

根据格式
File formats and metadata
AMB
FuMa
.amb Furse-Malham channel ordering and maxN* normalisation.
SUBTYPE_AMBISONIC_B_FORMAT_PCM {00000001-0721-11d3-8644-C8C1CA000000} for integer samples, or
SUBTYPE_AMBISONIC_B_FORMAT_IEEE_FLOAT {00000003-0721-11d3-8644-C8C1CA000000} for floating point.
The definition mandates that the WAVE_EX dwChannelMask must be set to zero.
Furthermore, it recommends that the file should contain a PEAK chunk, containing the value and position of the
highest sample in each channel.
libsndfile

AmbiX
ACN ordering and SN3D normalisation
YouTube 360, Google Cardboard, Google Jump
1AD318C3-00E5-5576-BE2D-0DCA2460BC89.

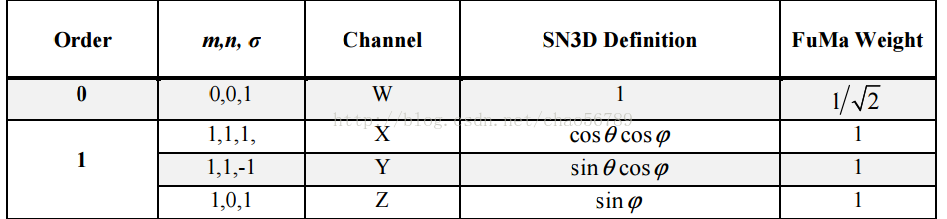

B-format (FuMa) lists the channels in order: W, X, Y, Z. The W channel also has a -3 dB gain applied.
The ambiX convention lists the channels using the Ambisonics Channel Number (ACN) ordering: W, Y, Z, X.
The channels also use SN3D normalisation (which for first order Ambisonics simply means that the four
channels have a uniform gain normalisation).


ffmpeg -loop 1 -i PS.jpg -i ambiX.wav -map 1:a -map 0:v -c:a copy -channel_layout 4.0 -c:v libx264 -b:v 40000k -bufsize 40000k -shortest PSandAmbiX.mov

现在大概了解了 全景声的构成

需要保存音频到wav文件中

A WAVE file is often just a RIFF file

with a single "WAVE" chunk which consists of two sub-chunks

-- a "fmt " chunk specifying the data format

and a "data" chunk containing the actual sample data.

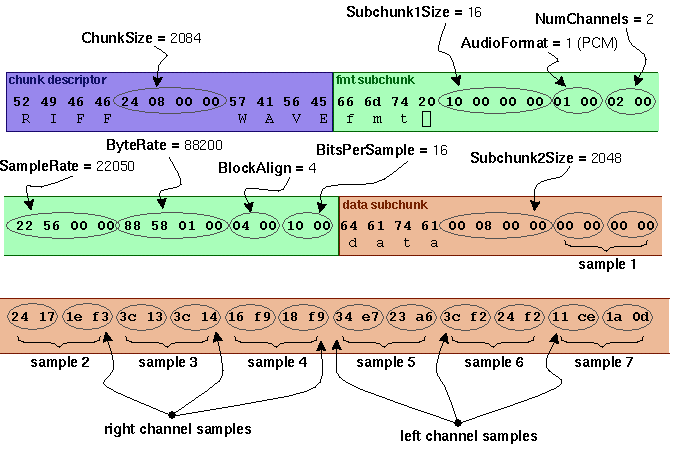

Here is the interpretation of these bytes as a WAVE soundfile:
