华为设备配置BFD与接口联动（触发与BFD联动的接口物理状态变为Down）

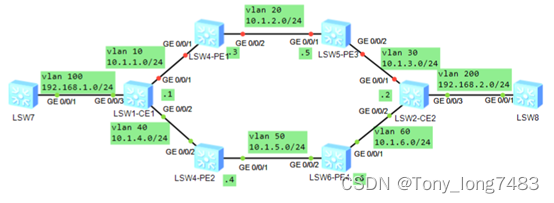

1. 配置设备间的网络互连
   [PE1]vlan batch 10 20
   [PE1-GigabitEthernet0/0/1]port link-type hybrid
   [PE1-GigabitEthernet0/0/1]port hybrid pvid vlan 10
   [PE1-GigabitEthernet0/0/1]port hybrid untagged vlan 10
   [PE1-GigabitEthernet0/0/2]port link-type hybrid
   [PE1-GigabitEthernet0/0/2]port hybrid untagged vlan 20
   [PE1-GigabitEthernet0/0/2]port hybrid pvid vlan 20
   [PE1-Vlanif10]ip add 10.1.1.3 24
   [PE1-Vlanif20]ip add 10.1.2.3 24
   [PE2]vlan batch 40 50
   [PE2-GigabitEthernet0/0/2]port link-type hybrid
   [PE2-GigabitEthernet0/0/2]port hybrid untagged vlan 40
   [PE2-GigabitEthernet0/0/2]port hybrid pvid vlan 40
   [PE2-GigabitEthernet0/0/1]port link-type hybrid
   [PE2-GigabitEthernet0/0/1]port hybrid untagged vlan 50
   [PE2-GigabitEthernet0/0/1]port hybrid pvid vlan 50
   [PE2-Vlanif40]ip add 10.1.4.4 24
   [PE2-Vlanif50]ip add 10.1.5.4 24
   [PE3]vlan batch 20 30
   [PE3-GigabitEthernet0/0/1]port link-type hybrid
   [PE3-GigabitEthernet0/0/1]port hybrid untagged vlan 20
   [PE3-GigabitEthernet0/0/1]port hybrid pvid vlan 20
   [PE3-GigabitEthernet0/0/2]port link-type hybrid
   [PE3-GigabitEthernet0/0/2]port hybrid untagged vlan 30
   [PE3-GigabitEthernet0/0/2]port hybrid pvid vlan 30
   [PE3-Vlanif20]ip add 10.1.2.5 24
   [PE3-Vlanif30]ip add 10.1.3.5 24
   [PE4]vlan batch 50 60
   [PE4-GigabitEthernet0/0/1]port link-type hybrid
   [PE4-GigabitEthernet0/0/1]port hybrid untagged vlan 60
   [PE4-GigabitEthernet0/0/1]port hybrid pvid vlan 60
   [PE4-GigabitEthernet0/0/2]port link-type hybrid
   [PE4-GigabitEthernet0/0/2]port hybrid untagged vlan 50
   [PE4-GigabitEthernet0/0/2]port hybrid pvid vlan 50
   [PE4-Vlanif50]ip add 10.1.5.6 24
   [PE4-Vlanif60]ip add 10.1.6.6 24
   [CE1]vlan batch 10 40 100
   [CE1-GigabitEthernet0/0/1]port link-type hybrid
   [CE1-GigabitEthernet0/0/1]port hybrid untagged vlan 10
   [CE1-GigabitEthernet0/0/1]port hybrid pvid vlan 10
   [CE1-GigabitEthernet0/0/2]port link-type hybrid
   [CE1-GigabitEthernet0/0/2]port hybrid pvid vlan 40
   [CE1-GigabitEthernet0/0/2]port hybrid untagged vlan 40
   [CE1-GigabitEthernet0/0/3]port link-type hybrid
   [CE1-GigabitEthernet0/0/3]port hybrid untagged vlan 100
   [CE1-GigabitEthernet0/0/3]port hybrid pvid vlan 100
   [CE1-Vlanif10]ip add 10.1.1.1 24
   [CE1-Vlanif40]ip add 10.1.4.1 24
   [CE1-Vlanif100]ip add 192.168.1.1 24
   [CE2]vlan batch 30 60 200
   [CE2-GigabitEthernet0/0/1]port link-type hybrid
   [CE2-GigabitEthernet0/0/1]port hybrid untagged vlan 30
   [CE2-GigabitEthernet0/0/1]port hybrid pvid vlan 30
   [CE2-GigabitEthernet0/0/2]port link-type hybrid
   [CE2-GigabitEthernet0/0/2]port hybrid untagged vlan 60
   [CE2-GigabitEthernet0/0/2]port hybrid pvid vlan 60
   [CE2-GigabitEthernet0/0/3]port link-type hybrid
   [CE2-GigabitEthernet0/0/3]port hybrid pvid vlan 200
   [CE2-GigabitEthernet0/0/3]port hybrid untagged vlan 200
   [CE2-Vlanif30]ip add 10.1.3.2 24
   [CE2-Vlanif60]ip add 10.1.6.2 24
   [CE2-Vlanif200]ip add 192.168.2.2 24

2. 配置路由协议-OSPF
   [PE1]ospf 1
   [PE1-ospf-1]area 0
   [PE1-ospf-1-area-0.0.0.0]network 10.1.1.0 0.0.0.255
   [PE1-ospf-1-area-0.0.0.0]network 10.1.2.0 0.0.0.255
   [PE2]ospf 1
   [PE2-ospf-1]area 0
   [PE2-ospf-1-area-0.0.0.0]network 10.1.4.0 0.0.0.255
   [PE2-ospf-1-area-0.0.0.0]network 10.1.5.0 0.0.0.255
   [PE3]ospf 1
   [PE3-ospf-1]area 0
   [PE3-ospf-1-area-0.0.0.0]network 10.1.2.0 0.0.0.255
   [PE3-ospf-1-area-0.0.0.0]network 10.1.3.0 0.0.0.255
   [PE4]ospf 1
   [PE4-ospf-1]area 0
   [PE4-ospf-1-area-0.0.0.0]network 10.1.6.0 0.0.0.255
   [PE4-ospf-1-area-0.0.0.0]network 10.1.5.0 0.0.0.255
   [CE1]ospf 1
   [CE1-ospf-1]area 0
   [CE1-ospf-1-area-0.0.0.0]network 192.168.1.0 0.0.0.255
   [CE1-ospf-1-area-0.0.0.0]network 10.1.1.0 0.0.0.255
   [CE1-ospf-1-area-0.0.0.0]network 10.1.4.0 0.0.0.255
   [CE1]int Vlanif 40
   [CE1-Vlanif40]ospf cost 10
   [CE2]ospf 1
   [CE2-ospf-1]area 0
   [CE2-ospf-1-area-0.0.0.0]network 192.168.2.0 0.0.0.255
   [CE2-ospf-1-area-0.0.0.0]network 10.1.3.0 0.0.0.255
   [CE2-ospf-1-area-0.0.0.0]network 10.1.6.0 0.0.0.255
   [CE2]int Vlanif 60
   [CE2-Vlanif60]ospf cost 10


3. 配置BFD Session
   [PE1]bfd
   [PE1]bfd pe1tope3 bind peer-ip 10.1.2.5 interface Vlanif 20
   [PE1-bfd-session-pe1tope3]discriminator local 1
   [PE1-bfd-session-pe1tope3]discriminator remote 2
   [PE1-bfd-session-pe1tope3]commit
   [PE3]bfd
   [PE3]bfd pe3tope1 bind peer-ip 10.1.2.3 interface Vlanif 20
   [PE3-bfd-session-pe3tope1]discriminator local 2
   [PE3-bfd-session-pe3tope1]discriminator remote 1
   [PE3-bfd-session-pe3tope1]commit

4. 配置BFD和接口联动
   [PE1]oam-mgr
   [PE1-oam-mgr]oam-bind ingress bfd-session 1 trigger if-down egress interface GigabitEthernet 0/0/1
   [PE3]oam-mgr
   [PE3-oam-mgr]oam-bind ingress bfd-session 2 trigger if-down egress interface g0/0/2

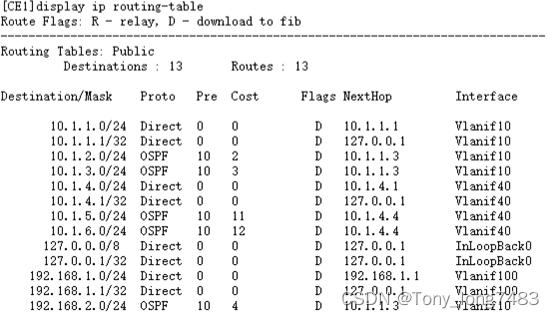

5. 检查配置

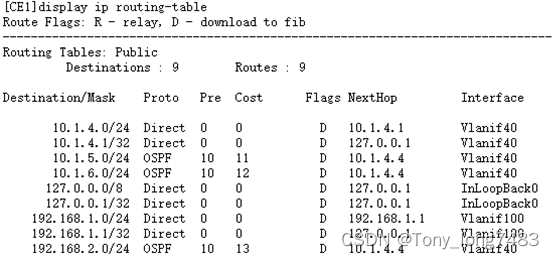

   [PE3-GigabitEthernet0/0/1]shutdown
