gRPC C++ windows程序实践(二)1. 编写proto文件2. 生成pb文件3. 创建gRPC工程

59 阅读 0 评论 39 点赞

我是靠谱客的博主迷人裙子，最近开发中收集的这篇文章主要介绍gRPC C++ windows程序实践(二)1. 编写proto文件2. 生成pb文件3. 创建gRPC工程，觉得挺不错的，现在分享给大家，希望可以做个参考。

概述

接着前一篇《gRPC C++ windows程序实践(一)_永远的魔术1号-CSDN博客》这篇文章主要介绍如何基于gRPC工程编译生成的文件进行实际应用开发，代码参照 grpcexamplescpphelloworld 目录下的示例代码。

1. 编写proto文件

创建example.proto文件如下图：

syntax = "proto3";

package pandora;

// The greeting service definition.
service GreeterEx {
  // Sends a greeting
  rpc Say (Request) returns (Reply) {}
}

// The request message
message Request {
  string content = 1;
}

// The response message containing the greetings
message Reply {
  string message = 1;
}

2. 生成pb文件

拷贝 C:Program Filesgrpcbinprotoc.exe 和 grpcbuild_x64Debuggrpc_cpp_plugin.exe 到相同目录下。

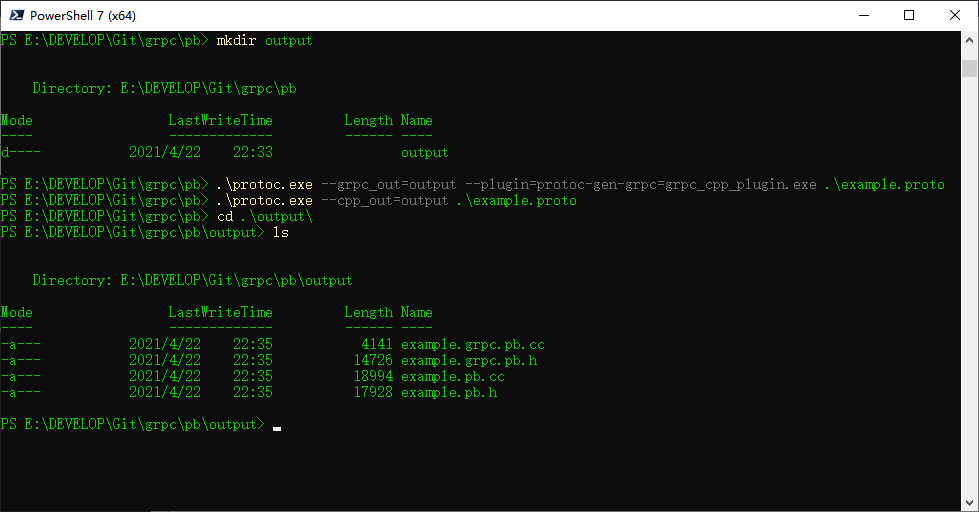

可以看到，在output目录下生成了4个pb文件。

3. 创建gRPC工程

在VS创建C++空项目 grpc_svr 和 grpc_cli ，因为我们生成的gRPC为x64，所以工程也需选择x64。

grpc_svr 的 main.cpp

#include <iostream>
#include <memory>
#include <string>

#include <grpcpp/ext/proto_server_reflection_plugin.h>
#include <grpcpp/grpcpp.h>
#include <grpcpp/health_check_service_interface.h>

#include "example.grpc.pb.h"

using grpc::Server;
using grpc::ServerBuilder;
using grpc::ServerContext;
using grpc::Status;
using pandora::GreeterEx;
using pandora::Reply;
using pandora::Request;

class GreeterServiceImpl final : public GreeterEx::Service {
    Status Say(ServerContext* context, const Request* request,
        Reply* reply) override {
        reply->set_message(request->content() + "world");
        return Status::OK;
    }
};

void RunServer() {
    std::string server_address("localhost:50000");
    GreeterServiceImpl service;

    grpc::EnableDefaultHealthCheckService(true);
    grpc::reflection::InitProtoReflectionServerBuilderPlugin();
    ServerBuilder builder;
    // Listen on the given address without any authentication mechanism.
    builder.AddListeningPort(server_address, grpc::InsecureServerCredentials());
    // Register "service" as the instance through which we'll communicate with
    // clients. In this case it corresponds to an *synchronous* service.
    builder.RegisterService(&service);
    // Finally assemble the server.
    std::unique_ptr<Server> server(builder.BuildAndStart());
    std::cout << "Server listening on " << server_address << std::endl;

    // Wait for the server to shutdown. Note that some other thread must be
    // responsible for shutting down the server for this call to ever return.
    server->Wait();
}

int main(int argc, char** argv) {
    RunServer();

    return 0;
}

grpc_cli 的 main.cpp

#include <iostream>
#include <memory>
#include <string>

#include <grpcpp/grpcpp.h>

#include "example.grpc.pb.h"

using grpc::Channel;
using grpc::ClientContext;
using grpc::Status;
using pandora::GreeterEx;
using pandora::Reply;
using pandora::Request;

class GreeterClient {
public:
    GreeterClient(std::shared_ptr<Channel> channel)
        : stub_(GreeterEx::NewStub(channel)) {}

    std::string Say(const std::string& content) {
        Request request;
        request.set_content(content);

        Reply reply;

        ClientContext context;

        // The actual RPC.
        Status status = stub_->Say(&context, request, &reply);

        // Act upon its status.
        if (status.ok()) {
            return reply.message();
        }
        else {
            std::cout << status.error_code() << ": " << status.error_message()
                << std::endl;
            return "RPC failed";
        }
    }

private:
    std::unique_ptr<GreeterEx::Stub> stub_;
};

int main(int argc, char** argv) {

    GreeterClient greeter(
        grpc::CreateChannel("localhost:50000", grpc::InsecureChannelCredentials()));
    std::string reply = greeter.Say("hello");
    std::cout << "Greeter received: " << reply << std::endl;
    char c = 0;
    std::cin >> c;

    return 0;
}

首先，添加4个pb文件到两个项目中；

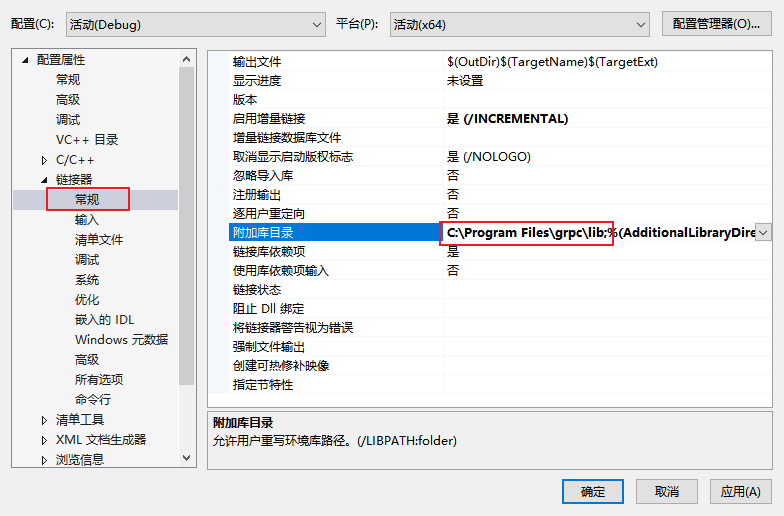

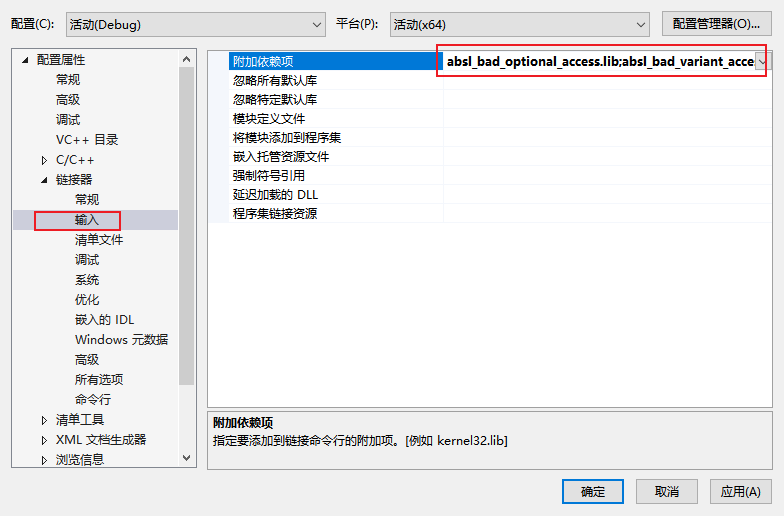

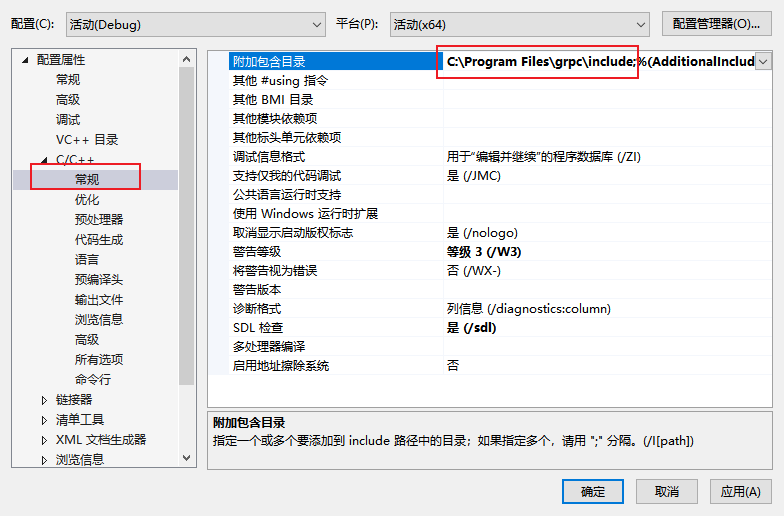

其次，添加引用的grpc文件及lib库到工程中：
