Docker部署xxl-job-admin以及Spingboot实现定时器调度

docker官网搜索镜像地址：https://hub.docker.com/r/xuxueli/xxl-job-admin

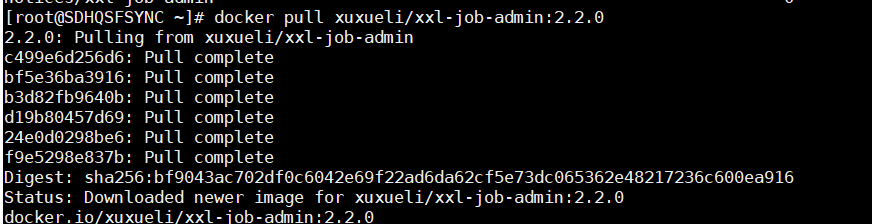

• 下载镜像

docker pull xuxueli/xxl-job-admin:2.2.0

• 使用该镜像启动容器

 docker run -e PARAMS="--spring.datasource.url=jdbc:mysql://10.64.160.59:3306/xxl_job?useUnicode=true&characterEncoding=UTF-8 --spring.datasource.password=123456" -p 8181:8080 -v /usr/local/xxl-job/log:/data/applogs --name xxl-job-admin -d xuxueli/xxl-job-admin:2.2.0

注意一些参数如邮箱可以省略

docker run -e PARAMS="--spring.datasource.url=jdbc:mysql://数据库地址:3306/xxl-job?Unicode=true&characterEncoding=UTF-8 --spring.datasource.password=数据库密码 --spring.mail.host=smtp.163.com --spring.mail.username=邮箱名 --spring.mail.password=邮箱密码 --xxl.job.login.password=登录密码" -p 8080:8080 -v /tmp:/data/applogs --name xxl-job-admin --privileged=true -d xuxueli/xxl-job-admin:2.2.0

• 进入xxl-job-admin

http://10.64.160.59:8181/xxl-job-admin    初始用户名admin 密码123456

• Spingboot实现定时器调度

1、application.properties文件增加以下

### xxl-job admin address list, such as "http://address" or "http://address01,http://address02"
xxl.job.admin.addresses = http://10.64.160.59:8181/xxl-job-admin
### xxl-job, access token
xxl.job.accessToken =
### xxl-job executor appname
xxl.job.executor.appname = integrated-job-executor
### xxl-job executor registry-address: default use address to registry , otherwise use ip:port if address is null
xxl.job.executor.address =
### xxl-job executor server-info
xxl.job.executor.ip = 10.64.9.43
#xxl.job.executor.ip = 172.17.0.1
xxl.job.executor.port = 9999
### xxl-job executor log-pathf
xxl.job.executor.logpath = /usr/local/xxl-job/jobhandler
### xxl-job executor log-retention-days
xxl.job.executor.logretentiondays = 30

2、增加xxl-job配置类

import com.xxl.job.core.executor.impl.XxlJobSpringExecutor;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

/**
 * xxl-job config
 *
 * @author ligansi
 * @since 2020-09-22
 */
@Configuration
public class XxlJobConfig {
    private Logger logger = LoggerFactory.getLogger(XxlJobConfig.class);

    @Value("${xxl.job.admin.addresses}")
    private String adminAddresses;

    @Value("${xxl.job.accessToken}")
    private String accessToken;

    @Value("${xxl.job.executor.appname}")
    private String appname;

    @Value("${xxl.job.executor.address}")
    private String address;

    @Value("${xxl.job.executor.ip}")
    private String ip;

    @Value("${xxl.job.executor.port}")
    private int port;

    @Value("${xxl.job.executor.logpath}")
    private String logPath;

    @Value("${xxl.job.executor.logretentiondays}")
    private int logRetentionDays;


    @Bean
    public XxlJobSpringExecutor xxlJobExecutor() {
        logger.info(">>>>>>>>>>> xxl-job config init.");
        XxlJobSpringExecutor xxlJobSpringExecutor = new XxlJobSpringExecutor();
        xxlJobSpringExecutor.setAdminAddresses(adminAddresses);
        xxlJobSpringExecutor.setAppname(appname);
        xxlJobSpringExecutor.setAddress(address);
        xxlJobSpringExecutor.setIp(ip);
        xxlJobSpringExecutor.setPort(port);
        xxlJobSpringExecutor.setAccessToken(accessToken);
        xxlJobSpringExecutor.setLogPath(logPath);
        xxlJobSpringExecutor.setLogRetentionDays(logRetentionDays);

        return xxlJobSpringExecutor;
    }

    /**
     * 针对多网卡、容器内部署等情况，可借助 "spring-cloud-commons" 提供的 "InetUtils" 组件灵活定制注册IP；
     *
     *      1、引入依赖：
     *          <dependency>
     *             <groupId>org.springframework.cloud</groupId>
     *             <artifactId>spring-cloud-commons</artifactId>
     *             <version>${version}</version>
     *         </dependency>
     *
     *      2、配置文件，或者容器启动变量
     *          spring.cloud.inetutils.preferred-networks: 'xxx.xxx.xxx.'
     *
     *      3、获取IP
     *          String ip_ = inetUtils.findFirstNonLoopbackHostInfo().getIpAddress();
     */


}

3、增加任务调度类

import com.mywind.integrated.servicemy.config.XxlJobConfig;
import com.mywind.integrated.servicemy.controller.*;
import com.mywind.integrated.servicemy.utils.LogsUtils;
import com.xxl.job.core.biz.model.ReturnT;
import com.xxl.job.core.handler.annotation.XxlJob;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;

/**
 *
 * SF文件同步任务调度
 *
 * @author ligansi
 * @since 2020-11-12
 */
@Component
public class SyncSfJobHandler {

    private Logger logger = LoggerFactory.getLogger(XxlJobConfig.class);


    /**
     * 测试定时器环境
     * @param s
     * @return
     * @throws Exception
     */
    @XxlJob("mywindTestJobHandler")
    public ReturnT<String> mywindTestJobHandler(String s) throws Exception {
        logger.info(">>>>>>>>>>> xxl-job test.");
        return new ReturnT(ReturnT.SUCCESS_CODE,"测试成功");
    }
}

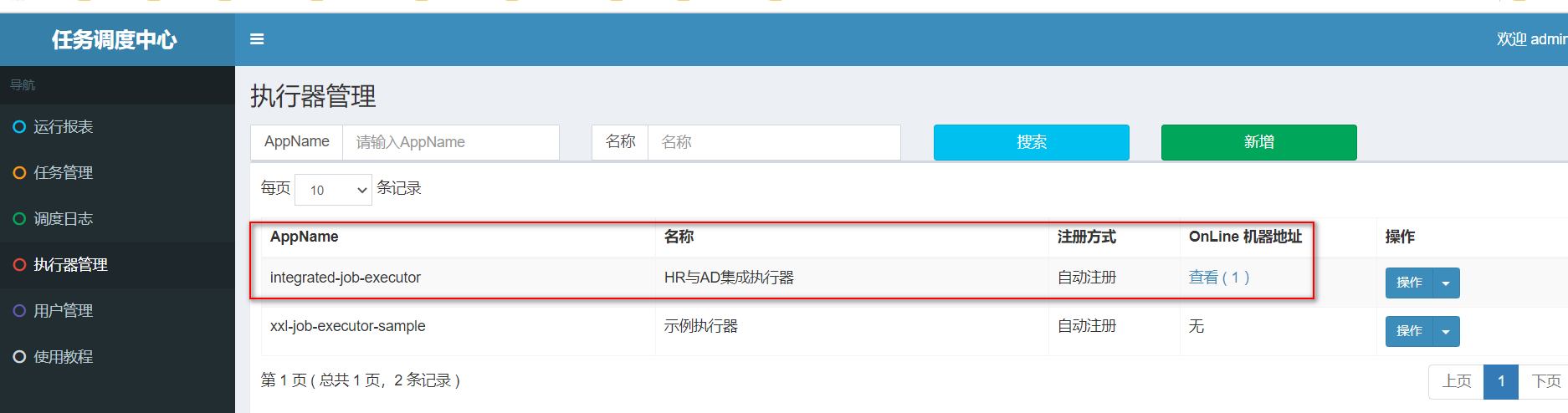

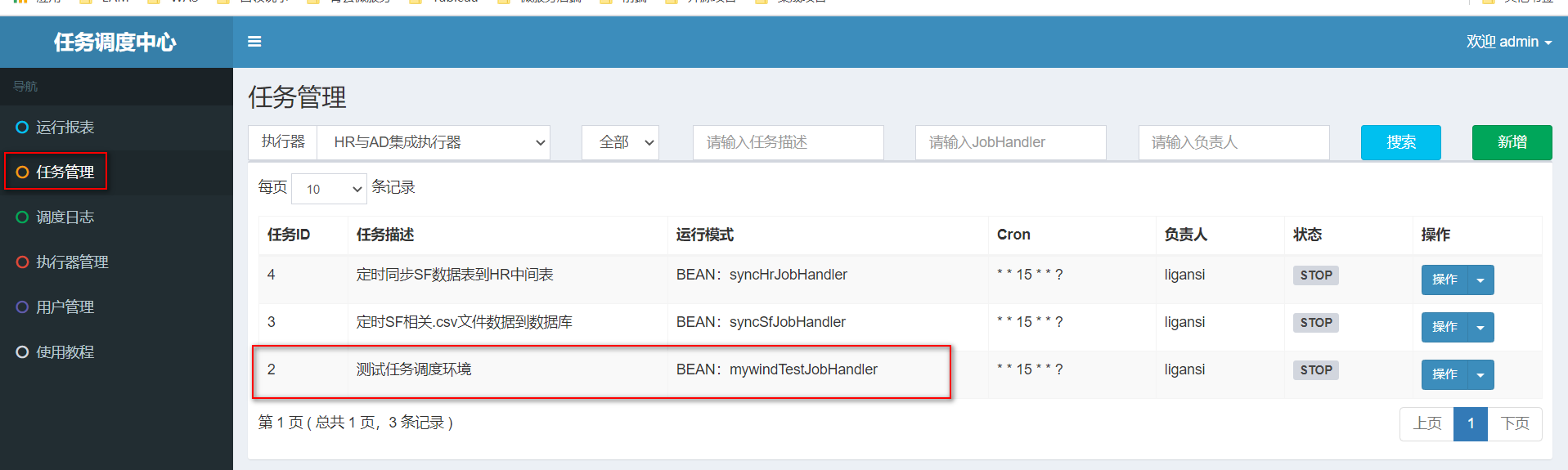

4、进入xxl-job admin增加执行器与任务

最后就是测试调用了，有问题请联系QQ:121214756
