概述

上一篇文章中我们解释了Spring对于类级别的注解的解析过程，通过类级别的注解spring基本是将所有该加载的类都加载到待解析的BeanDefineMap中去了。但是BeanDefineMap可不是实例化的bean哦，可以说通过类级别的注解之后Spring还是一个粗糙的商品，但是要变成一个精美的可以使用的Bean还需要将这个粗糙的商品进行一番美化。那么这个美化的动作就是content.getBean()方法了。考虑到类的实例化过程可能会依赖其他的bean还有一些类内部的注解比如@Autowired、@Queries等都需要考虑。所以说getBean是比较复杂的。之前通过源码查看的时候稍微看到了这块，感到压力很大。但是有时候确实让人迫不得已的要去做这件事。因为我们还没有解释@Autowired是如何注入的问题。所以就让我们通过这期的学习解答这个问题吧！

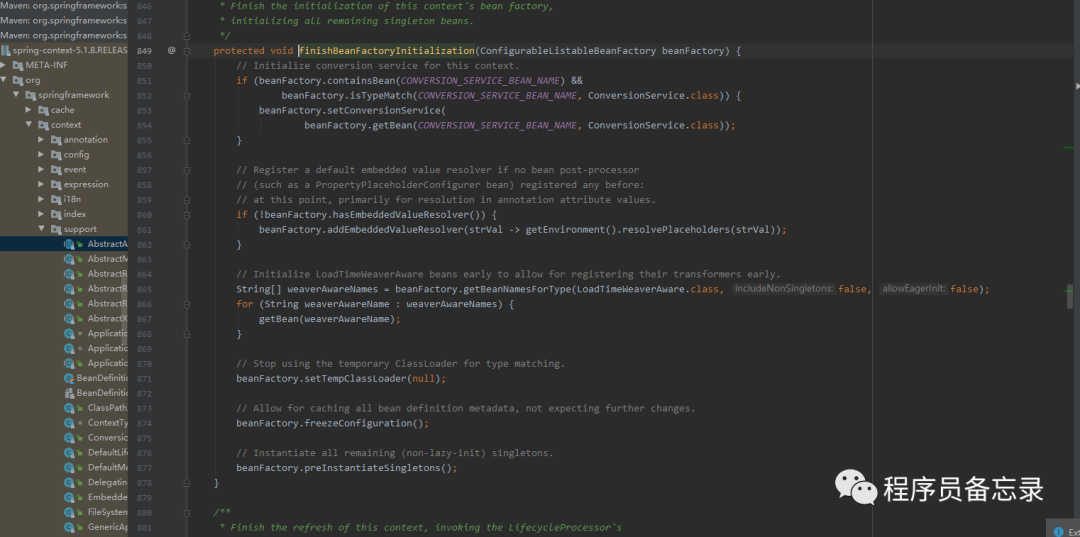

在之前我们说上述代码就是实例化bean的代码。这块我们主要看一下

beanFactory.preInstantiateSingletons();方法

  @Override
  public void preInstantiateSingletons() throws BeansException {
    if (logger.isTraceEnabled()) {
      logger.trace("Pre-instantiating singletons in " + this);
    }
//拿到所有注册的bean的名称
    List<String> beanNames = new ArrayList<>(this.beanDefinitionNames);
    //遍历
    for (String beanName : beanNames) {
    //拿到粗糙的bean
      RootBeanDefinition bd = getMergedLocalBeanDefinition(beanName);
      if (!bd.isAbstract() && bd.isSingleton() && !bd.isLazyInit()) {
        //判断是否为工厂bean
        if (isFactoryBean(beanName)) {
        //给beanName+前缀 & 符号
          Object bean = getBean(FACTORY_BEAN_PREFIX + beanName);
          if (bean instanceof FactoryBean) {
          //如果是工厂bean
            final FactoryBean<?> factory = (FactoryBean<?>) bean;
            boolean isEagerInit;
            if (System.getSecurityManager() != null && factory instanceof SmartFactoryBean) {
              isEagerInit = AccessController.doPrivileged((PrivilegedAction<Boolean>)
                      ((SmartFactoryBean<?>) factory)::isEagerInit,
                  getAccessControlContext());
            }
            else {
              isEagerInit = (factory instanceof SmartFactoryBean &&
                  ((SmartFactoryBean<?>) factory).isEagerInit());
            }
            //调用正在的getBean
            if (isEagerInit) {
              getBean(beanName);
            }
          }
        }
        else {
        //非工厂bean
          getBean(beanName);
        }
      }
    }


    // 通过上述方法就将bean注册进去了。这里迭代做一些处理
    for (String beanName : beanNames) {
    //拿到单例bean
      Object singletonInstance = getSingleton(beanName);
      if (singletonInstance instanceof SmartInitializingSingleton) {
        //判断当前的bean是否实现了SmartInitializingSingleton接口
        final SmartInitializingSingleton smartSingleton = (SmartInitializingSingleton) singletonInstance;
        if (System.getSecurityManager() != null) {
          AccessController.doPrivileged((PrivilegedAction<Object>) () -> {
            smartSingleton.afterSingletonsInstantiated();
            return null;
          }, getAccessControlContext());
        }
        else {
        //做一些后置处理
          smartSingleton.afterSingletonsInstantiated();
        }
      }
    }
  }

通过上边的分析，我们知道getBean是很重要的方法。那么这块做了哪些工作？

我们看到这里的doGetBean方法，说明这里是正真搞事情的地方。毫无疑问，伟大的目标必将付出艰苦的努力。这块的代码很长！

  protected <T> T doGetBean(final String name, @Nullable final Class<T> requiredType,
      @Nullable final Object[] args, boolean typeCheckOnly) throws BeansException {


//先把传入的名称进行转化。因为可能传入的是别名什么的，所以要处理一下，如果之前都添加了前缀
    final String beanName = transformedBeanName(name);
    Object bean;
    // 先尝试从缓存中加载bean，如果不存在会调用getBean方法，因为创建单例bean的时候存在循环依赖的问题
    //Spring创建bean的时候是不等bean创建结束就将bean的ObjectFactory提早曝光。就是将ObjectFactory加入到缓存。
    //一旦下一个bean创建的时候需要依赖上一个bean的时候则可以直接使用
    //从缓存或者singleFactories中的ObjectFactory中获取。
    Object sharedInstance = getSingleton(beanName);
    if (sharedInstance != null && args == null) {
      if (logger.isTraceEnabled()) {
        if (isSingletonCurrentlyInCreation(beanName)) {
          logger.trace("Returning eagerly cached instance of singleton bean '" + beanName +
              "' that is not fully initialized yet - a consequence of a circular reference");
        }
        else {
          logger.trace("Returning cached instance of singleton bean '" + beanName + "'");
        }
      }
  /**
     * 如果sharedInstance是普通的单例bean，下面的方法会直接返回。但如果
     * sharedInstance是FactoryBean类型的，则需调用getObject工厂方法获取真正的
     * bean实例。如果用户想获取 FactoryBean 本身，这里也不会做特别的处理，直接返回
     * 即可。毕竟 FactoryBean 的实现类本身也是一种 bean，只不过具有一点特殊的功能而已。
     */
     //有时候BeanFactory返回的并不是实例本身而是指定方法返回的实例
      bean = getObjectForBeanInstance(sharedInstance, name, beanName, null);
    }
    else {
//Spring只能解决单例对象的setter注入的循环依赖,不能解决构造器注入，
//也不能解决多实例的循环依赖
      if (isPrototypeCurrentlyInCreation(beanName)) {
        throw new BeanCurrentlyInCreationException(beanName);
      }
//如果已经加载的类没有当前类就从parentBeanFactory中加载。
      BeanFactory parentBeanFactory = getParentBeanFactory();
      if (parentBeanFactory != null && !containsBeanDefinition(beanName)) {
   //若存在父工厂,切当前的bean工厂不存在当前的bean定义,
   //那么bean定义是存在于父beanFactory中
   //获取原始名称
        String nameToLookup = originalBeanName(name);
        if (parentBeanFactory instanceof AbstractBeanFactory) {
          return ((AbstractBeanFactory) parentBeanFactory).doGetBean(
              nameToLookup, requiredType, args, typeCheckOnly);
        }
        else if (args != null) {
          //委托给构造函数
          return (T) parentBeanFactory.getBean(nameToLookup, args);
        }
        else if (requiredType != null) {
          // 没有args，委托给标准的getBean()处理
          return parentBeanFactory.getBean(nameToLookup, requiredType);
        }
        else {
        //使用父工厂创建bean
          return (T) parentBeanFactory.getBean(nameToLookup);
        }
      }
/**
 * 方法参数typeCheckOnly ，是用来判断调用getBean(...) 方法时，表示是否为仅仅进行类型检查获取Bean对象
 * 如果不是仅仅做类型检查，而是创建Bean对象，则需要调用markBeanAsCreated(String beanName) 方法，进行记录
 */
      if (!typeCheckOnly) {
        markBeanAsCreated(beanName);
      }
      try {
       //从容器中获取beanName相应的GenericBeanDefinition对象，并将其转换为RootBeanDefinition对象
        final RootBeanDefinition mbd = getMergedLocalBeanDefinition(beanName);
         //检查当前创建的bean定义是不是抽象的bean定义
        checkMergedBeanDefinition(mbd, beanName, args);


      //处理dependsOn的依赖(这个不是我们所谓的循环依赖 而是bean创建前后的依赖)
       //依赖bean的名称
        String[] dependsOn = mbd.getDependsOn();
        if (dependsOn != null) {

          for (String dep : dependsOn) {
          //beanName是当前正在创建的bean,dep是正在创建的bean的依赖的bean的名称
            if (isDependent(beanName, dep)) {
              throw new BeanCreationException(mbd.getResourceDescription(), beanName,
                  "Circular depends-on relationship between '" + beanName + "' and '" + dep + "'");
            }
            //保存的是依赖beanName之间的映射关系：
            //依赖beanName -> beanName的集合
            registerDependentBean(dep, beanName);
            try {
            //获取dependsOn的bean
              getBean(dep);
            }
            catch (NoSuchBeanDefinitionException ex) {
              throw new BeanCreationException(mbd.getResourceDescription(), beanName,
                  "'" + beanName + "' depends on missing bean '" + dep + "'", ex);
            }
          }
        }


    //是单例则创建单例Bean
        if (mbd.isSingleton()) {
          sharedInstance = getSingleton(beanName, () -> {
            try {
            //这里是重点
              return createBean(beanName, mbd, args);
            }
            catch (BeansException ex) {
             //清除旧信息
              destroySingleton(beanName);
              throw ex;
            }
          });
          bean = getObjectForBeanInstance(sharedInstance, name, beanName, mbd);
        }


        else if (mbd.isPrototype()) {
          // 如果是一个属性，就创建
          Object prototypeInstance = null;
          try {
            beforePrototypeCreation(beanName);
            prototypeInstance = createBean(beanName, mbd, args);
          }
          finally {
            afterPrototypeCreation(beanName);
          }
          bean = getObjectForBeanInstance(prototypeInstance, name, beanName, mbd);
        }


        else {
        //指定scope上实例化bean
          String scopeName = mbd.getScope();
          final Scope scope = this.scopes.get(scopeName);
          if (scope == null) {
            throw new IllegalStateException("No Scope registered for scope name '" + scopeName + "'");
          }
          try {
            Object scopedInstance = scope.get(beanName, () -> {
              beforePrototypeCreation(beanName);
              try {
                return createBean(beanName, mbd, args);
              }
              finally {
                afterPrototypeCreation(beanName);
              }
            });
            bean = getObjectForBeanInstance(scopedInstance, name, beanName, mbd);
          }
          catch (IllegalStateException ex) {
            throw new BeanCreationException(beanName,
                "Scope '" + scopeName + "' is not active for the current thread; consider " +
                "defining a scoped proxy for this bean if you intend to refer to it from a singleton",
                ex);
          }
        }
      }
      catch (BeansException ex) {
        cleanupAfterBeanCreationFailure(beanName);
        throw ex;
      }
    }
    //一些检测
    if (requiredType != null && !requiredType.isInstance(bean)) {
      try {
        T convertedBean = getTypeConverter().convertIfNecessary(bean, requiredType);
        if (convertedBean == null) {
          throw new BeanNotOfRequiredTypeException(name, requiredType, bean.getClass());
        }
        return convertedBean;
      }
      catch (TypeMismatchException ex) {
        if (logger.isTraceEnabled()) {
          logger.trace("Failed to convert bean '" + name + "' to required type '" +
              ClassUtils.getQualifiedName(requiredType) + "'", ex);
        }
        throw new BeanNotOfRequiredTypeException(name, requiredType, bean.getClass());
      }
    }
    return (T) bean;
  }

通过上述代码查看，我们大概描述一下getBean的过程，首先对bean的名称做一些处理，之前的bean名称都是添加工厂名称的。所以要处理一下。处理完之后先从缓存中获取bean，同时将该bean对应的ObjectFactory加入到缓存中，同时如果从缓存中获取到之后就进行对Bean进行判断，看是否为工厂Bean，如果是工厂bean就需要返回对应方法的返回结果。判断完毕之后就对bean的属性进行初始化了，如果是单例就处理单例，如果是property就相应做处理。当然还有对scope做处理的。我们一般都是单例吧。当然如果没有从工厂中获取到bean的话就尝试从父工厂中获取。

那么我们看一下createBean方法都做了哪些事情

protected Object createBean(String beanName, RootBeanDefinition mbd, @Nullable Object[] args)
      throws BeanCreationException {
    if (logger.isTraceEnabled()) {
      logger.trace("Creating instance of bean '" + beanName + "'");
    }
    RootBeanDefinition mbdToUse = mbd;
//解析class
    Class<?> resolvedClass = resolveBeanClass(mbd, beanName);
    if (resolvedClass != null && !mbd.hasBeanClass() && mbd.getBeanClassName() != null) {
      mbdToUse = new RootBeanDefinition(mbd);
      mbdToUse.setBeanClass(resolvedClass);
    }
    // 验证以及准备覆盖方法
    try {
      mbdToUse.prepareMethodOverrides();
    }
    catch (BeanDefinitionValidationException ex) {
      throw new BeanDefinitionStoreException(mbdToUse.getResourceDescription(),
          beanName, "Validation of method overrides failed", ex);
    }
    try {
      // 给BeanPostProcessors一个机会来替换原来的bean
      //该方法里有两个接口可以对bean进行处理
      //instantiationAwareBeanPostProcessor
      Object bean = resolveBeforeInstantiation(beanName, mbdToUse);
      if (bean != null) {
      //返回
        return bean;
      }
    }
    catch (Throwable ex) {
      throw new BeanCreationException(mbdToUse.getResourceDescription(), beanName,
          "BeanPostProcessor before instantiation of bean failed", ex);
    }
    try {
    //如果BeanPostProcessors没有做处理就自己创建
      Object beanInstance = doCreateBean(beanName, mbdToUse, args);
      if (logger.isTraceEnabled()) {
        logger.trace("Finished creating instance of bean '" + beanName + "'");
      }
      return beanInstance;
    }
    catch (BeanCreationException | ImplicitlyAppearedSingletonException ex) {


      throw ex;
    }
    catch (Throwable ex) {
      throw new BeanCreationException(
          mbdToUse.getResourceDescription(), beanName, "Unexpected exception during bean creation", ex);
    }
  }

//这里才是真正创建bean的地方
protected Object doCreateBean(String beanName, RootBeanDefinition mbd, @Nullable Object[] args) throws BeanCreationException {
        BeanWrapper instanceWrapper = null;
        if (mbd.isSingleton()) {
        //从缓存中移除
            instanceWrapper = (BeanWrapper)this.factoryBeanInstanceCache.remove(beanName);
        }
        if (instanceWrapper == null) {
        //创建
            instanceWrapper = this.createBeanInstance(beanName, mbd, args);
        }
        Object bean = instanceWrapper.getWrappedInstance();
        Class<?> beanType = instanceWrapper.getWrappedClass();
        if (beanType != NullBean.class) {
            mbd.resolvedTargetType = beanType;
        }
//这里处理类内注解，通过查看我们发现主要有图所示的处理类。这些类是爱注册beanpostprocessors中加入的
        synchronized(mbd.postProcessingLock) {
            if (!mbd.postProcessed) {
                try {
                //处理的过程
                    this.applyMergedBeanDefinitionPostProcessors(mbd, beanType, beanName);
                } catch (Throwable var17) {
                    throw new BeanCreationException(mbd.getResourceDescription(), beanName, "Post-processing of merged bean definition failed", var17);
                }
                mbd.postProcessed = true;
            }
        }
        //是否提前曝光
        boolean earlySingletonExposure = mbd.isSingleton() && this.allowCircularReferences && this.isSingletonCurrentlyInCreation(beanName);
        if (earlySingletonExposure) {
            if (this.logger.isTraceEnabled()) {
                this.logger.trace("Eagerly caching bean '" + beanName + "' to allow for resolving potential circular references");
            }
            this.addSingletonFactory(beanName, () -> {
                return this.getEarlyBeanReference(beanName, mbd, bean);
            });
        }
        Object exposedObject = bean;
        try {
        //对bean进行填充
            this.populateBean(beanName, mbd, instanceWrapper);
            //这块是实例化bean调用后置处理器的部分exposedObject就是bean实体
            exposedObject = this.initializeBean(beanName, exposedObject, mbd);
        } catch (Throwable var18) {
            if (var18 instanceof BeanCreationException && beanName.equals(((BeanCreationException)var18).getBeanName())) {
                throw (BeanCreationException)var18;
            }
            throw new BeanCreationException(mbd.getResourceDescription(), beanName, "Initialization of bean failed", var18);
        }
        if (earlySingletonExposure) {
            Object earlySingletonReference = this.getSingleton(beanName, false);
            if (earlySingletonReference != null) {
                if (exposedObject == bean) {
                    exposedObject = earlySingletonReference;
                } else if (!this.allowRawInjectionDespiteWrapping && this.hasDependentBean(beanName)) {
                    String[] dependentBeans = this.getDependentBeans(beanName);
                    Set<String> actualDependentBeans = new LinkedHashSet(dependentBeans.length);
                    String[] var12 = dependentBeans;
                    int var13 = dependentBeans.length;
                    for(int var14 = 0; var14 < var13; ++var14) {
                        String dependentBean = var12[var14];
                        if (!this.removeSingletonIfCreatedForTypeCheckOnly(dependentBean)) {
                            actualDependentBeans.add(dependentBean);
                        }
                    }
                    if (!actualDependentBeans.isEmpty()) {
                        throw new BeanCurrentlyInCreationException(beanName, "Bean with name '" + beanName + "' has been injected into other beans [" + StringUtils.collectionToCommaDelimitedString(actualDependentBeans) + "] in its raw version as part of a circular reference, but has eventually been wrapped. This means that said other beans do not use the final version of the bean. This is often the result of over-eager type matching - consider using 'getBeanNamesOfType' with the 'allowEagerInit' flag turned off, for example.");
                    }
                }
            }
        }
        try {
            this.registerDisposableBeanIfNecessary(beanName, bean, mbd);
            return exposedObject;
        } catch (BeanDefinitionValidationException var16) {
            throw new BeanCreationException(mbd.getResourceDescription(), beanName, "Invalid destruction signature", var16);
        }
    }

大概看源码发现doCreateBean才是主要的创建Bean的地方，主要的操作就是对类内部注解进行解析，然后解析完毕之后会统一调initializeBean方法。initalizeBean就开始执行Aware、前置处理器、初始化方法、后置处理器等顺序进行执行，通过这些方法后类才真正的实例化并注册到IOC中。至于initalizeBean没有什么可说的，都是常规操作。但是我们需要记住的是它调用的过程，首先是一波Aware接口的调用，之后是BeanPostProfrosses的前置处理器，然后是Bean的初始化方法，最后是BeanPostProcessors的后置处理方法。而且这个InitalizeBean的方法是只要调用了getBean都会执行。所有保证了InitalizeBean里边的方法都可以执行到到。
