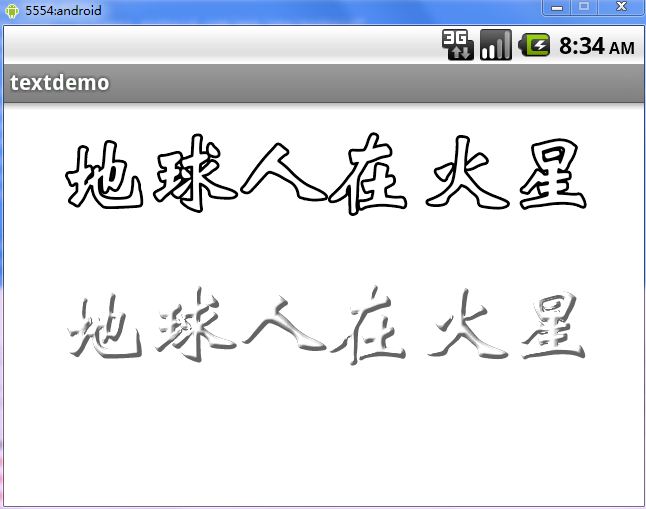

Android 字体效果：描边、浮雕效果

89 阅读 0 评论 59 点赞

我是靠谱客的博主高大板凳，最近开发中收集的这篇文章主要介绍Android 字体效果：描边、浮雕效果，觉得挺不错的，现在分享给大家，希望可以做个参考。

概述

package cn.iimob;

import android.app.Activity;
import android.graphics.EmbossMaskFilter;
import android.graphics.Typeface;
import android.graphics.Paint.Style;
import android.os.Bundle;
import android.text.TextPaint;
import android.widget.TextView;

public class demo extends Activity {
     /** Called when the activity is first created. */
     private TextView textView;
     private TextView textView1;
     private TextView textView2;
    @Override
     public void onCreate(Bundle savedInstanceState) {
         super.onCreate(savedInstanceState);
        setContentView(R.layout.main);
        textView=(TextView)findViewById(R.id.title);
         // 字体
        textView.setTypeface(Typeface.createFromAsset( this.getAssets(), "zy.3gp"));
        textView.setText("地球人在火星");
        TextPaint tp1 = textView.getPaint();
        tp1.setStrokeWidth(3);
        tp1.setStyle(Style.FILL_AND_STROKE);
        tp1.setFakeBoldText( true);

        textView1=(TextView)findViewById(R.id.title1);
         // 字体
        textView1.setTypeface(Typeface.createFromAsset( this.getAssets(), "zy.3gp"));
        textView1.setText("地球人在火星");

        textView2=(TextView)findViewById(R.id.title2);
        textView2.setText("地球人在火星");


        TextPaint tp2 = textView2.getPaint();
         // 字体
        textView2.setTypeface(Typeface.createFromAsset( this.getAssets(), "zy.3gp"));
        tp2.setFakeBoldText( true);
         // 设置光源的方向
         float[] direction = new float[]{ 1, 1, 1 };
         // 设置环境光亮度
         float light = 0.4f;
         // 选择要应用的反射等级
         float specular = 6;
         // 向mask应用一定级别的模糊
         float blur = 3.5f;
        EmbossMaskFilter maskfilter= new EmbossMaskFilter(direction,light,specular,blur);
        tp2.setMaskFilter(maskfilter);
    }
}

注意：assetszy.3gp 是字体库。

resvaluesstyles.xml

<?xml version="1.0" encoding="utf-8"?>

< resources >
     < style name ="AudioFileInfoOverlayText0" >
         < item name ="android:paddingLeft" >4px </ item >
         < item name ="android:paddingBottom" >4px </ item >
         < item name ="android:textColor" >#000000 </ item >
         < item name ="android:textSize" >60sp </ item >
     </ style >
     < style name ="AudioFileInfoOverlayText1" >
         < item name ="android:paddingLeft" >4px </ item >
         < item name ="android:paddingBottom" >4px </ item >
         < item name ="android:textColor" >#FFFFFF </ item >
         < item name ="android:textSize" >60sp </ item >
     </ style >
      < style name ="AudioFileInfoOverlayText2" >
         < item name ="android:paddingLeft" >4px </ item >
         < item name ="android:paddingBottom" >4px </ item >
         < item name ="android:textColor" >#FFFFFF </ item >
         < item name ="android:textSize" >60sp </ item >
     </ style >
</ resources >

reslayoutmain.xml

<?xml version="1.0" encoding="utf-8"?>

< LinearLayout xmlns:android ="http://schemas.android.com/apk/res/android"
    android:orientation ="vertical" android:layout_width ="fill_parent"
    android:layout_height ="fill_parent" android:background ="#FFFFFF" >

< AbsoluteLayout android:id ="@+id/AbsoluteLayout01" android:layout_width ="wrap_content" android:layout_height ="wrap_content" >
< TextView style ="@style/AudioFileInfoOverlayText0" android:id ="@+id/title" android:text ="hello word"
        android:layout_gravity ="bottom" android:gravity ="center_vertical|center_horizontal"
        android:layout_width ="640px" android:layout_height ="151px" ></ TextView >
< TextView style ="@style/AudioFileInfoOverlayText1" android:id ="@+id/title1" android:text ="hello word"
        android:layout_gravity ="bottom" android:gravity ="center_vertical|center_horizontal"
        android:layout_width ="640px" android:layout_height ="151px" ></ TextView >
</ AbsoluteLayout >

< TextView style ="@style/AudioFileInfoOverlayText2" android:id ="@+id/title2" android:text ="hello word"
        android:layout_gravity ="bottom" android:gravity ="center_vertical|center_horizontal"
        android:layout_width ="640px" android:layout_height ="151px" ></ TextView >
</ LinearLayout >
