概述

今天解读Spring核心方法refresh()中最最重要的一个方法finishBeanFactoryInitialization()方法，该方法负责初始化所有的单例bean。

finishBeanFactoryInitialization()方法位于refresh()中下标为8的位置。

到目前为止，应该说是是 BeanFactory 已经创建完成，并且所有的实现了 BeanFactoryPostProcessor 接口的 Bean 都已经初始化并且其中的 postProcessBeanFactory(factory) 方法已经得到回调执行了。而且 Spring 已经“手动”注册了一些特殊的 Bean，如 environment、systemProperties 等。

剩下的就是初始化 singleton beans 了，大多数我们的业务中都是单例bean，就像我们写的@Controller、@Service的类（没有设置懒加载的）都是在这个地方初始化，以供我们使用，如果没有设置懒加载，那么 Spring 会在接下来初始化所有的 singleton beans。

我们先看一下refresh()的源码，大概看下finishBeanFactoryInitialization(beanFactory)所处的位置。

@Overridepublic void refresh() throws BeansException, IllegalStateException {synchronized (this.startupShutdownMonitor) {// Prepare this context for refreshing.//1、刷新前的准备prepareRefresh();// Tell the subclass to refresh the internal bean factory.//2、将会初始化 BeanFactory、加载 Bean、注册 BeanConfigurableListableBeanFactory beanFactory = obtainFreshBeanFactory();// Prepare the bean factory for use in this context.//3、设置 BeanFactory 的类加载器，添加几个 BeanPostProcessor，手动注册几个特殊的 beanprepareBeanFactory(beanFactory);try {//4、模板方法// Allows post-processing of the bean factory in context subclasses.postProcessBeanFactory(beanFactory);// Invoke factory processors registered as beans in the context.//执行BeanFactory后置处理器invokeBeanFactoryPostProcessors(beanFactory);// 5、Register bean processors that intercept bean creation.//注册bean后置处理器registerBeanPostProcessors(beanFactory);// Initialize message source for this context.//国际化initMessageSource();// Initialize event multicaster for this context.initApplicationEventMulticaster();// Initialize other special beans in specific context subclasses.//6、模板方法--springboot实现了这个方法onRefresh();// Check for listener beans and register them.//7、注册监听器registerListeners();// Instantiate all remaining (non-lazy-init) singletons.//8、完成bean工厂的初始化**方法重要**********************************************finishBeanFactoryInitialization(beanFactory);//9、 Last step: publish corresponding event.finishRefresh();}1.2.3.4.5.6.7.8.9.10.11.12.13.14.15.16.17.18.19.20.21.22.23.24.25.26.27.28.29.30.31.32.33.34.35.36.37.38.39.40.41.42.43.44.45.46.47.48.49.50.

我们深入finishBeanFactoryInitialization(beanFactory)中，里面的调用线路错综复杂，还望读者可以做好心理准备。

/** * 负责单例bean的初始化 * Finish the initialization of this context's bean factory, * initializing all remaining singleton beans. */protected void finishBeanFactoryInitialization(ConfigurableListableBeanFactory beanFactory) {// Initialize conversion service for this context.//最先初始化名字为 conversionService的类，conversionService类 它用来将前端传过来的参数和后端的 controller 方法上的参数进行绑定的时候用//尤其是用于非基础类型的转换if (beanFactory.containsBean(CONVERSION_SERVICE_BEAN_NAME) &&beanFactory.isTypeMatch(CONVERSION_SERVICE_BEAN_NAME, ConversionService.class)) {beanFactory.setConversionService(//初始化在getBean()方法中实现beanFactory.getBean(CONVERSION_SERVICE_BEAN_NAME, ConversionService.class));}// Register a default embedded value resolver if no bean post-processor// (such as a PropertyPlaceholderConfigurer bean) registered any before:// at this point, primarily for resolution in annotation attribute values.if (!beanFactory.hasEmbeddedValueResolver()) {beanFactory.addEmbeddedValueResolver(strVal -> getEnvironment().resolvePlaceholders(strVal));}// Initialize LoadTimeWeaverAware beans early to allow for registering their transformers early.// 先初始化 LoadTimeWeaverAware 类型的 Bean aop相关注：大概有个印象，以后解析aop会和它串起来。String[] weaverAwareNames = beanFactory.getBeanNamesForType(LoadTimeWeaverAware.class, false, false);for (String weaverAwareName : weaverAwareNames) {getBean(weaverAwareName);}// Stop using the temporary ClassLoader for type matching.beanFactory.setTempClassLoader(null);// Allow for caching all bean definition metadata, not expecting further changes.//freeze的单词意思是冻结，这个时候已经开始预初始化， bean 定义解析、加载、注册先停止beanFactory.freezeConfiguration();// Instantiate all remaining (non-lazy-init) singletons.//开始初始化beanFactory.preInstantiateSingletons();}1.2.3.4.5.6.7.8.9.10.11.12.13.14.15.16.17.18.19.20.21.22.23.24.25.26.27.28.29.30.31.32.33.34.35.36.37.38.39.40.41.

该方法是判断bean的一系列是不是属于某个类型的bean，如果是就调用getBean()方法，如果不是，就调用beanFactory.preInstantiateSingletons()进行初始化，我们先把getBean()放一放，重点看一看beanFactory.preInstantiateSingletons()方法。

@Overridepublic void preInstantiateSingletons() throws BeansException {if (logger.isTraceEnabled()) {logger.trace("Pre-instantiating singletons in " + this);}// Iterate over a copy to allow for init methods which in turn register new bean definitions.// While this may not be part of the regular factory bootstrap, it does otherwise work fine.// this.beanDefinitionNames 保存了所有的 beanNamesList<String> beanNames = new ArrayList<>(this.beanDefinitionNames);// Trigger initialization of all non-lazy singleton beans... 下面这个循环，触发所有的非懒加载的 singleton beans 的初始化操作for (String beanName : beanNames) {RootBeanDefinition bd = getMergedLocalBeanDefinition(beanName);// 非抽象、非懒加载的 singletons。如果配置了 'abstract = true'，那是不需要初始化的if (!bd.isAbstract() && bd.isSingleton() && !bd.isLazyInit()) {// 处理 FactoryBean （负责初始化工厂的bean）if (isFactoryBean(beanName)) {// FactoryBean 的话，在 beanName 前面加上 ‘&’ 符号//此处调用getBean()方法Object bean = getBean(FACTORY_BEAN_PREFIX + beanName);if (bean instanceof FactoryBean) {FactoryBean<?> factory = (FactoryBean<?>) bean;// 判断当前 FactoryBean 是否是 SmartFactoryBean 的实现boolean isEagerInit;if (System.getSecurityManager() != null && factory instanceof SmartFactoryBean) {isEagerInit = AccessController.doPrivileged((PrivilegedAction<Boolean>) ((SmartFactoryBean<?>) factory)::isEagerInit,getAccessControlContext());}else {isEagerInit = (factory instanceof SmartFactoryBean &&((SmartFactoryBean<?>) factory).isEagerInit());}if (isEagerInit) {getBean(beanName);}}}else {// 对于普通的 Bean，只要调用 getBean(beanName) 这个方法就可以进行初始化了getBean(beanName);}}}// Trigger post-initialization callback for all applicable beans...// 到这里说明所有的非懒加载的 singleton beans 已经完成了初始化// 如果我们定义的 bean 是实现了 SmartInitializingSingleton 接口的，那么在这里得到回调//如果你想在单例bean初始化后做一些事 那就实现该接口for (String beanName : beanNames) {Object singletonInstance = getSingleton(beanName);if (singletonInstance instanceof SmartInitializingSingleton) {SmartInitializingSingleton smartSingleton = (SmartInitializingSingleton) singletonInstance;if (System.getSecurityManager() != null) {AccessController.doPrivileged((PrivilegedAction<Object>) () -> {smartSingleton.afterSingletonsInstantiated();return null;}, getAccessControlContext());}else {smartSingleton.afterSingletonsInstantiated();}}}}1.2.3.4.5.6.7.8.9.10.11.12.13.14.15.16.17.18.19.20.21.22.23.24.25.26.27.28.29.30.31.32.33.34.35.36.37.38.39.40.41.42.43.44.45.46.47.48.49.50.51.52.53.54.55.56.57.58.59.60.61.62.63.64.65.66.67.68.

preInstantiateSingletons()方法的主要任务是进行初始化的，在初始化前同样是一系列判断，如，是否是懒加载的，是否是一个factorybean（一个特别的bean，负责工厂创建的bean），最后调用getBean()方法。

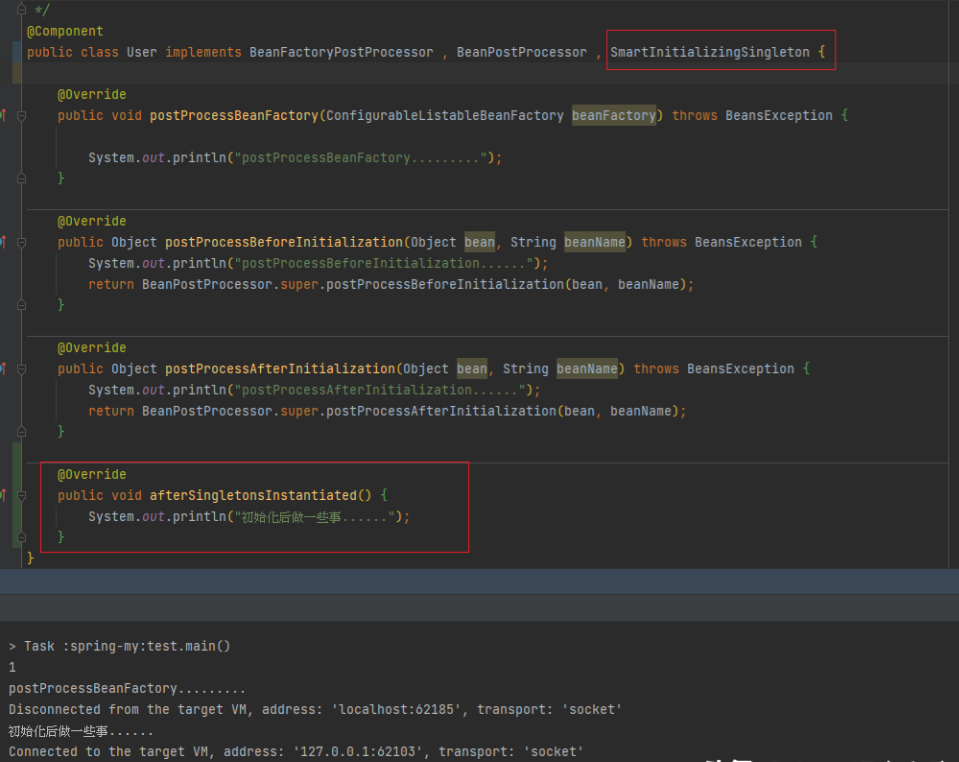

其中有个插曲是否实现了SmartInitializingSingleton接口，将接口让你可以在bean初始化后做一些事，我们写一个简单的实例测试一下。

其他地方读者看注释了解一下即可，我们开始继续深入getBean()方法。

getBean()方法内部调用了doGetBean()我们直接看doGetBean方法。

// 我们在剖析初始化 Bean 的过程，但是 getBean 方法我们经常是用来从容器中获取 Bean 用的，注意切换思路，// 已经初始化过了就从容器中直接返回，否则就先初始化再返回protected <T> T doGetBean(String name, @Nullable Class<T> requiredType, @Nullable Object[] args, boolean typeCheckOnly)throws BeansException {// 获取一个 “正统的” beanName，处理两种情况，一个是前面说的 FactoryBean(前面带 ‘&’)，// 一个是别名问题，因为这个方法是 getBean，获取 Bean 用的，你要是传一个别名进来，是完全可以的String beanName = transformedBeanName(name);// 返回值Object bean;// Eagerly check singleton cache for manually registered singletons.// 检查下是不是已经创建过了Object sharedInstance = getSingleton(beanName);// 这里说下 args ，虽然看上去一点不重要。前面我们一路进来的时候都是 getBean(beanName)，// 所以 args 传参其实是 null 的，但是如果 args 不为空的时候，那么意味着调用方不是希望获取 Bean，而是创建 Beanif (sharedInstance != null && args == null) {if (logger.isTraceEnabled()) {if (isSingletonCurrentlyInCreation(beanName)) {logger.trace("Returning eagerly cached instance of singleton bean '" + beanName +"' that is not fully initialized yet - a consequence of a circular reference");}else {logger.trace("Returning cached instance of singleton bean '" + beanName + "'");}}// 下面这个方法：如果是普通 Bean 的话，直接返回 sharedInstance，// 如果是 FactoryBean 的话，返回它创建的那个实例对象bean = getObjectForBeanInstance(sharedInstance, name, beanName, null);}else {// Fail if we're already creating this bean instance:// We're assumably within a circular reference.// 创建过了此 beanName 的 prototype 类型的 bean，那么抛异常，// 往往是因为陷入了循环引用 哦，原来之前的循环依赖都是在这抛的异常，再有问题就不是无头苍蝇了if (isPrototypeCurrentlyInCreation(beanName)) {throw new BeanCurrentlyInCreationException(beanName);}// Check if bean definition exists in this factory.// 检查一下这个 BeanDefinition 在容器中是否存在 BeanDefinition既是包含了bean的一系列信息BeanFactory parentBeanFactory = getParentBeanFactory();if (parentBeanFactory != null && !containsBeanDefinition(beanName)) {// Not found -> check parent.// 如果当前容器不存在这个 BeanDefinition，试试父容器中有没有String nameToLookup = originalBeanName(name);if (parentBeanFactory instanceof AbstractBeanFactory) {return ((AbstractBeanFactory) parentBeanFactory).doGetBean(nameToLookup, requiredType, args, typeCheckOnly);}else if (args != null) {// Delegation to parent with explicit args.// 返回父容器的查询结果return (T) parentBeanFactory.getBean(nameToLookup, args);}else if (requiredType != null) {// No args -> delegate to standard getBean method.return parentBeanFactory.getBean(nameToLookup, requiredType);}else {return (T) parentBeanFactory.getBean(nameToLookup);}}if (!typeCheckOnly) {// typeCheckOnly 为 false，将当前 beanName 放入一个 alreadyCreated 的 Set 集合中。markBeanAsCreated(beanName);}/* * 稍稍总结一下： * 到这里的话，要准备创建 Bean 了，对于 singleton 的 Bean 来说，容器中还没创建过此 Bean； * 对于 prototype 的 Bean 来说，本来就是要创建一个新的 Bean。 */try {RootBeanDefinition mbd = getMergedLocalBeanDefinition(beanName);checkMergedBeanDefinition(mbd, beanName, args);// Guarantee initialization of beans that the current bean depends on.// 先初始化依赖的所有 Bean，这个很好理解。// 注意，这里的依赖指的是 depends-on 中定义的依赖String[] dependsOn = mbd.getDependsOn();if (dependsOn != null) {for (String dep : dependsOn) {// 检查是不是有循环依赖，这里的循环依赖和我们前面说的循环依赖又不一样if (isDependent(beanName, dep)) {throw new BeanCreationException(mbd.getResourceDescription(), beanName,"Circular depends-on relationship between '" + beanName + "' and '" + dep + "'");}// 注册一下依赖关系registerDependentBean(dep, beanName);try {// 先初始化被依赖项getBean(dep);}catch (NoSuchBeanDefinitionException ex) {throw new BeanCreationException(mbd.getResourceDescription(), beanName,"'" + beanName + "' depends on missing bean '" + dep + "'", ex);}}}// Create bean instance.// 如果是 singleton scope 的，创建 singleton 的实例if (mbd.isSingleton()) {sharedInstance = getSingleton(beanName, () -> {try {// 执行创建 Bean，详情继续深入// 第三个参数 args 数组代表创建实例需要的参数，不就是给构造方法用的参数，或者是工厂 Bean 的参数嘛，不过要注意，在我们的初始化阶段，args 是 null。// 这回我们要到一个新的类了 AbstractAutowireCapableBeanFactory，看类名，AutowireCapable？类名是不是也说明了点问题了。// 主要是为了以下场景，采用 @Autowired 注解注入属性值：return createBean(beanName, mbd, args);}catch (BeansException ex) {// Explicitly remove instance from singleton cache: It might have been put there// eagerly by the creation process, to allow for circular reference resolution.// Also remove any beans that received a temporary reference to the bean.destroySingleton(beanName);throw ex;}});bean = getObjectForBeanInstance(sharedInstance, name, beanName, mbd);}// 如果是 prototype scope 的，创建 prototype 的实例else if (mbd.isPrototype()) {// It's a prototype -> create a new instance.Object prototypeInstance = null;try {beforePrototypeCreation(beanName);// 执行创建 BeanprototypeInstance = createBean(beanName, mbd, args);}finally {afterPrototypeCreation(beanName);}bean = getObjectForBeanInstance(prototypeInstance, name, beanName, mbd);}else {String scopeName = mbd.getScope();if (!StringUtils.hasLength(scopeName)) {throw new IllegalStateException("No scope name defined for bean ´" + beanName + "'");}Scope scope = this.scopes.get(scopeName);if (scope == null) {throw new IllegalStateException("No Scope registered for scope name '" + scopeName + "'");}try {Object scopedInstance = scope.get(beanName, () -> {beforePrototypeCreation(beanName);try {return createBean(beanName, mbd, args);}finally {afterPrototypeCreation(beanName);}});bean = getObjectForBeanInstance(scopedInstance, name, beanName, mbd);}catch (IllegalStateException ex) {throw new BeanCreationException(beanName,"Scope '" + scopeName + "' is not active for the current thread; consider " +"defining a scoped proxy for this bean if you intend to refer to it from a singleton",ex);}}}catch (BeansException ex) {cleanupAfterBeanCreationFailure(beanName);throw ex;}}// Check if required type matches the type of the actual bean instance.// 最后，检查一下类型对不对，不对的话就抛异常，对的话就返回了if (requiredType != null && !requiredType.isInstance(bean)) {try {T convertedBean = getTypeConverter().convertIfNecessary(bean, requiredType);if (convertedBean == null) {throw new BeanNotOfRequiredTypeException(name, requiredType, bean.getClass());}return convertedBean;}catch (TypeMismatchException ex) {if (logger.isTraceEnabled()) {logger.trace("Failed to convert bean '" + name + "' to required type '" +ClassUtils.getQualifiedName(requiredType) + "'", ex);}throw new BeanNotOfRequiredTypeException(name, requiredType, bean.getClass());}}return (T) bean;}1.2.3.4.5.6.7.8.9.10.11.12.13.14.15.16.17.18.19.20.21.22.23.24.25.26.27.28.29.30.31.32.33.34.35.36.37.38.39.40.41.42.43.44.45.46.47.48.49.50.51.52.53.54.55.56.57.58.59.60.61.62.63.64.65.66.67.68.69.70.71.72.73.74.75.76.77.78.79.80.81.82.83.84.85.86.87.88.89.90.91.92.93.94.95.96.97.98.99.100.101.102.103.104.105.106.107.108.109.110.111.112.113.114.115.116.117.118.119.120.121.122.123.124.125.126.127.128.129.130.131.132.133.134.135.136.137.138.139.140.141.142.143.144.145.146.147.148.149.150.151.152.153.154.155.156.157.158.159.160.161.162.163.164.165.166.167.168.169.170.171.172.173.174.175.176.177.178.179.180.181.182.183.184.185.186.187.188.189.190.191.192.193.194.195.196.

具体的实例化过程在createBean()方法中，我们继续深入createBean()方法。

@Overrideprotected Object createBean(String beanName, RootBeanDefinition mbd, @Nullable Object[] args)throws BeanCreationException {if (logger.isTraceEnabled()) {logger.trace("Creating instance of bean '" + beanName + "'");}RootBeanDefinition mbdToUse = mbd;// Make sure bean class is actually resolved at this point, and// clone the bean definition in case of a dynamically resolved Class// which cannot be stored in the shared merged bean definition.// 确保 BeanDefinition 中的 Class 被加载Class<?> resolvedClass = resolveBeanClass(mbd, beanName);if (resolvedClass != null && !mbd.hasBeanClass() && mbd.getBeanClassName() != null) {mbdToUse = new RootBeanDefinition(mbd);mbdToUse.setBeanClass(resolvedClass);}// Prepare method overrides.// 准备方法覆写，这里又涉及到一个概念：MethodOverrides，它来自于 bean 定义中的 <lookup-method />// 和 <replaced-method />，如果读者感兴趣，回到 bean 解析的地方看看对这两个标签的解析。try {mbdToUse.prepareMethodOverrides();}catch (BeanDefinitionValidationException ex) {throw new BeanDefinitionStoreException(mbdToUse.getResourceDescription(),beanName, "Validation of method overrides failed", ex);}try {// Give BeanPostProcessors a chance to return a proxy instead of the target bean instance.// 让 InstantiationAwareBeanPostProcessor 在这一步有机会返回代理，// 在 《Spring AOP 源码分析》那篇文章中有解释，这里先跳过Object bean = resolveBeforeInstantiation(beanName, mbdToUse);if (bean != null) {return bean;}}catch (Throwable ex) {throw new BeanCreationException(mbdToUse.getResourceDescription(), beanName,"BeanPostProcessor before instantiation of bean failed", ex);}try {// 重头戏，创建 beanObject beanInstance = doCreateBean(beanName, mbdToUse, args);if (logger.isTraceEnabled()) {logger.trace("Finished creating instance of bean '" + beanName + "'");}return beanInstance;}catch (BeanCreationException | ImplicitlyAppearedSingletonException ex) {// A previously detected exception with proper bean creation context already,// or illegal singleton state to be communicated up to DefaultSingletonBeanRegistry.throw ex;}catch (Throwable ex) {throw new BeanCreationException(mbdToUse.getResourceDescription(), beanName, "Unexpected exception during bean creation", ex);}}1.2.3.4.5.6.7.8.9.10.11.12.13.14.15.16.17.18.19.20.21.22.23.24.25.26.27.28.29.30.31.32.33.34.35.36.37.38.39.40.41.42.43.44.45.46.47.48.49.50.51.52.53.54.55.56.57.58.59.60.61.62.

我们继续往里看 doCreateBean 这个方法,这个调用过程是真的深。

protected Object doCreateBean(String beanName, RootBeanDefinition mbd, @Nullable Object[] args)throws BeanCreationException {// Instantiate the bean.BeanWrapper instanceWrapper = null;if (mbd.isSingleton()) {instanceWrapper = this.factoryBeanInstanceCache.remove(beanName);}if (instanceWrapper == null) {// 说明不是 FactoryBean，这里实例化 Bean，这里非常关键，细节之后再说**********instanceWrapper = createBeanInstance(beanName, mbd, args);}Object bean = instanceWrapper.getWrappedInstance();Class<?> beanType = instanceWrapper.getWrappedClass();if (beanType != NullBean.class) {mbd.resolvedTargetType = beanType;}// Allow post-processors to modify the merged bean definition.synchronized (mbd.postProcessingLock) {if (!mbd.postProcessed) {try {applyMergedBeanDefinitionPostProcessors(mbd, beanType, beanName);}catch (Throwable ex) {throw new BeanCreationException(mbd.getResourceDescription(), beanName,"Post-processing of merged bean definition failed", ex);}mbd.postProcessed = true;}}// Eagerly cache singletons to be able to resolve circular references// even when triggered by lifecycle interfaces like BeanFactoryAware.// 下面这块代码是为了解决循环依赖的问题，这是个重头戏，解决循环依赖问题boolean earlySingletonExposure = (mbd.isSingleton() && this.allowCircularReferences &&isSingletonCurrentlyInCreation(beanName));if (earlySingletonExposure) {if (logger.isTraceEnabled()) {logger.trace("Eagerly caching bean '" + beanName +"' to allow for resolving potential circular references");}addSingletonFactory(beanName, () -> getEarlyBeanReference(beanName, mbd, bean));}// Initialize the bean instance.Object exposedObject = bean;try {// 这一步也是非常关键的，这一步负责属性装配，因为前面的实例只是实例化了，并没有设值，这里就是设值***************populateBean(beanName, mbd, instanceWrapper);// 还记得 init-method 吗？还有 InitializingBean 接口？还有 BeanPostProcessor 接口？// 这里就是处理 bean 初始化完成后的各种回调**************exposedObject = initializeBean(beanName, exposedObject, mbd);}catch (Throwable ex) {if (ex instanceof BeanCreationException && beanName.equals(((BeanCreationException) ex).getBeanName())) {throw (BeanCreationException) ex;}else {throw new BeanCreationException(mbd.getResourceDescription(), beanName, "Initialization of bean failed", ex);}}// 下面这块代码是为了解决循环依赖的问题，这是个重头戏，解决循环依赖问题if (earlySingletonExposure) {//循环依赖的核心方法调用Object earlySingletonReference = getSingleton(beanName, false);if (earlySingletonReference != null) {if (exposedObject == bean) {exposedObject = earlySingletonReference;}else if (!this.allowRawInjectionDespiteWrapping && hasDependentBean(beanName)) {String[] dependentBeans = getDependentBeans(beanName);Set<String> actualDependentBeans = new LinkedHashSet<>(dependentBeans.length);for (String dependentBean : dependentBeans) {if (!removeSingletonIfCreatedForTypeCheckOnly(dependentBean)) {actualDependentBeans.add(dependentBean);}}if (!actualDependentBeans.isEmpty()) {throw new BeanCurrentlyInCreationException(beanName,"Bean with name '" + beanName + "' has been injected into other beans [" +StringUtils.collectionToCommaDelimitedString(actualDependentBeans) +"] in its raw version as part of a circular reference, but has eventually been " +"wrapped. This means that said other beans do not use the final version of the " +"bean. This is often the result of over-eager type matching - consider using " +"'getBeanNamesForType' with the 'allowEagerInit' flag turned off, for example.");}}}}// Register bean as disposable.try {registerDisposableBeanIfNecessary(beanName, bean, mbd);}catch (BeanDefinitionValidationException ex) {throw new BeanCreationException(mbd.getResourceDescription(), beanName, "Invalid destruction signature", ex);}return exposedObject;}1.2.3.4.5.6.7.8.9.10.11.12.13.14.15.16.17.18.19.20.21.22.23.24.25.26.27.28.29.30.31.32.33.34.35.36.37.38.39.40.41.42.43.44.45.46.47.48.49.50.51.52.53.54.55.56.57.58.59.60.61.62.63.64.65.66.67.68.69.70.71.72.73.74.75.76.77.78.79.80.81.82.83.84.85.86.87.88.89.90.91.92.93.94.95.96.97.98.99.100.101.102.103.

到这里，我们已经分析完了 doCreateBean 方法，总的来说，我们已经说完了整个初始化流程。

在实例化bean后有一个特别重要的知识点，也是面试中最常问的，Spring怎么解决循环依赖问题？核心代码就在这个方法里面。

循环依赖其实就是循环引用，也就是两个或则两个以上的bean互相持有对方，最终形成闭环。比如A依赖于B，B依赖于C，C又依赖于A。如下图：

doCreateBean 方法有三个核心流程。

（1）createBeanInstance：实例化，其实也就是调用对象的构造方法实例化对象

（2）populateBean：填充属性，这一步主要是多bean的依赖属性进行填充

（3）initializeBean：调用spring xml中的init 方法。

从上面讲述的单例bean初始化步骤我们可以知道，循环依赖主要发生在第一、第二步。也就是构造器循环依赖和field循环依赖。

那么我们要解决循环引用也应该从初始化过程着手，对于单例来说，在Spring容器整个生命周期内，有且只有一个对象，所以很容易想到这个对象应该存在Cache中，Spring为了解决单例的循环依赖问题，使用了三级缓存。

我们看一下getSingleton方法。

该方法还依赖于三个map，这三个map就是三级缓存。

/** Cache of singleton objects: bean name to bean instance. *///单例对象的cacheprivate final Map<String, Object> singletonObjects = new ConcurrentHashMap<>(256);/** Cache of singleton factories: bean name to ObjectFactory. */// 单例对象工厂的cacheprivate final Map<String, ObjectFactory<?>> singletonFactories = new HashMap<>(16);/** Cache of early singleton objects: bean name to bean instance. *///提前曝光的单例对象的Cacheprivate final Map<String, Object> earlySingletonObjects = new ConcurrentHashMap<>(16);1.2.3.4.5.6.7.8.9.10.11.

@Nullableprotected Object getSingleton(String beanName, boolean allowEarlyReference) {// Quick check for existing instance without full singleton lockObject singletonObject = this.singletonObjects.get(beanName);//判断当前单例bean是否正在创建中，也就是没有初始化完成(比如A的构造器依赖了B对象所以得先去创建B对象// 或则在A的populateBean过程中依赖了B对象，得先去创建B对象，这时的A就是处于创建中的状态。if (singletonObject == null && isSingletonCurrentlyInCreation(beanName)) {singletonObject = this.earlySingletonObjects.get(beanName);// 是否允许从singletonFactories中通过getObject拿到对象if (singletonObject == null && allowEarlyReference) {synchronized (this.singletonObjects) {// Consistent creation of early reference within full singleton locksingletonObject = this.singletonObjects.get(beanName);if (singletonObject == null) {singletonObject = this.earlySingletonObjects.get(beanName);if (singletonObject == null) {ObjectFactory<?> singletonFactory = this.singletonFactories.get(beanName);if (singletonFactory != null) {singletonObject = singletonFactory.getObject();this.earlySingletonObjects.put(beanName, singletonObject);this.singletonFactories.remove(beanName);}}}}}}return singletonObject;}1.2.3.4.5.6.7.8.9.10.11.12.13.14.15.16.17.18.19.20.21.22.23.24.25.26.27.28.29.30.31.

分析getSingleton()的整个过程，Spring首先从一级缓存singletonObjects中获取。如果获取不到，并且对象正在创建中，就再从二级缓存earlySingletonObjects中获取。

如果还是获取不到且允许singletonFactories通过getObject()获取，就从三级缓存singletonFactory.getObject()(三级缓存)获取，如果获取到了则：

this.earlySingletonObjects.put(beanName, singletonObject);                        this.singletonFactories.remove(beanName);                        1.2.3.

从singletonFactories中移除，并放入earlySingletonObjects中。其实也就是从三级缓存移动到了二级缓存。

从上面三级缓存的分析，我们可以知道，Spring解决循环依赖的诀窍就在于singletonFactories这个三级cache。

里就是解决循环依赖的关键，这段代码发生在createBeanInstance之后，也就是说单例对象此时已经被创建出来(调用了构造器)。这个对象已经被生产出来了，虽然还不完美（还没有进行初始化的第二步和第三步），但是已经能被人认出来了（根据对象引用能定位到堆中的对象），所以Spring此时将这个对象提前曝光出来让大家认识，让大家使用。

这样做有什么好处呢？

让我们来分析一下“A的某个field或者setter依赖了B的实例对象，同时B的某个field或者setter依赖了A的实例对象”这种循环依赖的情况。

A首先完成了初始化的第一步，并且将自己提前曝光到singletonFactories中，此时进行初始化的第二步，发现自己依赖对象B，此时就尝试去get(B)，发现B还没有被create，所以走create流程，B在初始化第一步的时候发现自己依赖了对象A，于是尝试get(A)，尝试一级缓存singletonObjects(肯定没有，因为A还没初始化完全)，尝试二级缓存earlySingletonObjects（也没有），尝试三级缓存singletonFactories，由于A通过ObjectFactory将自己提前曝光了，所以B能够通过ObjectFactory.getObject拿到A对象(虽然A还没有初始化完全，但是总比没有好呀)，B拿到A对象后顺利完成了初始化阶段1、2、3，完全初始化之后将自己放入到一级缓存singletonObjects中。

此时返回A中，A此时能拿到B的对象顺利完成自己的初始化阶段2、3，最终A也完成了初始化，进去了一级缓存singletonObjects中，而且更加幸运的是，由于B拿到了A的对象引用，所以B现在hold住的A对象完成了初始化。

知道了这个原理时候，肯定就知道为啥Spring不能解决“A的构造方法中依赖了B的实例对象，同时B的构造方法中依赖了A的实例对象”这类问题了！因为加入singletonFactories三级缓存的前提是执行了构造器，所以构造器的循环依赖没法解决。

接下来我们挑 doCreateBean 中的三个细节出来说说。一个是创建 Bean 实例的 createBeanInstance 方法，一个是依赖注入的 populateBean 方法，还有就是回调方法 initializeBean。

这三个方法也是极其复杂的，读者有兴趣可以继续的深入进去。

1、 createBeanInstance 方法

protected BeanWrapper createBeanInstance(String beanName, RootBeanDefinition mbd, @Nullable Object[] args) {// Make sure bean class is actually resolved at this point.// 确保已经加载了此 classClass<?> beanClass = resolveBeanClass(mbd, beanName);// 校验一下这个类的访问权限if (beanClass != null && !Modifier.isPublic(beanClass.getModifiers()) && !mbd.isNonPublicAccessAllowed()) {throw new BeanCreationException(mbd.getResourceDescription(), beanName,"Bean class isn't public, and non-public access not allowed: " + beanClass.getName());}Supplier<?> instanceSupplier = mbd.getInstanceSupplier();if (instanceSupplier != null) {return obtainFromSupplier(instanceSupplier, beanName);}if (mbd.getFactoryMethodName() != null) {// 采用工厂方法实例化，不熟悉这个概念的读者请看附录，注意，不是 FactoryBeanreturn instantiateUsingFactoryMethod(beanName, mbd, args);}// Shortcut when re-creating the same bean...// 如果不是第一次创建，比如第二次创建 prototype bean。// 这种情况下，我们可以从第一次创建知道，采用无参构造函数，还是构造函数依赖注入 来完成实例化boolean resolved = false;boolean autowireNecessary = false;if (args == null) {synchronized (mbd.constructorArgumentLock) {if (mbd.resolvedConstructorOrFactoryMethod != null) {resolved = true;autowireNecessary = mbd.constructorArgumentsResolved;}}}if (resolved) {if (autowireNecessary) {// 构造函数依赖注入return autowireConstructor(beanName, mbd, null, null);}else {// 无参构造函数return instantiateBean(beanName, mbd);}}// Candidate constructors for autowiring?// 判断是否采用有参构造函数Constructor<?>[] ctors = determineConstructorsFromBeanPostProcessors(beanClass, beanName);if (ctors != null || mbd.getResolvedAutowireMode() == AUTOWIRE_CONSTRUCTOR ||mbd.hasConstructorArgumentValues() || !ObjectUtils.isEmpty(args)) {// 构造函数依赖注入return autowireConstructor(beanName, mbd, ctors, args);}// Preferred constructors for default construction?ctors = mbd.getPreferredConstructors();if (ctors != null) {// 构造函数依赖注入return autowireConstructor(beanName, mbd, ctors, null);}// No special handling: simply use no-arg constructor.// 调用无参构造函数return instantiateBean(beanName, mbd);}1.2.3.4.5.6.7.8.9.10.11.12.13.14.15.16.17.18.19.20.21.22.23.24.25.26.27.28.29.30.31.32.33.34.35.36.37.38.39.40.41.42.43.44.45.46.47.48.49.50.51.52.53.54.55.56.57.58.59.60.61.62.63.64.65.

看一下instantiateBean方法是怎么做的。

protected BeanWrapper instantiateBean(String beanName, RootBeanDefinition mbd) {try {Object beanInstance;if (System.getSecurityManager() != null) {beanInstance = AccessController.doPrivileged((PrivilegedAction<Object>) () -> getInstantiationStrategy().instantiate(mbd, beanName, this),getAccessControlContext());}else {// 实例化beanInstance = getInstantiationStrategy().instantiate(mbd, beanName, this);}// 包装一下，返回BeanWrapper bw = new BeanWrapperImpl(beanInstance);initBeanWrapper(bw);return bw;}catch (Throwable ex) {throw new BeanCreationException(mbd.getResourceDescription(), beanName, "Instantiation of bean failed", ex);}}1.2.3.4.5.6.7.8.9.10.11.12.13.14.15.16.17.18.19.20.21.22.

我们可以看到，关键的地方在于：beanInstance = getInstantiationStrategy().instantiate(mbd, beanName, parent);

里面是具体是实例化过程，我们进去看看。

@Overridepublic Object instantiate(RootBeanDefinition bd, @Nullable String beanName, BeanFactory owner) {// Don't override the class with CGLIB if no overrides.// 如果不存在方法覆写，那就使用 java 反射进行实例化，否则使用 CGLIB,// 方法覆写 请参见附录"方法注入"中对 lookup-method 和 replaced-method 的介绍if (!bd.hasMethodOverrides()) {Constructor<?> constructorToUse;synchronized (bd.constructorArgumentLock) {constructorToUse = (Constructor<?>) bd.resolvedConstructorOrFactoryMethod;if (constructorToUse == null) {final Class<?> clazz = bd.getBeanClass();if (clazz.isInterface()) {throw new BeanInstantiationException(clazz, "Specified class is an interface");}try {if (System.getSecurityManager() != null) {constructorToUse = AccessController.doPrivileged((PrivilegedExceptionAction<Constructor<?>>) clazz::getDeclaredConstructor);}else {constructorToUse = clazz.getDeclaredConstructor();}bd.resolvedConstructorOrFactoryMethod = constructorToUse;}catch (Throwable ex) {throw new BeanInstantiationException(clazz, "No default constructor found", ex);}}}// 利用构造方法进行实例化return BeanUtils.instantiateClass(constructorToUse);}else {// Must generate CGLIB subclass.// 存在方法覆写，利用 CGLIB 来完成实例化，需要依赖于 CGLIB 生成子类，这里就不展开了。// tips: 因为如果不使用 CGLIB 的话，存在 override 的情况 JDK 并没有提供相应的实例化支持return instantiateWithMethodInjection(bd, beanName, owner);}}1.2.3.4.5.6.7.8.9.10.11.12.13.14.15.16.17.18.19.20.21.22.23.24.25.26.27.28.29.30.31.32.33.34.35.36.37.38.39.

到这里，我们就算实例化完成了。我们开始说怎么进行属性注入。

2、populateBean 方法

protected void populateBean(String beanName, RootBeanDefinition mbd, @Nullable BeanWrapper bw) {if (bw == null) {if (mbd.hasPropertyValues()) {throw new BeanCreationException(mbd.getResourceDescription(), beanName, "Cannot apply property values to null instance");}else {// Skip property population phase for null instance.return;}}// Give any InstantiationAwareBeanPostProcessors the opportunity to modify the// state of the bean before properties are set. This can be used, for example,// to support styles of field injection.if (!mbd.isSynthetic() && hasInstantiationAwareBeanPostProcessors()) {for (BeanPostProcessor bp : getBeanPostProcessors()) {if (bp instanceof InstantiationAwareBeanPostProcessor) {InstantiationAwareBeanPostProcessor ibp = (InstantiationAwareBeanPostProcessor) bp;if (!ibp.postProcessAfterInstantiation(bw.getWrappedInstance(), beanName)) {return;}}}}// bean 实例的所有属性都在这里了PropertyValues pvs = (mbd.hasPropertyValues() ? mbd.getPropertyValues() : null);int resolvedAutowireMode = mbd.getResolvedAutowireMode();// 通过名字找到所有属性值，如果是 bean 依赖，先初始化依赖的 bean。记录依赖关系if (resolvedAutowireMode == AUTOWIRE_BY_NAME || resolvedAutowireMode == AUTOWIRE_BY_TYPE) {MutablePropertyValues newPvs = new MutablePropertyValues(pvs);// Add property values based on autowire by name if applicable.if (resolvedAutowireMode == AUTOWIRE_BY_NAME) {autowireByName(beanName, mbd, bw, newPvs);}// Add property values based on autowire by type if applicable.if (resolvedAutowireMode == AUTOWIRE_BY_TYPE) {autowireByType(beanName, mbd, bw, newPvs);}pvs = newPvs;}boolean hasInstAwareBpps = hasInstantiationAwareBeanPostProcessors();boolean needsDepCheck = (mbd.getDependencyCheck() != AbstractBeanDefinition.DEPENDENCY_CHECK_NONE);PropertyDescriptor[] filteredPds = null;if (hasInstAwareBpps) {if (pvs == null) {pvs = mbd.getPropertyValues();}for (BeanPostProcessor bp : getBeanPostProcessors()) {if (bp instanceof InstantiationAwareBeanPostProcessor) {InstantiationAwareBeanPostProcessor ibp = (InstantiationAwareBeanPostProcessor) bp;PropertyValues pvsToUse = ibp.postProcessProperties(pvs, bw.getWrappedInstance(), beanName);if (pvsToUse == null) {if (filteredPds == null) {filteredPds = filterPropertyDescriptorsForDependencyCheck(bw, mbd.allowCaching);}// 这里有个非常有用的 BeanPostProcessor 进到这里: AutowiredAnnotationBeanPostProcessor// 对采用 @Autowired、@Value 注解的依赖进行设值，这里的内容也是非常丰富的pvsToUse = ibp.postProcessPropertyValues(pvs, filteredPds, bw.getWrappedInstance(), beanName);if (pvsToUse == null) {return;}}pvs = pvsToUse;}}}if (needsDepCheck) {if (filteredPds == null) {filteredPds = filterPropertyDescriptorsForDependencyCheck(bw, mbd.allowCaching);}checkDependencies(beanName, mbd, filteredPds, pvs);}if (pvs != null) {// 设置 bean 实例的属性值applyPropertyValues(beanName, mbd, bw, pvs);}}1.2.3.4.5.6.7.8.9.10.11.12.13.14.15.16.17.18.19.20.21.22.23.24.25.26.27.28.29.30.31.32.33.34.35.36.37.38.39.40.41.42.43.44.45.46.47.48.49.50.51.52.53.54.55.56.57.58.59.60.61.62.63.64.65.66.67.68.69.70.71.72.73.74.75.76.77.78.79.80.81.82.83.

属性注入完成后，这一步其实就是处理各种回调了，这块代码比较简单。

3、 initializeBean方法

protected Object initializeBean(String beanName, Object bean, @Nullable RootBeanDefinition mbd) {if (System.getSecurityManager() != null) {AccessController.doPrivileged((PrivilegedAction<Object>) () -> {invokeAwareMethods(beanName, bean);return null;}, getAccessControlContext());}else {// 如果 bean 实现了 BeanNameAware、BeanClassLoaderAware 或 BeanFactoryAware 接口，回调invokeAwareMethods(beanName, bean);}Object wrappedBean = bean;if (mbd == null || !mbd.isSynthetic()) {// BeanPostProcessor 的 postProcessBeforeInitialization 回调wrappedBean = applyBeanPostProcessorsBeforeInitialization(wrappedBean, beanName);}try {// 处理 bean 中定义的 init-method，// 或者如果 bean 实现了 InitializingBean 接口，调用 afterPropertiesSet() 方法invokeInitMethods(beanName, wrappedBean, mbd);}catch (Throwable ex) {throw new BeanCreationException((mbd != null ? mbd.getResourceDescription() : null),beanName, "Invocation of init method failed", ex);}if (mbd == null || !mbd.isSynthetic()) {// BeanPostProcessor 的 postProcessAfterInitialization 回调//BeanPostProcessor 的两个回调都发生在这边，只不过中间处理了 init-methodwrappedBean = applyBeanPostProcessorsAfterInitialization(wrappedBean, beanName);}return wrappedBean;}1.2.3.4.5.6.7.8.9.10.11.12.13.14.15.16.17.18.19.20.21.22.23.24.25.26.27.28.29.30.31.32.33.34.35.36.

自此，Spring实例化单例非懒加载bean的过程也就完成了，这也是Spirng最最重要的方法了。在我们的日常使用Spring中，定义好各个类，然后在上面加上，@Controller,@Service,Autowired等注解，这些注解是怎么起作用的呢？
