package com.sz.aidl_service_demo;

import android.os.Parcel;
import android.os.Parcelable;

public class NumBean implements Parcelable {

    private String extraInfo;
    private int num1;
    private int num2;


    public NumBean(int num1, int num2, String extraInfo) {
        this.num1 = num1;
        this.num2 = num2;
        this.extraInfo = extraInfo;
    }

    protected NumBean(Parcel parcel) {
        num1 = parcel.readInt();
        num2 = parcel.readInt();
        extraInfo = parcel.readString();
    }

    public String getExtraInfo() {
        return extraInfo;
    }

    public void setExtraInfo(String extraInfo) {
        this.extraInfo = extraInfo;
    }

    public int getNum1() {
        return num1;
    }

    public void setNum1(int num1) {
        this.num1 = num1;
    }

    public int getNum2() {
        return num2;
    }

    public void setNum2(int num2) {
        this.num2 = num2;
    }

    public static final
    Creator<NumBean> CREATOR = new Creator<NumBean>() {

        @Override
        public NumBean createFromParcel(Parcel source) {
            return new NumBean(source);
        }

        @Override
        public NumBean[] newArray(int size) {
            return new NumBean[size];
        }
    };

    @Override
    public int describeContents() {
        return 0;
    }

    @Override
    public void writeToParcel(Parcel dest, int flags) {
        dest.writeInt(num1);
        dest.writeInt(num2);
        dest.writeString(extraInfo);
    }
}

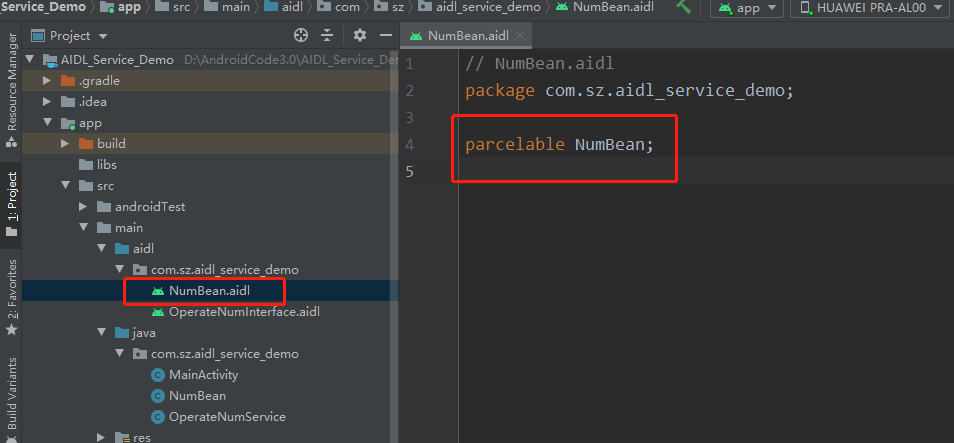

然后在aidl文件夹下创建NumBean.adil文件，内容如图

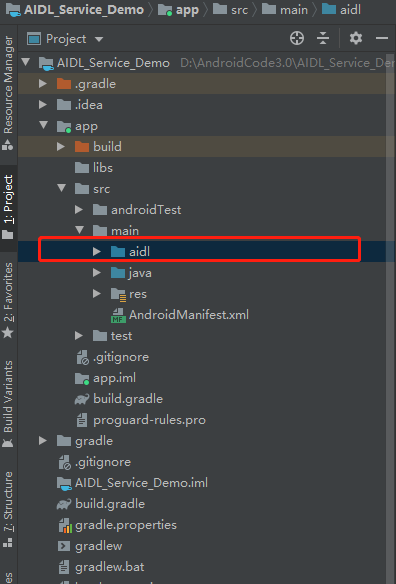

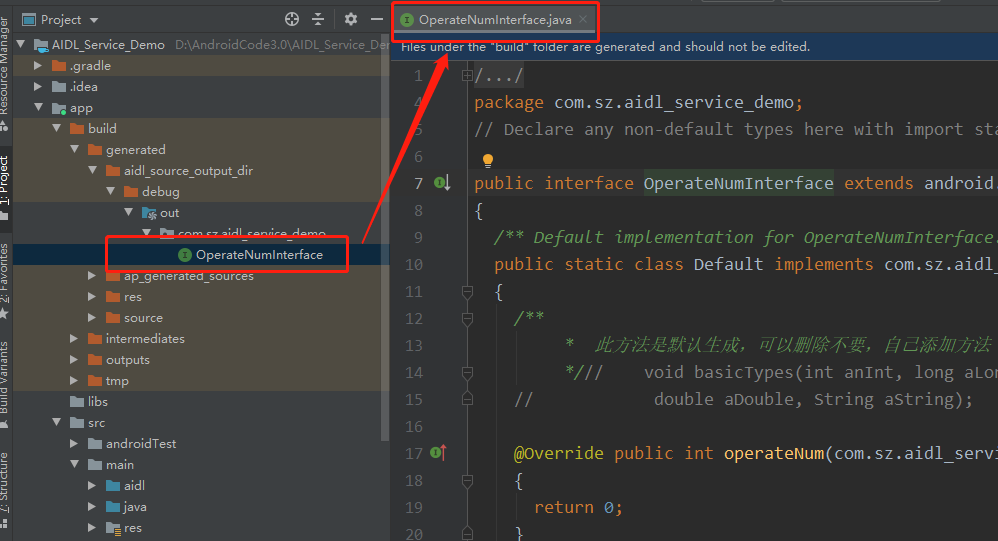

这时候你需要rebulid一下项目，用来生成OperateNumInterface.java文件，build成功以后会有如下目录：

​​

1.2 创建Service实现类

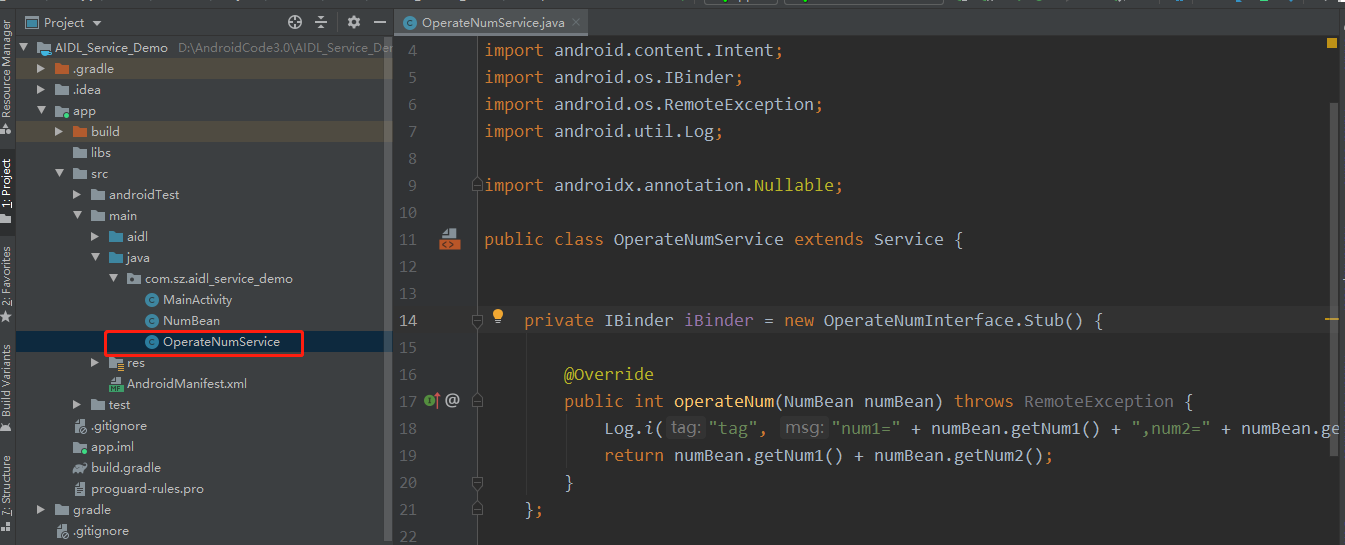

创建一个类实现Service，位置目录如下

OperateNumService.java详细代码:

package com.sz.aidl_service_demo;

import android.app.Service;
import android.content.Intent;
import android.os.IBinder;
import android.os.RemoteException;
import android.util.Log;

import androidx.annotation.Nullable;

public class OperateNumService extends Service {

                          注释1：一定要先ReBuild项目，否则找不到OperateNumInterface
    private IBinder iBinder = new OperateNumInterface.Stub() {

        @Override
        public int operateNum(NumBean numBean) throws RemoteException {
                注释2：还记得aidl文件中我们自己定义的方法么，具体实现在这里
            Log.i("tag", "num1=" + numBean.getNum1() + ",num2=" + numBean.getNum2() + ",ExtraInfo=" + numBean.getExtraInfo());
            return numBean.getNum1() + numBean.getNum2();//我是将NumBean中两个数的和返回
        }
    };


    @Nullable
    @Override
    public IBinder onBind(Intent intent) {
        return iBinder;
    }
}

然后别忘了在Mainfest文件中声明Service:

<service android:name=".OperateNumService">
            <intent-filter>
                <action android:name="com.aidl_service_demo.my_flag" />
            </intent-filter>
        </service>

到这里服务端就写好了。

2 客户端Client

2.1 将服务端的aidl文件夹整个直接复制到Client目录中

2.2 新建NumBean类

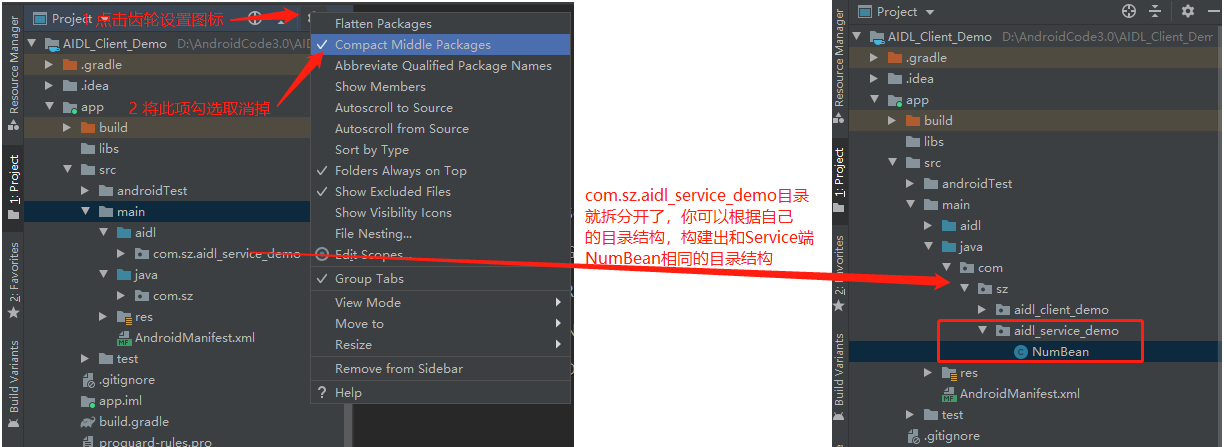

注意，NumBean类的目录要和Service端的目录结构一样

注意，你需要ReBuild项目一下

2.3 绑定Service及发送数据接收返回结果

这些操作都是在MainActivity 中进行，代码如下：

import androidx.appcompat.app.AppCompatActivity;

import android.content.ComponentName;
import android.content.Context;
import android.content.Intent;
import android.content.ServiceConnection;
import android.os.Bundle;
import android.os.IBinder;
import android.os.RemoteException;
import android.util.Log;
import android.view.View;
import android.widget.TextView;

import com.sz.aidl_service_demo.NumBean;
import com.sz.aidl_service_demo.OperateNumInterface;

public class MainActivity extends AppCompatActivity {

    private TextView tv_operate_num_result;
    private int operateResult = -1;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        tv_operate_num_result = findViewById(R.id.tv_operate_num_result);
    }

    注释1：按钮1 绑定Service
    public void bindService(View view) {
        Intent intentBind = new Intent();
        intentBind.setAction("com.aidl_service_demo.my_flag");
        intentBind.setPackage("com.sz.aidl_service_demo");
        bindService(intentBind, serviceConnection, Context.BIND_AUTO_CREATE);
    }

    注释2：按钮2 向Service发送数据并接收返回数据展示
    public void sendService(View view) {
        NumBean numBean = new NumBean(160, 8, "i'm extra info");
        if (operateNumInterface != null) {
            try {
                operateResult = operateNumInterface.operateNum(numBean);
            } catch (RemoteException e) {
                e.printStackTrace();
            }
        }
        tv_operate_num_result.setText("Service 返回操作结果为: " + operateResult);
    }

    private OperateNumInterface operateNumInterface;
    private ServiceConnection serviceConnection = new ServiceConnection() {
        @Override
        public void onServiceConnected(ComponentName name, IBinder service) {
            Log.i("tag", "onServiceConnected");
            注释3：
            operateNumInterface = OperateNumInterface.Stub.asInterface(service);
        }

        @Override
        public void onServiceDisconnected(ComponentName name) {
            operateNumInterface = null;
        }
    };
}

1 先点击绑定Service按钮，此时客户端打印日志如下：

2 再点击 发送数据到Service 按钮

Service端日志如下：

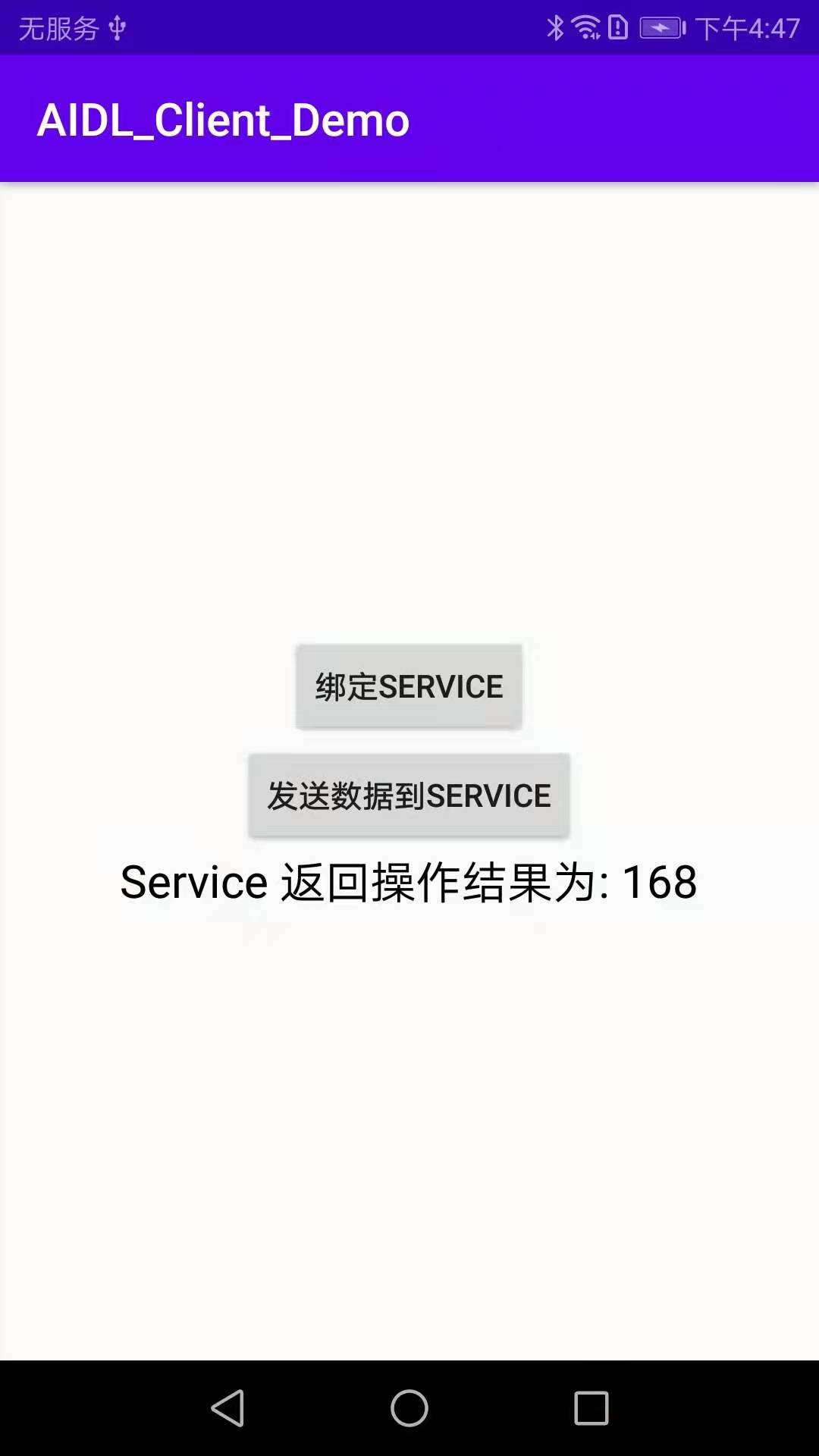

Client端界面展示如下：
