android中动态布局(动态加入TextView和ListView)

package org.guoshi; import java.util.ArrayList; import java.util.HashMap; import java.util.List; import java.util.Map; import org.guoshi.adapter.ImageAndTextAdapter; import android.app.Activity; import android.graphics.Color; import android.os.Bundle; import android.util.Log; import android.view.View; import android.view.View.OnClickListener; import android.view.ViewGroup.LayoutParams; import android.widget.LinearLayout; import android.widget.ListAdapter; import android.widget.ListView; import android.widget.RelativeLayout; import android.widget.TextView; public class Main extends Activity { /** Called when the activity is first created. */ @Override public void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.friend_info_view); final LinearLayout linearLayout = (LinearLayout) findViewById(R.id.groups); final ListView lv = new ListView(this); List<Map<String, Object>> data = new ArrayList<Map<String, Object>>(); Map<String, Object> map = new HashMap<String, Object>(); map.put("title", "jayqean"); map.put("imgsrc", R.drawable.icon); data.add(map); ListAdapter adapter = new ImageAndTextAdapter(Main.this, data, R.layout.chats_view_item, new String[] { "title", "imgsrc" }, new int[] { R.id.chats_view_name, R.id.chats_view_item_image }); lv.setAdapter(adapter); final TextView tv1 = new TextView(this); tv1.setText("常用联系人"); tv1.setId(1); final RelativeLayout.LayoutParams lp1 = new RelativeLayout.LayoutParams(LayoutParams.FILL_PARENT, LayoutParams.WRAP_CONTENT); lp1.addRule(RelativeLayout.BELOW, R.id.groups); tv1.setLayoutParams(lp1); tv1.setBackgroundColor(R.color.group_view_background); tv1.setOnClickListener(new OnClickListener() { boolean flag = false; @Override public void onClick(View v) { // TODO Auto-generated method stub Log.d("tag", tv1.getText().toString()); if(!flag){ linearLayout.addView(lv, linearLayout.indexOfChild(tv1) + 1); // lp1.addRule(RelativeLayout.BELOW, 1); // linearLayout.addView(lv, lp1); flag = true; } else{ linearLayout.removeView(lv); flag = false; } } }); linearLayout.addView(tv1, lp1); // 线性布局 通过参数index控制加入的控件的位置 // ------------------------ // 加入分割线 final TextView line = new TextView(this); line.setLayoutParams(new LayoutParams(LayoutParams.FILL_PARENT, 1)); line.setBackgroundColor(Color.WHITE); linearLayout.addView(line, 1); // ------------------------ final ListView lv2 = new ListView(this); List<Map<String, Object>> data2 = new ArrayList<Map<String, Object>>(); Map<String, Object> map2 = new HashMap<String, Object>(); map2.put("title", "xiaobei"); map2.put("imgsrc", R.drawable.icon); data2.add(map2); ListAdapter adapter2 = new ImageAndTextAdapter(Main.this, data2, R.layout.chats_view_item, new String[] { "title", "imgsrc" }, new int[] { R.id.chats_view_name, R.id.chats_view_item_image }); lv2.setAdapter(adapter2); final TextView tv2 = new TextView(this); tv2.setText("离线好友"); tv2.setLayoutParams(new LayoutParams(LayoutParams.FILL_PARENT, LayoutParams.WRAP_CONTENT)); tv2.setBackgroundColor(R.color.group_view_background); tv2.setOnClickListener(new OnClickListener() { boolean flag = false; @Override public void onClick(View v) { // TODO Auto-generated method stub Log.d("tag", tv2.getText().toString()); if(!flag){ linearLayout.addView(lv2, linearLayout.indexOfChild(tv2) + 1); flag = true; } else{ linearLayout.removeView(lv2); flag = false; } } }); linearLayout.addView(tv2, 2); } }

控制布局,可以通过RelativeLayout.LayoutParams类

final LinearLayout linearLayout = (LinearLayout) findViewById(R.id.groups);

final TextView tv1 = new TextView(this);
tv1.setText("常用联系人");

RelativeLayout.LayoutParams lp1 = new RelativeLayout.LayoutParams(LayoutParams.FILL_PARENT, LayoutParams.WRAP_CONTENT);
lp1.addRule(RelativeLayout.BELOW, R.id.groups);

tv1.setLayoutParams(lp1);

linearLayout.addView(tv1, lp1);

也可采用linearLayout.addView(tv1, 0); // 线性布局 通过参数index控制加入的控件的位置

package org.guoshi.adapter; import java.util.List; import java.util.Map; import android.content.Context; import android.graphics.Bitmap; import android.graphics.BitmapFactory; import android.util.Log; import android.view.LayoutInflater; import android.view.View; import android.view.View.OnClickListener; import android.view.ViewGroup; import android.widget.Checkable; import android.widget.ImageView; import android.widget.SimpleAdapter; import android.widget.TextView; public class ImageAndTextAdapter extends SimpleAdapter { private Context mcontext; private int[] mTo; private String[] mFrom; private ViewBinder mViewBinder; private List<? extends Map<String, ?>> mData; private int mResource; private LayoutInflater mInflater; public ImageAndTextAdapter(Context context, List<? extends Map<String, ?>> data, int resource, String[] from, int[] to) { super(context, data, resource, from, to); mcontext = context; mData = data; mResource = resource; mFrom = from; mTo = to; mInflater = (LayoutInflater) context .getSystemService(Context.LAYOUT_INFLATER_SERVICE); // mInflater = LayoutInflater.from(mcontext); } /** * @see android.widget.Adapter#getView(int, View, ViewGroup) */ public View getView(int position, View convertView, ViewGroup parent) { return createViewFromResource(position, convertView, parent, mResource); } private View createViewFromResource(int position, View convertView, ViewGroup parent, int resource) { View v; if (convertView == null) { v = mInflater.inflate(resource, parent, false); final int[] to = mTo; final int count = to.length; final View[] holder = new View[count]; for (int i = 0; i < count; i++) { holder[i] = v.findViewById(to[i]); } v.setTag(holder); } else { v = convertView; } bindView(position, v); // final int index = position; // v.setOnClickListener(new OnClickListener() { // // public void onClick(View v) { // // TODO Auto-generated method stub // Log.d("item", index + ""); // } // }); return v; } private void bindView(int position, View view) { final Map<String, ?> dataSet = mData.get(position); if (dataSet == null) { return; } final ViewBinder binder = mViewBinder; final View[] holder = (View[]) view.getTag(); final String[] from = mFrom; final int[] to = mTo; final int count = to.length; for (int i = 0; i < count; i++) { final View v = holder[i]; if (v != null) { final Object data = dataSet.get(from[i]); String text = data == null ? "" : data.toString(); if (text == null) { text = ""; } boolean bound = false; if (binder != null) { bound = binder.setViewValue(v, data, text); } if (!bound) { if (v instanceof Checkable) { if (data instanceof Boolean) { ((Checkable) v).setChecked((Boolean) data); } else { throw new IllegalStateException(v.getClass() .getName() + " should be bound to a Boolean, not a " + data.getClass()); } } else if (v instanceof TextView) { setViewText((TextView) v, text); } else if (v instanceof ImageView) { if (data instanceof Integer) { setViewImage((ImageView) v, (Integer) data); } else { setViewImage((ImageView) v, text); } } else { throw new IllegalStateException( v.getClass().getName() + " is not a " + " view that can be bounds by this SimpleAdapter"); } } } } } /** * Called by bindView() to set the image for an ImageView but only if there * is no existing ViewBinder or if the existing ViewBinder cannot handle * binding to an ImageView. * * This method is called instead of {@link #setViewImage(ImageView, String)} * if the supplied data is an int or Integer. * * @param v * ImageView to receive an image * @param value * the value retrieved from the data set * * @see #setViewImage(ImageView, String) */ public void setViewImage(ImageView v, int value) { v.setImageResource(value); } /** * Called by bindView() to set the image for an ImageView but only if there * is no existing ViewBinder or if the existing ViewBinder cannot handle * binding to an ImageView. * * By default, the value will be treated as an image resource. If the value * cannot be used as an image resource, the value is used as an image Uri. * * This method is called instead of {@link #setViewImage(ImageView, int)} if * the supplied data is not an int or Integer. * * @param v * ImageView to receive an image * @param value * the value retrieved from the data set * * @see #setViewImage(ImageView, int) */ public void setViewImage(ImageView v, String value) { Bitmap bitMap = BitmapFactory.decodeFile(value); v.setImageBitmap(bitMap); } }

下面是friend_info_view.xml

<?xml version="1.0" encoding="UTF-8"?> <!-- 好友信息列表.xml --> <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" android:orientation="vertical" android:layout_width="fill_parent" android:layout_height="fill_parent" android:background="#ffffff"> <RelativeLayout android:layout_width="wrap_content" android:layout_height="wrap_content"> <ImageView android:id="@+id/selfImage" android:adjustViewBounds="true" android:layout_width="@dimen/self_image_width" android:layout_height="@dimen/self_image_height" android:layout_marginLeft="5.0dip" android:layout_marginBottom="10.0dip" android:layout_marginTop="3.0dip" android:src="@drawable/default_image" /> <ImageView android:id="@+id/currentStatus" android:layout_width="wrap_content" android:layout_height="wrap_content" android:src="@drawable/status_available" android:layout_marginLeft="8.0dip" android:layout_marginTop="20.0dip" android:layout_toRightOf="@id/selfImage" /> <TextView android:id="@+id/setStatus" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginTop="20.0dip" android:layout_marginLeft="8.0dip" android:text="Tap here to set your status" android:layout_toRightOf="@+id/currentStatus" /> </RelativeLayout> <EditText android:id="@+id/searchFriend" android:adjustViewBounds="true" android:layout_height="50dip" android:layout_width="fill_parent" android:text="Search..." /> <!-- 好友组 点击textview后出现组里的详细好友列表 --> <LinearLayout android:id="@+id/groups" android:layout_width="fill_parent" android:layout_height="wrap_content" android:orientation="vertical" > </LinearLayout> </LinearLayout>

chats_view_item.xml

<?xml version="1.0" encoding="UTF-8"?> <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" android:orientation="vertical" android:layout_width="fill_parent" android:layout_height="fill_parent" android:background="@color/white"> <RelativeLayout android:id="@+id/chats_view_item" android:layout_width="wrap_content" android:layout_height="wrap_content"> <ImageView android:id="@+id/chats_view_item_image" android:layout_width="@dimen/friend_image_width" android:layout_height="@dimen/friend_image_height" android:paddingLeft="5.0dip" android:paddingTop="2.0dip" android:src="@drawable/default_image" /> <TextView android:id="@+id/chats_view_name" android:textSize="14.0sp" android:paddingLeft="10.0dip" android:textStyle="bold" android:ellipsize="marquee" android:layout_width="wrap_content" android:layout_height="wrap_content" android:text="username" android:singleLine="true" android:paddingTop="2.0dip" android:layout_toRightOf="@+id/chats_view_item_image" /> <ImageView android:id="@+id/friend_status_icon" android:layout_width="wrap_content" android:layout_height="wrap_content" android:paddingLeft="10.0dip" android:paddingTop="1.0dip" android:layout_below="@+id/chats_view_name" android:layout_toRightOf="@+id/chats_view_item_image" android:src="@drawable/jabber_available" /> <TextView android:id="@+id/chats_view_status" android:textColor="@android:color/secondary_text_light" android:ellipsize="marquee" android:layout_width="fill_parent" android:layout_height="wrap_content" android:text="available" android:singleLine="true" android:paddingLeft="2.0dip" android:layout_toRightOf="@+id/friend_status_icon" android:layout_below="@+id/chats_view_name" /> </RelativeLayout> </LinearLayout>

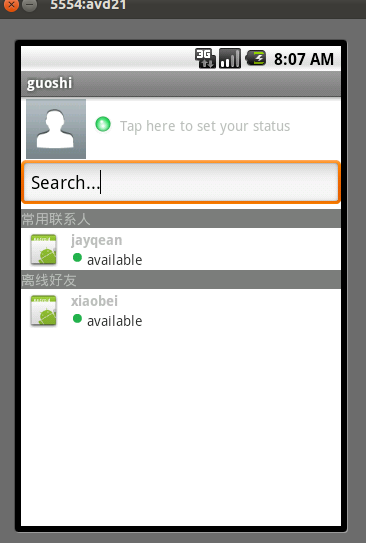

效果图:
