Linux sed安装etcd集群

104 阅读 0 评论 69 点赞

我是靠谱客的博主顺心飞机，这篇文章主要介绍Linux sed安装etcd集群，现在分享给大家，希望可以做个参考。

P8-Etcd-Node01-Master
P8-Etcd-Node02-Slave-01
P8-Etcd-Node03-Slave-02

10.0.0.30
10.0.0.31
10.0.0.32

操作基本
systemctl start etcd
systemctl stop etcd
systemctl restart etcd
etcdctl member list

复制代码

hostnamectl set-hostname P8-Etcd-Node01-Master
#修改ip 10.0.0.30
cd /etc/sysconfig/network-scripts
sed -i '/.*BOOTPROTO=*/cBOOTPROTO="static"' ifcfg-ens33
sed -i '/.*IPADDR=*/cIPADDR=10.0.0.30' ifcfg-ens33
systemctl restart network

firewall-cmd --zone=public --add-port=2379/tcp --permanent
firewall-cmd --zone=public --add-port=2380/tcp --permanent
firewall-cmd --reload

yum install -y etcd
rpm -qa etcd
etcdctl -v

cp /etc/etcd/etcd.conf /etc/etcd/etcd.conf.bak
cd /etc/etcd/
sed -i 's/#ETCD_LISTEN_PEER_URLS="http://localhost:2380"/ETCD_LISTEN_PEER_URLS="http://10.0.0.30:2380"/' etcd.conf
sed -i 's/ETCD_LISTEN_CLIENT_URLS="http://localhost:2379"/ETCD_LISTEN_CLIENT_URLS="http://10.0.0.30:2379,http://127.0.0.1:2379"/' etcd.conf
sed -i 's/ETCD_NAME="default"/ETCD_NAME="Master"/' etcd.conf
sed -i 's/#ETCD_INITIAL_ADVERTISE_PEER_URLS="http://localhost:2380"/ETCD_INITIAL_ADVERTISE_PEER_URLS="http://10.0.0.30:2380"/' etcd.conf
sed -i 's/ETCD_ADVERTISE_CLIENT_URLS="http://localhost:2379"/ETCD_ADVERTISE_CLIENT_URLS="http://10.0.0.30:2379"/' etcd.conf
sed -i 's/#ETCD_INITIAL_CLUSTER="default=http://localhost:2380"/ETCD_INITIAL_CLUSTER="Master=http://10.0.0.30:2380,Node02=http://10.0.0.31:2380,Node03=http://10.0.0.32:2380"/' etcd.conf
sed -i 's/#ETCD_INITIAL_CLUSTER_TOKEN="etcd-cluster"/ETCD_INITIAL_CLUSTER_TOKEN="etcd-cluster"/' etcd.conf
sed -i 's/#ETCD_INITIAL_CLUSTER_STATE="new"/ETCD_INITIAL_CLUSTER_STATE="new"/' etcd.conf

systemctl start etcd
etcdctl member list

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
hostnamectl set-hostname P8-Etcd-Node01-Master
#修改ip 10.0.0.30
cd /etc/sysconfig/network-scripts
sed -i '/.*BOOTPROTO=*/cBOOTPROTO="static"' ifcfg-ens33
sed -i '/.*IPADDR=*/cIPADDR=10.0.0.30' ifcfg-ens33
systemctl restart network


firewall-cmd --zone=public --add-port=2379/tcp --permanent
firewall-cmd --zone=public --add-port=2380/tcp --permanent
firewall-cmd --reload

yum install -y etcd
rpm -qa etcd
etcdctl -v

cp /etc/etcd/etcd.conf /etc/etcd/etcd.conf.bak
cd /etc/etcd/
sed -i 's/#ETCD_LISTEN_PEER_URLS="http://localhost:2380"/ETCD_LISTEN_PEER_URLS="http://10.0.0.30:2380"/' etcd.conf
sed -i 's/ETCD_LISTEN_CLIENT_URLS="http://localhost:2379"/ETCD_LISTEN_CLIENT_URLS="http://10.0.0.30:2379,http://127.0.0.1:2379"/' etcd.conf
sed -i 's/ETCD_NAME="default"/ETCD_NAME="Master"/' etcd.conf
sed -i 's/#ETCD_INITIAL_ADVERTISE_PEER_URLS="http://localhost:2380"/ETCD_INITIAL_ADVERTISE_PEER_URLS="http://10.0.0.30:2380"/' etcd.conf
sed -i 's/ETCD_ADVERTISE_CLIENT_URLS="http://localhost:2379"/ETCD_ADVERTISE_CLIENT_URLS="http://10.0.0.30:2379"/' etcd.conf
sed -i 's/#ETCD_INITIAL_CLUSTER="default=http://localhost:2380"/ETCD_INITIAL_CLUSTER="Master=http://10.0.0.30:2380,Node02=http://10.0.0.31:2380,Node03=http://10.0.0.32:2380"/' etcd.conf
sed -i 's/#ETCD_INITIAL_CLUSTER_TOKEN="etcd-cluster"/ETCD_INITIAL_CLUSTER_TOKEN="etcd-cluster"/' etcd.conf
sed -i 's/#ETCD_INITIAL_CLUSTER_STATE="new"/ETCD_INITIAL_CLUSTER_STATE="new"/' etcd.conf


systemctl start etcd
etcdctl member list

复制代码

hostnamectl set-hostname P8-Etcd-Node02-Slave-01
#修改ip 10.0.0.31
cd /etc/sysconfig/network-scripts
sed -i '/.*BOOTPROTO=*/cBOOTPROTO="static"' ifcfg-ens33
sed -i '/.*IPADDR=*/cIPADDR=10.0.0.31' ifcfg-ens33
systemctl restart network

firewall-cmd --zone=public --add-port=2379/tcp --permanent
firewall-cmd --zone=public --add-port=2380/tcp --permanent
firewall-cmd --reload

yum install -y etcd
rpm -qa etcd
etcdctl -v

cp /etc/etcd/etcd.conf /etc/etcd/etcd.conf.bak
cd /etc/etcd/
sed -i 's/#ETCD_LISTEN_PEER_URLS="http://localhost:2380"/ETCD_LISTEN_PEER_URLS="http://10.0.0.31:2380"/' etcd.conf
sed -i 's/ETCD_LISTEN_CLIENT_URLS="http://localhost:2379"/ETCD_LISTEN_CLIENT_URLS="http://10.0.0.31:2379,http://127.0.0.1:2379"/' etcd.conf
sed -i 's/ETCD_NAME="default"/ETCD_NAME="Node02"/' etcd.conf
sed -i 's/#ETCD_INITIAL_ADVERTISE_PEER_URLS="http://localhost:2380"/ETCD_INITIAL_ADVERTISE_PEER_URLS="http://10.0.0.31:2380"/' etcd.conf
sed -i 's/ETCD_ADVERTISE_CLIENT_URLS="http://localhost:2379"/ETCD_ADVERTISE_CLIENT_URLS="http://10.0.0.31:2379"/' etcd.conf
sed -i 's/#ETCD_INITIAL_CLUSTER="default=http://localhost:2380"/ETCD_INITIAL_CLUSTER="Master=http://10.0.0.30:2380,Node02=http://10.0.0.31:2380,Node03=http://10.0.0.32:2380"/' etcd.conf
sed -i 's/#ETCD_INITIAL_CLUSTER_TOKEN="etcd-cluster"/ETCD_INITIAL_CLUSTER_TOKEN="etcd-cluster"/' etcd.conf
sed -i 's/#ETCD_INITIAL_CLUSTER_STATE="new"/ETCD_INITIAL_CLUSTER_STATE="new"/' etcd.conf

systemctl start etcd
etcdctl member list

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
hostnamectl set-hostname P8-Etcd-Node02-Slave-01
#修改ip 10.0.0.31
cd /etc/sysconfig/network-scripts
sed -i '/.*BOOTPROTO=*/cBOOTPROTO="static"' ifcfg-ens33
sed -i '/.*IPADDR=*/cIPADDR=10.0.0.31' ifcfg-ens33
systemctl restart network


firewall-cmd --zone=public --add-port=2379/tcp --permanent
firewall-cmd --zone=public --add-port=2380/tcp --permanent
firewall-cmd --reload

yum install -y etcd
rpm -qa etcd
etcdctl -v



cp /etc/etcd/etcd.conf /etc/etcd/etcd.conf.bak
cd /etc/etcd/
sed -i 's/#ETCD_LISTEN_PEER_URLS="http://localhost:2380"/ETCD_LISTEN_PEER_URLS="http://10.0.0.31:2380"/' etcd.conf
sed -i 's/ETCD_LISTEN_CLIENT_URLS="http://localhost:2379"/ETCD_LISTEN_CLIENT_URLS="http://10.0.0.31:2379,http://127.0.0.1:2379"/' etcd.conf
sed -i 's/ETCD_NAME="default"/ETCD_NAME="Node02"/' etcd.conf
sed -i 's/#ETCD_INITIAL_ADVERTISE_PEER_URLS="http://localhost:2380"/ETCD_INITIAL_ADVERTISE_PEER_URLS="http://10.0.0.31:2380"/' etcd.conf
sed -i 's/ETCD_ADVERTISE_CLIENT_URLS="http://localhost:2379"/ETCD_ADVERTISE_CLIENT_URLS="http://10.0.0.31:2379"/' etcd.conf
sed -i 's/#ETCD_INITIAL_CLUSTER="default=http://localhost:2380"/ETCD_INITIAL_CLUSTER="Master=http://10.0.0.30:2380,Node02=http://10.0.0.31:2380,Node03=http://10.0.0.32:2380"/' etcd.conf
sed -i 's/#ETCD_INITIAL_CLUSTER_TOKEN="etcd-cluster"/ETCD_INITIAL_CLUSTER_TOKEN="etcd-cluster"/' etcd.conf
sed -i 's/#ETCD_INITIAL_CLUSTER_STATE="new"/ETCD_INITIAL_CLUSTER_STATE="new"/' etcd.conf

systemctl start etcd
etcdctl member list

复制代码

hostnamectl set-hostname P8-Etcd-Node03-Slave-02
#修改ip 10.0.0.32
cd /etc/sysconfig/network-scripts
sed -i '/.*BOOTPROTO=*/cBOOTPROTO="static"' ifcfg-ens33
sed -i '/.*IPADDR=*/cIPADDR=10.0.0.32' ifcfg-ens33
systemctl restart network

firewall-cmd --zone=public --add-port=2379/tcp --permanent
firewall-cmd --zone=public --add-port=2380/tcp --permanent
firewall-cmd --reload

yum install -y etcd
rpm -qa etcd
etcdctl -v

cp /etc/etcd/etcd.conf /etc/etcd/etcd.conf.bak
cd /etc/etcd/
sed -i 's/#ETCD_LISTEN_PEER_URLS="http://localhost:2380"/ETCD_LISTEN_PEER_URLS="http://10.0.0.32:2380"/' etcd.conf
sed -i 's/ETCD_LISTEN_CLIENT_URLS="http://localhost:2379"/ETCD_LISTEN_CLIENT_URLS="http://10.0.0.32:2379,http://127.0.0.1:2379"/' etcd.conf
sed -i 's/ETCD_NAME="default"/ETCD_NAME="Node03"/' etcd.conf
sed -i 's/#ETCD_INITIAL_ADVERTISE_PEER_URLS="http://localhost:2380"/ETCD_INITIAL_ADVERTISE_PEER_URLS="http://10.0.0.32:2380"/' etcd.conf
sed -i 's/ETCD_ADVERTISE_CLIENT_URLS="http://localhost:2379"/ETCD_ADVERTISE_CLIENT_URLS="http://10.0.0.32:2379"/' etcd.conf
sed -i 's/#ETCD_INITIAL_CLUSTER="default=http://localhost:2380"/ETCD_INITIAL_CLUSTER="Master=http://10.0.0.30:2380,Node02=http://10.0.0.31:2380,Node03=http://10.0.0.32:2380"/' etcd.conf
sed -i 's/#ETCD_INITIAL_CLUSTER_TOKEN="etcd-cluster"/ETCD_INITIAL_CLUSTER_TOKEN="etcd-cluster"/' etcd.conf
sed -i 's/#ETCD_INITIAL_CLUSTER_STATE="new"/ETCD_INITIAL_CLUSTER_STATE="new"/' etcd.conf

systemctl start etcd
etcdctl member list

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
hostnamectl set-hostname P8-Etcd-Node03-Slave-02
#修改ip 10.0.0.32
cd /etc/sysconfig/network-scripts
sed -i '/.*BOOTPROTO=*/cBOOTPROTO="static"' ifcfg-ens33
sed -i '/.*IPADDR=*/cIPADDR=10.0.0.32' ifcfg-ens33
systemctl restart network


firewall-cmd --zone=public --add-port=2379/tcp --permanent
firewall-cmd --zone=public --add-port=2380/tcp --permanent
firewall-cmd --reload


yum install -y etcd
rpm -qa etcd
etcdctl -v

cp /etc/etcd/etcd.conf /etc/etcd/etcd.conf.bak
cd /etc/etcd/
sed -i 's/#ETCD_LISTEN_PEER_URLS="http://localhost:2380"/ETCD_LISTEN_PEER_URLS="http://10.0.0.32:2380"/' etcd.conf
sed -i 's/ETCD_LISTEN_CLIENT_URLS="http://localhost:2379"/ETCD_LISTEN_CLIENT_URLS="http://10.0.0.32:2379,http://127.0.0.1:2379"/' etcd.conf
sed -i 's/ETCD_NAME="default"/ETCD_NAME="Node03"/' etcd.conf
sed -i 's/#ETCD_INITIAL_ADVERTISE_PEER_URLS="http://localhost:2380"/ETCD_INITIAL_ADVERTISE_PEER_URLS="http://10.0.0.32:2380"/' etcd.conf
sed -i 's/ETCD_ADVERTISE_CLIENT_URLS="http://localhost:2379"/ETCD_ADVERTISE_CLIENT_URLS="http://10.0.0.32:2379"/' etcd.conf
sed -i 's/#ETCD_INITIAL_CLUSTER="default=http://localhost:2380"/ETCD_INITIAL_CLUSTER="Master=http://10.0.0.30:2380,Node02=http://10.0.0.31:2380,Node03=http://10.0.0.32:2380"/' etcd.conf
sed -i 's/#ETCD_INITIAL_CLUSTER_TOKEN="etcd-cluster"/ETCD_INITIAL_CLUSTER_TOKEN="etcd-cluster"/' etcd.conf
sed -i 's/#ETCD_INITIAL_CLUSTER_STATE="new"/ETCD_INITIAL_CLUSTER_STATE="new"/' etcd.conf

systemctl start etcd
etcdctl member list

测试结果

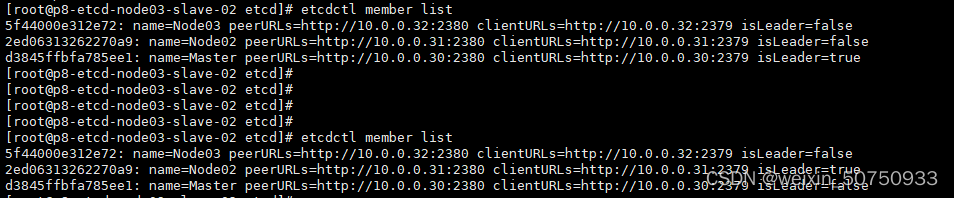

一主一从
在这里插入图片描述

三个服务都启动了

Master停止后，从机重选
在这里插入图片描述

报错
配置文件逗号后面加了空格（习惯性的加空格，但是这里不支持）
/etc/etcd/etcd.conf
ETCD_LISTEN_CLIENT_URLS=“http://10.0.0.30:2379,http://127.0.0.1:2379”
ETCD_INITIAL_CLUSTER=“Master=http://10.0.0.30:2380,Node02=http://10.0.0.31:2380,Node03=http://10.0.0.32:2380”
在这里插入图片描述

复制代码

[root@p8-etcd-node01-master etcd]# journalctl -xe
-- Defined-By: systemd
-- Support: http://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- Unit etcd.service has begun starting up.
Jun 11 03:38:21 p8-etcd-node01-master etcd[7776]: recognized and used environment variable ETCD_ADVERTISE_CLIENT_URLS=http://10.0.0.30:2379
Jun 11 03:38:21 p8-etcd-node01-master etcd[7776]: recognized and used environment variable ETCD_INITIAL_ADVERTISE_PEER_URLS=http://10.0.0.30:2380
Jun 11 03:38:21 p8-etcd-node01-master etcd[7776]: recognized and used environment variable ETCD_INITIAL_CLUSTER=Master=http://10.0.0.30:2380,Node02=http://10.0.0.30:2380,Node03=http:/
Jun 11 03:38:21 p8-etcd-node01-master etcd[7776]: recognized and used environment variable ETCD_INITIAL_CLUSTER_STATE=new
Jun 11 03:38:21 p8-etcd-node01-master etcd[7776]: recognized and used environment variable ETCD_INITIAL_CLUSTER_TOKEN=etcd-cluster
Jun 11 03:38:21 p8-etcd-node01-master etcd[7776]: recognized and used environment variable ETCD_LISTEN_PEER_URLS=http://10.0.0.30:2380
Jun 11 03:38:21 p8-etcd-node01-master etcd[7776]: recognized environment variable ETCD_NAME, but unused: shadowed by corresponding flag
Jun 11 03:38:21 p8-etcd-node01-master etcd[7776]: recognized environment variable ETCD_DATA_DIR, but unused: shadowed by corresponding flag
Jun 11 03:38:21 p8-etcd-node01-master etcd[7776]: recognized environment variable ETCD_LISTEN_CLIENT_URLS, but unused: shadowed by corresponding flag
Jun 11 03:38:21 p8-etcd-node01-master etcd[7776]: etcd Version: 3.3.11
Jun 11 03:38:21 p8-etcd-node01-master etcd[7776]: Git SHA: 2cf9e51
Jun 11 03:38:21 p8-etcd-node01-master etcd[7776]: Go Version: go1.10.3
Jun 11 03:38:21 p8-etcd-node01-master etcd[7776]: Go OS/Arch: linux/amd64
Jun 11 03:38:21 p8-etcd-node01-master etcd[7776]: setting maximum number of CPUs to 4, total number of available CPUs is 4
Jun 11 03:38:21 p8-etcd-node01-master etcd[7776]: the server is already initialized as member before, starting as etcd member...
Jun 11 03:38:21 p8-etcd-node01-master etcd[7776]: listening for peers on http://10.0.0.30:2380
Jun 11 03:38:21 p8-etcd-node01-master etcd[7776]: listening for client requests on 10.0.0.30:2379
Jun 11 03:38:21 p8-etcd-node01-master etcd[7776]: listening for client requests on 127.0.0.1:2379
Jun 11 03:38:21 p8-etcd-node01-master etcd[7776]: initial cluster Master=http://10.0.0.30:2380,Node02=http://10.0.0.30:2380,Node03=http://10.0.0.30:2380 has duplicate url
Jun 11 03:38:21 p8-etcd-node01-master systemd[1]: etcd.service: main process exited, code=exited, status=1/FAILURE
Jun 11 03:38:21 p8-etcd-node01-master systemd[1]: Failed to start Etcd Server.
-- Subject: Unit etcd.service has failed
-- Defined-By: systemd
-- Support: http://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- Unit etcd.service has failed.
--
-- The result is failed.
Jun 11 03:38:21 p8-etcd-node01-master systemd[1]: Unit etcd.service entered failed state.
Jun 11 03:38:21 p8-etcd-node01-master systemd[1]: etcd.service failed.
Jun 11 03:38:21 p8-etcd-node01-master systemd[1]: etcd.service holdoff time over, scheduling restart.
Jun 11 03:38:21 p8-etcd-node01-master systemd[1]: Stopped Etcd Server.
-- Subject: Unit etcd.service has finished shutting down
-- Defined-By: systemd
-- Support: http://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- Unit etcd.service has finished shutting down.
Jun 11 03:38:21 p8-etcd-node01-master systemd[1]: start request repeated too quickly for etcd.service
Jun 11 03:38:21 p8-etcd-node01-master systemd[1]: Failed to start Etcd Server.
-- Subject: Unit etcd.service has failed
-- Defined-By: systemd
-- Support: http://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- Unit etcd.service has failed.
--
-- The result is failed.
Jun 11 03:38:21 p8-etcd-node01-master systemd[1]: Unit etcd.service entered failed state.
Jun 11 03:38:21 p8-etcd-node01-master systemd[1]: etcd.service failed.

[root@p8-etcd-node01-master etcd]#
[root@p8-etcd-node01-master etcd]#
[root@p8-etcd-node01-master etcd]# sed -i 's/#ETCD_LISTEN_PEER_URLS="http://localhost:2380"/ETCD_LISTEN_PEER_URLS="http://10.0.0.30:2380"/' etcd.conf
etcd.conf
sed -i 's/ETCD_NAME="default"/ETCD_NAME="Master"/' etcd.conf
sed -i 's/#ETCD_INITIAL_ADVERTISE_PEER_URLS="http://localhost:2380"/ETCD_INITIAL_ADVERTISE_PEER_URLS="http://10.0.0.30:2380"/' etcd.conf
sed -i 's/ETCD_ADVERTISE_CLIENT_URLS="http:[root@p8-etcd-node01-master etcd]# sed -i 's/ETCD_LISTEN_CLIENT_URLS="http://localhost:2379"/ETCD_LISTEN_CLIENT_URLS="http://10.0.0.30:2379, http://127.0.0.1:2379"/' etcd.conf
[root@p8-etcd-node01-master etcd]# sed -i 's/ETCD_NAME="default"/ETCD_NAME="Master"/' etcd.conf
[root@p8-etcd-node01-master etcd]# sed -i 's/#ETCD_INITIAL_ADVERTISE_PEER_URLS="http://localhost:2380"/ETCD_INITIAL_ADVERTISE_PEER_URLS="http://10.0.0.30:2380"/' etcd.conf
[root@p8-etcd-node01-master etcd]# sed -i 's/ETCD_ADVERTISE_CLIENT_URLS="http://localhost:2379"/ETCD_ADVERTISE_CLIENT_URLS="http://10.0.0.30:2379"/' etcd.conf
[root@p8-etcd-node01-master etcd]# sed -i 's/#ETCD_INITIAL_CLUSTER="default=http://localhost:2380"/ETCD_INITIAL_CLUSTER="Master=http://10.0.0.30:2380, Node02=http://10.0.0.31:2380, Node03=http://10.0.0.32:2380"/' etcd.conf
[root@p8-etcd-node01-master etcd]# sed -i 's/#ETCD_INITIAL_CLUSTER_TOKEN="etcd-cluster"/ETCD_INITIAL_CLUSTER_TOKEN="etcd-cluster"/' etcd.conf
[root@p8-etcd-node01-master etcd]# sed -i 's/#ETCD_INITIAL_CLUSTER_STATE="new"/ETCD_INITIAL_CLUSTER_STATE="new"/' etcd.conf
[root@p8-etcd-node01-master etcd]#
[root@p8-etcd-node01-master etcd]#
[root@p8-etcd-node01-master etcd]# systemctl restart ectd
Failed to restart ectd.service: Unit not found.
[root@p8-etcd-node01-master etcd]# systemctl retart ectd
Unknown operation 'retart'.
[root@p8-etcd-node01-master etcd]# systemctl stop ectd
Failed to stop ectd.service: Unit ectd.service not loaded.
[root@p8-etcd-node01-master etcd]# systemctl start ectd
Failed to start ectd.service: Unit not found.
[root@p8-etcd-node01-master etcd]# systemctl start etcd

Job for etcd.service failed because a timeout was exceeded. See "systemctl status etcd.service" and "journalctl -xe" for details.
[root@p8-etcd-node01-master etcd]#

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
[root@p8-etcd-node01-master etcd]# journalctl -xe
-- Defined-By: systemd
-- Support: http://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- Unit etcd.service has begun starting up.
Jun 11 03:38:21 p8-etcd-node01-master etcd[7776]: recognized and used environment variable ETCD_ADVERTISE_CLIENT_URLS=http://10.0.0.30:2379
Jun 11 03:38:21 p8-etcd-node01-master etcd[7776]: recognized and used environment variable ETCD_INITIAL_ADVERTISE_PEER_URLS=http://10.0.0.30:2380
Jun 11 03:38:21 p8-etcd-node01-master etcd[7776]: recognized and used environment variable ETCD_INITIAL_CLUSTER=Master=http://10.0.0.30:2380,Node02=http://10.0.0.30:2380,Node03=http:/
Jun 11 03:38:21 p8-etcd-node01-master etcd[7776]: recognized and used environment variable ETCD_INITIAL_CLUSTER_STATE=new
Jun 11 03:38:21 p8-etcd-node01-master etcd[7776]: recognized and used environment variable ETCD_INITIAL_CLUSTER_TOKEN=etcd-cluster
Jun 11 03:38:21 p8-etcd-node01-master etcd[7776]: recognized and used environment variable ETCD_LISTEN_PEER_URLS=http://10.0.0.30:2380
Jun 11 03:38:21 p8-etcd-node01-master etcd[7776]: recognized environment variable ETCD_NAME, but unused: shadowed by corresponding flag
Jun 11 03:38:21 p8-etcd-node01-master etcd[7776]: recognized environment variable ETCD_DATA_DIR, but unused: shadowed by corresponding flag
Jun 11 03:38:21 p8-etcd-node01-master etcd[7776]: recognized environment variable ETCD_LISTEN_CLIENT_URLS, but unused: shadowed by corresponding flag
Jun 11 03:38:21 p8-etcd-node01-master etcd[7776]: etcd Version: 3.3.11
Jun 11 03:38:21 p8-etcd-node01-master etcd[7776]: Git SHA: 2cf9e51
Jun 11 03:38:21 p8-etcd-node01-master etcd[7776]: Go Version: go1.10.3
Jun 11 03:38:21 p8-etcd-node01-master etcd[7776]: Go OS/Arch: linux/amd64
Jun 11 03:38:21 p8-etcd-node01-master etcd[7776]: setting maximum number of CPUs to 4, total number of available CPUs is 4
Jun 11 03:38:21 p8-etcd-node01-master etcd[7776]: the server is already initialized as member before, starting as etcd member...
Jun 11 03:38:21 p8-etcd-node01-master etcd[7776]: listening for peers on http://10.0.0.30:2380
Jun 11 03:38:21 p8-etcd-node01-master etcd[7776]: listening for client requests on 10.0.0.30:2379
Jun 11 03:38:21 p8-etcd-node01-master etcd[7776]: listening for client requests on 127.0.0.1:2379
Jun 11 03:38:21 p8-etcd-node01-master etcd[7776]: initial cluster Master=http://10.0.0.30:2380,Node02=http://10.0.0.30:2380,Node03=http://10.0.0.30:2380 has duplicate url
Jun 11 03:38:21 p8-etcd-node01-master systemd[1]: etcd.service: main process exited, code=exited, status=1/FAILURE
Jun 11 03:38:21 p8-etcd-node01-master systemd[1]: Failed to start Etcd Server.
-- Subject: Unit etcd.service has failed
-- Defined-By: systemd
-- Support: http://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- Unit etcd.service has failed.
--
-- The result is failed.
Jun 11 03:38:21 p8-etcd-node01-master systemd[1]: Unit etcd.service entered failed state.
Jun 11 03:38:21 p8-etcd-node01-master systemd[1]: etcd.service failed.
Jun 11 03:38:21 p8-etcd-node01-master systemd[1]: etcd.service holdoff time over, scheduling restart.
Jun 11 03:38:21 p8-etcd-node01-master systemd[1]: Stopped Etcd Server.
-- Subject: Unit etcd.service has finished shutting down
-- Defined-By: systemd
-- Support: http://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- Unit etcd.service has finished shutting down.
Jun 11 03:38:21 p8-etcd-node01-master systemd[1]: start request repeated too quickly for etcd.service
Jun 11 03:38:21 p8-etcd-node01-master systemd[1]: Failed to start Etcd Server.
-- Subject: Unit etcd.service has failed
-- Defined-By: systemd
-- Support: http://lists.freedesktop.org/mailman/listinfo/systemd-devel
--
-- Unit etcd.service has failed.
--
-- The result is failed.
Jun 11 03:38:21 p8-etcd-node01-master systemd[1]: Unit etcd.service entered failed state.
Jun 11 03:38:21 p8-etcd-node01-master systemd[1]: etcd.service failed.

[root@p8-etcd-node01-master etcd]#
[root@p8-etcd-node01-master etcd]#
[root@p8-etcd-node01-master etcd]# sed -i 's/#ETCD_LISTEN_PEER_URLS="http://localhost:2380"/ETCD_LISTEN_PEER_URLS="http://10.0.0.30:2380"/' etcd.conf
etcd.conf
sed -i 's/ETCD_NAME="default"/ETCD_NAME="Master"/' etcd.conf
sed -i 's/#ETCD_INITIAL_ADVERTISE_PEER_URLS="http://localhost:2380"/ETCD_INITIAL_ADVERTISE_PEER_URLS="http://10.0.0.30:2380"/' etcd.conf
sed -i 's/ETCD_ADVERTISE_CLIENT_URLS="http:[root@p8-etcd-node01-master etcd]# sed -i 's/ETCD_LISTEN_CLIENT_URLS="http://localhost:2379"/ETCD_LISTEN_CLIENT_URLS="http://10.0.0.30:2379, http://127.0.0.1:2379"/' etcd.conf
[root@p8-etcd-node01-master etcd]# sed -i 's/ETCD_NAME="default"/ETCD_NAME="Master"/' etcd.conf
[root@p8-etcd-node01-master etcd]# sed -i 's/#ETCD_INITIAL_ADVERTISE_PEER_URLS="http://localhost:2380"/ETCD_INITIAL_ADVERTISE_PEER_URLS="http://10.0.0.30:2380"/' etcd.conf
[root@p8-etcd-node01-master etcd]# sed -i 's/ETCD_ADVERTISE_CLIENT_URLS="http://localhost:2379"/ETCD_ADVERTISE_CLIENT_URLS="http://10.0.0.30:2379"/' etcd.conf
[root@p8-etcd-node01-master etcd]# sed -i 's/#ETCD_INITIAL_CLUSTER="default=http://localhost:2380"/ETCD_INITIAL_CLUSTER="Master=http://10.0.0.30:2380, Node02=http://10.0.0.31:2380, Node03=http://10.0.0.32:2380"/' etcd.conf
[root@p8-etcd-node01-master etcd]# sed -i 's/#ETCD_INITIAL_CLUSTER_TOKEN="etcd-cluster"/ETCD_INITIAL_CLUSTER_TOKEN="etcd-cluster"/' etcd.conf
[root@p8-etcd-node01-master etcd]# sed -i 's/#ETCD_INITIAL_CLUSTER_STATE="new"/ETCD_INITIAL_CLUSTER_STATE="new"/' etcd.conf
[root@p8-etcd-node01-master etcd]#
[root@p8-etcd-node01-master etcd]#
[root@p8-etcd-node01-master etcd]# systemctl restart ectd
Failed to restart ectd.service: Unit not found.
[root@p8-etcd-node01-master etcd]# systemctl retart ectd
Unknown operation 'retart'.
[root@p8-etcd-node01-master etcd]# systemctl stop ectd
Failed to stop ectd.service: Unit ectd.service not loaded.
[root@p8-etcd-node01-master etcd]# systemctl start ectd
Failed to start ectd.service: Unit not found.
[root@p8-etcd-node01-master etcd]# systemctl start etcd





Job for etcd.service failed because a timeout was exceeded. See "systemctl status etcd.service" and "journalctl -xe" for details.
[root@p8-etcd-node01-master etcd]#
