需求

需求这部分我就不发牢骚了,简单来说就是某些人因为看到别家的项目,觉得人家通过上传试卷的Word文档直接实现了录题功能眼馋了,想要我们也做一个.

现状

目前项目使用的是手工录题,一道一道的,比较繁琐,所以有些人就想要搬别人的东西过来.
通过几天的思考和查阅资料,知道POI有可以对Word处理的类和方法,但是呢,由于项目目前是通过富文本编辑器来录题,录过之后存入数据库的样式带有HTML标签的内容,在根据题目生成试卷的时候也是需要从标签中获取样式的.所以直接对Word处理是不现实的,于是考虑将Word转为HTML文件,再通过Jsoup中的方法对标签进行处理

设计思路

简单来说就是这个过程:
Word文档——HTML文件——Jsoup获取p标签——对标签内容进行处理
使用的类分别为
HWPFDocument获取Word文件
WordToHtmlConverter类实现转HTML
Jsoup的getElementsByTag获取HTML中的p标签

实现过程

97-2003版本Word(.doc)

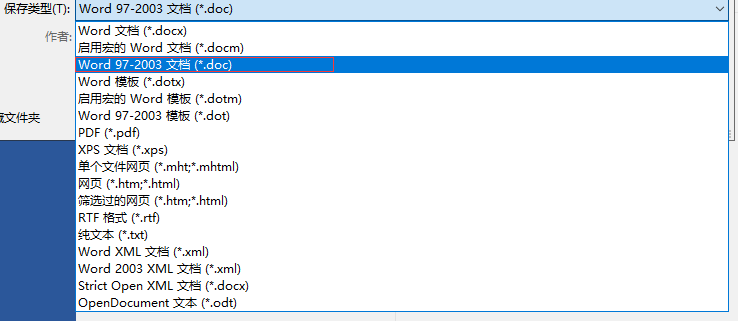

对于Word2003(.doc)类型的文档的处理,如果导入文档报错,可将文档用Office打开,并另存为Word97-2003文档,即可使用.
(之前2007版本以上的.docx文档的转换报错,目前问题已经解决,见该部分后面.)
在这里插入图片描述

复制代码

package com.education.modules.tool.oss.utils;

import com.education.common.utils.Util;
import com.education.modules.questions.entity.QuestionsEntity;
import org.apache.poi.hwpf.HWPFDocument;
import org.apache.poi.hwpf.converter.WordToHtmlConverter;
import org.apache.poi.xwpf.usermodel.IBodyElement;
import org.apache.poi.xwpf.usermodel.XWPFDocument;
import org.apache.poi.xwpf.usermodel.XWPFParagraph;
import org.apache.poi.xwpf.usermodel.XWPFStyles;
import org.jsoup.Jsoup;
import org.jsoup.nodes.Document;
import org.jsoup.nodes.Element;

import javax.lang.model.util.Elements;
import javax.xml.parsers.DocumentBuilderFactory;
import javax.xml.parsers.ParserConfigurationException;
import javax.xml.transform.*;
import javax.xml.transform.dom.DOMSource;
import javax.xml.transform.stream.StreamResult;
import java.io.*;
import java.util.ArrayList;
import java.util.List;

public class WordUtil {

public static void getDoc(){
        //解析Word文档,暂时没有用了,用下面那个!
        String path="D:\testWord\2019年江苏省南京市高一上学期期末考试_9099.docx";
        InputStream is=null;
        {
            try {
                is = new FileInputStream(path);
            } catch (FileNotFoundException e) {
                e.printStackTrace();
            }
        }
        XWPFDocument doc=null;

{
            try {
                doc = new XWPFDocument(is);
            } catch (IOException e) {
                e.printStackTrace();
            }
        }
        List<XWPFParagraph> paragraph=doc.getParagraphs();
        List<IBodyElement> bodyElements=doc.getBodyElements();
        XWPFStyles styles=doc.getStyles();
        System.out.println(paragraph);
        System.out.println(bodyElements);
        System.out.println(styles);
        for(XWPFParagraph p:paragraph){
            System.out.println(p.getParagraphText());
        }
    }

public static void wordToHtml(){
        //读取Word文档转为HTML文件
        String path="D:\testWord\2019年江苏省南京市高一上学期期末考试_90999.doc";
        String imagePath="D:\testWord\image\";
        String htmlPath="D:\testWord\testHtml.html";
        File file=new File(path);
        OutputStreamWriter outputStreamWriter = null;
        if(!file.exists()){
            System.out.println("文件不存在");
        }else try {
            //加载word文档生成XWPF对象
            InputStream in = new FileInputStream(file);
            //XWPFDocument document = new XWPFDocument(in);
            HWPFDocument doc=new HWPFDocument(in);
            org.w3c.dom.Document document = DocumentBuilderFactory.newInstance().newDocumentBuilder().newDocument();
            WordToHtmlConverter wordToHtmlConverter=new WordToHtmlConverter(document);
            //保存图片，并返回图片的相对路径
            wordToHtmlConverter.setPicturesManager((content, pictureType, name, width, height) -> {
                try (FileOutputStream out = new FileOutputStream(imagePath + name)) {
                    out.write(content);
                } catch (Exception e) {
                    e.printStackTrace();
                }
                return "image/" + name;
            });
            wordToHtmlConverter.processDocument(doc);
            org.w3c.dom.Document htmlDocument = wordToHtmlConverter.getDocument();
            DOMSource domSource = new DOMSource(htmlDocument);
            StreamResult streamResult = new StreamResult(new File(htmlPath));
            TransformerFactory tf = TransformerFactory.newInstance();
            Transformer serializer = tf.newTransformer();
            serializer.setOutputProperty(OutputKeys.ENCODING, "utf-8");
            serializer.setOutputProperty(OutputKeys.INDENT, "yes");
            serializer.setOutputProperty(OutputKeys.METHOD, "html");
            serializer.transform(domSource, streamResult);

//XHTML的方法.用不了
            /*XHTMLOptions options = XHTMLOptions.create();
            //图片目录
            options.setExtractor(new FileImageExtractor(new File(imagePath)));
            //html中图片的路径
            options.URIResolver((new BasicURIResolver("image")));
            outputStreamWriter = new OutputStreamWriter(new FileOutputStream(htmlPaht), "utf-8");
            XHTMLConverter xhtmlConverter = (XHTMLConverter) XHTMLConverter.getInstance();
            xhtmlConverter.convert(document, outputStreamWriter, options);*/

} catch (FileNotFoundException e) {
            e.printStackTrace();
        } catch (IOException e) {
            e.printStackTrace();
        } catch (ParserConfigurationException e) {
            e.printStackTrace();
        } catch (TransformerConfigurationException e) {
            e.printStackTrace();
        } catch (TransformerException e) {
            e.printStackTrace();
        }

}

public static void main(String[] args) {
        //getDoc();
        //wordToHtml();
        //读取解析之后的HTML文件,获取p标签并遍历.
        File input = new File("D:\testWord\testHtml.html");
        try {
            Document doc = Jsoup.parse(input, "UTF-8", "http://example.com/");
            org.jsoup.select.Elements pList=doc.getElementsByTag("p");
            List<QuestionsEntity> questionList=new ArrayList<>();
            int i=1;//题号
            for(int j=0;j<pList.size();j++){
                Element p=pList.get(j);
                if(p.text().contains(i+".")){
                    QuestionsEntity question=new QuestionsEntity();
                    question.setStem(p.toString());
                    questionList.add(question);
                    i++;
                }else if (p.text().contains("一、")||p.text().contains("二、")||p.text().contains("三、")||p.text().contains("四、")
                        ||p.text().contains("五、")||p.text().contains("六、")||p.text().contains("七、")||p.text().contains("八、")
                        ||p.text().contains("九、")||p.text().contains("十、")){
                    continue;
                }else{
                    if(Util.isNotEmpty(questionList)&&questionList.size()>0){
                        QuestionsEntity q=questionList.get(i-2);
                        q.setStem(q.getStem()+p.toString());
                    }
                }

}
            System.out.println(questionList);
        } catch (IOException e) {
            e.printStackTrace();
        }

}
