IntelliJ IDEA总结(7) -- IntelliJ IDEA创建多模块项目1 创建跟项目2 添加子模块3 父模块的pom.xml4 子模块5 maven层级结构技术交流

98 阅读 0 评论
我是靠谱客的博主 斯文溪流，这篇文章主要介绍IntelliJ IDEA总结(7) -- IntelliJ IDEA创建多模块项目1 创建跟项目2 添加子模块3 父模块的pom.xml4 子模块5 maven层级结构技术交流，现在分享给大家，希望可以做个参考。

1 创建跟项目

1 方式一：在git上面创建项目，然后在IDEA通过git下载下来。
2 方式二：直接在Idea上面创建。

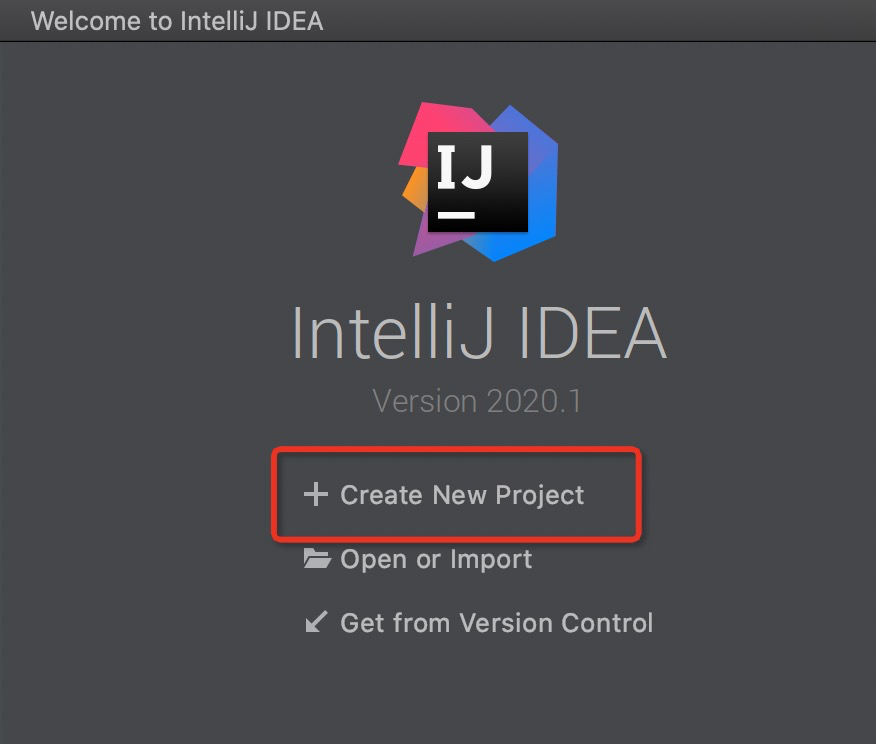

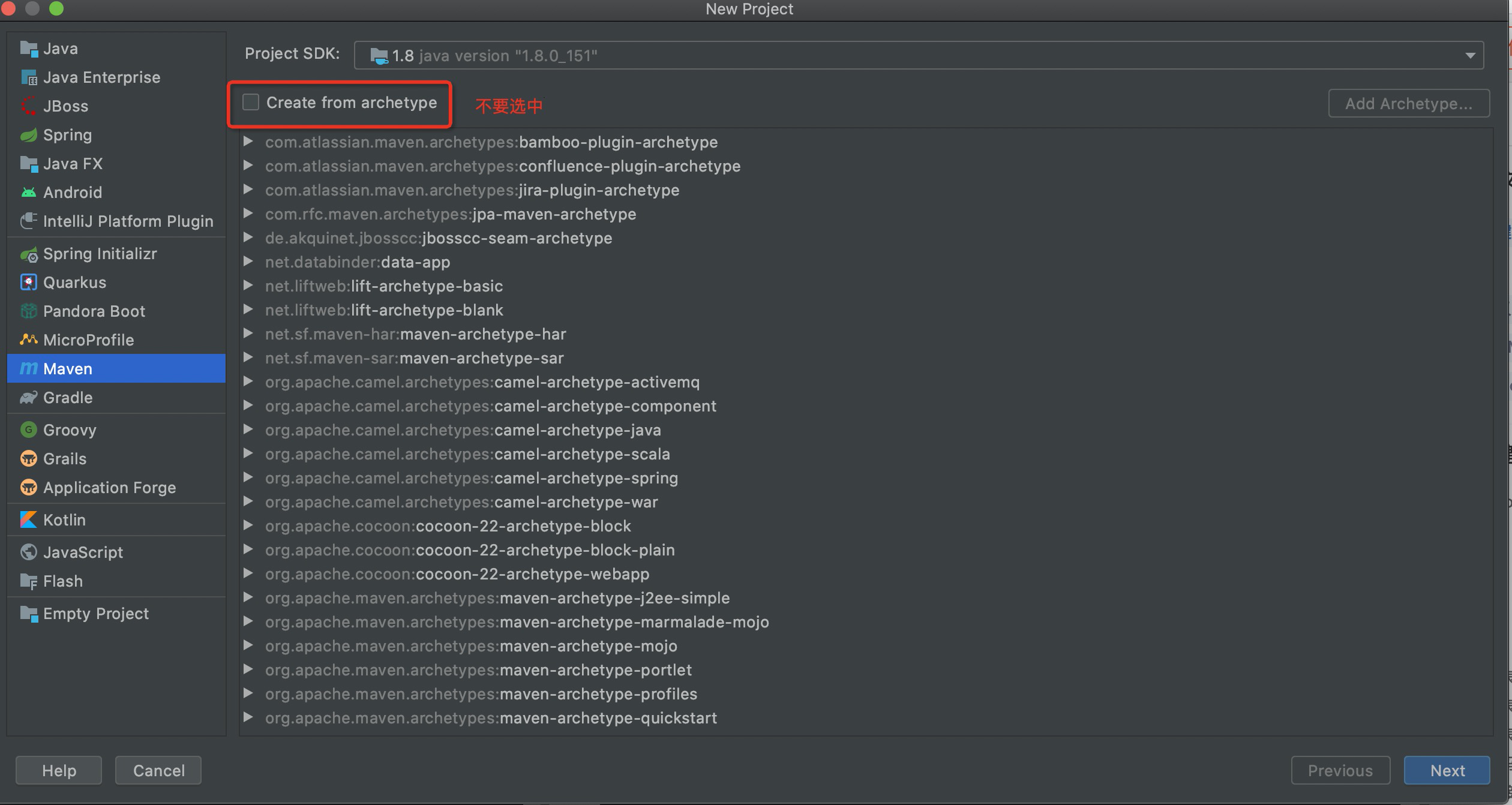

创建push-center项目
在这里插入图片描述

在这里插入图片描述

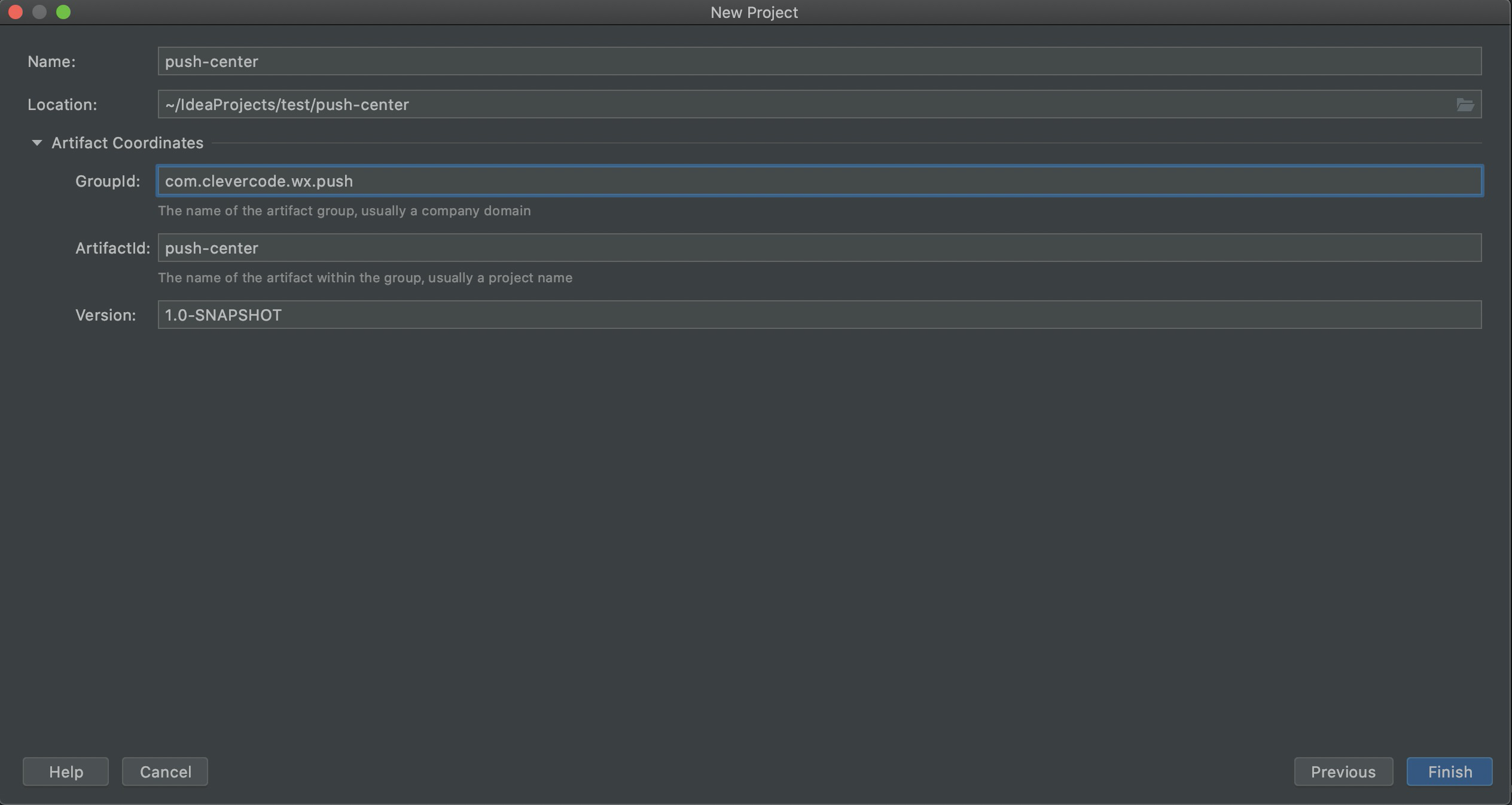

填写包信息
在这里插入图片描述

删除src
在这里插入图片描述
添加.gitignore

复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
# Created by .ignore support plugin (hsz.mobi)
### Java template
# Compiled class file
*.class

# Log file
*.log
logs/

# BlueJ files
*.ctxt

# Mobile Tools for Java (J2ME)
.mtj.tmp/

# virtual machine crash logs, see http://www.java.com/en/download/help/error_hotspot.xml
hs_err_pid*

### Maven template
target/
pom.xml.tag
pom.xml.releaseBackup
pom.xml.versionsBackup
pom.xml.next
release.properties
dependency-reduced-pom.xml
buildNumber.properties
.mvn/timing.properties

### JetBrains template
# Covers JetBrains IDEs: IntelliJ, RubyMine, PhpStorm, AppCode, PyCharm, CLion, Android Studio and WebStorm
# Reference: https://intellij-support.jetbrains.com/hc/en-us/articles/206544839
.idea
*.iml
*.ipr

# CMake
cmake-build-*/

# File-based project format
*.iws

# IntelliJ
out/

# mpeltonen/sbt-idea plugin
.idea_modules/

# JIRA plugin
atlassian-ide-plugin.xml

# Cursive Clojure plugin
.idea/replstate.xml

# Crashlytics plugin (for Android Studio and IntelliJ)
com_crashlytics_export_strings.xml
crashlytics.properties
crashlytics-build.properties
fabric.properties

# Editor-based Rest Client
.idea/httpRequests

# Android studio 3.1+ serialized cache file
.idea/caches/build_file_checksums.ser

### NetBeans ###
nbproject/private/
build/
nbbuild/
dist/
nbdist/

target
**/target
!/.gitignore
!.mvn/wrapper/maven-wrapper.jar

application.pid

在这里插入图片描述

2 添加子模块

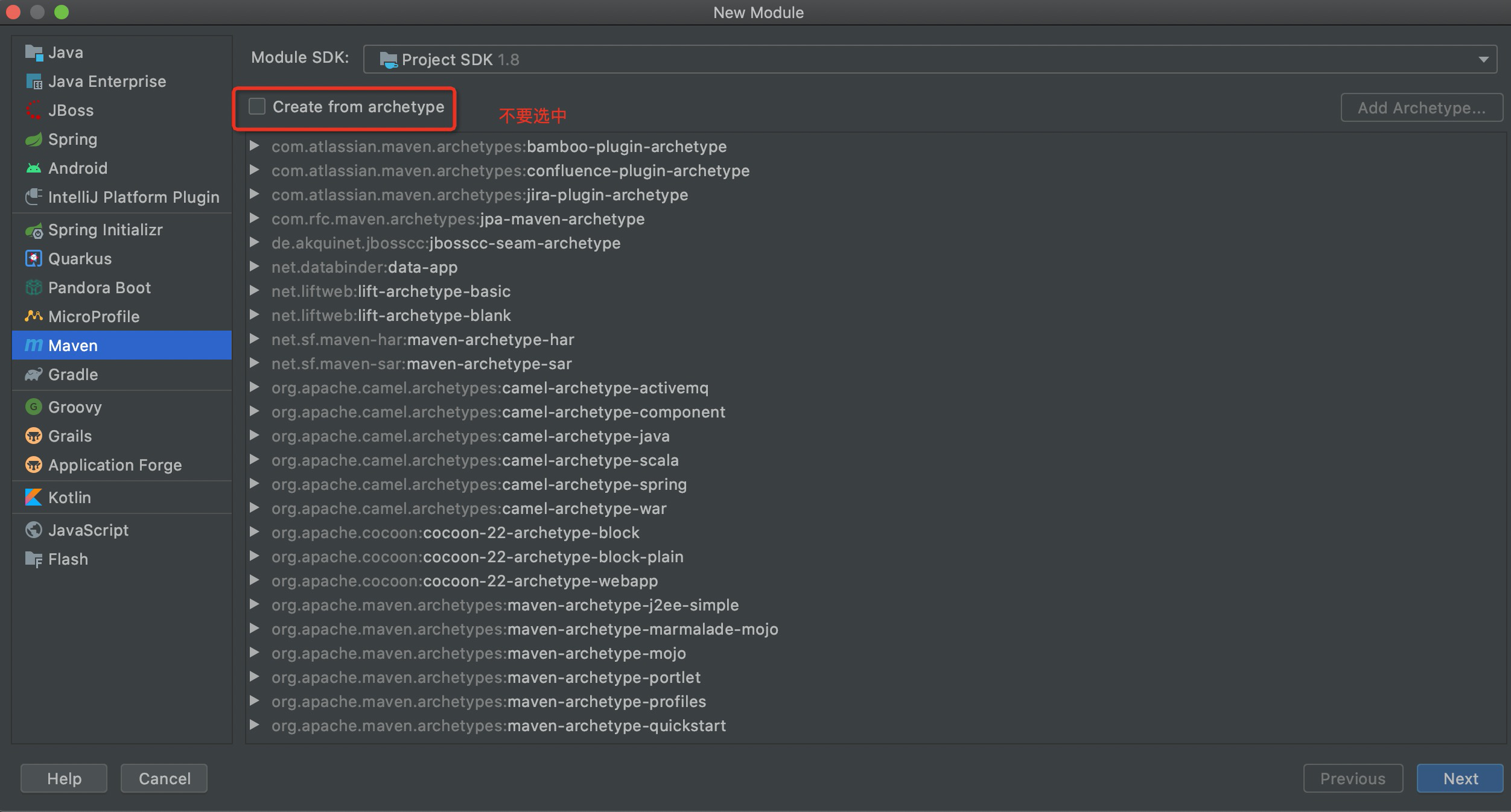

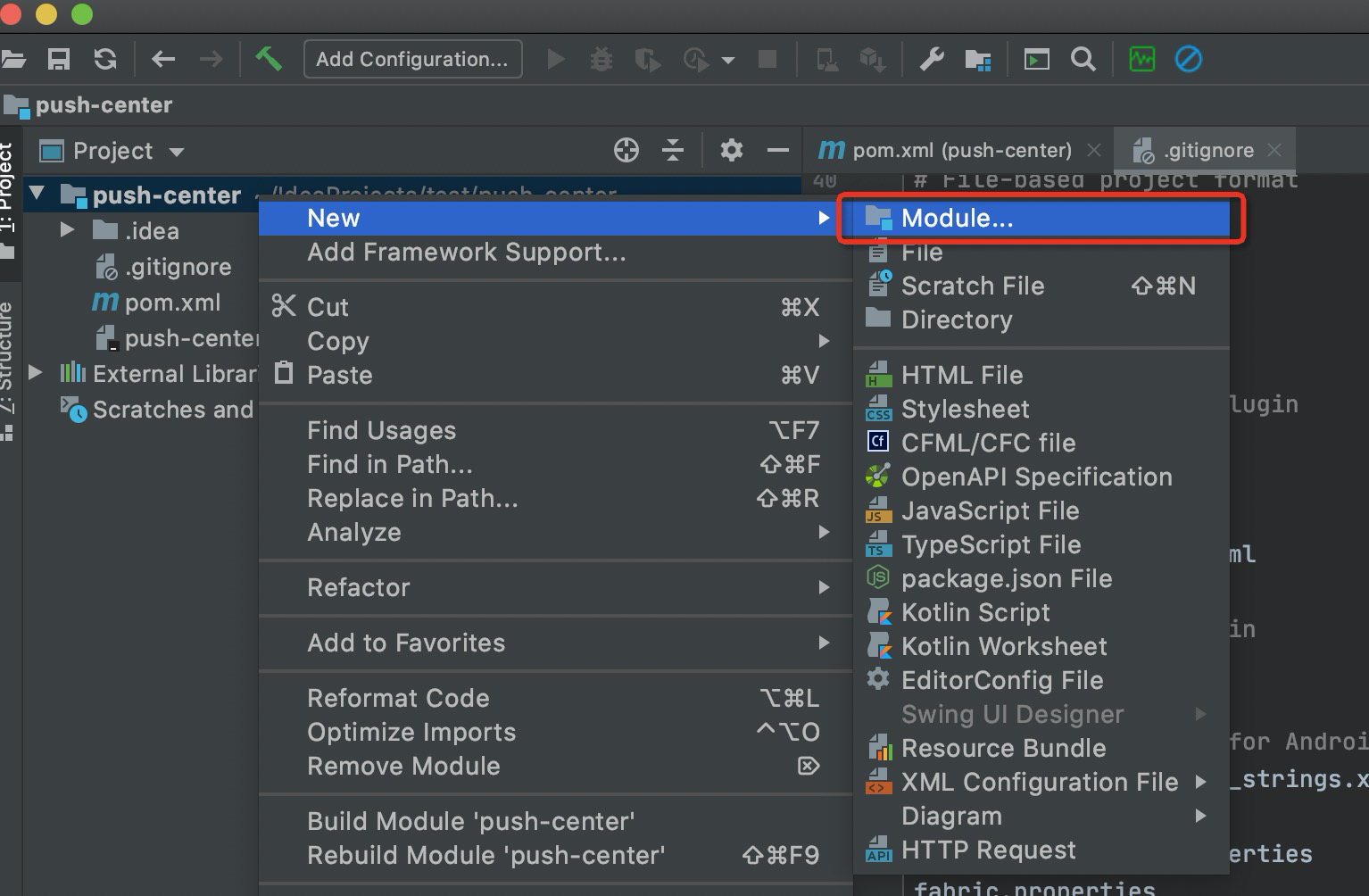

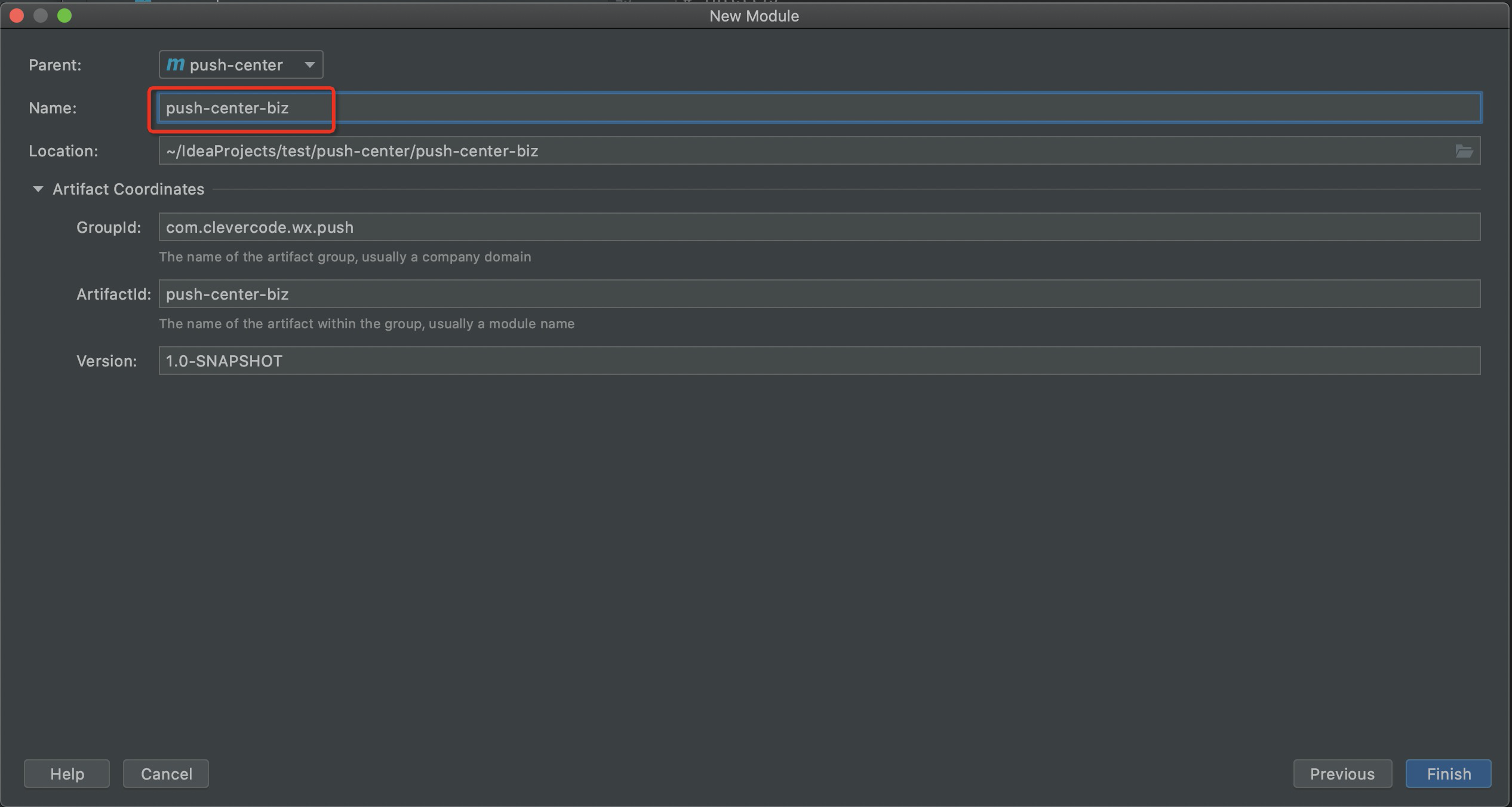

创建4个子模块，方式一模一样：
push-center-biz：业务逻辑层。service的impl实现层
push-center-api：service的接口定义层。
push-center-web：restful的接口层。
push-center-task：定时任务,mq处理层。

在这里插入图片描述
在这里插入图片描述

在这里插入图片描述

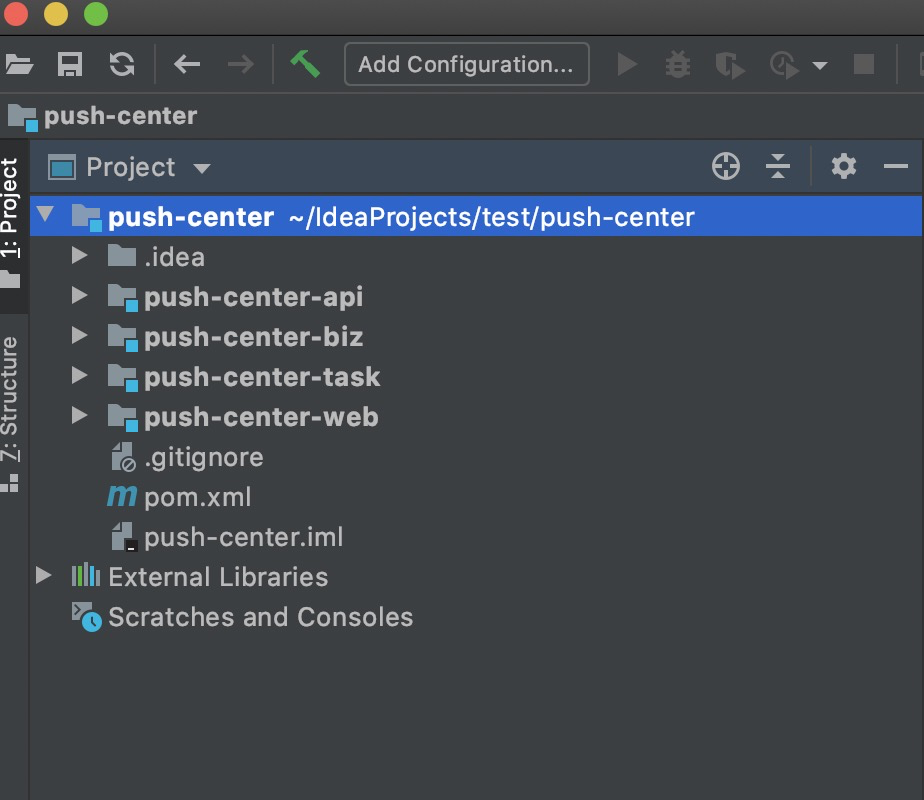

4个子模块都定义好之后
在这里插入图片描述

3 父模块的pom.xml

packaging需要为pom

复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.clevercode.wx.push</groupId>
    <artifactId>push-center</artifactId>
    <packaging>pom</packaging>
    <version>0.0.1-SNAPSHOT</version>

    <modules>
        <module>push-center-biz</module>
        <module>push-center-web</module>
        <module>push-center-api</module>
        <module>push-center-task</module>
    </modules>

    <name>push-center</name>
    <description>wx  push-center</description>
<dependencyManagement>
        <dependencies>

            <dependency>
                <groupId>com.clevercode.cj.push</groupId>
                <artifactId>push-web</artifactId>
                <version>${project.version}</version>
            </dependency>
            <dependency>
                <groupId>com.clevercode.cj.push</groupId>
                <artifactId>push-api</artifactId>
                <version>${project.version}</version>
            </dependency>
            <dependency>
                <groupId>com.clevercode.cj.push</groupId>
                <artifactId>push-biz</artifactId>
                <version>${project.version}</version>
            </dependency>
              <dependency>
                <groupId>com.clevercode.cj.push</groupId>
                <artifactId>push-task</artifactId>
                <version>${project.version}</version>
            </dependency>
            <dependency>
                <groupId>com.alibaba.boot</groupId>
                <artifactId>alibaba-spring-boot-dependencies</artifactId>
                <version>${alibaba-spring-boot.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>

            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>${spring-cloud.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>

            <dependency>
                <groupId>com.alibaba</groupId>
                <artifactId>fastjson</artifactId>
                <version>${fastjson.version}</version>
            </dependency>
            <dependency>
                <groupId>com.squareup.okhttp3</groupId>
                <artifactId>okhttp</artifactId>
                <version>${okhttp.version}</version>
            </dependency>

            <dependency>
                <groupId>commons-validator</groupId>
                <artifactId>commons-validator</artifactId>
                <version>${commons-validator.version}</version>
            </dependency>
            <dependency>
                <groupId>commons-io</groupId>
                <artifactId>commons-io</artifactId>
                <version>${commons-io.version}</version>
            </dependency>

            <dependency>
                <groupId>com.alibaba.csp</groupId>
                <artifactId>spring-boot-starter-ahas-sentinel-client</artifactId>
                <version>${sentinel.version}</version>
            </dependency>

            <!-- DecClient SpringBoot 2-->
            <dependency>
                <groupId>com.alibaba.aliwx.dec</groupId>
                <artifactId>dec-client</artifactId>
                <version>0.2.0-SNAPSHOT</version>
            </dependency>
            <!--mybatis框架-->
            <dependency>
                <groupId>org.mybatis.spring.boot</groupId>
                <artifactId>mybatis-spring-boot-starter</artifactId>
                <version>1.3.1</version>
                <exclusions>
                    <exclusion>
                        <groupId>com.zaxxer</groupId>
                        <artifactId>HikariCP</artifactId>
                    </exclusion>
                </exclusions>
            </dependency>
            <dependency>
                <groupId>com.fasterxml.uuid</groupId>
                <artifactId>java-uuid-generator</artifactId>
                <version>${jackson-databind.version}</version>
            </dependency>
            <dependency>
                <groupId>com.google.guava</groupId>
                <artifactId>guava-io</artifactId>
                <version>r03</version>
            </dependency>
            <dependency>
                <groupId>org.codehaus.janino</groupId>
                <artifactId>janino</artifactId>
                <version>3.0.6</version>
            </dependency>
            <dependency>
                <groupId>com.aliyun.oss</groupId>
                <artifactId>aliyun-sdk-oss</artifactId>
                <version>${oss.version}</version>
            </dependency>
            <dependency>
                <groupId>org.apache.commons</groupId>
                <artifactId>commons-csv</artifactId>
                <version>${commons-csv.version}</version>
            </dependency>
            <dependency>
                <groupId>org.apache.commons</groupId>
                <artifactId>commons-compress</artifactId>
                <version>${commons-compress.verion}</version>
            </dependency>
            <dependency>
                <groupId>com.alipay.sdk</groupId>
                <artifactId>alipay-sdk-java</artifactId>
                <version>${alipay-sdk.version}</version>
                <exclusions>
                    <exclusion>
                        <groupId>commons-logging</groupId>
                        <artifactId>commons-logging</artifactId>
                    </exclusion>
                </exclusions>
            </dependency>
            <dependency>
                <groupId>org.jmockit</groupId>
                <artifactId>jmockit</artifactId>
                <version>${jmockit.version}</version>
            </dependency>
            <dependency>
                <groupId>com.github.pagehelper</groupId>
                <artifactId>pagehelper-spring-boot-starter</artifactId>
                <version>${pageHelper.version}</version>
            </dependency>
            <dependency>
                <groupId>com.alibaba</groupId>
                <artifactId>druid-spring-boot-starter</artifactId>
                <version>${druid.version}</version>
            </dependency>
            <dependency>
                <groupId>com.alibaba</groupId>
                <artifactId>transmittable-thread-local</artifactId>
                <version>${transmittable-thread-local.version}</version>
            </dependency>

            <dependency>
                <groupId>com.thoughtworks.xstream</groupId>
                <artifactId>xstream</artifactId>
                <version>${xstream.version}</version>
            </dependency>
            <dependency>
                <groupId>dom4j</groupId>
                <artifactId>dom4j</artifactId>
                <version>${dom4j.version}</version>
            </dependency>
            <!--linkedmall-->
            <dependency>
                <groupId>com.aliyun</groupId>
                <artifactId>aliyun-java-sdk-linkedmall</artifactId>
                <version>2.12.13</version>
            </dependency>
            <dependency>
                <groupId>com.aliyun</groupId>
                <artifactId>aliyun-java-sdk-core</artifactId>
                <version>4.5.17</version>
            </dependency>

            <!-- 动态配置 -->
            <dependency>
                <groupId>com.alibaba.boot</groupId>
                <artifactId>nacos-config-spring-boot-starter</artifactId>
                <version>${nacos.version}</version>
                <exclusions>
                    <exclusion>
                        <groupId>org.springframework.boot</groupId>
                        <artifactId>spring-boot-starter</artifactId>
                    </exclusion>
                    <exclusion>
                        <groupId>ch.qos.logback</groupId>
                        <artifactId>logback-classic</artifactId>
                    </exclusion>
                    <exclusion>
                        <groupId>ch.qos.logback</groupId>
                        <artifactId>logback-core</artifactId>
                    </exclusion>
                </exclusions>
            </dependency>
        </dependencies>
    </dependencyManagement>

    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>${maven-compiler-plugin.version}</version>
                <configuration>
                    <source>${maven.compiler.source}</source>
                    <target>${maven.compiler.target}</target>
                </configuration>
            </plugin>
        </plugins>
    </build>
    </project

4 子模块

复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <parent>
        <groupId>com.clevercode.cj.push</groupId>
        <artifactId>push-center</artifactId>
        <version>0.0.1-SNAPSHOT</version>
    </parent>

    <artifactId>punchcard-web</artifactId>
    <version>0.0.1-SNAPSHOT</version>

    <dependencies>

        <dependency>
            <groupId>com.clevercode.cj.push</groupId>
            <artifactId>push-biz</artifactId>
        </dependency>

        <dependency>
            <groupId>com.clevercode.cj</groupId>
            <artifactId>java_ft</artifactId>
            <version>0.1.0-SNAPSHOT</version>
            <scope>test</scope>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>${maven-compiler-plugin.version}</version>
                <configuration>
                    <source>${maven.compiler.source}</source>
                    <target>${maven.compiler.target}</target>
                </configuration>
            </plugin>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <version>${spring-boot.version}</version>
                <executions>
                    <execution>
                        <goals>
                            <goal>repackage</goal>
                        </goals>
                    </execution>
                </executions>
            </plugin>
            <plugin>
                <groupId>org.codehaus.gmavenplus</groupId>
                <artifactId>gmavenplus-plugin</artifactId>
                <version>1.4</version>
                <configuration>
                    <testSources>
                        <testSource>
                            <directory>${project.basedir}/src/test/java</directory>
                            <includes>
                                <include>**/*.groovy</include>
                            </includes>
                        </testSource>
                    </testSources>
                </configuration>
                <executions>
                    <execution>
                        <goals>
                            <goal>compile</goal>
                            <goal>testCompile</goal>
                        </goals>
                    </execution>
                </executions>
            </plugin>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-resources-plugin</artifactId>
                <configuration>
                    <nonFilteredFileExtensions>
                        <!-- 过滤后缀为如下*的证书文件 -->
                        <nonFilteredFileExtension>cer</nonFilteredFileExtension>
                        <nonFilteredFileExtension>crt</nonFilteredFileExtension>
                        <nonFilteredFileExtension>pfx</nonFilteredFileExtension>
                        <nonFilteredFileExtension>p12</nonFilteredFileExtension>
                    </nonFilteredFileExtensions>
                </configuration>
            </plugin>
        </plugins>
    </build>


</project>

5 maven层级结构

退出idea，再进入，刷新发现多了个一个root。
在这里插入图片描述

技术交流

欢迎关注我的微信公众号：程序员大宝。一个乐于分享的程序员！关注免费领取架构师学习资料和精选大厂高频面试题库。

最后

以上就是斯文溪流最近收集整理的关于IntelliJ IDEA总结(7) -- IntelliJ IDEA创建多模块项目1 创建跟项目2 添加子模块3 父模块的pom.xml4 子模块5 maven层级结构技术交流的全部内容，更多相关IntelliJ内容请搜索靠谱客的其他文章。

本图文内容来源于网友提供，作为学习参考使用，或来自网络收集整理，版权属于原作者所有。
点赞(65)

相关文章

「小程序JAVA实战」springboot的后台搭建（30）
「小程序JAVA实战」springboot的后台搭建（30）
idea利用maven实现聚合项目， maven聚合实现登录逻辑
idea利用maven实现聚合项目， maven聚合实现登录逻辑
一次TSM SERVER服务器物理位置迁移引发的备份失败
一次TSM SERVER服务器物理位置迁移引发的备份失败
IBM Tivoli Storage Manager常用命令手册
IBM Tivoli Storage Manager常用命令手册
IntelliJ IDEA总结(7) -- IntelliJ IDEA创建多模块项目1 创建跟项目2 添加子模块3 父模块的pom.xml4 子模块5 maven层级结构技术交流
IntelliJ IDEA总结(7) -- IntelliJ IDEA创建多模块项目1 创建跟项目2 添加子模块3 父模块的pom.xml4 子模块5 maven层级结构技术交流
添加磁带错误解决一例
添加磁带错误解决一例
关于TSM磁带回收的一些概念和案例浅析TSM磁带空间回收－Reclaimation
关于TSM磁带回收的一些概念和案例浅析TSM磁带空间回收－Reclaimation
关于 tsm 磁带槽位
关于 tsm 磁带槽位

评论列表共有 0 条评论

立即
投稿
返回
顶部
