概述

一、ORB详细介绍

（该部分转自：http://www.cvchina.info/2011/07/04/whats-orb/）
ORB是是ORiented Brief的简称。ORB的论文：http://www.willowgarage.com/sites/default/files/orb_final.pdf

首先介绍Brief：
Brief是Binary Robust Independent Elementary Features的缩写。这个特征描述子是由EPFL的Calonder在ECCV2010上提出的。主要思路就是在特征点附近随机选取若干点对，将这些点对的灰度值的大小，组合成一个二进制串，并将这个二进制串作为该特征点的特征描述子。详细算法描述参考如下论文：
Calonder M., Lepetit V., Strecha C., Fua P.: BRIEF: Binary Robust Independent Elementary Features. ECCV 2010
注意在BRIEF eccv2010的文章中，BRIEF描述子中的每一位是由随机选取的两个像素点做二进制比较得来的。文章同样提到，在此之前，需要选取合适的gaussian kernel对图像做平滑处理。（为什么要强调这一点，因为下述的ORB对此作了改进。）
BRIEF的优点在于速度，缺点也相当明显：
1：不具备旋转不变性。
2：对噪声敏感
3：不具备尺度不变性。
ORB就是试图解决上述缺点中的1和2.

如何解决旋转不变性：
在ORB的方案中，是采用了FAST作为特征点检测算子。在Sift的方案中，特征点的主方向是由梯度直方图的最大值和次大值所在的bin对应的方向决定的。略嫌耗时。
在ORB的方案中，特征点的主方向是通过矩（moment）计算而来，公式如下：
这里写图片描述

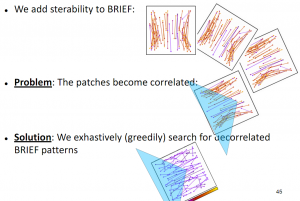

有了主方向之后，就可以依据该主方向提取BRIEF描述子。但是由此带来的问题是，由于主方向会发生变化，随机点对的相关性会比较大，从而降低描述子的判别性。解决方案也很直接，采取贪婪的，穷举的方法，暴力找到相关性较低的随机点对。
这里写图片描述

如何解决对噪声敏感的问题：
在前面提到过，在最早的eccv2010的文章中，BRIEF使用的是pixel跟pixel的大小来构造描述子的每一个bit。这样的后果就是对噪声敏感。因此，在ORB的方案中，做了这样的改进，不再使用pixel-pair，而是使用9×9的patch-pair，也就是说，对比patch的像素值之和。（可以通过积分图快速计算）。

关于尺度不变性：
ORB没有试图解决尺度不变性，（因为FAST本身就不具有尺度不变性。）但是这样只求速度的特征描述子，一般都是应用在实时的视频处理中的，这样的话就可以通过跟踪还有一些启发式的策略来解决尺度不变性的问题。

关于计算速度：
ORB是sift的100倍，是surf的10倍。

关于性能：

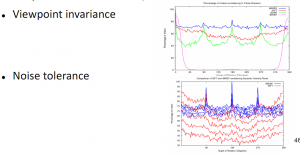

下面是一个性能对比，ORB还是很给力。点击看大图。
这里写图片描述

二、代码示例

1、在使用ORB做特征提取和匹配时，首先需要注意matcher的匹配类型：

<code class="hljs vala has-numbering" style="display: block; padding: 0px; color: inherit; box-sizing: border-box; font-family: "Source Code Pro", monospace;font-size:undefined; white-space: pre; border-radius: 0px; word-wrap: normal; background: transparent;">使用特征提取过程得到的特征描述符（descriptor）数据类型有的是<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">float</span>类型的，比如说SurfDescriptorExtractor，
SiftDescriptorExtractor，有的是<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">uchar</span>类型的，比如说有ORB，BriefDescriptorExtractor。
 对应<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">float</span>类型的匹配方式有：FlannBasedMatcher，BruteForce<L2<<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">float</span>>>，BruteForce<SL2<<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">float</span>>>，BruteForce<L1<<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">float</span>>>。
对应<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">uchar</span>类型的匹配方式有：BruteForce<Hamming>，BruteForce<HammingLUT>。所以ORB和BRIEF特征描述子只能使用BruteForce匹配法。</code><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li></ul><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li></ul>

（参考：http://blog.csdn.net/holybin/article/details/40926315）

代码如下：

<code class="hljs cpp has-numbering" style="display: block; padding: 0px; color: inherit; box-sizing: border-box; font-family: "Source Code Pro", monospace;font-size:undefined; white-space: pre; border-radius: 0px; word-wrap: normal; background: transparent;"><span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">/**
* @概述：采用ORB算子进行特征检测与特征值提取，并使用BruteForce匹配法进行特征点的匹配
* @类和函数：ORB + BruteForceMatcher
* @author：holybin
*/</span>

<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">#include "opencv2/core/core.hpp"</span>
<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">//#include "opencv2/nonfree/features2d.hpp"   //SurfFeatureDetector实际在该头文件中  </span>
<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">#include "opencv2/legacy/legacy.hpp"    <span class="hljs-comment" style="box-sizing: border-box;">//BruteForceMatcher实际在该头文件中  </span></span>
<span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">//#include "opencv2/features2d/features2d.hpp"  //FlannBasedMatcher实际在该头文件中 </span>
<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">#include "opencv2/highgui/highgui.hpp"</span>
<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">#include <iostream></span>
<span class="hljs-preprocessor" style="color: rgb(68, 68, 68); box-sizing: border-box;">#include <vector></span>
<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">using</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">namespace</span> cv;
<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">using</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">namespace</span> <span class="hljs-built_in" style="color: rgb(102, 0, 102); box-sizing: border-box;">std</span>;

<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">int</span> main()
{
    Mat img_1 = imread(<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"starbucks1.jpg"</span>);
    Mat img_2 = imread(<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"starbucks2.jpg"</span>);
    <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">if</span> (!img_1.data || !img_2.data)
    {
        <span class="hljs-built_in" style="color: rgb(102, 0, 102); box-sizing: border-box;">cout</span> << <span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"error reading images "</span> << endl;
        <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">return</span> -<span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">1</span>;
    }

    <span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">//1.orb检测特征点并提取特征值</span>
    ORB orb;
    <span class="hljs-stl_container" style="box-sizing: border-box;"><span class="hljs-built_in" style="color: rgb(102, 0, 102); box-sizing: border-box;">vector</span><KeyPoint></span> keyPoints_1, keyPoints_2;
    Mat descriptors_1, descriptors_2;
    orb(img_1, Mat(), keyPoints_1, descriptors_1);
    orb(img_2, Mat(), keyPoints_2, descriptors_2);

    <span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">//2.BruteForceMatcher匹配</span>
    BruteForceMatcher<HammingLUT> matcher;  <span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">//也可以使用ruteForce<Hamming></span>
    <span class="hljs-stl_container" style="box-sizing: border-box;"><span class="hljs-built_in" style="color: rgb(102, 0, 102); box-sizing: border-box;">vector</span><DMatch></span> matches;
    matcher.match(descriptors_1, descriptors_2, matches);

    <span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">//3.过滤匹配点</span>
    <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">double</span> max_dist = <span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">0</span>; <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">double</span> min_dist = <span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">100</span>;
    <span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">//-- Quick calculation of max and min distances between keypoints</span>
    <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">for</span>( <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">int</span> i = <span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">0</span>; i < descriptors_1.rows; i++ )
    {
        <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">double</span> dist = matches[i].distance;
        <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">if</span>( dist < min_dist ) min_dist = dist;
        <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">if</span>( dist > max_dist ) max_dist = dist;
    }
    <span class="hljs-built_in" style="color: rgb(102, 0, 102); box-sizing: border-box;">printf</span>(<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"-- Max dist : %f n"</span>, max_dist );
    <span class="hljs-built_in" style="color: rgb(102, 0, 102); box-sizing: border-box;">printf</span>(<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"-- Min dist : %f n"</span>, min_dist );
    <span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">//-- Draw only "good" matches (i.e. whose distance is less than 0.6*max_dist )</span>
    <span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">//-- PS.- radiusMatch can also be used here.</span>
    <span class="hljs-built_in" style="color: rgb(102, 0, 102); box-sizing: border-box;">std</span>::<span class="hljs-stl_container" style="box-sizing: border-box;"><span class="hljs-built_in" style="color: rgb(102, 0, 102); box-sizing: border-box;">vector</span>< DMatch ></span> good_matches;
    <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">for</span>( <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">int</span> i = <span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">0</span>; i < descriptors_1.rows; i++ )
    {
        <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">if</span>( matches[i].distance < <span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">0.6</span>*max_dist )
        {
            good_matches.push_back( matches[i]);
        }
    }

    <span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">//4-1.绘制匹配点</span>
    Mat img_matches;
    drawMatches(img_1, keyPoints_1, img_2, keyPoints_2,
        good_matches, img_matches, Scalar::all(-<span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">1</span>), Scalar::all(-<span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">1</span>),
        <span class="hljs-stl_container" style="box-sizing: border-box;"><span class="hljs-built_in" style="color: rgb(102, 0, 102); box-sizing: border-box;">vector</span><<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">char</span>></span>(), DrawMatchesFlags::NOT_DRAW_SINGLE_POINTS);

    <span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">//4-2.根据匹配点绘制目标位置</span>
    <span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">// localize the object</span>
    <span class="hljs-built_in" style="color: rgb(102, 0, 102); box-sizing: border-box;">std</span>::<span class="hljs-stl_container" style="box-sizing: border-box;"><span class="hljs-built_in" style="color: rgb(102, 0, 102); box-sizing: border-box;">vector</span><Point2f></span> obj;
    <span class="hljs-built_in" style="color: rgb(102, 0, 102); box-sizing: border-box;">std</span>::<span class="hljs-stl_container" style="box-sizing: border-box;"><span class="hljs-built_in" style="color: rgb(102, 0, 102); box-sizing: border-box;">vector</span><Point2f></span> scene;
    <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">for</span> (size_t i = <span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">0</span>; i < good_matches.size(); ++i)
    {
        <span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">// get the keypoints from the good matches</span>
        obj.push_back(keyPoints_1[ good_matches[i].queryIdx ].pt);
        scene.push_back(keyPoints_2[ good_matches[i].trainIdx ].pt);
    }
    Mat H = findHomography( obj, scene, CV_RANSAC );
    <span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">// get the corners from the image_1</span>
    <span class="hljs-built_in" style="color: rgb(102, 0, 102); box-sizing: border-box;">std</span>::<span class="hljs-stl_container" style="box-sizing: border-box;"><span class="hljs-built_in" style="color: rgb(102, 0, 102); box-sizing: border-box;">vector</span><Point2f></span> obj_corners(<span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">4</span>);
    obj_corners[<span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">0</span>] = cvPoint(<span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">0</span>,<span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">0</span>);
    obj_corners[<span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">1</span>] = cvPoint( img_1.cols, <span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">0</span>);
    obj_corners[<span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">2</span>] = cvPoint( img_1.cols, img_1.rows);
    obj_corners[<span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">3</span>] = cvPoint( <span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">0</span>, img_1.rows);
    <span class="hljs-built_in" style="color: rgb(102, 0, 102); box-sizing: border-box;">std</span>::<span class="hljs-stl_container" style="box-sizing: border-box;"><span class="hljs-built_in" style="color: rgb(102, 0, 102); box-sizing: border-box;">vector</span><Point2f></span> scene_corners(<span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">4</span>);

    perspectiveTransform( obj_corners, scene_corners, H);

    <span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">// draw lines between the corners (the mapped object in the scene - image_2)</span>
    line( img_matches, scene_corners[<span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">0</span>] + Point2f( img_1.cols, <span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">0</span>), scene_corners[<span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">1</span>] + Point2f( img_1.cols, <span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">0</span>),Scalar(<span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">255</span>,<span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">0</span>,<span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">0</span>));
    line( img_matches, scene_corners[<span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">1</span>] + Point2f( img_1.cols, <span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">0</span>), scene_corners[<span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">2</span>] + Point2f( img_1.cols, <span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">0</span>),Scalar(<span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">255</span>,<span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">0</span>,<span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">0</span>));
    line( img_matches, scene_corners[<span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">2</span>] + Point2f( img_1.cols, <span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">0</span>), scene_corners[<span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">3</span>] + Point2f( img_1.cols, <span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">0</span>),Scalar(<span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">255</span>,<span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">0</span>,<span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">0</span>));
    line( img_matches, scene_corners[<span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">3</span>] + Point2f( img_1.cols, <span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">0</span>), scene_corners[<span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">0</span>] + Point2f( img_1.cols, <span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">0</span>),Scalar(<span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">255</span>,<span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">0</span>,<span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">0</span>));
    imshow( <span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"Match"</span>, img_matches);

    cvWaitKey();
    <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">return</span> <span class="hljs-number" style="color: rgb(0, 102, 102); box-sizing: border-box;">0</span>;
}</code><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li><li style="box-sizing: border-box; padding: 0px 5px;">5</li><li style="box-sizing: border-box; padding: 0px 5px;">6</li><li style="box-sizing: border-box; padding: 0px 5px;">7</li><li style="box-sizing: border-box; padding: 0px 5px;">8</li><li style="box-sizing: border-box; padding: 0px 5px;">9</li><li style="box-sizing: border-box; padding: 0px 5px;">10</li><li style="box-sizing: border-box; padding: 0px 5px;">11</li><li style="box-sizing: border-box; padding: 0px 5px;">12</li><li style="box-sizing: border-box; padding: 0px 5px;">13</li><li style="box-sizing: border-box; padding: 0px 5px;">14</li><li style="box-sizing: border-box; padding: 0px 5px;">15</li><li style="box-sizing: border-box; padding: 0px 5px;">16</li><li style="box-sizing: border-box; padding: 0px 5px;">17</li><li style="box-sizing: border-box; padding: 0px 5px;">18</li><li style="box-sizing: border-box; padding: 0px 5px;">19</li><li style="box-sizing: border-box; padding: 0px 5px;">20</li><li style="box-sizing: border-box; padding: 0px 5px;">21</li><li style="box-sizing: border-box; padding: 0px 5px;">22</li><li style="box-sizing: border-box; padding: 0px 5px;">23</li><li style="box-sizing: border-box; padding: 0px 5px;">24</li><li style="box-sizing: border-box; padding: 0px 5px;">25</li><li style="box-sizing: border-box; padding: 0px 5px;">26</li><li style="box-sizing: border-box; padding: 0px 5px;">27</li><li style="box-sizing: border-box; padding: 0px 5px;">28</li><li style="box-sizing: border-box; padding: 0px 5px;">29</li><li style="box-sizing: border-box; padding: 0px 5px;">30</li><li style="box-sizing: border-box; padding: 0px 5px;">31</li><li style="box-sizing: border-box; padding: 0px 5px;">32</li><li style="box-sizing: border-box; padding: 0px 5px;">33</li><li style="box-sizing: border-box; padding: 0px 5px;">34</li><li style="box-sizing: border-box; padding: 0px 5px;">35</li><li style="box-sizing: border-box; padding: 0px 5px;">36</li><li style="box-sizing: border-box; padding: 0px 5px;">37</li><li style="box-sizing: border-box; padding: 0px 5px;">38</li><li style="box-sizing: border-box; padding: 0px 5px;">39</li><li style="box-sizing: border-box; padding: 0px 5px;">40</li><li style="box-sizing: border-box; padding: 0px 5px;">41</li><li style="box-sizing: border-box; padding: 0px 5px;">42</li><li style="box-sizing: border-box; padding: 0px 5px;">43</li><li style="box-sizing: border-box; padding: 0px 5px;">44</li><li style="box-sizing: border-box; padding: 0px 5px;">45</li><li style="box-sizing: border-box; padding: 0px 5px;">46</li><li style="box-sizing: border-box; padding: 0px 5px;">47</li><li style="box-sizing: border-box; padding: 0px 5px;">48</li><li style="box-sizing: border-box; padding: 0px 5px;">49</li><li style="box-sizing: border-box; padding: 0px 5px;">50</li><li style="box-sizing: border-box; padding: 0px 5px;">51</li><li style="box-sizing: border-box; padding: 0px 5px;">52</li><li style="box-sizing: border-box; padding: 0px 5px;">53</li><li style="box-sizing: border-box; padding: 0px 5px;">54</li><li style="box-sizing: border-box; padding: 0px 5px;">55</li><li style="box-sizing: border-box; padding: 0px 5px;">56</li><li style="box-sizing: border-box; padding: 0px 5px;">57</li><li style="box-sizing: border-box; padding: 0px 5px;">58</li><li style="box-sizing: border-box; padding: 0px 5px;">59</li><li style="box-sizing: border-box; padding: 0px 5px;">60</li><li style="box-sizing: border-box; padding: 0px 5px;">61</li><li style="box-sizing: border-box; padding: 0px 5px;">62</li><li style="box-sizing: border-box; padding: 0px 5px;">63</li><li style="box-sizing: border-box; padding: 0px 5px;">64</li><li style="box-sizing: border-box; padding: 0px 5px;">65</li><li style="box-sizing: border-box; padding: 0px 5px;">66</li><li style="box-sizing: border-box; padding: 0px 5px;">67</li><li style="box-sizing: border-box; padding: 0px 5px;">68</li><li style="box-sizing: border-box; padding: 0px 5px;">69</li><li style="box-sizing: border-box; padding: 0px 5px;">70</li><li style="box-sizing: border-box; padding: 0px 5px;">71</li><li style="box-sizing: border-box; padding: 0px 5px;">72</li><li style="box-sizing: border-box; padding: 0px 5px;">73</li><li style="box-sizing: border-box; padding: 0px 5px;">74</li><li style="box-sizing: border-box; padding: 0px 5px;">75</li><li style="box-sizing: border-box; padding: 0px 5px;">76</li><li style="box-sizing: border-box; padding: 0px 5px;">77</li><li style="box-sizing: border-box; padding: 0px 5px;">78</li><li style="box-sizing: border-box; padding: 0px 5px;">79</li><li style="box-sizing: border-box; padding: 0px 5px;">80</li><li style="box-sizing: border-box; padding: 0px 5px;">81</li><li style="box-sizing: border-box; padding: 0px 5px;">82</li><li style="box-sizing: border-box; padding: 0px 5px;">83</li><li style="box-sizing: border-box; padding: 0px 5px;">84</li><li style="box-sizing: border-box; padding: 0px 5px;">85</li><li style="box-sizing: border-box; padding: 0px 5px;">86</li><li style="box-sizing: border-box; padding: 0px 5px;">87</li><li style="box-sizing: border-box; padding: 0px 5px;">88</li><li style="box-sizing: border-box; padding: 0px 5px;">89</li><li style="box-sizing: border-box; padding: 0px 5px;">90</li><li style="box-sizing: border-box; padding: 0px 5px;">91</li><li style="box-sizing: border-box; padding: 0px 5px;">92</li><li style="box-sizing: border-box; padding: 0px 5px;">93</li><li style="box-sizing: border-box; padding: 0px 5px;">94</li><li style="box-sizing: border-box; padding: 0px 5px;">95</li><li style="box-sizing: border-box; padding: 0px 5px;">96</li><li style="box-sizing: border-box; padding: 0px 5px;">97</li></ul><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li><li style="box-sizing: border-box; padding: 0px 5px;">5</li><li style="box-sizing: border-box; padding: 0px 5px;">6</li><li style="box-sizing: border-box; padding: 0px 5px;">7</li><li style="box-sizing: border-box; padding: 0px 5px;">8</li><li style="box-sizing: border-box; padding: 0px 5px;">9</li><li style="box-sizing: border-box; padding: 0px 5px;">10</li><li style="box-sizing: border-box; padding: 0px 5px;">11</li><li style="box-sizing: border-box; padding: 0px 5px;">12</li><li style="box-sizing: border-box; padding: 0px 5px;">13</li><li style="box-sizing: border-box; padding: 0px 5px;">14</li><li style="box-sizing: border-box; padding: 0px 5px;">15</li><li style="box-sizing: border-box; padding: 0px 5px;">16</li><li style="box-sizing: border-box; padding: 0px 5px;">17</li><li style="box-sizing: border-box; padding: 0px 5px;">18</li><li style="box-sizing: border-box; padding: 0px 5px;">19</li><li style="box-sizing: border-box; padding: 0px 5px;">20</li><li style="box-sizing: border-box; padding: 0px 5px;">21</li><li style="box-sizing: border-box; padding: 0px 5px;">22</li><li style="box-sizing: border-box; padding: 0px 5px;">23</li><li style="box-sizing: border-box; padding: 0px 5px;">24</li><li style="box-sizing: border-box; padding: 0px 5px;">25</li><li style="box-sizing: border-box; padding: 0px 5px;">26</li><li style="box-sizing: border-box; padding: 0px 5px;">27</li><li style="box-sizing: border-box; padding: 0px 5px;">28</li><li style="box-sizing: border-box; padding: 0px 5px;">29</li><li style="box-sizing: border-box; padding: 0px 5px;">30</li><li style="box-sizing: border-box; padding: 0px 5px;">31</li><li style="box-sizing: border-box; padding: 0px 5px;">32</li><li style="box-sizing: border-box; padding: 0px 5px;">33</li><li style="box-sizing: border-box; padding: 0px 5px;">34</li><li style="box-sizing: border-box; padding: 0px 5px;">35</li><li style="box-sizing: border-box; padding: 0px 5px;">36</li><li style="box-sizing: border-box; padding: 0px 5px;">37</li><li style="box-sizing: border-box; padding: 0px 5px;">38</li><li style="box-sizing: border-box; padding: 0px 5px;">39</li><li style="box-sizing: border-box; padding: 0px 5px;">40</li><li style="box-sizing: border-box; padding: 0px 5px;">41</li><li style="box-sizing: border-box; padding: 0px 5px;">42</li><li style="box-sizing: border-box; padding: 0px 5px;">43</li><li style="box-sizing: border-box; padding: 0px 5px;">44</li><li style="box-sizing: border-box; padding: 0px 5px;">45</li><li style="box-sizing: border-box; padding: 0px 5px;">46</li><li style="box-sizing: border-box; padding: 0px 5px;">47</li><li style="box-sizing: border-box; padding: 0px 5px;">48</li><li style="box-sizing: border-box; padding: 0px 5px;">49</li><li style="box-sizing: border-box; padding: 0px 5px;">50</li><li style="box-sizing: border-box; padding: 0px 5px;">51</li><li style="box-sizing: border-box; padding: 0px 5px;">52</li><li style="box-sizing: border-box; padding: 0px 5px;">53</li><li style="box-sizing: border-box; padding: 0px 5px;">54</li><li style="box-sizing: border-box; padding: 0px 5px;">55</li><li style="box-sizing: border-box; padding: 0px 5px;">56</li><li style="box-sizing: border-box; padding: 0px 5px;">57</li><li style="box-sizing: border-box; padding: 0px 5px;">58</li><li style="box-sizing: border-box; padding: 0px 5px;">59</li><li style="box-sizing: border-box; padding: 0px 5px;">60</li><li style="box-sizing: border-box; padding: 0px 5px;">61</li><li style="box-sizing: border-box; padding: 0px 5px;">62</li><li style="box-sizing: border-box; padding: 0px 5px;">63</li><li style="box-sizing: border-box; padding: 0px 5px;">64</li><li style="box-sizing: border-box; padding: 0px 5px;">65</li><li style="box-sizing: border-box; padding: 0px 5px;">66</li><li style="box-sizing: border-box; padding: 0px 5px;">67</li><li style="box-sizing: border-box; padding: 0px 5px;">68</li><li style="box-sizing: border-box; padding: 0px 5px;">69</li><li style="box-sizing: border-box; padding: 0px 5px;">70</li><li style="box-sizing: border-box; padding: 0px 5px;">71</li><li style="box-sizing: border-box; padding: 0px 5px;">72</li><li style="box-sizing: border-box; padding: 0px 5px;">73</li><li style="box-sizing: border-box; padding: 0px 5px;">74</li><li style="box-sizing: border-box; padding: 0px 5px;">75</li><li style="box-sizing: border-box; padding: 0px 5px;">76</li><li style="box-sizing: border-box; padding: 0px 5px;">77</li><li style="box-sizing: border-box; padding: 0px 5px;">78</li><li style="box-sizing: border-box; padding: 0px 5px;">79</li><li style="box-sizing: border-box; padding: 0px 5px;">80</li><li style="box-sizing: border-box; padding: 0px 5px;">81</li><li style="box-sizing: border-box; padding: 0px 5px;">82</li><li style="box-sizing: border-box; padding: 0px 5px;">83</li><li style="box-sizing: border-box; padding: 0px 5px;">84</li><li style="box-sizing: border-box; padding: 0px 5px;">85</li><li style="box-sizing: border-box; padding: 0px 5px;">86</li><li style="box-sizing: border-box; padding: 0px 5px;">87</li><li style="box-sizing: border-box; padding: 0px 5px;">88</li><li style="box-sizing: border-box; padding: 0px 5px;">89</li><li style="box-sizing: border-box; padding: 0px 5px;">90</li><li style="box-sizing: border-box; padding: 0px 5px;">91</li><li style="box-sizing: border-box; padding: 0px 5px;">92</li><li style="box-sizing: border-box; padding: 0px 5px;">93</li><li style="box-sizing: border-box; padding: 0px 5px;">94</li><li style="box-sizing: border-box; padding: 0px 5px;">95</li><li style="box-sizing: border-box; padding: 0px 5px;">96</li><li style="box-sizing: border-box; padding: 0px 5px;">97</li></ul>

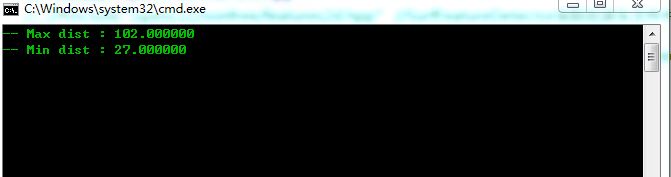

结果：
这里写图片描述
