Android高德地图 实现定位 周边热点 POI搜索 BottomSheetBehavior 动态获取权限demo

1
2
3
4
5
6
<!--高德地图需要的key,根据官方API将自己申请的key进行替换 value-->
<meta-data
    android:name="com.amap.api.v2.apikey"
    android:value="9d8d5b93db86edce55ccb4432fb0f464"/>
<!--定位需要服务-->
<service android:name="com.amap.api.location.APSService"></service>

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
    package="com.xinyang.alienware.gaodeiosstyle">



    <uses-permission android:name="android.permission.INTERNET" />
    <uses-permission android:name="android.permission.WRITE_EXTERNAL_STORAGE" />
    <uses-permission android:name="android.permission.ACCESS_COARSE_LOCATION" />
    <uses-permission android:name="android.permission.ACCESS_NETWORK_STATE" />
    <uses-permission android:name="android.permission.ACCESS_FINE_LOCATION" />
    <uses-permission android:name="android.permission.READ_PHONE_STATE" />
    <uses-permission android:name="android.permission.CHANGE_WIFI_STATE" />
    <uses-permission android:name="android.permission.ACCESS_WIFI_STATE" />
    <uses-permission android:name="android.permission.CHANGE_CONFIGURATION" />
    <uses-permission android:name="android.permission.WAKE_LOCK" />
    <uses-permission android:name="android.permission.WRITE_SETTINGS" />

    <application
        android:allowBackup="true"
        android:icon="@mipmap/ic_launcher"
        android:label="@string/app_name"
        android:roundIcon="@mipmap/ic_launcher_round"
        android:supportsRtl="true"
        android:theme="@style/AppTheme">

        <!--高德地图需要的key,根据官方API将自己申请的key进行替换 value-->
        <meta-data
            android:name="com.amap.api.v2.apikey"
            android:value="9d8d5b93db86edce55ccb4432fb0f464"/>
        <!--定位需要服务-->
        <service android:name="com.amap.api.location.APSService"></service>

        <!--android:windowSoftInputMode="adjustPan"  注意此属性防止软键盘将底部顶上去>-->
        <activity android:name=".MainActivity"
            android:screenOrientation="portrait"
            android:windowSoftInputMode="adjustPan">
            <intent-filter>
                <action android:name="android.intent.action.MAIN" />

                <category android:name="android.intent.category.LAUNCHER" />
            </intent-filter>
        </activity>
        <!--动态获取权限-->
        <activity android:name=".permissions.PermissionsActivity"
            android:screenOrientation="portrait"
            android:windowSoftInputMode="adjustResize"/>

    </application>

1
定位需要的相关操作

1
2
3
4
5
6
mapView.onCreate(savedInstanceState); //此方法必须写否则加载空白
if (aMap == null) {
    aMap = mapView.getMap();
}
aMap.moveCamera(CameraUpdateFactory.zoomTo(18));//缩放等级
initLocation();

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
/***
 * 初始化定位
 */
private void initLocation() {
    if (aMap != null){
        MyLocationStyle locationStyle = new MyLocationStyle();
       // locationStyle.myLocationIcon(BitmapDescriptorFactory.fromResource(R.drawable.em_unread_count_bg));
        locationStyle.strokeColor(Color.BLACK);
        locationStyle.radiusFillColor(Color.argb(100,0,0,180));
        locationStyle.strokeWidth(1.0f);
        aMap.setMyLocationStyle( locationStyle);
        aMap.setLocationSource(this);
        aMap.getUiSettings().setMyLocationButtonEnabled(true);
        aMap.setMyLocationEnabled(true);
        //监听地图发生变化之后
        aMap.setOnCameraChangeListener(new AMap.OnCameraChangeListener() {
            @Override
            public void onCameraChange(CameraPosition cameraPosition) {

                //发生变化时获取到经纬度传递逆地理编码获取周边数据
                regeocodeSearch(cameraPosition.target.latitude,cameraPosition.target.longitude,2000);
                point = new LatLng(cameraPosition.target.latitude,cameraPosition.target.longitude);
                marker.remove();//将上一次描绘的mark清除

            }

            @Override
            public void onCameraChangeFinish(CameraPosition cameraPosition) {
                //地图发生变化之后描绘mark
                marker = aMap.addMarker(new com.amap.api.maps.model.MarkerOptions()
                        .position(point)
                        .title("")
                        .icon(BitmapDescriptorFactory.fromResource(R.drawable.em_unread_count_bg)));
            }
        });
    }

}

1
2

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
/**
 * 方法必须重写
 */
@Override
public void onResume() {
    super.onResume();
    mapView.onResume();

}


/**
 * 方法必须重写
 */
@Override
public void onPause() {
    super.onPause();
    mapView.onPause();

}

/**
 * 方法必须重写
 */
@Override
public void onSaveInstanceState(Bundle outState) {
    super.onSaveInstanceState(outState);
    mapView.onSaveInstanceState(outState);
}

/**
 * 方法必须重写
 */
@Override
public void onDestroy() {
    super.onDestroy();
    mapView.onDestroy();
}

@Override
public void activate(OnLocationChangedListener onLocationChangedListener) {
    mListener = onLocationChangedListener;
    if (mlocationClient == null){
        mlocationClient = new AMapLocationClient(getActivity().getApplicationContext());
        mLocationOption = new AMapLocationClientOption();
        mlocationClient.setLocationListener(this);
        mLocationOption.setOnceLocation(true); //只定位一次
        mLocationOption.setLocationMode(AMapLocationClientOption.AMapLocationMode.Hight_Accuracy);
        mlocationClient.setLocationOption(mLocationOption);
        mlocationClient.startLocation();

    }
}

@Override
public void deactivate() {
    mListener = null;
    if (mlocationClient !=null){
        mlocationClient.stopLocation();
        mlocationClient.onDestroy();
    }
    mlocationClient = null;
    mLocationOption = null;

}

1
对着地图滑动变化进行热点数据更新

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
复制代码@Override
public void onLocationChanged(AMapLocation aMapLocation) {
    if (aMapLocation!=null && mListener != null){
        if (aMapLocation != null && aMapLocation.getErrorCode() == 0){
            mListener.onLocationChanged(aMapLocation);
            Double weidu = aMapLocation.getLatitude();
            Double jingdu = aMapLocation.getLongitude();
            regeocodeSearch(weidu, jingdu, 2000);


        }else {
            String errorText = "faild to located"+aMapLocation.getErrorCode()+":"+aMapLocation.getErrorInfo();
            Log.d("ceshi",errorText);
        }
    }

}
@Override
public void onLocationChanged(AMapLocation aMapLocation) {
    if (aMapLocation!=null && mListener != null){
        if (aMapLocation != null && aMapLocation.getErrorCode() == 0){
            mListener.onLocationChanged(aMapLocation);
            Double weidu = aMapLocation.getLatitude();
            Double jingdu = aMapLocation.getLongitude();
            regeocodeSearch(weidu, jingdu, 2000);


        }else {
            String errorText = "faild to located"+aMapLocation.getErrorCode()+":"+aMapLocation.getErrorInfo();
            Log.d("ceshi",errorText);
        }
    }

}

1
逆向地理编码获取到搜索热点地址

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
/***
 * 逆地理编码获取定位后的附近地址
 * @param weidu
 * @param jingdu
 * @param distances 设置查找范围
 */
private void regeocodeSearch(Double weidu, Double jingdu, int distances ) {
    LatLonPoint point = new LatLonPoint(weidu,jingdu);
    GeocodeSearch geocodeSearch = new GeocodeSearch(getActivity());
    RegeocodeQuery regeocodeQuery = new RegeocodeQuery(point,distances,geocodeSearch.AMAP);
    geocodeSearch.getFromLocationAsyn(regeocodeQuery);

    geocodeSearch.setOnGeocodeSearchListener(new GeocodeSearch.OnGeocodeSearchListener() {
        @Override
        public void onRegeocodeSearched(RegeocodeResult regeocodeResult, int rCode) {
            String preAdd = "";//地址前缀
            if (1000 == rCode) {
                final RegeocodeAddress address = regeocodeResult.getRegeocodeAddress();
                StringBuffer stringBuffer = new StringBuffer();
                String area = address.getProvince();//省或直辖市
                String loc = address.getCity();//地级市或直辖市
                String subLoc = address.getDistrict();//区或县或县级市
                String ts = address.getTownship();//乡镇
                String thf = null;//道路
                List<RegeocodeRoad> regeocodeRoads = address.getRoads();//道路列表
                if (regeocodeRoads != null && regeocodeRoads.size() > 0) {
                    RegeocodeRoad regeocodeRoad = regeocodeRoads.get(0);
                    if (regeocodeRoad != null) {
                        thf = regeocodeRoad.getName();
                    }
                }
                String subthf = null;//门牌号
                StreetNumber streetNumber = address.getStreetNumber();
                if (streetNumber != null) {
                    subthf = streetNumber.getNumber();
                }
                String fn = address.getBuilding();//标志性建筑,当道路为null时显示
                if (area != null) {
                    stringBuffer.append(area);
                    preAdd += area;
                }
                if (loc != null && !area.equals(loc)) {
                    stringBuffer.append(loc);
                    preAdd += loc;
                }
                if (subLoc != null) {
                    stringBuffer.append(subLoc);
                    preAdd += subLoc;
                }
                if (ts != null)
                    stringBuffer.append(ts);
                if (thf != null)
                    stringBuffer.append(thf);
                if (subthf != null)
                    stringBuffer.append(subthf);
                if ((thf == null && subthf == null) && fn != null && !subLoc.equals(fn))
                    stringBuffer.append(fn + "附近");
                //  String ps = "poi";

                pois = address.getPois();//获取周围兴趣点

                adapter = new ChoutiRecyclerViewAdapter(getActivity(),pois);
                recyclerView.setAdapter(adapter);
                recyclerView.setItemAnimator(new DefaultItemAnimator());
                adapter.setItemClickListener(new ChoutiRecyclerViewAdapter.ItemClickListener() {
                    @Override
                    public void onItemClick(View view, int pos) {
                        Toast.makeText(getActivity(), "postion:"+pos+"地址：" +pois.get(pos).getTitle(), Toast.LENGTH_LONG).show();

                    }

                });

            }


        }

        @Override
        public void onGeocodeSearched(GeocodeResult geocodeResult, int i) {

        }
    });

}

1
2

1
POI 搜索

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
@Override
    public void onTextChanged(CharSequence charSequence, int i, int i1, int i2) {
        keyWord = String.valueOf(charSequence);
        mHint.setText("搜索结果");
        mHint.setTextColor(getResources().getColor(R.color.bbb_color));
        if ("".equals(keyWord)) {
            //  Toast.makeText(getActivity(),"请输入搜索关键字",Toast.LENGTH_SHORT).show();
            return;
        } else {
            doSearchQuery();
        }
    }

    @Override
    public void afterTextChanged(Editable editable) {

    }
});

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
复制代码/***
 * POI搜索变
 * @param
 */
private void doSearchQuery() {
    currentPage = 0;
    //不输入城市名称有些地方搜索不到
    query = new PoiSearch.Query(keyWord, "", "北京");// 第一个参数表示搜索字符串，第二个参数表示poi搜索类型，第三个参数表示poi搜索区域（空字符串代表全国）
    //这里没有做分页加载了,默认给50条数据
    query.setPageSize(50);// 设置每页最多返回多少条poiitem
    query.setPageNum(currentPage);// 设置查第一页

    poiSearch = new PoiSearch(getActivity(), query);
    poiSearch.setOnPoiSearchListener(this);
    poiSearch.searchPOIAsyn();


}
/**
 * POI信息查询回调方法
 */
@Override
public void onPoiSearched(PoiResult result, int rCode) {

    if (rCode == AMapException.CODE_AMAP_SUCCESS) {
        if (result != null && result.getQuery() != null) {  // 搜索poi的结果
            if (result.getQuery().equals(query)) {  // 是否是同一条
                poiResult = result;
                final ArrayList<PoiAddressBean> data = new ArrayList<PoiAddressBean>();//自己创建的数据集合
                // 取得搜索到的poiitems有多少页
                List<PoiItem> poiItems = poiResult.getPois();// 取得第一页的poiitem数据，页数从数字0开始
                List<SuggestionCity> suggestionCities = poiResult
                        .getSearchSuggestionCitys();// 当搜索不到poiitem数据时，会返回含有搜索关键字的城市信息
                for(PoiItem item : poiItems){
                    //获取经纬度对象
                    LatLonPoint llp = item.getLatLonPoint();
                    double lon = llp.getLongitude();
                    double lat = llp.getLatitude();

                    String title = item.getTitle();
                    String text = item.getSnippet();
                    String provinceName = item.getProvinceName();
                    String cityName = item.getCityName();
                    String adName = item.getAdName();
                    data.add(new PoiAddressBean(String.valueOf(lon), String.valueOf(lat), title, text,provinceName,
                            cityName,adName));
                }

                PoiKeywordSearchAdapter poiadapter = new PoiKeywordSearchAdapter(getActivity(),data);
                recyclerView.setAdapter(poiadapter);
                poiadapter.setItemClickListener(new PoiKeywordSearchAdapter.PoiItemClickListener() {
                    @Override
                    public void onItemClick(View view, int pos) {
                        Double poiLatitude = Double.valueOf(data.get(pos).getLatitude()).doubleValue();
                        Double poiLongtude = Double.valueOf(data.get(pos).getLongitude()).doubleValue();

                        //通过经纬度重新再地图获取位置
                        CameraPosition  cp = aMap.getCameraPosition();
                        CameraPosition cpNew = CameraPosition.fromLatLngZoom(new LatLng(poiLatitude,poiLongtude),cp.zoom);
                        CameraUpdate cu = CameraUpdateFactory.newCameraPosition(cpNew);
                        aMap.moveCamera(cu);
                        behavior.setState(4); //设置底部bottom sheet为半隐藏
                        searchead.setText(null);//清空Edittext内容
                        mHint.setText("附近热点");
                        mHint.setTextColor(getResources().getColor(R.color.tab_Indicator_color));
                        Log.d("ceshi","postion"+pos+"lat"+data.get(pos).getLatitude()+"long:"+data.get(pos).getLongitude());

                    }
                });
            }
        } else {
            Toast.makeText(getActivity(),"no_result",Toast.LENGTH_SHORT).show();

        }
    } else {
        Toast.makeText(getActivity(),""+rCode,Toast.LENGTH_SHORT).show();

    }

}
/**
 * POI信息查询回调方法
 */
@Override
public void onPoiItemSearched(PoiItem poiItem, int i) {

}
/***
 * POI搜索变
 * @param
 */
private void doSearchQuery() {
    currentPage = 0;
    //不输入城市名称有些地方搜索不到
    query = new PoiSearch.Query(keyWord, "", "北京");// 第一个参数表示搜索字符串，第二个参数表示poi搜索类型，第三个参数表示poi搜索区域（空字符串代表全国）
    //这里没有做分页加载了,默认给50条数据
    query.setPageSize(50);// 设置每页最多返回多少条poiitem
    query.setPageNum(currentPage);// 设置查第一页

    poiSearch = new PoiSearch(getActivity(), query);
    poiSearch.setOnPoiSearchListener(this);
    poiSearch.searchPOIAsyn();


}
/**
 * POI信息查询回调方法
 */
@Override
public void onPoiSearched(PoiResult result, int rCode) {

    if (rCode == AMapException.CODE_AMAP_SUCCESS) {
        if (result != null && result.getQuery() != null) {  // 搜索poi的结果
            if (result.getQuery().equals(query)) {  // 是否是同一条
                poiResult = result;
                final ArrayList<PoiAddressBean> data = new ArrayList<PoiAddressBean>();//自己创建的数据集合
                // 取得搜索到的poiitems有多少页
                List<PoiItem> poiItems = poiResult.getPois();// 取得第一页的poiitem数据，页数从数字0开始
                List<SuggestionCity> suggestionCities = poiResult
                        .getSearchSuggestionCitys();// 当搜索不到poiitem数据时，会返回含有搜索关键字的城市信息
                for(PoiItem item : poiItems){
                    //获取经纬度对象
                    LatLonPoint llp = item.getLatLonPoint();
                    double lon = llp.getLongitude();
                    double lat = llp.getLatitude();

                    String title = item.getTitle();
                    String text = item.getSnippet();
                    String provinceName = item.getProvinceName();
                    String cityName = item.getCityName();
                    String adName = item.getAdName();
                    data.add(new PoiAddressBean(String.valueOf(lon), String.valueOf(lat), title, text,provinceName,
                            cityName,adName));
                }

                PoiKeywordSearchAdapter poiadapter = new PoiKeywordSearchAdapter(getActivity(),data);
                recyclerView.setAdapter(poiadapter);
                poiadapter.setItemClickListener(new PoiKeywordSearchAdapter.PoiItemClickListener() {
                    @Override
                    public void onItemClick(View view, int pos) {
                        Double poiLatitude = Double.valueOf(data.get(pos).getLatitude()).doubleValue();
                        Double poiLongtude = Double.valueOf(data.get(pos).getLongitude()).doubleValue();

                        //通过经纬度重新再地图获取位置
                        CameraPosition  cp = aMap.getCameraPosition();
                        CameraPosition cpNew = CameraPosition.fromLatLngZoom(new LatLng(poiLatitude,poiLongtude),cp.zoom);
                        CameraUpdate cu = CameraUpdateFactory.newCameraPosition(cpNew);
                        aMap.moveCamera(cu);
                        behavior.setState(4); //设置底部bottom sheet为半隐藏
                        searchead.setText(null);//清空Edittext内容
                        mHint.setText("附近热点");
                        mHint.setTextColor(getResources().getColor(R.color.tab_Indicator_color));
                        Log.d("ceshi","postion"+pos+"lat"+data.get(pos).getLatitude()+"long:"+data.get(pos).getLongitude());

                    }
                });
            }
        } else {
            Toast.makeText(getActivity(),"no_result",Toast.LENGTH_SHORT).show();

        }
    } else {
        Toast.makeText(getActivity(),""+rCode,Toast.LENGTH_SHORT).show();

    }

}
/**
 * POI信息查询回调方法
 */
@Override
public void onPoiItemSearched(PoiItem poiItem, int i) {

}

1
2

1

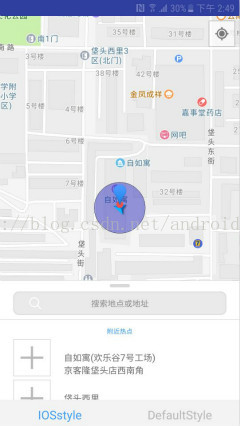

BottomSheetBehavior 控制

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
复制代码bottomSheet = parentView.findViewById(R.id.bottom_sheet);
behavior = BottomSheetBehavior.from(bottomSheet);
bottomSheet = parentView.findViewById(R.id.bottom_sheet);
behavior = BottomSheetBehavior.from(bottomSheet);
复制代码behavior.setBottomSheetCallback(new BottomSheetBehavior.BottomSheetCallback() {
            @Override
            public void onStateChanged(@NonNull View bottomSheet, @BottomSheetBehavior.State int newState) {
                String state = "null";
                switch (newState) {
                    case 1:
                        state = "STATE_DRAGGING";//过渡状态此时用户正在向上或者向下拖动bottom sheet
                        KeyBoardUtils.closeKeyBoard(searchead,getActivity());
                        break;
                    case 2:
                        state = "STATE_SETTLING"; // 视图从脱离手指自由滑动到最终停下的这一小段时间
                        break;
                    case 3:
                        state = "STATE_EXPANDED"; //处于完全展开的状态

                        break;
                    case 4:
                        state = "STATE_COLLAPSED"; //默认的折叠状态
                        KeyBoardUtils.closeKeyBoard(searchead,getActivity());
                        break;
                    case 5:
                        state = "STATE_HIDDEN"; //下滑动完全隐藏 bottom sheet
                        KeyBoardUtils.closeKeyBoard(searchead,getActivity());
                        break;
                }

            }

            @Override
            public void onSlide(@NonNull View bottomSheet, float slideOffset) {
//                Log.d("BottomSheetDemo", "slideOffset:" + slideOffset);
            }
        });
behavior.setBottomSheetCallback(new BottomSheetBehavior.BottomSheetCallback() {
            @Override
            public void onStateChanged(@NonNull View bottomSheet, @BottomSheetBehavior.State int newState) {
                String state = "null";
                switch (newState) {
                    case 1:
                        state = "STATE_DRAGGING";//过渡状态此时用户正在向上或者向下拖动bottom sheet
                        KeyBoardUtils.closeKeyBoard(searchead,getActivity());
                        break;
                    case 2:
                        state = "STATE_SETTLING"; // 视图从脱离手指自由滑动到最终停下的这一小段时间
                        break;
                    case 3:
                        state = "STATE_EXPANDED"; //处于完全展开的状态

                        break;
                    case 4:
                        state = "STATE_COLLAPSED"; //默认的折叠状态
                        KeyBoardUtils.closeKeyBoard(searchead,getActivity());
                        break;
                    case 5:
                        state = "STATE_HIDDEN"; //下滑动完全隐藏 bottom sheet
                        KeyBoardUtils.closeKeyBoard(searchead,getActivity());
                        break;
                }

            }

            @Override
            public void onSlide(@NonNull View bottomSheet, float slideOffset) {
//                Log.d("BottomSheetDemo", "slideOffset:" + slideOffset);
            }
        });
