2020.11.19课堂笔记(日志文件完成数据清洗)

63 阅读 0 评论
我是靠谱客的博主 整齐大碗，最近开发中收集的这篇文章主要介绍2020.11.19课堂笔记(日志文件完成数据清洗)，觉得挺不错的，现在分享给大家，希望可以做个参考。

概述

有一个日志文件，要完成数据清洗：

1593136280858|{"cm":{"ln":"-55.0","sv":"V2.9.6","os":"8.0.4","g":"C6816QZ0@gmail.com","mid":"489","nw":"3G","l":"es","vc":"4","hw":"640*960","ar":"MX","uid":"489","t":"1593123253541","la":"5.2","md":"sumsung-18","vn":"1.3.4","ba":"Sumsung","sr":"I"},"ap":"app","et":[{"ett":"1593050051366","en":"loading","kv":{"extend2":"","loading_time":"14","action":"3","extend1":"","type":"2","type1":"201","loading_way":"1"}},{"ett":"1593108791764","en":"ad","kv":{"activityId":"1","displayMills":"78522","entry":"1","action":"1","contentType":"0"}},{"ett":"1593111271266","en":"notification","kv":{"ap_time":"1593097087883","action":"1","type":"1","content":""}},{"ett":"1593066033562","en":"active_background","kv":{"active_source":"3"}},{"ett":"1593135644347","en":"comment","kv":{"p_comment_id":1,"addtime":"1593097573725","praise_count":973,"other_id":5,"comment_id":9,"reply_count":40,"userid":7,"content":"辑赤蹲慰鸽抿肘捎"}}]}
1593136280858|{"cm":{"ln":"-114.9","sv":"V2.7.8","os":"8.0.4","g":"NW0S962J@gmail.com","mid":"490","nw":"3G","l":"pt","vc":"8","hw":"640*1136","ar":"MX","uid":"490","t":"1593121224789","la":"-44.4","md":"Huawei-8","vn":"1.0.1","ba":"Huawei","sr":"O"},"ap":"app","et":[{"ett":"1593063223807","en":"loading","kv":{"extend2":"","loading_time":"0","action":"3","extend1":"","type":"1","type1":"102","loading_way":"1"}},{"ett":"1593095105466","en":"ad","kv":{"activityId":"1","displayMills":"1966","entry":"3","action":"2","contentType":"0"}},{"ett":"1593051718208","en":"notification","kv":{"ap_time":"1593095336265","action":"2","type":"3","content":""}},{"ett":"1593100021275","en":"comment","kv":{"p_comment_id":4,"addtime":"1593098946009","praise_count":220,"other_id":4,"comment_id":9,"reply_count":151,"userid":4,"content":"抄应螟皮釉倔掉汉蛋蕾街羡晶"}},{"ett":"1593105344120","en":"praise","kv":{"target_id":9,"id":7,"type":1,"add_time":"1593098545976","userid":8}}]}

选取其中一行分析：可以看到日志文件内容是json字符串格式的，找一个在线解析工具看一下，结果如下：

1593136280858 | {
	"cm": {
		"ln": "-55.0",
		"sv": "V2.9.6",
		"os": "8.0.4",
		"g": "C6816QZ0@gmail.com",
		"mid": "489",
		"nw": "3G",
		"l": "es",
		"vc": "4",
		"hw": "640*960",
		"ar": "MX",
		"uid": "489",
		"t": "1593123253541",
		"la": "5.2",
		"md": "sumsung-18",
		"vn": "1.3.4",
		"ba": "Sumsung",
		"sr": "I"
	},
	"ap": "app",
	"et": [{
		"ett": "1593050051366",
		"en": "loading",
		"kv": {
			"extend2": "",
			"loading_time": "14",
			"action": "3",
			"extend1": "",
			"type": "2",
			"type1": "201",
			"loading_way": "1"
		}
	}, {
		"ett": "1593108791764",
		"en": "ad",
		"kv": {
			"activityId": "1",
			"displayMills": "78522",
			"entry": "1",
			"action": "1",
			"contentType": "0"
		}
	}, {
		"ett": "1593111271266",
		"en": "notification",
		"kv": {
			"ap_time": "1593097087883",
			"action": "1",
			"type": "1",
			"content": ""
		}
	}, {
		"ett": "1593066033562",
		"en": "active_background",
		"kv": {
			"active_source": "3"
		}
	}, {
		"ett": "1593135644347",
		"en": "comment",
		"kv": {
			"p_comment_id": 1,
			"addtime": "1593097573725",
			"praise_count": 973,
			"other_id": 5,
			"comment_id": 9,
			"reply_count": 40,
			"userid": 7,
			"content": "辑赤蹲慰鸽抿肘捎"
		}
	}]
}

先将文件上传到hdfs目录下：

[root@hadoop100 ~]# hdfs dfs -put /opt/kb09file/op.log  /kb09file

使用spark-shell读取文件：

scala> sc.textFile("file:///opt/kb09file/op.log")   //读取Linux系统文件
scala> val fileRDD = sc.textFile("hdfs://192.168.237.100:9000/kb09file/op.log")  //读取hdfs文件

对日志文件分析：

日志格式为：1593136280858 (用户标识) |  json字符串的形式     //分隔符为 | 管道符

使用split切割字符串：

//注意这里应该使用单引号而不是双引号。单引号表示是字符，双引号表示是字符串
scala> val jsonStrRDD = fileRDD.map(x=>x.split('|')).map(x=>(x(0),x(1)))

如果想要保留用户标识，添加到json字符串中，进行字符串拼接：

scala> val jsonRdd = jsonStrRDD.map(x=>{ var jsonStr=x._2 ; jsonStr =  jsonStr.substring(0,jsonStr.length-1); jsonStr + ","id":"+  x._1 + "}" })

将Rdd转换成DataFrame：

scala> val jsonDF=jsonRdd.toDF

查看一下jsonDF的结果：

jsonDF.show()     //只有一个列，列名为value
+--------------------+
|               value|
+--------------------+
|{"cm":{"ln":"-55....|
|{"cm":{"ln":"-114...|
+--------------------+

添加需要的包：

import spark.implicits._   //隐式转换
import org.apache.spark.sql.functions._   //内置方法
import org.apache.spark.sql.types._    //类型
import org.apache.spark.sql._

获取json字符串的值的方法：

scala> jsonDF.select( get_json_object($"value","$.cm").alias("cm") ).show(false)

输出结果：

+--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
|cm                                                                                                                                                                                                                                    |
+--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
|{"ln":"-55.0","sv":"V2.9.6","os":"8.0.4","g":"C6816QZ0@gmail.com","mid":"489","nw":"3G","l":"es","vc":"4","hw":"640*960","ar":"MX","uid":"489","t":"1593123253541","la":"5.2","md":"sumsung-18","vn":"1.3.4","ba":"Sumsung","sr":"I"} |
|{"ln":"-114.9","sv":"V2.7.8","os":"8.0.4","g":"NW0S962J@gmail.com","mid":"490","nw":"3G","l":"pt","vc":"8","hw":"640*1136","ar":"MX","uid":"490","t":"1593121224789","la":"-44.4","md":"Huawei-8","vn":"1.0.1","ba":"Huawei","sr":"O"}|
+--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+

日志文件共可以拆分成4个json字符串，每组字符串还可以继续拆分json格式
将json字符串{“cm”:“a1” , “ap”:“b1” , “et”:“c1” , “id”:“d1”} 结构化

表头cmapetid
列a1b1c1d1
//将json字符串{"cm":"a1" , "ap":"b1" , "et":"c1" , "id":"d1"} 结构化
//  表头    cm    ap    et    id
//   列     a1    b1    c1    d1
val jsonDF2: DataFrame = jsonDF.select(get_json_object($"value", "$.cm").alias("cm")
  , get_json_object($"value", "$.ap").alias("ap")
  , get_json_object($"value", "$.et").alias("et")
  , get_json_object($"value", "$.id").alias("id")
)
jsonDF2.select($"id", $"ap", $"cm", $"et").show()

输出结果：

+-------------+---+--------------------+--------------------+
|           id| ap|                  cm|                  et|
+-------------+---+--------------------+--------------------+
|1593136280858|app|{"ln":"-55.0","sv...|[{"ett":"15930500...|
|1593136280858|app|{"ln":"-114.9","s...|[{"ett":"15930632...|
+-------------+---+--------------------+--------------------+

将cm继续拆分，把每个字段拆分成一个列：

val jsonDF3: DataFrame = jsonDF2.select($"id"
  , $"ap"
  , get_json_object($"cm", "$.ln").alias("ln")
  , get_json_object($"cm", "$.sv").alias("sv")
  , get_json_object($"cm", "$.os").alias("os")
  , get_json_object($"cm", "$.g").alias("g")
  , get_json_object($"cm", "$.mid").alias("mid")
  , get_json_object($"cm", "$.nw").alias("nw")
  , get_json_object($"cm", "$.l").alias("l")
  , get_json_object($"cm", "$.vc").alias("vc")
  , get_json_object($"cm", "$.hw").alias("hw")
  , get_json_object($"cm", "$.ar").alias("ar")
  , get_json_object($"cm", "$.uid").alias("uid")
  , get_json_object($"cm", "$.t").alias("t")
  , get_json_object($"cm", "$.la").alias("la")
  , get_json_object($"cm", "$.md").alias("md")
  , get_json_object($"cm", "$.vn").alias("vn")
  , get_json_object($"cm", "$.ba").alias("ba")
  , get_json_object($"cm", "$.sr").alias("sr")
  , $"et")
jsonDF3.show()

输出结果：

+-------------+---+------+------+-----+------------------+---+---+---+---+--------+---+---+-------------+-----+----------+-----+-------+---+--------------------+
|           id| ap|    ln|    sv|   os|                 g|mid| nw|  l| vc|      hw| ar|uid|            t|   la|        md|   vn|     ba| sr|                  et|
+-------------+---+------+------+-----+------------------+---+---+---+---+--------+---+---+-------------+-----+----------+-----+-------+---+--------------------+
|1593136280858|app| -55.0|V2.9.6|8.0.4|C6816QZ0@gmail.com|489| 3G| es|  4| 640*960| MX|489|1593123253541|  5.2|sumsung-18|1.3.4|Sumsung|  I|[{"ett":"15930500...|
|1593136280858|app|-114.9|V2.7.8|8.0.4|NW0S962J@gmail.com|490| 3G| pt|  8|640*1136| MX|490|1593121224789|-44.4|  Huawei-8|1.0.1| Huawei|  O|[{"ett":"15930632...|
+-------------+---+------+------+-----+------------------+---+---+---+---+--------+---+---+-------------+-----+----------+-----+-------+---+--------------------+

idea整体代码如下：

package nj.zb.kb09.project

import org.apache.spark.SparkContext
import org.apache.spark.rdd.RDD
import org.apache.spark.sql.{DataFrame, SparkSession}

object OpLog {
  def main(args: Array[String]): Unit = {
    val spark: SparkSession = SparkSession.builder().master("local[*]").appName("clearDemo").getOrCreate()
    import spark.implicits._
    val sc: SparkContext = spark.sparkContext
    val fileRDD: RDD[String] = sc.textFile("in/op.log")
    val jsonStrRDD: RDD[(String, String)] = fileRDD.map(x => x.split('|')).map(x => (x(0), x(1)))
    val jsonRdd: RDD[String] = jsonStrRDD
      .map(x => {
        var jsonStr = x._2
        jsonStr = jsonStr.substring(0, jsonStr.length - 1)
        jsonStr + ","id":" + x._1 + "}"
      })
    val jsonDF: DataFrame = jsonRdd.toDF
    jsonDF.show()

    import spark.implicits._
    import org.apache.spark.sql.functions._
    import org.apache.spark.sql.types._
    import org.apache.spark.sql._

    jsonDF.select(get_json_object($"value", "$.cm").alias("cm")).show(false)

    val jsonDF2: DataFrame = jsonDF.select(get_json_object($"value", "$.cm").alias("cm")
      , get_json_object($"value", "$.ap").alias("ap")
      , get_json_object($"value", "$.et").alias("et")
      , get_json_object($"value", "$.id").alias("id")
    )
    jsonDF2.select($"id", $"ap", $"cm", $"et").show

    val jsonDF3: DataFrame = jsonDF2.select($"id"
      , $"ap"
      , get_json_object($"cm", "$.ln").alias("ln")
      , get_json_object($"cm", "$.sv").alias("sv")
      , get_json_object($"cm", "$.os").alias("os")
      , get_json_object($"cm", "$.g").alias("g")
      , get_json_object($"cm", "$.mid").alias("mid")
      , get_json_object($"cm", "$.nw").alias("nw")
      , get_json_object($"cm", "$.l").alias("l")
      , get_json_object($"cm", "$.vc").alias("vc")
      , get_json_object($"cm", "$.hw").alias("hw")
      , get_json_object($"cm", "$.ar").alias("ar")
      , get_json_object($"cm", "$.uid").alias("uid")
      , get_json_object($"cm", "$.t").alias("t")
      , get_json_object($"cm", "$.la").alias("la")
      , get_json_object($"cm", "$.md").alias("md")
      , get_json_object($"cm", "$.vn").alias("vn")
      , get_json_object($"cm", "$.ba").alias("ba")
      , get_json_object($"cm", "$.sr").alias("sr")
      , $"et")
    jsonDF3.show()

  }
}

对"et"字段分析，通过from_json方法把字符串"et"结构化：

from_json   把字符串
 "et":[
 {"ett":"a1","en":"a2","kv":{"a3"}}
 ,{"ett":"a1","en":"b2","kv":{"b3"}}
 ,{"ett":"a1","en":"c2","kv":{"c3"}}
 ]
结构化：
   ett    en    kv
    a1    a2    a3
    b1    b2    b3
    c1    c2    c3

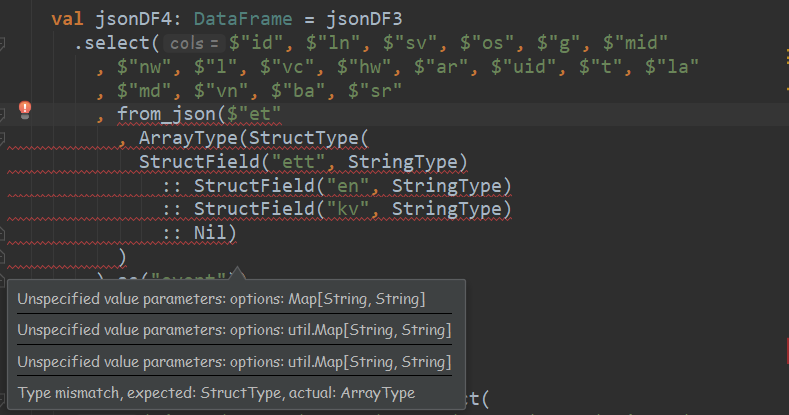

在idea中出现错误，
在这里插入图片描述
回到黑窗口界面操作：

scala> val jsonDF4 = jsonDF3.select($"id", $"ap", $"ln", $"sv", $"os", $"g", $"mid",
$"nw", $"l", $"vc", $"hw", $"ar", $"uid", $"t", $"la", $"md", $"vn", $"ba", $"sr",
 from_json($"et",ArrayType(StructType(StructField("ett",StringType)::StructField
("en",StringType)::StructField("kv",StringType)::Nil))).as("event"))

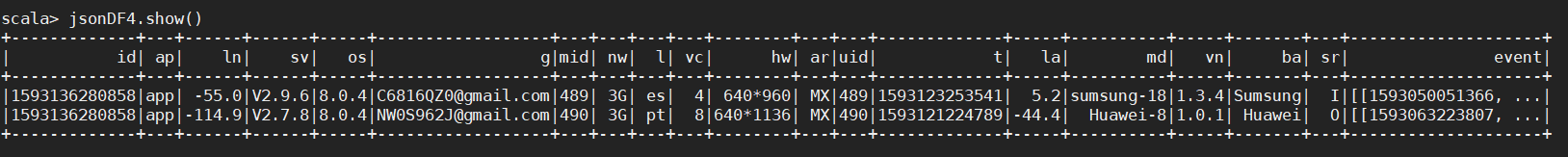

输出结果：

scala> jsonDF4.show()
+-------------+---+------+------+-----+------------------+---+---+---+---+--------+---+---+-------------+-----+----------+-----+-------+---+--------------------+
|           id| ap|    ln|    sv|   os|                 g|mid| nw|  l| vc|      hw| ar|uid|            t|   la|        md|   vn|     ba| sr|               event|
+-------------+---+------+------+-----+------------------+---+---+---+---+--------+---+---+-------------+-----+----------+-----+-------+---+--------------------+
|1593136280858|app| -55.0|V2.9.6|8.0.4|C6816QZ0@gmail.com|489| 3G| es|  4| 640*960| MX|489|1593123253541|  5.2|sumsung-18|1.3.4|Sumsung|  I|[[1593050051366, ...|
|1593136280858|app|-114.9|V2.7.8|8.0.4|NW0S962J@gmail.com|490| 3G| pt|  8|640*1136| MX|490|1593121224789|-44.4|  Huawei-8|1.0.1| Huawei|  O|[[1593063223807, ...|
+-------------+---+------+------+-----+------------------+---+---+---+---+--------+---+---+-------------+-----+----------+-----+-------+---+--------------------+

在这里插入图片描述
jsonDF4大脑想到的结构是这样：

idapmidnw***event
1593136280858app12345dsdwe****[[ett en kv], [b1 b2 b3],[c1 c2 c3] ]

期望得到的结果，将数组拆分成行，及数组中的每个字段拆分成列：

idapmidnw***ettenkv
1593136280858app12345dsdwe****ettenkv
1593136280858app12345dsdwe****b1b2b3
1593136280858app12345dsdwe****c1c2c3

中间结果结果的效果，先将数组拆分，使用explode()方法（得到jsonDF5）：

idapmidnw***event
1593136280858app12345dsdwe****[ett en kv]
1593136280858app12345dsdwe****[b1 b2 b3]
1593136280858app12345dsdwe****[c1 c2 c3]
scala> val jsonDF5 = jsonDF4.select($"id", $"ap", $"ln", $"sv", $"os", $"g", $"mid",
$"nw" , $"l", $"vc", $"hw", $"ar", $"uid", $"t", $"la", $"md" , $"vn", $"ba",
$"sr", explode($"event").alias("event"))

输出结果：

scala> jsonDF5.show()
+-------------+---+------+------+-----+------------------+---+---+---+---+--------+---+---+-------------+-----+----------+-----+-------+---+--------------------+
|           id| ap|    ln|    sv|   os|                 g|mid| nw|  l| vc|      hw| ar|uid|            t|   la|        md|   vn|     ba| sr|               event|
+-------------+---+------+------+-----+------------------+---+---+---+---+--------+---+---+-------------+-----+----------+-----+-------+---+--------------------+
|1593136280858|app| -55.0|V2.9.6|8.0.4|C6816QZ0@gmail.com|489| 3G| es|  4| 640*960| MX|489|1593123253541|  5.2|sumsung-18|1.3.4|Sumsung|  I|[1593050051366, l...|
|1593136280858|app| -55.0|V2.9.6|8.0.4|C6816QZ0@gmail.com|489| 3G| es|  4| 640*960| MX|489|1593123253541|  5.2|sumsung-18|1.3.4|Sumsung|  I|[1593108791764, a...|
|1593136280858|app| -55.0|V2.9.6|8.0.4|C6816QZ0@gmail.com|489| 3G| es|  4| 640*960| MX|489|1593123253541|  5.2|sumsung-18|1.3.4|Sumsung|  I|[1593111271266, n...|
|1593136280858|app| -55.0|V2.9.6|8.0.4|C6816QZ0@gmail.com|489| 3G| es|  4| 640*960| MX|489|1593123253541|  5.2|sumsung-18|1.3.4|Sumsung|  I|[1593066033562, a...|
|1593136280858|app| -55.0|V2.9.6|8.0.4|C6816QZ0@gmail.com|489| 3G| es|  4| 640*960| MX|489|1593123253541|  5.2|sumsung-18|1.3.4|Sumsung|  I|[1593135644347, c...|
|1593136280858|app|-114.9|V2.7.8|8.0.4|NW0S962J@gmail.com|490| 3G| pt|  8|640*1136| MX|490|1593121224789|-44.4|  Huawei-8|1.0.1| Huawei|  O|[1593063223807, l...|
|1593136280858|app|-114.9|V2.7.8|8.0.4|NW0S962J@gmail.com|490| 3G| pt|  8|640*1136| MX|490|1593121224789|-44.4|  Huawei-8|1.0.1| Huawei|  O|[1593095105466, a...|
|1593136280858|app|-114.9|V2.7.8|8.0.4|NW0S962J@gmail.com|490| 3G| pt|  8|640*1136| MX|490|1593121224789|-44.4|  Huawei-8|1.0.1| Huawei|  O|[1593051718208, n...|
|1593136280858|app|-114.9|V2.7.8|8.0.4|NW0S962J@gmail.com|490| 3G| pt|  8|640*1136| MX|490|1593121224789|-44.4|  Huawei-8|1.0.1| Huawei|  O|[1593100021275, c...|
|1593136280858|app|-114.9|V2.7.8|8.0.4|NW0S962J@gmail.com|490| 3G| pt|  8|640*1136| MX|490|1593121224789|-44.4|  Huawei-8|1.0.1| Huawei|  O|[1593105344120, p...|
+-------------+---+------+------+-----+------------------+---+---+---+---+--------+---+---+-------------+-----+----------+-----+-------+---+--------------------+

在这里插入图片描述

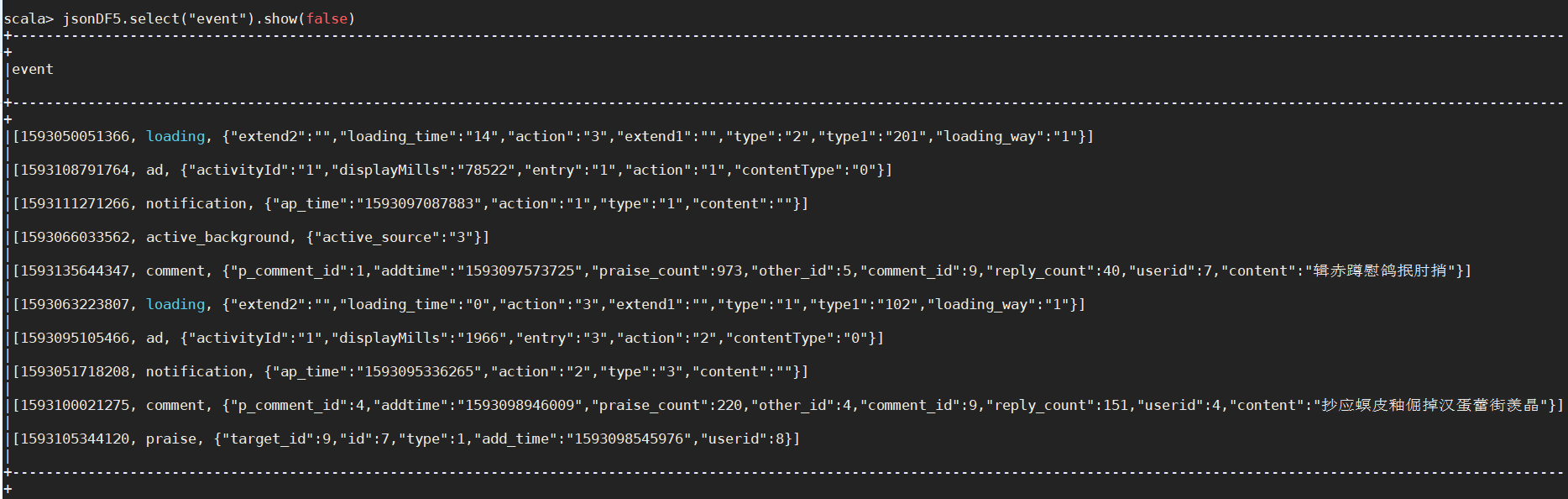

单独查看一下event列，做后续分析：

scala> jsonDF5.select("event").show(false)
+-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
|event                                                                                                                                                                                    |
+-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
|[1593050051366, loading, {"extend2":"","loading_time":"14","action":"3","extend1":"","type":"2","type1":"201","loading_way":"1"}]                                                        |
|[1593108791764, ad, {"activityId":"1","displayMills":"78522","entry":"1","action":"1","contentType":"0"}]                                                                                |
|[1593111271266, notification, {"ap_time":"1593097087883","action":"1","type":"1","content":""}]                                                                                          |
|[1593066033562, active_background, {"active_source":"3"}]                                                                                                                                |
|[1593135644347, comment, {"p_comment_id":1,"addtime":"1593097573725","praise_count":973,"other_id":5,"comment_id":9,"reply_count":40,"userid":7,"content":"辑赤蹲慰鸽抿肘捎"}]           |
|[1593063223807, loading, {"extend2":"","loading_time":"0","action":"3","extend1":"","type":"1","type1":"102","loading_way":"1"}]                                                         |
|[1593095105466, ad, {"activityId":"1","displayMills":"1966","entry":"3","action":"2","contentType":"0"}]                                                                                 |
|[1593051718208, notification, {"ap_time":"1593095336265","action":"2","type":"3","content":""}]                                                                                          |
|[1593100021275, comment, {"p_comment_id":4,"addtime":"1593098946009","praise_count":220,"other_id":4,"comment_id":9,"reply_count":151,"userid":4,"content":"抄应螟皮釉倔掉汉蛋蕾街羡晶"}]|
|[1593105344120, praise, {"target_id":9,"id":7,"type":1,"add_time":"1593098545976","userid":8}]                                                                                           |
+-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+

在这里插入图片描述
将event列拆分成"ett",“en”,"kv"三列

scala> jsonDF5.select($"id",$"ap",$"ln",$"sv",$"os",$"g",$"mid"
,$"nw",$"l",$"vc",$"hw",$"ar",$"uid",$"t",$"la",$"md"
,$"vn",$"ba",$"sr",$"event.ett",$"event.en",$"event.kv").show(false)

+-------------+---+------+------+-----+------------------+---+---+---+---+--------+---+---+-------------+-----+----------+-----+-------+---+-------------+-----------------+---------------------------------------------------------------------------------------------------------------------------------------------------------------+
|id           |ap |ln    |sv    |os   |g                 |mid|nw |l  |vc |hw      |ar |uid|t            |la   |md        |vn   |ba     |sr |ett          |en               |kv                                                                                                                                                             |
+-------------+---+------+------+-----+------------------+---+---+---+---+--------+---+---+-------------+-----+----------+-----+-------+---+-------------+-----------------+---------------------------------------------------------------------------------------------------------------------------------------------------------------+
|1593136280858|app|-55.0 |V2.9.6|8.0.4|C6816QZ0@gmail.com|489|3G |es |4  |640*960 |MX |489|1593123253541|5.2  |sumsung-18|1.3.4|Sumsung|I  |1593050051366|loading          |{"extend2":"","loading_time":"14","action":"3","extend1":"","type":"2","type1":"201","loading_way":"1"}                                                        |
|1593136280858|app|-55.0 |V2.9.6|8.0.4|C6816QZ0@gmail.com|489|3G |es |4  |640*960 |MX |489|1593123253541|5.2  |sumsung-18|1.3.4|Sumsung|I  |1593108791764|ad               |{"activityId":"1","displayMills":"78522","entry":"1","action":"1","contentType":"0"}                                                                           |
|1593136280858|app|-55.0 |V2.9.6|8.0.4|C6816QZ0@gmail.com|489|3G |es |4  |640*960 |MX |489|1593123253541|5.2  |sumsung-18|1.3.4|Sumsung|I  |1593111271266|notification     |{"ap_time":"1593097087883","action":"1","type":"1","content":""}                                                                                               |
|1593136280858|app|-55.0 |V2.9.6|8.0.4|C6816QZ0@gmail.com|489|3G |es |4  |640*960 |MX |489|1593123253541|5.2  |sumsung-18|1.3.4|Sumsung|I  |1593066033562|active_background|{"active_source":"3"}                                                                                                                                          |
|1593136280858|app|-55.0 |V2.9.6|8.0.4|C6816QZ0@gmail.com|489|3G |es |4  |640*960 |MX |489|1593123253541|5.2  |sumsung-18|1.3.4|Sumsung|I  |1593135644347|comment          |{"p_comment_id":1,"addtime":"1593097573725","praise_count":973,"other_id":5,"comment_id":9,"reply_count":40,"userid":7,"content":"辑赤蹲慰鸽抿肘捎"}           |
|1593136280858|app|-114.9|V2.7.8|8.0.4|NW0S962J@gmail.com|490|3G |pt |8  |640*1136|MX |490|1593121224789|-44.4|Huawei-8  |1.0.1|Huawei |O  |1593063223807|loading          |{"extend2":"","loading_time":"0","action":"3","extend1":"","type":"1","type1":"102","loading_way":"1"}                                                         |
|1593136280858|app|-114.9|V2.7.8|8.0.4|NW0S962J@gmail.com|490|3G |pt |8  |640*1136|MX |490|1593121224789|-44.4|Huawei-8  |1.0.1|Huawei |O  |1593095105466|ad               |{"activityId":"1","displayMills":"1966","entry":"3","action":"2","contentType":"0"}                                                                            |
|1593136280858|app|-114.9|V2.7.8|8.0.4|NW0S962J@gmail.com|490|3G |pt |8  |640*1136|MX |490|1593121224789|-44.4|Huawei-8  |1.0.1|Huawei |O  |1593051718208|notification     |{"ap_time":"1593095336265","action":"2","type":"3","content":""}                                                                                               |
|1593136280858|app|-114.9|V2.7.8|8.0.4|NW0S962J@gmail.com|490|3G |pt |8  |640*1136|MX |490|1593121224789|-44.4|Huawei-8  |1.0.1|Huawei |O  |1593100021275|comment          |{"p_comment_id":4,"addtime":"1593098946009","praise_count":220,"other_id":4,"comment_id":9,"reply_count":151,"userid":4,"content":"抄应螟皮釉倔掉汉蛋蕾街羡晶"}|
|1593136280858|app|-114.9|V2.7.8|8.0.4|NW0S962J@gmail.com|490|3G |pt |8  |640*1136|MX |490|1593121224789|-44.4|Huawei-8  |1.0.1|Huawei |O  |1593105344120|praise           |{"target_id":9,"id":7,"type":1,"add_time":"1593098545976","userid":8}                                                                                          |
+-------------+---+------+------+-----+------------------+---+---+---+---+--------+---+---+-------------+-----+----------+-----+-------+---+-------------+-----------------+---------------------------------------------------------------------------------------------------------------------------------------------------------------+

en有如下几种类型：
loading、ad、notification、active_background、comment、praise

scala> jsonDF5.select($"event.en").distinct().show()
+-----------------+
|               en|
+-----------------+
|           praise|
|     notification|
|          comment|
|               ad|
|active_background|
|          loading|
+-----------------+

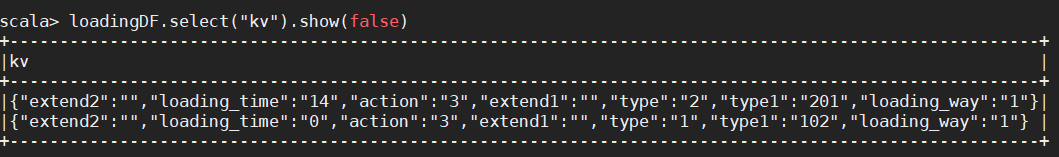

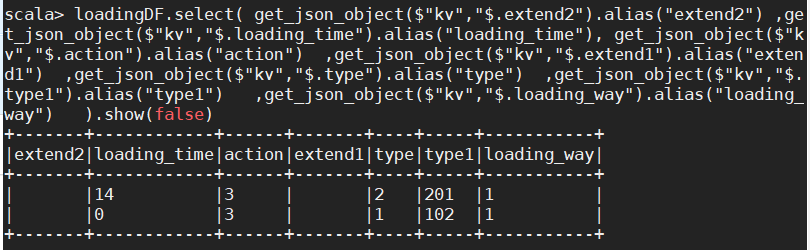

通过filter过滤条件，可以生成不同的DataFrame

//举例过滤出en的值为loading的行，将结果生成一个DataFrame
val loadingDF = jsonDF5.select($"id",$"ap",$"ln",$"sv",$"os",$"g",$"mid",$"nw"
,$"l",$"vc",$"hw",$"ar",$"uid",$"t",$"la",$"md",$"vn",$"ba"
,$"sr",$"event.ett",$"event.en",$"event.kv")
.filter($"event.en"==="loading")

查看结果：

scala> loadingDF.show(false)
+-------------+---+------+------+-----+------------------+---+---+---+---+--------+---+---+-------------+-----+----------+-----+-------+---+-------------+-------+-------------------------------------------------------------------------------------------------------+
|id           |ap |ln    |sv    |os   |g                 |mid|nw |l  |vc |hw      |ar |uid|t            |la   |md        |vn   |ba     |sr |ett          |en     |kv                                                                                                     |
+-------------+---+------+------+-----+------------------+---+---+---+---+--------+---+---+-------------+-----+----------+-----+-------+---+-------------+-------+-------------------------------------------------------------------------------------------------------+
|1593136280858|app|-55.0 |V2.9.6|8.0.4|C6816QZ0@gmail.com|489|3G |es |4  |640*960 |MX |489|1593123253541|5.2  |sumsung-18|1.3.4|Sumsung|I  |1593050051366|loading|{"extend2":"","loading_time":"14","action":"3","extend1":"","type":"2","type1":"201","loading_way":"1"}|
|1593136280858|app|-114.9|V2.7.8|8.0.4|NW0S962J@gmail.com|490|3G |pt |8  |640*1136|MX |490|1593121224789|-44.4|Huawei-8  |1.0.1|Huawei |O  |1593063223807|loading|{"extend2":"","loading_time":"0","action":"3","extend1":"","type":"1","type1":"102","loading_way":"1"} |
+-------------+---+------+------+-----+------------------+---+---+---+---+--------+---+---+-------------+-----+----------+-----+-------+---+-------------+-------+-------------------------------------------------------------------------------------------------------+

单独查看kv列

scala> loadingDF.select("kv").show(false)
+-------------------------------------------------------------------------------------------------------+
|kv                                                                                                     |
+-------------------------------------------------------------------------------------------------------+
|{"extend2":"","loading_time":"14","action":"3","extend1":"","type":"2","type1":"201","loading_way":"1"}|
|{"extend2":"","loading_time":"0","action":"3","extend1":"","type":"1","type1":"102","loading_way":"1"} |
+-------------------------------------------------------------------------------------------------------+

在这里插入图片描述可以看到kv列中仍然是json格式则字符串，有很多的kv组合，进行拆分成不同的列

scala> loadingDF.select(
get_json_object($"kv","$.extend2").alias("extend2")
,get_json_object($"kv","$.loading_time").alias("loading_time")
,get_json_object($"kv","$.action").alias("action")
,get_json_object($"kv","$.extend1").alias("extend1")
,get_json_object($"kv","$.type").alias("type")
,get_json_object($"kv","$.type1").alias("type1")
,get_json_object($"kv","$.loading_way").alias("loading_way")
).show(false)

查看结果：

+-------+------------+------+-------+----+-----+-----------+
|extend2|loading_time|action|extend1|type|type1|loading_way|
+-------+------------+------+-------+----+-----+-----------+
|       |14          |3     |       |2   |201  |1          |
|       |0           |3     |       |1   |102  |1          |
+-------+------------+------+-------+----+-----+-----------+

在这里插入图片描述把前面的列加上，生成完整的loadingDF

scala> val loadingDF1 = loadingDF.select( $"id",$"ap",$"ln",$"sv",$"os",$"g",$"mid",$"nw",$"l"
,$"vc",$"hw",$"ar",$"uid",$"t",$"la",$"md",$"vn",$"ba",$"sr",$"ett",$"en"
,get_json_object($"kv","$.extend2").alias("extend2")
,get_json_object($"kv","$.loading_time").alias("loading_time")
,get_json_object($"kv","$.action").alias("action")
,get_json_object($"kv","$.extend1").alias("extend1")
,get_json_object($"kv","$.type").alias("type")
,get_json_object($"kv","$.type1").alias("type1")
,get_json_object($"kv","$.loading_way").alias("loading_way"))

查看结果：

scala> loadingDF1.show()
+-------------+---+------+------+-----+------------------+---+---+---+---+--------+---+---+-------------+-----+----------+-----+-------+---+-------------+-------+-------+------------+------+-------+----+-----+-----------+
|           id| ap|    ln|    sv|   os|                 g|mid| nw|  l| vc|      hw| ar|uid|            t|   la|        md|   vn|     ba| sr|          ett|     en|extend2|loading_time|action|extend1|type|type1|loading_way|
+-------------+---+------+------+-----+------------------+---+---+---+---+--------+---+---+-------------+-----+----------+-----+-------+---+-------------+-------+-------+------------+------+-------+----+-----+-----------+
|1593136280858|app| -55.0|V2.9.6|8.0.4|C6816QZ0@gmail.com|489| 3G| es|  4| 640*960| MX|489|1593123253541|  5.2|sumsung-18|1.3.4|Sumsung|  I|1593050051366|loading|       |          14|     3|       |   2|  201|          1|
|1593136280858|app|-114.9|V2.7.8|8.0.4|NW0S962J@gmail.com|490| 3G| pt|  8|640*1136| MX|490|1593121224789|-44.4|  Huawei-8|1.0.1| Huawei|  O|1593063223807|loading|       |           0|     3|       |   1|  102|          1|
+-------------+---+------+------+-----+------------------+---+---+---+---+--------+---+---+-------------+-----+----------+-----+-------+---+-------------+-------+-------+------------+------+-------+----+-----+-----------+

在这里插入图片描述

最后

以上就是整齐大碗为你收集整理的2020.11.19课堂笔记(日志文件完成数据清洗)的全部内容，希望文章能够帮你解决2020.11.19课堂笔记(日志文件完成数据清洗)所遇到的程序开发问题。

如果觉得靠谱客网站的内容还不错，欢迎将靠谱客网站推荐给程序员好友。

本图文内容来源于网友提供，作为学习参考使用，或来自网络收集整理，版权属于原作者所有。
点赞(42)

相关文章

（统计单词数）mapreduce函数理解
（统计单词数）mapreduce函数理解
日志文件完成数据清洗
日志文件完成数据清洗
单词计数的mapreduce原理
单词计数的mapreduce原理
Hadoop单词统计实验Hadoop单词统计实验 一、搭建思路 二、单词统计实验步骤 三、问题解决
Hadoop单词统计实验Hadoop单词统计实验 一、搭建思路 二、单词统计实验步骤 三、问题解决
2020.11.19课堂笔记(日志文件完成数据清洗)
2020.11.19课堂笔记(日志文件完成数据清洗)
mapreduce英语单词频次统计与单词个数统计（云计算实验作业20180517）
mapreduce英语单词频次统计与单词个数统计（云计算实验作业20180517）
MapReduce实例1-统计文本单词个数
MapReduce实例1-统计文本单词个数
Mapreduce程序WordCount单词计数详解
Mapreduce程序WordCount单词计数详解

评论列表共有 0 条评论

立即
投稿
返回
顶部
