SpringCloud源码解析 (Eureka-Client源码解析-更新Server的注册信息) (三)

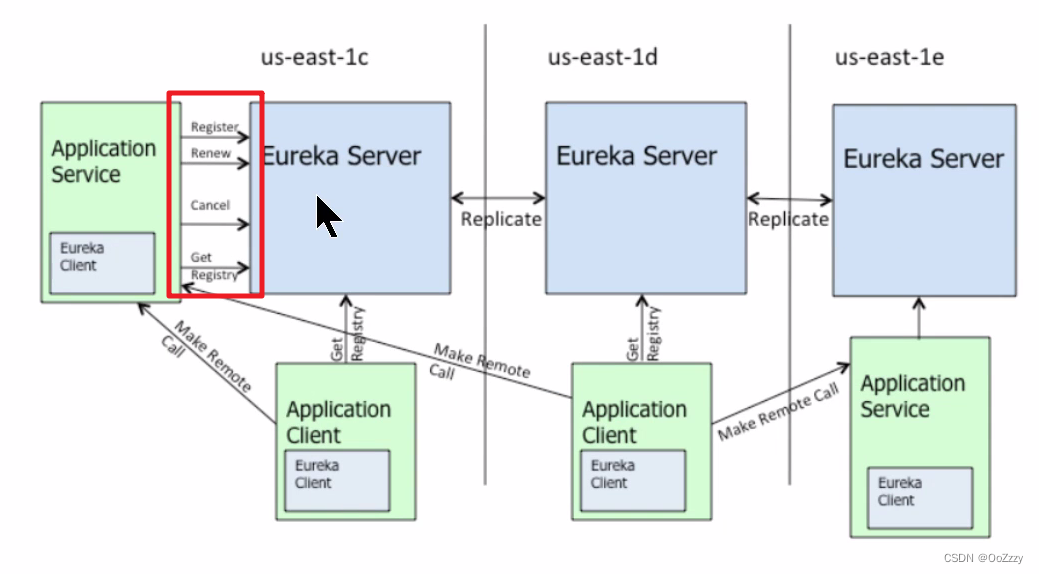

1. Register: 注册者
2. Get Registry: 得到注册表
3. Renew: 更新
4. Cancel: 取消
5. Make Remote call: 进行远程呼叫

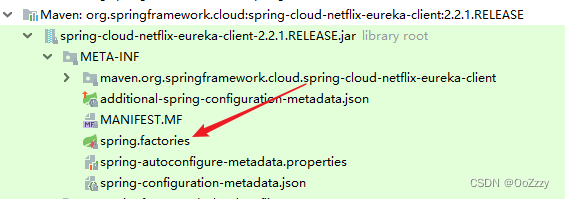

1.源码分析入口

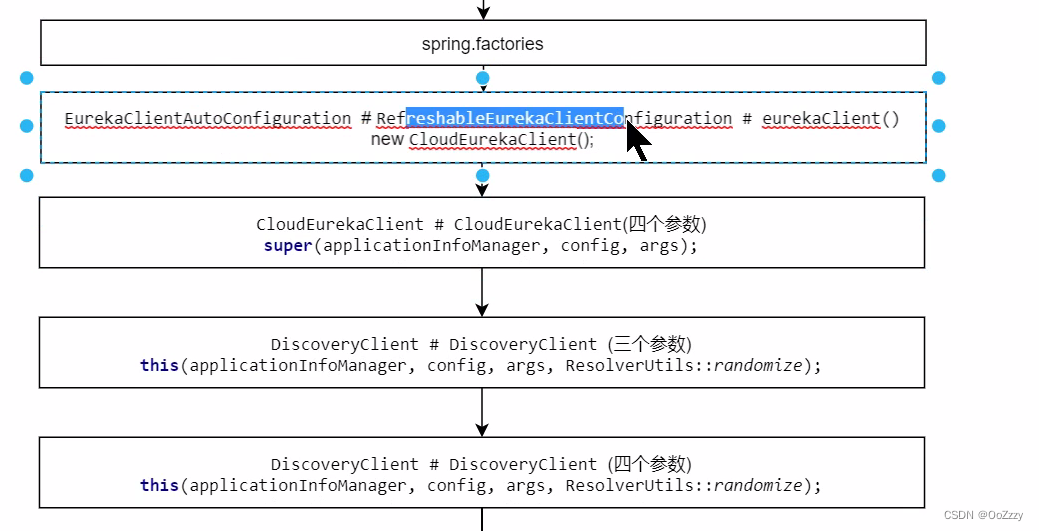

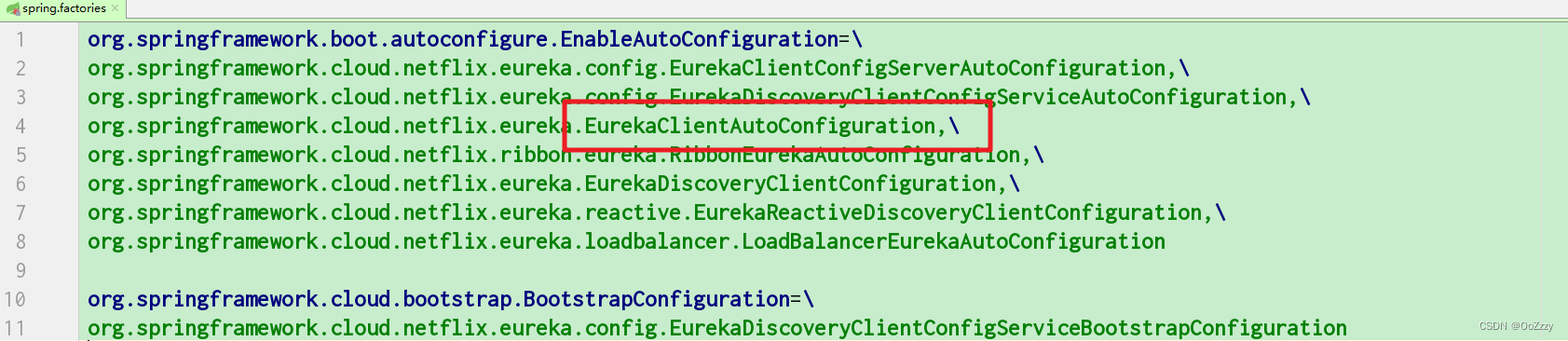

2. EurekaClientAutoConfiguration

EurekaClientAutoConfiguration -> RefreshableEurekaClientConfiguration -> EurekaClient ->

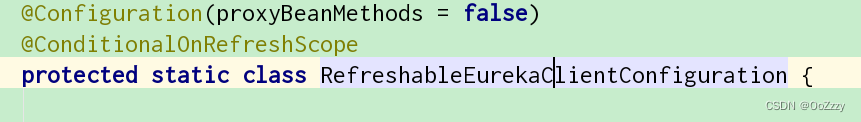

2.1 RefreshableEurekaClientConfiguration

RefreshableEurekaClientConfiguration()

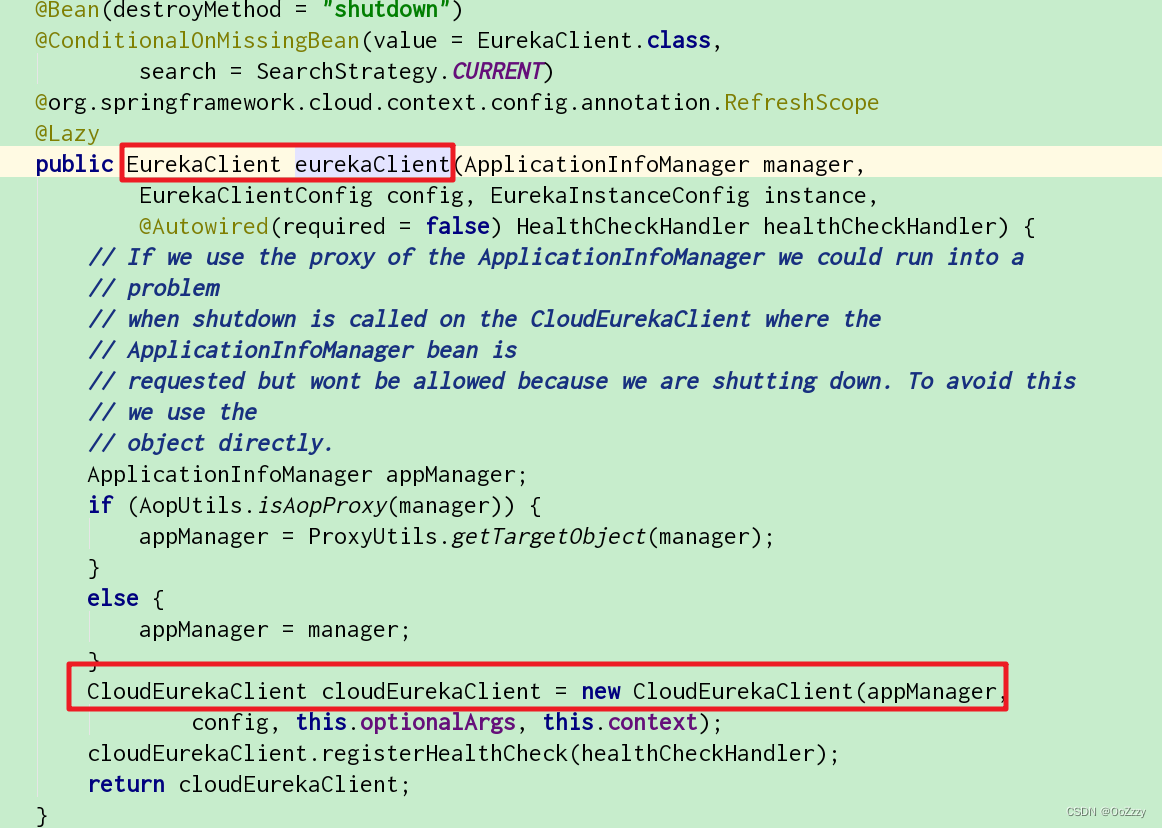

2.2 EurekaClient

eurekaClient() -> CloudEurekaClient cloudEurekaClient = new CloudEurekaClient()

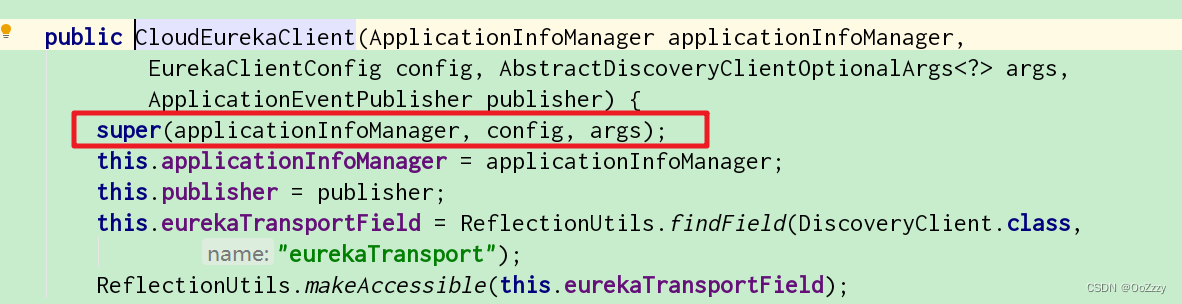

2.3 CloudEurekaClient

2.4 DiscoveryClient

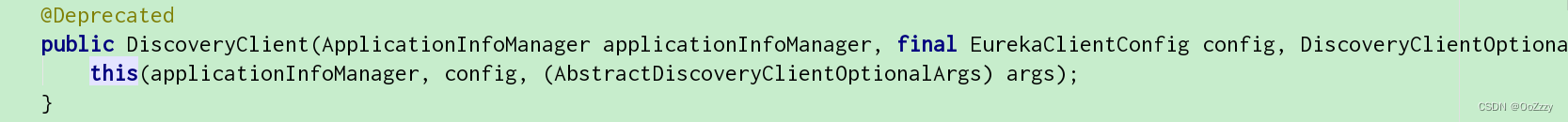

4个参数:

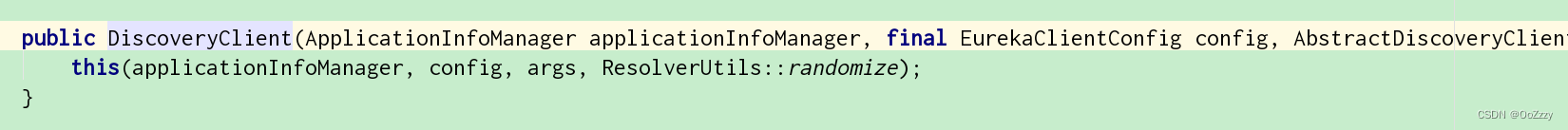

3个参数:

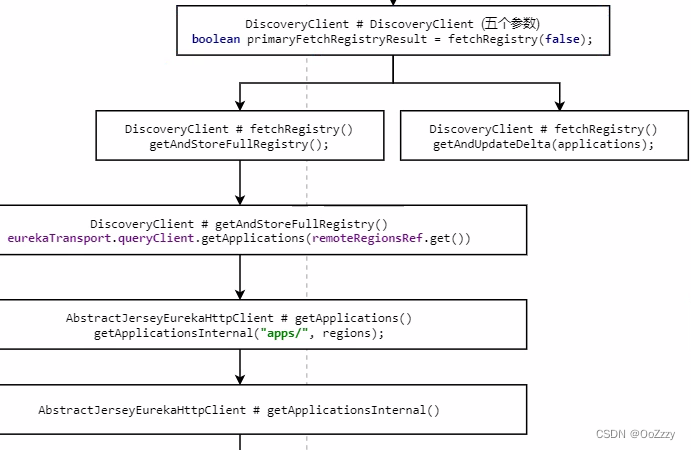

3.从服务端获取注册表

5参数中间的方法:

    private boolean fetchRegistry(boolean forceFullRegistryFetch) {
        Stopwatch tracer = FETCH_REGISTRY_TIMER.start();

        try {
            // If the delta is disabled or if it is the first time, get all
            // applications
            Applications applications = getApplications();

            if (clientConfig.shouldDisableDelta()
                    || (!Strings.isNullOrEmpty(clientConfig.getRegistryRefreshSingleVipAddress()))
                    || forceFullRegistryFetch
                    || (applications == null)
                    || (applications.getRegisteredApplications().size() == 0)
                    || (applications.getVersion() == -1)) //Client application does not have latest library supporting delta
            {
                logger.info("Disable delta property : {}", clientConfig.shouldDisableDelta());
                logger.info("Single vip registry refresh property : {}", clientConfig.getRegistryRefreshSingleVipAddress());
                logger.info("Force full registry fetch : {}", forceFullRegistryFetch);
                logger.info("Application is null : {}", (applications == null));
                logger.info("Registered Applications size is zero : {}",
                        (applications.getRegisteredApplications().size() == 0));
                logger.info("Application version is -1: {}", (applications.getVersion() == -1));
                getAndStoreFullRegistry();
            } else {
                getAndUpdateDelta(applications);
            }
            applications.setAppsHashCode(applications.getReconcileHashCode());
            logTotalInstances();
        } catch (Throwable e) {
            logger.error(PREFIX + "{} - was unable to refresh its cache! status = {}", appPathIdentifier, e.getMessage(), e);
            return false;
        } finally {
            if (tracer != null) {
                tracer.stop();
            }
        }

        // Notify about cache refresh before updating the instance remote status
        onCacheRefreshed();

        // Update remote status based on refreshed data held in the cache
        updateInstanceRemoteStatus();

        // registry was fetched successfully, so return true
        return true;
    }

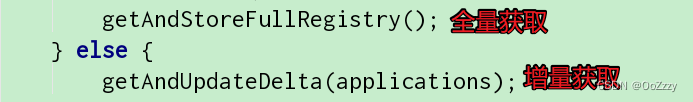

第一次获取为全量获取, 后面都是增量获取。
全量获取的都放在本地Region中, 增量获取分本地Region和远程Region两种。

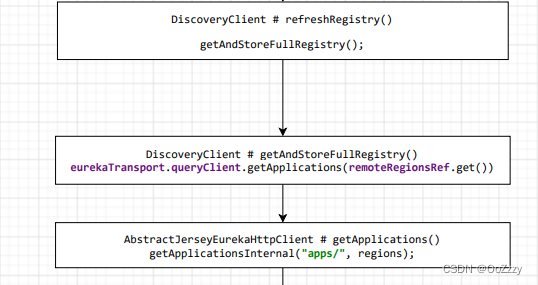

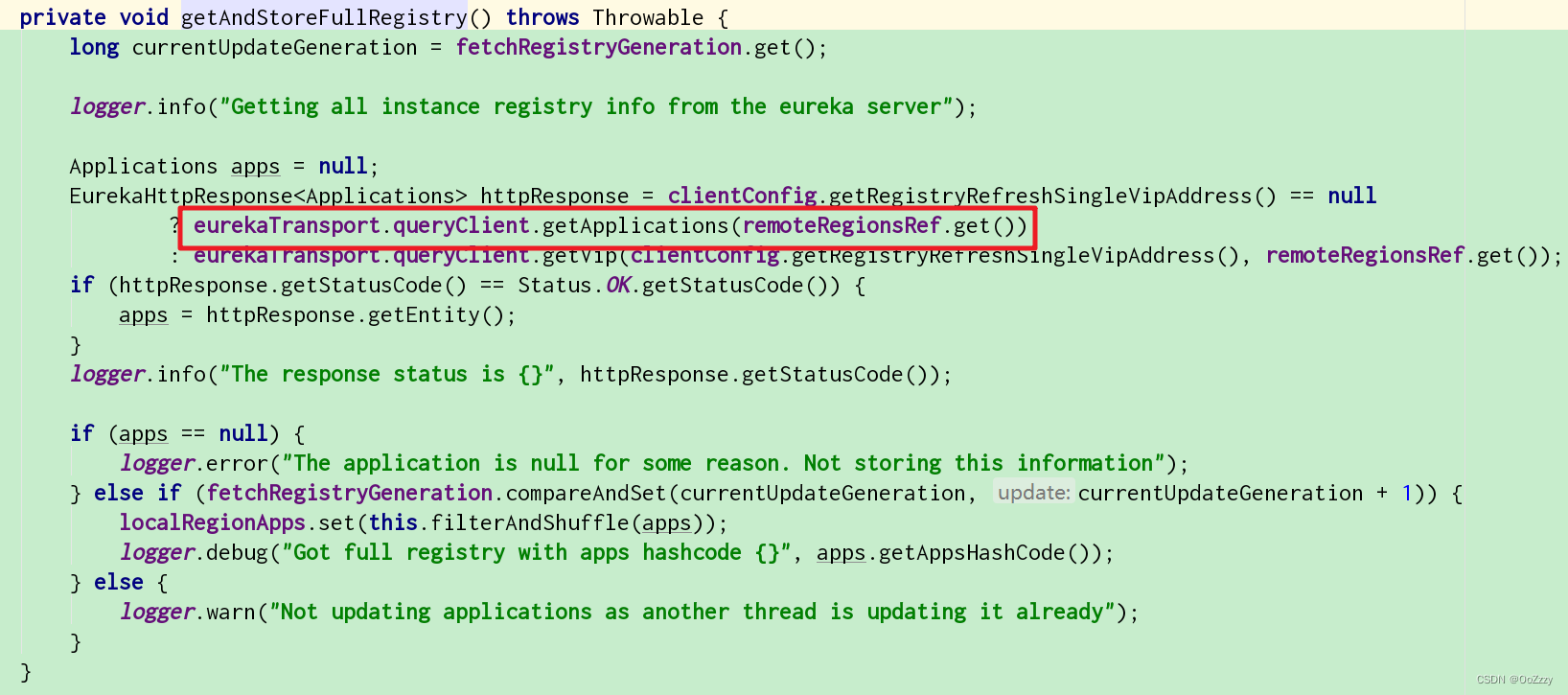

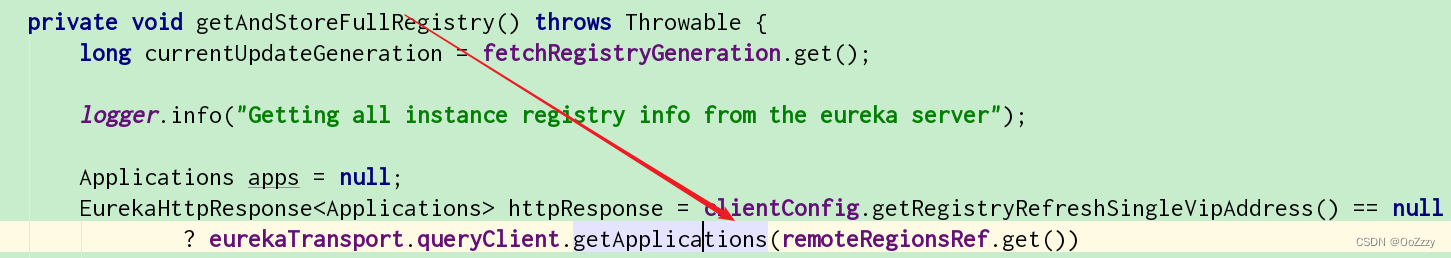

3.1 全量获取

这里是一个判断: 如果得到的VIP用户全量为空的话获取全量, 如果不为空的话获取VIP全量

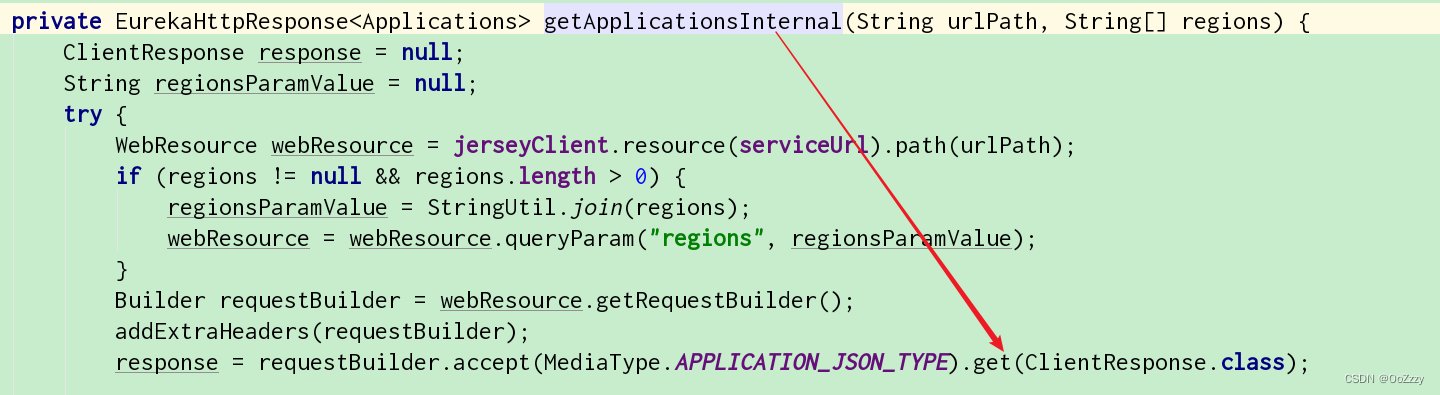

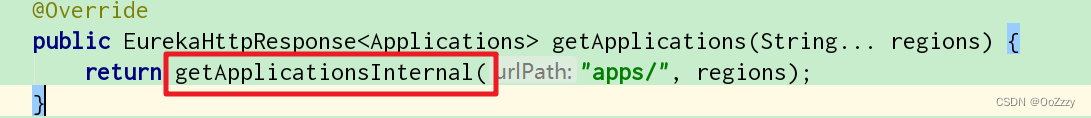

AbstractJerseyEurekaHttpClient.getApplications():

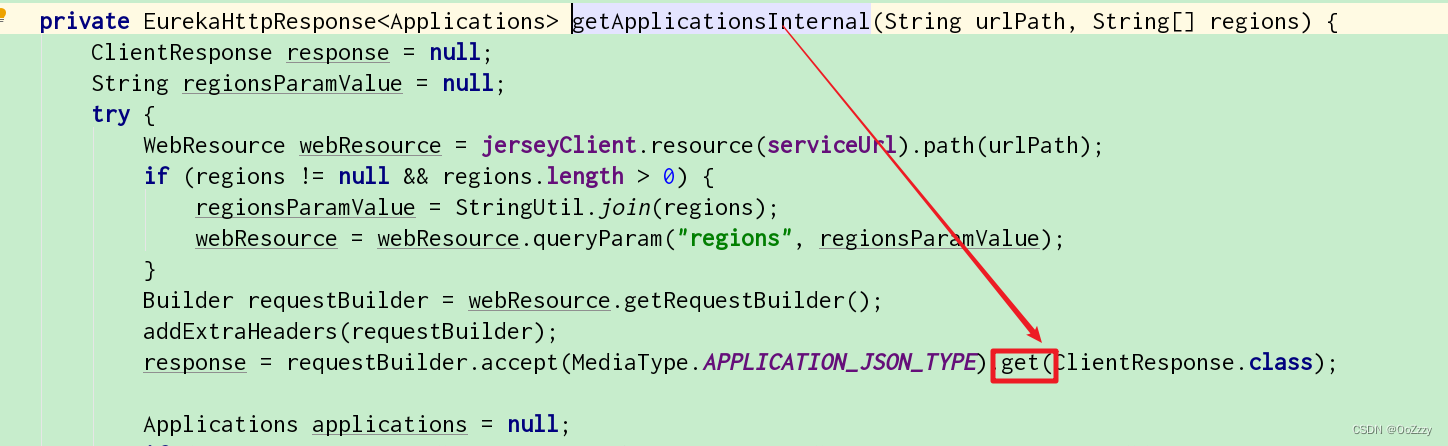

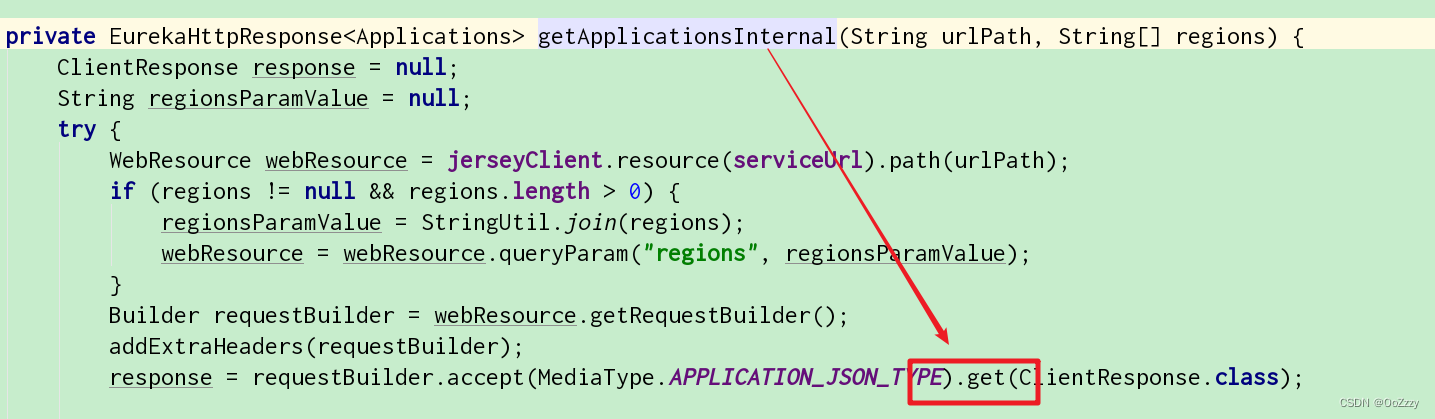

最后发送的是get请求, 获取到注册表

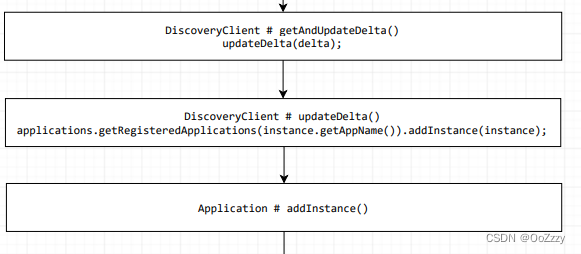

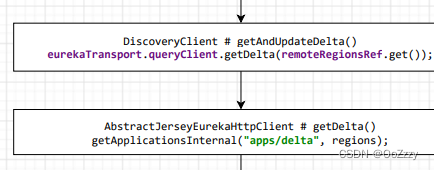

3.2 增量获取

1. getDelta(): 获取注册表

2. getAndStoreFullRegistry: 如果之前获取的注册表为空的话, 进行全量获取。

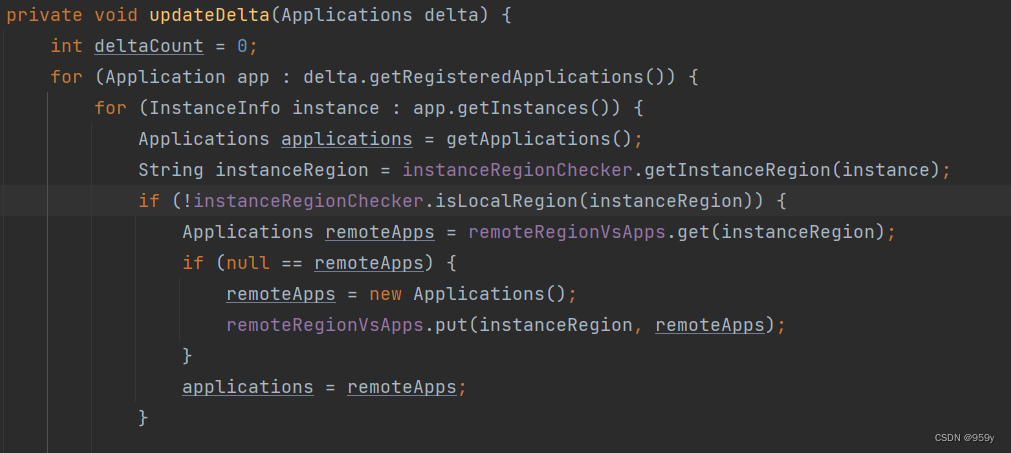

3. updateDelta(): 从Server获取所有变更的信息到本地缓存, 这些信息为两类Region, 本地Region和远程Region, 本地Region分为两类, 缓存本地Region的applications与缓存所有远程Region的注册信息的map(key为远程Region, value为远程Region的注册表)。

远程Region的获取

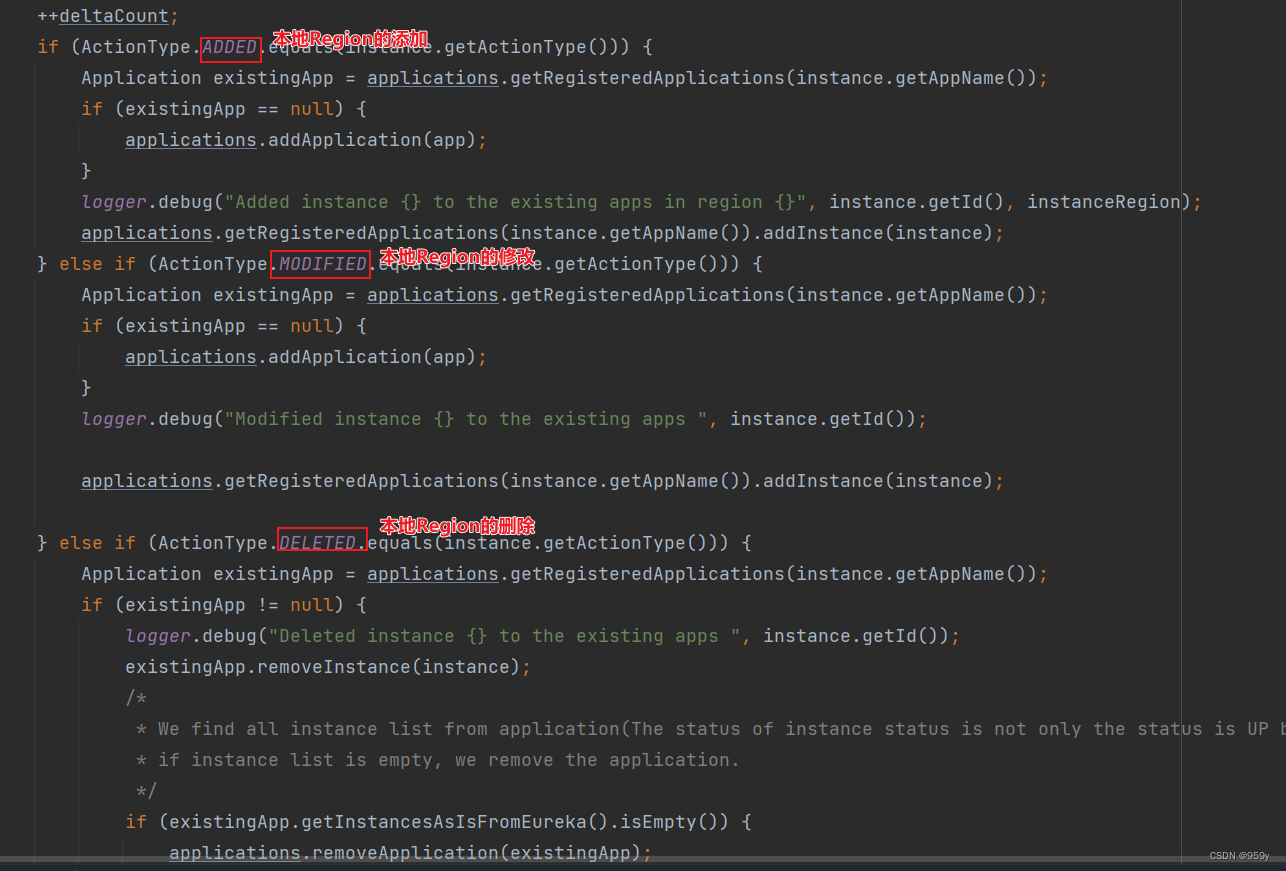

本地Region: 分为添加修改和删除

通过instanceInfo中的instance的id完成添加和修改功能。

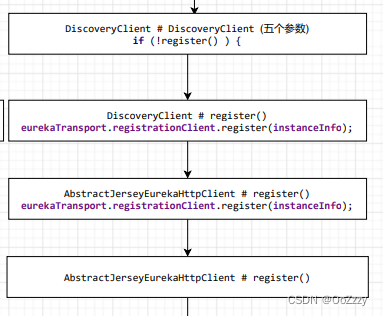

4.注册信息

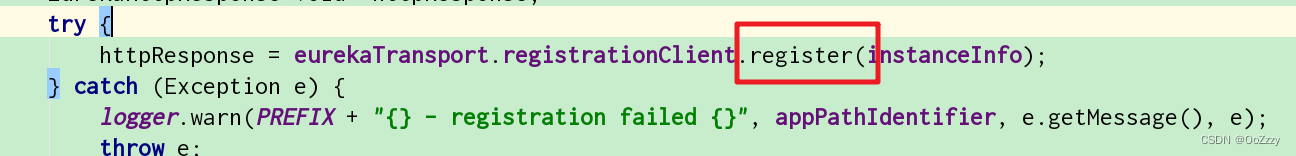

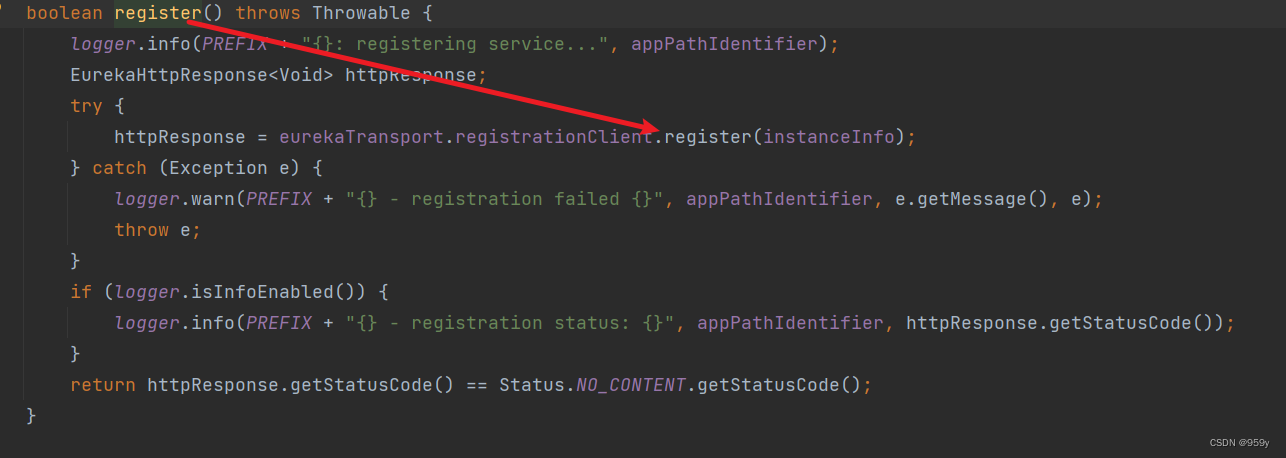

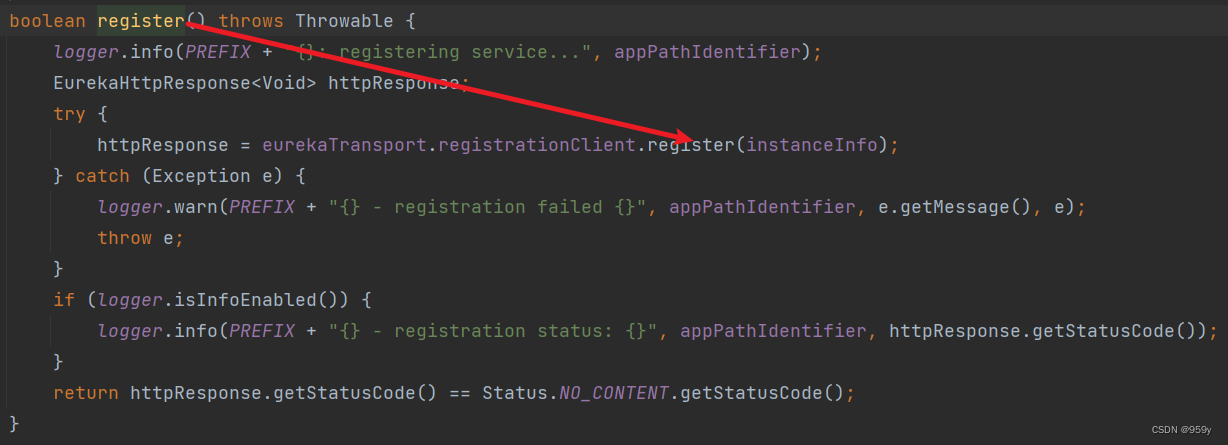

DiscoveryClient -> registry()

    boolean register() throws Throwable {
        logger.info(PREFIX + "{}: registering service...", appPathIdentifier);
        EurekaHttpResponse<Void> httpResponse;
        try {
            httpResponse = eurekaTransport.registrationClient.register(instanceInfo);
        } catch (Exception e) {
            logger.warn(PREFIX + "{} - registration failed {}", appPathIdentifier, e.getMessage(), e);
            throw e;
        }
        if (logger.isInfoEnabled()) {
            logger.info(PREFIX + "{} - registration status: {}", appPathIdentifier, httpResponse.getStatusCode());
        }
        return httpResponse.getStatusCode() == Status.NO_CONTENT.getStatusCode();
    }

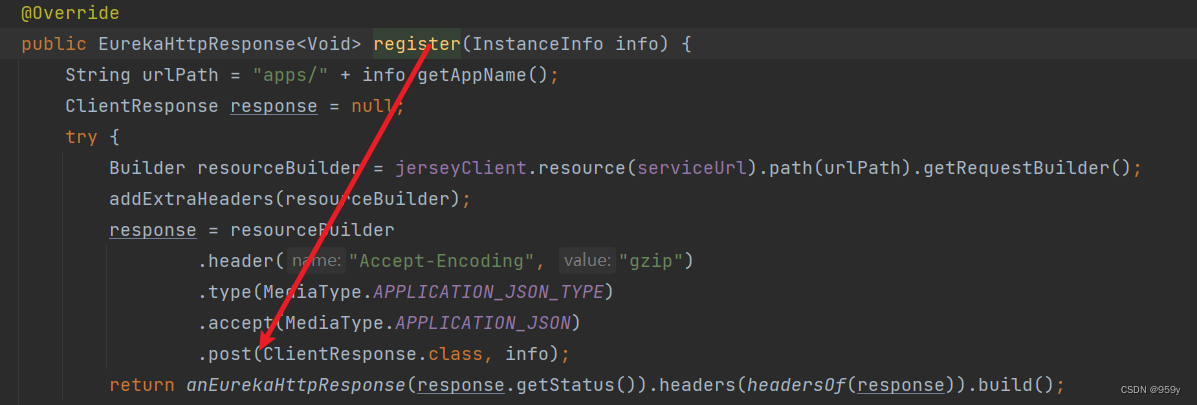

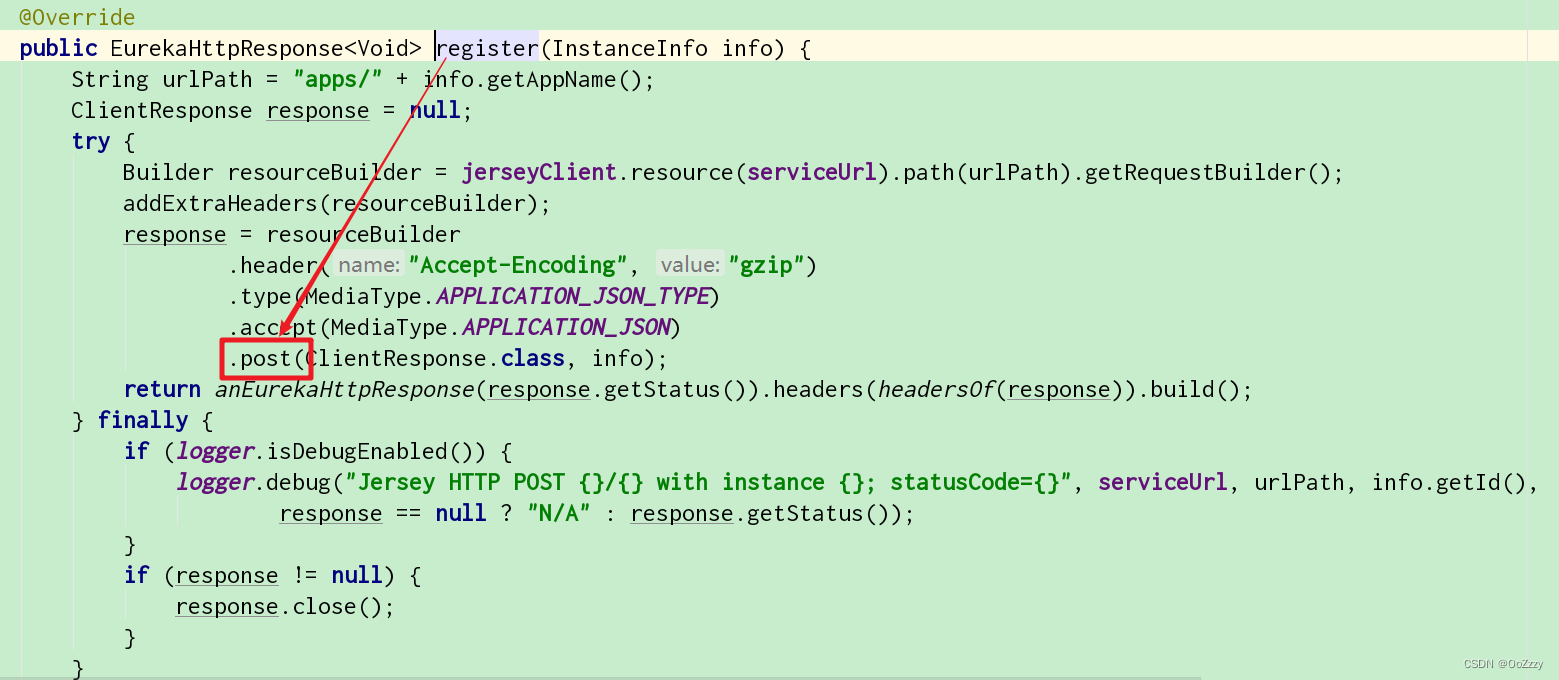

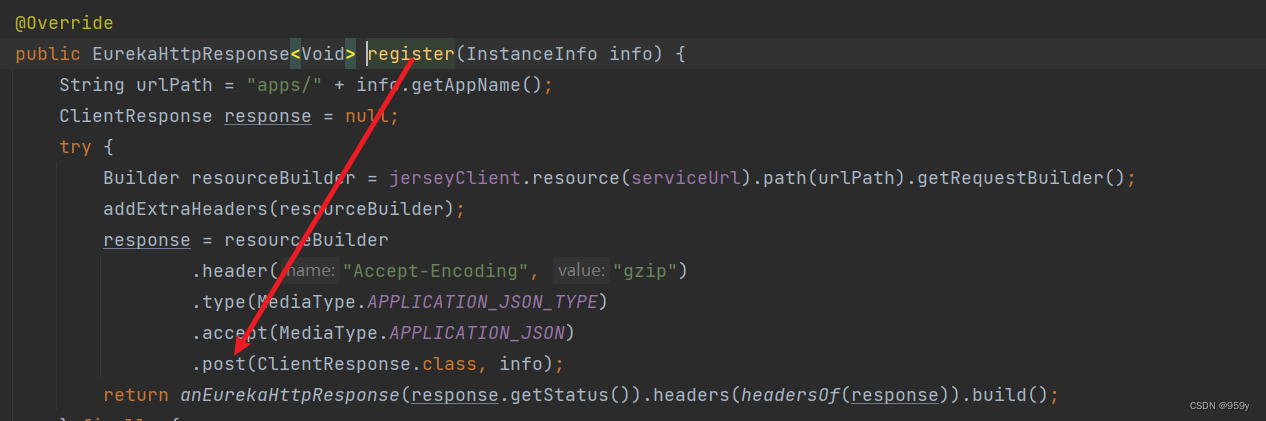

发送post请求

5.initScheduledTasks

• 定时更新客户端注册表
• 定时续约
• 定时更新客户端信息

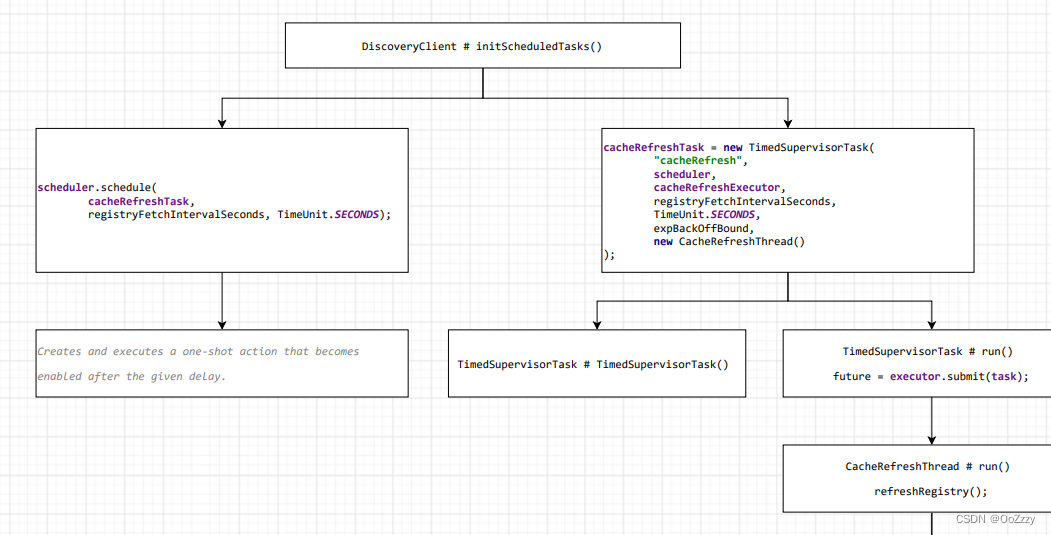

5.1 定时更新客户端注册表

        if (clientConfig.shouldFetchRegistry()) {
            // registry cache refresh timer
            int registryFetchIntervalSeconds = clientConfig.getRegistryFetchIntervalSeconds();
            int expBackOffBound = clientConfig.getCacheRefreshExecutorExponentialBackOffBound();
            scheduler.schedule(
                    new TimedSupervisorTask(
                            "cacheRefresh",
                            scheduler,
                            cacheRefreshExecutor,
                            registryFetchIntervalSeconds,
                            TimeUnit.SECONDS,
                            expBackOffBound,
                            new CacheRefreshThread()
                    ),
                    registryFetchIntervalSeconds, TimeUnit.SECONDS);
        }

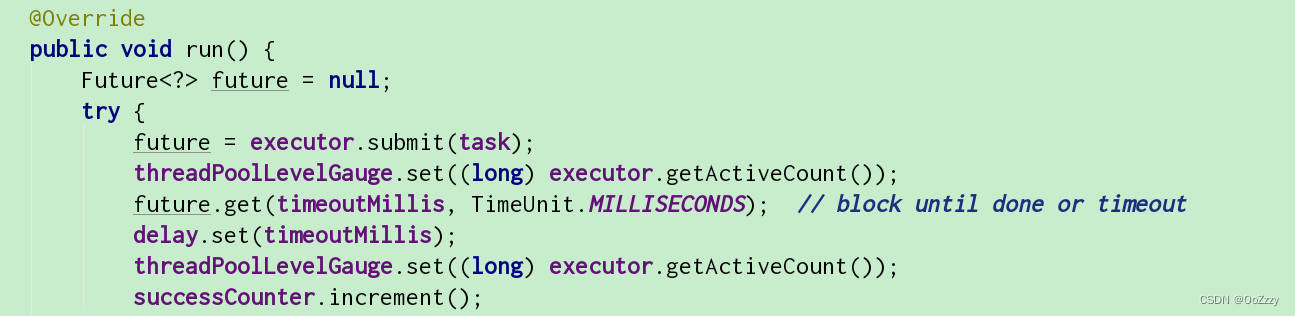

TimedSupervisorTask.class

本来任务只执行一次, 但是通过异步的执行任务多次

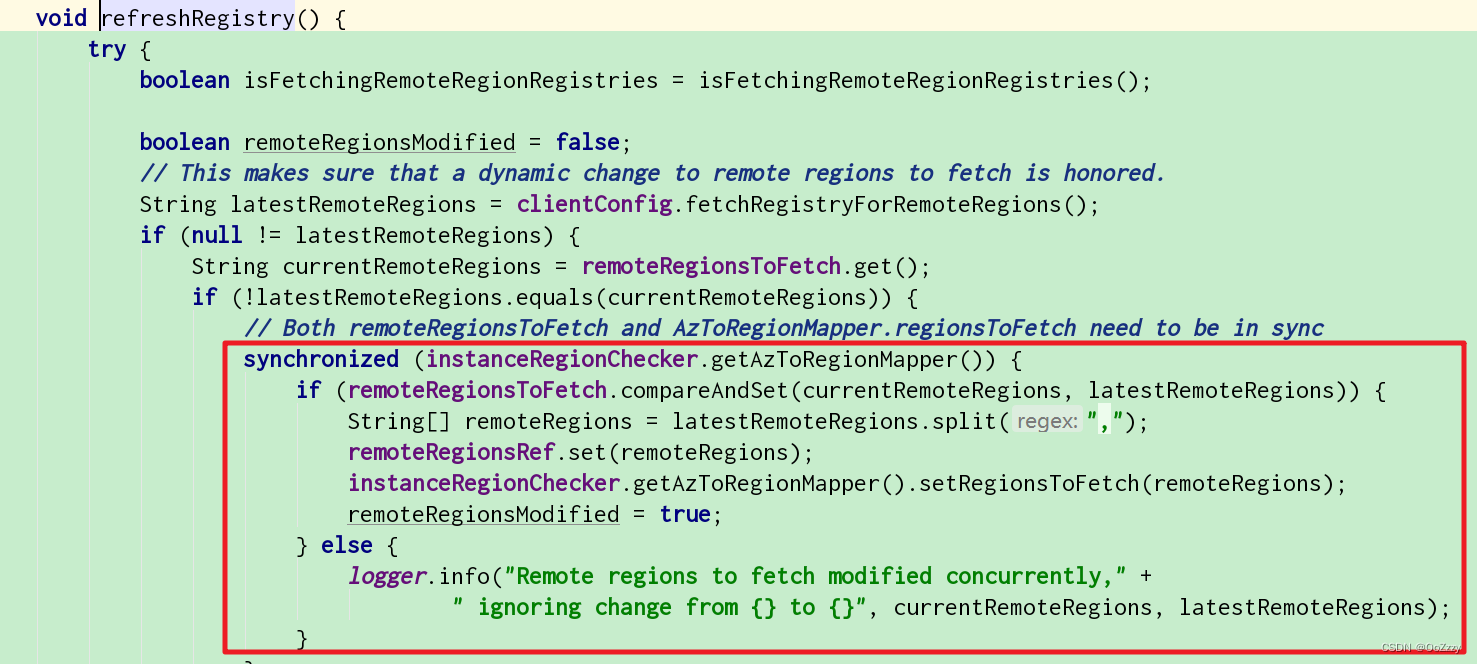

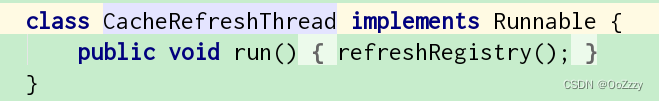

CacheRefreshThread.class

这里加了锁, 因为这是共享数据, 为迭代稳定性代码。

如果是全量注册的话:同上

如果是增强注册的话:同上

5.2 定时续约

            int renewalIntervalInSecs = instanceInfo.getLeaseInfo().getRenewalIntervalInSecs();
            int expBackOffBound = clientConfig.getHeartbeatExecutorExponentialBackOffBound();
            logger.info("Starting heartbeat executor: " + "renew interval is: {}", renewalIntervalInSecs);

            // Heartbeat timer
            scheduler.schedule(
                    new TimedSupervisorTask(
                            "heartbeat",
                            scheduler,
                            heartbeatExecutor,
                            renewalIntervalInSecs,
                            TimeUnit.SECONDS,
                            expBackOffBound,
                            new HeartbeatThread()
                    ),
                    renewalIntervalInSecs, TimeUnit.SECONDS);

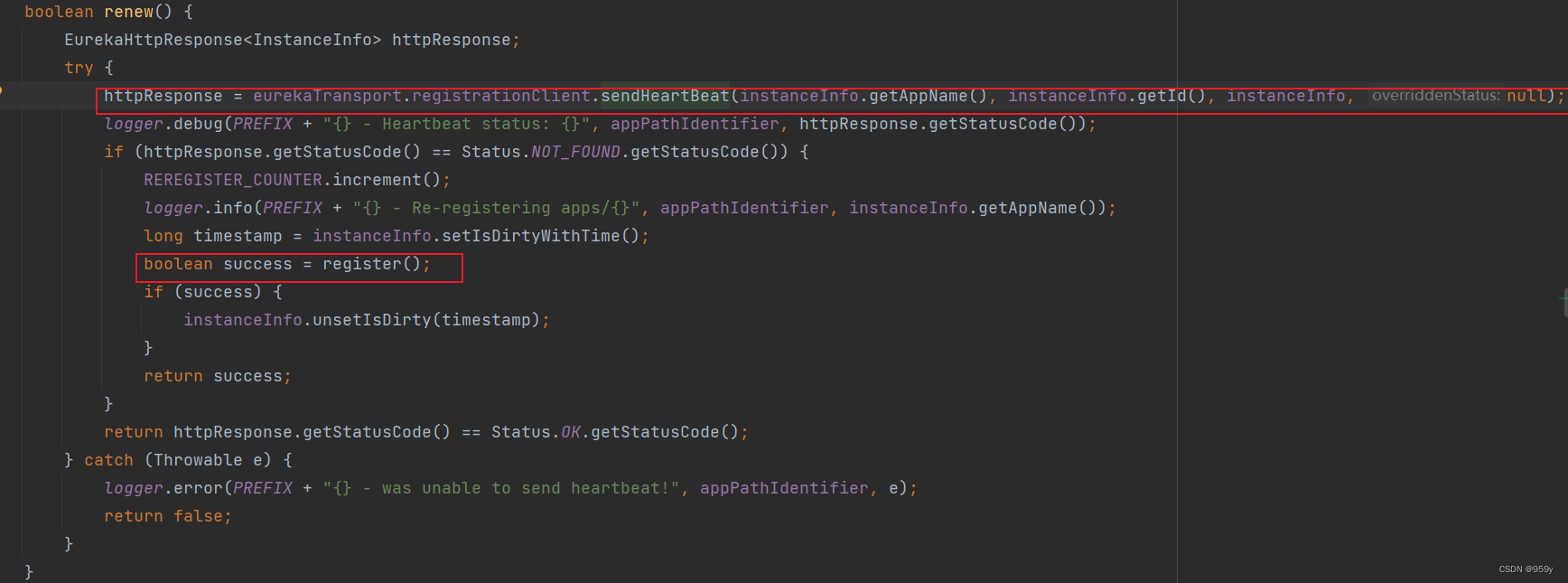

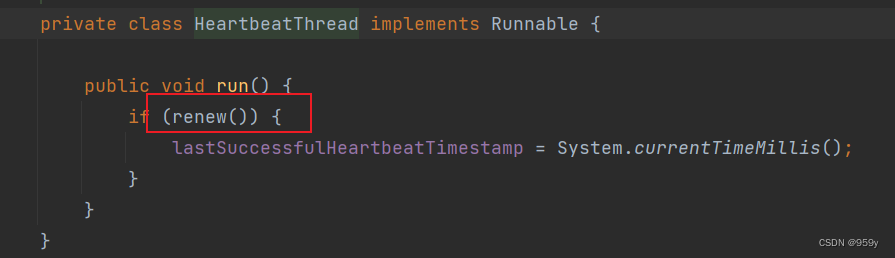

先续约, 如果没有完成续约的话进行注册

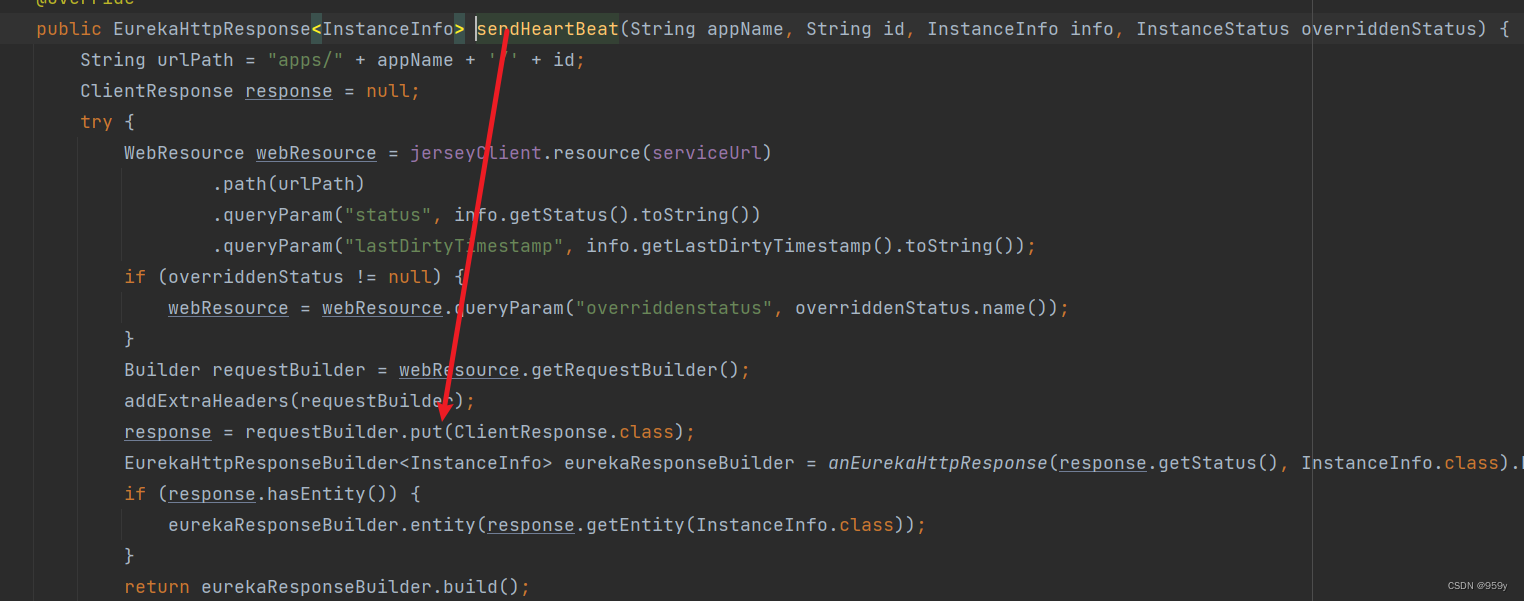

sendHeartBeat(): 完成心跳续约, 发生put请求, 存在的信息为status和lastDirtyTimestamp, lastDirtyTimestamp是在client端修改的时间戳。overriddenStatus是处理续约和注册请求时候, 需要在服务端的instanceInfo的status进行重新计算。

register(): 注册注册表

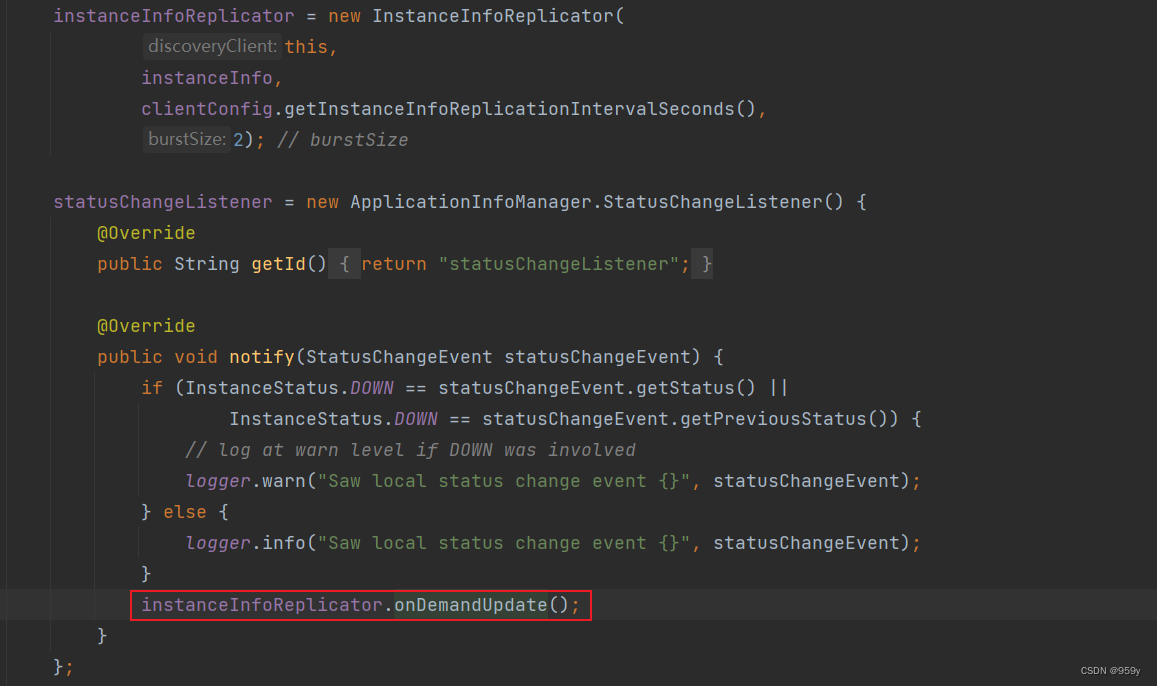

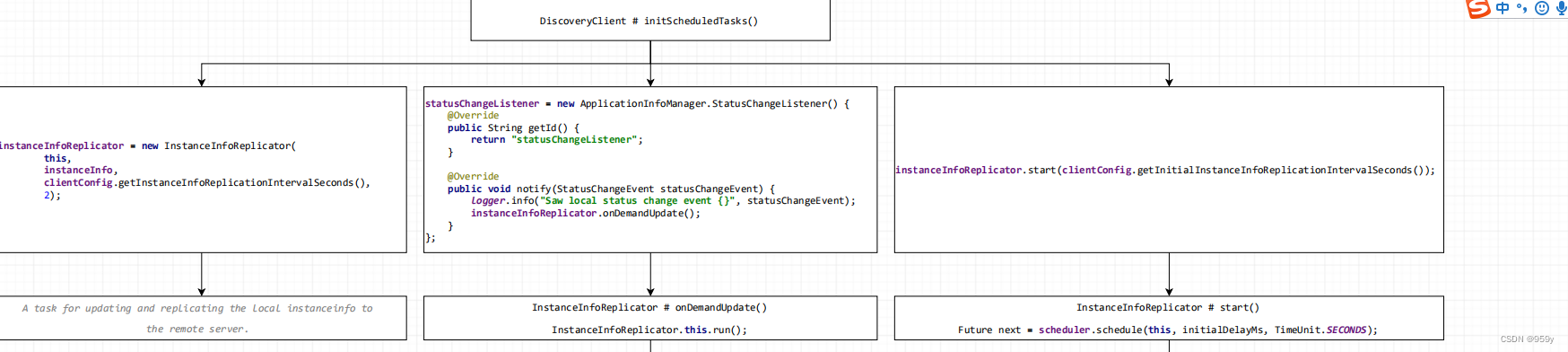

5.3 定时更新Client信息给Server

            instanceInfoReplicator = new InstanceInfoReplicator(
                    this,
                    instanceInfo,
                    clientConfig.getInstanceInfoReplicationIntervalSeconds(),
                    2); // burstSize

            statusChangeListener = new ApplicationInfoManager.StatusChangeListener() {
                @Override
                public String getId() {
                    return "statusChangeListener";
                }

                @Override
                public void notify(StatusChangeEvent statusChangeEvent) {
                    if (InstanceStatus.DOWN == statusChangeEvent.getStatus() ||
                            InstanceStatus.DOWN == statusChangeEvent.getPreviousStatus()) {
                        // log at warn level if DOWN was involved
                        logger.warn("Saw local status change event {}", statusChangeEvent);
                    } else {
                        logger.info("Saw local status change event {}", statusChangeEvent);
                    }
                    instanceInfoReplicator.onDemandUpdate();
                }
            };

            if (clientConfig.shouldOnDemandUpdateStatusChange()) {
                applicationInfoManager.registerStatusChangeListener(statusChangeListener);
            }

            instanceInfoReplicator.start(clientConfig.getInitialInstanceInfoReplicationIntervalSeconds());

1.instanceInfoReplicator: instanceInfo的备份的事件
2.statusChangeListener: 监听器
3.instanceInfoReplicator.start(clientConfig.getInitialInstanceInfoReplicationIntervalSeconds()): instanceInfo的备份的事件启动

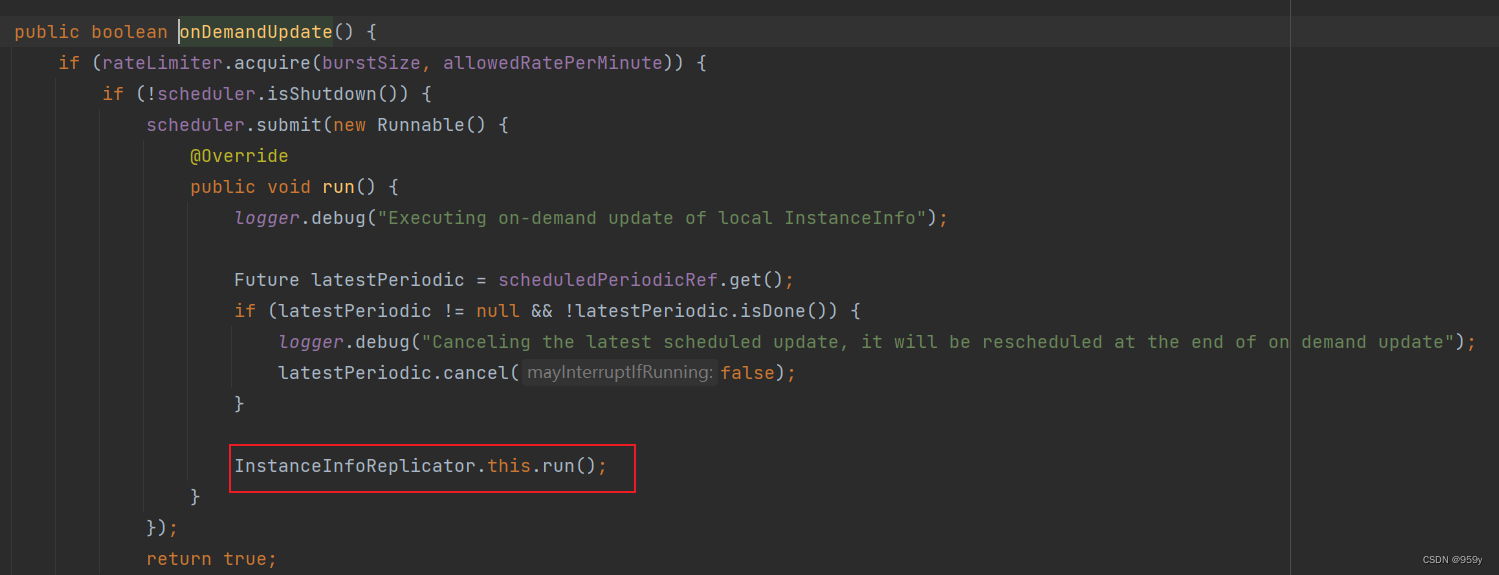

启动监听器的话, 调用instanceInfoReplicator.onDemandUpdate();中的InstanceInfoReplicator.this.run();方法, 按需修改客户端注册信息

    public void run() {
        try {
            discoveryClient.refreshInstanceInfo();

            Long dirtyTimestamp = instanceInfo.isDirtyWithTime();
            if (dirtyTimestamp != null) {
                discoveryClient.register();
                instanceInfo.unsetIsDirty(dirtyTimestamp);
            }
        } catch (Throwable t) {
            logger.warn("There was a problem with the instance info replicator", t);
        } finally {
            Future next = scheduler.schedule(this, replicationIntervalSeconds, TimeUnit.SECONDS);
            scheduledPeriodicRef.set(next);
        }
    }

因为存在cancel定时任务的操作, 所以不会出现多条线程去执行注册信息的修改, 多条线程是由于一个是定时更新一个是按需更新。

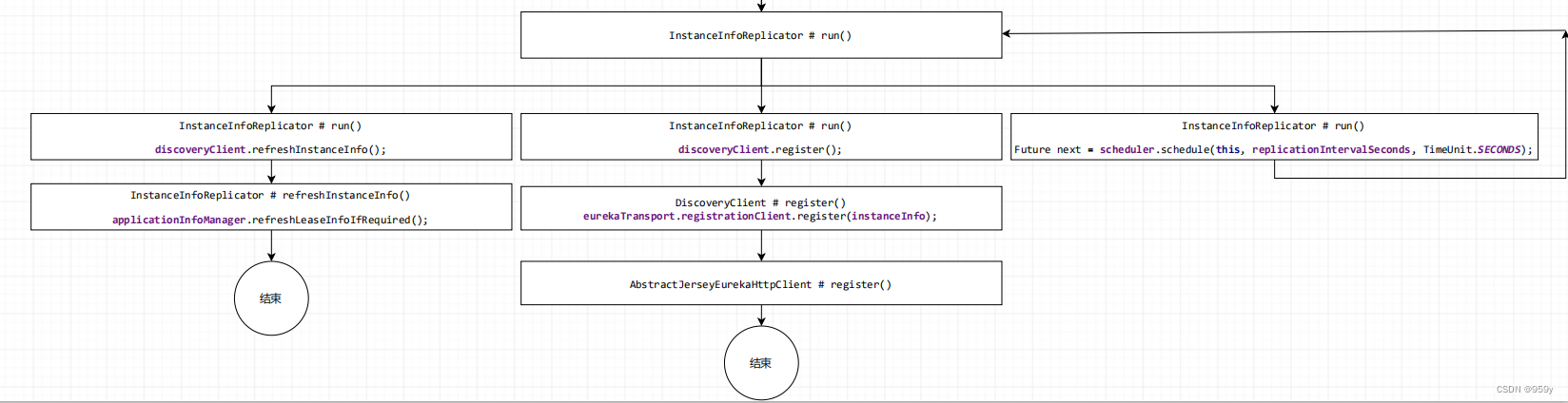

1.discoveryClient.refreshInstanceInfo();
2.discoveryClient.register();
3.Future next = scheduler.schedule(this, replicationIntervalSeconds, TimeUnit.SECONDS);

1.discoveryClient.refreshInstanceInfo();

2.discoveryClient.register();

3.Future next = scheduler.schedule(this, replicationIntervalSeconds, TimeUnit.SECONDS); 进行重复的上面的定时任务

Client提交注册的情况:

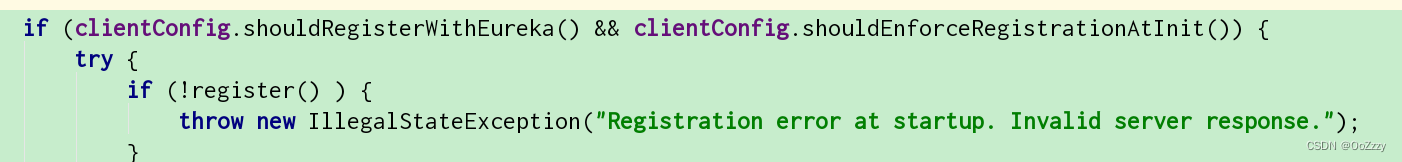

1. 应用启动时候直接register(), 需要提前配置配置文件
2. 续约renew时, server端返回的是NOT_FOUND, 则提交register()
3. 当Client的配置文件发生变更, 则提交register()
