概述

近日在开发项目时使用到wifi，3/4G通讯。由于行业问题，当连接服务器时需要对服务器，客户端做双向认证。

在行业内，设备需要进行PCI认证，所有的通讯必须进行加密，连接服务器必须支持双向认证，以保证连接的服务器是安全的，保证客户端设备是授权的。

测试准备

操作工具：OPENSSL 可自行下载安装。

客户端证书，以及客户端私钥。

测试过程

以下过程我们以： www.baidu.com 为服务器，测试客户端。

openssl版本信息

C:UsersRisten>openssl version
OpenSSL 1.1.1d 10 Sep 2019

openssl测试指令

openssl s_client -host www.baidu.com -port 443 -msg -state -showcerts -tls1_2

关于openssl指令的具体参数，可参考openssl s_client 博文。或者使用指令： openssl s_client help 来查询。

服务器证书验证结果

---
Certificate chain
 0 s:C = CN, ST = beijing, L = beijing, OU = service operation department, O = "Beijing Baidu Netcom Science Technology Co., Ltd", CN = baidu.com
   i:C = BE, O = GlobalSign nv-sa, CN = GlobalSign Organization Validation CA - SHA256 - G2
-----BEGIN CERTIFICATE-----
MIIKLjCCCRagAwIBAgIMclh4Nm6fVugdQYhIMA0GCSqGSIb3DQEBCwUAMGYxCzAJ
BgNVBAYTAkJFMRkwFwYDVQQKExBHbG9iYWxTaWduIG52LXNhMTwwOgYDVQQDEzNH
bG9iYWxTaWduIE9yZ2FuaXphdGlvbiBWYWxpZGF0aW9uIENBIC0gU0hBMjU2IC0g
RzIwHhcNMjAwNDAyMDcwNDU4WhcNMjEwNzI2MDUzMTAyWjCBpzELMAkGA1UEBhMC
Q04xEDAOBgNVBAgTB2JlaWppbmcxEDAOBgNVBAcTB2JlaWppbmcxJTAjBgNVBAsT
HHNlcnZpY2Ugb3BlcmF0aW9uIGRlcGFydG1lbnQxOTA3BgNVBAoTMEJlaWppbmcg
QmFpZHUgTmV0Y29tIFNjaWVuY2UgVGVjaG5vbG9neSBDby4sIEx0ZDESMBAGA1UE
AxMJYmFpZHUuY29tMIIBIjANBgkqhkiG9w0BAQEFAAOCAQ8AMIIBCgKCAQEAwamw
rkca0lfrHRUfblyy5PgLINvqAN8p/6RriSZLnyMv7FewirhGQCp+vNxaRZdPrUEO
vCCGSwxdVSFH4jE8V6fsmUfrRw1y18gWVHXv00URD0vOYHpGXCh0ro4bvthwZnuo
k0ko0qN2lFXefCfyD/eYDK2G2sau/Z/w2YEympfjIe4EkpbkeBHlxBAOEDF6Speg
68ebxNqJN6nDN9dWsX9Sx9kmCtavOBaxbftzebFoeQOQ64h7jEiRmFGlB5SGpXhG
eY9Ym+k1Wafxe1cxCpDPJM4NJOeSsmrp5pY3Crh8hy900lzoSwpfZhinQYbPJqYI
jqVJF5JTs5Glz1OwMQIDAQABo4IGmDCCBpQwDgYDVR0PAQH/BAQDAgWgMIGgBggr
BgEFBQcBAQSBkzCBkDBNBggrBgEFBQcwAoZBaHR0cDovL3NlY3VyZS5nbG9iYWxz
aWduLmNvbS9jYWNlcnQvZ3Nvcmdhbml6YXRpb252YWxzaGEyZzJyMS5jcnQwPwYI
KwYBBQUHMAGGM2h0dHA6Ly9vY3NwMi5nbG9iYWxzaWduLmNvbS9nc29yZ2FuaXph
dGlvbnZhbHNoYTJnMjBWBgNVHSAETzBNMEEGCSsGAQQBoDIBFDA0MDIGCCsGAQUF
BwIBFiZodHRwczovL3d3dy5nbG9iYWxzaWduLmNvbS9yZXBvc2l0b3J5LzAIBgZn
gQwBAgIwCQYDVR0TBAIwADBJBgNVHR8EQjBAMD6gPKA6hjhodHRwOi8vY3JsLmds
b2JhbHNpZ24uY29tL2dzL2dzb3JnYW5pemF0aW9udmFsc2hhMmcyLmNybDCCA04G
A1UdEQSCA0UwggNBggliYWlkdS5jb22CDGJhaWZ1YmFvLmNvbYIMd3d3LmJhaWR1
LmNughB3d3cuYmFpZHUuY29tLmNugg9tY3QueS5udW9taS5jb22CC2Fwb2xsby5h
dXRvggZkd3ouY26CCyouYmFpZHUuY29tgg4qLmJhaWZ1YmFvLmNvbYIRKi5iYWlk
dXN0YXRpYy5jb22CDiouYmRzdGF0aWMuY29tggsqLmJkaW1nLmNvbYIMKi5oYW8x
MjMuY29tggsqLm51b21pLmNvbYINKi5jaHVhbmtlLmNvbYINKi50cnVzdGdvLmNv
bYIPKi5iY2UuYmFpZHUuY29tghAqLmV5dW4uYmFpZHUuY29tgg8qLm1hcC5iYWlk
dS5jb22CDyoubWJkLmJhaWR1LmNvbYIRKi5mYW55aS5iYWlkdS5jb22CDiouYmFp
ZHViY2UuY29tggwqLm1pcGNkbi5jb22CECoubmV3cy5iYWlkdS5jb22CDiouYmFp
ZHVwY3MuY29tggwqLmFpcGFnZS5jb22CCyouYWlwYWdlLmNugg0qLmJjZWhvc3Qu
Y29tghAqLnNhZmUuYmFpZHUuY29tgg4qLmltLmJhaWR1LmNvbYISKi5iYWlkdWNv
bnRlbnQuY29tggsqLmRsbmVsLmNvbYILKi5kbG5lbC5vcmeCEiouZHVlcm9zLmJh
aWR1LmNvbYIOKi5zdS5iYWlkdS5jb22CCCouOTEuY29tghIqLmhhbzEyMy5iYWlk
dS5jb22CDSouYXBvbGxvLmF1dG+CEioueHVlc2h1LmJhaWR1LmNvbYIRKi5iai5i
YWlkdWJjZS5jb22CESouZ3ouYmFpZHViY2UuY29tgg4qLnNtYXJ0YXBwcy5jboIN
Ki5iZHRqcmN2LmNvbYIMKi5oYW8yMjIuY29tggwqLmhhb2thbi5jb22CDyoucGFl
LmJhaWR1LmNvbYIRKi52ZC5iZHN0YXRpYy5jb22CEmNsaWNrLmhtLmJhaWR1LmNv
bYIQbG9nLmhtLmJhaWR1LmNvbYIQY20ucG9zLmJhaWR1LmNvbYIQd24ucG9zLmJh
aWR1LmNvbYIUdXBkYXRlLnBhbi5iYWlkdS5jb20wHQYDVR0lBBYwFAYIKwYBBQUH
AwEGCCsGAQUFBwMCMB8GA1UdIwQYMBaAFJbeYfG9HBYpUxzAzH07gwBA5hp8MB0G
A1UdDgQWBBSeyXnX6VurihbMMo7GmeafIEI1hzCCAX4GCisGAQQB1nkCBAIEggFu
BIIBagFoAHYAXNxDkv7mq0VEsV6a1FbmEDf71fpH3KFzlLJe5vbHDsoAAAFxObU8
ugAABAMARzBFAiBphmgxIbNZXaPWiUqXRWYLaRST38KecoekKIof5fXmsgIhAMkZ
tF8XyKCu/nZll1e9vIlKbW8RrUr/74HpmScVRRsBAHYAb1N2rDHwMRnYmQCkURX/
dxUcEdkCwQApBo2yCJo32RMAAAFxObU85AAABAMARzBFAiBURWwwTgXZ+9IV3mhm
E0EOzbg901DLRszbLIpafDY/XgIhALsvEGqbBVrpGxhKoTVlz7+GWom8SrfUeHcn
4+9Dn7xGAHYA9lyUL9F3MCIUVBgIMJRWjuNNExkzv98MLyALzE7xZOMAAAFxObU8
qwAABAMARzBFAiBFBYPxKEdhlf6bqbwxQY7tskgdoFulPxPmdrzS5tNpPwIhAKnK
qwzch98lINQYzLAV52+C8GXZPXFZNfhfpM4tQ6xbMA0GCSqGSIb3DQEBCwUAA4IB
AQC83ALQ2d6MxeLZ/k3vutEiizRCWYSSMYLVCrxANdsGshNuyM8B8V/A57c0Nzqo
CPKfMtX5IICfv9P/bUecdtHL8cfx24MzN+U/GKcA4r3a/k8pRVeHeF9ThQ2zo1xj
k/7gJl75koztdqNfOeYiBTbFMnPQzVGqyMMfqKxbJrfZlGAIgYHT9bd6T985IVgz
tRVjAoy4IurZenTsWkG7PafJ4kAh6jQaSu1zYEbHljuZ5PXlkhPO9DwW1WIPug6Z
rlylLTTYmlW3WETOATi70HYsZN6NACuZ4t1hEO3AsF7lqjdA2HwTN10FX2HuaUvf
5OzP+PKupV9VKw8x8mQKU6vr
-----END CERTIFICATE-----
 1 s:C = BE, O = GlobalSign nv-sa, CN = GlobalSign Organization Validation CA - SHA256 - G2
   i:C = BE, O = GlobalSign nv-sa, OU = Root CA, CN = GlobalSign Root CA
-----BEGIN CERTIFICATE-----
MIIEaTCCA1GgAwIBAgILBAAAAAABRE7wQkcwDQYJKoZIhvcNAQELBQAwVzELMAkG
A1UEBhMCQkUxGTAXBgNVBAoTEEdsb2JhbFNpZ24gbnYtc2ExEDAOBgNVBAsTB1Jv
b3QgQ0ExGzAZBgNVBAMTEkdsb2JhbFNpZ24gUm9vdCBDQTAeFw0xNDAyMjAxMDAw
MDBaFw0yNDAyMjAxMDAwMDBaMGYxCzAJBgNVBAYTAkJFMRkwFwYDVQQKExBHbG9i
YWxTaWduIG52LXNhMTwwOgYDVQQDEzNHbG9iYWxTaWduIE9yZ2FuaXphdGlvbiBW
YWxpZGF0aW9uIENBIC0gU0hBMjU2IC0gRzIwggEiMA0GCSqGSIb3DQEBAQUAA4IB
DwAwggEKAoIBAQDHDmw/I5N/zHClnSDDDlM/fsBOwphJykfVI+8DNIV0yKMCLkZc
C33JiJ1Pi/D4nGyMVTXbv/Kz6vvjVudKRtkTIso21ZvBqOOWQ5PyDLzm+ebomchj
SHh/VzZpGhkdWtHUfcKc1H/hgBKueuqI6lfYygoKOhJJomIZeg0k9zfrtHOSewUj
mxK1zusp36QUArkBpdSmnENkiN74fv7j9R7l/tyjqORmMdlMJekYuYlZCa7pnRxt
Nw9KHjUgKOKv1CGLAcRFrW4rY6uSa2EKTSDtc7p8zv4WtdufgPDWi2zZCHlKT3hl
2pK8vjX5s8T5J4BO/5ZS5gIg4Qdz6V0rvbLxAgMBAAGjggElMIIBITAOBgNVHQ8B
Af8EBAMCAQYwEgYDVR0TAQH/BAgwBgEB/wIBADAdBgNVHQ4EFgQUlt5h8b0cFilT
HMDMfTuDAEDmGnwwRwYDVR0gBEAwPjA8BgRVHSAAMDQwMgYIKwYBBQUHAgEWJmh0
dHBzOi8vd3d3Lmdsb2JhbHNpZ24uY29tL3JlcG9zaXRvcnkvMDMGA1UdHwQsMCow
KKAmoCSGImh0dHA6Ly9jcmwuZ2xvYmFsc2lnbi5uZXQvcm9vdC5jcmwwPQYIKwYB
BQUHAQEEMTAvMC0GCCsGAQUFBzABhiFodHRwOi8vb2NzcC5nbG9iYWxzaWduLmNv
bS9yb290cjEwHwYDVR0jBBgwFoAUYHtmGkUNl8qJUC99BM00qP/8/UswDQYJKoZI
hvcNAQELBQADggEBAEYq7l69rgFgNzERhnF0tkZJyBAW/i9iIxerH4f4gu3K3w4s
32R1juUYcqeMOovJrKV3UPfvnqTgoI8UV6MqX+x+bRDmuo2wCId2Dkyy2VG7EQLy
XN0cvfNVlg/UBsD84iOKJHDTu/B5GqdhcIOKrwbFINihY9Bsrk8y1658GEV1BSl3
30JAZGSGvip2CTFvHST0mdCF/vIhCPnG9vHQWe3WVjwIKANnuvD58ZAWR65n5ryA
SOlCdjSXVWkkDoPWoC209fN5ikkodBpBocLTJIg1MGCUF7ThBCIxPTsvFwayuJ2G
K1pp74P1S8SqtCr4fKGxhZSM9AyHDPSsQPhZSZg=
-----END CERTIFICATE-----
---
Server certificate
subject=C = CN, ST = beijing, L = beijing, OU = service operation department, O = "Beijing Baidu Netcom Science Technology Co., Ltd", CN = baidu.com

issuer=C = BE, O = GlobalSign nv-sa, CN = GlobalSign Organization Validation CA - SHA256 - G2

---

从证书验证结果看，百度的证书是由GOV签发的，证书使用的域名是：baidu.com。

验证签名时，发现百度证书由 GlobalSign Organization Validation 签发，验证时必须使用跟证书进行验证，以上过程中可以看到验证时使用了 root ca证书。

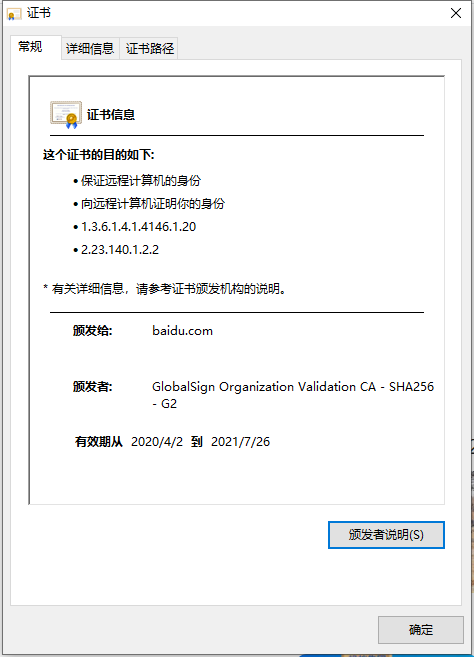

从百度网页上，也可以看到证书的具体内容，如下图片。

客户端验证情况

由于我们在连接百度时，没有添加客户端证书，所以会在操作中有以下显示

---
No client certificate CA names sent
Peer signing digest: SHA256
Peer signature type: RSA
Server Temp Key: ECDH, P-256, 256 bits
---
SSL handshake has read 4392 bytes and written 342 bytes
Verification error: unable to get local issuer certificate
---

服务器没有收到客户端证书信息，验证错误，无法确认客户端认证情况。

链接信息

虽然没有发送客户端证书，但是百度是允许在未验证客户端的情况下访问，以下是SSL连接信息

---
New, TLSv1.2, Cipher is ECDHE-RSA-AES128-GCM-SHA256
Server public key is 2048 bit
Secure Renegotiation IS supported
Compression: NONE
Expansion: NONE
No ALPN negotiated
SSL-Session:
    Protocol  : TLSv1.2
    Cipher    : ECDHE-RSA-AES128-GCM-SHA256
    Session-ID: C5D0FBFA580B18A9FC0641DAB9E23DA989D453E41551E5C9F4059287656E4FBD
    Session-ID-ctx:
    Master-Key: 8904C0BD0B950BF5EA8DF39498DD6A64E93991629FD1899B679441988ECBFD8F5BAEBE183C60A61CFBB577F0CC3111A5
    PSK identity: None
    PSK identity hint: None
    SRP username: None
    TLS session ticket:
    0000 - 02 88 8d 30 01 b3 19 af-6a ce 20 77 f3 15 9d 55   ...0....j. w...U
    0010 - 1c b9 6d 41 71 d3 8a b9-08 b0 86 46 f2 7d 7a a7   ..mAq......F.}z.
    0020 - 7b 11 79 4d e5 fd cd c5-fe 3c 4e da 09 e2 c4 17   {.yM.....<N.....
    0030 - 94 a6 86 25 47 fa 6b 02-e6 ba 86 f1 44 ef fd 41   ...%G.k.....D..A
    0040 - a4 b8 de 78 4a e4 89 39-6f 5a 28 b0 4a 86 83 48   ...xJ..9oZ(.J..H
    0050 - ce 3d 1b 52 3c 6c ea e4-02 23 a2 5e 3c df 0c 07   .=.R<l...#.^<...
    0060 - 3c 14 cc 1a 5d 50 ca a5-59 72 72 c6 1c 7f b9 10   <...]P..Yrr.....
    0070 - d1 f3 7e a1 ed 58 54 74-97 9e 9a 9b 5c 5c 41 91   ..~..XTt....\A.
    0080 - fb 57 26 bb 7f 29 c1 a1-e7 60 32 70 5b 80 4a 6e   .W&..)...`2p[.Jn
    0090 - f6 51 9c 1a 81 c7 cb 28-87 6d e4 f2 40 1d 0b f1   .Q.....(.m..@...

    Start Time: 1604644712
    Timeout   : 7200 (sec)
    Verify return code: 20 (unable to get local issuer certificate)
    Extended master secret: no
---

从信息中可以看到以下信息

服务器公钥： RSA 2048bit

协议： TLS1.2

加密方式：ECDHE-RSA-AES128-GCM-SHA256

从此之后，所有的通讯都是使用 ECDHE-RSA-AES128-GCM-SHA256 加密方式来解密通讯数据。通讯密钥，是在连接验证时随机生成并同步给对方的。

获取网站信息

关于SSL的认证到此就完成了，但是是否可以通讯我们需要进一步验证，从各网站都没有找到如何发送指令来进一步操作，以下是实操。

在OPSSL指令操作完之后，发现连接既不断开又不继续运行，此时等待发送指令。

GET / HTTP/1.0

发送指令后，会返回网站信息，通讯成功

GET / HTTP/1.0

HTTP/1.0 200 OK
Accept-Ranges: bytes
Cache-Control: no-cache
Content-Length: 14722
Content-Type: text/html
Date: Fri, 06 Nov 2020 07:07:33 GMT
P3p: CP=" OTI DSP COR IVA OUR IND COM "
P3p: CP=" OTI DSP COR IVA OUR IND COM "
Pragma: no-cache
Server: BWS/1.1
Set-Cookie: BAIDUID=C70A43ABE85FED0370841E5D9BB26F8F:FG=1; expires=Thu, 31-Dec-37 23:55:55 GMT; max-age=2147483647; path=/; domain=.baidu.com
Set-Cookie: BIDUPSID=C70A43ABE85FED0370841E5D9BB26F8F; expires=Thu, 31-Dec-37 23:55:55 GMT; max-age=2147483647; path=/; domain=.baidu.com
Set-Cookie: PSTM=1604646453; expires=Thu, 31-Dec-37 23:55:55 GMT; max-age=2147483647; path=/; domain=.baidu.com
Set-Cookie: BAIDUID=C70A43ABE85FED033330FEA77590E11B:FG=1; max-age=31536000; expires=Sat, 06-Nov-21 07:07:33 GMT; domain=.baidu.com; path=/; version=1; comment=bd
Traceid: 160464645324231866987921237759746760345
Vary: Accept-Encoding
X-Ua-Compatible: IE=Edge,chrome=1

<!DOCTYPE html><!--STATUS OK-->
<html>
<head>
        <meta http-equiv="content-type" content="text/html;charset=utf-8">
        <meta http-equiv="X-UA-Compatible" content="IE=Edge">
        <link rel="dns-prefetch" href="//s1.bdstatic.com"/>
        <link rel="dns-prefetch" href="//t1.baidu.com"/>
        <link rel="dns-prefetch" href="//t2.baidu.com"/>
        <link rel="dns-prefetch" href="//t3.baidu.com"/>
        <link rel="dns-prefetch" href="//t10.baidu.com"/>
        <link rel="dns-prefetch" href="//t11.baidu.com"/>
        <link rel="dns-prefetch" href="//t12.baidu.com"/>
        <link rel="dns-prefetch" href="//b1.bdstatic.com"/>
        <title>鐧惧害涓€涓嬶紝浣犲氨鐭ラ亾</title>
..............以下省略

closed

返回网站信息后，下面会出现closed，代表通讯完成，连接关闭。下次通讯的时候，重新连接（涉及到长连接和短链接，此处不讨论）。

至此，操作完成
