Java 利用jquery库cropper完成图片裁剪功能

功能描述：点击用户头像，弹出一个图片裁剪的modal，提交后，java后端保存裁剪后的图片，然后返回该图片url给前端显示。Cropper官网及下载
Cropper依赖于jquery、bootstrap。

1.Java核心图片裁剪工具类 ImageCut.java

package com.jykj.demo.util;

import java.io.*;
import java.awt.*;
import java.awt.image.*;
import java.awt.Graphics;
import java.awt.color.ColorSpace;
import javax.imageio.ImageIO;

public class ImageCut {

    /**
     * 图像切割（改）     *
     * @param srcImageFile            源图像地址
     * @param dirImageFile            新图像地址
     * @param x                       目标切片起点x坐标
     * @param y                      目标切片起点y坐标
     * @param destWidth              目标切片宽度
     * @param destHeight             目标切片高度
     */
    public static void abscut(String srcImageFile,String dirImageFile, int x, int y, int destWidth,
            int destHeight) {
        try {
            Image img;
            ImageFilter cropFilter;
            // 读取源图像
            BufferedImage bi = ImageIO.read(new File(srcImageFile));
            int srcWidth = bi.getWidth(); // 源图宽度
            int srcHeight = bi.getHeight(); // 源图高度
            if (srcWidth >= destWidth && srcHeight >= destHeight) {
                Image image = bi.getScaledInstance(srcWidth, srcHeight,
                        Image.SCALE_DEFAULT);
                // 改进的想法:是否可用多线程加快切割速度
                // 四个参数分别为图像起点坐标和宽高
                // 即: CropImageFilter(int x,int y,int width,int height)
                cropFilter = new CropImageFilter(x, y, destWidth, destHeight);
                img = Toolkit.getDefaultToolkit().createImage(
                        new FilteredImageSource(image.getSource(), cropFilter));
                BufferedImage tag = new BufferedImage(destWidth, destHeight,
                        BufferedImage.TYPE_INT_RGB);
                Graphics g = tag.getGraphics();
                g.drawImage(img, 0, 0, null); // 绘制缩小后的图
                g.dispose();
                // 输出为文件
                ImageIO.write(tag, "JPEG", new File(dirImageFile));
            }
        } catch (Exception e) {
            e.printStackTrace();
        }
    }
    public static void cut(InputStream is,File dirImageFile, int x, int y, int destWidth,
            int destHeight) throws IOException {
        cut(ImageIO.read(is),dirImageFile,x,y,destWidth,destHeight);
    }
    public static void cut(BufferedImage bi,File dirImageFile, int x, int y, int destWidth,
            int destHeight) {
        try {
            Image img;
            ImageFilter cropFilter;
            // 读取源图像
            int srcWidth = bi.getWidth(); // 源图宽度
            int srcHeight = bi.getHeight(); // 源图高度
            if (srcWidth >= destWidth && srcHeight >= destHeight) {
                Image image = bi.getScaledInstance(srcWidth, srcHeight,
                        Image.SCALE_DEFAULT);
                // 改进的想法:是否可用多线程加快切割速度
                // 四个参数分别为图像起点坐标和宽高
                // 即: CropImageFilter(int x,int y,int width,int height)
                cropFilter = new CropImageFilter(x, y, destWidth, destHeight);
                img = Toolkit.getDefaultToolkit().createImage(
                        new FilteredImageSource(image.getSource(), cropFilter));
                BufferedImage tag = new BufferedImage(destWidth, destHeight,
                        BufferedImage.TYPE_INT_RGB);
                Graphics g = tag.getGraphics();
                g.drawImage(img, 0, 0, null); // 绘制缩小后的图
                g.dispose();
                // 输出为文件
                ImageIO.write(tag, "JPEG", dirImageFile);
            }
        } catch (Exception e) {
            e.printStackTrace();
        }
    }
    /**
     * 缩放图像
     *
     * @param srcImageFile       源图像文件地址
     * @param result             缩放后的图像地址
     * @param scale              缩放比例
     * @param flag               缩放选择:true 放大; false 缩小;
     */
    public static void scale(String srcImageFile, String result, int scale,
            boolean flag) {
        try {
            BufferedImage src = ImageIO.read(new File(srcImageFile)); // 读入文件
            int width = src.getWidth(); // 得到源图宽
            int height = src.getHeight(); // 得到源图长
            if (flag) {
                // 放大
                width = width * scale;
                height = height * scale;
            } else {
                // 缩小
                width = width / scale;
                height = height / scale;
            }
            Image image = src.getScaledInstance(width, height,Image.SCALE_DEFAULT);
            BufferedImage tag = new BufferedImage(width, height,BufferedImage.TYPE_INT_RGB);
            Graphics g = tag.getGraphics();
            g.drawImage(image, 0, 0, null); // 绘制缩小后的图
            g.dispose();
            ImageIO.write(tag, "JPEG", new File(result));// 输出到文件流
        } catch (IOException e) {
            e.printStackTrace();
        }
    }

    /**
     * 重新生成按指定宽度和高度的图像
     * @param srcImageFile       源图像文件地址
     * @param result             新的图像地址
     * @param _width             设置新的图像宽度
     * @param _height            设置新的图像高度
     */
    public static void scale(String srcImageFile, String result, int _width,int _height) {
        scale(srcImageFile,result,_width,_height,0,0);
    }

    public static void scale(String srcImageFile, String result, int _width,int _height,int x,int y) {
        try {

            BufferedImage src = ImageIO.read(new File(srcImageFile)); // 读入文件

            int width = src.getWidth(); // 得到源图宽
            int height = src.getHeight(); // 得到源图长

            if (width > _width) {
                 width = _width;
            }
            if (height > _height) {
                height = _height;
            }
            Image image = src.getScaledInstance(width, height,Image.SCALE_DEFAULT);
            BufferedImage tag = new BufferedImage(width, height,BufferedImage.TYPE_INT_RGB);
            Graphics g = tag.getGraphics();
            g.drawImage(image, x, y, null); // 绘制缩小后的图
            g.dispose();
            ImageIO.write(tag, "JPEG", new File(result));// 输出到文件流
        } catch (IOException e) {
            e.printStackTrace();
        }
    }

    /**
     * 图像类型转换 GIF->JPG GIF->PNG PNG->JPG PNG->GIF(X)
     */
    public static void convert(String source, String result) {
        try {
            File f = new File(source);
            f.canRead();
            f.canWrite();
            BufferedImage src = ImageIO.read(f);
            ImageIO.write(src, "JPG", new File(result));
        } catch (Exception e) {
            e.printStackTrace();
        }
    }

    /**
     * 彩色转为黑白
     *
     * @param source
     * @param result
     */
    public static void gray(String source, String result) {
        try {
            BufferedImage src = ImageIO.read(new File(source));
            ColorSpace cs = ColorSpace.getInstance(ColorSpace.CS_GRAY);
            ColorConvertOp op = new ColorConvertOp(cs, null);
            src = op.filter(src, null);
            ImageIO.write(src, "JPEG", new File(result));
        } catch (IOException e) {
            e.printStackTrace();
        }
    }
}

2. Java后端图片裁剪处理(Controller)

//图片裁剪功能
    @RequestMapping(value = "/imgCut.do",method = RequestMethod.POST, produces="text/html;charset=utf-8")
    @ResponseBody
    public String profile_imgCut(MultipartFile avatar_file,String avatar_src,String avatar_data, HttpServletRequest request, Model model) {
        String dir = ConfigInfo.resources_upload_path;
        String path = request.getSession().getServletContext().getRealPath(dir);

        String name = avatar_file.getOriginalFilename();
        //判断文件的MIMEtype
        String type = avatar_file.getContentType();
        if(type==null || !type.toLowerCase().startsWith("image/")) return  JSON.toJSONString(new Result(false,"不支持的文件类型，仅支持图片！"));
        System.out.println("file type:"+type);
        String fileName = new Date().getTime()+""+new Random().nextInt(10000)+"_"+name.substring(name.lastIndexOf('.'));
        System.out.println("文件路径："+path+":"+fileName);

        JSONObject joData = (JSONObject) JSONObject.parse(avatar_data);
          // 用户经过剪辑后的图片的大小
        float x = joData.getFloatValue("x");
        float y = joData.getFloatValue("y");
        float w =  joData.getFloatValue("width");
        float h =  joData.getFloatValue("height");

        //开始上传
        File targetFile = new File(path, fileName);
        //保存
        try {
            if(!targetFile.exists()){
                targetFile.mkdirs();
                InputStream is = avatar_file.getInputStream();
                ImageCut.cut(is, targetFile, (int)x,(int)y,(int)w,(int)h);
                is.close();
            }
        } catch (Exception e) {
            e.printStackTrace();
            return  JSON.toJSONString(new Result(false,"上传失败，出现异常："+e.getMessage()));
        }
        return  JSON.toJSONString(new Result(true,"上传成功!",request.getSession().getServletContext().getContextPath()+dir+fileName));
    }

3. 前端form提交（test.html）

<!DOCTYPE html>
<html>
<head>
  <meta charset="utf-8">
  <meta http-equiv="X-UA-Compatible" content="IE=edge">
  <title>TEST</title>
  <!-- Tell the browser to be responsive to screen width -->
  <meta content="width=device-width, initial-scale=1, maximum-scale=1, user-scalable=no" name="viewport">
  <link rel="stylesheet" href="${request.contextPath}/resources/bootstrap/css/bootstrap.min.css">
  <link rel="stylesheet" href="${request.contextPath}/resources/cropper/cropper.min.css"/>
  <link rel="stylesheet" href="${request.contextPath}/resources/cropper/crop-avatar/css/main.css"/>
</head>
<body>
 <div class="container" id="crop-avatar">
    <!-- Current avatar -->
    <div class="avatar-view" title="Change the avatar">
      <img src="${request.contextPath}/resources/cropper/crop-avatar/img/picture.jpg" alt="Avatar">
    </div>

    <!-- Cropping modal -->
    <div class="modal fade" id="avatar-modal" aria-hidden="true" aria-labelledby="avatar-modal-label" role="dialog" tabindex="-1">
      <div class="modal-dialog modal-lg">
        <div class="modal-content">
          <form class="avatar-form" action="imgCut.do" enctype="multipart/form-data" method="post" accept="image/*">
            <div class="modal-header">
              <button type="button" class="close" data-dismiss="modal">&times;</button>
              <h4 class="modal-title" id="avatar-modal-label">Change Avatar</h4>
            </div>
            <div class="modal-body">
              <div class="avatar-body">

                <!-- Upload image and data -->
                <div class="avatar-upload">
                  <input type="hidden" class="avatar-src" name="avatar_src">
                  <input type="hidden" class="avatar-data" name="avatar_data">
                  <label for="avatarInput" class="btn btn-primary">选择图片</label>
                  <input type="file" class="avatar-input" id="avatarInput" name="avatar_file" style="display: none;" accept="image/*">
                </div>

                <!-- Crop and preview -->
                <div class="row">
                  <div class="col-md-9">
                    <div class="avatar-wrapper"></div>
                  </div>
                  <div class="col-md-3">
                    <div class="avatar-preview preview-lg"></div>
                    <div class="avatar-preview preview-md"></div>
                    <div class="avatar-preview preview-sm"></div>
                  </div>
                </div>

                <div class="row avatar-btns">
                  <div class="col-md-9">
                    <div class="btn-group">
                      <button type="button" class="btn btn-primary" data-method="rotate" data-option="-90" title="Rotate -90 degrees">Rotate Left</button>
                      <button type="button" class="btn btn-primary" data-method="rotate" data-option="-15">-15deg</button>
                      <button type="button" class="btn btn-primary" data-method="rotate" data-option="-30">-30deg</button>
                      <button type="button" class="btn btn-primary" data-method="rotate" data-option="-45">-45deg</button>
                    </div>
                    <div class="btn-group">
                      <button type="button" class="btn btn-primary" data-method="rotate" data-option="90" title="Rotate 90 degrees">Rotate Right</button>
                      <button type="button" class="btn btn-primary" data-method="rotate" data-option="15">15deg</button>
                      <button type="button" class="btn btn-primary" data-method="rotate" data-option="30">30deg</button>
                      <button type="button" class="btn btn-primary" data-method="rotate" data-option="45">45deg</button>
                    </div>
                  </div>
                  <div class="col-md-3">
                    <button type="submit" class="btn btn-primary btn-block avatar-save">Done</button>
                  </div>
                </div>
              </div>
            </div>
            <!-- <div class="modal-footer">
              <button type="button" class="btn btn-default" data-dismiss="modal">Close</button>
            </div> -->
          </form>
        </div>
      </div>
    </div><!-- /.modal -->

    <!-- Loading state -->
    <div class="loading" aria-label="Loading" role="img" tabindex="-1"></div>
  </div>
<!-- jQuery -->
<script src="${request.contextPath}/resources/plugins/jQuery/jquery-2.2.4.min.js"></script>
<script src="${request.contextPath}/resources/bootstrap/js/bootstrap.min.js"></script>
<script src="${request.contextPath}/resources/cropper/cropper.min.js"></script>
<script src="${request.contextPath}/resources/cropper/crop-avatar/js/main.js"></script>
</body>
</html>

注意：从Cropper官网上下载下来后，在examples目录下有一个示例crop-avatar,将其中的main.css以及main.js复制到你的项目中，Cropper是依赖于jquery以及bootstrap的，所以也要把相应的css和js引进来。

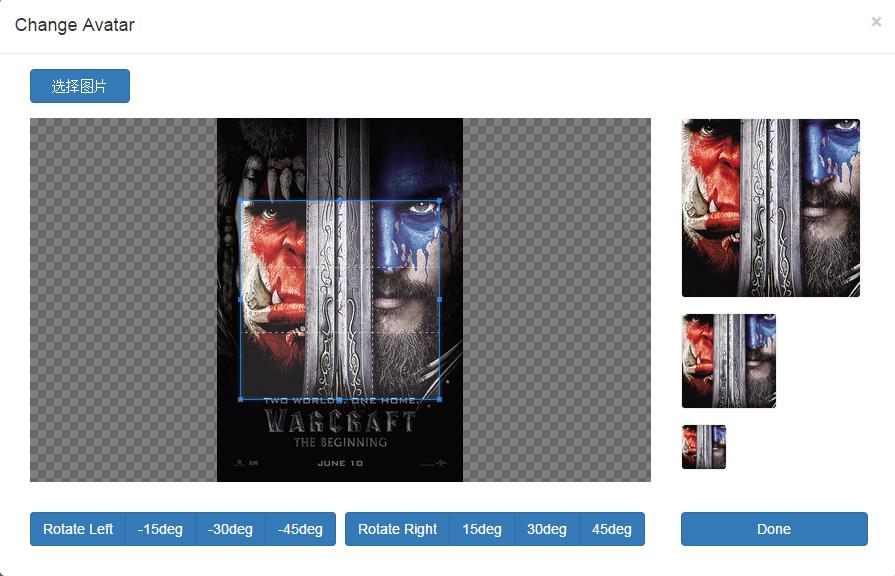

4. 页面展示效果

点击头像，弹出modal。点击Done提交form后生成目标裁剪图片保存到服务器，并返回给页面显示。

5.配置文件上传

由于上面图片裁剪涉及到图片上传，所以需要配置Spring支持文件上传功能。

5.1 依赖的jar

<!-- https://mvnrepository.com/artifact/commons-fileupload/commons-fileupload -->
        <dependency>
            <groupId>commons-fileupload</groupId>
            <artifactId>commons-fileupload</artifactId>
            <version>1.3.1</version>
        </dependency>

5.2 在Spring配置文件中添加文件上传支持

<!-- 支持上传文件 -->
    <bean id="multipartResolver" class="org.springframework.web.multipart.commons.CommonsMultipartResolver"/>

6. 说明

Cropper 使用的是html5的一个新特性（FormData）来提交表单，在其main.js文件中有这样一行代码：

var data = new FormData(this.$avatarForm[0]);

这本质上也就是对表单进行了序列化。Cropper同时也支持旋转，只是在后台处理旋转会比较麻烦点。
前端form提交的数据有 :avatar_file(源文件),avatar_data(裁剪参数JSON)，如下通过FormData序列化后所提交的form的数据，后台控制器参数名只要对上就可以了：

------WebKitFormBoundaryx52DDecBJ0KiNHRY
Content-Disposition: form-data; name="avatar_src"


------WebKitFormBoundaryx52DDecBJ0KiNHRY
Content-Disposition: form-data; name="avatar_data"

{"x":76.49999999999999,"y":22.000000000000007,"height":176.00000000000003,"width":176.00000000000003,"rotate":0}
------WebKitFormBoundaryx52DDecBJ0KiNHRY
Content-Disposition: form-data; name="avatar_file"; filename="3.jpg"
Content-Type: image/jpeg


------WebKitFormBoundaryx52DDecBJ0KiNHRY--

另外Result是自定义的类，很简单：

public class Result {
    private boolean success;
    private String info;
    private Object data;//也可用来标识错误代码
    ...  此处省略get和set方法
}

用到的JSON，当然可以用其他的JSON的jar包：

<dependency>
  <groupId>com.alibaba</groupId>
    <artifactId>fastjson</artifactId>
    <version>1.2.12</version>
</dependency>

参考：jQuery与Java实现图片的剪切

最后

以上就是单薄大米为你收集整理的Java 利用jquery库cropper完成图片裁剪功能的全部内容，希望文章能够帮你解决Java 利用jquery库cropper完成图片裁剪功能所遇到的程序开发问题。

如果觉得靠谱客网站的内容还不错，欢迎将靠谱客网站推荐给程序员好友。
