基于Android O8.1的ffmpeg NDK 开发 - 1 - Hello World！

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
#!/bin/bash
PLATFORM=/xxx/android-ndk-r14b/platforms/android-19/arch-arm/
TOOLCHAIN=/xxx/android-ndk-r14b/toolchains/arm-linux-androideabi-4.9/prebuilt/linux-x86_64
PREFIX=./android/armeabi-v7a


function build_android
{
./configure
--prefix=$PREFIX
--target-os=android
--cross-prefix=$TOOLCHAIN/bin/arm-linux-androideabi-
--arch=arm
--sysroot=$PLATFORM
--cc=$TOOLCHAIN/bin/arm-linux-androideabi-gcc
--nm=$TOOLCHAIN/bin/arm-linux-androideabi-nm
--disable-shared
--disable-ffmpeg
--disable-ffplay
--disable-ffprobe
--disable-doc
--disable-symver
--enable-small
--enable-gpl
--enable-asm
--enable-jni
--enable-mediacodec
--enable-decoder=h264_mediacodec
--enable-hwaccel=h264_mediacodec
--enable-decoder=hevc_mediacodec
--enable-decoder=mpeg4_mediacodec
--enable-decoder=vp8_mediacodec
--enable-decoder=vp9_mediacodec
--enable-nonfree
--enable-version3
--extra-cflags="-Os -fpic $ADDI_CFLAGS -I$PLATFORM/usr/include"
--extra-ldflags="$ADDI_LDFLAGS"
$ADDITIONAL_CONFIGURE_FLAG


make clean
make -j8
make install


$TOOLCHAIN/bin/arm-linux-androideabi-ld
-rpath-link=$PLATFORM/usr/lib
-L$PLATFORM/usr/lib
-L$PREFIX/lib
-soname libffmpeg.so -shared -nostdlib -Bsymbolic --whole-archive --no-undefined -o
$PREFIX/libffmpeg.so
libavcodec/libavcodec.a
libavfilter/libavfilter.a
libswresample/libswresample.a
libavformat/libavformat.a
libavutil/libavutil.a
libswscale/libswscale.a
libavdevice/libavdevice.a
libpostproc/libpostproc.a
-lc -lm -lz -ldl -llog --dynamic-linker=/system/bin/linker
$TOOLCHAIN/lib/gcc/arm-linux-androideabi/4.9.x/libgcc.a
}

# arm v7vfp
CPU=arm
OPTIMIZE_CFLAGS="-mfloat-abi=softfp -mfpu=vfp -marm -march=$CPU "
ADDI_CFLAGS="-marm"
build_android

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
#/bin/bash
PLATFORM=/xxx/android-ndk-r14b/platforms/android-21/arch-arm64/
TOOLCHAIN=/xxx/android-ndk-r14b/toolchains/aarch64-linux-android-4.9/prebuilt/linux-x86_64
PREFIX=./android/arm64-v8a


function build_android
{
./configure
--prefix=$PREFIX
--target-os=android
--cross-prefix=$TOOLCHAIN/bin/aarch64-linux-android-
--arch=aarch64
--sysroot=$PLATFORM
--cc=$TOOLCHAIN/bin/aarch64-linux-android-gcc
--nm=$TOOLCHAIN/bin/aarch64-linux-android-nm
--disable-shared
--enable-static
--disable-ffmpeg
--disable-ffplay
--disable-ffprobe
--disable-doc
--disable-symver
--enable-small
--enable-gpl
--enable-asm
--enable-jni
--enable-mediacodec
--enable-decoder=h264_mediacodec
--enable-hwaccel=h264_mediacodec
--enable-decoder=hevc_mediacodec
--enable-decoder=mpeg4_mediacodec
--enable-decoder=vp8_mediacodec
--enable-decoder=vp9_mediacodec
--enable-nonfree
--enable-version3
--extra-cflags="-Os -fpic $ADDI_CFLAGS -I$PLATFORM/usr/include"
--extra-ldflags="$ADDI_LDFLAGS"
$ADDITIONAL_CONFIGURE_FLAG


make clean
make -j8
make install


$TOOLCHAIN/bin/aarch64-linux-android-ld
-rpath-link=$PLATFORM/usr/lib
-L$PLATFORM/usr/lib
-L$PREFIX/lib
-soname libffmpeg.so -shared -nostdlib -Bsymbolic --whole-archive --no-undefined -o
$PREFIX/libffmpeg.so
libavcodec/libavcodec.a
libavfilter/libavfilter.a
libswresample/libswresample.a
libavformat/libavformat.a
libavutil/libavutil.a
libswscale/libswscale.a
libavdevice/libavdevice.a
libpostproc/libpostproc.a
-lc -lm -lz -ldl -llog --dynamic-linker=/system/bin/linker
$TOOLCHAIN/lib/gcc/aarch64-linux-android/4.9.x/libgcc.a
}

# arm64-v8a
CPU=arm64-v8a
OPTIMIZE_CFLAGS="-mfloat-abi=softfp -mfpu=vfp -march=$CPU "
build_android

1
2
3

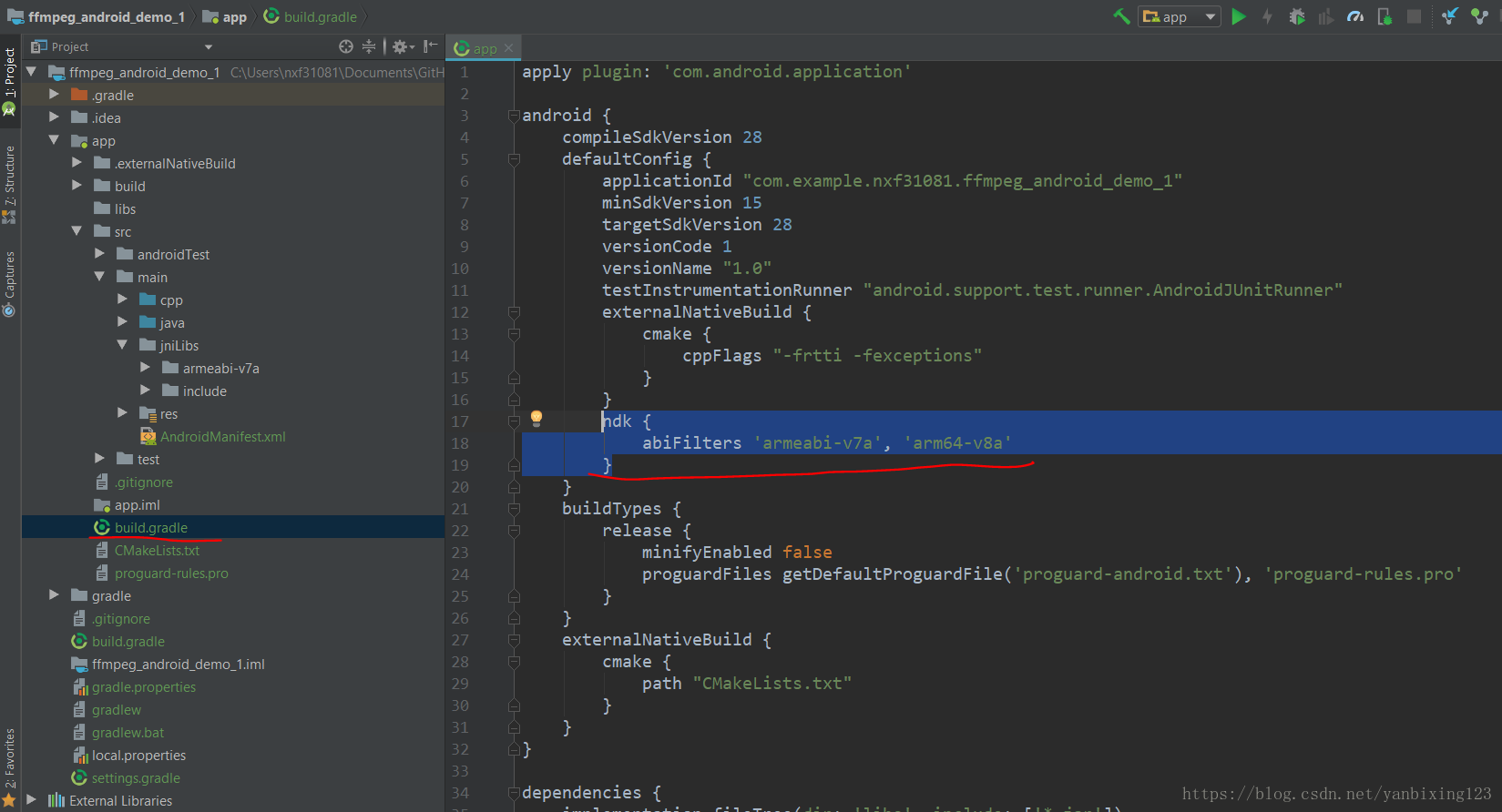

ndk {
            abiFilters 'armeabi-v7a', 'arm64-v8a'
        }

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

#CMake版本信息
cmake_minimum_required(VERSION 3.4.1)

#ffmpeg so文件路径

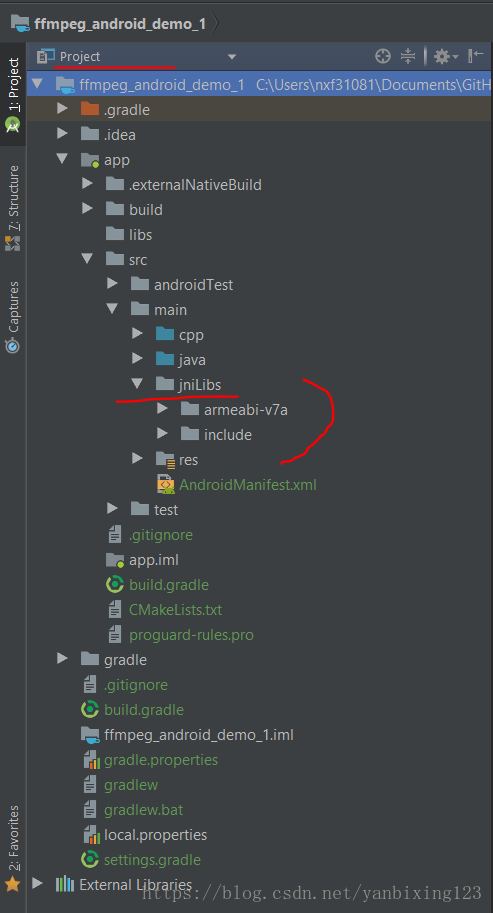

set(lib_src_DIR ${CMAKE_SOURCE_DIR}/src/main/jniLibs/${ANDROID_ABI})

#配置加载native依赖
include_directories(${CMAKE_SOURCE_DIR}/src/main/jniLibs/include)

#动态方式加载ffmepg的so文件 第三方库加载方式
add_library(ffmpeg SHARED IMPORTED)

#引入libffmpeg.so文件
set_target_properties(ffmpeg PROPERTIES IMPORTED_LOCATION
${lib_src_DIR}/libffmpeg.so)

#CPP文件夹下待编译的c文件
add_library(native-lib SHARED ${CMAKE_SOURCE_DIR}/src/main/cpp/native-lib.cpp)

#C 日志 ndk官方库
find_library(log-lib log)

#静态库与动态库进行链接 相当于gcc命令行参数 -l。
target_link_libraries(native-lib
                      android
                      ffmpeg
                      ${log-lib})

1
2
3
4
5
6
7
8
9
10

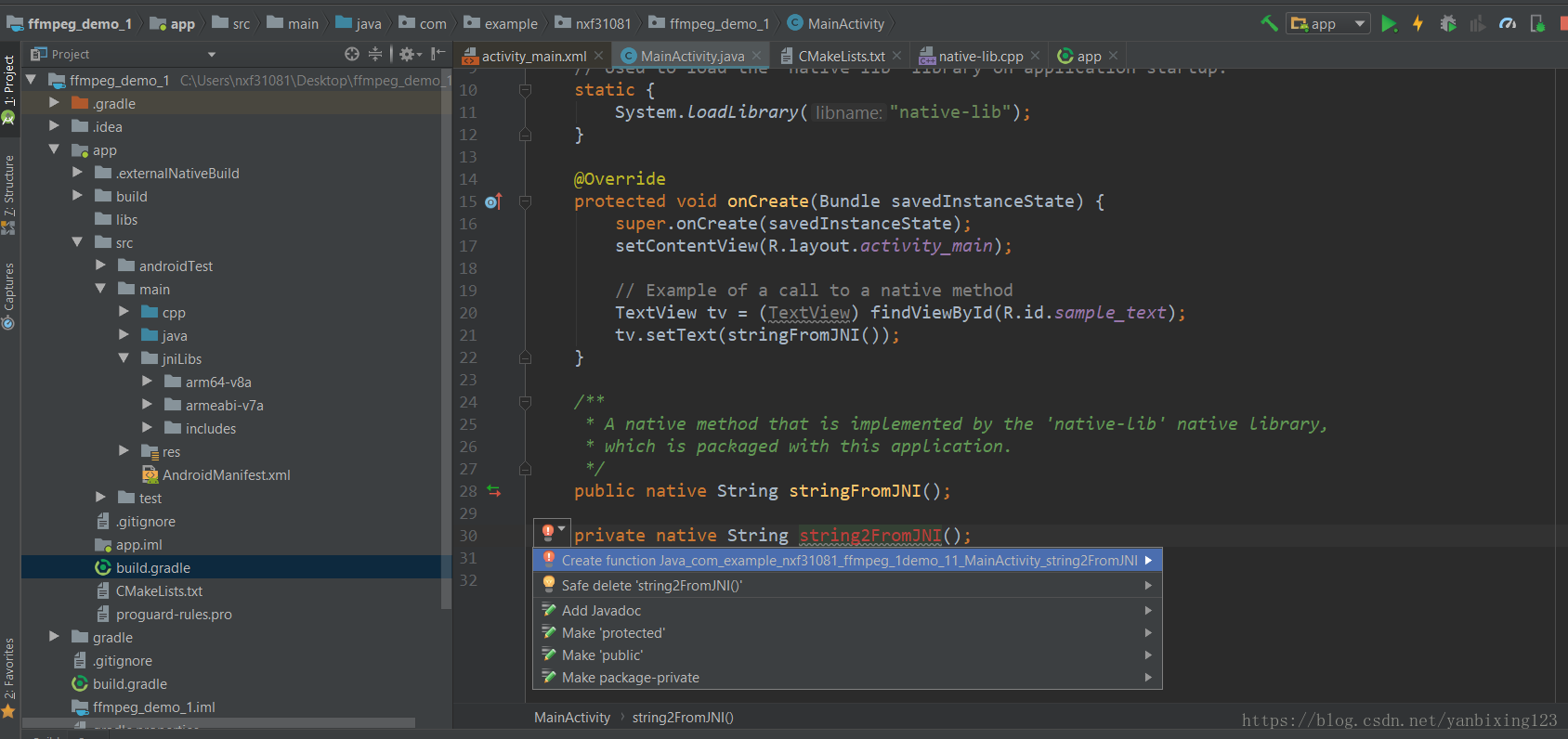

extern "C"
JNIEXPORT jstring JNICALL
Java_com_example_nxf31081_ffmpeg_1demo_11_MainActivity_string2FromJNI(JNIEnv *env,
                                                                      jobject instance) {

    // TODO


    return env->NewStringUTF(returnValue);
}

1
2
3
4
5
6
7
8
9
10
11
JNIEXPORT jstring JNICALL
Java_com_example_nxf31081_ffmpeg_1android_1demo_11_MainActivity_string2FromJNI(JNIEnv *env,
                                                                               jobject instance) {

    // TODO

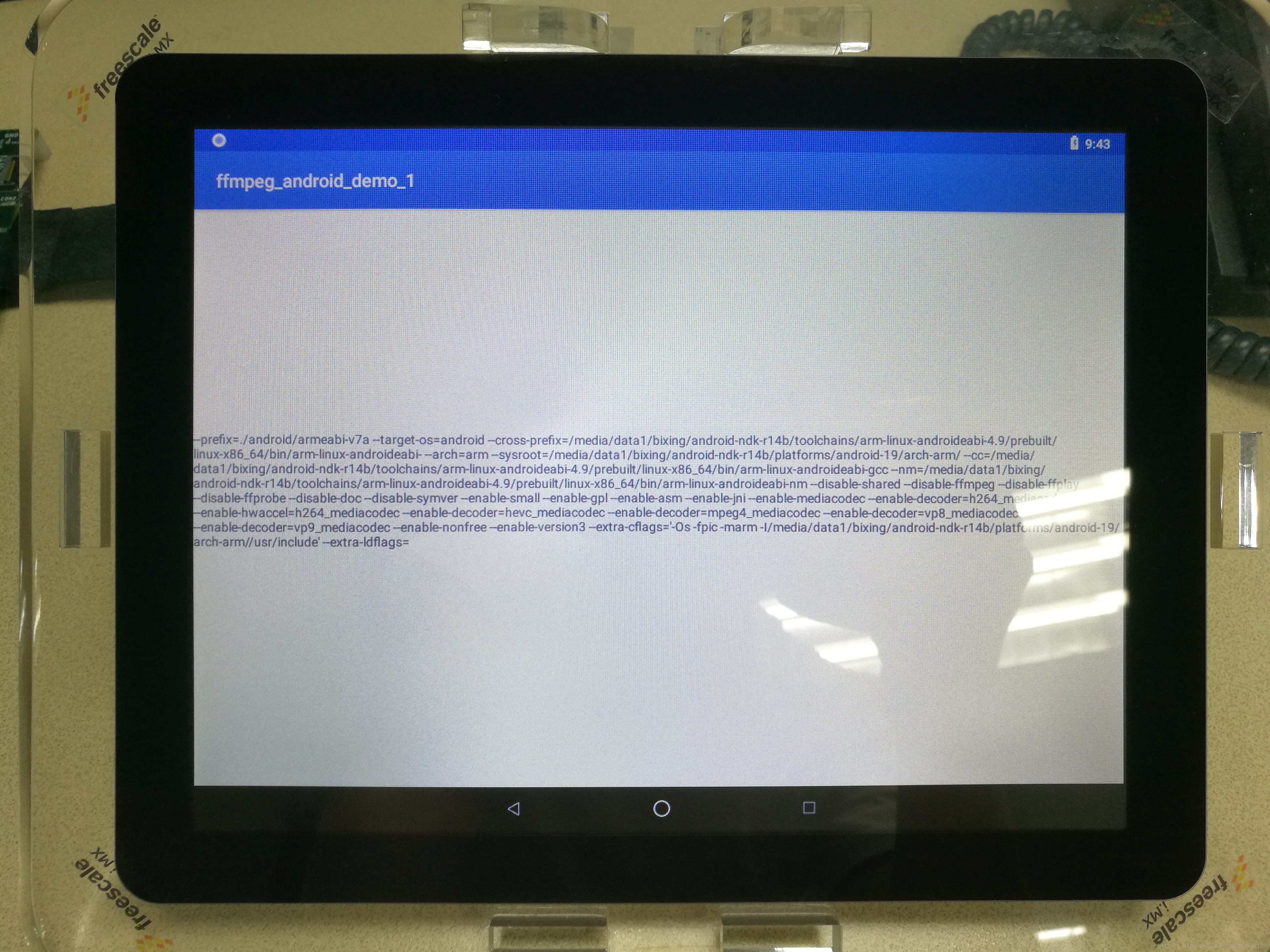

    char info[10000] = {0};
    sprintf(info, "%s n", avcodec_configuration());


    return env->NewStringUTF(info);
}

1
tv.setText(string2FromJNI());
