概述

系统服务化过程中会面临很多问题：服务注册、服务发现、服务降级、故障转移、负载均衡、流量控制等。本文介绍一种以thrift、zookeeper等技术实现的一套服务化框架，主要包含一下几点：

1)利用zookeeper，实现服务端注册、客户端自动发现；（由于原生zookeeper的api比较负责，这里用了一个zk的框架curator）

2)客户端对远程server的连接进行池化技术（使用java的对象池），提升性能；

3)利用zookeeper的watch机制、和对象池的valid淘汰机制实现了服务的failover；

4)利用对象池的一些特性实现了简单的loadbalance；（常见负载均衡算法 http://blog.csdn.net/zhu_tianwei/article/details/42673611）

5)整个服务化的框架基于spring的配置方式：利用依赖注入的方式调用服务（和调用本地服务配置一样）、同时利用动态代理屏蔽了远程Server的调用复杂性.

1、Thrift通过两种方式调用服务Client和Iface:

// *) Client API 调用
(EchoService.Client)client.echo("hello lilei");  ---(1)
// *) Service 接口 调用
(EchoService.Iface)service.echo("hello lilei");  ---(2)

Client API的方式, 不推荐, 我们推荐Service接口的方式(服务化)。

2、pom.xml

<dependency>
            <groupId>org.apache.thrift</groupId>
            <artifactId>libthrift</artifactId>
            <version>0.9.2</version>
        </dependency>
        <dependency>
            <groupId>commons-pool</groupId>
            <artifactId>commons-pool</artifactId>
            <version>1.6</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context</artifactId>
            <version>4.0.9.RELEASE</version>
        </dependency>

        <dependency>
            <groupId>org.apache.zookeeper</groupId>
            <artifactId>zookeeper</artifactId>
            <version>3.4.6</version>
        </dependency>
        <dependency>
            <groupId>org.apache.curator</groupId>
            <artifactId>curator-recipes</artifactId>
            <version>2.7.1</version>
        </dependency>

一、使用zookeeper管理服务节点配置

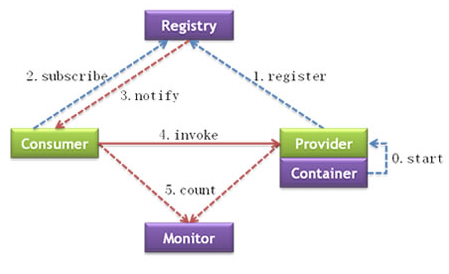

RPC服务往平台化的方向发展, 会屏蔽掉更多的服务细节(服务的IP地址集群, 集群的扩容和迁移), 只暴露服务接口，是的客户端和服务端解耦，两者的交互通过ConfigServer(MetaServer)的中介角色来搭线。借助Zookeeper来扮演该角色, server扮演发布者的角色, 而client扮演订阅者的角色。

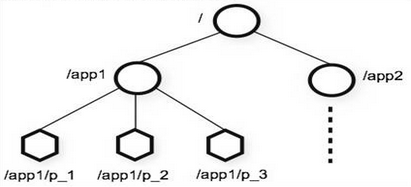

Zookeeper是分布式应用协作服务. 它实现了paxos的一致性算法, 在命名管理/配置推送/数据同步/主从切换方面扮演重要的角色。其数据组织类似文件系统的目录结构:

每个节点被称为znode, 为znode节点依据其特性, 又可以分为如下类型:
　　1) PERSISTENT: 永久节点
　　2) EPHEMERAL: 临时节点, 会随session(client disconnect)的消失而消失
　　3) PERSISTENT_SEQUENTIAL: 永久节点, 其节点的名字编号是单调递增的
　　4) EPHEMERAL_SEQUENTIAL: 临时节点, 其节点的名字编号是单调递增的
　　注: 临时节点不能成为父节点

Watcher观察模式, client可以注册对节点的状态/内容变更的事件回调机制. 其Event事件的两类属性需要关注下:
　　1) KeeperState: Disconnected,SyncConnected,Expired
　　2) EventType: None,NodeCreated,NodeDeleted,NodeDataChanged,NodeChildrenChanged

1、RPC服务端:
作为具体业务服务的RPC服务发布方, 对其自身的服务描述由以下元素构成：

root:用来群不同的业务系统；
namespace: 命名空间，来区分不同的业务；
service: 服务接口, 采用发布方的类全名来表示，可以用来区分不同的服务模块；
version: 版本号

1）这里借鉴了Maven的GAV坐标系, 三维坐标系更符合服务平台化的大环境.

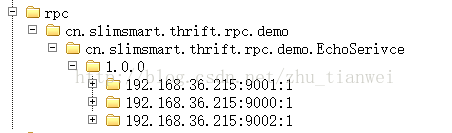

2）具体RPC服务的注册路径为: /rpc/{namespace}/{service}/{version}, 该路径上的节点都是永久节点；RPC服务集群节点的注册路径为: /rpc/{namespace}/{service}/{version}/{ip:port:weight}, 末尾的节点是临时节点.

2、定义Zookeeper的客户端的管理类——ZookeeperFactory.java：

package cn.slimsmart.thrift.rpc.zookeeper;

import org.apache.curator.framework.CuratorFramework;
import org.apache.curator.framework.CuratorFrameworkFactory;
import org.apache.curator.retry.ExponentialBackoffRetry;
import org.springframework.beans.factory.FactoryBean;
import org.springframework.util.StringUtils;

/**
 * 获取zookeeper客户端链接
 */
public class ZookeeperFactory implements FactoryBean<CuratorFramework> {

    private String zkHosts;
    // session超时
    private int sessionTimeout = 30000;
    private int connectionTimeout = 30000;

    // 共享一个zk链接
    private boolean singleton = true;

    // 全局path前缀,常用来区分不同的应用
    private String namespace;

    private final static String ROOT = "rpc";

    private CuratorFramework zkClient;

    public void setZkHosts(String zkHosts) {
        this.zkHosts = zkHosts;
    }

    public void setSessionTimeout(int sessionTimeout) {
        this.sessionTimeout = sessionTimeout;
    }

    public void setConnectionTimeout(int connectionTimeout) {
        this.connectionTimeout = connectionTimeout;
    }

    public void setSingleton(boolean singleton) {
        this.singleton = singleton;
    }

    public void setNamespace(String namespace) {
        this.namespace = namespace;
    }

    public void setZkClient(CuratorFramework zkClient) {
        this.zkClient = zkClient;
    }

    @Override
    public CuratorFramework getObject() throws Exception {
        if (singleton) {
            if (zkClient == null) {
                zkClient = create();
                zkClient.start();
            }
            return zkClient;
        }
        return create();
    }

    @Override
    public Class<?> getObjectType() {
        return CuratorFramework.class;
    }

    @Override
    public boolean isSingleton() {
        return singleton;
    }

    public CuratorFramework create() throws Exception {
        if (StringUtils.isEmpty(namespace)) {
            namespace = ROOT;
        } else {
            namespace = ROOT +"/"+ namespace;
        }
        return create(zkHosts, sessionTimeout, connectionTimeout, namespace);
    }

    public static CuratorFramework create(String connectString, int sessionTimeout, int connectionTimeout, String namespace) {
        CuratorFrameworkFactory.Builder builder = CuratorFrameworkFactory.builder();
        return builder.connectString(connectString).sessionTimeoutMs(sessionTimeout).connectionTimeoutMs(30000)
                .canBeReadOnly(true).namespace(namespace).retryPolicy(new ExponentialBackoffRetry(1000, Integer.MAX_VALUE))
                .defaultData(null).build();
    }

    public void close() {
        if (zkClient != null) {
            zkClient.close();
        }
    }
}

3、获取ip的工具类：

由于服务端配置需要获取本机的IP地址，因此定义IP获取接口

package cn.slimsmart.thrift.rpc.zookeeper;

/**
 *
 * 解析thrift-server端IP地址，用于注册服务
 * 1) 可以从一个物理机器或者虚机的特殊文件中解析
 * 2) 可以获取指定网卡序号的Ip
 * 3) 其他
 */
public interface ThriftServerIpResolve {

    String getServerIp() throws Exception;

    void reset();

    //当IP变更时,将会调用reset方法
    static interface IpRestCalllBack{
        public void rest(String newIp);
    }
}

可以对该接口做不通的实现，下面我们基于网卡获取IP地址，也可以通过配置serverIp，ThriftServerIpLocalNetworkResolve.java

package cn.slimsmart.thrift.rpc.zookeeper;

import java.net.Inet6Address;
import java.net.InetAddress;
import java.net.NetworkInterface;
import java.net.SocketException;
import java.util.Enumeration;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

/**
 * 解析网卡Ip
 *
 */
public class ThriftServerIpLocalNetworkResolve implements ThriftServerIpResolve {

    private Logger logger = LoggerFactory.getLogger(getClass());

    //缓存
    private String serverIp;

    public void setServerIp(String serverIp) {
        this.serverIp = serverIp;
    }

    @Override
    public String getServerIp() {
        if (serverIp != null) {
            return serverIp;
        }
        // 一个主机有多个网络接口
        try {
            Enumeration<NetworkInterface> netInterfaces = NetworkInterface.getNetworkInterfaces();
            while (netInterfaces.hasMoreElements()) {
                NetworkInterface netInterface = netInterfaces.nextElement();
                // 每个网络接口,都会有多个"网络地址",比如一定会有lookback地址,会有siteLocal地址等.以及IPV4或者IPV6 .
                Enumeration<InetAddress> addresses = netInterface.getInetAddresses();
                while (addresses.hasMoreElements()) {
                    InetAddress address = addresses.nextElement();
                    if(address instanceof Inet6Address){
                        continue;
                    }
                    if (address.isSiteLocalAddress() && !address.isLoopbackAddress()) {
                        serverIp = address.getHostAddress();
                        logger.info("resolve server ip :"+ serverIp);
                        continue;
                    }
                }
            }
        } catch (SocketException e) {
            e.printStackTrace();
        }
        return serverIp;
    }

    @Override
    public void reset() {
        serverIp = null;
    }
}

4、服务端注册服务接口：

并实现将服务信息（服务接口、版本号，IP、port、weight）发布到zookeeper中。

package cn.slimsmart.thrift.rpc.zookeeper;

/**
 * 发布服务地址及端口到服务注册中心，这里是zookeeper服务器
 */
public interface ThriftServerAddressRegister {
    /**
     * 发布服务接口
     * @param service 服务接口名称，一个产品中不能重复
     * @param version 服务接口的版本号，默认1.0.0
     * @param address 服务发布的地址和端口
     */
    void register(String service,String version,String address);
}

实现类：

package cn.slimsmart.thrift.rpc.zookeeper;

import java.io.UnsupportedEncodingException;

import org.apache.curator.framework.CuratorFramework;
import org.apache.curator.framework.imps.CuratorFrameworkState;
import org.apache.zookeeper.CreateMode;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.util.StringUtils;

import cn.slimsmart.thrift.rpc.ThriftException;

/**
 *  注册服务列表到Zookeeper
 */
public class ThriftServerAddressRegisterZookeeper implements ThriftServerAddressRegister{

    private Logger logger = LoggerFactory.getLogger(getClass());

    private CuratorFramework zkClient;

    public ThriftServerAddressRegisterZookeeper(){}

    public ThriftServerAddressRegisterZookeeper(CuratorFramework zkClient){
        this.zkClient = zkClient;
    }

    public void setZkClient(CuratorFramework zkClient) {
        this.zkClient = zkClient;
    }

    @Override
    public void register(String service, String version, String address) {
        if(zkClient.getState() == CuratorFrameworkState.LATENT){
            zkClient.start();
        }
        if(StringUtils.isEmpty(version)){
            version="1.0.0";
        }
        //临时节点
        try {
            zkClient.create()
                .creatingParentsIfNeeded()
                .withMode(CreateMode.EPHEMERAL)
                .forPath("/"+service+"/"+version+"/"+address);
        } catch (UnsupportedEncodingException e) {
            logger.error("register service address to zookeeper exception:{}",e);
            throw new ThriftException("register service address to zookeeper exception: address UnsupportedEncodingException", e);
        } catch (Exception e) {
            logger.error("register service address to zookeeper exception:{}",e);
            throw new ThriftException("register service address to zookeeper exception:{}", e);
        }
    }

    public void close(){
        zkClient.close();
    }
}

5、客户端服务发现接口：

定义获取服务地址接口

package cn.slimsmart.thrift.rpc.zookeeper;

import java.net.InetSocketAddress;
import java.util.List;

/**
 * thrift server-service地址提供者,以便构建客户端连接池
 */
public interface ThriftServerAddressProvider {

    //获取服务名称
    String getService();

    /**
     * 获取所有服务端地址
     * @return
     */
    List<InetSocketAddress> findServerAddressList();

    /**
     * 选取一个合适的address,可以随机获取等'
     * 内部可以使用合适的算法.
     * @return
     */
    InetSocketAddress selector();

    void close();
}

基于zookeeper服务地址自动发现实现：ThriftServerAddressProviderZookeeper.java

package cn.slimsmart.thrift.rpc.zookeeper;

import java.net.InetSocketAddress;
import java.util.ArrayList;
import java.util.Collections;
import java.util.HashSet;
import java.util.LinkedList;
import java.util.List;
import java.util.Queue;
import java.util.Set;

import org.apache.curator.framework.CuratorFramework;
import org.apache.curator.framework.imps.CuratorFrameworkState;
import org.apache.curator.framework.recipes.cache.ChildData;
import org.apache.curator.framework.recipes.cache.PathChildrenCache;
import org.apache.curator.framework.recipes.cache.PathChildrenCache.StartMode;
import org.apache.curator.framework.recipes.cache.PathChildrenCacheEvent;
import org.apache.curator.framework.recipes.cache.PathChildrenCacheListener;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.InitializingBean;

/**
 * 使用zookeeper作为"config"中心,使用apache-curator方法库来简化zookeeper开发
 */
public class ThriftServerAddressProviderZookeeper implements ThriftServerAddressProvider, InitializingBean {

    private Logger logger = LoggerFactory.getLogger(getClass());

    // 注册服务
    private String service;
    // 服务版本号
    private String version = "1.0.0";

    private PathChildrenCache cachedPath;

    private CuratorFramework zkClient;

    // 用来保存当前provider所接触过的地址记录
    // 当zookeeper集群故障时,可以使用trace中地址,作为"备份"
    private Set<String> trace = new HashSet<String>();

    private final List<InetSocketAddress> container = new ArrayList<InetSocketAddress>();

    private Queue<InetSocketAddress> inner = new LinkedList<InetSocketAddress>();

    private Object lock = new Object();

    // 默认权重
    private static final Integer DEFAULT_WEIGHT = 1;

    public void setService(String service) {
        this.service = service;
    }

    public void setVersion(String version) {
        this.version = version;
    }

    public ThriftServerAddressProviderZookeeper() {
    }

    public ThriftServerAddressProviderZookeeper(CuratorFramework zkClient) {
        this.zkClient = zkClient;
    }

    public void setZkClient(CuratorFramework zkClient) {
        this.zkClient = zkClient;
    }

    @Override
    public void afterPropertiesSet() throws Exception {
        // 如果zk尚未启动,则启动
        if (zkClient.getState() == CuratorFrameworkState.LATENT) {
            zkClient.start();
        }
        buildPathChildrenCache(zkClient, getServicePath(), true);
        cachedPath.start(StartMode.POST_INITIALIZED_EVENT);
    }

    private String getServicePath(){
        return "/" + service + "/" + version;
    }
    private void buildPathChildrenCache(final CuratorFramework client, String path, Boolean cacheData) throws Exception {
        cachedPath = new PathChildrenCache(client, path, cacheData);
        cachedPath.getListenable().addListener(new PathChildrenCacheListener() {
            @Override
            public void childEvent(CuratorFramework client, PathChildrenCacheEvent event) throws Exception {
                PathChildrenCacheEvent.Type eventType = event.getType();
                switch (eventType) {
                case CONNECTION_RECONNECTED:
                    logger.info("Connection is reconection.");
                    break;
                case CONNECTION_SUSPENDED:
                    logger.info("Connection is suspended.");
                    break;
                case CONNECTION_LOST:
                    logger.warn("Connection error,waiting...");
                    return;
                default:
                    //
                }
                // 任何节点的时机数据变动,都会rebuild,此处为一个"简单的"做法.
                cachedPath.rebuild();
                rebuild();
            }

            protected void rebuild() throws Exception {
                List<ChildData> children = cachedPath.getCurrentData();
                if (children == null || children.isEmpty()) {
                    // 有可能所有的thrift server都与zookeeper断开了链接
                    // 但是,有可能,thrift client与thrift server之间的网络是良好的
                    // 因此此处是否需要清空container,是需要多方面考虑的.
                    container.clear();
                    logger.error("thrift server-cluster error....");
                    return;
                }
                List<InetSocketAddress> current = new ArrayList<InetSocketAddress>();
                String path = null;
                for (ChildData data : children) {
                    path = data.getPath();
                    logger.debug("get path:"+path);
                    path = path.substring(getServicePath().length()+1);
                    logger.debug("get serviceAddress:"+path);
                    String address = new String(path.getBytes(), "utf-8");
                    current.addAll(transfer(address));
                    trace.add(address);
                }
                Collections.shuffle(current);
                synchronized (lock) {
                    container.clear();
                    container.addAll(current);
                    inner.clear();
                    inner.addAll(current);

                }
            }
        });
    }

    private List<InetSocketAddress> transfer(String address) {
        String[] hostname = address.split(":");
        Integer weight = DEFAULT_WEIGHT;
        if (hostname.length == 3) {
            weight = Integer.valueOf(hostname[2]);
        }
        String ip = hostname[0];
        Integer port = Integer.valueOf(hostname[1]);
        List<InetSocketAddress> result = new ArrayList<InetSocketAddress>();
        // 根据优先级，将ip：port添加多次到地址集中，然后随机取地址实现负载
        for (int i = 0; i < weight; i++) {
            result.add(new InetSocketAddress(ip, port));
        }
        return result;
    }

    @Override
    public List<InetSocketAddress> findServerAddressList() {
        return Collections.unmodifiableList(container);
    }

    @Override
    public synchronized InetSocketAddress selector() {
        if (inner.isEmpty()) {
            if (!container.isEmpty()) {
                inner.addAll(container);
            } else if (!trace.isEmpty()) {
                synchronized (lock) {
                    for (String hostname : trace) {
                        container.addAll(transfer(hostname));
                    }
                    Collections.shuffle(container);
                    inner.addAll(container);
                }
            }
        }
        return inner.poll();
    }

    @Override
    public void close() {
        try {
            cachedPath.close();
            zkClient.close();
        } catch (Exception e) {
        }
    }

    @Override
    public String getService() {
        return service;
    }

}

5、服务端服务注册实现：

package cn.slimsmart.thrift.rpc;

import java.lang.instrument.IllegalClassFormatException;
import java.lang.reflect.Constructor;

import org.apache.thrift.TProcessor;
import org.apache.thrift.TProcessorFactory;
import org.apache.thrift.protocol.TBinaryProtocol;
import org.apache.thrift.server.TServer;
import org.apache.thrift.server.TThreadedSelectorServer;
import org.apache.thrift.transport.TFramedTransport;
import org.apache.thrift.transport.TNonblockingServerSocket;
import org.springframework.beans.factory.InitializingBean;
import org.springframework.util.StringUtils;

import cn.slimsmart.thrift.rpc.zookeeper.ThriftServerAddressRegister;
import cn.slimsmart.thrift.rpc.zookeeper.ThriftServerIpLocalNetworkResolve;
import cn.slimsmart.thrift.rpc.zookeeper.ThriftServerIpResolve;

/**
 * 服务端注册服务工厂
 */
public class ThriftServiceServerFactory implements InitializingBean {
    // 服务注册本机端口
    private Integer port = 8299;
    // 优先级
    private Integer weight = 1;// default
    // 服务实现类
    private Object service;// serice实现类
    //服务版本号
    private String version;
    // 解析本机IP
    private ThriftServerIpResolve thriftServerIpResolve;
    //服务注册
    private ThriftServerAddressRegister thriftServerAddressRegister;

    private ServerThread serverThread;

    public void setPort(Integer port) {
        this.port = port;
    }

    public void setWeight(Integer weight) {
        this.weight = weight;
    }

    public void setService(Object service) {
        this.service = service;
    }

    public void setVersion(String version) {
        this.version = version;
    }

    public void setThriftServerIpResolve(ThriftServerIpResolve thriftServerIpResolve) {
        this.thriftServerIpResolve = thriftServerIpResolve;
    }

    public void setThriftServerAddressRegister(ThriftServerAddressRegister thriftServerAddressRegister) {
        this.thriftServerAddressRegister = thriftServerAddressRegister;
    }

    @Override
    public void afterPropertiesSet() throws Exception {
        if (thriftServerIpResolve == null) {
            thriftServerIpResolve = new ThriftServerIpLocalNetworkResolve();
        }
        String serverIP = thriftServerIpResolve.getServerIp();
        if (StringUtils.isEmpty(serverIP)) {
            throw new ThriftException("cant find server ip...");
        }

        String hostname = serverIP + ":" + port + ":" + weight;
        Class<?> serviceClass = service.getClass();
        // 获取实现类接口
        Class<?>[] interfaces = serviceClass.getInterfaces();
        if (interfaces.length == 0) {
            throw new IllegalClassFormatException("service-class should implements Iface");
        }
        // reflect,load "Processor";
        TProcessor processor = null;
        String serviceName = null;
        for (Class<?> clazz : interfaces) {
            String cname = clazz.getSimpleName();
            if (!cname.equals("Iface")) {
                continue;
            }
            serviceName = clazz.getEnclosingClass().getName();
            String pname = serviceName + "$Processor";
            try {
                ClassLoader classLoader = Thread.currentThread().getContextClassLoader();
                Class<?> pclass = classLoader.loadClass(pname);
                if (!TProcessor.class.isAssignableFrom(pclass)) {
                    continue;
                }
                Constructor<?> constructor = pclass.getConstructor(clazz);
                processor = (TProcessor) constructor.newInstance(service);
                break;
            } catch (Exception e) {
                //
            }
        }
        if (processor == null) {
            throw new IllegalClassFormatException("service-class should implements Iface");
        }
        //需要单独的线程,因为serve方法是阻塞的.
        serverThread = new ServerThread(processor, port);
        serverThread.start();
        // 注册服务
        if (thriftServerAddressRegister != null) {
            thriftServerAddressRegister.register(serviceName, version, hostname);
        }

    }
    class ServerThread extends Thread {
        private TServer server;
        ServerThread(TProcessor processor, int port) throws Exception {
            TNonblockingServerSocket serverTransport = new TNonblockingServerSocket(port);
            TThreadedSelectorServer.Args tArgs = new TThreadedSelectorServer.Args(serverTransport);
            TProcessorFactory processorFactory = new TProcessorFactory(processor);
            tArgs.processorFactory(processorFactory);
            tArgs.transportFactory(new TFramedTransport.Factory());
            tArgs.protocolFactory( new TBinaryProtocol.Factory(true, true));
            server = new TThreadedSelectorServer(tArgs);
        }

        @Override
        public void run(){
            try{
                //启动服务
                server.serve();
            }catch(Exception e){
                //
            }
        }

        public void stopServer(){
            server.stop();
        }
    }

    public void close() {
        serverThread.stopServer();
    }
}

6、客户端获取服务代理及连接池实现

package cn.slimsmart.thrift.rpc;

import java.net.InetSocketAddress;

import org.apache.commons.pool.BasePoolableObjectFactory;
import org.apache.thrift.TServiceClient;
import org.apache.thrift.TServiceClientFactory;
import org.apache.thrift.protocol.TBinaryProtocol;
import org.apache.thrift.protocol.TProtocol;
import org.apache.thrift.transport.TFramedTransport;
import org.apache.thrift.transport.TSocket;
import org.apache.thrift.transport.TTransport;

import cn.slimsmart.thrift.rpc.zookeeper.ThriftServerAddressProvider;

/**
 * 连接池,thrift-client for spring
 */
public class ThriftClientPoolFactory extends BasePoolableObjectFactory<TServiceClient> {

    private final ThriftServerAddressProvider serverAddressProvider;
    private final TServiceClientFactory<TServiceClient> clientFactory;
    private PoolOperationCallBack callback;

    protected ThriftClientPoolFactory(ThriftServerAddressProvider addressProvider, TServiceClientFactory<TServiceClient> clientFactory) throws Exception {
        this.serverAddressProvider = addressProvider;
        this.clientFactory = clientFactory;
    }

    protected ThriftClientPoolFactory(ThriftServerAddressProvider addressProvider, TServiceClientFactory<TServiceClient> clientFactory,
            PoolOperationCallBack callback) throws Exception {
        this.serverAddressProvider = addressProvider;
        this.clientFactory = clientFactory;
        this.callback = callback;
    }

    static interface PoolOperationCallBack {
        // 销毁client之前执行
        void destroy(TServiceClient client);

        // 创建成功是执行
        void make(TServiceClient client);
    }

    public void destroyObject(TServiceClient client) throws Exception {
        if (callback != null) {
            try {
                callback.destroy(client);
            } catch (Exception e) {
                //
            }
        }
        TTransport pin = client.getInputProtocol().getTransport();
        pin.close();
    }

    public boolean validateObject(TServiceClient client) {
        TTransport pin = client.getInputProtocol().getTransport();
        return pin.isOpen();
    }

    @Override
    public TServiceClient makeObject() throws Exception {
        InetSocketAddress address = serverAddressProvider.selector();
        TSocket tsocket = new TSocket(address.getHostName(), address.getPort());
        TTransport transport = new TFramedTransport(tsocket);
        TProtocol protocol = new TBinaryProtocol(transport);
        TServiceClient client = this.clientFactory.getClient(protocol);
        transport.open();
        if (callback != null) {
            try {
                callback.make(client);
            } catch (Exception e) {
                //
            }
        }
        return client;
    }

}

7、客户端服务代理工厂实现：ThriftServiceClientProxyFactory.java

package cn.slimsmart.thrift.rpc;

import java.lang.reflect.InvocationHandler;
import java.lang.reflect.Method;
import java.lang.reflect.Proxy;

import org.apache.commons.pool.impl.GenericObjectPool;
import org.apache.thrift.TServiceClient;
import org.apache.thrift.TServiceClientFactory;
import org.springframework.beans.factory.FactoryBean;
import org.springframework.beans.factory.InitializingBean;

import cn.slimsmart.thrift.rpc.ThriftClientPoolFactory.PoolOperationCallBack;
import cn.slimsmart.thrift.rpc.zookeeper.ThriftServerAddressProvider;

/**
 * 客户端代理
 */
@SuppressWarnings({ "unchecked", "rawtypes" })
public class ThriftServiceClientProxyFactory implements FactoryBean, InitializingBean {

    private Integer maxActive = 32;// 最大活跃连接数

    // ms,default 3 min,链接空闲时间
    // -1,关闭空闲检测
    private Integer idleTime = 180000;
    private ThriftServerAddressProvider serverAddressProvider;

    private Object proxyClient;
    private Class<?> objectClass;

    private GenericObjectPool<TServiceClient> pool;

    private PoolOperationCallBack callback = new PoolOperationCallBack() {
        @Override
        public void make(TServiceClient client) {
            System.out.println("create");
        }

        @Override
        public void destroy(TServiceClient client) {
            System.out.println("destroy");
        }
    };

    public void setMaxActive(Integer maxActive) {
        this.maxActive = maxActive;
    }

    public void setIdleTime(Integer idleTime) {
        this.idleTime = idleTime;
    }

    public void setServerAddressProvider(ThriftServerAddressProvider serverAddressProvider) {
        this.serverAddressProvider = serverAddressProvider;
    }

    @Override
    public void afterPropertiesSet() throws Exception {
        ClassLoader classLoader = Thread.currentThread().getContextClassLoader();
        // 加载Iface接口
        objectClass = classLoader.loadClass(serverAddressProvider.getService() + "$Iface");
        // 加载Client.Factory类
        Class<TServiceClientFactory<TServiceClient>> fi = (Class<TServiceClientFactory<TServiceClient>>) classLoader.loadClass(serverAddressProvider.getService() + "$Client$Factory");
        TServiceClientFactory<TServiceClient> clientFactory = fi.newInstance();
        ThriftClientPoolFactory clientPool = new ThriftClientPoolFactory(serverAddressProvider, clientFactory, callback);
        GenericObjectPool.Config poolConfig = new GenericObjectPool.Config();
        poolConfig.maxActive = maxActive;
        poolConfig.minIdle = 0;
        poolConfig.minEvictableIdleTimeMillis = idleTime;
        poolConfig.timeBetweenEvictionRunsMillis = idleTime / 2L;
        pool = new GenericObjectPool<TServiceClient>(clientPool, poolConfig);
        proxyClient = Proxy.newProxyInstance(classLoader, new Class[] { objectClass }, new InvocationHandler() {
            @Override
            public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
                //
                TServiceClient client = pool.borrowObject();
                try {
                    return method.invoke(client, args);
                } catch (Exception e) {
                    throw e;
                } finally {
                    pool.returnObject(client);
                }
            }
        });
    }

    @Override
    public Object getObject() throws Exception {
        return proxyClient;
    }

    @Override
    public Class<?> getObjectType() {
        return objectClass;
    }

    @Override
    public boolean isSingleton() {
        return true;
    }

    public void close() {
        if (serverAddressProvider != null) {
            serverAddressProvider.close();
        }
    }
}

下面我们看一下服务端和客户端的配置;
服务端spring-context-thrift-server.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:context="http://www.springframework.org/schema/context"
    xmlns:aop="http://www.springframework.org/schema/aop" xmlns:tx="http://www.springframework.org/schema/tx"
    xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.0.xsd
                http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.0.xsd
                http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-4.0.xsd
                http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-4.0.xsd"
    default-lazy-init="false">

    <!-- zookeeper -->
    <bean id="thriftZookeeper" class="cn.slimsmart.thrift.rpc.zookeeper.ZookeeperFactory"
        destroy-method="close">
        <property name="zkHosts"
            value="192.168.36.54:2181,192.168.36.99:2181,192.168.36.189:2181" />
        <property name="namespace" value="cn.slimsmart.thrift.rpc.demo" />
        <property name="connectionTimeout" value="3000" />
        <property name="sessionTimeout" value="3000" />
        <property name="singleton" value="true" />
    </bean>
    <bean id="sericeAddressRegister"
        class="cn.slimsmart.thrift.rpc.zookeeper.ThriftServerAddressRegisterZookeeper"
        destroy-method="close">
        <property name="zkClient" ref="thriftZookeeper" />
    </bean>
    <bean id="echoSerivceImpl" class="cn.slimsmart.thrift.rpc.demo.EchoSerivceImpl" />

    <bean id="echoSerivce" class="cn.slimsmart.thrift.rpc.ThriftServiceServerFactory"
        destroy-method="close">
        <property name="service" ref="echoSerivceImpl" />
        <property name="port" value="9000" />
        <property name="version" value="1.0.0" />
        <property name="weight" value="1" />
        <property name="thriftServerAddressRegister" ref="sericeAddressRegister" />
    </bean>

    <bean id="echoSerivce1" class="cn.slimsmart.thrift.rpc.ThriftServiceServerFactory"
        destroy-method="close">
        <property name="service" ref="echoSerivceImpl" />
        <property name="port" value="9001" />
        <property name="version" value="1.0.0" />
        <property name="weight" value="1" />
        <property name="thriftServerAddressRegister" ref="sericeAddressRegister" />
    </bean>

    <bean id="echoSerivce2" class="cn.slimsmart.thrift.rpc.ThriftServiceServerFactory"
        destroy-method="close">
        <property name="service" ref="echoSerivceImpl" />
        <property name="port" value="9002" />
        <property name="version" value="1.0.0" />
        <property name="weight" value="1" />
        <property name="thriftServerAddressRegister" ref="sericeAddressRegister" />
    </bean>
</beans>

客户端：spring-context-thrift-client.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:context="http://www.springframework.org/schema/context"
    xmlns:aop="http://www.springframework.org/schema/aop" xmlns:tx="http://www.springframework.org/schema/tx"
    xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.0.xsd
                http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.0.xsd
                http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-4.0.xsd
                http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-4.0.xsd"
    default-lazy-init="false">

    <!-- fixedAddress -->
    <!--
    <bean id="fixedAddressProvider" class="cn.slimsmart.thrift.rpc.zookeeper.FixedAddressProvider">
         <property name="service" value="cn.slimsmart.thrift.rpc.demo.EchoSerivce" />
         <property name="serverAddress" value="192.168.36.215:9001:1,192.168.36.215:9002:2,192.168.36.215:9003:3" />
    </bean>
    <bean id="echoSerivce" class="cn.slimsmart.thrift.rpc.ThriftServiceClientProxyFactory">
        <property name="maxActive" value="5" />
        <property name="idleTime" value="10000" />
        <property name="serverAddressProvider" ref="fixedAddressProvider" />
    </bean>
   -->
    <!-- zookeeper   -->
    <bean id="thriftZookeeper" class="cn.slimsmart.thrift.rpc.zookeeper.ZookeeperFactory"
        destroy-method="close">
        <property name="zkHosts"
            value="192.168.36.54:2181,192.168.36.99:2181,192.168.36.189:2181" />
        <property name="namespace" value="cn.slimsmart.thrift.rpc.demo" />
        <property name="connectionTimeout" value="3000" />
        <property name="sessionTimeout" value="3000" />
        <property name="singleton" value="true" />
    </bean>
    <bean id="echoSerivce" class="cn.slimsmart.thrift.rpc.ThriftServiceClientProxyFactory" destroy-method="close">
        <property name="maxActive" value="5" />
        <property name="idleTime" value="1800000" />
        <property name="serverAddressProvider">
            <bean class="cn.slimsmart.thrift.rpc.zookeeper.ThriftServerAddressProviderZookeeper">
                <property name="service" value="cn.slimsmart.thrift.rpc.demo.EchoSerivce" />
                <property name="version" value="1.0.0" />
                <property name="zkClient" ref="thriftZookeeper" />
            </bean>
        </property>
    </bean>
</beans>

运行服务端后，我们可以看见zookeeper注册了多个服务地址。

转自：http://blog.csdn.net/zhu_tianwei/article/details/44115667
