我是靠谱客的博主 忧虑便当,这篇文章主要介绍Spring Cloud Bus()一、简介二、创建基于Bus的config-client,现在分享给大家,希望可以做个参考。

一、简介

Spring Cloud Bus 将分布式的节点用轻量的消息代理连接起来。它可以用于广播配置文件的更改或者服务之间的通讯,也可以用于监控。本文要讲述的是用Spring Cloud Bus实现通知微服务架构的配置文件的更改。

二、创建基于Bus的config-client

本文还是基于上一篇文章来实现。按照官方文档,我们只需要在配置文件中配置 spring-cloud-starter-bus-amqp ;这就是说我们需要装rabbitMq,点击 https://www.rabbitmq.com/ 下载。至于怎么使用 rabbitmq,搜索引擎下。

2.1 pom文件

复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
<?xml version="1.0" encoding="UTF-8"?> <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd"> <modelVersion>4.0.0</modelVersion> <name>demo</name> <description>Demo project for Spring Boot</description> <groupId>com.example</groupId> <artifactId>demo</artifactId> <version>0.0.1-SNAPSHOT</version> <parent> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-parent</artifactId> <version>2.4.3</version> <relativePath/> </parent> <properties> <java.version>1.8</java.version> </properties> <dependencies> <!-- 基础依赖 Start. --> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-web</artifactId> </dependency> <!-- 基础依赖 End. --> <!-- config --> <dependency> <groupId>org.springframework.cloud</groupId> <artifactId>spring-cloud-starter-config</artifactId> </dependency> <!-- config --> <!-- eureka-client--> <dependency> <groupId>org.springframework.cloud</groupId> <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId> </dependency> <!-- eureka-client--> <!-- bus-amqp--> <dependency> <groupId>org.springframework.cloud</groupId> <artifactId>spring-cloud-starter-bus-amqp</artifactId> </dependency> <!-- bus-amqp--> <!-- actuator--> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-actuator</artifactId> </dependency> <!-- actuator--> </dependencies> <dependencyManagement> <dependencies> <dependency> <groupId>org.springframework.cloud</groupId> <artifactId>spring-cloud-dependencies</artifactId> <version>Finchley.RELEASE</version> <type>pom</type> <scope>import</scope> </dependency> </dependencies> </dependencyManagement> <build> <plugins> <plugin> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-maven-plugin</artifactId> </plugin> </plugins> </build> </project>

2.2 配置文件

在配置文件application.properties中加上RabbitMq的配置,包括RabbitMq的地址、端口,用户名、密码。并需要加上spring.cloud.bus的三个配置,具体如下:

复制代码
1
2
3
4
5
6
7
8
9
spring.rabbitmq.host=localhost spring.rabbitmq.port=5672 spring.rabbitmq.username=guest spring.rabbitmq.password=guest spring.cloud.bus.enabled=true spring.cloud.bus.trace.enabled=true management.endpoints.web.exposure.include=bus-refresh

2.3 启动类

复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
@SpringBootApplication @EnableEurekaClient @EnableDiscoveryClient @RestController @RefreshScope public class ConfigClientApplication { /** * http://localhost:8881/actuator/bus-refresh */ public static void main(String[] args) { SpringApplication.run(ConfigClientApplication.class, args); } @Value("${foo}") String foo; @RequestMapping(value = "/hi") public String hi(){ return foo; } }

依次启动eureka-server、confg-cserver,启动两个config-client,端口为:8881、8882。
访问http://localhost:8881/hi 或者http://localhost:8882/hi 浏览器显示:
foo version 3
这时我们去代码仓库将foo的值改为“foo version 4”,即改变配置文件foo的值。如果是传统的做法,需要重启服务,才能达到配置文件的更新。此时,我们只需要发送post请求:http://localhost:8881/actuator/bus-refresh,你会发现config-client会重新读取配置文件
在这里插入图片描述

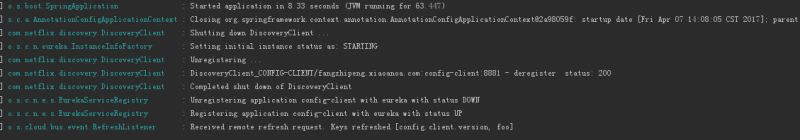

重新读取配置文件:
这时我们再访问http://localhost:8881/hi 或者http://localhost:8882/hi 浏览器显示:
foo version 4
另外,/actuator/bus-refresh接口可以指定服务,即使用”destination”参数,比如 “/actuator/bus-refresh?destination=customers:**” 即刷新服务名为customers的所有服务。

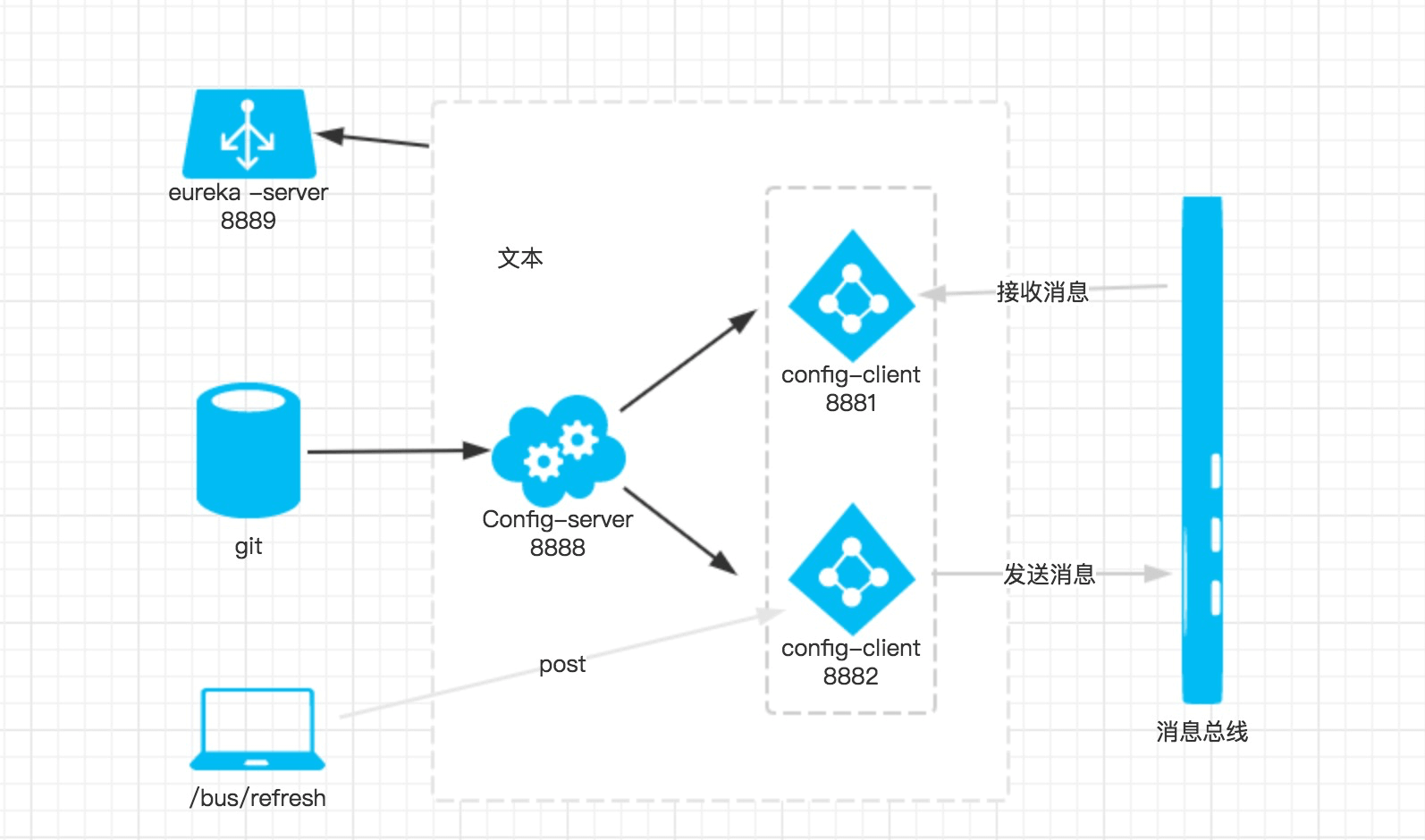

此时的架构图:
在这里插入图片描述
当git文件更改的时候,通过pc端用post 向端口为8882的config-client发送请求/bus/refresh/;此时8882端口会发送一个消息,由消息总线向其他服务传递,从而使整个微服务集群都达到更新配置文件。
