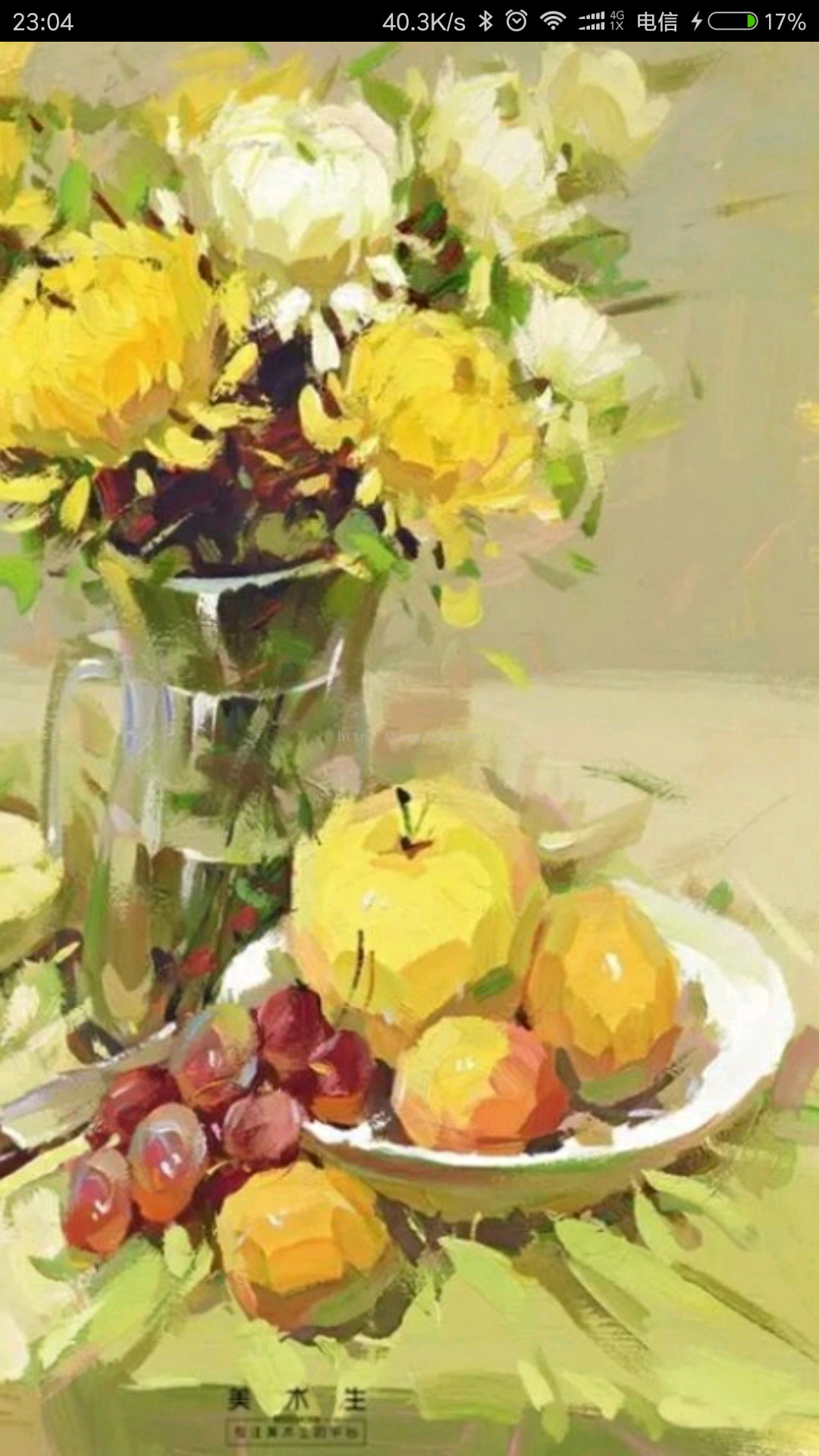

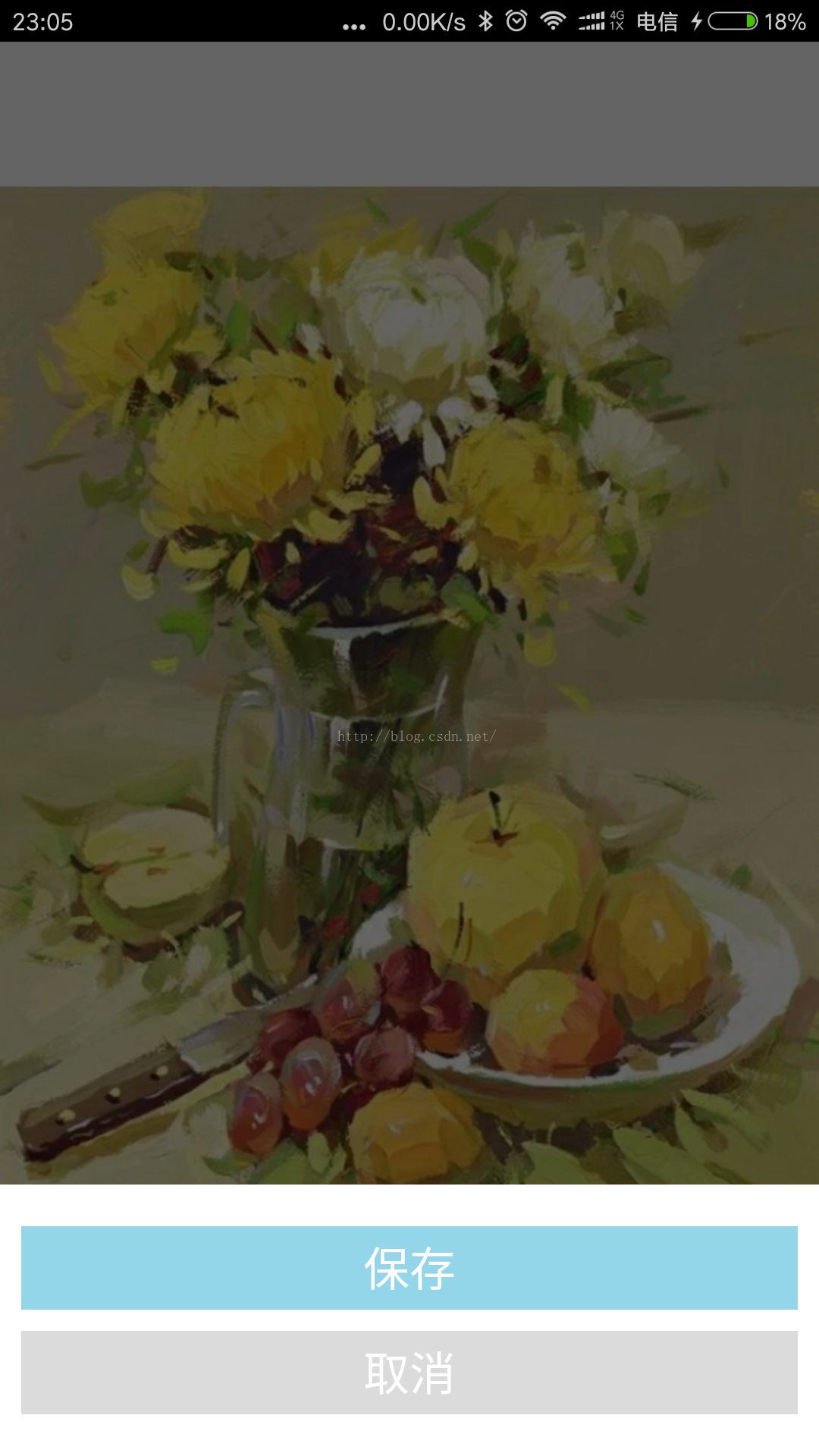

Android ZoomImageView手势缩放拖动图片，并将Glide加载的网络图片保存到本地。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
487
488
489
490
491
492
493
494
495
496
497
498
499
500
501
502
503
504
505
506
507
508
509
510
511
512
513
514
515
516
517
518
519
520
521
522
523
524
525
526
527
528
529
530
531
532
533
534
535
536
537
538
539
540
541
542
543
544
545
546
547
548
549
550
551
552
553
554
555
556
557
558
559
560
561
562
563
564
565
566
567
import android.annotation.SuppressLint;
import android.content.Context;
import android.graphics.Bitmap;
import android.graphics.Matrix;
import android.graphics.RectF;
import android.graphics.drawable.Drawable;
import android.util.AttributeSet;
import android.util.Log;
import android.view.GestureDetector;
import android.view.MotionEvent;
import android.view.ScaleGestureDetector;
import android.view.View;
import android.view.ViewConfiguration;
import android.view.ViewTreeObserver;
import android.widget.ImageView;

import java.util.ArrayList;
import java.util.List;


/**
 * 可根据点击/多指触控 放大,放小的ImageVIew
 *
 * @author Gloomy
 * @date 2016年07月02日15:12:20
 */
public class ZoomImageView extends ImageView implements ViewTreeObserver.OnGlobalLayoutListener
        , View.OnTouchListener, ScaleGestureDetector.OnScaleGestureListener {

    private static final String TAG = "ZoomImageView";
    private boolean isInit;


    /**
     * 缩放工具
     */
    private Matrix mMatrix;

    /**
     * 缩放的最小值
     */
    private float mMinScale;
    /**
     * 缩放的中间值
     */
    private float mMidScale;
    /**
     * 缩放的最大值
     */
    private float mMaxScale;

    /**
     * 多点手势触 控缩放比率分析器
     */
    private ScaleGestureDetector mScaleGestureDetector;

    //--自由移动

    /**
     * 记录上一次多点触控的数量
     */
    private int mLastPointereCount;

    private float mLastX;
    private float mLastY;
    private int mTouchSlop;
    private boolean isCanDrag;
    private boolean isCheckLeftAndRight;
    private boolean isCheckTopAndBottom;

    //----双击放大与缩小
    private GestureDetector mGestureDetector;
    private boolean isScaleing;
    private List<MotionEvent> events;
    private OnClickListener onClickListener;
    private int arae_img_id = -1;


    public ZoomImageView(Context context) {
        this(context, null);
    }

    public ZoomImageView(Context context, AttributeSet attrs) {
        this(context, attrs, 0);
        initView(context);
    }

    public ZoomImageView(Context context, AttributeSet attrs, int defStyleAttr) {
        super(context, attrs, defStyleAttr);
    }

    public void initView(Context context) {

        setScaleType(ScaleType.MATRIX);
        mMatrix = new
                Matrix();
        mScaleGestureDetector = new
                ScaleGestureDetector(context, this);
        mGestureDetector = new
                GestureDetector(context, new GestureDetector.SimpleOnGestureListener() {
            @Override
            public boolean onDoubleTap(MotionEvent e) {
                if (isScaleing || getScale() >= mMaxScale)
                    return true;
                isScaleing = true;
                float x = e.getX();
                float y = e.getY();

                if (getScale() < mMidScale) {
                    postDelayed(new AutoScaleRunnable(mMidScale, x, y), 16);
                } else {
                    postDelayed(new AutoScaleRunnable(mMinScale, x, y), 16);
                }

                return true;
            }

            @Override
            public boolean onSingleTapConfirmed(MotionEvent e) {
                if (onClickListener != null) {
                    onClickListener.onClick(ZoomImageView.this);
                    return true;
                }
                return false;
            }
        });
        setOnTouchListener(this);
        mTouchSlop = ViewConfiguration.get(context).
                getScaledTouchSlop();
        events = new ArrayList<>();
    }

    private class AutoScaleRunnable implements Runnable {
        /**
         * 要缩放的目标值
         */
        private float mTargetScale;
        private float x; //缩放的中心点x
        private float y; //缩放的中心点y
        private float tmpScale;

        private final float BIGGER = 1.07f;
        private final float SMALL = 0.93f;

        public AutoScaleRunnable(float mTargetScale, float x, float y) {
            this.mTargetScale = mTargetScale;
            this.x = x;
            this.y = y;

            if (getScale() < mTargetScale) {
                tmpScale = BIGGER;
            } else {
                tmpScale = SMALL;
            }
        }

        @Override
        public void run() {
            mMatrix.postScale(tmpScale, tmpScale, x, y);
            checkBorderAndCenterWhenScale();
            setImageMatrix(mMatrix);


            float currentScale = getScale();
            if ((tmpScale > 1.0f && currentScale < mTargetScale)
                    || (tmpScale < 1.0f && currentScale > mTargetScale)) {
                postDelayed(this, 16);
            } else {
                float scale = mTargetScale / currentScale;
                mMatrix.postScale(scale, scale, x, y);
                checkBorderAndCenterWhenScale();
                setImageMatrix(mMatrix);
                isScaleing = false;
            }
        }
    }


    @Override
    protected void onAttachedToWindow() {
        super.onAttachedToWindow();
        log("注册了OnGlobalLayoutListener");
        getViewTreeObserver().addOnGlobalLayoutListener(this);
    }

    @SuppressLint("NewApi")
    @Override
    @SuppressWarnings("deprecation")
    protected void onDetachedFromWindow() {
        super.onDetachedFromWindow();
        log("反注册了OnGlobalLayoutListener");
        getViewTreeObserver().removeOnGlobalLayoutListener(this);
    }

    @Override
    public void onGlobalLayout() {
        log("执行了onGlobalLayout| NULL:" + (getDrawable() == null));
        if (getDrawable() == null || getWidth() == 0 || getHeight() == 0) return;

        if (!isInit) {
            log("初始化完毕");
            int width = getWidth();
            int height = getHeight();
            float screenWeight = height * 1.0f / width;

            int imageH = getDrawable().getIntrinsicHeight(); // 图片高度
            int imageW = getDrawable().getIntrinsicWidth(); // 图片宽度

            float imageWeight = imageH * 1.0f / imageW;
            //如果当前屏幕高宽比 大于等于 图片高宽比,就缩放图片
            if (screenWeight >= imageWeight) {
                float scale = 1.0f;
                //图片比当前View宽,但是比当前View矮
                if (imageW > width && imageH < height) {
                    scale = width * 1.0f / imageW; //根据宽度缩放
                }

                //图片比当前View窄,但是比当前View高
                if (imageH > height && imageW < width) {
                    scale = height * 1.0f / imageH; //根据高度缩放
                }

                //图片高宽都大于当前View,那么就根据最小的缩放值来缩放
                if (imageH > height && imageW > width) {
                    scale = Math.min(width * 1.0f / imageW, height * 1.0f / imageH);
                    log("max scale:" + scale);
                }

                if (imageH < height && imageW < width) {
                    scale = Math.min(width * 1.0f / imageW, height * 1.0f / imageH);
                    log("min scale:" + scale);
                }

                /**
                 * 设置缩放比率
                 */
                mMinScale = scale;
                mMidScale = mMinScale * 2;
                mMaxScale = mMinScale * 4;
                /**
                 * 把图片移动到中心点去
                 */
                int dx = getWidth() / 2 - imageW / 2;
                int dy = getHeight() / 2 - imageH / 2;

                /**
                 * 设置缩放(全图浏览模式,用最小的缩放比率去查看图片就好了)/移动位置
                 */
                mMatrix.postTranslate(dx, dy);
                mMatrix.postScale(mMinScale, mMinScale, width / 2, height / 2);
            } else {

                //将宽度缩放至屏幕比例缩放(长图,全图预览)
                float scale = width * 1.0f / imageW;
                /**
                 * 设置缩放比率
                 */
                mMaxScale = scale;
                mMidScale = mMaxScale / 2;
                mMinScale = mMaxScale / 4;

                //因为是长图浏览,所以用最大的缩放比率去加载长图
                //mMatrix.postTranslate(0, 0);
                mMatrix.postScale(mMaxScale, mMaxScale, 0, 0);
            }

            setImageMatrix(mMatrix);
            isInit = true;
        }
    }


    /**
     * 是否是Debug模式
     */
    private static boolean IS_DEBUG = true;

    /**
     * 打印日志
     *
     * @param value 要打印的日志
     */
    public static void log(String value) {
        if (IS_DEBUG)
            Log.w(TAG, value);
    }


    /**
     * 设置初始化状态为false
     */
    public void reSetState() {
        isInit = false;
        setTag(null);
        mMatrix.reset();
    }

    @Override
    public boolean onTouch(View view, MotionEvent motionEvent) {
        if (mGestureDetector.onTouchEvent(motionEvent))
            return true;

        //将触摸事件传递给ScaleGestureDetector
        if (motionEvent.getPointerCount() > 1)
            mScaleGestureDetector.onTouchEvent(motionEvent);


        float x = 0;
        float y = 0;

        int pointerCount = motionEvent.getPointerCount();

        for (int i = 0; i < pointerCount; i++) {
            x += motionEvent.getX(i);
            y += motionEvent.getY(i);
        }

        x /= pointerCount;
        y /= pointerCount;

        if (mLastPointereCount != pointerCount) {
            isCanDrag = false;
            mLastX = x;
            mLastY = y;
        }

        mLastPointereCount = pointerCount;

        switch (motionEvent.getAction()) {
            case MotionEvent.ACTION_DOWN: {
                RectF rectF = getMatrixRectF();
                if ((rectF.width() > getWidth() + 0.01f || (rectF.height() > getHeight() + 0.01f))) {
                    if ((rectF.right != getWidth()) && (rectF.left != 0)) {
                        try {
                            getParent().requestDisallowInterceptTouchEvent(true);
                        } catch (Exception e) {
                            log(e.toString());
                        }
                    }
                }
                break;
            }
            case MotionEvent.ACTION_MOVE: {

                float dx = x - mLastX;
                float dy = y - mLastY;

                if (!isCanDrag) {
                    isCanDrag = isMoveAction(dx, dy);
                }

                if (isCanDrag) {
                    RectF rectF = getMatrixRectF();

                    if (getDrawable() != null) {
                        isCheckLeftAndRight = isCheckTopAndBottom = true;

                        if (rectF.width() <= getWidth()) {
                            isCheckLeftAndRight = false;
                            dx = 0;
                        }

                        if (rectF.height() <= getHeight()) {
                            isCheckTopAndBottom = false;
                            dy = 0;
                        }

                        mMatrix.postTranslate(dx, dy);
                        checkBorderWhenTranslate();
                        setImageMatrix(mMatrix);
                    }
                }
                mLastX = x;
                mLastY = y;

                RectF rect = getMatrixRectF();
                if ((rect.width() > getWidth() + 0.01f || (rect.height() > getHeight() + 0.01f))) {
                    if ((rect.right != getWidth()) && (rect.left != 0)) {
                        try {
                            getParent().requestDisallowInterceptTouchEvent(true);
                        } catch (Exception e) {
                            log(e.toString());
                        }
                    }
                }
                break;
            }
            case MotionEvent.ACTION_CANCEL:
            case MotionEvent.ACTION_UP: {
                mLastPointereCount = 0;
                break;
            }
        }
        return true;
    }

    /**
     * 在移动图片的时候进行边界检查
     */
    private void checkBorderWhenTranslate() {
        RectF rectF = getMatrixRectF();

        float deltaX = 0;
        float deltaY = 0;

        int width = getWidth();
        int height = getHeight();

        if (rectF.top > 0 && isCheckTopAndBottom) {
            deltaY = -rectF.top;
        }

        if (rectF.bottom < height && isCheckTopAndBottom) {
            deltaY = height - rectF.bottom;
        }


        if (rectF.left > 0 && isCheckLeftAndRight) {
            deltaX = -rectF.left;
        }

        if (rectF.right < width && isCheckLeftAndRight) {
            deltaX = width - rectF.right;
        }

        mMatrix.postTranslate(deltaX, deltaY);
        setImageMatrix(mMatrix);
    }

    /**
     * 判断是否足以触发移动事件
     *
     * @param dx
     * @param dy
     * @return
     */
    private boolean isMoveAction(float dx, float dy) {
        return Math.sqrt(dx * dx + dy * dy) > mTouchSlop;
    }

    @Override
    public boolean onScale(ScaleGestureDetector detector) {

        float scaleFactor = detector.getScaleFactor();//获取用户手势判断出来的缩放值
        float scale = getScale();

        /**
         * 没有图片
         */
        if (getDrawable() == null) return true;

        //缩放范围控制
        if ((scale < mMaxScale && scaleFactor > 1.0f) || (scale > mMinScale && scaleFactor < 1.0f)) {
            if (scaleFactor * scale < mMinScale) {
                scaleFactor = mMinScale / scale;
            }

            if (scale * scaleFactor > mMaxScale) {
                scaleFactor = mMaxScale / scale;
            }

            mMatrix.postScale(scaleFactor, scaleFactor, detector.getFocusX(), detector.getFocusY());
            checkBorderAndCenterWhenScale();
            setImageMatrix(mMatrix);
        }
        return true;
    }

    /**
     * 在缩放的时候进行边界,位置 检查
     */
    private void checkBorderAndCenterWhenScale() {
        RectF rectF = getMatrixRectF();

        float deltaX = 0;
        float deltaY = 0;

        int width = getWidth();
        int height = getHeight();

        if (rectF.width() >= width) {
            if (rectF.left > 0)
                deltaX = -rectF.left;
            if (rectF.right < width)
                deltaX = width - rectF.right;
        }

        if (rectF.height() >= height) {
            if (rectF.top > 0)
                deltaY = 0;
            if (rectF.bottom < height)
                deltaY = height - rectF.bottom;
        }

        if (rectF.width() < width) {
            deltaX = width / 2f - rectF.right + rectF.width() / 2;
        }

        if (rectF.height() < height) {
            deltaY = height / 2f - rectF.bottom + rectF.height() / 2;
        }

        mMatrix.postTranslate(deltaX, deltaY);
        setImageMatrix(mMatrix);
    }

    /**
     * 获取图片放大缩小后的宽高/top/left/right/bottom
     *
     * @return
     */
    private RectF getMatrixRectF() {
        RectF rectF = new RectF();
        Drawable drawable = getDrawable();

        if (drawable != null) {
            rectF.set(0, 0, drawable.getIntrinsicWidth(), drawable.getIntrinsicHeight());
            mMatrix.mapRect(rectF);
        }

        return rectF;
    }

    @Override
    public boolean onScaleBegin(ScaleGestureDetector scaleGestureDetector) {
        return true; //缩放开始,返回true 用于接收后续时间
    }

    @Override
    public void onScaleEnd(ScaleGestureDetector scaleGestureDetector) {

    }

    /**
     * 获取当前的缩放比率
     *
     * @return
     */
    private float getScale() {
        float[] values = new float[9];
        mMatrix.getValues(values);
        return values[Matrix.MSCALE_X];
    }

    @Override
    public void setImageBitmap(Bitmap bm) {
        reSetState();
        super.setImageBitmap(bm);
    }

    @Override
    public void setImageResource(int resId) {
        reSetState();
        super.setImageResource(resId);
    }

    @Override
    public void setImageDrawable(Drawable drawable) {
        reSetState();
        super.setImageDrawable(drawable);
    }

    @Override
    public void setOnClickListener(OnClickListener l) {
        this.onClickListener = l;
    }
}

1
2
3
4
<com.wbkj.mss.UiView.weight.ZoomImageView
    android:id="@+id/iv_zoom"
    android:layout_width="match_parent"
    android:layout_height="match_parent" />

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
class DownLoadImageService implements Runnable {
    private String url;
    private Context context;
    private ImageDownLoadCallBack callBack;

    public DownLoadImageService(Context context, String url, ImageDownLoadCallBack callBack) {
        this.url = url;
        this.callBack = callBack;
        this.context = context;
    }

    @Override
    public void run() {
        File file = null;
        try {
            file = Glide.with(context)
                    .load(url)
                    .downloadOnly(Target.SIZE_ORIGINAL, Target.SIZE_ORIGINAL)
                    .get();
        } catch (Exception e) {
            e.printStackTrace();
        } finally {
            if (file != null) {
                callBack.onDownLoadSuccess(file);
            } else {
                callBack.onDownLoadFailed();
            }
        }
    }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
/**
 * 执行单线程列队执行
 */
public void runOnQueue(Runnable runnable) {
    if (singleExecutor == null) {
        singleExecutor = Executors.newSingleThreadExecutor();
    }
    singleExecutor.submit(runnable);
}

/**
 * 启动图片下载线程
 */
private void onDownLoad() {
    DownLoadImageService service = new DownLoadImageService(this, url, new ImageDownLoadCallBack() {
                @Override
                public void onDownLoadSuccess(File file) {
                        try {
                            int bytesum = 0;
                            int byteread = 0;
                            File imgfile = new File(savaPath); //Environment.getExternalStorageDirectory().getAbsolutePath()+"/"+"yida"+url.substring(url.lastIndexOf("/"));我用的保存文件的地址

                            InputStream inputStream = new FileInputStream(file);
                            OutputStream outputStream = new FileOutputStream(imgfile);
                            byte[] buffer = new byte[1000];
                            int length;
                            while ( (byteread = inputStream.read(buffer)) != -1) {
                                bytesum += byteread; //字节数 文件大小
                                outputStream.write(buffer, 0, byteread);
                            }
                            outputStream.flush();
                            outputStream.close();
                            inputStream.close();
                            handle.sendEmptyMessageDelayed(0,0); //保存成功后采用handler发送消息到主线程。进行toast提示用户

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
} catch (Exception e) {

                            e.printStackTrace();
                        }
                    }

                @Override
                public void onDownLoadFailed() {

                }
            });
    //启动图片下载线程
    runOnQueue(service);
}

private Handler handle = new Handler(){
    @Override
    public void handleMessage(Message msg) {
        super.handleMessage(msg);
        handle.removeMessages(0);
        Toast.makeText(ZoomImageActivity.this, "保存成功,保存在yida文件夹下", Toast.LENGTH_SHORT).show();
        mDialog.dismiss();
    }
};
