概述
实验名称：中小型公司不同区域ospf实现互通

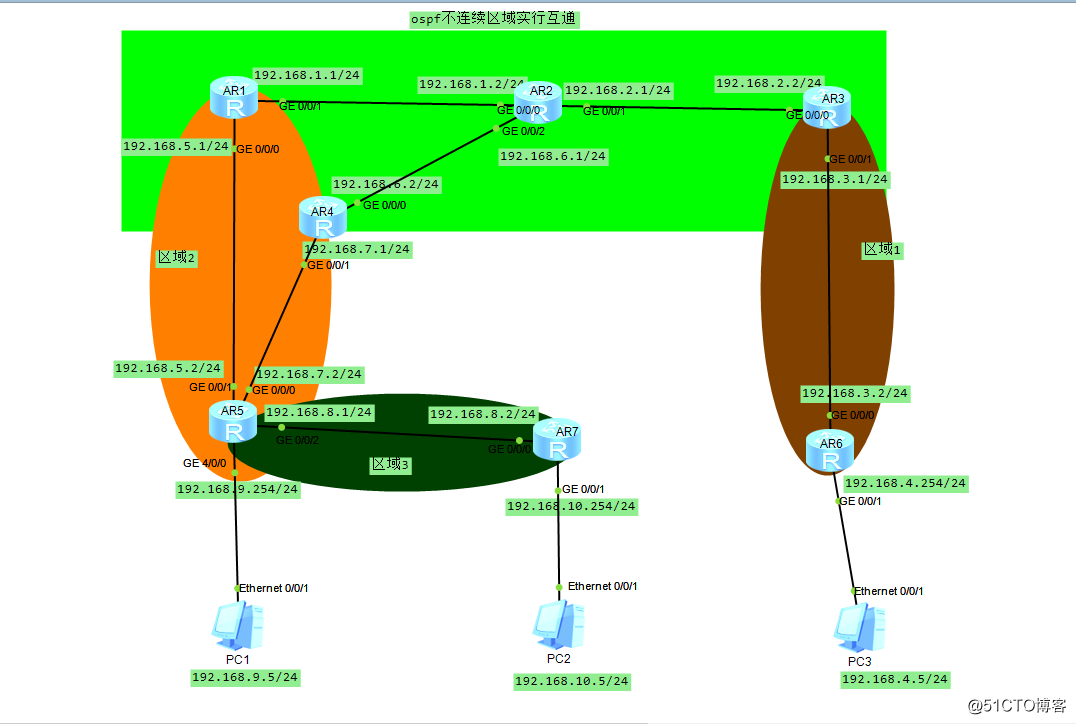

实验拓扑：
实验所需设备：
7台路由器
2台PC机地址规划：
| 设备 | IP 子网掩码 |
|---|---|
| pc1 | 192.168.9.5 /24 |
| PC2 | 192.168.10.5 /24 |
| 设备 | 端口 | IP地址 子网掩码 | 所属区域 |
|---|---|---|---|
| AR1 | G0/0/1 | 192.168.1.1 /24 | 0区域 |
| AR1 | G0/0/0 | 192.168.5.1/ 24 | 2区域 |
| AR2 | G0/0/0 | 192.168.1.2 /24 | 0区域 |
| AR2 | G0/0/1 | 192.168.2.1 /24 | 0区域 |
| AR2 | G0/0/2 | 192.168.6.1 /24 | 0区域 |
| AR3 | G0/0/0 | 192.168.2.2 /24 | 0区域 |
| AR3 | G0/0/1 | 192.168.3.1 /24 | 1区域 |
| AR4 | G0/0/0 | 192.168.6.2 /24 | 0区域 |
| AR4 | G0/01 | 192.168.7.1 /24 | 2区域 |
| AR5 | G0/0/0 | 192.168.7.2 /24 | 2区域 |
| AR5 | G0/0/1 | 192.168.5.2 /24 | 2区域 |
| AR5 | G0/0/2 | 192.168.8.1 /24 | 3区域 |
| AR5 | G4/0/0 | 192.168.9.254/ 24 | 2区域 |
| AR6 | G0/0/0 | 192.168.3.2 /24 | 1区域 |
| AR6 | G0/0/1 | 192.168.4.254/ 24 | 1区域 |
| AR7 | G0/0/0 | 192.168.8.2 /24 | 3区域 |
| AR7 | G0/0/1 | 192.168.10.254/ 24 | 3区域 |
实验目的：实现不同区域之间互通
实验步骤：
配置AR1
<Huawei>SYS
Enter system view, return user view with Ctrl+Z.
[Huawei]int g0/0/1
[Huawei-GigabitEthernet0/0/1]undo shutdown
Info: Interface GigabitEthernet0/0/1 is not shutdown.
[Huawei-GigabitEthernet0/0/1]ip add 192.168.1.1 255.255.255.0
Jan 18 2018 17:47:27-08:00 Huawei %%01IFNET/4/LINK_STATE(l)[0]:The line protocol IP on the interface GigabitEthernet0/0/1 has entered the UP state.
[Huawei-GigabitEthernet0/0/1]q
[Huawei]int g0/0/0
[Huawei-GigabitEthernet0/0/0]undo shutdown
Info: Interface GigabitEthernet0/0/0 is not shutdown.
[Huawei-GigabitEthernet0/0/0]ip add 192.168.5.1 255.255.255.0
Jan 18 2018 17:50:04-08:00 Huawei %%01IFNET/4/LINK_STATE(l)[1]:The line protocol IP on the interface GigabitEthernet0/0/0 has entered the UP state.
[Huawei-GigabitEthernet0/0/0]q
[Huawei]int l
[Huawei]int LoopBack 1
[Huawei]int LoopBack 1
[Huawei-LoopBack1]
[Huawei-LoopBack1]
[Huawei-LoopBack1]
[Huawei-LoopBack1]
[Huawei-LoopBack1]
[Huawei-LoopBack1]
[Huawei-LoopBack1]
[Huawei-LoopBack1]
[Huawei-LoopBack1]
[Huawei-LoopBack1]
[Huawei-LoopBack1]
[Huawei-LoopBack1]
[Huawei-LoopBack1]ip add 10.10.1.1 255.255.255.0
[Huawei-LoopBack1]q
[Huawei]
Please check whether system data has been changed, and save data in time
Configuration console time out, please press any key to log on
<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]ospf r
[Huawei]ospf router-id 1.1.1.1
[Huawei-ospf-1]area 0
[Huawei-ospf-1-area-0.0.0.0]ne
[Huawei-ospf-1-area-0.0.0.0]network 192.168.1.1 0.0.0.0
[Huawei-ospf-1-area-0.0.0.0]network
Jan 18 2018 18:01:07-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[0]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=2.1.168.192, NeighborEvent=HelloReceived, NeighborPreviousState=Down, NeighborCurrentState=Init)
[Huawei-ospf-1-area-0.0.0.0]network 10
Jan 18 2018 18:01:07-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[1]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=2.1.168.192, NeighborEvent=2WayReceived, NeighborPreviousState=Init, NeighborCurrentState=2Way)
[Huawei-ospf-1-area-0.0.0.0]network 10
Jan 18 2018 18:01:07-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[2]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=2.1.168.192, NeighborEvent=AdjOk?, NeighborPreviousState=2Way, NeighborCurrentState=ExStart)
[Huawei-ospf-1-area-0.0.0.0]network 10
Jan 18 2018 18:01:07-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[3]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=2.1.168.192, NeighborEvent=NegotiationDone, NeighborPreviousState=ExStart, NeighborCurrentState=Exchange)
[Huawei-ospf-1-area-0.0.0.0]network 10
Jan 18 2018 18:01:07-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[4]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=2.1.168.192, NeighborEvent=ExchangeDone, NeighborPreviousState=Exchange, NeighborCurrentState=Loading)
[Huawei-ospf-1-area-0.0.0.0]network 10.
Jan 18 2018 18:01:07-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[5]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=2.1.168.192, NeighborEvent=LoadingDone, NeighborPreviousState=Loading, NeighborCurrentState=Full)
[Huawei-ospf-1-area-0.0.0.0]network 10.10.1.1 0.0.0.0
[Huawei-ospf-1-area-0.0.0.0]q
[Huawei-ospf-1]area 2
[Huawei-ospf-1-area-0.0.0.2]net
[Huawei-ospf-1-area-0.0.0.2]network 192.168.5.1 0.0.0.0
[Huawei-ospf-1-area-0.0.0.2]
Jan 18 2018 18:03:51-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[6]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=2.5.168.192, NeighborEvent=HelloReceived, NeighborPreviousState=Down, NeighborCurrentState=Init)
[Huawei-ospf-1-area-0.0.0.2]
Jan 18 2018 18:03:55-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[7]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=2.5.168.192, NeighborEvent=2WayReceived, NeighborPreviousState=Init, NeighborCurrentState=ExStart)
[Huawei-ospf-1-area-0.0.0.2]
Jan 18 2018 18:03:55-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[8]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=2.5.168.192, NeighborEvent=NegotiationDone, NeighborPreviousState=ExStart, NeighborCurrentState=Exchange)
[Huawei-ospf-1-area-0.0.0.2]
Jan 18 2018 18:03:55-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[9]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=2.5.168.192, NeighborEvent=ExchangeDone, NeighborPreviousState=Exchange, NeighborCurrentState=Loading)
[Huawei-ospf-1-area-0.0.0.2]
Jan 18 2018 18:03:55-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[10]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=2.5.168.192, NeighborEvent=LoadingDone, NeighborPreviousState=Loading, NeighborCurrentState=Full)
<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]ospf
[Huawei-ospf-1]area 2
[Huawei-ospf-1-area-0.0.0.2]v
[Huawei-ospf-1-area-0.0.0.2]vlink-peer 5.5.5.5
[Huawei-ospf-1-area-0.0.0.2]
Jan 18 2018 19:45:21-08:00 Huawei %%01OSPF/4/VLINK_NBR_CHG_E(l)[0]:Virtual link peer event: neighbor status changed. (ProcessId=256, VirtualLinkNeighborAddress=5.5.5.5, NeighborEvent=HelloReceived, NeighborPreviousState=Down, NeighborCurrentState=Init)
[Huawei-ospf-1-area-0.0.0.2]
Jan 18 2018 19:45:21-08:00 Huawei %%01OSPF/4/VLINK_NBR_CHG_E(l)
[1]:Virtual link peer event: neighbor status changed. (ProcessId=256, VirtualLinkNeighborAddress=5.5.5.5, NeighborEvent=2WayReceived, NeighborPreviousState=Init, NeighborCurrentState=ExStart)
[Huawei-ospf-1-area-0.0.0.2]
Jan 18 2018 19:45:21-08:00 Huawei %%01OSPF/4/VLINK_NBR_CHG_E(l)[2]:Virtual link peer event: neighbor status changed. (ProcessId=256, VirtualLinkNeighborAddress=5.5.5.5, NeighborEvent=NegotiationDone, NeighborPreviousState=ExStart, NeighborCurrentState=Exchange)
[Huawei-ospf-1-area-0.0.0.2]
Jan 18 2018 19:45:21-08:00 Huawei %%01OSPF/4/VLINK_NBR_CHG_E(l)[3]:Virtual link peer event: neighbor status changed. (ProcessId=256, VirtualLinkNeighborAddress=5.5.5.5, NeighborEvent=ExchangeDone, NeighborPreviousState=Exchange, NeighborCurrentState=Loading)
[Huawei-ospf-1-area-0.0.0.2]
Jan 18 2018 19:45:21-08:00 Huawei %%01OSPF/4/VLINK_NBR_CHG_E(l)[4]:Virtual link peer event: neighbor status changed. (ProcessId=256, VirtualLinkNeighborAddress=5.5.5.5, NeighborEvent=LoadingDone, NeighborPreviousState=Loading, NeighborCurrentState=Full)
[Huawei-ospf-1-area-0.0.0.2]
配置AR2
<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]int g0/0/0
[Huawei-GigabitEthernet0/0/0]undo shutdown
Info: Interface GigabitEthernet0/0/0 is not shutdown.
[Huawei-GigabitEthernet0/0/0]ip add 192.168.1.2 255.255.255.0
Jan 18 2018 17:47:51-08:00 Huawei %%01IFNET/4/LINK_STATE(l)[0]:The line protocol IP on the interface GigabitEthernet0/0/0 has entered the UP state.
[Huawei-GigabitEthernet0/0/0]q
[Huawei]int g0/0/1
[Huawei-GigabitEthernet0/0/1]undo shutdown
Info: Interface GigabitEthernet0/0/1 is not shutdown.
[Huawei-GigabitEthernet0/0/1]ip add 192.168.2.1 255.255.255.0
Jan 18 2018 17:48:08-08:00 Huawei %%01IFNET/4/LINK_STATE(l)[1]:The line protocol IP on the interface GigabitEthernet0/0/1 has entered the UP state.
[Huawei-GigabitEthernet0/0/1]q
[Huawei]int g0/0/2
[Huawei-GigabitEthernet0/0/2]undo shutdown
Info: Interface GigabitEthernet0/0/2 is not shutdown.
[Huawei-GigabitEthernet0/0/2]ip add 192.168.6.1 255.255.255.0
Jan 18 2018 17:50:39-08:00 Huawei %%01IFNET/4/LINK_STATE(l)[2]:The line protocol IP on the interface GigabitEthernet0/0/2 has entered the UP state.
[Huawei-GigabitEthernet0/0/2]q
[Huawei]int l
[Huawei]int LoopBack 1
[Huawei-LoopBack1]ip add 10.10.2.2 255.255.255.0
[Huawei-LoopBack1]
Please check whether system data has been changed, and save data in time
Configuration console time out, please press any key to log on
<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]ospf r
[Huawei]ospf router-id 2.2.2.2
[Huawei-ospf-1]area 0
[Huawei-ospf-1-area-0.0.0.0]net
[Huawei-ospf-1-area-0.0.0.0]network 192.168.2.1 0.0.0.0
[Huawei-ospf-1-area-0.0.0.0]network 192.168.1.2 00
Jan 18 2018 18:00:15-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[0]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=2.2.168.192, NeighborEvent=HelloReceived, NeighborPreviousState=Down, NeighborCurrentState=Init)
[Huawei-ospf-1-area-0.0.0.0]network 192.168.1.2 00
Jan 18 2018 18:00:15-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)
[1]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=2.2.168.192, NeighborEvent=2WayReceived, NeighborPreviousState=Init, NeighborCurrentState=2Way)
[Huawei-ospf-1-area-0.0.0.0]network 192.168.1.2 00
Jan 18 2018 18:00:15-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[2]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=2.2.168.192, NeighborEvent=AdjOk?, NeighborPreviousState=2Way, NeighborCurrentState=ExStart)
[Huawei-ospf-1-area-0.0.0.0]network 192.168.1.2 00
Jan 18 2018 18:00:15-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[3]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=2.2.168.192, NeighborEvent=NegotiationDone, NeighborPreviousState=ExStart, NeighborCurrentState=Exchange)
[Huawei-ospf-1-area-0.0.0.0]network 192.168.1.2 00
Jan 18 2018 18:00:15-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[4]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=2.2.168.192, NeighborEvent=ExchangeDone, NeighborPreviousState=Exchange, NeighborCurrentState=Loading)
[Huawei-ospf-1-area-0.0.0.0]network 192.168.1.2 00
Jan 18 2018 18:00:15-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[5]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=2.2.168.192, NeighborEvent=LoadingDone, NeighborPreviousState=Loading, NeighborCurrentState=Full)
[Huawei-ospf-1-area-0.0.0.0]network 192.168.1.2 0.0.0.0
[Huawei-ospf-1-area-0.0.0.0]network 10.10.2.2 0.0.0.0
[Huawei-ospf-1-area-0.0.0.0]q
[Huawei-ospf-1]
Jan 18 2018 18:01:01-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[6]:Neighbor changes event: neighbor status changed. (ProcessId=256,
NeighborAddress=1.1.168.192, NeighborEvent=HelloReceived, NeighborPreviousState=Down, NeighborCurrentState=Init)
[Huawei-ospf-1]
Jan 18 2018 18:01:06-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[7]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=1.1.168.192, NeighborEvent=2WayReceived, NeighborPreviousState=Init, NeighborCurrentState=ExStart)
[Huawei-ospf-1]
Jan 18 2018 18:01:06-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[8]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=1.1.168.192, NeighborEvent=NegotiationDone, NeighborPreviousState=ExStart, NeighborCurrentState=Exchange)
[Huawei-ospf-1]
Jan 18 2018 18:01:06-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[9]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=1.1.168.192, NeighborEvent=ExchangeDone, NeighborPreviousState=Exchange, NeighborCurrentState=Loading)
[Huawei-ospf-1]
Jan 18 2018 18:01:06-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[10]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=1.1.168.192, NeighborEvent=LoadingDone, NeighborPreviousState=Loading, NeighborCurrentState=Full)
[Huawei-ospf-1]
[Huawei-ospf-1]area 0
[Huawei-ospf-1-area-0.0.0.0]ne
[Huawei-ospf-1-area-0.0.0.0]network 192.168.6.1 0.0.0.0
[Huawei-ospf-1-area-0.0.0.0]
Jan 18 2018 18:02:37-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[11]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=2.6.168.192, NeighborEvent=HelloReceived, NeighborPreviousState=Down, NeighborCurrentState=Init)
[Huawei-ospf-1-area-0.0.0.0]
Jan 18 2018 18:02:46-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[12]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=2.6.168.192, NeighborEvent=2WayReceived, NeighborPreviousState=Init, NeighborCurrentState=2Way)
[Huawei-ospf-1-area-0.0.0.0]
Jan 18 2018 18:03:10-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[13]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=2.6.168.192, NeighborEvent=AdjOk?, NeighborPreviousState=2Way, NeighborCurrentState=ExStart)
[Huawei-ospf-1-area-0.0.0.0]
Jan 18 2018 18:03:15-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[14]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=2.6.168.192, NeighborEvent=NegotiationDone, NeighborPreviousState=ExStart, NeighborCurrentState=Exchange)
[Huawei-ospf-1-area-0.0.0.0]
Jan 18 2018 18:03:15-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[15]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=2.6.168.192, NeighborEvent=ExchangeDone, NeighborPreviousState=Exchange, NeighborCurrentState=Loading)
[Huawei-ospf-1-area-0.0.0.0]
Jan 18 2018 18:03:15-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[16]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=2.6.168.192, NeighborEvent=LoadingDone, NeighborPreviousState=Loading, NeighborCurrentState=Full)
[Huawei-ospf-1-area-0.0.0.0]
配置AR3
<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]int g0/0/0
[Huawei-GigabitEthernet0/0/0]undo shutdown
Info: Interface GigabitEthernet0/0/0 is not shutdown.
[Huawei-GigabitEthernet0/0/0]ip add 192.168.2.2 255.255.255.0
Jan 18 2018 17:48:27-08:00 Huawei %%01IFNET/4/LINK_STATE(l)[0]:The line protocol IP on the interface GigabitEthernet0/0/0 has entered the UP state.
[Huawei-GigabitEthernet0/0/0]q
[Huawei]int g0/0/1
[Huawei-GigabitEthernet0/0/1]undo shutdown
Info: Interface GigabitEthernet0/0/1 is not shutdown.
[Huawei-GigabitEthernet0/0/1]ip add 192.168.3.1 255.255.255.0
Jan 18 2018 17:48:44-08:00 Huawei %%01IFNET/4/LINK_STATE(l)[1]:The line protocol IP on the interface GigabitEthernet0/0/1 has entered the UP state.
[Huawei-GigabitEthernet0/0/1]
Please check whether system data has been changed, and save data in time
Configuration console time out, please press any key to log on
<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]int l
[Huawei]int LoopBack 1
[Huawei-LoopBack1]ip add 10.10.3.3 255.255.255.0
[Huawei-LoopBack1]q
[Huawei]ospf r
[Huawei]ospf router-id 3.3.3.3
[Huawei-ospf-1]area 1
[Huawei-ospf-1-area-0.0.0.1]ne
[Huawei-ospf-1-area-0.0.0.1]network 192.168.3.1 0.0.0.0
[Huawei-ospf-1-area-0.0.0.1]
Jan 18 2018 17:59:11-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[0]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=2.3.168.192, NeighborEvent=HelloReceived, NeighborPreviousState=Down, NeighborCurrentState=Init)
[Huawei-ospf-1-area-0.0.0.1]
Jan 18 2018 17:59:11-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[1]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=2.3.168.192, NeighborEvent=2WayReceived, NeighborPreviousState=Init, NeighborCurrentState=2Way)
[Huawei-ospf-1-area-0.0.0.1]
Jan 18 2018 17:59:11-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[2]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=2.3.168.192, NeighborEvent=AdjOk?, NeighborPreviousState=2Way, NeighborCurrentState=ExStart)
[Huawei-ospf-1-area-0.0.0.1]
Jan 18 2018 17:59:11-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[3]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=2.3.168.192, NeighborEvent=NegotiationDone, NeighborPreviousState=ExStart, NeighborCurrentState=Exchange)
[Huawei-ospf-1-area-0.0.0.1]
Jan 18 2018 17:59:11-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[4]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=2.3.168.192, NeighborEvent=ExchangeDone, NeighborPreviousState=Exchange, NeighborCurrentState=Loading)
[Huawei-ospf-1-area-0.0.0.1]
Jan 18 2018 17:59:11-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[5]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=2.3.168.192, NeighborEvent=LoadingDone, NeighborPreviousState=Loading, NeighborCurrentState=Full)
[Huawei-ospf-1-area-0.0.0.1]q
[Huawei-ospf-1]area 0
[Huawei-ospf-1-area-0.0.0.0]ne
[Huawei-ospf-1-area-0.0.0.0]network 192.168.2.2 0.0.0.0
[Huawei-ospf-1-area-0.0.0.0]network 10.10.3.3 0.0.0.0
[Huawei-ospf-1-area-0.0.0.0]q
[Huawei-ospf-1]
Jan 18 2018 18:00:09-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[6]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=1.2.168.192, NeighborEvent=HelloReceived, NeighborPreviousState=Down, NeighborCurrentState=Init)
[Huawei-ospf-1]
Jan 18 2018 18:00:15-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[7]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=1.2.168.192, NeighborEvent=2WayReceived, NeighborPreviousState=Init, NeighborCurrentState=ExStart)
[Huawei-ospf-1]
Jan 18 2018 18:00:15-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[8]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=1.2.168.192, NeighborEvent=NegotiationDone, NeighborPreviousState=ExStart, NeighborCurrentState=Exchange)
[Huawei-ospf-1]
Jan 18 2018 18:00:15-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[9]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=1.2.168.192, NeighborEvent=ExchangeDone, NeighborPreviousState=Exchange, NeighborCurrentState=Loading)
[Huawei-ospf-1]
Jan 18 2018 18:00:15-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[10]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=1.2.168.192, NeighborEvent=LoadingDone, NeighborPreviousState=Loading, NeighborCurrentState=Full)
[Huawei-ospf-1]
配置AR4
<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]int g0/0/0
[Huawei-GigabitEthernet0/0/0]undo shutdown
Info: Interface GigabitEthernet0/0/0 is not shutdown.
[Huawei-GigabitEthernet0/0/0]ip add 192.168.6.2 255.255.255.0
Jan 18 2018 17:51:01-08:00 Huawei %%01IFNET/4/LINK_STATE(l)[0]:The line protocol IP on the interface GigabitEthernet0/0/0 has entered the UP state.
[Huawei-GigabitEthernet0/0/0]q
[Huawei]int g0/0/1
[Huawei-GigabitEthernet0/0/1]undo shutdown
Info: Interface GigabitEthernet0/0/1 is not shutdown.
[Huawei-GigabitEthernet0/0/1]ip add 192.168.7.1 255.255.255.0
Jan 18 2018 17:51:25-08:00 Huawei %%01IFNET/4/LINK_STATE(l)[1]:The line protocol IP on the interface GigabitEthernet0/0/1 has entered the UP state.
[Huawei-GigabitEthernet0/0/1]
[Huawei-GigabitEthernet0/0/1]q
[Huawei]int l
[Huawei]int LoopBack 1
[Huawei-LoopBack1]ip add 10.10.4.4 255.255.255.0
[Huawei-LoopBack1]
Please check whether system data has been changed, and save data in time
Configuration console time out, please press any key to log on
<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]ospf r
[Huawei]ospf router-id 4.4.4.4
[Huawei-ospf-1]area 0
[Huawei-ospf-1-area-0.0.0.0]ne
[Huawei-ospf-1-area-0.0.0.0]network 192.168.6.2 0.0.0.0
[Huawei-ospf-1-area-0.0.0.0]
Jan 18 2018 18:02:38-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[0]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=1.6.168.192, NeighborEvent=HelloReceived, NeighborPreviousState=Down, NeighborCurrentState=Init)
[Huawei-ospf-1-area-0.0.0.0]
Jan 18 2018 18:02:38-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[1]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=1.6.168.192, NeighborEvent=2WayReceived, NeighborPreviousState=Init, NeighborCurrentState=2Way)
[Huawei-ospf-1-area-0.0.0.0]network 10.10.6.6 0.0.0.0
[Huawei-ospf-1-area-0.0.0.0]q
[Huawei-ospf-1]area 2
[Huawei-ospf-1-area-0.0.0.2]ne
[Huawei-ospf-1-area-0.0.0.2]network 192.168.7.1 0.0.0.0
[Huawei-ospf-1-area-0.0.0.2]
Jan 18 2018 18:03:14-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[2]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=1.6.168.192, NeighborEvent=AdjOk?, NeighborPreviousState=2Way, NeighborCurrentState=ExStart)
[Huawei-ospf-1-area-0.0.0.2]
Jan 18 2018 18:03:14-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[3]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=1.6.168.192, NeighborEvent=NegotiationDone, NeighborPreviousState=ExStart, NeighborCurrentState=Exchange)
[Huawei-ospf-1-area-0.0.0.2]
Jan 18 2018 18:03:14-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[4]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=1.6.168.192, NeighborEvent=ExchangeDone, NeighborPreviousState=Exchange, NeighborCurrentState=Loading)
[Huawei-ospf-1-area-0.0.0.2]
Jan 18 2018 18:03:14-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[5]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=1.6.168.192, NeighborEvent=LoadingDone, NeighborPreviousState=Loading, NeighborCurrentState=Full)
[Huawei-ospf-1-area-0.0.0.2]
Jan 18 2018 18:03:59-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[6]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=2.7.168.192, NeighborEvent=HelloReceived, NeighborPreviousState=Down, NeighborCurrentState=Init)
[Huawei-ospf-1-area-0.0.0.2]
Jan 18 2018 18:04:05-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[7]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=2.7.168.192, NeighborEvent=2WayReceived, NeighborPreviousState=Init, NeighborCurrentState=ExStart)
[Huawei-ospf-1-area-0.0.0.2]
Jan 18 2018 18:04:05-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[8]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=2.7.168.192, NeighborEvent=NegotiationDone, NeighborPreviousState=ExStart, NeighborCurrentState=Exchange)
[Huawei-ospf-1-area-0.0.0.2]
Jan 18 2018 18:04:05-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[9]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=2.7.168.192, NeighborEvent=ExchangeDone, NeighborPreviousState=Exchange, NeighborCurrentState=Loading)
[Huawei-ospf-1-area-0.0.0.2]
Jan 18 2018 18:04:05-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[10]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=2.7.168.192, NeighborEvent=LoadingDone, NeighborPreviousState=Loading, NeighborCurrentState=Full)
[Huawei-ospf-1-area-0.0.0.2]
配置AR5
<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]int g0/0/1
[Huawei-GigabitEthernet0/0/1]undo shutdown
Info: Interface GigabitEthernet0/0/1 is not shutdown.
[Huawei-GigabitEthernet0/0/1]ip add 192.168.5.2 255.255.255.0
Jan 18 2018 17:51:59-08:00 Huawei %%01IFNET/4/LINK_STATE(l)[0]:The line protocol IP on the interface GigabitEthernet0/0/1 has entered the UP state.
[Huawei-GigabitEthernet0/0/1]q
[Huawei]int g0/0/0
[Huawei-GigabitEthernet0/0/0]undo shutdown
Info: Interface GigabitEthernet0/0/0 is not shutdown.
[Huawei-GigabitEthernet0/0/0]ip add 192.168.7.2 255.255.255.0
Jan 18 2018 17:52:15-08:00 Huawei %%01IFNET/4/LINK_STATE(l)[1]:The line protocol IP on the interface GigabitEthernet0/0/0 has entered the UP state.
[Huawei-GigabitEthernet0/0/0]q
[Huawei]int g0/0/2
[Huawei-GigabitEthernet0/0/2]undo shutdown
Info: Interface GigabitEthernet0/0/2 is not shutdown.
[Huawei-GigabitEthernet0/0/2]ip add 192.168.8.1 255.255.255.0
Jan 18 2018 17:52:32-08:00 Huawei %%01IFNET/4/LINK_STATE(l)[2]:The line protocol IP on the interface GigabitEthernet0/0/2 has entered the UP state.
[Huawei-GigabitEthernet0/0/2]q
[Huawei]int g4/0/0
[Huawei-GigabitEthernet4/0/0]undo shutdown
Info: Interface GigabitEthernet4/0/0 is not shutdown.
[Huawei-GigabitEthernet4/0/0]ip add 192.168.9.254 255.255.255.0
Jan 18 2018 17:52:51-08:00 Huawei %%01IFNET/4/LINK_STATE(l)[3]:The line protocol IP on the interface GigabitEthernet4/0/0 has entered the UP state.
[Huawei-GigabitEthernet4/0/0]q
[Huawei]
[Huawei]int l
[Huawei]int LoopBack 1
[Huawei-LoopBack1]ip add 10.10.5.5 255.255.255.0
[Huawei-LoopBack1]
Please check whether system data has been changed, and save data in time
Configuration console time out, please press any key to log on
<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]ospf r
[Huawei]ospf router-id 5.5.5.5
[Huawei-ospf-1]area 2
[Huawei-ospf-1-area-0.0.0.2]n
[Huawei-ospf-1-area-0.0.0.2]network 192.168.5.2 0.0.0.0
[Huawei-ospf-1-area-0.0.0.2]network 192.168.5
Jan 18 2018 18:03:54-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[0]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=1.5.168.192, NeighborEvent=HelloReceived, NeighborPreviousState=Down, NeighborCurrentState=Init)
[Huawei-ospf-1-area-0.0.0.2]network 192.168.
Jan 18 2018 18:03:54-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[1]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=1.5.168.192, NeighborEvent=2WayReceived, NeighborPreviousState=Init, NeighborCurrentState=2Way)
[Huawei-ospf-1-area-0.0.0.2]network 192.168.
Jan 18 2018 18:03:54-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[2]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=1.5.168.192, NeighborEvent=AdjOk?, NeighborPreviousState=2Way, NeighborCurrentState=ExStart)
[Huawei-ospf-1-area-0.0.0.2]network 192.168.
Jan 18 2018 18:03:54-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[3]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=1.5.168.192, NeighborEvent=NegotiationDone, NeighborPreviousState=ExStart, NeighborCurrentState=Exchange)
[Huawei-ospf-1-area-0.0.0.2]network 192.168.
Jan 18 2018 18:03:54-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[4]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=1.5.168.192, NeighborEvent=ExchangeDone, NeighborPreviousState=Exchange, NeighborCurrentState=Loading)
[Huawei-ospf-1-area-0.0.0.2]network 192.168.
Jan 18 2018 18:03:54-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[5]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=1.5.168.192, NeighborEvent=LoadingDone, NeighborPreviousState=Loading, NeighborCurrentState=Full)
[Huawei-ospf-1-area-0.0.0.2]network 192.168.7.2 0.0.0.0
[Huawei-ospf-1-area-0.0.0.2]network 192.168.9.
Jan 18 2018 18:04:06-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[6]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=1.7.168.192, NeighborEvent=HelloReceived, NeighborPreviousState=Down, NeighborCurrentState=Init)
[Huawei-ospf-1-area-0.0.0.2]network 192.168.9.
Jan 18 2018 18:04:06-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[7]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=1.7.168.192, NeighborEvent=2WayReceived, NeighborPreviousState=Init, NeighborCurrentState=2Way)
[Huawei-ospf-1-area-0.0.0.2]network 192.168.9.
Jan 18 2018 18:04:06-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[8]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=1.7.168.192, NeighborEvent=AdjOk?, NeighborPreviousState=2Way, NeighborCurrentState=ExStart)
[Huawei-ospf-1-area-0.0.0.2]network 192.168.9.
Jan 18 2018 18:04:06-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[9]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=1.7.168.192, NeighborEvent=NegotiationDone, NeighborPreviousState=ExStart, NeighborCurrentState=Exchange)
[Huawei-ospf-1-area-0.0.0.2]network 192.168.9.
Jan 18 2018 18:04:06-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[10]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=1.7.168.192, NeighborEvent=ExchangeDone, NeighborPreviousState=Exchange, NeighborCurrentState=Loading)
[Huawei-ospf-1-area-0.0.0.2]network 192.168.9.
Jan 18 2018 18:04:06-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[11]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=1.7.168.192, NeighborEvent=LoadingDone, NeighborPreviousState=Loading, NeighborCurrentState=Full)
[Huawei-ospf-1-area-0.0.0.2]network 192.168.9.254 0.0.0.0
[Huawei-ospf-1-area-0.0.0.2]q
[Huawei-ospf-1]area 3
[Huawei-ospf-1-area-0.0.0.3]ne
[Huawei-ospf-1-area-0.0.0.3]network 192.168.8.1 0.0.0.0
[Huawei-ospf-1-area-0.0.0.3]
Jan 18 2018 18:05:26-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[12]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=2.8.168.192, NeighborEvent=HelloReceived, NeighborPreviousState=Down, NeighborCurrentState=Init)
[Huawei-ospf-1-area-0.0.0.3]
Jan 18 2018 18:05:28-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[13]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=2.8.168.192, NeighborEvent=2WayReceived, NeighborPreviousState=Init, NeighborCurrentState=ExStart)
[Huawei-ospf-1-area-0.0.0.3]
Jan 18 2018 18:05:28-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[14]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=2.8.168.192, NeighborEvent=NegotiationDone, NeighborPreviousState=ExStart, NeighborCurrentState=Exchange)
[Huawei-ospf-1-area-0.0.0.3]
Jan 18 2018 18:05:29-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[15]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=2.8.168.192, NeighborEvent=ExchangeDone, NeighborPreviousState=Exchange, NeighborCurrentState=Loading)
[Huawei-ospf-1-area-0.0.0.3]
Jan 18 2018 18:05:29-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[16]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=2.8.168.192, NeighborEvent=LoadingDone, NeighborPreviousState=Loading, NeighborCurrentState=Full)
[Huawei-ospf-1-area-0.0.0.3]
Please check whether system data has been changed, and save data in time
Configuration console time out, please press any key to log on
<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei-ospf-1-area-0.0.0.3]q
[Huawei-ospf-1]area 2
[Huawei-ospf-1-area-0.0.0.2]v
[Huawei-ospf-1-area-0.0.0.2]vlink-peer 1.1.1.1
[Huawei-ospf-1-area-0.0.0.2]
Jan 18 2018 19:45:10-08:00 Huawei %%01OSPF/4/VLINK_NBR_CHG_E(l)[0]:Virtual link peer event: neighbor status changed. (ProcessId=256, VirtualLinkNeighborAddress=1.1.1.1, NeighborEvent=HelloReceived, NeighborPreviousState=Down, NeighborCurrentState=Init)
[Huawei-ospf-1-area-0.0.0.2]
Jan 18 2018 19:45:19-08:00 Huawei %%01OSPF/4/VLINK_NBR_CHG_E(l)[1]:Virtual link peer event: neighbor status changed. (ProcessId=256,
VirtualLinkNeighborAddress=1.1.1.1, NeighborEvent=2WayReceived, NeighborPreviousState=Init, NeighborCurrentState=ExStart)
[Huawei-ospf-1-area-0.0.0.2]
Jan 18 2018 19:45:19-08:00 Huawei %%01OSPF/4/VLINK_NBR_CHG_E(l)[2]:Virtual link peer event: neighbor status changed. (ProcessId=256, VirtualLinkNeighborAddress=1.1.1.1, NeighborEvent=NegotiationDone, NeighborPreviousState=ExStart, NeighborCurrentState=Exchange)
[Huawei-ospf-1-area-0.0.0.2]
Jan 18 2018 19:45:19-08:00 Huawei %%01OSPF/4/VLINK_NBR_CHG_E(l)[3]:Virtual link peer event: neighbor status changed. (ProcessId=256, VirtualLinkNeighborAddress=1.1.1.1, NeighborEvent=ExchangeDone, NeighborPreviousState=Exchange, NeighborCurrentState=Loading)
[Huawei-ospf-1-area-0.0.0.2]
Jan 18 2018 19:45:19-08:00 Huawei %%01OSPF/4/VLINK_NBR_CHG_E(l)[4]:Virtual link peer event: neighbor status changed. (ProcessId=256, VirtualLinkNeighborAddress=1.1.1.1, NeighborEvent=LoadingDone, NeighborPreviousState=Loading, NeighborCurrentState=Full)
[Huawei-ospf-1-area-0.0.0.2][Huawei-ospf-1]area 2
配置AR6
<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]int g0/0/0
[Huawei-GigabitEthernet0/0/0]undo shutdown
Info: Interface GigabitEthernet0/0/0 is not shutdown.
[Huawei-GigabitEthernet0/0/0]ip add 192.168.3.2 255.255.255.0
Jan 18 2018 17:49:09-08:00 Huawei %%01IFNET/4/LINK_STATE(l)[0]:The line protocol IP on the interface GigabitEthernet0/0/0 has entered the UP state.
[Huawei-GigabitEthernet0/0/0]q
[Huawei]int g0/0/1
[Huawei-GigabitEthernet0/0/1]undo shutdown
Info: Interface GigabitEthernet0/0/1 is not shutdown.
[Huawei-GigabitEthernet0/0/1]ip add 192.168.4.254 255.255.255.0
Jan 18 2018 17:49:24-08:00 Huawei %%01IFNET/4/LINK_STATE(l)[1]:The line protocol IP on the interface GigabitEthernet0/0/1 has entered the UP state.
[Huawei-GigabitEthernet0/0/1]
Please check whether system data has been changed, and save data in time
Configuration console time out, please press any key to log on
<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]int l
[Huawei]int LoopBack 1
[Huawei-LoopBack1]ip add 10.10.6.6 255.255.255.0
[Huawei-LoopBack1]q
[Huawei]ospf
[Huawei]ospf ro
[Huawei]ospf router-id 6.6.6.6
[Huawei-ospf-1]area 1
[Huawei-ospf-1-area-0.0.0.1]net
[Huawei-ospf-1-area-0.0.0.1]network 192.168.3.2 0.0.0.0
[Huawei-ospf-1-area-0.0.0.1]network 192.168.4.254 0.0.0.0
[Huawei-ospf-1-area-0.0.0.1]q
[Huawei-ospf-1]area 1
[Huawei-ospf-1-area-0.0.0.1]net
[Huawei-ospf-1-area-0.0.0.1]network 10.10.6.6 0.0.0.0
[Huawei-ospf-1-area-0.0.0.1]q
[Huawei-ospf-1]
Jan 18 2018 17:59:05-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[0]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=1.3.168.192, NeighborEvent=HelloReceived, NeighborPreviousState=Down, NeighborCurrentState=Init)
[Huawei-ospf-1]
Jan 18 2018 17:59:11-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[1]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=1.3.168.192, NeighborEvent=2WayReceived, NeighborPreviousState=Init, NeighborCurrentState=ExStart)
[Huawei-ospf-1]
Jan 18 2018 17:59:11-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[2]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=1.3.168.192, NeighborEvent=NegotiationDone, NeighborPreviousState=ExStart, NeighborCurrentState=Exchange)
[Huawei-ospf-1]
Jan 18 2018 17:59:11-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[3]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=1.3.168.192, NeighborEvent=ExchangeDone, NeighborPreviousState=Exchange, NeighborCurrentState=Loading)
[Huawei-ospf-1]
Jan 18 2018 17:59:11-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[4]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=1.3.168.192, NeighborEvent=LoadingDone, NeighborPreviousState=Loading, NeighborCurrentState=Full)
[Huawei-ospf-1]
配置AR7
<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]int g0/0/0
[Huawei-GigabitEthernet0/0/0]undo shutdown
Info: Interface GigabitEthernet0/0/0 is not shutdown.
[Huawei-GigabitEthernet0/0/0]ip add 192.168.8.2 255.255.255.0
Jan 18 2018 17:53:16-08:00 Huawei %%01IFNET/4/LINK_STATE(l)[0]:The line protocol IP on the interface GigabitEthernet0/0/0 has entered the UP state.
[Huawei-GigabitEthernet0/0/0]q
[Huawei]int g0/0/1
[Huawei-GigabitEthernet0/0/1]undo shutdown
Info: Interface GigabitEthernet0/0/1 is not shutdown.
[Huawei-GigabitEthernet0/0/1]ip add 192.168.10.254 255.255.255.0
Jan 18 2018 17:53:43-08:00 Huawei %%01IFNET/4/LINK_STATE(l)[1]:The line protocol IP on the interface GigabitEthernet0/0/1 has entered the UP state.
[Huawei-GigabitEthernet0/0/1]
[Huawei-GigabitEthernet0/0/1]q
[Huawei]int l
[Huawei]int LoopBack 1
[Huawei-LoopBack1]ip add 10.10.7.7 255.255.255.0
[Huawei-LoopBack1]q
[Huawei]
Please check whether system data has been changed, and save data in time
Configuration console time out, please press any key to log on
<Huawei>
<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]ospf r
[Huawei]ospf router-id 7.7.7.7
[Huawei-ospf-1]area 3
[Huawei-ospf-1-area-0.0.0.3]n
[Huawei-ospf-1-area-0.0.0.3]network192.168.8.2 0.0.0.0
^
Error: Unrecognized command found at '^' position.
[Huawei-ospf-1-area-0.0.0.3]ne
[Huawei-ospf-1-area-0.0.0.3]network 192.168.8.2 0.0.0.0
[Huawei-ospf-1-area-0.0.0.3]network
Jan 18 2018 18:05:29-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[0]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=1.8.168.192, NeighborEvent=HelloReceived, NeighborPreviousState=Down, NeighborCurrentState=Init)
[Huawei-ospf-1-area-0.0.0.3]network
Jan 18 2018 18:05:29-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[1]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=1.8.168.192, NeighborEvent=2WayReceived, NeighborPreviousState=Init, NeighborCurrentState=2Way)
[Huawei-ospf-1-area-0.0.0.3]network
Jan 18 2018 18:05:29-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[2]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=1.8.168.192, NeighborEvent=AdjOk?, NeighborPreviousState=2Way, NeighborCurrentState=ExStart)
[Huawei-ospf-1-area-0.0.0.3]network
Jan 18 2018 18:05:29-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[3]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=1.8.168.192, NeighborEvent=NegotiationDone, NeighborPreviousState=ExStart, NeighborCurrentState=Exchange)
[Huawei-ospf-1-area-0.0.0.3]network
Jan 18 2018 18:05:29-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[4]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=1.8.168.192, NeighborEvent=ExchangeDone, NeighborPreviousState=Exchange, NeighborCurrentState=Loading)
[Huawei-ospf-1-area-0.0.0.3]network
Jan 18 2018 18:05:29-08:00 Huawei %%01OSPF/4/NBR_CHANGE_E(l)[5]:Neighbor changes event: neighbor status changed. (ProcessId=256, NeighborAddress=1.8.168.192, NeighborEvent=LoadingDone, NeighborPreviousState=Loading, NeighborCurrentState=Full)
[Huawei-ospf-1-area-0.0.0.3]network 192.168.10.254 0.0.0.0
[Huawei-ospf-1-area-0.0.0.3]network 10.10.7.7 0.0.0.0
[Huawei-ospf-1-area-0.0.0.3]
Please check whether system data has been changed, and save data in time
Configuration console time out, please press any key to log on
验证测试：
PC1 ping PC2 PC1 ping PC 3
注意：
通过虚链路建立的ospf邻居关系，永远属于区域0；虚链路的建立，是依靠底层的真实链路所在的区域来传输
Ospf报文的（hello等）所以如果底层的“穿越/传输区域”不稳定的话，则会导致上层的“虚链路”不稳定，则影响整个网络的骨干区域的稳定性。所以，一般不建议使用这种方式。
如果不得不使用，那么也仅仅是临时的解决方案。
转载于:https://blog.51cto.com/13467772/2062593
最后
以上就是唠叨铃铛为你收集整理的中小型公司不同区域ospf实现互通实验名称：中小型公司不同区域ospf实现互通实验拓扑：实验所需设备：地址规划：实验步骤：配置AR1配置AR2配置AR3配置AR4配置AR5配置AR6配置AR7验证测试：注意：的全部内容，希望文章能够帮你解决中小型公司不同区域ospf实现互通实验名称：中小型公司不同区域ospf实现互通实验拓扑：实验所需设备：地址规划：实验步骤：配置AR1配置AR2配置AR3配置AR4配置AR5配置AR6配置AR7验证测试：注意：所遇到的程序开发问题。
如果觉得靠谱客网站的内容还不错，欢迎将靠谱客网站推荐给程序员好友。
发表评论 取消回复
