概述

作者

QQ群：852283276
微信：arm80x86
微信公众号：青儿创客基地
B站：主页 https://space.bilibili.com/208826118

参考

Linux USB DWC3 Host/Peripheral Driver
Zynq Ultrascale MPSOC Linux USB device driver
U-Boot USB Driver
Zynq UltraScale＋ MPSoC USB 3.0 Mass Storage Device Class Design
Zynq UltraScale＋ MPSoC USB 3.0 CDC Device Class Design
Linux USB Gadget Driver
USB Host System Setup
USB Host Controller Driver
AXI USB Device Driver
AXI USB gadget driver
USB boot with Linux 2015.2 build
[U-Boot,3/4] ARM64: zynqmp: Add support for USB ulpi phy reset via mode pins
USB Phy/ULPI (2-读写USB Phy寄存器)
USB2 UAS NULL pointer dereference
USB Mass Storage大容量存储的基本知识
怎么通过 /proc/scsi/usb-storage来确定u盘是/dev/sdb还是sdc
如何实现Linux下的U盘（USB Mass Storage）驱动
USB3.0 HDMI输入方案之FT601Q
米联客(MSXBO)USB3.0 FT600/FT601/FT602测试图集
米联客(MSXBO)USB3.0 UVC摄像头实现基于FT602Q芯片方案
【工程师分享】MPSoC设计中USB Phy的复位信号

介绍

zynqmp上用的是synopsis的ip，dwc3。

u-boot

基于zcu102开发板的基本配置，配错了编译都无法通过，

CONFIG_USB=y
CONFIG_USB_ULPI_VIEWPORT=y
CONFIG_USB_ULPI=y
CONFIG_USB_STORAGE=y
CONFIG_USB_GADGET=y
CONFIG_USB_GADGET_MANUFACTURER="Xilinx"
CONFIG_USB_GADGET_VENDOR_NUM=0x03fd
CONFIG_USB_GADGET_PRODUCT_NUM=0x0300
CONFIG_CMD_USB=y
CONFIG_USB_DWC3=y
CONFIG_USB_XHCI_DWC3=y
CONFIG_USB_XHCI_ZYNQMP=y
CONFIG_USB_DWC3_GADGET=y
CONFIG_USB_HOST=y
CONFIG_USB_DWC3_GENERIC=y
CONFIG_ZYNQMP_USB=y
CONFIG_USB_STORAGE=y
CONFIG_USB_XHCI_HCD=y
CONFIG_USB_GADGET_DOWNLOAD=y

代码，dwc3 usb驱动入口在driversusbdwc3dwc3-generic.c，dwc3_generic_bind函数遍历设备树子节点，绑定host，peripheral或otg的驱动，子节点驱动不使用设备树来获取，对于host类型，绑定的子节点驱动为driversusbhostxhci-zynqmp.c，

//driversusbdwc3dwc3-generic.c
dwc3_generic_bind (trigger)->>
//driversusbhostxhci-zynqmp.c
xhci_usb_probe
  zynqmp_xhci_core_init

u-boot下操作usb,

ZynqMP> usb
usb - USB sub-system

Usage:
usb start - start (scan) USB controller
usb reset - reset (rescan) USB controller
usb stop [f] - stop USB [f]=force stop
usb tree - show USB device tree
usb info [dev] - show available USB devices
usb test [dev] [port] [mode] - set USB 2.0 test mode
    (specify port 0 to indicate the device's upstream port)
    Available modes: J, K, S[E0_NAK], P[acket], F[orce_Enable]
usb storage - show details of USB storage devices
usb dev [dev] - show or set current USB storage device
usb part [dev] - print partition table of one or all USB storage    devices
usb read addr blk# cnt - read `cnt' blocks starting at block `blk#'
    to memory address `addr'
usb write addr blk# cnt - write `cnt' blocks starting at block `blk#'
    from memory address `addr'

ZynqMP> usb start
starting USB...
USB0:   Register 2000440 NbrPorts 2
Starting the controller
USB XHCI 1.00
scanning bus 0 for devices... 1 USB Device(s) found
       scanning usb for storage devices... 0 Storage Device(s) found

ZynqMP> usb tree
USB device tree:
  1  Hub (5 Gb/s, 0mA)
     U-Boot XHCI Host Controller

ZynqMP> usb reset
resetting USB...
USB0:   Register 2000440 NbrPorts 2
Starting the controller
USB XHCI 1.00
scanning bus 0 for devices... 2 USB Device(s) found
       scanning usb for storage devices... 1 Storage Device(s) found
ZynqMP> usb tree
USB device tree:
  1  Hub (5 Gb/s, 0mA)
  |  U-Boot XHCI Host Controller
  |
  +-2  Mass Storage (480 Mb/s, 300mA)
       Kingston DataTraveler 2.0 001A4D5F1A5CB0419945C2A1

ZynqMP> usb info
1: Hub,  USB Revision 3.0
 - U-Boot XHCI Host Controller
 - Class: Hub
 - PacketSize: 512  Configurations: 1
 - Vendor: 0x0000  Product 0x0000 Version 1.0
   Configuration: 1
   - Interfaces: 1 Self Powered 0mA
     Interface: 0
     - Alternate Setting 0, Endpoints: 1
     - Class Hub
     - Endpoint 1 In Interrupt MaxPacket 8 Interval 255ms

2: Mass Storage,  USB Revision 2.0
 - Kingston DataTraveler 2.0 001A4D5F1A5CB0419945C2A1
 - Class: (from Interface) Mass Storage
 - PacketSize: 64  Configurations: 1
 - Vendor: 0x0930  Product 0x6545 Version 1.16
   Configuration: 1
   - Interfaces: 1 Bus Powered 300mA
     Interface: 0
     - Alternate Setting 0, Endpoints: 2
     - Class Mass Storage, Transp. SCSI, Bulk only
     - Endpoint 1 In Bulk MaxPacket 512
     - Endpoint 2 Out Bulk MaxPacket 512

ZynqMP> usb storage
  Device 0: Vendor: Kingston Rev: PMAP Prod: DataTraveler 2.0
            Type: Removable Hard Disk
            Capacity: 14766.0 MB = 14.4 GB (30240768 x 512)

ZynqMP> usb dev

IDE device 0: Vendor: Kingston Rev: PMAP Prod: DataTraveler 2.0
            Type: Removable Hard Disk
            Capacity: 14766.0 MB = 14.4 GB (30240768 x 512)

ZynqMP> usb part

Partition Map for USB device 0  --   Partition Type: DOS

Part    Start Sector    Num Sectors     UUID            Type
  1     16128           30224640        8d9140c4-01     0c Boot

linux

驱动分析

xilinx驱动入口代码driversusbdwc3dwc3-of-simple.c，dwc3驱动入口代码driversusbdwc3core.c，

dwc3_probe
  dwc3_get_properties //获取设备树属性
    usb_get_maximum_speed //USB_SPEED_SUPER "super-speed"
    usb_get_dr_mode
    of_usb_get_phy_mode dwc->hsphy_mode //nothing to be done when hsphy_mode == ulpi
    snps,hsphy_interface //used when DWC3_GHWPARAMS3 == DWC3_GHWPARAMS3_HSPHY_IFC_UTMI_ULPI
    dwc3_simple_check_quirks //针对Xilinx的芯片修正，driversusbdwc3dwc3-of-simple.c
  dwc3_cache_hwparams
    DWC3_GHWPARAMS3 //DWC_USB3_HSPHY_INTERFACE = 0x2
  dma_set_coherent_mask
  dwc3_get_dr_mode //根据上面设备树和内核驱动配置设置芯片是host还是peripheral
  dwc3_core_init
    dwc3_core_get_phy
      dwc->usb2_phy/dwc->usb3_phy
      dwc->usb2_generic_phy/dwc->usb3_generic_phy
    dwc3_core_soft_reset
      usb_phy_init usb2_phy/usb3_phy/usb2_generic_phy/usb3_generic_phy
    dwc3_config_soc_bus
    dwc3_phy_setup
      dwc3_ulpi_init //DWC3_GHWPARAMS3 == DWC3_GHWPARAMS3_HSPHY_IFC_ULPI
        ulpi_register_interface
          ulpi_register

    ...
    usb_phy_set_suspend dwc->usb2_phy
	usb_phy_set_suspend dwc->usb3_phy
	phy_power_on dwc->usb2_generic_phy
    phy_power_on dwc->usb3_generic_phy
    ...
  dwc3_check_params
  dwc3_core_init_mode
    otg_set_vbus(usb2_phy)/phy_set_mode(usb2_generic_phy)
  dwc3_debugfs_init
...

设备树

设备树节点含义，

 - usb-phy : array of phandle for the PHY device.  The first element in the array is expected to be a handle to the USB2/HS PHY and the second element is expected to be a handle to the USB3/SS PHY
 - phys: from the *Generic PHY* bindings
 - phy-names: from the *Generic PHY* bindings; supported names are "usb2-phy" or "usb3-phy".

例子，

&pinctrl0 {
	pinctrl_usb0_default: usb0-default {
		mux {
			groups = "usb0_0_grp";
			function = "usb0";
		};

		conf {
			groups = "usb0_0_grp";
			slew-rate = <1>;/*SLEW_RATE_SLOW*/
			io-standard = <1>;/*IO_STANDARD_LVCMOS18*/
		};

		conf-rx {
			pins = "MIO52", "MIO53", "MIO55";
			bias-high-impedance;
		};

		conf-tx {
			pins = "MIO54", "MIO56", "MIO57", "MIO58", "MIO59",
			       "MIO60", "MIO61", "MIO62", "MIO63";
			bias-disable;
		};
	};
};

&usb0 {
	pinctrl-names = "default";
	pinctrl-0 = <&pinctrl_usb0_default>;
};

&dwc3_0 {
	dr_mode = "host";
	snps,usb3_lpm_capable;
	phy-names = "usb3-phy";
	phys = <&lane0 4 0 2 100000000>;/*2->PHY_TYPE_USB3=4*/
	maximum-speed = "super-speed";
};

开机打印，

[    7.690943] xilinx-psgtr fd400000.zynqmp_phy: Lane:2 type:0 protocol:3 pll_locked:yes
[    7.698965] xhci-hcd xhci-hcd.0.auto: xHCI Host Controller
[    7.704383] xhci-hcd xhci-hcd.0.auto: new USB bus registered, assigned bus number 1
[    7.712216] xhci-hcd xhci-hcd.0.auto: hcc params 0x0238f625 hci version 0x100 quirks 0x22010010
[    7.720864] xhci-hcd xhci-hcd.0.auto: irq 48, io mem 0xfe200000
[    7.726853] usb usb1: New USB device found, idVendor=1d6b, idProduct=0002
[    7.733562] usb usb1: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[    7.740765] usb usb1: Product: xHCI Host Controller
[    7.745626] usb usb1: Manufacturer: Linux 4.14.0-xilinx-v2018.2 xhci-hcd
[    7.752308] usb usb1: SerialNumber: xhci-hcd.0.auto
[    7.757438] hub 1-0:1.0: USB hub found
[    7.761132] hub 1-0:1.0: 1 port detected
[    7.765189] xhci-hcd xhci-hcd.0.auto: xHCI Host Controller
[    7.770607] xhci-hcd xhci-hcd.0.auto: new USB bus registered, assigned bus number 2
[    7.778286] usb usb2: We don't know the algorithms for LPM for this host, disabling LPM.
[    7.786385] usb usb2: New USB device found, idVendor=1d6b, idProduct=0003
[    7.793098] usb usb2: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[    7.800301] usb usb2: Product: xHCI Host Controller
[    7.805159] usb usb2: Manufacturer: Linux 4.14.0-xilinx-v2018.2 xhci-hcd
[    7.811843] usb usb2: SerialNumber: xhci-hcd.0.auto
[    7.816926] hub 2-0:1.0: USB hub found
[    7.820617] hub 2-0:1.0: 1 port detected

大概测了一个SSD的速度，读写都可以达到292.57MB/s

root@xilinx-zcu104-2018_2:~# cat test.sh
#!/bin/sh
date
dd if=/dev/zero of=/dev/sda1 bs=4M count=512
date

date
dd if=/dev/sda1 of=/dev/null bs=4M count=512
date
root@xilinx-zcu104-2018_2:~# ./test.sh
Fri Jul  6 04:20:40 UTC 2018
512+0 records in
512+0 records out
Fri Jul  6 04:20:46 UTC 2018
Fri Jul  6 04:20:46 UTC 2018
512+0 records in
512+0 records out
Fri Jul  6 04:20:52 UTC 2018

读写ULPI PHY寄存器

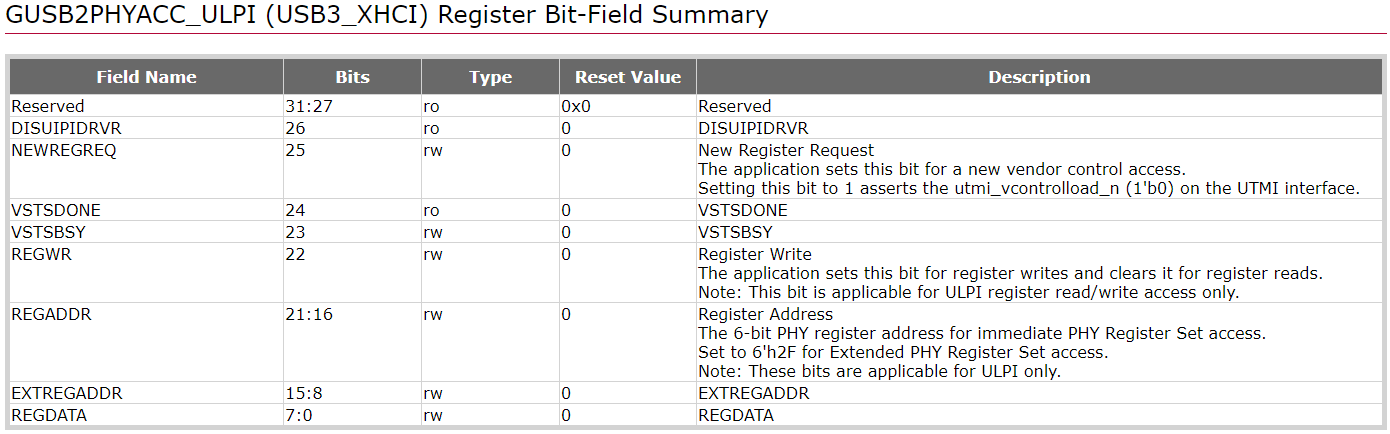

zynqmp通过GUSB2PHYACC_ULPI寄存器来访问ULPI PHY，地址，

0xFE20C280 (USB3_0_XHCI)
0xFE30C280 (USB3_1_XHCI)

在这里插入图片描述
读PHY芯片 USB3315 ID，

ZynqMP> mw 0xFE20C280 0x2000000
ZynqMP> md 0xFE20C280 1
fe20c280: 01000024                               $...

SMSC 3320

在 USB 控制器针对 USB 2.0 配置以及启用待机／重启状态时，该控制器会通过发送 ULPI PHY 单命令来选择终止和收发器。在 PHY 要求这些通过两个单独的命令发送时，这会导致系统挂起。GUCTL1（0x0000C11C）寄存器的位 10 需要设置为 1，以便实现与 USB 2.0 PHY 设备（SMSC 3320）的更佳互操作性，以及预防高速设备的挂起/恢复有任何问题（06/13/2017 AR# 67667）。
