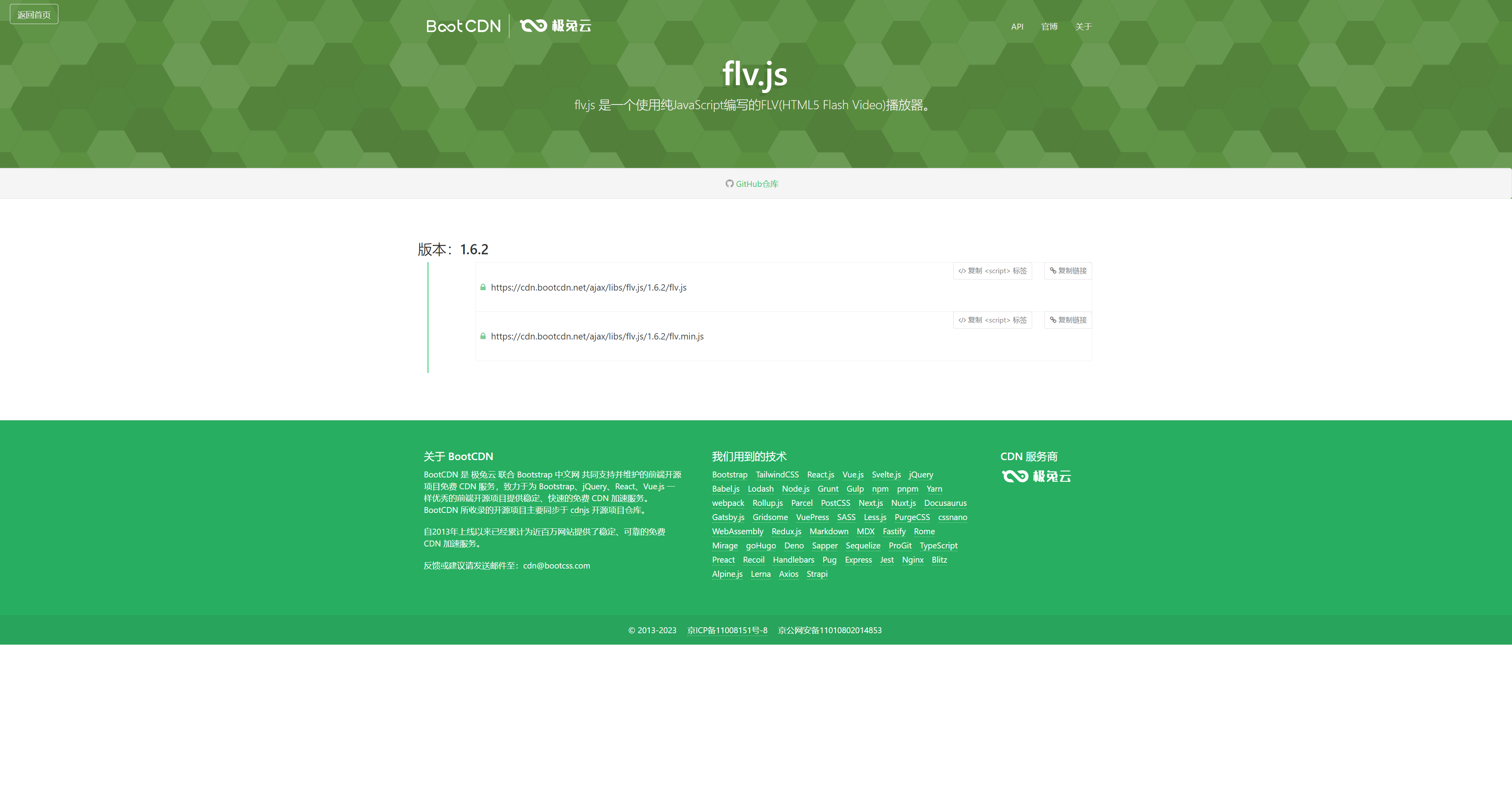

java 实现监控rtsp流转flv,实现前端播放(前后端代码都有)一.服务代码二.客户端代码基于flv.js进行播放

57 阅读 0 评论 38 点赞

我是靠谱客的博主坚强奇异果，最近开发中收集的这篇文章主要介绍java 实现监控rtsp流转flv,实现前端播放(前后端代码都有)一.服务代码二.客户端代码基于flv.js进行播放，觉得挺不错的，现在分享给大家，希望可以做个参考。

概述

一.服务代码

maven配置文件引入坐标:

        <dependency>
            <groupId>org.bytedeco</groupId>
            <artifactId>javacv-platform</artifactId>
            <version>1.5.1</version>
        </dependency>

        <dependency>
            <groupId>javax.xml.bind</groupId>
            <artifactId>jaxb-api</artifactId>
            <version>2.3.0</version>
        </dependency>

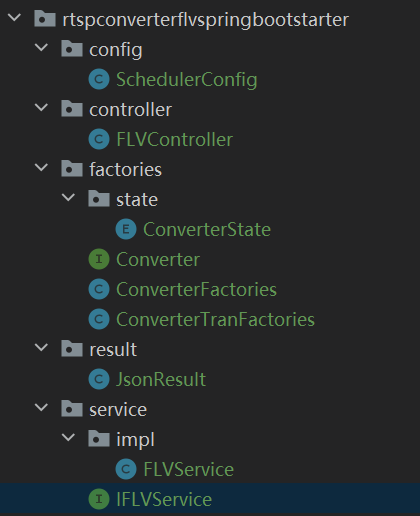

服务器代码

controller层:

import com.xr.web.rtspconverterflvspringbootstarter.service.IFLVService;
import io.swagger.annotations.Api;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

/**
 * FLV流转换
 *
 * @author gc.x
 */
@Api(tags = "flv")
@RequestMapping("/flv")
@RestController
public class FLVController {

    @Autowired
    private IFLVService service;


    @GetMapping()
    public void open4(HttpServletResponse response,
                      HttpServletRequest request) {
        String test = "rtsp://admin:sdxr@2022@192.168.0.205:554";

        service.open(test, response, request);
    }
}

config层:

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.scheduling.TaskScheduler;
import org.springframework.scheduling.annotation.EnableScheduling;
import org.springframework.scheduling.concurrent.ThreadPoolTaskScheduler;

/**
 * 使用多线程执行定时任务
 *
 * @author gc.x
 *
 */
@Configuration
@EnableScheduling
public class SchedulerConfig {
    @Bean
    public TaskScheduler taskScheduler() {
        ThreadPoolTaskScheduler scheduler = new ThreadPoolTaskScheduler();
        // 线程池大小
        scheduler.setPoolSize(3);
        // 线程名字前缀
        scheduler.setThreadNamePrefix("task-thread-");
        return scheduler;
    }

}

factories层:

/**
 * 转换器状态（初始化、打开、关闭、错误、运行）
 *
 * @author gc.x
 */
public enum ConverterState {
    INITIAL, OPEN, CLOSE, ERROR, RUN
}

import javax.servlet.AsyncContext;
import java.io.IOException;

public interface Converter {

    /**
     * 获取该转换的key
     */
    public String getKey();

    /**
     * 获取该转换的url
     *
     * @return
     */
    public String getUrl();

    /**
     * 添加一个流输出
     *
     * @param entity
     */
    public void addOutputStreamEntity(String key, AsyncContext entity) throws IOException;

    /**
     * 退出转换
     */
    public void exit();

    /**
     * 启动
     */
    public void start();

}

import com.alibaba.fastjson.util.IOUtils;
import lombok.extern.slf4j.Slf4j;
import org.bytedeco.ffmpeg.avcodec.AVPacket;
import org.bytedeco.ffmpeg.global.avcodec;
import org.bytedeco.javacv.FFmpegFrameGrabber;
import org.bytedeco.javacv.FFmpegFrameRecorder;
import javax.servlet.AsyncContext;
import java.io.ByteArrayOutputStream;
import java.io.IOException;
import java.util.Iterator;
import java.util.List;
import java.util.Map;

/**
 * javacv转包装<br/>
 * 无须转码，更低的资源消耗，更低的延迟<br/>
 * 确保流来源视频H264格式,音频AAC格式
 *
 * @author gc.x
 */
@Slf4j
public class ConverterFactories extends Thread implements Converter {
    public volatile boolean runing = true;
    /**
     * 读流器
     */
    private FFmpegFrameGrabber grabber;
    /**
     * 转码器
     */
    private FFmpegFrameRecorder recorder;
    /**
     * 转FLV格式的头信息<br/>
     * 如果有第二个客户端播放首先要返回头信息
     */
    private byte[] headers;
    /**
     * 保存转换好的流
     */
    private ByteArrayOutputStream stream;
    /**
     * 流地址，h264,aac
     */
    private String url;
    /**
     * 流输出
     */
    private List<AsyncContext> outEntitys;

    /**
     * key用于表示这个转换器
     */
    private String key;

    /**
     * 转换队列
     */
    private Map<String, Converter> factories;

    public ConverterFactories(String url, String key, Map<String, Converter> factories, List<AsyncContext> outEntitys) {
        this.url = url;
        this.key = key;
        this.factories = factories;
        this.outEntitys = outEntitys;
    }

    @Override
    public void run() {
        boolean isCloseGrabberAndResponse = true;
        try {
            grabber = new FFmpegFrameGrabber(url);
            if ("rtsp".equals(url.substring(0, 4))) {
                grabber.setOption("rtsp_transport", "tcp");
                grabber.setOption("stimeout", "5000000");
            }
            grabber.start();
            if (avcodec.AV_CODEC_ID_H264 == grabber.getVideoCodec()
                    && (grabber.getAudioChannels() == 0 || avcodec.AV_CODEC_ID_AAC == grabber.getAudioCodec())) {
                log.info("this url:{} converterFactories start", url);
                // 来源视频H264格式,音频AAC格式
                // 无须转码，更低的资源消耗，更低的延迟
                stream = new ByteArrayOutputStream();
                recorder = new FFmpegFrameRecorder(stream, grabber.getImageWidth(), grabber.getImageHeight(),
                        grabber.getAudioChannels());
                recorder.setInterleaved(true);
                recorder.setVideoOption("preset", "ultrafast");
                recorder.setVideoOption("tune", "zerolatency");
                recorder.setVideoOption("crf", "25");
                recorder.setFrameRate(grabber.getFrameRate());
                recorder.setSampleRate(grabber.getSampleRate());
                if (grabber.getAudioChannels() > 0) {
                    recorder.setAudioChannels(grabber.getAudioChannels());
                    recorder.setAudioBitrate(grabber.getAudioBitrate());
                    recorder.setAudioCodec(grabber.getAudioCodec());
                }
                recorder.setFormat("flv");
                recorder.setVideoBitrate(grabber.getVideoBitrate());
                recorder.setVideoCodec(grabber.getVideoCodec());
                recorder.start(grabber.getFormatContext());
                if (headers == null) {
                    headers = stream.toByteArray();
                    stream.reset();
                    writeResponse(headers);
                }
                int nullNumber = 0;
                while (runing) {
                    AVPacket k = grabber.grabPacket();
                    if (k != null) {
                        try {
                            recorder.recordPacket(k);
                        } catch (Exception e) {
                        }
                        if (stream.size() > 0) {
                            byte[] b = stream.toByteArray();
                            stream.reset();
                            writeResponse(b);
                            if (outEntitys.isEmpty()) {
                                log.info("没有输出退出");
                                break;
                            }
                        }
                        avcodec.av_packet_unref(k);
                    } else {
                        nullNumber++;
                        if (nullNumber > 200) {
                            break;
                        }
                    }
                    Thread.sleep(5);
                }
            } else {
                isCloseGrabberAndResponse = false;
                // 需要转码为视频H264格式,音频AAC格式
                ConverterTranFactories c = new ConverterTranFactories(url, key, factories, outEntitys, grabber);
                factories.put(key, c);
                c.start();
            }
        } catch (Exception e) {
            log.error(e.getMessage(), e);
        } finally {
            closeConverter(isCloseGrabberAndResponse);
            completeResponse(isCloseGrabberAndResponse);
            log.info("this url:{} converterFactories exit", url);

        }
    }

    /**
     * 输出FLV视频流
     *
     * @param b
     */
    public void writeResponse(byte[] b) {
        Iterator<AsyncContext> it = outEntitys.iterator();
        while (it.hasNext()) {
            AsyncContext o = it.next();
            try {
                o.getResponse().getOutputStream().write(b);
            } catch (Exception e) {
                log.info("移除一个输出");
                it.remove();
            }
        }
    }

    /**
     * 退出转换
     */
    public void closeConverter(boolean isCloseGrabberAndResponse) {
        if (isCloseGrabberAndResponse) {
            IOUtils.close(grabber);
            factories.remove(this.key);
        }
        IOUtils.close(recorder);
        IOUtils.close(stream);
    }

    /**
     * 关闭异步响应
     *
     * @param isCloseGrabberAndResponse
     */
    public void completeResponse(boolean isCloseGrabberAndResponse) {
        if (isCloseGrabberAndResponse) {
            Iterator<AsyncContext> it = outEntitys.iterator();
            while (it.hasNext()) {
                AsyncContext o = it.next();
                o.complete();
            }
        }
    }

    @Override
    public String getKey() {
        return this.key;
    }

    @Override
    public String getUrl() {
        return this.url;
    }

    @Override
    public void addOutputStreamEntity(String key, AsyncContext entity) throws IOException {
        if (headers == null) {
            outEntitys.add(entity);
        } else {
            entity.getResponse().getOutputStream().write(headers);
            entity.getResponse().getOutputStream().flush();
            outEntitys.add(entity);
        }
    }

    @Override
    public void exit() {
        this.runing = false;
        try {
            this.join();
        } catch (Exception e) {
            log.error(e.getMessage(), e);
        }
    }

}

import com.alibaba.fastjson.util.IOUtils;
import lombok.extern.slf4j.Slf4j;
import org.bytedeco.ffmpeg.global.avcodec;
import org.bytedeco.javacv.FFmpegFrameGrabber;
import org.bytedeco.javacv.FFmpegFrameRecorder;
import org.bytedeco.javacv.Frame;

import javax.servlet.AsyncContext;
import java.io.ByteArrayOutputStream;
import java.io.IOException;
import java.util.Iterator;
import java.util.List;
import java.util.Map;

/**
 * javacv转码<br/>
 * 流来源不是视频H264格式,音频AAC格式 转码为视频H264格式,音频AAC格式
 *
 * @author gc.x
 */
@Slf4j
public class ConverterTranFactories extends Thread implements Converter {
    public volatile boolean runing = true;
    /**
     * 读流器
     */
    private FFmpegFrameGrabber grabber;
    /**
     * 转码器
     */
    private FFmpegFrameRecorder recorder;
    /**
     * 转FLV格式的头信息<br/>
     * 如果有第二个客户端播放首先要返回头信息
     */
    private byte[] headers;
    /**
     * 保存转换好的流
     */
    private ByteArrayOutputStream stream;
    /**
     * 流地址，h264,aac
     */
    private String url;
    /**
     * 流输出
     */
    private List<AsyncContext> outEntitys;

    /**
     * key用于表示这个转换器
     */
    private String key;

    /**
     * 转换队列
     */
    private Map<String, Converter> factories;

    public ConverterTranFactories(String url, String key, Map<String, Converter> factories,
            List<AsyncContext> outEntitys, FFmpegFrameGrabber grabber) {
        this.url = url;
        this.key = key;
        this.factories = factories;
        this.outEntitys = outEntitys;
        this.grabber = grabber;
    }

    @Override
    public void run() {
        try {
            log.info("this url:{} converterTranFactories start", url);
            grabber.setFrameRate(25);
            if (grabber.getImageWidth() > 1920) {
                grabber.setImageWidth(1920);
            }
            if (grabber.getImageHeight() > 1080) {
                grabber.setImageHeight(1080);
            }
            stream = new ByteArrayOutputStream();
            recorder = new FFmpegFrameRecorder(stream, grabber.getImageWidth(), grabber.getImageHeight(),
                    grabber.getAudioChannels());
            recorder.setInterleaved(true);
            recorder.setVideoOption("preset", "ultrafast");
            recorder.setVideoOption("tune", "zerolatency");
            recorder.setVideoOption("crf", "25");
            recorder.setGopSize(50);
            recorder.setFrameRate(25);
            recorder.setSampleRate(grabber.getSampleRate());
            if (grabber.getAudioChannels() > 0) {
                recorder.setAudioChannels(grabber.getAudioChannels());
                recorder.setAudioBitrate(grabber.getAudioBitrate());
                recorder.setAudioCodec(avcodec.AV_CODEC_ID_AAC);
            }
            recorder.setFormat("flv");
            recorder.setVideoBitrate(grabber.getVideoBitrate());
            recorder.setVideoCodec(avcodec.AV_CODEC_ID_H264);
            recorder.start();
            if (headers == null) {
                headers = stream.toByteArray();
                stream.reset();
                writeResponse(headers);
            }
            int nullNumber = 0;
            while (runing) {
                // 抓取一帧
                Frame f = grabber.grab();
                if (f != null) {
                    try {
                        // 转码
                        recorder.record(f);
                    } catch (Exception e) {
                    }
                    if (stream.size() > 0) {
                        byte[] b = stream.toByteArray();
                        stream.reset();
                        writeResponse(b);
                        if (outEntitys.isEmpty()) {
                            log.info("没有输出退出");
                            break;
                        }
                    }
                } else {
                    nullNumber++;
                    if (nullNumber > 200) {
                        break;
                    }
                }
                Thread.sleep(5);
            }
        } catch (Exception e) {
            log.error(e.getMessage(), e);
        } finally {
            closeConverter();
            completeResponse();
            log.info("this url:{} converterTranFactories exit", url);
            factories.remove(this.key);
        }
    }

    /**
     * 输出FLV视频流
     *
     * @param b
     */
    public void writeResponse(byte[] b) {
        Iterator<AsyncContext> it = outEntitys.iterator();
        while (it.hasNext()) {
            AsyncContext o = it.next();
            try {
                o.getResponse().getOutputStream().write(b);
            } catch (Exception e) {
                log.info("移除一个输出");
                it.remove();
            }
        }
    }

    /**
     * 退出转换
     */
    public void closeConverter() {
        IOUtils.close(grabber);
        IOUtils.close(recorder);
        IOUtils.close(stream);
    }

    /**
     * 关闭异步响应
     */
    public void completeResponse() {
        Iterator<AsyncContext> it = outEntitys.iterator();
        while (it.hasNext()) {
            AsyncContext o = it.next();
            o.complete();
        }
    }

    @Override
    public String getKey() {
        return this.key;
    }

    @Override
    public String getUrl() {
        return this.url;
    }

    @Override
    public void addOutputStreamEntity(String key, AsyncContext entity) throws IOException {
        if (headers == null) {
            outEntitys.add(entity);
        } else {
            entity.getResponse().getOutputStream().write(headers);
            entity.getResponse().getOutputStream().flush();
            outEntitys.add(entity);
        }
    }

    @Override
    public void exit() {
        this.runing = false;
        try {
            this.join();
        } catch (Exception e) {
            log.error(e.getMessage(), e);
        }
    }

}

result层:

import com.alibaba.fastjson.JSONObject;

import java.io.Serializable;
import java.util.HashMap;

/**
 * 封装返回结果
 *
 */
public class JsonResult extends HashMap<String, Object> implements Serializable {

    private static final long serialVersionUID = 1L;
    public static final int SUCCESS = 200;

    public JsonResult() {
    }

    /**
     * 返回成功
     */
    public static JsonResult ok() {
        return ok("操作成功");
    }

    /**
     * 返回成功
     */
    public static JsonResult okFallBack() {
        return okFallBack("操作成功");
    }

    /**
     * 返回成功
     */
    public JsonResult put(Object obj) {
        return this.put("data", obj);
    }

    /**
     * 返回成功
     */
    public static JsonResult ok(String message) {
        return result(200, message);
    }

    /**
     * 降级函数 - 返回成功
     */
    public static JsonResult okFallBack(String message) {
        return result(205, message);
    }

    /**
     * 返回成功
     */
    public static JsonResult result(int code, String message) {
        JsonResult jsonResult = new JsonResult();
        jsonResult.put("timestamp", System.currentTimeMillis());
        jsonResult.put("status", code);
        jsonResult.put("message", message);
        return jsonResult;
    }

    /**
     * 返回失败
     */
    public static JsonResult error() {
        return error("操作失败");
    }

    /**
     * 返回失败
     */
    public static JsonResult error(String message) {
        return error(500, message);
    }

    /**
     * 返回失败
     */
    public static JsonResult error(int code, String message) {
        JsonResult jsonResult = new JsonResult();
        jsonResult.put("timestamp", System.currentTimeMillis());
        jsonResult.put("status", code);
        jsonResult.put("message", message);
        return jsonResult;
    }

    /**
     * 设置code
     */
    public JsonResult setCode(int code) {
        super.put("status", code);
        return this;
    }

    /**
     * 设置message
     */
    public JsonResult setMessage(String message) {
        super.put("message", message);
        return this;
    }

    /**
     * 放入object
     */
    @Override
    public JsonResult put(String key, Object object) {
        super.put(key, object);
        return this;
    }

    /**
     * 权限禁止
     */
    public static JsonResult forbidden(String message) {
        JsonResult jsonResult = new JsonResult();
        jsonResult.put("timestamp", System.currentTimeMillis());
        jsonResult.put("status", 401);
        jsonResult.put("message", message);
        return jsonResult;
    }

    @Override
    public String toString() {
        return JSONObject.toJSONString(this);
    }

    public JSONObject toJSONObject() {
        return JSONObject.parseObject(toString());
    }

}

service层:

import com.alibaba.fastjson.JSONObject;

import java.io.Serializable;
import java.util.HashMap;

/**
 * 封装返回结果
 *
 */
public class JsonResult extends HashMap<String, Object> implements Serializable {

    private static final long serialVersionUID = 1L;
    public static final int SUCCESS = 200;

    public JsonResult() {
    }

    /**
     * 返回成功
     */
    public static JsonResult ok() {
        return ok("操作成功");
    }

    /**
     * 返回成功
     */
    public static JsonResult okFallBack() {
        return okFallBack("操作成功");
    }

    /**
     * 返回成功
     */
    public JsonResult put(Object obj) {
        return this.put("data", obj);
    }

    /**
     * 返回成功
     */
    public static JsonResult ok(String message) {
        return result(200, message);
    }

    /**
     * 降级函数 - 返回成功
     */
    public static JsonResult okFallBack(String message) {
        return result(205, message);
    }

    /**
     * 返回成功
     */
    public static JsonResult result(int code, String message) {
        JsonResult jsonResult = new JsonResult();
        jsonResult.put("timestamp", System.currentTimeMillis());
        jsonResult.put("status", code);
        jsonResult.put("message", message);
        return jsonResult;
    }

    /**
     * 返回失败
     */
    public static JsonResult error() {
        return error("操作失败");
    }

    /**
     * 返回失败
     */
    public static JsonResult error(String message) {
        return error(500, message);
    }

    /**
     * 返回失败
     */
    public static JsonResult error(int code, String message) {
        JsonResult jsonResult = new JsonResult();
        jsonResult.put("timestamp", System.currentTimeMillis());
        jsonResult.put("status", code);
        jsonResult.put("message", message);
        return jsonResult;
    }

    /**
     * 设置code
     */
    public JsonResult setCode(int code) {
        super.put("status", code);
        return this;
    }

    /**
     * 设置message
     */
    public JsonResult setMessage(String message) {
        super.put("message", message);
        return this;
    }

    /**
     * 放入object
     */
    @Override
    public JsonResult put(String key, Object object) {
        super.put(key, object);
        return this;
    }

    /**
     * 权限禁止
     */
    public static JsonResult forbidden(String message) {
        JsonResult jsonResult = new JsonResult();
        jsonResult.put("timestamp", System.currentTimeMillis());
        jsonResult.put("status", 401);
        jsonResult.put("message", message);
        return jsonResult;
    }

    @Override
    public String toString() {
        return JSONObject.toJSONString(this);
    }

    public JSONObject toJSONObject() {
        return JSONObject.parseObject(toString());
    }

}

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

public interface IFLVService {

    /**
     * 打开一个流地址
     *
     * @param url
     * @param response
     */
    public void open(String url, HttpServletResponse response, HttpServletRequest request);

}

二.客户端代码基于flv.js进行播放

<!-- @format -->

<!DOCTYPE html>
<html lang="en">
    <head>
        <meta charset="UTF-8" />
        <meta http-equiv="X-UA-Compatible" content="IE=edge" />
        <meta name="viewport" content="width=device-width, initial-scale=1.0" />
        <title>Document</title>
    </head>
    <body>
        <script src="flv.min.js"></script>
        <video id="videoElement"></video>
        <button onclick="playflv()">点击播放</button>
        <script>
            if (flvjs.isSupported()) {
                var videoElement = document.getElementById('videoElement');
                var flvPlayer = flvjs.createPlayer({
                    type: 'flv',
                    url: 'http://127.0.0.1:10010/xr/flv',
                });
                flvPlayer.attachMediaElement(videoElement);
                flvPlayer.load();
            }
            //自动播放,浏览器不支持
            function playflv() {
                flvPlayer.play();
            }
        </script>
    </body>
</html>

这里因为浏览器把自动播放给禁止了，加了个按钮点击事件

https://www.bootcdn.cn/

引入的flv.js文件在如下网站下载即可:
