概述

代码连接Kerberos认证的CDH

本章主要介绍通过编写java代码连接有Kerberos认证的CDH(5.14.2)(HDFS、HBase、Hive、Kafka)等。编写代码时要检查principal和keytab是否匹配、krb5.conf是否正确。我的Kerberos如下:

  • keytab : hadoop_node1.keytab
  • principal : hadoop/cdh-node1@HADOOP.COM

后面我会使用这个principal连接到HDFS、HBase、Hive、Kafka等组件上。首先我们新建项目并引入依赖:

        <!-- https://mvnrepository.com/artifact/org.apache.hadoop/hadoop-client -->
        <dependency>
            <groupId>org.apache.hadoop</groupId>
            <artifactId>hadoop-client</artifactId>
            <version>2.6.0</version>
        </dependency>

        <!-- https://mvnrepository.com/artifact/org.apache.hive/hive-jdbc -->
        <dependency>
            <groupId>org.apache.hive</groupId>
            <artifactId>hive-jdbc</artifactId>
            <version>1.1.0</version>
        </dependency>

        <!-- https://mvnrepository.com/artifact/org.apache.hbase/hbase-client -->
        <dependency>
            <groupId>org.apache.hbase</groupId>
            <artifactId>hbase-client</artifactId>
            <version>1.2.0</version>
        </dependency>

        <!-- https://mvnrepository.com/artifact/org.apache.kafka/kafka-clients -->
        <dependency>
            <groupId>org.apache.kafka</groupId>
            <artifactId>kafka-clients</artifactId>
            <version>1.0.1</version>
        </dependency>

集群连接

  • HDFS连接、HBase连接
  • Hive连接
  • Kafka连接

HDFS连接、HBase连接

通过Kerberos验证的方式很简单,根据示例主要是以下代码:

//KrbConf 是krb5.conf的路径
System.setProperty("java.security.krb5.conf", KrbConf);
//conf中包涵HDFS/hbase的配置信息
UserGroupInformation.setConfiguration(conf);
//principal ,keytab 的路径
UserGroupInformation.loginUserFromKeytab(KrbUser, KrbKey);

我看有其它的示例会使用 conf.set(key, value) 加入一些配置信息,但是我是直接读取了core-site.xml、hdfs-site.xml、hbase-site.xml等配置文件,这样不会出现缺少参数导致认证失败。

  • 编写通过Kerberos认证代码:
package com.gonghf.kerberos.logUtil;

import org.apache.hadoop.conf.Configuration;
import org.apache.hadoop.hbase.HBaseConfiguration;
import org.apache.hadoop.security.UserGroupInformation;
import java.io.File;
import java.io.FileInputStream;
import java.io.FileNotFoundException;
import java.io.IOException;

public class KerberosUtil {

    /**
     * @param KrbUser 需要通过认证的principal
     * @param KrbKey keytab的路径
     * @throws IOException
     */
    public static void loginKerberos(Configuration conf, String KrbUser, String KrbKey) throws IOException {
        String userdir = System.getProperty("user.dir") + File.separator + "config" + File.separator;
        String KrbConf = userdir + "/kerberos/krb5.conf";
        //设置krb5.conf的路径
        System.setProperty("java.security.krb5.conf", KrbConf);
        try {
            //读取core-site.xml、hdfs-site.xml配置文件
            conf.addResource(new FileInputStream(userdir + "hadoop/core-site.xml"));
            conf.addResource(new FileInputStream(userdir + "hadoop/hdfs-site.xml"));
            if (conf instanceof HBaseConfiguration) {
                //如果是hbase连接读取hbase-site.xml
                conf.addResource(new FileInputStream(userdir + "hadoop/hbase-site.xml"));
            }
        } catch (FileNotFoundException e) {
            e.printStackTrace();
        }
        //kerberos认证
        UserGroupInformation.setConfiguration(conf);
        UserGroupInformation.loginUserFromKeytab(KrbUser, KrbKey);
    }
}
  • HDFS 认证测试
package com.gonghf.kerberos.hdfs;

import com.gonghf.kerberos.logUtil.KerberosUtil;
import org.apache.hadoop.conf.Configuration;
import org.apache.hadoop.fs.FSDataOutputStream;
import org.apache.hadoop.fs.FileStatus;
import org.apache.hadoop.fs.FileSystem;
import org.apache.hadoop.fs.Path;
import java.io.File;
import java.io.IOException;
import java.util.ArrayList;

/**
 * @description: HDFS kerberos 测试程序
 */
public class HDFSExample {
    private static String KrbKey = "";
    private static String KrbUser = "";
    //访问的目录
    private static String Home = "/hadoopHome";

    private static void init() {
        String userdir = System.getProperty("user.dir") + File.separator +
                "config" + File.separator + "kerberos" + File.separator;
        KrbKey = userdir + "hadoop_node1.keytab";
        KrbUser = "hadoop/cdh-node1@HADOOP.COM";
    }

    private static ArrayList<String> getPathFiles(FileSystem fs, String path) {
        ArrayList<String> files = null;
        try {
            FileStatus[] listStatus = fs.listStatus(new Path(path));
            files = new ArrayList<String>(20);
            for (FileStatus status : listStatus) {
                files.add(status.getPath().getName());
            }
            System.out.println("获取( " + path + " )目录下的文件名称 == " + files);
        } catch (IOException e) {
            System.out.println("获取(" + path + ")目录下的文件名称失败!");
            e.printStackTrace();
        } finally {
            return files;
        }
    }

    public static void main(String[] args) {
        init();
        Configuration conf = new Configuration();
        FileSystem fs = null;
        try {
            KerberosUtil.loginKerberos(conf,KrbUser,KrbKey);
            System.out.println(KrbUser+"认证成功!");
            fs = FileSystem.get(conf);
            System.out.println("HDFS文件系统获取成功!");
        } catch (IOException e) {
            System.out.println(KrbUser+"认证失败");
            e.printStackTrace();
        }

        getPathFiles(fs, Home);
        String testdir = Home + "/testdir_";
        String testfile = Home + "/testdir_/data.dat";

        //创建文件夹
        try {
            fs.mkdirs(new Path(testdir));
            System.out.println("在根目录下添加 " + testdir + " 文件夹!");
            getPathFiles(fs, Home);
        } catch (IOException e) {
            e.printStackTrace();
        }

        //创建文件并写入数据
        try {
            boolean bool = fs.createNewFile(new Path(testfile));
            if (bool) {
                System.out.println("在 " + testdir + " 目录下创建文件 data.dat 成功!");
                FSDataOutputStream outputStream = fs.create(new Path(testfile));
                outputStream.write("这是一个测试".getBytes());
                System.out.println("向 " + testfile + " 文件写入数据成功!");
                outputStream.close();
                getPathFiles(fs, testdir);
            } else {
                System.out.println("在 " + testdir + " 目录下创建文件 data.dat 失败!");
            }
        } catch (IOException e) {
            e.printStackTrace();
        }

        //删除文件夹
        try {
            fs.delete(new Path(testdir), true);
            System.out.println("删除 " + testdir + " 成功!");
            getPathFiles(fs, Home);
        } catch (IOException e) {
            e.printStackTrace();
        }

        //关闭HDFS连接
        try {
            fs.close();
        } catch (IOException e) {
            e.printStackTrace();
        }
    }
}

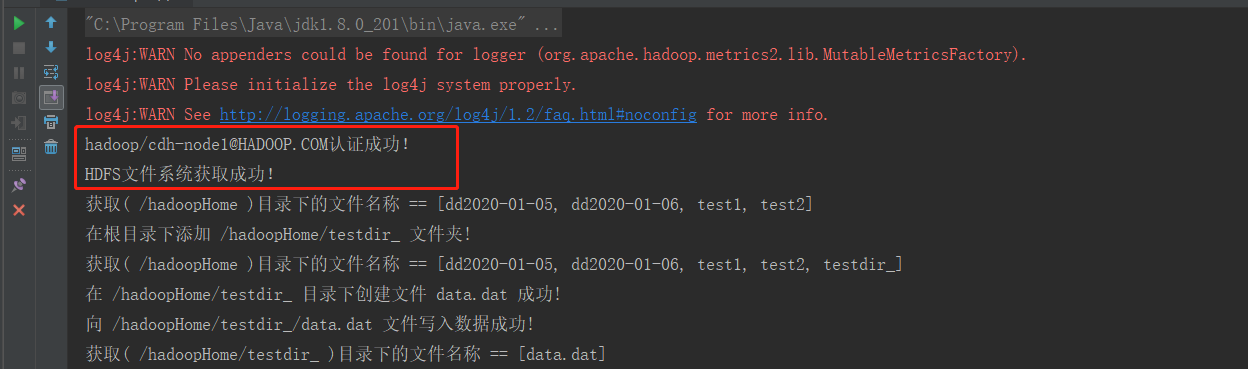

运行结果:
在这里插入图片描述

  • HBase 认证测试
package com.gonghf.kerberos.hbase;

import com.gonghf.kerberos.logUtil.KerberosUtil;
import org.apache.hadoop.conf.Configuration;
import org.apache.hadoop.hbase.HBaseConfiguration;
import org.apache.hadoop.hbase.HColumnDescriptor;
import org.apache.hadoop.hbase.HTableDescriptor;
import org.apache.hadoop.hbase.client.HBaseAdmin;
import java.io.File;
import java.io.IOException;
import java.util.Arrays;

/**
 * @description: HBase kerberos验证
 */
public class HBaseExample {
    private static String KrbKey = "";
    private static String KrbUser = "";
    public static Configuration HBaseConf = null;
    private static final String ZK_CONNECT_STR = "cdh-node1:2181";

    public static void init() {
        String userdir = System.getProperty("user.dir") + File.separator + "config" + File.separator + "kerberos" + File.separator;
        KrbKey = userdir + "hadoop_node1.keytab";
        KrbUser = "hadoop/cdh-node1@HADOOP.COM";
    }

    //创建表
    public static void creatTable(HBaseAdmin admin, String tableName, String[] family) throws Exception {
        HTableDescriptor desc = new HTableDescriptor(tableName);
        for (int i = 0; i < family.length; i++) {
            desc.addFamily(new HColumnDescriptor(family[i]));
        }
        if (admin.tableExists(tableName)) {
            System.out.println("table Exists!");
            System.exit(0);
        } else {
            admin.createTable(desc);
        }
    }

    //删除表
    public static void deleteTable(HBaseAdmin admin, String tableName) throws IOException {
        admin.disableTable(tableName);
        admin.deleteTable(tableName);
    }

    public static void main(String[] args) {
        init();
        HBaseConf = new HBaseConfiguration();
        HBaseConf.set("hbase.zookeeper.quorum", ZK_CONNECT_STR);
        HBaseAdmin admin = null;
        try {
            KerberosUtil.loginKerberos(HBaseConf, KrbUser, KrbKey);
            admin = new HBaseAdmin(HBaseConf);
            System.out.println(KrbUser + "认证成功!");
        } catch (IOException e) {
            System.out.println(KrbUser + "认证失败");
            e.printStackTrace();
        }

        String tableName = "testtable";
        String[] tableFamily = {"data1", "data2"};

        try {
            creatTable(admin, tableName, tableFamily);
            System.out.println(tableName + "创建成功!");
        } catch (Exception e) {
            System.out.println(tableName + "创建失败!");
            e.printStackTrace();
        }

        try {
            //获取所有表名
            String[] tableNames = admin.getTableNames();
            System.out.println("Tables=" + Arrays.toString(tableNames));
        } catch (IOException e) {
            e.printStackTrace();
        }

        try {
            deleteTable(admin, tableName);
            System.out.println(tableName + "删除成功!");
        } catch (IOException e) {
            System.out.println(tableName + "删除失败!");
            e.printStackTrace();
        }
    }
}

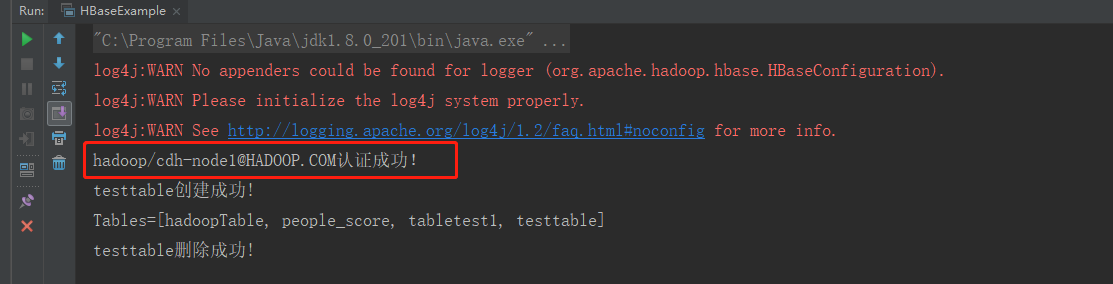

运行结果:
在这里插入图片描述


Hive连接

我的hive的测试时采用JDBC的方式去连接HiveServer2,因为CDH在加入Kerberos是会自动的增加一些配置,如图(hive-site.xml):
vim /opt/cloudera-manager/cm-5.14.2/run/cloudera-scm-agent/process/218-hive-HIVESERVER2/hive-site.xml
在这里插入图片描述
hive.server2.authentication.kerberos.principal这个配置会限制连接HiveServer2的principal为hive;
那如果我想用hadoop用户去连接HiveServer2是就会出现报错:
在这里插入图片描述
其实实现hadoop用户去连接HiveServer的过程是:

  • 用hadoop/cdh-node1@HADOOP.COM做Kerberos认证。
  • 在HiveServer2的url中principal为hive/cdh-node1@HADOOP.COM。
package com.gonghf.kerberos.hive;

import com.gonghf.kerberos.logUtil.KerberosUtil;
import org.apache.hadoop.conf.Configuration;
import org.apache.hadoop.hive.conf.HiveConf;
import java.io.File;
import java.io.IOException;
import java.sql.*;

/**
 * @description: HiveServer2的测试类
 */
public class HiveServer2Example {
    private static String HiveUrl = "jdbc:hive2://192.168.30.173:10000/default;principal=hive/cdh-node1@HADOOP.COM";
    private static final String HIVE_DRIVER = "org.apache.hive.jdbc.HiveDriver";
    private static String KrbKey = "";
    private static String KrbUser = "";

    public static void init() {
        String userdir = System.getProperty("user.dir") + File.separator + "config" + File.separator + "kerberos" + File.separator;
        KrbKey = userdir + "hadoop_node1.keytab";
        KrbUser = "hadoop/cdh-node1@HADOOP.COM";
    }

    public static void main(String[] args) {
        // 定义HQL,HQL为单条语句,不能包含“;”
        String[] sqls = {
                "CREATE TABLE IF NOT EXISTS employees_info(id INT,name STRING)",
                "SELECT COUNT(*) FROM employees_info",
                "DROP TABLE employees_info"
        };

        init();
        Configuration conf = new HiveConf();
        try {
            KerberosUtil.loginKerberos(conf, KrbUser, KrbKey);
            System.out.println(KrbUser+"认证成功!");
        } catch (IOException e) {
            System.out.println(KrbUser+"认证失败");
            e.printStackTrace();
        }
        Connection connection = null;
        try {
            Class.forName(HIVE_DRIVER);
            connection = DriverManager.getConnection(HiveUrl,"","");
            execDDL(connection, sqls[0]);
            System.out.println("Create table success!");
            // 查询
            execDML(connection, sqls[1]);
            // 删表
            execDDL(connection, sqls[2]);
            System.out.println("Delete table success!");
        } catch (ClassNotFoundException e) {
            e.printStackTrace();
        } catch (SQLException e) {
            e.printStackTrace();
        } finally {
            if(connection != null){
                try {
                    connection.close();
                } catch (SQLException e) {
                    e.printStackTrace();
                }
            }
        }
    }

    public static void execDDL(Connection connection, String sql) throws SQLException {
        PreparedStatement statement = null;
        try {
            statement = connection.prepareStatement(sql);
            statement.execute();
        } finally {
            if (null != statement) {
                statement.close();
            }
        }
    }

    public static void execDML(Connection connection, String sql) throws SQLException {
        PreparedStatement statement = null;
        ResultSet resultSet = null;
        ResultSetMetaData resultMetaData = null;
        try {
            // 执行HQL
            statement = connection.prepareStatement(sql);
            resultSet = statement.executeQuery();
            // 输出查询的列名到控制台
            resultMetaData = resultSet.getMetaData();
            int columnCount = resultMetaData.getColumnCount();
            for (int i = 1; i <= columnCount; i++) {
                System.out.print(resultMetaData.getColumnLabel(i) + 't');
            }
            System.out.println();
            // 输出查询结果到控制台
            while (resultSet.next()) {
                for (int i = 1; i <= columnCount; i++) {
                    System.out.print(resultSet.getString(i) + 't');
                }
                System.out.println();
            }
        } finally {
            if (null != resultSet) {
                resultSet.close();
            }
            if (null != statement) {
                statement.close();
            }
        }
    }
}

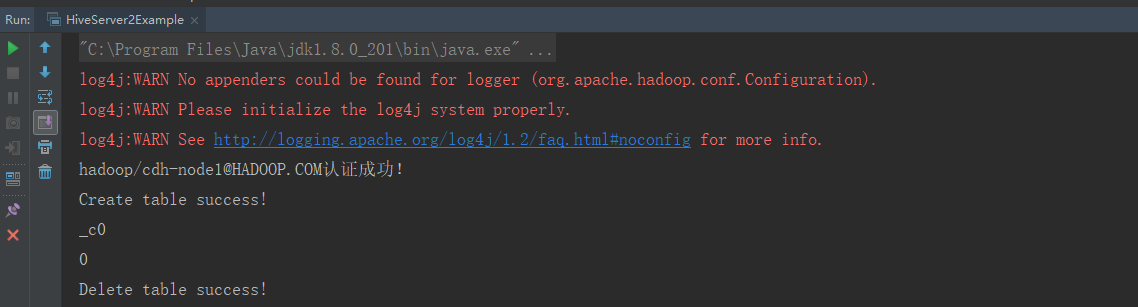

在这里插入图片描述


Kafka连接

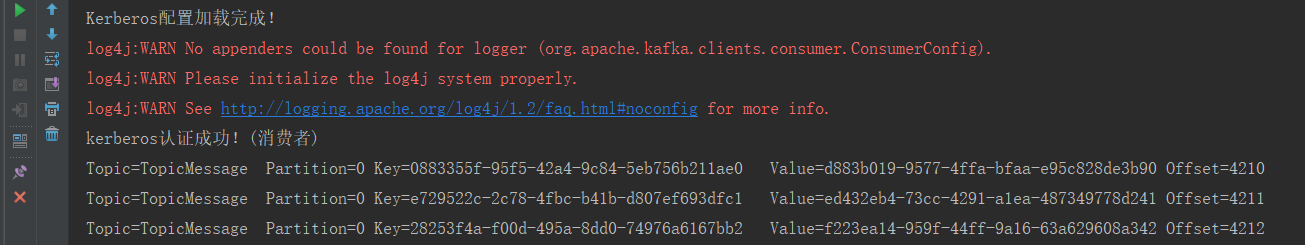

Kafka主要是消费者的连接和生产者的连接需要通过Kerberos认证,其实和HDFS、HBase等认证方式一样都是通过JAAS进行认证的,只是代码的写法不一样。当然我们只需要在上层调用kafka API就可以实现通过JAAS进行Kerberos认证。

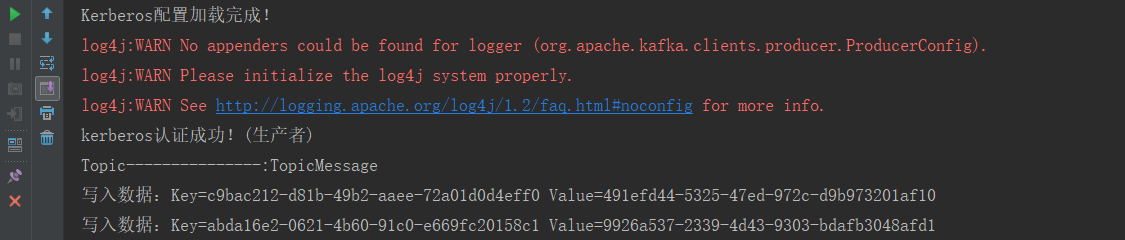

首先我说一下Kafka通过Kerberos认证的方法(以成产者为例):

  1. 编写 jaas.conf 文件,注意keyTab为绝对路径,切不能出现 “” 意思是路径不能写为E:IDEA_HOMEkerberostest…
KafkaClient {
com.sun.security.auth.module.Krb5LoginModule required
useKeyTab=true
keyTab="E:/IDEA_HOME/kerberostest/config/kerberos/hadoop_node1.keytab"
principal="hadoop/cdh-node1@HADOOP.COM";
};
  1. 将该文件的绝对路径添加到环境变量中
System.setProperty("java.security.auth.login.config", jaasPath);
  1. 通过KafkaProducer连接
Properties prop = new Properties();
prop.put(ConsumerConfig.GROUP_ID_CONFIG, "DemoConsumer");
prop.put(ConsumerConfig.KEY_DESERIALIZER_CLASS_CONFIG, "org.apache.kafka.common.serialization.StringDeserializer");
prop.put(ConsumerConfig.VALUE_DESERIALIZER_CLASS_CONFIG, "org.apache.kafka.common.serialization.StringDeserializer");
prop.put("security.protocol", "SASL_PLAINTEXT");
prop.put(ProducerConfig.KEY_SERIALIZER_CLASS_CONFIG, "org.apache.kafka.common.serialization.StringSerializer");
prop.put(ProducerConfig.VALUE_SERIALIZER_CLASS_CONFIG, "org.apache.kafka.common.serialization.StringSerializer");
prop.put("sasl.kerberos.service.name", "kafka");
Producer<String, String> producer = new KafkaProducer<String, String>(prop);

通过上面三步就可以用代码连接Kafka为所欲为了!!!下面我贴出我的示例,KafkaProperties、ProducerTest、ComsumerTest。

  • KafkaProperties :Kafka、kerberos的配置类
package com.gonghf.kerberos.kafka;

import org.apache.kafka.clients.consumer.ConsumerConfig;
import org.apache.kafka.clients.producer.ProducerConfig;
import java.io.File;
import java.io.IOException;
import java.io.PrintWriter;
import java.util.Properties;

/**
 * @description: Kafka的配置类
 */
public class KafkaProperties extends Properties {
    private Properties properties;

    private static final String JAAS_TEMPLATE =
            "KafkaClient {n" +
                    "com.sun.security.auth.module.Krb5LoginModule requiredn" +
                    "useKeyTab=truen" +
                    "keyTab="%1$s"n" +
                    "principal="%2$s";n" +
                    "};";

    public KafkaProperties() {
        properties = new Properties();
    }

    public KafkaProperties self() {
        return this;
    }

    public Properties getProperties() {
        return properties;
    }

    public KafkaProperties put(String key, String value) {
        if (properties == null) {
            properties = new Properties();
        }
        properties.put(key, value);
        return self();
    }

    public static KafkaProperties initKerberos() {
        return new KafkaProperties()
                .put(ConsumerConfig.GROUP_ID_CONFIG, "DemoConsumer")
                .put(ConsumerConfig.KEY_DESERIALIZER_CLASS_CONFIG, "org.apache.kafka.common.serialization.StringDeserializer")
                .put(ConsumerConfig.VALUE_DESERIALIZER_CLASS_CONFIG, "org.apache.kafka.common.serialization.StringDeserializer")
                .put("security.protocol", "SASL_PLAINTEXT")
                .put(ProducerConfig.KEY_SERIALIZER_CLASS_CONFIG, "org.apache.kafka.common.serialization.StringSerializer")
                .put(ProducerConfig.VALUE_SERIALIZER_CLASS_CONFIG, "org.apache.kafka.common.serialization.StringSerializer")
                .put("sasl.kerberos.service.name", "kafka");
    }

    //生成jaas.conf临时文件
    public static void configureJAAS(String keyTab, String principal) {
        String content = String.format(JAAS_TEMPLATE, keyTab, principal).replaceAll("\\", "/");
        System.out.println(content);
        File jaasConf = null;
        PrintWriter writer = null;
        try {
            jaasConf = File.createTempFile("jaas", ".conf");
            writer = new PrintWriter(jaasConf);
            writer.println(content);
        } catch (IOException e) {
            // TODO Auto-generated catch block
            e.printStackTrace();
        } finally {
            if (writer != null) {
                writer.close();
            }
            jaasConf.deleteOnExit();
        }
        System.setProperty("java.security.auth.login.config", jaasConf.getAbsolutePath());
        System.setProperty("javax.security.auth.useSubjectCredsOnly", "false");
    }
}

  • ProducerTest :生产者测试代码
package com.gonghf.kerberos.kafka;

import org.apache.kafka.clients.producer.KafkaProducer;
import org.apache.kafka.clients.producer.Producer;
import org.apache.kafka.clients.producer.ProducerConfig;
import org.apache.kafka.clients.producer.ProducerRecord;
import java.io.File;
import java.util.UUID;

/**
 * @description: kafka生产者测试程序
 */
public class ProducerTest {
    //发送的topic
    public static String TOPIC_NAME = "TopicMessage";
    private static String KrbKey = "";
    private static String KrbUser = "";
    private static String KrbConf = "";

    public static void init() {
        String userdir = System.getProperty("user.dir") + File.separator + "config" + File.separator + "kerberos" + File.separator;
        KrbKey = userdir + "hadoop_node1.keytab";
        KrbUser = "hadoop/cdh-node1@HADOOP.COM";
        KrbConf = userdir + "krb5.conf";
        System.setProperty("java.security.krb5.conf", KrbConf);
    }

    public static void main(String[] args) {
        init();
        KafkaProperties.configureJAAS(KrbKey, KrbUser);
        System.out.println("Kerberos配置加载完成!");
        //初始化kerberos
        KafkaProperties props = KafkaProperties.initKerberos();
        //kafka brokers地址
        props.put(ProducerConfig.BOOTSTRAP_SERVERS_CONFIG, "cdh-node1:9092,cdh-node2:9092");
        Producer<String, String> producer = new KafkaProducer<String, String>(props.getProperties());
        System.out.println("kerberos认证成功!(生产者)");
        while (true) {
            System.out.println("Topic---------------:" + TOPIC_NAME);
            for (int i = 0; i < 10; i++) {
                String key = UUID.randomUUID().toString() + i;
                String message = UUID.randomUUID().toString() + i;
                ProducerRecord record = new ProducerRecord<String, String>(TOPIC_NAME, key, message);
                producer.send(record);
                System.out.println(
                        "写入数据:" +
                        "Key=" + key + "t" +
                        "Value=" + message
                );
            }
            System.out.println();
            try {
                Thread.sleep(10000);
            } catch (InterruptedException e) {
                e.printStackTrace();
            }
        }
    }
}
  • ComsumerTest :消费者测试代码
package com.gonghf.kerberos.kafka;

import org.apache.kafka.clients.consumer.ConsumerRecord;
import org.apache.kafka.clients.consumer.ConsumerRecords;
import org.apache.kafka.clients.consumer.KafkaConsumer;
import org.apache.kafka.clients.producer.ProducerConfig;
import java.io.File;
import java.util.Arrays;

/**
 * @description: kafka消费者测试程序
 */
public class ComsumerTest {
    //接受的Topic
    public static String TOPIC_NAME = "TopicMessage";
    private static String KrbKey = "";
    private static String KrbUser = "";
    private static String KrbConf = "";

    public static void init() {
        String userdir = System.getProperty("user.dir") + File.separator + "config" + File.separator + "kerberos" + File.separator;
        KrbKey = userdir + "hadoop_node1.keytab";
        KrbUser = "hadoop/cdh-node1@HADOOP.COM";
        KrbConf = userdir + "krb5.conf";
        System.setProperty("java.security.krb5.conf", KrbConf);
    }

    public static void main(String[] args) {
        init();
        KafkaProperties.configureJAAS(KrbKey, KrbUser);
        System.out.println("Kerberos配置加载完成!");
        KafkaProperties props = KafkaProperties.initKerberos();
        props.put(ProducerConfig.BOOTSTRAP_SERVERS_CONFIG, "cdh-node1:9092,cdh-node2:9092");
        KafkaConsumer<String, String> consumer = new KafkaConsumer<String, String>(props.getProperties());
        System.out.println("kerberos认证成功!(消费者)");
        consumer.subscribe(Arrays.asList(TOPIC_NAME));
        //读取 TOPIC_NAME 中的数据
        while (true) {
            ConsumerRecords<String, String> records = consumer.poll(10);
            for (ConsumerRecord<String, String> record : records) {
                System.out.println(
                        "Topic=" + record.topic() + "t" +
                        "Partition=" + record.partition() + "t" +
                        "Key=" + record.key() + "t" +
                        "Value=" + record.value() + "t" +
                        "Offset=" + record.offset()
                );
            }
        }
    }
}

先运行ComsumerTest 在运行ComsumerTest:



最后

以上就是安静滑板为你收集整理的代码连接Kerberos认证的CDH代码连接Kerberos认证的CDH的全部内容,希望文章能够帮你解决代码连接Kerberos认证的CDH代码连接Kerberos认证的CDH所遇到的程序开发问题。

如果觉得靠谱客网站的内容还不错,欢迎将靠谱客网站推荐给程序员好友。

本图文内容来源于网友提供,作为学习参考使用,或来自网络收集整理,版权属于原作者所有。
点赞(41)

评论列表共有 0 条评论

立即
投稿
返回
顶部
