startApp快速搭建空白android项目基于kotlin采用MVVM架构startAp

121 阅读 0 评论 80 点赞

我是靠谱客的博主健壮曲奇，这篇文章主要介绍startApp快速搭建空白android项目基于kotlin采用MVVM架构startAp，现在分享给大家，希望可以做个参考。

startAp

项目地址在最后

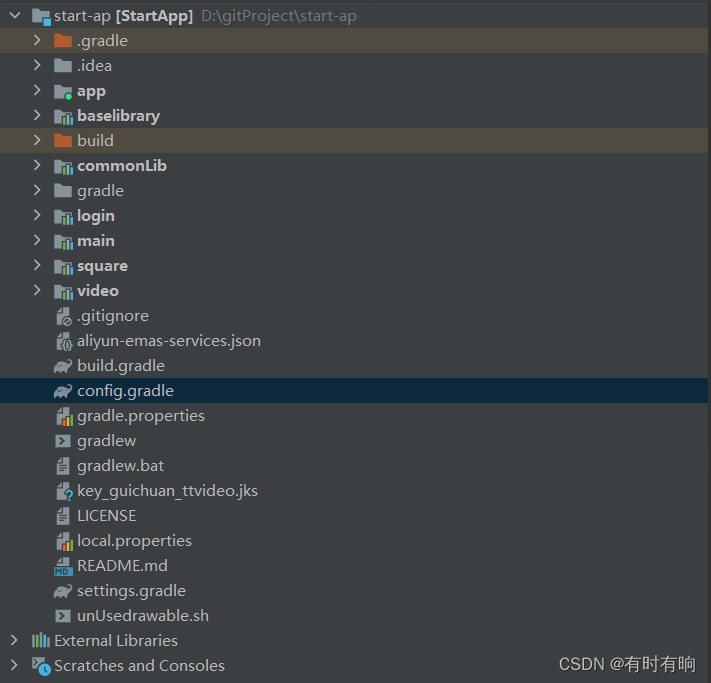

基本目录结构

在这里插入图片描述

介绍

快速搭建android基础项目

软件架构

1、基于kotlin，采用android MVVM 架构处理

2、增加 config.gradle 针对项目所需要依赖进行配置

3、针对项目组件化分别创建对应module,并依赖commLib

4、app目录为项目主目录，这里尽量少的做一些操作，最好只拿到对应的主页面然后直接做个展示最好，剩下的逻辑操作都放到对应module里

5、baseLib里放的大部分是网络方面的东西，尽量不要做更改，除非必要，项目使用需要创建的一些东西尽量放到commLib里

大概项目结构

├─app 主模块
│ ├─startapp 模块目录
│ │ ├─ui activity/fragment
│ │ └─ … 更多类库目录
│ │
│─baselibrary 基础
│ ├─com 模块目录
│ │ ├─qb 项目目录
│ │ │ ├─baselibrary
│ │ │ │ ├─basekotlin kotlin基础封装的基类(非必要不用动)
│ │ │ │ ├─util 通用Utils目录，非必要尽量不要baseLib目录处理，请加到commLib目录
│ │ │ │ └─ … 其他
│ │ │ └─ … 更多类库目录
│ │
├─commLib 公共Lib依赖baselibrary
│ ├─common 项目目录
│ │ ├─api 接口
│ │ │ ├─baselibrary
│ │ │ │ ├─one 这个可以随意要不要都行。我当时想的多地址创建多个api，不要也行，也可以一个动态修改base地址的方式，就是那个麻烦些
│ │ │ │ └─ … 其他
│ │ ├─base 外部extends这里的
│ │ ├─bean 对象
│ │ ├─net 网络封装可以区分目录例如one/two多个base地址可以这么搞，也可以动态修改base地址这样麻烦些
│ │ ├─router ARouter路由管理
│ │ ├─ui 公共页面可以放这里
│ │ ├─update app更新相关，没测试有问题的话可以自己写一个
│ │ ├─url base环境，自行区分测试开发环境
│ │ ├─utils 公共utils
│ │ ├─widget 公共widget
│ │ └─ … 更多类库目录
│ │
├─login 登录模块
│ ├─startapp 模块目录
│ │ ├─ui activity/fragment
│ │ └─ … 更多类库目录
│ │
├─video 视频模块（这个测试用的不用管，现在不用了，直接删了就行）
│ ├─startapp 模块目录
│ │ ├─ui activity/fragment
│ │ └─ … 更多类库目录
│ │
└─ … 项目更多module以及依赖库

基础描述

1、请注意各个module layout 以及各个资源文件命名（在对应module的build.gradle中配置了resourcePrefix资源前缀，这是为了防止各个module资源命名冲突，尽量保证）
2、需要单独运行module的，请在config.gradle中将对应module的模块由false设置为true（同时对应module的相关配置需要看一看）
3、注意新增的module要添加依赖，例如这里的我统一添加在app的build.gradle里

参与贡献

Fork 本仓库
新建 Feat_xxx 分支
提交代码
新建 Pull Request

相关依赖，不需要的可以干掉，记得去干净

复制代码

ext {
    //登录
    is_Login = false
    //是否需要main module模块
    is_Main = false
    is_Video = false
    is_Square = false

android = [
            //APP名称
            APP_NAME         : "startApp",
            //app唯一标识符
            application_id   : "com.qiao.startapp",
            //编译SDK版本
            compileSdkVersion: 29,
            //编译SDK版本号
            buildToolsVersion: "30.0.2",
            minSdkVersion    : 19,
            //最大适配SDK
            targetSdkVersion : 29,
            //当前版本号
            versionCode      : 100,
            //当前版本名称
            versionName      : "1.0.0",
    ]
    key = [
  			storeFile    : "../xx.jks",//签名文件位置
            storePassword: "xx",//签名文件密码
            keyAlias     : "xx",//签名文件别名
            keyPassword  : "xx",//签名文件别名密码

JPUSH_APPKEY : "4917cc32596c65b5a8fb3452",
            JPUSH_CHANNEL: "developer-default"

]
    //依赖
    version = [
            androidx_appcompat         : "1.1.0",
            junit                      : "4.12",
            androidx_junit             : "1.1.1",
            androidx_espresso_core     : "3.2.0",
            androidx_constraintlayout  : "1.1.3",

rxandroid                  : "2.1.1",
            rxjava                     : "2.2.15",
            retrofit                   : "2.8.1",
            okhttp                     : "3.1.2",
            retrofit2_converter        : "2.8.1",
            retrofit2_converter_scalars: "2.8.1",
            retrofit2_adapter_rxjava2  : "2.8.1",
            logging_interceptor        : "3.14.7",
            butterknife                : "10.2.1",
            butterknife_compiler       : "10.2.1",

rxlifecycle                : "3.1.0",
            rxlifecycle_android        : "3.1.0",
            rxlifecycle_components     : "3.1.0",

immersionbar               : "3.0.0",
            immersionbar_components    : "3.0.0",
            immersionbar_ktx           : "3.0.0",
            multidex                   : "1.0.3",
            arouter_api                : "1.5.1",
            arouter_compiler           : "1.5.1",
            flycoTabLayout_Lib         : "2.1.2",

SmartRefreshLayout         : "1.1.0",
            SmartRefreshHeader         : "1.1.0",

SmartRefreshLayout         : "1.1.0",
            recyclerview               : "1.1.0",

MVCHelper_Library          : "1.4.0",
            MVCHelper_CoolRefresh      : "1.4.0",
            CoolRefreshView            : "1.0.4",
            support_v4                 : "23.4.0",
            core_ktx                   : "1.3.2",
            jpush                      : "3.8.5",
            jcore                      : "2.5.5",
            kotlinx_coroutines_android : "1.3.9",
            lifecycle_extensions       : "2.2.0",
            lifecycle_viewmodel_ktx    : "2.2.0",
            utilcodex                  : "1.31.0",
            event_bus                  : "3.1.1",

kotlin_stdlib              : "1.4.10",
            kotlin_v                   : "1.4.10",

live_event_bus             : "1.8.0",
            agentweb                   : "4.1.9",
            jzvd                       : "7.5.0",

material_v                 : "1.1.0",

autosize                   : "1.2.1",
            hotfix                     : "3.3.0",
            htextview                  : "0.1.6",
            XXPermissions              : "13.5",
            XUpdate                    : "2.1.3",

okhttputils                : "2.6.2",
            alipay                     : "15.8.11",
    ]

dependencies = [

androidx_appcompat         : "androidx.appcompat:appcompat:${version.androidx_appcompat}",
            androidx_constraintlayout  : "androidx.constraintlayout:constraintlayout:${version.androidx_constraintlayout}",
            junit                      : "junit:junit:${version.junit}",
            androidx_junit             : "androidx.test.ext:junit:${version.androidx_junit}",
            androidx_espresso_core     : "androidx.test.espresso:espresso-core:${version.androidx_espresso_core}",
            //分包
            multidex                   : "com.android.support:multidex:${version.multidex}",
            //net
            rxandroid                  : "io.reactivex.rxjava2:rxandroid:${version.rxandroid}",
            rxjava                     : "io.reactivex.rxjava2:rxjava:${version.rxandroid}",
            retrofit                   : "com.squareup.retrofit2:retrofit:${version.retrofit}",
            okhttp                     : "com.squareup.okhttp3:okhttp:${version.okhttp}",
            retrofit2_converter        : "com.squareup.retrofit2:converter-gson:${version.retrofit2_converter}",
            retrofit2_converter_scalars: "com.squareup.retrofit2:converter-scalars:${version.retrofit2_converter_scalars}",
            retrofit2_adapter_rxjava2  : "com.squareup.retrofit2:adapter-rxjava2:${version.retrofit2_adapter_rxjava2}",
            logging_interceptor        : "com.squareup.okhttp3:logging-interceptor:${version.logging_interceptor}",
//            //黄油刀
//            butterknife                : "com.jakewharton:butterknife:${version.butterknife}",
//            butterknife_compiler       : "com.jakewharton:butterknife:${version.butterknife_compiler}",

rxlifecycle                : "com.trello.rxlifecycle3:rxlifecycle:${version.rxlifecycle}",
            rxlifecycle_android        : "com.trello.rxlifecycle3:rxlifecycle-android:${version.rxlifecycle_android}",
            rxlifecycle_components     : "com.trello.rxlifecycle3:rxlifecycle-components:${version.rxlifecycle_components}",
            //处理状态栏
            immersionbar               : "com.gyf.immersionbar:immersionbar:${version.immersionbar}",
            immersionbar_components    : "com.gyf.immersionbar:immersionbar-components:${version.immersionbar_components}",
            immersionbar_ktx           : "com.gyf.immersionbar:immersionbar-ktx:${version.immersionbar_ktx}",
            //Arouter
            arouter_api                : "com.alibaba:arouter-api:${version.arouter_api}",
            arouter_compiler           : "com.alibaba:arouter-compiler:${version.arouter_compiler}",
            flycoTabLayout_Lib         : "com.flyco.tablayout:FlycoTabLayout_Lib:${version.flycoTabLayout_Lib}@aar",

SmartRefreshLayout         : "com.scwang.smartrefresh:SmartRefreshLayout:${version.SmartRefreshLayout}",  //1.0.5及以前版本的老用户升级需谨慎，API改动过大
            SmartRefreshHeader         : "com.scwang.smartrefresh:SmartRefreshHeader:${version.SmartRefreshHeader}",  //没有使用特殊Header，可以不加这行

MVCHelper_Library          : "com.shizhefei:MVCHelper-Library:${version.MVCHelper_Library}",
            recyclerview               : "androidx.recyclerview:recyclerview:${version.recyclerview}",
            MVCHelper_CoolRefresh      : "com.shizhefei:MVCHelper-CoolRefresh:${version.MVCHelper_CoolRefresh}",
            CoolRefreshView            : "com.shizhefei:CoolRefreshView:${version.CoolRefreshView}",
            support_v4                 : "com.android.support:support-v4:${version.support_v4}",
            core_ktx                   : "androidx.core:core-ktx:${version.core_ktx}",
            jpush                      : "cn.jiguang.sdk:jpush:${version.jpush}",
            jcore                      : "cn.jiguang.sdk:jcore:${version.jcore}",
            kotlinx_coroutines_android : "org.jetbrains.kotlinx:kotlinx-coroutines-android:${version.kotlinx_coroutines_android}",
            lifecycle_extensions       : "androidx.lifecycle:lifecycle-extensions:${version.lifecycle_extensions}",
            lifecycle_viewmodel_ktx    : "androidx.lifecycle:lifecycle-viewmodel-ktx:${version.lifecycle_viewmodel_ktx}",
            utilcodex                  : "com.blankj:utilcodex:${version.utilcodex}",
            event_bus                  : "org.greenrobot:eventbus:${version.event_bus}",
            live_event_bus             : "io.github.jeremyliao:live-event-bus-x:${version.live_event_bus}",
            agentweb                   : "com.github.Justson.AgentWeb:agentweb-core:v${version.agentweb}-androidx",
            jzvd                       : "cn.jzvd:jiaozivideoplayer:${version.jzvd}",
            kotlin_stdlib              : "org.jetbrains.kotlin:kotlin-stdlib:${version.kotlin_stdlib}",
            material_v                 : "com.google.android.material:material:${version.material_v}",
            autosize                   : "me.jessyan:autosize:${version.autosize}",
            hotfix                     : "com.aliyun.ams:alicloud-android-hotfix:${version.hotfix}",
            htextview_base             : "com.hanks:htextview-base:${version.htextview}",
            htextview_fade             : "com.hanks:htextview-fade:${version.htextview}",
            htextview_line             : "com.hanks:htextview-line:${version.htextview}",
            htextview_rainbow          : "com.hanks:htextview-rainbow:${version.htextview}",
            htextview_typer            : "com.hanks:htextview-typer:${version.htextview}",
            htextview_scale            : "com.hanks:htextview-scale:${version.htextview}",
            htextview_evaporate        : "com.hanks:htextview-evaporate:${version.htextview}",
            htextview_fall             : "com.hanks:htextview-fall:${version.htextview}",
            XXPermissions              : "com.github.getActivity:XXPermissions:${version.XXPermissions}",
            XUpdate                    : "com.github.xuexiangjys:XUpdate:${version.XUpdate}",
            okhttputils                : "com.zhy:okhttputils:${version.okhttputils}", //升级框架要用的，要是跟项目里的冲突就自己做下载
            alipay                     : "com.alipay.sdk:alipaysdk-android:${version.alipay}" //升级框架要用的，要是跟项目里的冲突就自己做下载
    ]
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
ext {
    //登录
    is_Login = false
    //是否需要main module模块
    is_Main = false
    is_Video = false
    is_Square = false

    android = [
            //APP名称
            APP_NAME         : "startApp",
            //app唯一标识符
            application_id   : "com.qiao.startapp",
            //编译SDK版本
            compileSdkVersion: 29,
            //编译SDK版本号
            buildToolsVersion: "30.0.2",
            minSdkVersion    : 19,
            //最大适配SDK
            targetSdkVersion : 29,
            //当前版本号
            versionCode      : 100,
            //当前版本名称
            versionName      : "1.0.0",
    ]
    key = [
  			storeFile    : "../xx.jks",//签名文件位置
            storePassword: "xx",//签名文件密码
            keyAlias     : "xx",//签名文件别名
            keyPassword  : "xx",//签名文件别名密码

            JPUSH_APPKEY : "4917cc32596c65b5a8fb3452",
            JPUSH_CHANNEL: "developer-default"

    ]
    //依赖
    version = [
            androidx_appcompat         : "1.1.0",
            junit                      : "4.12",
            androidx_junit             : "1.1.1",
            androidx_espresso_core     : "3.2.0",
            androidx_constraintlayout  : "1.1.3",

            rxandroid                  : "2.1.1",
            rxjava                     : "2.2.15",
            retrofit                   : "2.8.1",
            okhttp                     : "3.1.2",
            retrofit2_converter        : "2.8.1",
            retrofit2_converter_scalars: "2.8.1",
            retrofit2_adapter_rxjava2  : "2.8.1",
            logging_interceptor        : "3.14.7",
            butterknife                : "10.2.1",
            butterknife_compiler       : "10.2.1",

            rxlifecycle                : "3.1.0",
            rxlifecycle_android        : "3.1.0",
            rxlifecycle_components     : "3.1.0",

            immersionbar               : "3.0.0",
            immersionbar_components    : "3.0.0",
            immersionbar_ktx           : "3.0.0",
            multidex                   : "1.0.3",
            arouter_api                : "1.5.1",
            arouter_compiler           : "1.5.1",
            flycoTabLayout_Lib         : "2.1.2",

            SmartRefreshLayout         : "1.1.0",
            SmartRefreshHeader         : "1.1.0",

            SmartRefreshLayout         : "1.1.0",
            recyclerview               : "1.1.0",


            MVCHelper_Library          : "1.4.0",
            MVCHelper_CoolRefresh      : "1.4.0",
            CoolRefreshView            : "1.0.4",
            support_v4                 : "23.4.0",
            core_ktx                   : "1.3.2",
            jpush                      : "3.8.5",
            jcore                      : "2.5.5",
            kotlinx_coroutines_android : "1.3.9",
            lifecycle_extensions       : "2.2.0",
            lifecycle_viewmodel_ktx    : "2.2.0",
            utilcodex                  : "1.31.0",
            event_bus                  : "3.1.1",

            kotlin_stdlib              : "1.4.10",
            kotlin_v                   : "1.4.10",

            live_event_bus             : "1.8.0",
            agentweb                   : "4.1.9",
            jzvd                       : "7.5.0",

            material_v                 : "1.1.0",

            autosize                   : "1.2.1",
            hotfix                     : "3.3.0",
            htextview                  : "0.1.6",
            XXPermissions              : "13.5",
            XUpdate                    : "2.1.3",

            okhttputils                : "2.6.2",
            alipay                     : "15.8.11",
    ]

    dependencies = [

            androidx_appcompat         : "androidx.appcompat:appcompat:${version.androidx_appcompat}",
            androidx_constraintlayout  : "androidx.constraintlayout:constraintlayout:${version.androidx_constraintlayout}",
            junit                      : "junit:junit:${version.junit}",
            androidx_junit             : "androidx.test.ext:junit:${version.androidx_junit}",
            androidx_espresso_core     : "androidx.test.espresso:espresso-core:${version.androidx_espresso_core}",
            //分包
            multidex                   : "com.android.support:multidex:${version.multidex}",
            //net
            rxandroid                  : "io.reactivex.rxjava2:rxandroid:${version.rxandroid}",
            rxjava                     : "io.reactivex.rxjava2:rxjava:${version.rxandroid}",
            retrofit                   : "com.squareup.retrofit2:retrofit:${version.retrofit}",
            okhttp                     : "com.squareup.okhttp3:okhttp:${version.okhttp}",
            retrofit2_converter        : "com.squareup.retrofit2:converter-gson:${version.retrofit2_converter}",
            retrofit2_converter_scalars: "com.squareup.retrofit2:converter-scalars:${version.retrofit2_converter_scalars}",
            retrofit2_adapter_rxjava2  : "com.squareup.retrofit2:adapter-rxjava2:${version.retrofit2_adapter_rxjava2}",
            logging_interceptor        : "com.squareup.okhttp3:logging-interceptor:${version.logging_interceptor}",
//            //黄油刀
//            butterknife                : "com.jakewharton:butterknife:${version.butterknife}",
//            butterknife_compiler       : "com.jakewharton:butterknife:${version.butterknife_compiler}",

            rxlifecycle                : "com.trello.rxlifecycle3:rxlifecycle:${version.rxlifecycle}",
            rxlifecycle_android        : "com.trello.rxlifecycle3:rxlifecycle-android:${version.rxlifecycle_android}",
            rxlifecycle_components     : "com.trello.rxlifecycle3:rxlifecycle-components:${version.rxlifecycle_components}",
            //处理状态栏
            immersionbar               : "com.gyf.immersionbar:immersionbar:${version.immersionbar}",
            immersionbar_components    : "com.gyf.immersionbar:immersionbar-components:${version.immersionbar_components}",
            immersionbar_ktx           : "com.gyf.immersionbar:immersionbar-ktx:${version.immersionbar_ktx}",
            //Arouter
            arouter_api                : "com.alibaba:arouter-api:${version.arouter_api}",
            arouter_compiler           : "com.alibaba:arouter-compiler:${version.arouter_compiler}",
            flycoTabLayout_Lib         : "com.flyco.tablayout:FlycoTabLayout_Lib:${version.flycoTabLayout_Lib}@aar",

            SmartRefreshLayout         : "com.scwang.smartrefresh:SmartRefreshLayout:${version.SmartRefreshLayout}",  //1.0.5及以前版本的老用户升级需谨慎，API改动过大
            SmartRefreshHeader         : "com.scwang.smartrefresh:SmartRefreshHeader:${version.SmartRefreshHeader}",  //没有使用特殊Header，可以不加这行

            MVCHelper_Library          : "com.shizhefei:MVCHelper-Library:${version.MVCHelper_Library}",
            recyclerview               : "androidx.recyclerview:recyclerview:${version.recyclerview}",
            MVCHelper_CoolRefresh      : "com.shizhefei:MVCHelper-CoolRefresh:${version.MVCHelper_CoolRefresh}",
            CoolRefreshView            : "com.shizhefei:CoolRefreshView:${version.CoolRefreshView}",
            support_v4                 : "com.android.support:support-v4:${version.support_v4}",
            core_ktx                   : "androidx.core:core-ktx:${version.core_ktx}",
            jpush                      : "cn.jiguang.sdk:jpush:${version.jpush}",
            jcore                      : "cn.jiguang.sdk:jcore:${version.jcore}",
            kotlinx_coroutines_android : "org.jetbrains.kotlinx:kotlinx-coroutines-android:${version.kotlinx_coroutines_android}",
            lifecycle_extensions       : "androidx.lifecycle:lifecycle-extensions:${version.lifecycle_extensions}",
            lifecycle_viewmodel_ktx    : "androidx.lifecycle:lifecycle-viewmodel-ktx:${version.lifecycle_viewmodel_ktx}",
            utilcodex                  : "com.blankj:utilcodex:${version.utilcodex}",
            event_bus                  : "org.greenrobot:eventbus:${version.event_bus}",
            live_event_bus             : "io.github.jeremyliao:live-event-bus-x:${version.live_event_bus}",
            agentweb                   : "com.github.Justson.AgentWeb:agentweb-core:v${version.agentweb}-androidx",
            jzvd                       : "cn.jzvd:jiaozivideoplayer:${version.jzvd}",
            kotlin_stdlib              : "org.jetbrains.kotlin:kotlin-stdlib:${version.kotlin_stdlib}",
            material_v                 : "com.google.android.material:material:${version.material_v}",
            autosize                   : "me.jessyan:autosize:${version.autosize}",
            hotfix                     : "com.aliyun.ams:alicloud-android-hotfix:${version.hotfix}",
            htextview_base             : "com.hanks:htextview-base:${version.htextview}",
            htextview_fade             : "com.hanks:htextview-fade:${version.htextview}",
            htextview_line             : "com.hanks:htextview-line:${version.htextview}",
            htextview_rainbow          : "com.hanks:htextview-rainbow:${version.htextview}",
            htextview_typer            : "com.hanks:htextview-typer:${version.htextview}",
            htextview_scale            : "com.hanks:htextview-scale:${version.htextview}",
            htextview_evaporate        : "com.hanks:htextview-evaporate:${version.htextview}",
            htextview_fall             : "com.hanks:htextview-fall:${version.htextview}",
            XXPermissions              : "com.github.getActivity:XXPermissions:${version.XXPermissions}",
            XUpdate                    : "com.github.xuexiangjys:XUpdate:${version.XUpdate}",
            okhttputils                : "com.zhy:okhttputils:${version.okhttputils}", //升级框架要用的，要是跟项目里的冲突就自己做下载
            alipay                     : "com.alipay.sdk:alipaysdk-android:${version.alipay}" //升级框架要用的，要是跟项目里的冲突就自己做下载
    ]
}
