包容网关 Inclusive Gateway
什么是包容网关？
包容网关（Inclusive Gateway）就是并行网关（Parallel Gateway）和排他网关（Exclusive Gateway）的组合。可以在出口顺序流上定义条件，包容网关会计算它们。然而主要的区别是，包容网关与并行网关一样，可以选择多于一条（出口）顺序流
包容网关、并行网关和排他网关的异同：
同：
1．都有出口顺序流和入口顺序流。
2．至少有一个分支
异：
1．排他网关只有一条分支被执行，如果有多条符合条件的分支，流程会默认走第一条。并行网关至少有一条分支被执行，而且所有的分支都会被执行。包容网关有多条或者一条分支会被执行。
2．包容网关包括了并行网关和排他网关的所有功能。
使用场合：
不确定分支的情形下面。

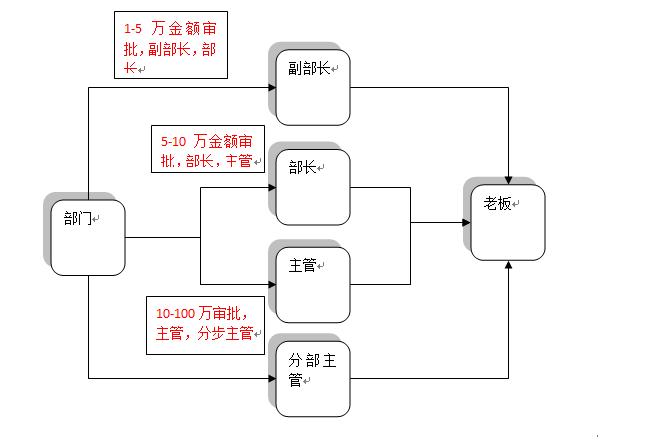

例如：
审批部门领导根据不同的条件确定。
审批的会签根据不同的条件确定。
包容网关两个重要的特性
分支（fork）：所有出口顺序流都会被计算，对于计算为true的分支都会被执行。
聚合（join）：所有到达包容网关的并行执行，都会在网关处等待，直到每一条具有流程标志的入口顺序流，都有一个执行到达。这是与并行网关的重要区别。换句话说，包容网关只会等待将会被执行的入口顺序流。在合并后，流程穿过合并并行网关继续
注意：
1．包容网关基于出口顺序流和入口顺序流。
图标：
包容网关，用内部带有’圆圈’图标的网关（菱形）表示。
定义：
1 <inclusiveGateway id="myInclusiveGateway" />
案例：
现在一家公司的业务不断扩展，单笔业务涉及到的资金也来越多，合同签订也是这个公司比较担心的事情，生怕合同签订的中间环节由于责任不明确或者层层疏忽而出现漏洞。所以该公司花高价钱买了一套合同呈批系统。使得合同的呈批流程化。需求如下
先是由合同部起草合同
当金额大于0的时候小于1000万，律师1和律师2先仔细初审，律师顾问复核。
当金额大于5000万的时候，律师一和律师二、法律顾问。法律代表团一起审核。
当金额是1000万到5000万的时候，法律代表团决定。

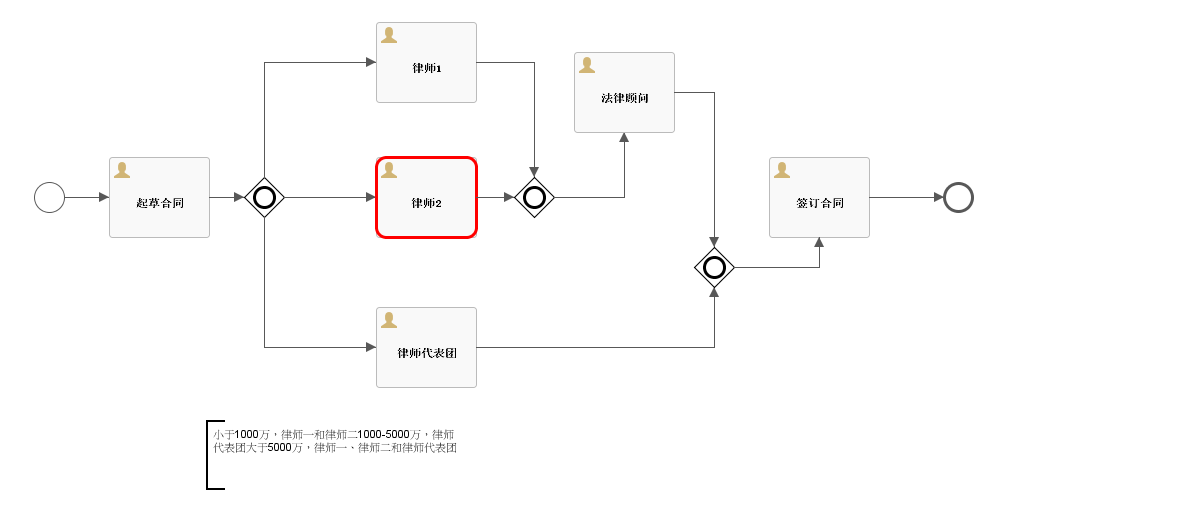

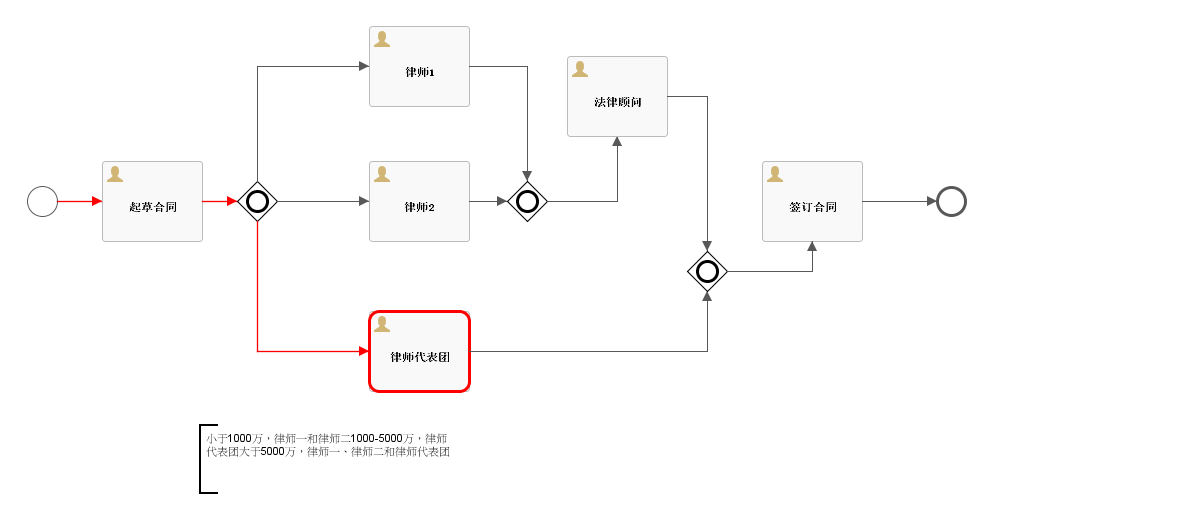

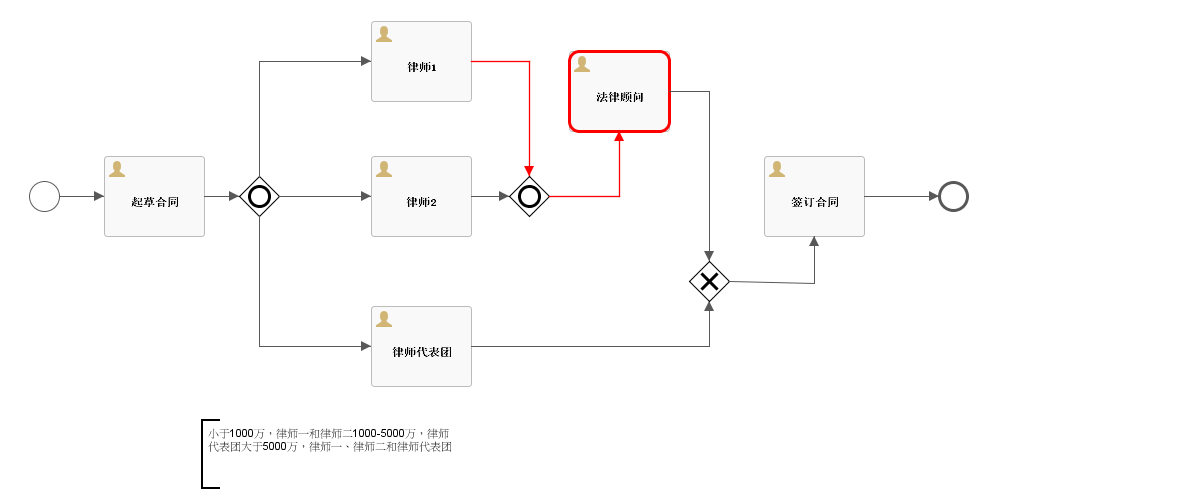

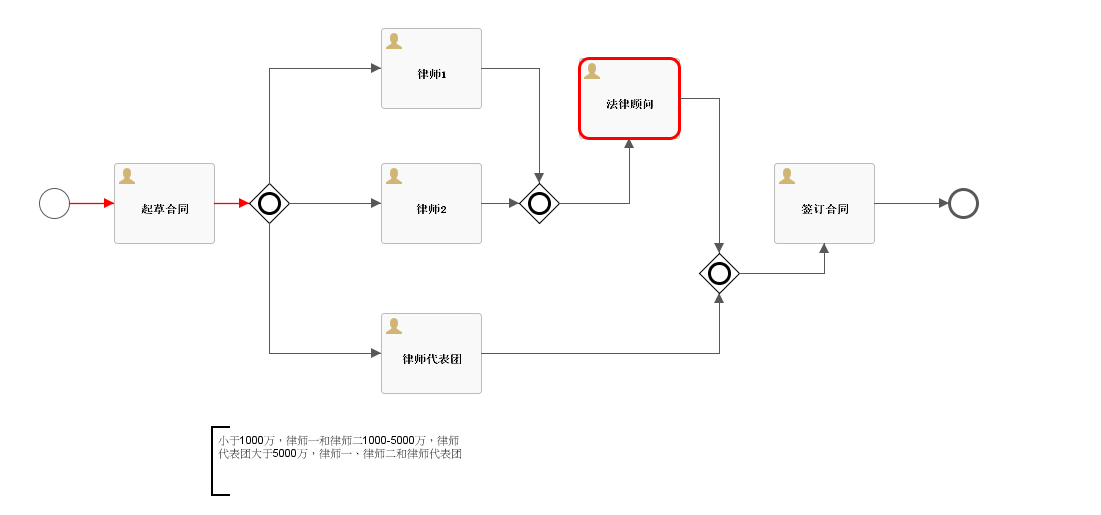

流程设计：
三个分支条件：
1.${momey<1000||money>5000}
2.${momey<1000||money>5000}
3. ${momey>1000}
流程代码：
1 <?xml version='1.0' encoding='UTF-8'?>
2
3 <definitions xmlns="http://www.omg.org/spec/BPMN/20100524/MODEL" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:activiti="http://activiti.org/bpmn" xmlns:bpmndi="http://www.omg.org/spec/BPMN/20100524/DI" xmlns:omgdc="http://www.omg.org/spec/DD/20100524/DC" xmlns:omgdi="http://www.omg.org/spec/DD/20100524/DI" typeLanguage="http://www.w3.org/2001/XMLSchema" expressionLanguage="http://www.w3.org/1999/XPath" targetNamespace="http://www.activiti.org/processdef">
4
5 <process id="process" isExecutable="true">
6
7 <startEvent id="sid-33E1F524-C016-49C3-97D5-97AC90206D75" />
8
9 <userTask id="sid-AECF19D2-3743-43B2-9F6D-8F08BFE4108A" name="起草合同" activiti:assignee="admin" />
10
11 <sequenceFlow id="sid-A63E67C5-E7E3-4A9C-9A35-7B98211DDDB9" sourceRef="sid-33E1F524-C016-49C3-97D5-97AC90206D75" targetRef="sid-AECF19D2-3743-43B2-9F6D-8F08BFE4108A" />
12
13 <inclusiveGateway id="sid-C0E2C8D9-CE23-4E4C-A8CE-7B488B4075C5" />
14
15 <sequenceFlow id="sid-95958564-1A4F-4518-ABF8-137A3E43D483" sourceRef="sid-AECF19D2-3743-43B2-9F6D-8F08BFE4108A" targetRef="sid-C0E2C8D9-CE23-4E4C-A8CE-7B488B4075C5" />
16
17 <userTask id="sid-3116DBE9-BD59-417A-9DCE-09CDAE6020B1" name="律师1" activiti:assignee="admin" />
18
19 <userTask id="sid-7CA796A7-F6D4-4204-938D-89EAB826196F" name="律师2" activiti:assignee="admin" />
20
21 <inclusiveGateway id="sid-E3E3A0C8-77DC-4898-BC24-D790C4688FD5" />
22
23 <userTask id="sid-E2A0931F-56FD-4F2B-9876-570A93D617E9" name="法律顾问" activiti:assignee="admin" />
24
25 <sequenceFlow id="sid-2FFF2523-0CDE-4C50-906C-97E82371BA89" sourceRef="sid-E3E3A0C8-77DC-4898-BC24-D790C4688FD5" targetRef="sid-E2A0931F-56FD-4F2B-9876-570A93D617E9" />
26
27 <userTask id="sid-64B3C09A-2446-431F-962A-43022FCDA61B" name="律师代表团" activiti:assignee="admin" />
28
29 <userTask id="sid-6908E784-3D2A-4FCB-9947-AD1C999CC444" name="签订合同" activiti:assignee="admin" />
30
31 <inclusiveGateway id="sid-40BDCB3D-EA22-4FC0-985D-8E926FD43296" />
32
33 <sequenceFlow id="sid-8D279A66-35FF-41D5-81C5-45D6CB4456D9" sourceRef="sid-E2A0931F-56FD-4F2B-9876-570A93D617E9" targetRef="sid-40BDCB3D-EA22-4FC0-985D-8E926FD43296" />
34
35 <sequenceFlow id="sid-CFE29827-C014-4890-9135-9E5C6E4B9ACA" sourceRef="sid-40BDCB3D-EA22-4FC0-985D-8E926FD43296" targetRef="sid-6908E784-3D2A-4FCB-9947-AD1C999CC444" />
36
37 <endEvent id="sid-FB66A49B-68FC-429C-9492-A02642F1FAEB" />
38
39 <sequenceFlow id="sid-52E3DEB1-C564-4A69-8C0B-F6AC43AB7BAB" sourceRef="sid-6908E784-3D2A-4FCB-9947-AD1C999CC444" targetRef="sid-FB66A49B-68FC-429C-9492-A02642F1FAEB" />
40
41 <sequenceFlow id="sid-3226BACB-CB22-437F-A34D-4FA927921D06" sourceRef="sid-3116DBE9-BD59-417A-9DCE-09CDAE6020B1" targetRef="sid-E3E3A0C8-77DC-4898-BC24-D790C4688FD5" />
42
43 <sequenceFlow id="sid-CA6AE2C3-9E4B-41A6-A79D-67E932D4AF52" sourceRef="sid-7CA796A7-F6D4-4204-938D-89EAB826196F" targetRef="sid-E3E3A0C8-77DC-4898-BC24-D790C4688FD5" />
44
45 <sequenceFlow id="sid-E7B2EFDF-C859-48D5-A091-9FD84ED3BB0E" sourceRef="sid-64B3C09A-2446-431F-962A-43022FCDA61B" targetRef="sid-40BDCB3D-EA22-4FC0-985D-8E926FD43296" />
46
47 <sequenceFlow id="sid-29AC8F78-9D48-41DE-AE15-F4BED0250695" name="小于1000万，大于5000万" sourceRef="sid-C0E2C8D9-CE23-4E4C-A8CE-7B488B4075C5" targetRef="sid-3116DBE9-BD59-417A-9DCE-09CDAE6020B1">
48
49 <conditionExpression xsi:type="tFormalExpression"><![CDATA[${money<1000||money>5000}]]></conditionExpression>
50
51 </sequenceFlow>
52
53 <sequenceFlow id="sid-00D368BC-9FDF-49C3-AE22-D7D376F15BE6" name="小于1000万，大于5000万" sourceRef="sid-C0E2C8D9-CE23-4E4C-A8CE-7B488B4075C5" targetRef="sid-7CA796A7-F6D4-4204-938D-89EAB826196F">
54
55 <conditionExpression xsi:type="tFormalExpression"><![CDATA[${money<1000||money>5000}]]></conditionExpression>
56
57 </sequenceFlow>
58
59 <sequenceFlow id="sid-09BD3F0B-960D-475F-B0FC-70942F0F0CCE" name="大于1000万" sourceRef="sid-C0E2C8D9-CE23-4E4C-A8CE-7B488B4075C5" targetRef="sid-64B3C09A-2446-431F-962A-43022FCDA61B">
60
61 <conditionExpression xsi:type="tFormalExpression"><![CDATA[${money>1000}]]></conditionExpression>
62
63 </sequenceFlow>
64
65 <textAnnotation id="sid-BA9B328D-7723-46D7-9DAF-28D49F06D175">
66
67 <text>小于1000万，律师一和律师二
68
69 1000-5000万，律师代表团
70
71 大于5000万，律师一、律师二和律师代表团</text>
72
73 </textAnnotation>
74
75 </process>
76
77 <bpmndi:BPMNDiagram id="BPMNDiagram_process">
78
79 <bpmndi:BPMNPlane bpmnElement="process" id="BPMNPlane_process">
80
81 <bpmndi:BPMNShape bpmnElement="sid-33E1F524-C016-49C3-97D5-97AC90206D75" id="BPMNShape_sid-33E1F524-C016-49C3-97D5-97AC90206D75">
82
83 <omgdc:Bounds height="30.0" width="30.0" x="45.0" y="190.0" />
84
85 </bpmndi:BPMNShape>
86
87 <bpmndi:BPMNShape bpmnElement="sid-AECF19D2-3743-43B2-9F6D-8F08BFE4108A" id="BPMNShape_sid-AECF19D2-3743-43B2-9F6D-8F08BFE4108A">
88
89 <omgdc:Bounds height="80.0" width="100.0" x="120.0" y="165.0" />
90
91 </bpmndi:BPMNShape>
92
93 <bpmndi:BPMNShape bpmnElement="sid-C0E2C8D9-CE23-4E4C-A8CE-7B488B4075C5" id="BPMNShape_sid-C0E2C8D9-CE23-4E4C-A8CE-7B488B4075C5">
94
95 <omgdc:Bounds height="40.0" width="40.0" x="255.0" y="185.0" />
96
97 </bpmndi:BPMNShape>
98
99 <bpmndi:BPMNShape bpmnElement="sid-3116DBE9-BD59-417A-9DCE-09CDAE6020B1" id="BPMNShape_sid-3116DBE9-BD59-417A-9DCE-09CDAE6020B1">
100
101 <omgdc:Bounds height="80.0" width="100.0" x="387.0" y="30.0" />
102
103 </bpmndi:BPMNShape>
104
105 <bpmndi:BPMNShape bpmnElement="sid-7CA796A7-F6D4-4204-938D-89EAB826196F" id="BPMNShape_sid-7CA796A7-F6D4-4204-938D-89EAB826196F">
106
107 <omgdc:Bounds height="80.0" width="100.0" x="387.0" y="165.0" />
108
109 </bpmndi:BPMNShape>
110
111 <bpmndi:BPMNShape bpmnElement="sid-E3E3A0C8-77DC-4898-BC24-D790C4688FD5" id="BPMNShape_sid-E3E3A0C8-77DC-4898-BC24-D790C4688FD5">
112
113 <omgdc:Bounds height="40.0" width="40.0" x="525.0" y="185.0" />
114
115 </bpmndi:BPMNShape>
116
117 <bpmndi:BPMNShape bpmnElement="sid-E2A0931F-56FD-4F2B-9876-570A93D617E9" id="BPMNShape_sid-E2A0931F-56FD-4F2B-9876-570A93D617E9">
118
119 <omgdc:Bounds height="80.0" width="100.0" x="585.0" y="60.0" />
120
121 </bpmndi:BPMNShape>
122
123 <bpmndi:BPMNShape bpmnElement="sid-64B3C09A-2446-431F-962A-43022FCDA61B" id="BPMNShape_sid-64B3C09A-2446-431F-962A-43022FCDA61B">
124
125 <omgdc:Bounds height="80.0" width="100.0" x="387.0" y="315.0" />
126
127 </bpmndi:BPMNShape>
128
129 <bpmndi:BPMNShape bpmnElement="sid-6908E784-3D2A-4FCB-9947-AD1C999CC444" id="BPMNShape_sid-6908E784-3D2A-4FCB-9947-AD1C999CC444">
130
131 <omgdc:Bounds height="80.0" width="100.0" x="780.0" y="165.0" />
132
133 </bpmndi:BPMNShape>
134
135 <bpmndi:BPMNShape bpmnElement="sid-40BDCB3D-EA22-4FC0-985D-8E926FD43296" id="BPMNShape_sid-40BDCB3D-EA22-4FC0-985D-8E926FD43296">
136
137 <omgdc:Bounds height="40.0" width="40.0" x="705.0" y="255.0" />
138
139 </bpmndi:BPMNShape>
140
141 <bpmndi:BPMNShape bpmnElement="sid-FB66A49B-68FC-429C-9492-A02642F1FAEB" id="BPMNShape_sid-FB66A49B-68FC-429C-9492-A02642F1FAEB">
142
143 <omgdc:Bounds height="28.0" width="28.0" x="955.0" y="191.0" />
144
145 </bpmndi:BPMNShape>
146
147 <bpmndi:BPMNShape bpmnElement="sid-BA9B328D-7723-46D7-9DAF-28D49F06D175" id="BPMNShape_sid-BA9B328D-7723-46D7-9DAF-28D49F06D175">
148
149 <omgdc:Bounds height="69.0" width="262.0" x="217.0" y="428.0" />
150
151 </bpmndi:BPMNShape>
152
153 <bpmndi:BPMNEdge bpmnElement="sid-3226BACB-CB22-437F-A34D-4FA927921D06" id="BPMNEdge_sid-3226BACB-CB22-437F-A34D-4FA927921D06">
154
155 <omgdi:waypoint x="487.0" y="70.0" />
156
157 <omgdi:waypoint x="545.0" y="70.0" />
158
159 <omgdi:waypoint x="545.0" y="185.0" />
160
161 </bpmndi:BPMNEdge>
162
163 <bpmndi:BPMNEdge bpmnElement="sid-09BD3F0B-960D-475F-B0FC-70942F0F0CCE" id="BPMNEdge_sid-09BD3F0B-960D-475F-B0FC-70942F0F0CCE">
164
165 <omgdi:waypoint x="275.5" y="224.5" />
166
167 <omgdi:waypoint x="275.5" y="355.0" />
168
169 <omgdi:waypoint x="387.0" y="355.0" />
170
171 </bpmndi:BPMNEdge>
172
173 <bpmndi:BPMNEdge bpmnElement="sid-52E3DEB1-C564-4A69-8C0B-F6AC43AB7BAB" id="BPMNEdge_sid-52E3DEB1-C564-4A69-8C0B-F6AC43AB7BAB">
174
175 <omgdi:waypoint x="880.0" y="205.0" />
176
177 <omgdi:waypoint x="955.0" y="205.0" />
178
179 </bpmndi:BPMNEdge>
180
181 <bpmndi:BPMNEdge bpmnElement="sid-2FFF2523-0CDE-4C50-906C-97E82371BA89" id="BPMNEdge_sid-2FFF2523-0CDE-4C50-906C-97E82371BA89">
182
183 <omgdi:waypoint x="564.5" y="205.5" />
184
185 <omgdi:waypoint x="635.0" y="205.5" />
186
187 <omgdi:waypoint x="635.0" y="140.0" />
188
189 </bpmndi:BPMNEdge>
190
191 <bpmndi:BPMNEdge bpmnElement="sid-8D279A66-35FF-41D5-81C5-45D6CB4456D9" id="BPMNEdge_sid-8D279A66-35FF-41D5-81C5-45D6CB4456D9">
192
193 <omgdi:waypoint x="685.0" y="100.0" />
194
195 <omgdi:waypoint x="725.0" y="100.0" />
196
197 <omgdi:waypoint x="725.0" y="255.0" />
198
199 </bpmndi:BPMNEdge>
200
201 <bpmndi:BPMNEdge bpmnElement="sid-CFE29827-C014-4890-9135-9E5C6E4B9ACA" id="BPMNEdge_sid-CFE29827-C014-4890-9135-9E5C6E4B9ACA">
202
203 <omgdi:waypoint x="744.5" y="275.5" />
204
205 <omgdi:waypoint x="830.0" y="275.5" />
206
207 <omgdi:waypoint x="830.0" y="245.0" />
208
209 </bpmndi:BPMNEdge>
210
211 <bpmndi:BPMNEdge bpmnElement="sid-29AC8F78-9D48-41DE-AE15-F4BED0250695" id="BPMNEdge_sid-29AC8F78-9D48-41DE-AE15-F4BED0250695">
212
213 <omgdi:waypoint x="275.5" y="185.5" />
214
215 <omgdi:waypoint x="275.5" y="70.0" />
216
217 <omgdi:waypoint x="387.0" y="70.0" />
218
219 </bpmndi:BPMNEdge>
220
221 <bpmndi:BPMNEdge bpmnElement="sid-95958564-1A4F-4518-ABF8-137A3E43D483" id="BPMNEdge_sid-95958564-1A4F-4518-ABF8-137A3E43D483">
222
223 <omgdi:waypoint x="220.0" y="205.0" />
224
225 <omgdi:waypoint x="255.0" y="205.0" />
226
227 </bpmndi:BPMNEdge>
228
229 <bpmndi:BPMNEdge bpmnElement="sid-E7B2EFDF-C859-48D5-A091-9FD84ED3BB0E" id="BPMNEdge_sid-E7B2EFDF-C859-48D5-A091-9FD84ED3BB0E">
230
231 <omgdi:waypoint x="487.0" y="355.0" />
232
233 <omgdi:waypoint x="725.0" y="355.0" />
234
235 <omgdi:waypoint x="725.0" y="295.0" />
236
237 </bpmndi:BPMNEdge>
238
239 <bpmndi:BPMNEdge bpmnElement="sid-00D368BC-9FDF-49C3-AE22-D7D376F15BE6" id="BPMNEdge_sid-00D368BC-9FDF-49C3-AE22-D7D376F15BE6">
240
241 <omgdi:waypoint x="294.55900621118013" y="205.44099378881987" />
242
243 <omgdi:waypoint x="387.0" y="205.15479876160992" />
244
245 </bpmndi:BPMNEdge>
246
247 <bpmndi:BPMNEdge bpmnElement="sid-CA6AE2C3-9E4B-41A6-A79D-67E932D4AF52" id="BPMNEdge_sid-CA6AE2C3-9E4B-41A6-A79D-67E932D4AF52">
248
249 <omgdi:waypoint x="487.0" y="205.0" />
250
251 <omgdi:waypoint x="525.0" y="205.0" />
252
253 </bpmndi:BPMNEdge>
254
255 <bpmndi:BPMNEdge bpmnElement="sid-A63E67C5-E7E3-4A9C-9A35-7B98211DDDB9" id="BPMNEdge_sid-A63E67C5-E7E3-4A9C-9A35-7B98211DDDB9">
256
257 <omgdi:waypoint x="75.0" y="205.0" />
258
259 <omgdi:waypoint x="120.0" y="205.0" />
260
261 </bpmndi:BPMNEdge>
262
263 </bpmndi:BPMNPlane>
264
265 </bpmndi:BPMNDiagram>
266
267 </definitions>

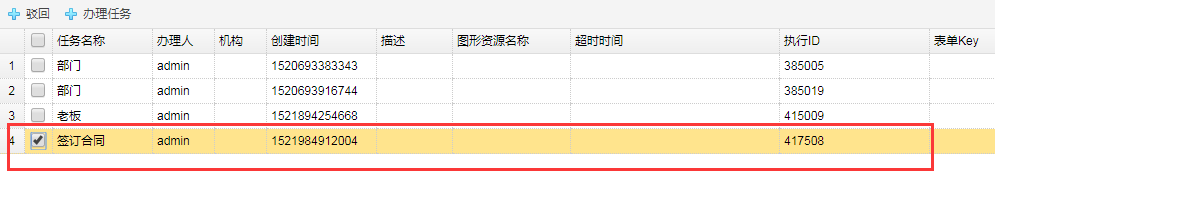

启动流程

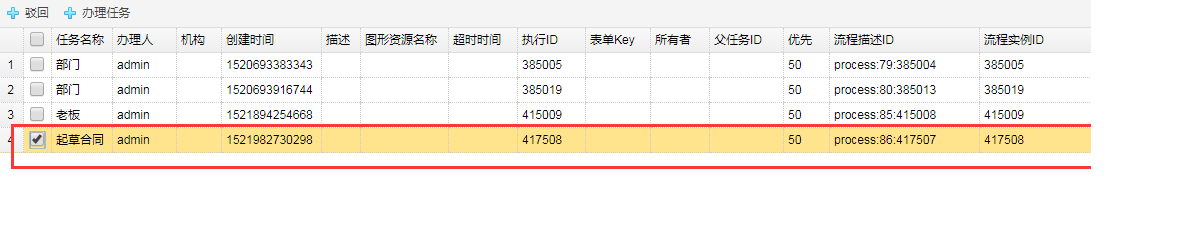

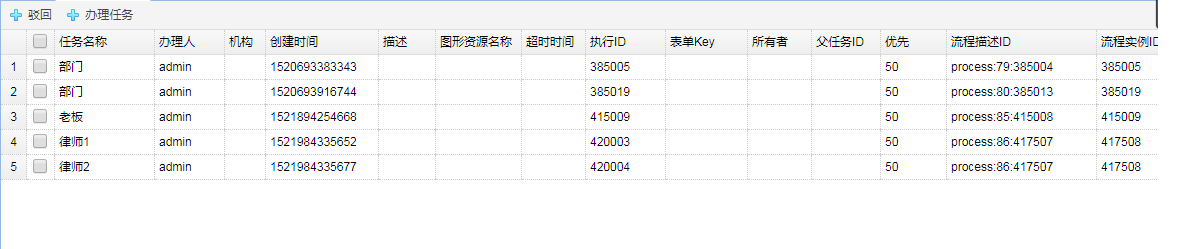

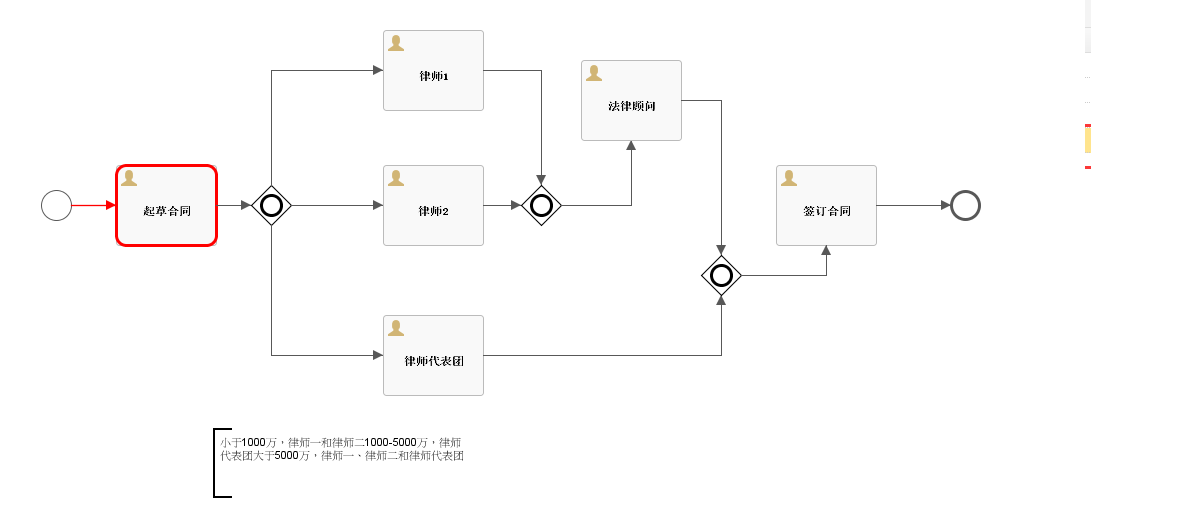

起草合同：
1 /**查询当前人的个人任务*/
2
3 @Test
4
5 public void findMyPersonalTask(){
6
7 ProcessEngine processEngine = ProcessEngines.getDefaultProcessEngine();
8
9 String assignee="admin";
10
11 List<Task> list=processEngine.getTaskService()//与正在执行的任务管理相关的Service
12
13 .createTaskQuery() //创建任务查询对象
14
15 .taskAssignee(assignee)
16
17 .list();
18
19 if(list!=null&& list.size()>0){
20
21 for(Task task:list){
22
23 System.out.println("任务的ID:"+task.getId());
24
25 System.out.println("任务的名称:"+task.getName());
26
27 System.out.println("任务的创建时间:"+task.getCreateTime());
28
29 System.out.println("任务的办理人:"+task.getAssignee());
30
31 System.out.println("流程实例ID:"+task.getProcessInstanceId());
32
33 System.out.println("执行对象ID:"+task.getExecutionId());
34
35 System.out.println("流程定义ID:"+task.getProcessDefinitionId());
36
37 System.out.println("#########################################################");
38
39 }
40
41 }
42
43
44
45 }

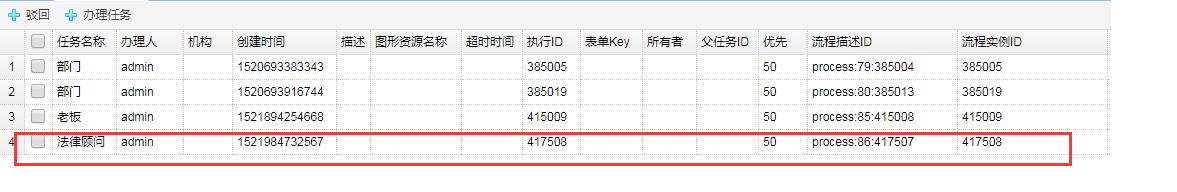

金额等于100万
1 /**完成我的任务*/
2
3 @Test
4
5 public void completeMyPersonalTask1(){
6
7 ProcessEngine processEngine = ProcessEngines.getDefaultProcessEngine();
8
9 String taskId="417511";
10
11 Map<String,Object> variables=new HashMap<String,Object>();
12
13 variables.put("money", 100);
14
15 processEngine.getTaskService()//与正在执行的案例管理相关的Service
16
17 .complete(taskId,variables);
18
19 System.out.println("完成任务，任务ID："+taskId);
20
21 }

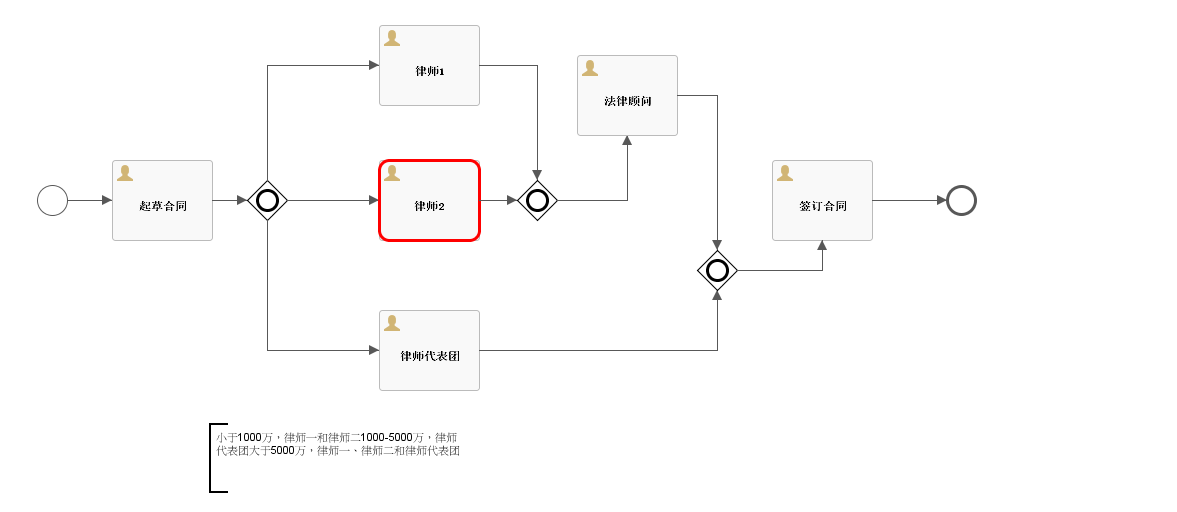

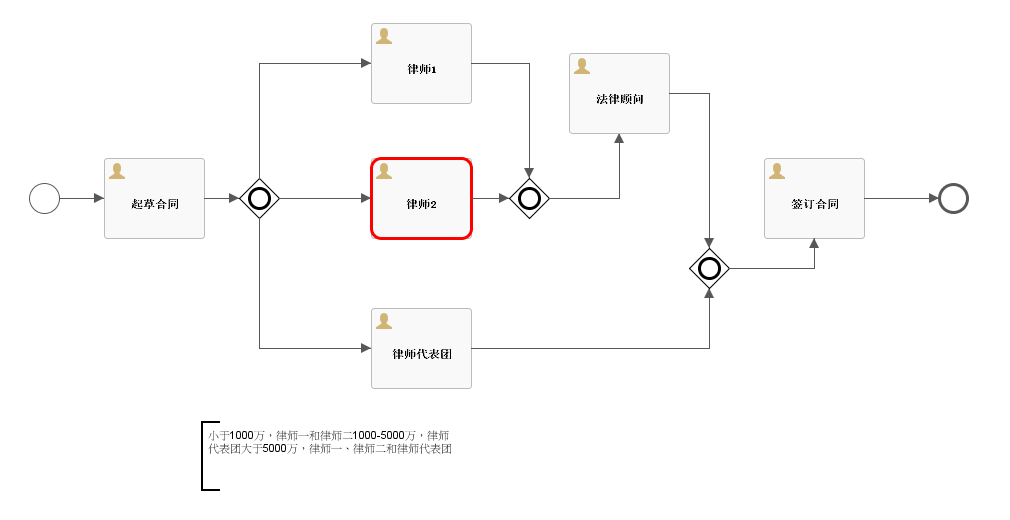

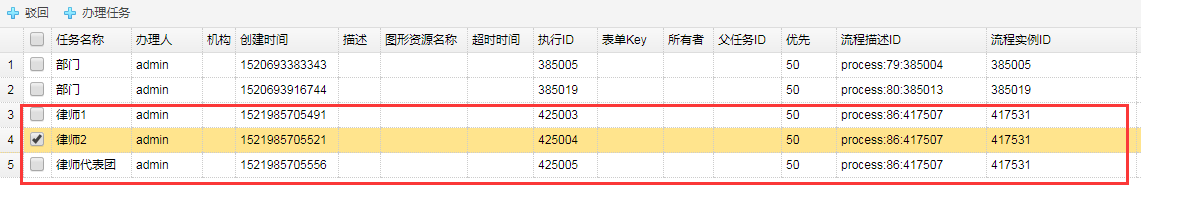

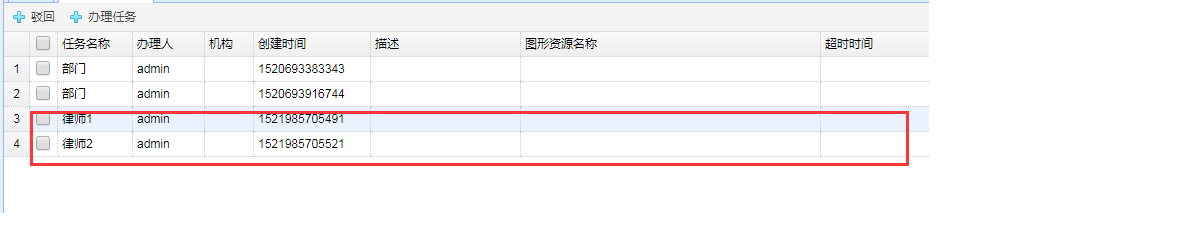

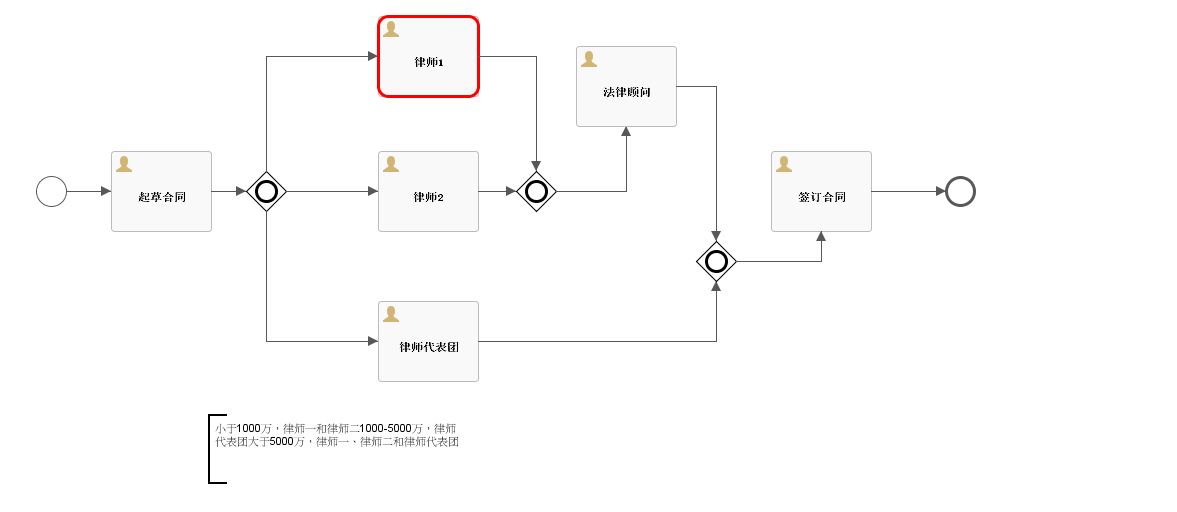

完成律师一的任务：
完成律师二的任务：

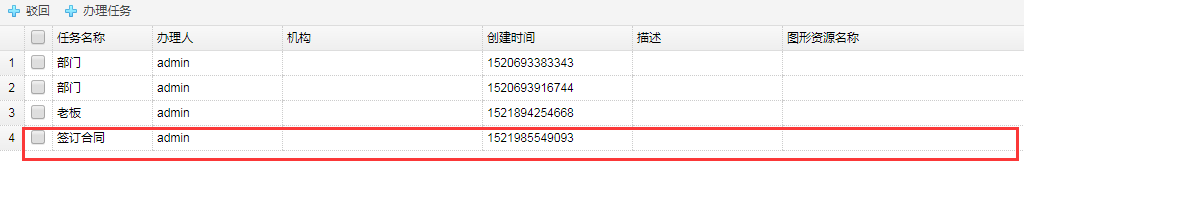

完成律师顾问的任务：
到此，任务已经完成。
金额等于1050万
1 /**完成我的任务*/
2
3 @Test
4
5 public void completeMyPersonalTask1(){
6
7 ProcessEngine processEngine = ProcessEngines.getDefaultProcessEngine();
8
9 String taskId="417523";
10
11 Map<String,Object> variables=new HashMap<String,Object>();
12
13 variables.put("money", 1050);
14
15 processEngine.getTaskService()//与正在执行的案例管理相关的Service
16
17 .complete(taskId,variables);
18
19 System.out.println("完成任务，任务ID："+taskId);
20
21 }

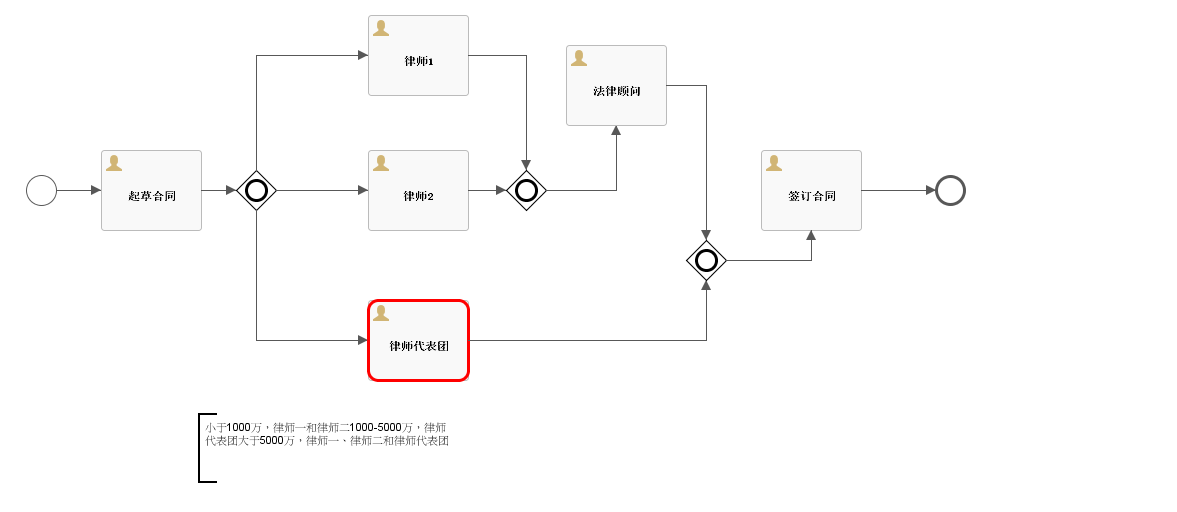

完成任务，就又到了签订合同环节。
金额等于5050万
1 /**完成我的任务*/
2
3 @Test
4
5 public void completeMyPersonalTask1(){
6
7 ProcessEngine processEngine = ProcessEngines.getDefaultProcessEngine();
8
9 String taskId="417534";
10
11 Map<String,Object> variables=new HashMap<String,Object>();
12
13 variables.put("money", 5050);
14
15 processEngine.getTaskService()//与正在执行的案例管理相关的Service
16
17 .complete(taskId,variables);
18
19 System.out.println("完成任务，任务ID："+taskId);
20
21 }
完成律师代表团任务：
完成了律师代表团的任务后，就需要等待律师和律师顾问的任务完成。
假如是包容网关和排他网关：
流程设计图：
流程代码：
1 <?xml version='1.0' encoding='UTF-8'?>
2
3 <definitions xmlns="http://www.omg.org/spec/BPMN/20100524/MODEL" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:activiti="http://activiti.org/bpmn" xmlns:bpmndi="http://www.omg.org/spec/BPMN/20100524/DI" xmlns:omgdc="http://www.omg.org/spec/DD/20100524/DC" xmlns:omgdi="http://www.omg.org/spec/DD/20100524/DI" typeLanguage="http://www.w3.org/2001/XMLSchema" expressionLanguage="http://www.w3.org/1999/XPath" targetNamespace="http://www.activiti.org/processdef">
4
5 <process id="process" isExecutable="true">
6
7 <startEvent id="sid-33E1F524-C016-49C3-97D5-97AC90206D75" />
8
9 <userTask id="sid-AECF19D2-3743-43B2-9F6D-8F08BFE4108A" name="起草合同" activiti:assignee="admin" />
10
11 <sequenceFlow id="sid-A63E67C5-E7E3-4A9C-9A35-7B98211DDDB9" sourceRef="sid-33E1F524-C016-49C3-97D5-97AC90206D75" targetRef="sid-AECF19D2-3743-43B2-9F6D-8F08BFE4108A" />
12
13 <inclusiveGateway id="sid-C0E2C8D9-CE23-4E4C-A8CE-7B488B4075C5" />
14
15 <sequenceFlow id="sid-95958564-1A4F-4518-ABF8-137A3E43D483" sourceRef="sid-AECF19D2-3743-43B2-9F6D-8F08BFE4108A" targetRef="sid-C0E2C8D9-CE23-4E4C-A8CE-7B488B4075C5" />
16
17 <userTask id="sid-3116DBE9-BD59-417A-9DCE-09CDAE6020B1" name="律师1" activiti:assignee="admin" />
18
19 <userTask id="sid-7CA796A7-F6D4-4204-938D-89EAB826196F" name="律师2" activiti:assignee="admin" />
20
21 <inclusiveGateway id="sid-E3E3A0C8-77DC-4898-BC24-D790C4688FD5" />
22
23 <userTask id="sid-E2A0931F-56FD-4F2B-9876-570A93D617E9" name="法律顾问" activiti:assignee="admin" />
24
25 <sequenceFlow id="sid-2FFF2523-0CDE-4C50-906C-97E82371BA89" sourceRef="sid-E3E3A0C8-77DC-4898-BC24-D790C4688FD5" targetRef="sid-E2A0931F-56FD-4F2B-9876-570A93D617E9" />
26
27 <userTask id="sid-64B3C09A-2446-431F-962A-43022FCDA61B" name="律师代表团" activiti:assignee="admin" />
28
29 <userTask id="sid-6908E784-3D2A-4FCB-9947-AD1C999CC444" name="签订合同" activiti:assignee="admin" />
30
31 <sequenceFlow id="sid-CFE29827-C014-4890-9135-9E5C6E4B9ACA" sourceRef="sid-43D42A97-348F-4F04-A2F9-B077510EA46B" targetRef="sid-6908E784-3D2A-4FCB-9947-AD1C999CC444" />
32
33 <endEvent id="sid-FB66A49B-68FC-429C-9492-A02642F1FAEB" />
34
35 <sequenceFlow id="sid-52E3DEB1-C564-4A69-8C0B-F6AC43AB7BAB" sourceRef="sid-6908E784-3D2A-4FCB-9947-AD1C999CC444" targetRef="sid-FB66A49B-68FC-429C-9492-A02642F1FAEB" />
36
37 <sequenceFlow id="sid-3226BACB-CB22-437F-A34D-4FA927921D06" sourceRef="sid-3116DBE9-BD59-417A-9DCE-09CDAE6020B1" targetRef="sid-E3E3A0C8-77DC-4898-BC24-D790C4688FD5" />
38
39 <sequenceFlow id="sid-CA6AE2C3-9E4B-41A6-A79D-67E932D4AF52" sourceRef="sid-7CA796A7-F6D4-4204-938D-89EAB826196F" targetRef="sid-E3E3A0C8-77DC-4898-BC24-D790C4688FD5" />
40
41 <sequenceFlow id="sid-29AC8F78-9D48-41DE-AE15-F4BED0250695" name="小于1000万，大于5000万" sourceRef="sid-C0E2C8D9-CE23-4E4C-A8CE-7B488B4075C5" targetRef="sid-3116DBE9-BD59-417A-9DCE-09CDAE6020B1">
42
43 <conditionExpression xsi:type="tFormalExpression"><![CDATA[${money<1000||money>5000}]]></conditionExpression>
44
45 </sequenceFlow>
46
47 <sequenceFlow id="sid-00D368BC-9FDF-49C3-AE22-D7D376F15BE6" name="小于1000万，大于5000万" sourceRef="sid-C0E2C8D9-CE23-4E4C-A8CE-7B488B4075C5" targetRef="sid-7CA796A7-F6D4-4204-938D-89EAB826196F">
48
49 <conditionExpression xsi:type="tFormalExpression"><![CDATA[${money<1000||money>5000}]]></conditionExpression>
50
51 </sequenceFlow>
52
53 <sequenceFlow id="sid-09BD3F0B-960D-475F-B0FC-70942F0F0CCE" name="大于1000万" sourceRef="sid-C0E2C8D9-CE23-4E4C-A8CE-7B488B4075C5" targetRef="sid-64B3C09A-2446-431F-962A-43022FCDA61B">
54
55 <conditionExpression xsi:type="tFormalExpression"><![CDATA[${money>1000}]]></conditionExpression>
56
57 </sequenceFlow>
58
59 <exclusiveGateway id="sid-43D42A97-348F-4F04-A2F9-B077510EA46B" />
60
61 <sequenceFlow id="sid-8D279A66-35FF-41D5-81C5-45D6CB4456D9" sourceRef="sid-E2A0931F-56FD-4F2B-9876-570A93D617E9" targetRef="sid-43D42A97-348F-4F04-A2F9-B077510EA46B" />
62
63 <sequenceFlow id="sid-E7B2EFDF-C859-48D5-A091-9FD84ED3BB0E" sourceRef="sid-64B3C09A-2446-431F-962A-43022FCDA61B" targetRef="sid-43D42A97-348F-4F04-A2F9-B077510EA46B" />
64
65 <textAnnotation id="sid-BA9B328D-7723-46D7-9DAF-28D49F06D175">
66
67 <text>小于1000万，律师一和律师二
68
69 1000-5000万，律师代表团
70
71 大于5000万，律师一、律师二和律师代表团</text>
72
73 </textAnnotation>
74
75 </process>
76
77 <bpmndi:BPMNDiagram id="BPMNDiagram_process">
78
79 <bpmndi:BPMNPlane bpmnElement="process" id="BPMNPlane_process">
80
81 <bpmndi:BPMNShape bpmnElement="sid-33E1F524-C016-49C3-97D5-97AC90206D75" id="BPMNShape_sid-33E1F524-C016-49C3-97D5-97AC90206D75">
82
83 <omgdc:Bounds height="30.0" width="30.0" x="45.0" y="190.0" />
84
85 </bpmndi:BPMNShape>
86
87 <bpmndi:BPMNShape bpmnElement="sid-AECF19D2-3743-43B2-9F6D-8F08BFE4108A" id="BPMNShape_sid-AECF19D2-3743-43B2-9F6D-8F08BFE4108A">
88
89 <omgdc:Bounds height="80.0" width="100.0" x="120.0" y="165.0" />
90
91 </bpmndi:BPMNShape>
92
93 <bpmndi:BPMNShape bpmnElement="sid-C0E2C8D9-CE23-4E4C-A8CE-7B488B4075C5" id="BPMNShape_sid-C0E2C8D9-CE23-4E4C-A8CE-7B488B4075C5">
94
95 <omgdc:Bounds height="40.0" width="40.0" x="255.0" y="185.0" />
96
97 </bpmndi:BPMNShape>
98
99 <bpmndi:BPMNShape bpmnElement="sid-3116DBE9-BD59-417A-9DCE-09CDAE6020B1" id="BPMNShape_sid-3116DBE9-BD59-417A-9DCE-09CDAE6020B1">
100
101 <omgdc:Bounds height="80.0" width="100.0" x="387.0" y="30.0" />
102
103 </bpmndi:BPMNShape>
104
105 <bpmndi:BPMNShape bpmnElement="sid-7CA796A7-F6D4-4204-938D-89EAB826196F" id="BPMNShape_sid-7CA796A7-F6D4-4204-938D-89EAB826196F">
106
107 <omgdc:Bounds height="80.0" width="100.0" x="387.0" y="165.0" />
108
109 </bpmndi:BPMNShape>
110
111 <bpmndi:BPMNShape bpmnElement="sid-E3E3A0C8-77DC-4898-BC24-D790C4688FD5" id="BPMNShape_sid-E3E3A0C8-77DC-4898-BC24-D790C4688FD5">
112
113 <omgdc:Bounds height="40.0" width="40.0" x="525.0" y="185.0" />
114
115 </bpmndi:BPMNShape>
116
117 <bpmndi:BPMNShape bpmnElement="sid-E2A0931F-56FD-4F2B-9876-570A93D617E9" id="BPMNShape_sid-E2A0931F-56FD-4F2B-9876-570A93D617E9">
118
119 <omgdc:Bounds height="80.0" width="100.0" x="585.0" y="60.0" />
120
121 </bpmndi:BPMNShape>
122
123 <bpmndi:BPMNShape bpmnElement="sid-64B3C09A-2446-431F-962A-43022FCDA61B" id="BPMNShape_sid-64B3C09A-2446-431F-962A-43022FCDA61B">
124
125 <omgdc:Bounds height="80.0" width="100.0" x="387.0" y="315.0" />
126
127 </bpmndi:BPMNShape>
128
129 <bpmndi:BPMNShape bpmnElement="sid-6908E784-3D2A-4FCB-9947-AD1C999CC444" id="BPMNShape_sid-6908E784-3D2A-4FCB-9947-AD1C999CC444">
130
131 <omgdc:Bounds height="80.0" width="100.0" x="780.0" y="165.0" />
132
133 </bpmndi:BPMNShape>
134
135 <bpmndi:BPMNShape bpmnElement="sid-FB66A49B-68FC-429C-9492-A02642F1FAEB" id="BPMNShape_sid-FB66A49B-68FC-429C-9492-A02642F1FAEB">
136
137 <omgdc:Bounds height="28.0" width="28.0" x="955.0" y="191.0" />
138
139 </bpmndi:BPMNShape>
140
141 <bpmndi:BPMNShape bpmnElement="sid-BA9B328D-7723-46D7-9DAF-28D49F06D175" id="BPMNShape_sid-BA9B328D-7723-46D7-9DAF-28D49F06D175">
142
143 <omgdc:Bounds height="69.0" width="262.0" x="217.0" y="428.0" />
144
145 </bpmndi:BPMNShape>
146
147 <bpmndi:BPMNShape bpmnElement="sid-43D42A97-348F-4F04-A2F9-B077510EA46B" id="BPMNShape_sid-43D42A97-348F-4F04-A2F9-B077510EA46B">
148
149 <omgdc:Bounds height="40.0" width="40.0" x="705.0" y="270.0" />
150
151 </bpmndi:BPMNShape>
152
153 <bpmndi:BPMNEdge bpmnElement="sid-3226BACB-CB22-437F-A34D-4FA927921D06" id="BPMNEdge_sid-3226BACB-CB22-437F-A34D-4FA927921D06">
154
155 <omgdi:waypoint x="487.0" y="70.0" />
156
157 <omgdi:waypoint x="545.0" y="70.0" />
158
159 <omgdi:waypoint x="545.0" y="185.0" />
160
161 </bpmndi:BPMNEdge>
162
163 <bpmndi:BPMNEdge bpmnElement="sid-09BD3F0B-960D-475F-B0FC-70942F0F0CCE" id="BPMNEdge_sid-09BD3F0B-960D-475F-B0FC-70942F0F0CCE">
164
165 <omgdi:waypoint x="275.5" y="224.5" />
166
167 <omgdi:waypoint x="275.5" y="355.0" />
168
169 <omgdi:waypoint x="387.0" y="355.0" />
170
171 </bpmndi:BPMNEdge>
172
173 <bpmndi:BPMNEdge bpmnElement="sid-52E3DEB1-C564-4A69-8C0B-F6AC43AB7BAB" id="BPMNEdge_sid-52E3DEB1-C564-4A69-8C0B-F6AC43AB7BAB">
174
175 <omgdi:waypoint x="880.0" y="205.0" />
176
177 <omgdi:waypoint x="955.0" y="205.0" />
178
179 </bpmndi:BPMNEdge>
180
181 <bpmndi:BPMNEdge bpmnElement="sid-2FFF2523-0CDE-4C50-906C-97E82371BA89" id="BPMNEdge_sid-2FFF2523-0CDE-4C50-906C-97E82371BA89">
182
183 <omgdi:waypoint x="564.5" y="205.5" />
184
185 <omgdi:waypoint x="635.0" y="205.5" />
186
187 <omgdi:waypoint x="635.0" y="140.0" />
188
189 </bpmndi:BPMNEdge>
190
191 <bpmndi:BPMNEdge bpmnElement="sid-CFE29827-C014-4890-9135-9E5C6E4B9ACA" id="BPMNEdge_sid-CFE29827-C014-4890-9135-9E5C6E4B9ACA">
192
193 <omgdi:waypoint x="743.0" y="292.0" />
194
195 <omgdi:waypoint x="830.0" y="292.0" />
196
197 <omgdi:waypoint x="830.0" y="245.0" />
198
199 </bpmndi:BPMNEdge>
200
201 <bpmndi:BPMNEdge bpmnElement="sid-29AC8F78-9D48-41DE-AE15-F4BED0250695" id="BPMNEdge_sid-29AC8F78-9D48-41DE-AE15-F4BED0250695">
202
203 <omgdi:waypoint x="275.5" y="185.5" />
204
205 <omgdi:waypoint x="275.5" y="70.0" />
206
207 <omgdi:waypoint x="387.0" y="70.0" />
208
209 </bpmndi:BPMNEdge>
210
211 <bpmndi:BPMNEdge bpmnElement="sid-8D279A66-35FF-41D5-81C5-45D6CB4456D9" id="BPMNEdge_sid-8D279A66-35FF-41D5-81C5-45D6CB4456D9">
212
213 <omgdi:waypoint x="685.0" y="100.0" />
214
215 <omgdi:waypoint x="725.0" y="100.0" />
216
217 <omgdi:waypoint x="725.4473684210526" y="270.44736842105266" />
218
219 </bpmndi:BPMNEdge>
220
221 <bpmndi:BPMNEdge bpmnElement="sid-95958564-1A4F-4518-ABF8-137A3E43D483" id="BPMNEdge_sid-95958564-1A4F-4518-ABF8-137A3E43D483">
222
223 <omgdi:waypoint x="220.0" y="205.0" />
224
225 <omgdi:waypoint x="255.0" y="205.0" />
226
227 </bpmndi:BPMNEdge>
228
229 <bpmndi:BPMNEdge bpmnElement="sid-00D368BC-9FDF-49C3-AE22-D7D376F15BE6" id="BPMNEdge_sid-00D368BC-9FDF-49C3-AE22-D7D376F15BE6">
230
231 <omgdi:waypoint x="294.55900621118013" y="205.44099378881987" />
232
233 <omgdi:waypoint x="387.0" y="205.15479876160992" />
234
235 </bpmndi:BPMNEdge>
236
237 <bpmndi:BPMNEdge bpmnElement="sid-E7B2EFDF-C859-48D5-A091-9FD84ED3BB0E" id="BPMNEdge_sid-E7B2EFDF-C859-48D5-A091-9FD84ED3BB0E">
238
239 <omgdi:waypoint x="487.0" y="355.0" />
240
241 <omgdi:waypoint x="725.0" y="355.0" />
242
243 <omgdi:waypoint x="725.0" y="310.0" />
244
245 </bpmndi:BPMNEdge>
246
247 <bpmndi:BPMNEdge bpmnElement="sid-CA6AE2C3-9E4B-41A6-A79D-67E932D4AF52" id="BPMNEdge_sid-CA6AE2C3-9E4B-41A6-A79D-67E932D4AF52">
248
249 <omgdi:waypoint x="487.0" y="205.0" />
250
251 <omgdi:waypoint x="525.0" y="205.0" />
252
253 </bpmndi:BPMNEdge>
254
255 <bpmndi:BPMNEdge bpmnElement="sid-A63E67C5-E7E3-4A9C-9A35-7B98211DDDB9" id="BPMNEdge_sid-A63E67C5-E7E3-4A9C-9A35-7B98211DDDB9">
256
257 <omgdi:waypoint x="75.0" y="205.0" />
258
259 <omgdi:waypoint x="120.0" y="205.0" />
260
261 </bpmndi:BPMNEdge>
262
263 </bpmndi:BPMNPlane>
264
265 </bpmndi:BPMNDiagram>
266
267 </definitions>
金额5050万
你会发现流程出现了混乱，跑得快的流程具有一票否决的能力。这是因为排他网关只是需要等到一条合流便可以继续往下执行。
假如是包容网关和并行网关呢？
流程设计图：
流程代码：
1 <?xml version='1.0' encoding='UTF-8'?>
2
3 <definitions xmlns="http://www.omg.org/spec/BPMN/20100524/MODEL" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:activiti="http://activiti.org/bpmn" xmlns:bpmndi="http://www.omg.org/spec/BPMN/20100524/DI" xmlns:omgdc="http://www.omg.org/spec/DD/20100524/DC" xmlns:omgdi="http://www.omg.org/spec/DD/20100524/DI" typeLanguage="http://www.w3.org/2001/XMLSchema" expressionLanguage="http://www.w3.org/1999/XPath" targetNamespace="http://www.activiti.org/processdef">
4
5 <process id="process" isExecutable="true">
6
7 <startEvent id="sid-33E1F524-C016-49C3-97D5-97AC90206D75" />
8
9 <userTask id="sid-AECF19D2-3743-43B2-9F6D-8F08BFE4108A" name="起草合同" activiti:assignee="admin" />
10
11 <sequenceFlow id="sid-A63E67C5-E7E3-4A9C-9A35-7B98211DDDB9" sourceRef="sid-33E1F524-C016-49C3-97D5-97AC90206D75" targetRef="sid-AECF19D2-3743-43B2-9F6D-8F08BFE4108A" />
12
13 <inclusiveGateway id="sid-C0E2C8D9-CE23-4E4C-A8CE-7B488B4075C5" />
14
15 <sequenceFlow id="sid-95958564-1A4F-4518-ABF8-137A3E43D483" sourceRef="sid-AECF19D2-3743-43B2-9F6D-8F08BFE4108A" targetRef="sid-C0E2C8D9-CE23-4E4C-A8CE-7B488B4075C5" />
16
17 <userTask id="sid-3116DBE9-BD59-417A-9DCE-09CDAE6020B1" name="律师1" activiti:assignee="admin" />
18
19 <userTask id="sid-7CA796A7-F6D4-4204-938D-89EAB826196F" name="律师2" activiti:assignee="admin" />
20
21 <inclusiveGateway id="sid-E3E3A0C8-77DC-4898-BC24-D790C4688FD5" />
22
23 <userTask id="sid-E2A0931F-56FD-4F2B-9876-570A93D617E9" name="法律顾问" activiti:assignee="admin" />
24
25 <sequenceFlow id="sid-2FFF2523-0CDE-4C50-906C-97E82371BA89" sourceRef="sid-E3E3A0C8-77DC-4898-BC24-D790C4688FD5" targetRef="sid-E2A0931F-56FD-4F2B-9876-570A93D617E9" />
26
27 <userTask id="sid-64B3C09A-2446-431F-962A-43022FCDA61B" name="律师代表团" activiti:assignee="admin" />
28
29 <userTask id="sid-6908E784-3D2A-4FCB-9947-AD1C999CC444" name="签订合同" activiti:assignee="admin" />
30
31 <endEvent id="sid-FB66A49B-68FC-429C-9492-A02642F1FAEB" />
32
33 <sequenceFlow id="sid-52E3DEB1-C564-4A69-8C0B-F6AC43AB7BAB" sourceRef="sid-6908E784-3D2A-4FCB-9947-AD1C999CC444" targetRef="sid-FB66A49B-68FC-429C-9492-A02642F1FAEB" />
34
35 <sequenceFlow id="sid-3226BACB-CB22-437F-A34D-4FA927921D06" sourceRef="sid-3116DBE9-BD59-417A-9DCE-09CDAE6020B1" targetRef="sid-E3E3A0C8-77DC-4898-BC24-D790C4688FD5" />
36
37 <sequenceFlow id="sid-CA6AE2C3-9E4B-41A6-A79D-67E932D4AF52" sourceRef="sid-7CA796A7-F6D4-4204-938D-89EAB826196F" targetRef="sid-E3E3A0C8-77DC-4898-BC24-D790C4688FD5" />
38
39 <sequenceFlow id="sid-29AC8F78-9D48-41DE-AE15-F4BED0250695" name="小于1000万，大于5000万" sourceRef="sid-C0E2C8D9-CE23-4E4C-A8CE-7B488B4075C5" targetRef="sid-3116DBE9-BD59-417A-9DCE-09CDAE6020B1">
40
41 <conditionExpression xsi:type="tFormalExpression"><![CDATA[${money<1000||money>5000}]]></conditionExpression>
42
43 </sequenceFlow>
44
45 <sequenceFlow id="sid-00D368BC-9FDF-49C3-AE22-D7D376F15BE6" name="小于1000万，大于5000万" sourceRef="sid-C0E2C8D9-CE23-4E4C-A8CE-7B488B4075C5" targetRef="sid-7CA796A7-F6D4-4204-938D-89EAB826196F">
46
47 <conditionExpression xsi:type="tFormalExpression"><![CDATA[${money<1000||money>5000}]]></conditionExpression>
48
49 </sequenceFlow>
50
51 <sequenceFlow id="sid-09BD3F0B-960D-475F-B0FC-70942F0F0CCE" name="大于1000万" sourceRef="sid-C0E2C8D9-CE23-4E4C-A8CE-7B488B4075C5" targetRef="sid-64B3C09A-2446-431F-962A-43022FCDA61B">
52
53 <conditionExpression xsi:type="tFormalExpression"><![CDATA[${money>1000}]]></conditionExpression>
54
55 </sequenceFlow>
56
57 <parallelGateway id="sid-7F563745-5DE7-4C48-A675-63772D7DEE24" />
58
59 <sequenceFlow id="sid-8D279A66-35FF-41D5-81C5-45D6CB4456D9" sourceRef="sid-E2A0931F-56FD-4F2B-9876-570A93D617E9" targetRef="sid-7F563745-5DE7-4C48-A675-63772D7DEE24" />
60
61 <sequenceFlow id="sid-CFE29827-C014-4890-9135-9E5C6E4B9ACA" sourceRef="sid-7F563745-5DE7-4C48-A675-63772D7DEE24" targetRef="sid-6908E784-3D2A-4FCB-9947-AD1C999CC444" />
62
63 <sequenceFlow id="sid-E7B2EFDF-C859-48D5-A091-9FD84ED3BB0E" sourceRef="sid-64B3C09A-2446-431F-962A-43022FCDA61B" targetRef="sid-7F563745-5DE7-4C48-A675-63772D7DEE24" />
64
65 <textAnnotation id="sid-BA9B328D-7723-46D7-9DAF-28D49F06D175">
66
67 <text>小于1000万，律师一和律师二
68
69 1000-5000万，律师代表团
70
71 大于5000万，律师一、律师二和律师代表团</text>
72
73 </textAnnotation>
74
75 </process>
76
77 <bpmndi:BPMNDiagram id="BPMNDiagram_process">
78
79 <bpmndi:BPMNPlane bpmnElement="process" id="BPMNPlane_process">
80
81 <bpmndi:BPMNShape bpmnElement="sid-33E1F524-C016-49C3-97D5-97AC90206D75" id="BPMNShape_sid-33E1F524-C016-49C3-97D5-97AC90206D75">
82
83 <omgdc:Bounds height="30.0" width="30.0" x="45.0" y="190.0" />
84
85 </bpmndi:BPMNShape>
86
87 <bpmndi:BPMNShape bpmnElement="sid-AECF19D2-3743-43B2-9F6D-8F08BFE4108A" id="BPMNShape_sid-AECF19D2-3743-43B2-9F6D-8F08BFE4108A">
88
89 <omgdc:Bounds height="80.0" width="100.0" x="120.0" y="165.0" />
90
91 </bpmndi:BPMNShape>
92
93 <bpmndi:BPMNShape bpmnElement="sid-C0E2C8D9-CE23-4E4C-A8CE-7B488B4075C5" id="BPMNShape_sid-C0E2C8D9-CE23-4E4C-A8CE-7B488B4075C5">
94
95 <omgdc:Bounds height="40.0" width="40.0" x="255.0" y="185.0" />
96
97 </bpmndi:BPMNShape>
98
99 <bpmndi:BPMNShape bpmnElement="sid-3116DBE9-BD59-417A-9DCE-09CDAE6020B1" id="BPMNShape_sid-3116DBE9-BD59-417A-9DCE-09CDAE6020B1">
100
101 <omgdc:Bounds height="80.0" width="100.0" x="387.0" y="30.0" />
102
103 </bpmndi:BPMNShape>
104
105 <bpmndi:BPMNShape bpmnElement="sid-7CA796A7-F6D4-4204-938D-89EAB826196F" id="BPMNShape_sid-7CA796A7-F6D4-4204-938D-89EAB826196F">
106
107 <omgdc:Bounds height="80.0" width="100.0" x="387.0" y="165.0" />
108
109 </bpmndi:BPMNShape>
110
111 <bpmndi:BPMNShape bpmnElement="sid-E3E3A0C8-77DC-4898-BC24-D790C4688FD5" id="BPMNShape_sid-E3E3A0C8-77DC-4898-BC24-D790C4688FD5">
112
113 <omgdc:Bounds height="40.0" width="40.0" x="525.0" y="185.0" />
114
115 </bpmndi:BPMNShape>
116
117 <bpmndi:BPMNShape bpmnElement="sid-E2A0931F-56FD-4F2B-9876-570A93D617E9" id="BPMNShape_sid-E2A0931F-56FD-4F2B-9876-570A93D617E9">
118
119 <omgdc:Bounds height="80.0" width="100.0" x="585.0" y="60.0" />
120
121 </bpmndi:BPMNShape>
122
123 <bpmndi:BPMNShape bpmnElement="sid-64B3C09A-2446-431F-962A-43022FCDA61B" id="BPMNShape_sid-64B3C09A-2446-431F-962A-43022FCDA61B">
124
125 <omgdc:Bounds height="80.0" width="100.0" x="387.0" y="315.0" />
126
127 </bpmndi:BPMNShape>
128
129 <bpmndi:BPMNShape bpmnElement="sid-6908E784-3D2A-4FCB-9947-AD1C999CC444" id="BPMNShape_sid-6908E784-3D2A-4FCB-9947-AD1C999CC444">
130
131 <omgdc:Bounds height="80.0" width="100.0" x="780.0" y="165.0" />
132
133 </bpmndi:BPMNShape>
134
135 <bpmndi:BPMNShape bpmnElement="sid-FB66A49B-68FC-429C-9492-A02642F1FAEB" id="BPMNShape_sid-FB66A49B-68FC-429C-9492-A02642F1FAEB">
136
137 <omgdc:Bounds height="28.0" width="28.0" x="955.0" y="191.0" />
138
139 </bpmndi:BPMNShape>
140
141 <bpmndi:BPMNShape bpmnElement="sid-BA9B328D-7723-46D7-9DAF-28D49F06D175" id="BPMNShape_sid-BA9B328D-7723-46D7-9DAF-28D49F06D175">
142
143 <omgdc:Bounds height="69.0" width="262.0" x="217.0" y="428.0" />
144
145 </bpmndi:BPMNShape>
146
147 <bpmndi:BPMNShape bpmnElement="sid-7F563745-5DE7-4C48-A675-63772D7DEE24" id="BPMNShape_sid-7F563745-5DE7-4C48-A675-63772D7DEE24">
148
149 <omgdc:Bounds height="40.0" width="40.0" x="705.0" y="270.0" />
150
151 </bpmndi:BPMNShape>
152
153 <bpmndi:BPMNEdge bpmnElement="sid-3226BACB-CB22-437F-A34D-4FA927921D06" id="BPMNEdge_sid-3226BACB-CB22-437F-A34D-4FA927921D06">
154
155 <omgdi:waypoint x="487.0" y="70.0" />
156
157 <omgdi:waypoint x="545.0" y="70.0" />
158
159 <omgdi:waypoint x="545.0" y="185.0" />
160
161 </bpmndi:BPMNEdge>
162
163 <bpmndi:BPMNEdge bpmnElement="sid-09BD3F0B-960D-475F-B0FC-70942F0F0CCE" id="BPMNEdge_sid-09BD3F0B-960D-475F-B0FC-70942F0F0CCE">
164
165 <omgdi:waypoint x="275.5" y="224.5" />
166
167 <omgdi:waypoint x="275.5" y="355.0" />
168
169 <omgdi:waypoint x="387.0" y="355.0" />
170
171 </bpmndi:BPMNEdge>
172
173 <bpmndi:BPMNEdge bpmnElement="sid-52E3DEB1-C564-4A69-8C0B-F6AC43AB7BAB" id="BPMNEdge_sid-52E3DEB1-C564-4A69-8C0B-F6AC43AB7BAB">
174
175 <omgdi:waypoint x="880.0" y="205.0" />
176
177 <omgdi:waypoint x="955.0" y="205.0" />
178
179 </bpmndi:BPMNEdge>
180
181 <bpmndi:BPMNEdge bpmnElement="sid-2FFF2523-0CDE-4C50-906C-97E82371BA89" id="BPMNEdge_sid-2FFF2523-0CDE-4C50-906C-97E82371BA89">
182
183 <omgdi:waypoint x="564.5" y="205.5" />
184
185 <omgdi:waypoint x="635.0" y="205.5" />
186
187 <omgdi:waypoint x="635.0" y="140.0" />
188
189 </bpmndi:BPMNEdge>
190
191 <bpmndi:BPMNEdge bpmnElement="sid-29AC8F78-9D48-41DE-AE15-F4BED0250695" id="BPMNEdge_sid-29AC8F78-9D48-41DE-AE15-F4BED0250695">
192
193 <omgdi:waypoint x="275.5" y="185.5" />
194
195 <omgdi:waypoint x="275.5" y="70.0" />
196
197 <omgdi:waypoint x="387.0" y="70.0" />
198
199 </bpmndi:BPMNEdge>
200
201 <bpmndi:BPMNEdge bpmnElement="sid-8D279A66-35FF-41D5-81C5-45D6CB4456D9" id="BPMNEdge_sid-8D279A66-35FF-41D5-81C5-45D6CB4456D9">
202
203 <omgdi:waypoint x="685.0" y="100.0" />
204
205 <omgdi:waypoint x="725.0" y="100.0" />
206
207 <omgdi:waypoint x="725.4473684210526" y="270.44736842105266" />
208
209 </bpmndi:BPMNEdge>
210
211 <bpmndi:BPMNEdge bpmnElement="sid-CFE29827-C014-4890-9135-9E5C6E4B9ACA" id="BPMNEdge_sid-CFE29827-C014-4890-9135-9E5C6E4B9ACA">
212
213 <omgdi:waypoint x="744.2311320754717" y="290.7688679245283" />
214
215 <omgdi:waypoint x="830.0" y="292.0" />
216
217 <omgdi:waypoint x="830.0" y="245.0" />
218
219 </bpmndi:BPMNEdge>
220
221 <bpmndi:BPMNEdge bpmnElement="sid-95958564-1A4F-4518-ABF8-137A3E43D483" id="BPMNEdge_sid-95958564-1A4F-4518-ABF8-137A3E43D483">
222
223 <omgdi:waypoint x="220.0" y="205.0" />
224
225 <omgdi:waypoint x="255.0" y="205.0" />
226
227 </bpmndi:BPMNEdge>
228
229 <bpmndi:BPMNEdge bpmnElement="sid-00D368BC-9FDF-49C3-AE22-D7D376F15BE6" id="BPMNEdge_sid-00D368BC-9FDF-49C3-AE22-D7D376F15BE6">
230
231 <omgdi:waypoint x="294.55900621118013" y="205.44099378881987" />
232
233 <omgdi:waypoint x="387.0" y="205.15479876160992" />
234
235 </bpmndi:BPMNEdge>
236
237 <bpmndi:BPMNEdge bpmnElement="sid-E7B2EFDF-C859-48D5-A091-9FD84ED3BB0E" id="BPMNEdge_sid-E7B2EFDF-C859-48D5-A091-9FD84ED3BB0E">
238
239 <omgdi:waypoint x="487.0" y="355.0" />
240
241 <omgdi:waypoint x="725.0" y="355.0" />
242
243 <omgdi:waypoint x="725.0" y="310.0" />
244
245 </bpmndi:BPMNEdge>
246
247 <bpmndi:BPMNEdge bpmnElement="sid-CA6AE2C3-9E4B-41A6-A79D-67E932D4AF52" id="BPMNEdge_sid-CA6AE2C3-9E4B-41A6-A79D-67E932D4AF52">
248
249 <omgdi:waypoint x="487.0" y="205.0" />
250
251 <omgdi:waypoint x="525.0" y="205.0" />
252
253 </bpmndi:BPMNEdge>
254
255 <bpmndi:BPMNEdge bpmnElement="sid-A63E67C5-E7E3-4A9C-9A35-7B98211DDDB9" id="BPMNEdge_sid-A63E67C5-E7E3-4A9C-9A35-7B98211DDDB9">
256
257 <omgdi:waypoint x="75.0" y="205.0" />
258
259 <omgdi:waypoint x="120.0" y="205.0" />
260
261 </bpmndi:BPMNEdge>
262
263 </bpmndi:BPMNPlane>
264
265 </bpmndi:BPMNDiagram>
266
267 </definitions>
金额5050万
完成律师代表团的任务，会不会直接跳到合同签订？如果不会，说明，流程是正常的，如果是会，说明流程已经发生了混乱。
可以看出流程正常的。
结论
综上得出，包容网关可以和并行网关混合使用。在个别情况下面。
并行网关+包容网关=并行网关（不会混乱）
包容网关+并行网关=包容网关（不会混乱）
排他网关+包容网关=排他网关（不会混乱）
包容网关+排他网关=排他网关（会混乱）
最后
以上就是鲜艳西牛为你收集整理的包容网关 Inclusive Gateway什么是包容网关？定义：案例：流程设计：流程代码：假如是包容网关和排他网关：假如是包容网关和并行网关呢？的全部内容，希望文章能够帮你解决包容网关 Inclusive Gateway什么是包容网关？定义：案例：流程设计：流程代码：假如是包容网关和排他网关：假如是包容网关和并行网关呢？所遇到的程序开发问题。
如果觉得靠谱客网站的内容还不错，欢迎将靠谱客网站推荐给程序员好友。
本图文内容来源于网友提供，作为学习参考使用，或来自网络收集整理，版权属于原作者所有。
发表评论 取消回复
